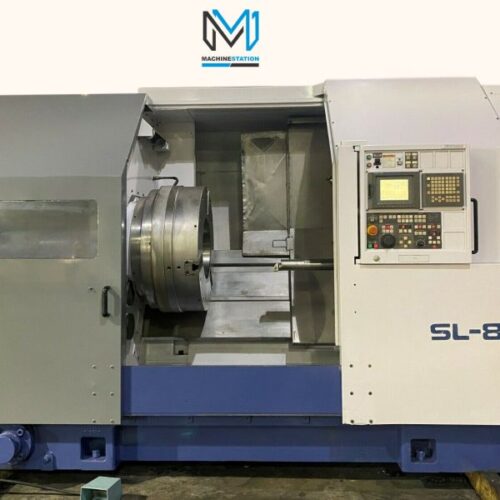

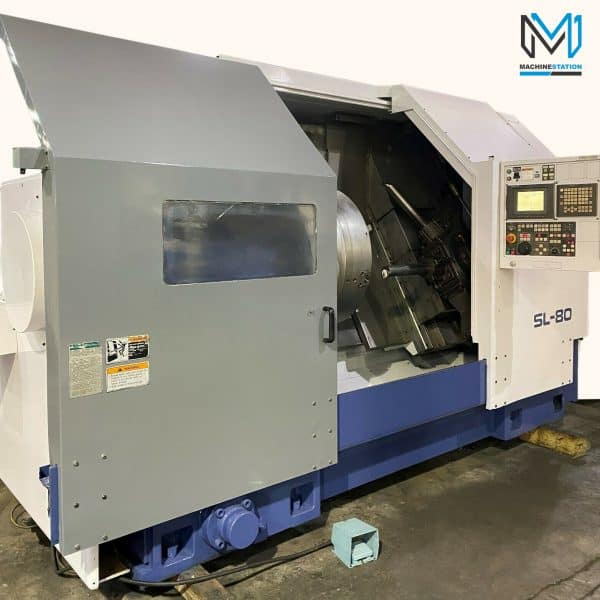

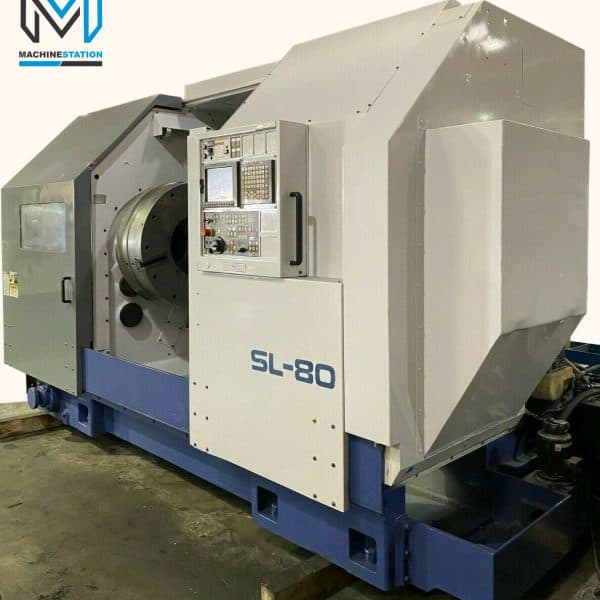

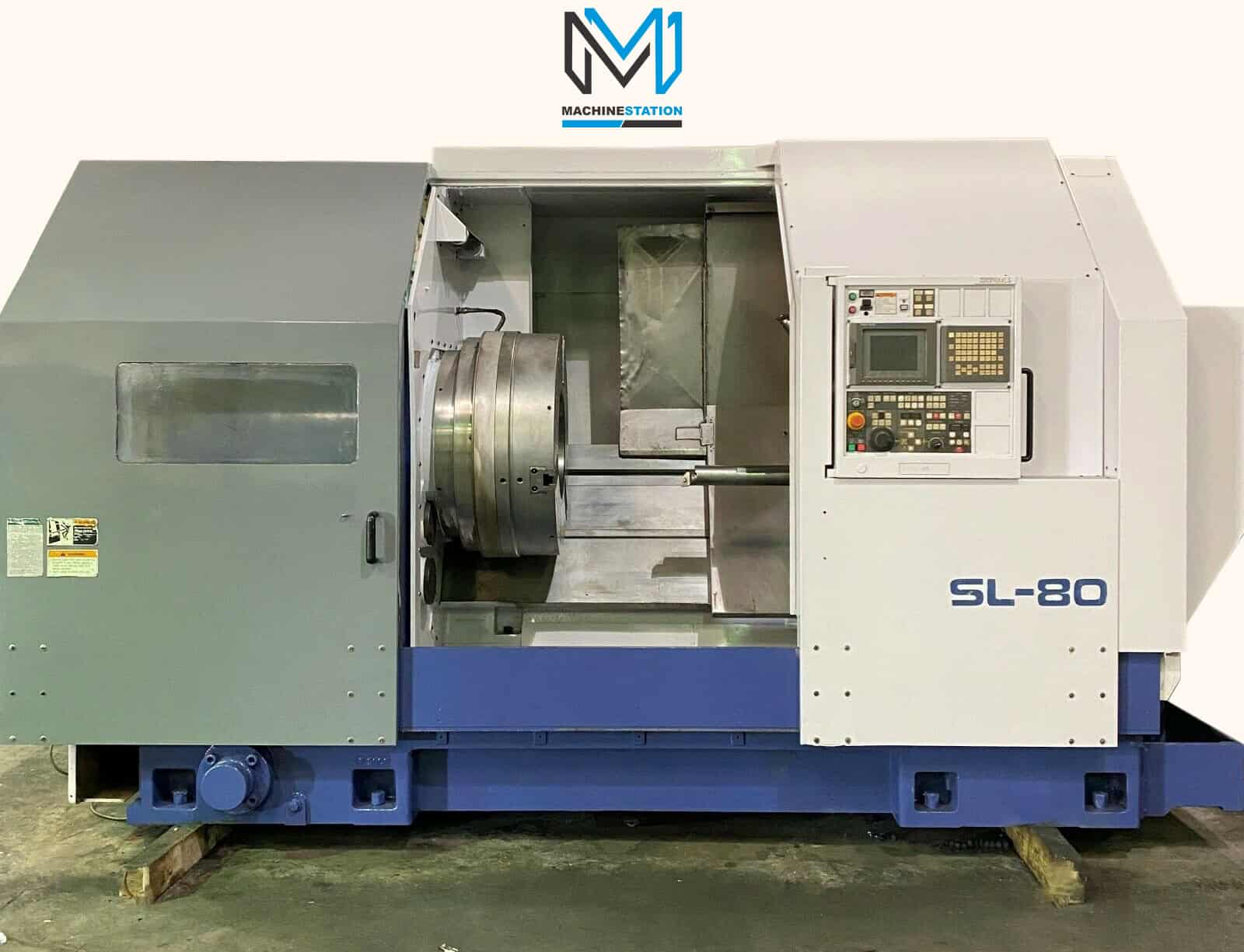

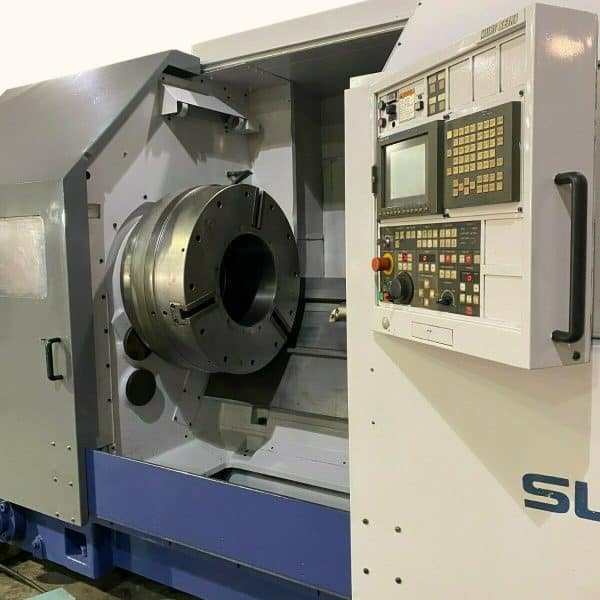

Mori Seiki SL-80 CNC Turning Center
Out of stock
SKU: |
1822 |
Make/Model: |
Mori Seiki SL-80 |
Video: |
[fusion_button link=”https://www.youtube.com/watch?v=_EvhT6n_7VI” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button] |
MORI SEIKI SL-80 CNC TURNING CENTER |
Make |
Mori Seiki |
Model No. |
SL-80 |
SKU |
1822 |
Year |
1997, installed 1999 |
Serial # |
332 |
Condition |
Very Good |
- Equipped With:
- 6-Station Turret Box Ways Design
- A1-20 10.5″ Big Bore Spindle
- Long Bed Machine

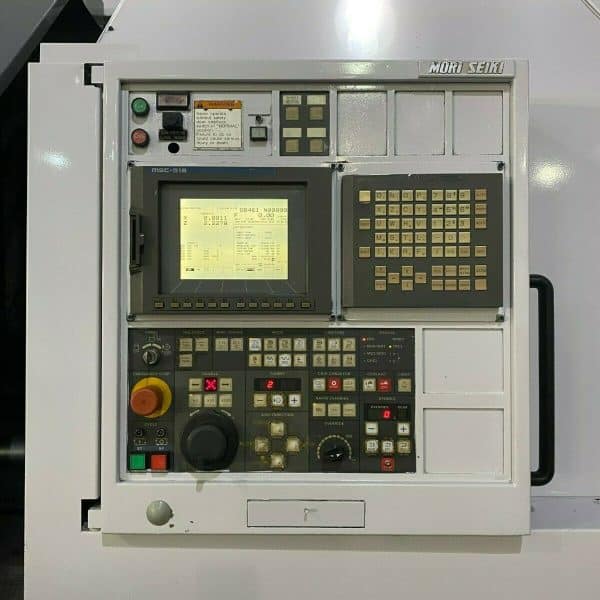

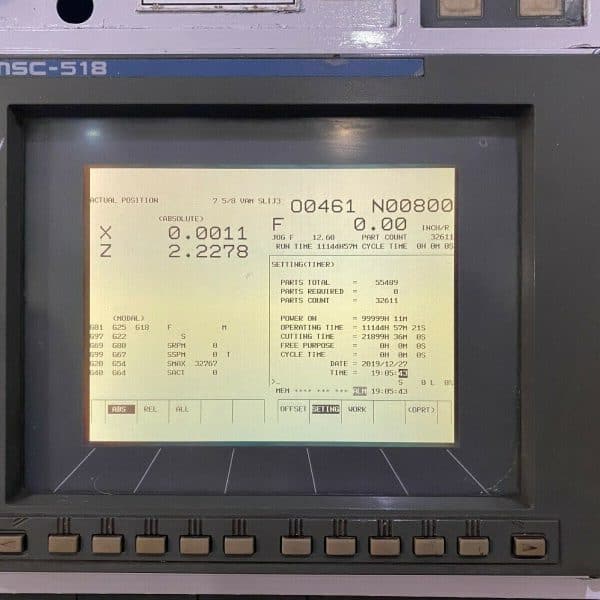

- Fanuc 18i-T CNC Control

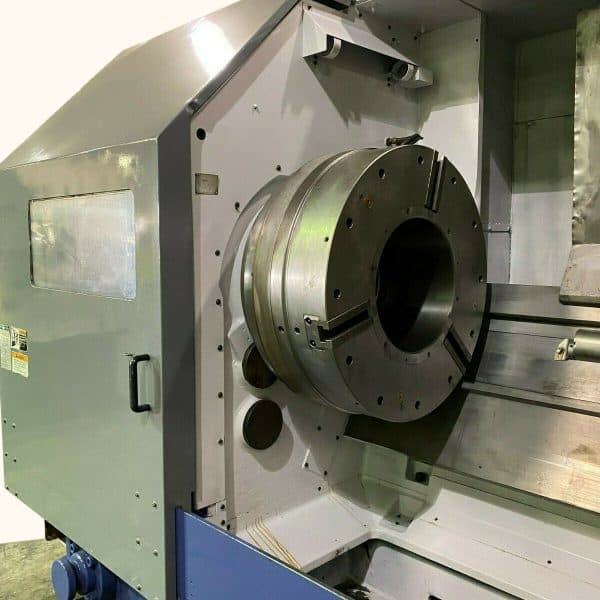

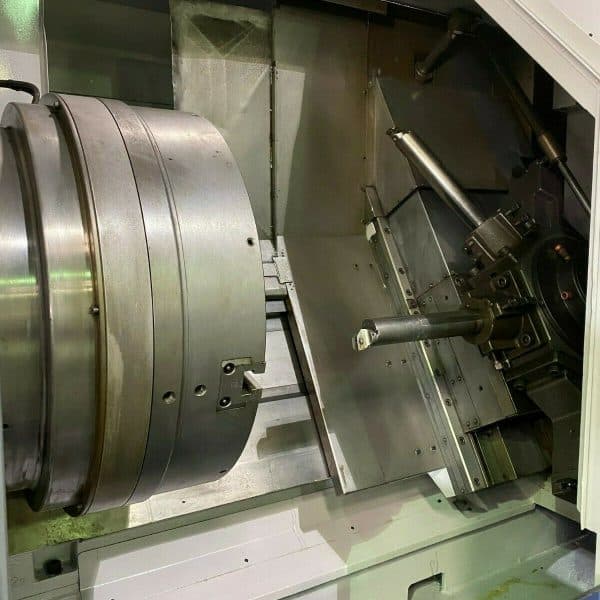

- 33″ 3-Jaw Air Chuck
- Geared Head spindle for powerful torque

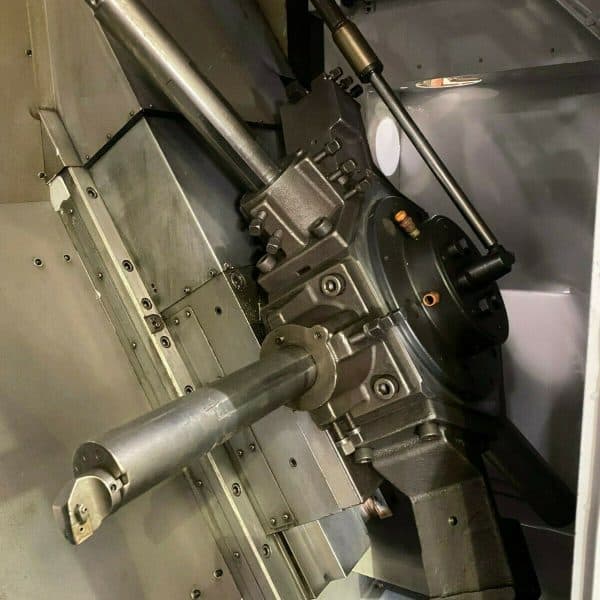

- Hydraulic Turret
- Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Coolant Tank Comes with Chip Conveyor
- Specifications:
- Max Turning Diameter: 35.4″
- Max Turning Length: 43.3″
- Max Bar Capacity: 10.2″
- Swing Over Carriage: 35.4″
- Swing Over Bed: 39.9″
- Travel:
- X Axis Travel: 16.5″
- Z Axis Travel: 43.3″
- Rapid Traverse X Axis: 197 IPM
- Rapid Traverse Z Axis: 315 IPM
- Spindle:
- Spindle Nose: A1-20
- Spindle Bore: 10.5″
- Spindle Speed: 4 – 550 RPM
- Spindle Motor: 50 HP Turret
- Capacity: 6 Stations Turret
- General:

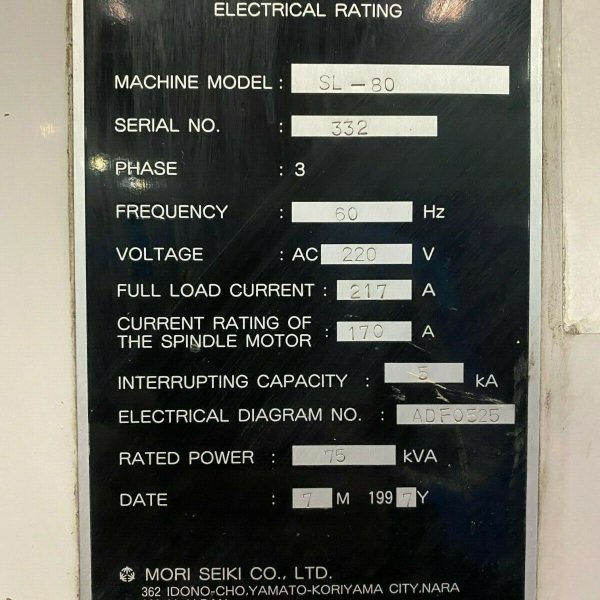

- Power Source: AC 220 V, Three Phase, 60 Hz Power Requirement: 68 Amps Overall
- Dimensions: 180″ x 80″ x 98″ High
- Overall Dimensions: 220″ x 80″ x 98″ High with Chip Conveyor
- Weight : 33,000 lbs Approx.
