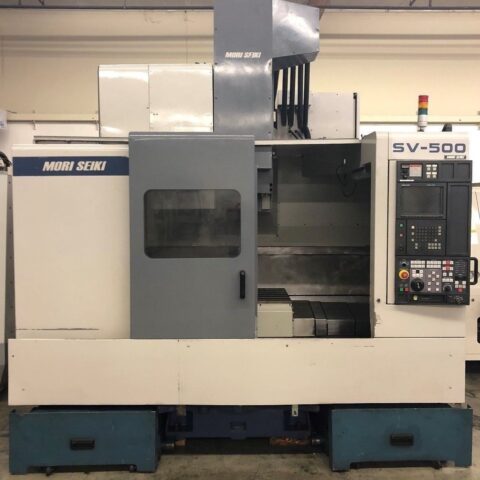

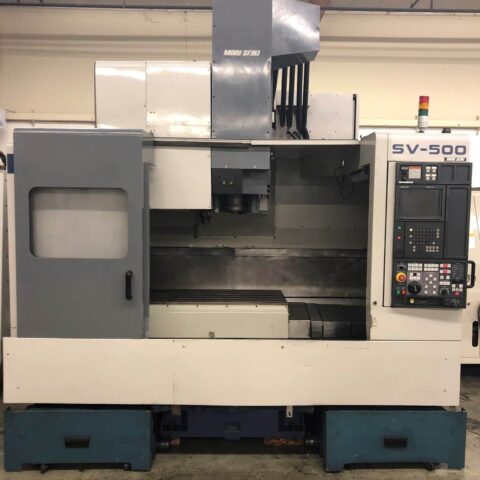

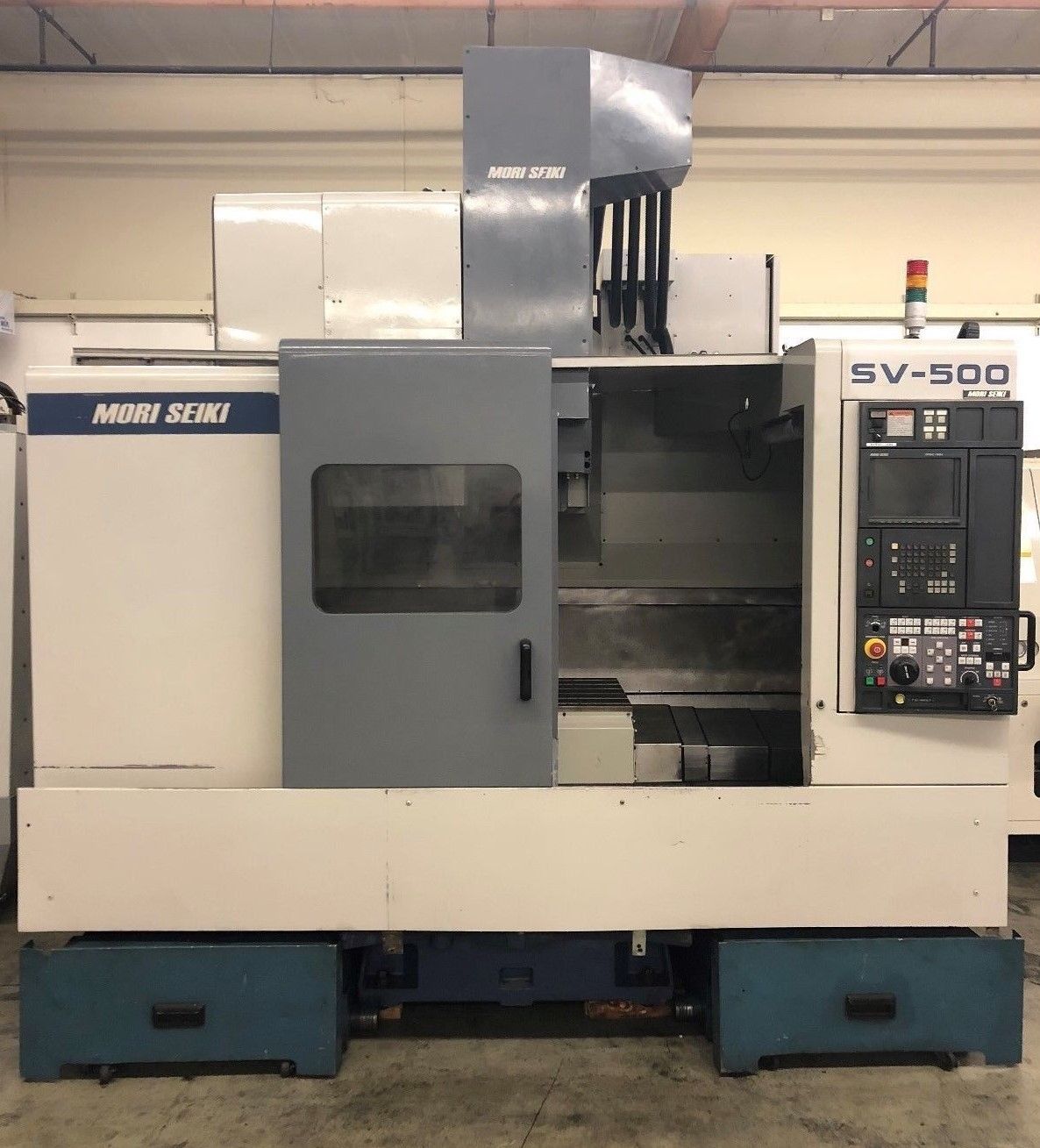

MORI SEIKI SV-500B/40 CNC Vertical Machining Center

*Price Shown is Estimated Monthly Payment*

On our Floor fully working. This 4020 Mill has 10,000RPM, 30 tool Side Mount Tool changer, Fanuc Control,expanded Memory and many more features.”

Share

Description

MORI SEIKI SV-500B/40 CNC VERTICAL MACHINING CENTER
Make Mori Seiki
Model No. SV-500B/40
Year 04/1998

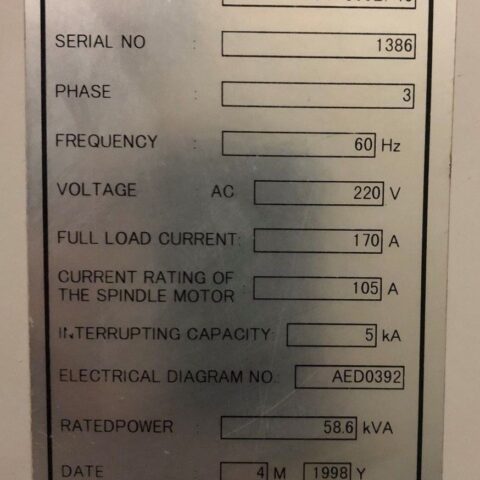

Serial # 1386
Condition Very Good

“On our Floor fully working. This 4020 Mill has 10,000RPM, 30 tool Side Mount Tool changer, Fanuc Control,expanded Memory and many more features.”

  • MORI SEIKI SV-500B/40 Features:

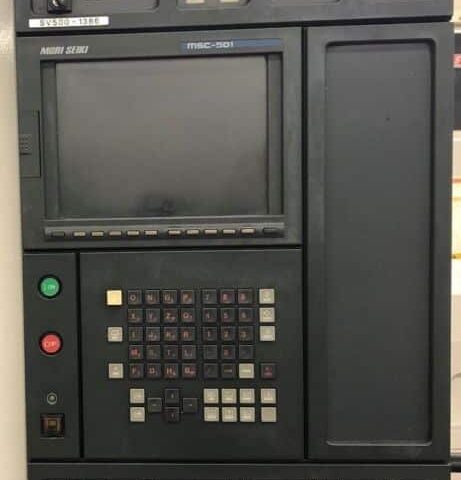

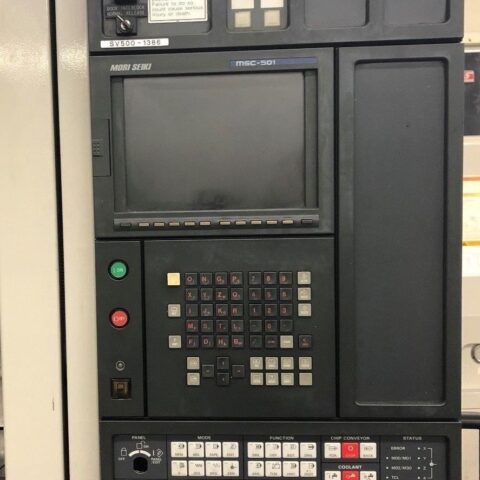

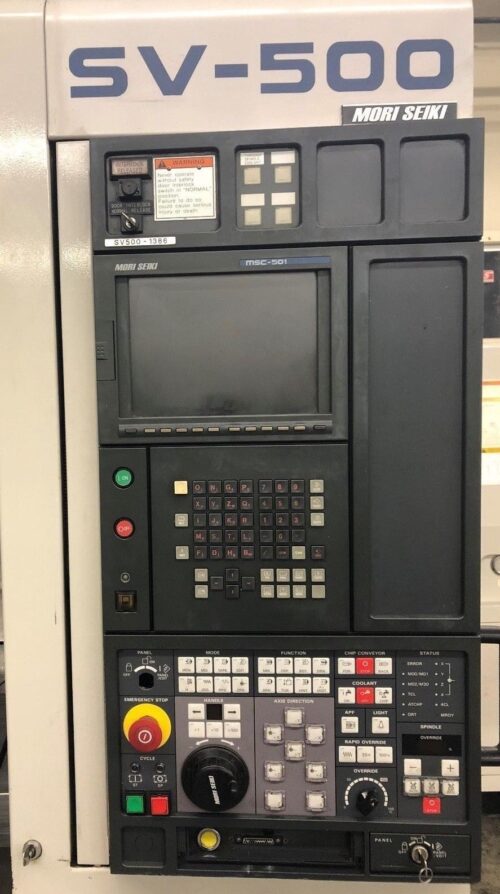

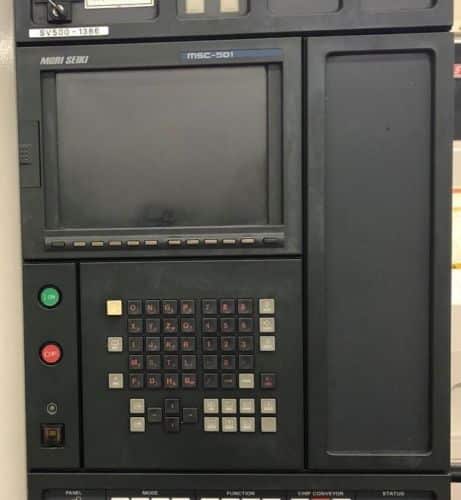

  • MSC-501 (Fanuc) CNC Control
  • High Precision 10,000 RPM Spindle
  • 40 Taper Geared Head Spindle
  • 30 Tools Side Mount Bidirectional Tool Changer
  • PCMCIA Card Slot
  • Box Way Construction All Axis
  • Powerful 30 hp high torque spindle motor
  • Spindle Orientation
  • Rigid Tapping
  • Fast Rapid Traverse Rate
  • Flood coolant with large separate coolant tank
  • Work light
  • Spindle Chiller
  • MORI SEIKI SV-500B/40 Specifications:
  • Travels:
  • X-Axis: 40.2″
  • Y-Axis: 20.1″
  • Z-Axis: 20.1″
  • Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

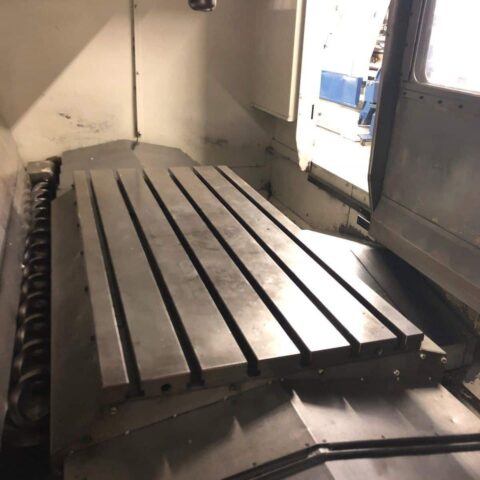

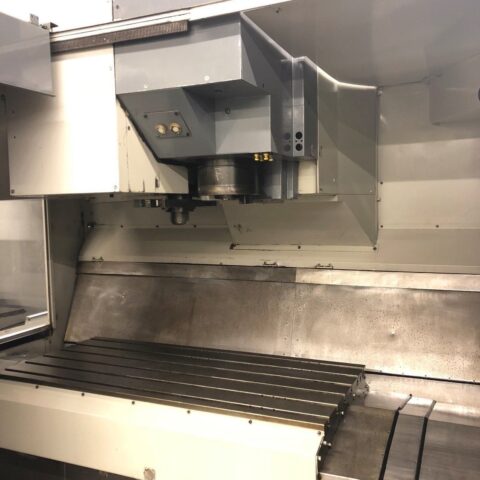

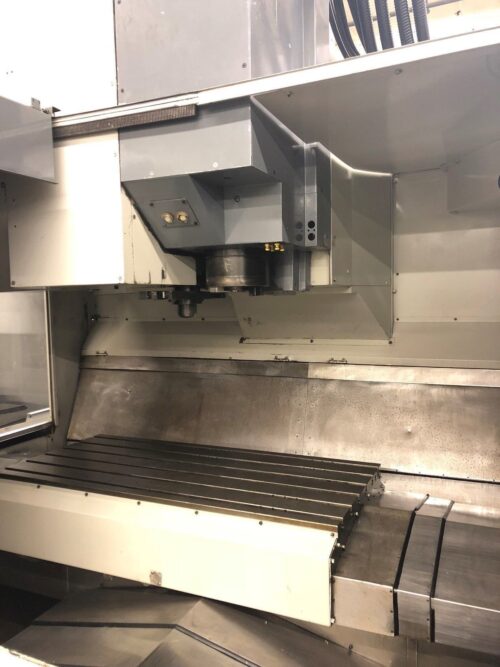

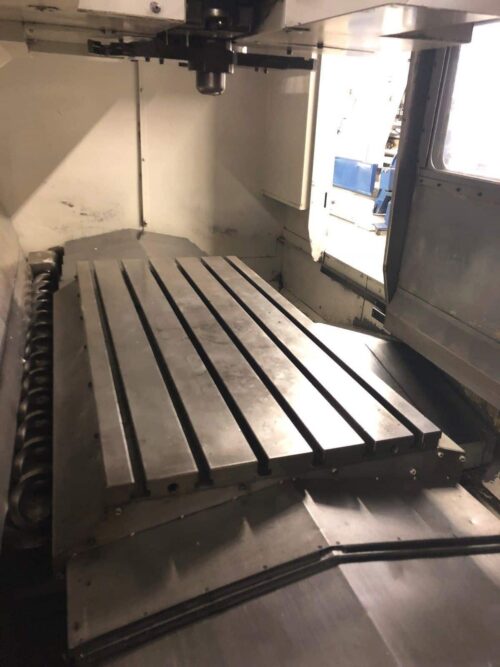

  • Table:
  • Length: 52.0″
  • Width: 23.6″
  • Max Weight on Table: 2800 lbs
  • T-Slot no. & Width: 6 X 0.7″
  • Gear Head Spindle:
  • Taper Size: 40
  • Speed Range: 60 – 10,000 RPM
  • Spindle Power: 30 HP
  • Feed rates:
  • Rapid X,Y & Z: 1260 inch/Per Minute
  • Cutting Feedrate: 630″ inch/ Per Minute
  • Automatic Tool Changer:
  • 40 Taper
  • Capacity: 30
  • Max Tool Weight: 31.6 lbs
  • Max Tool Length: 11.8″
  • Max Tool Dia.: 4.9″
  • Tool Change Time: 1.5 second
  • General:
  • Air Required: 90 psi, 4 scfm

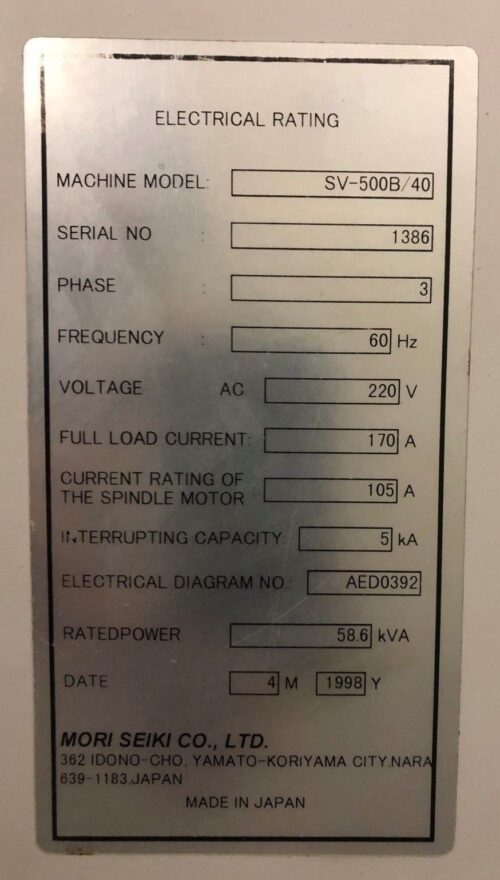

  • Power: 205-220v / 50kva / 3-Phase
  • Overall Dimensions: 132″ x 116″ x 110″ High
  • Weight: 16500 lbs

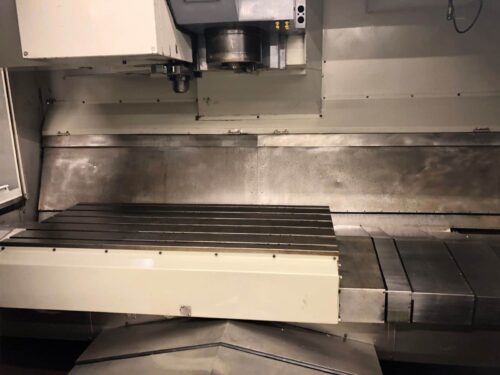

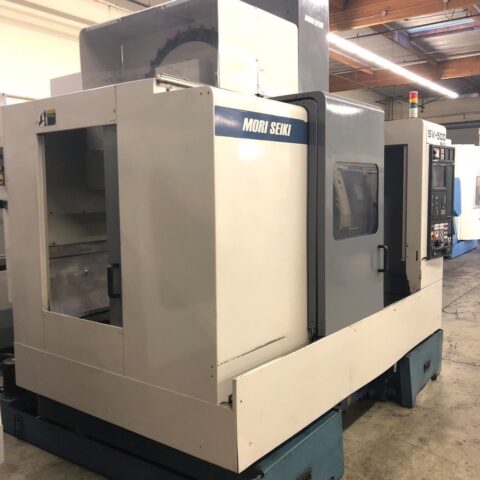

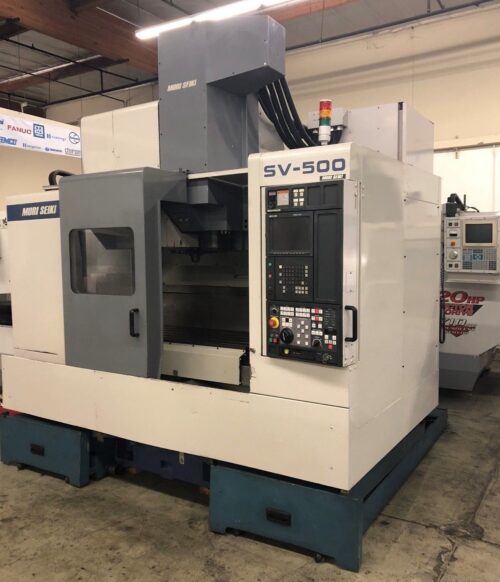

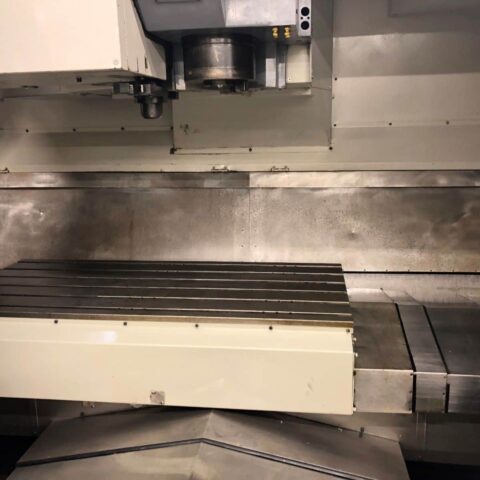

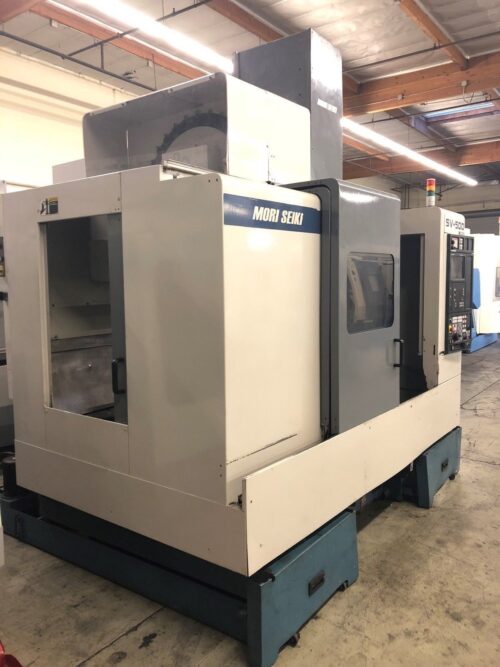

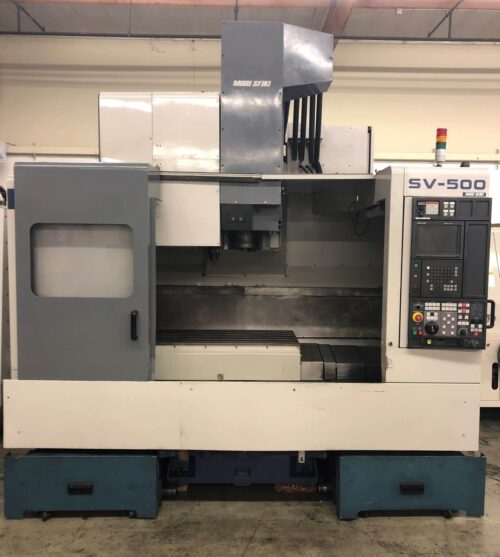

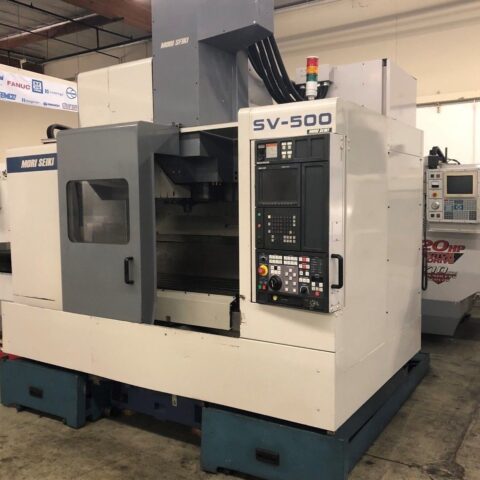

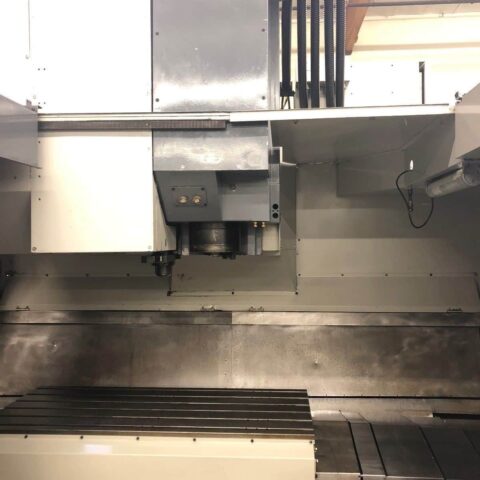

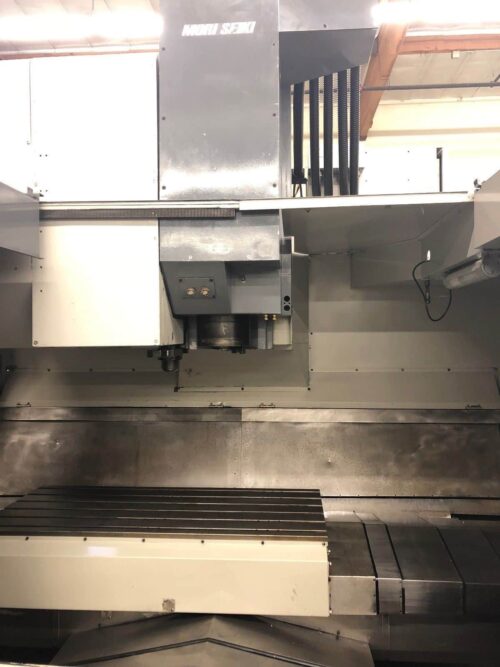

MORI SEIKI SV-500B/40 Comes as shown in pictures.
