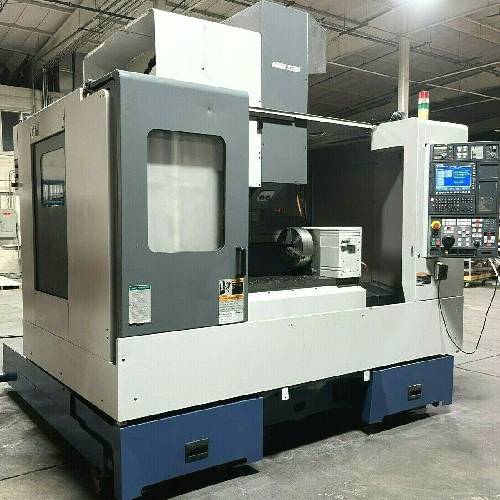

Mori Seiki SV-503B CNC Vertical Machining Center

Share

Description

MORI SEIKI SV-503BCNC VERTICAL MACHINING CENTER
SKU 2277
Make MORI SEIKI
Model No. SV-503B
Serial No.: 2570
Year 2000/2001
Condition Very Good
Cutting Hoursn 9081 Only
  • Features:
  • MSX-501III CNC Control

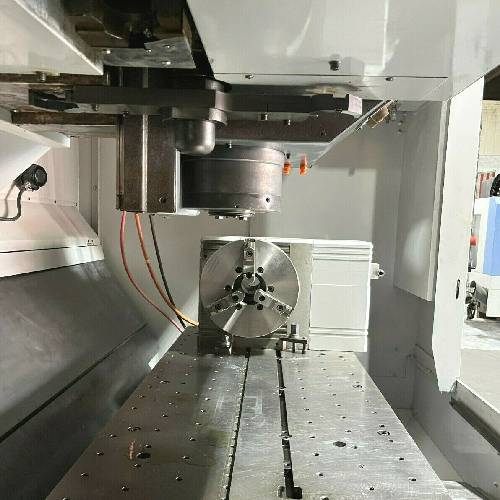

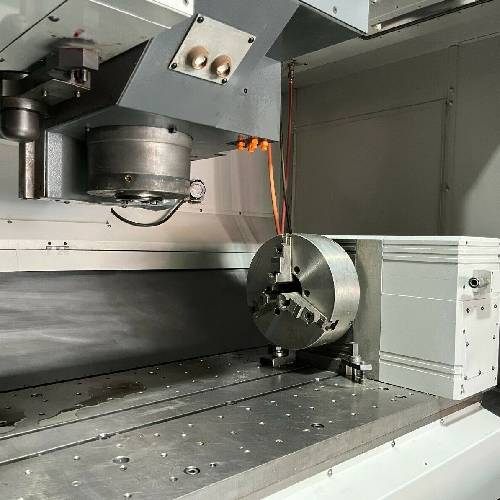

  • 10″ 4th Axis Table Included ($14400 Value)

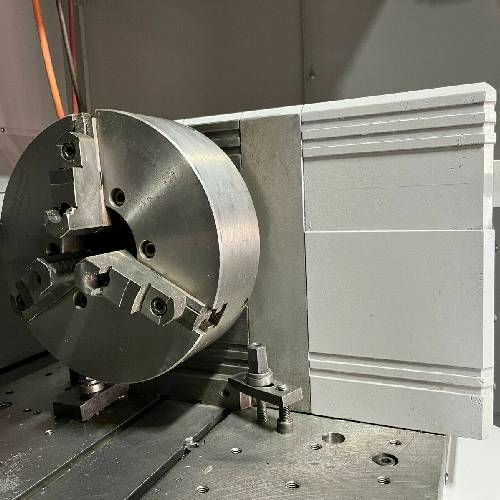

  • 10″ 3 jaw Bernard Pneumatic Chuck

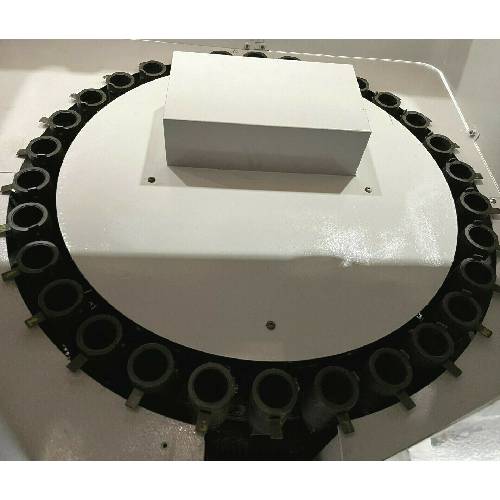

  • 30 Tools Side Mount Bidirectional Tool Changer
  • High precision 10,000 RPM Spindle
  • USB PCMCIA Ports
  • Box Way Construction
  • Powerful 30 hp high torque spindle motor
  • Spindle Chiller
  • Spindle Orientation
  • Rigid Tapping
  • Custom Micro B (User Definable)
  • Fast Rapid Traverse Rate
  • High Pressure Coolant System with Tank
  • Chip Conveyor
  • Work light
  • Books and Manuals
  • Specifications:
  • Travels:
  • X-Axis: 40.16″
  • Y-Axis: 20.1″
  • Z-Axis: 20.1″
  • Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″
  • Table:
  • Length: 52″
  • Width: 23.62″
  • Max Weight on Table: 2700 lbs
  • Spindle:
  • Taper Size: 40
  • Speed Range: 60 – 10,000 RPM
  • Spindle Power: 30 HP
  • Feed rates:
  • Rapid X,Y & Z: 1260 inch/P.M
  • Cutting Feedrate: 630″ inch/ P.M
  • Automatic Tool Changer:
  • 40 Taper
  • Capacity: 30
  • Max Tool Weight: 31 lbs
  • Max Tool Length: 11.8″
  • Max Tool Length: 11.8″
  • Max Tool Dia.: 4.90″
  • General:
  • Air Required: 80 psi, 4 scfm

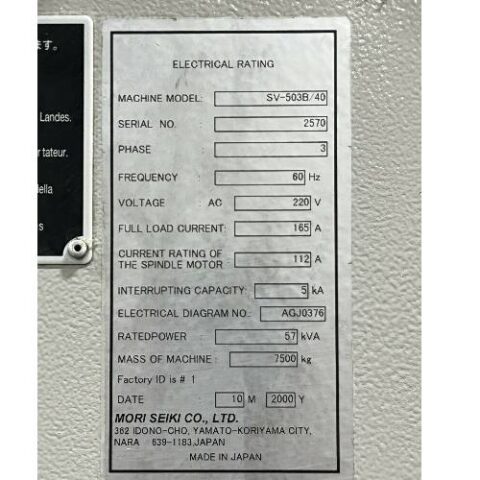

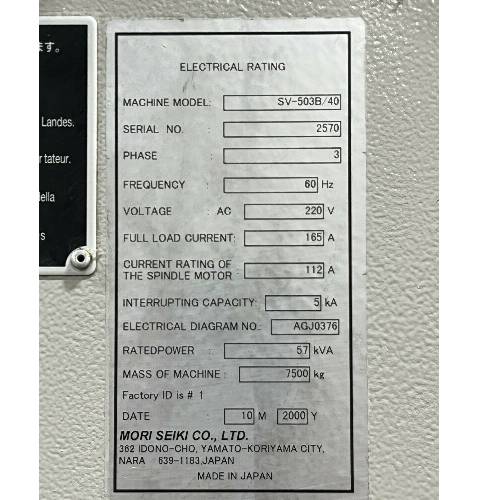

  • Power: 205-220v / 66FLA / 3-Phase
  • Overall Dimensions: ” High
  • Weight: 16500 lbs
