Mori Seiki SV-503B Vertical Machining Center

Out of stock
SKU: 1557
Make/Model: Mori Seiki SV-503B
Video: [fusion_button link=”https://www.youtube.com/watch?v=0CDEU7sgPZM” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1557

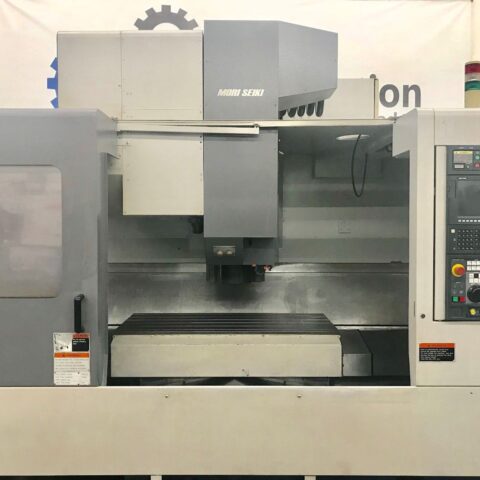

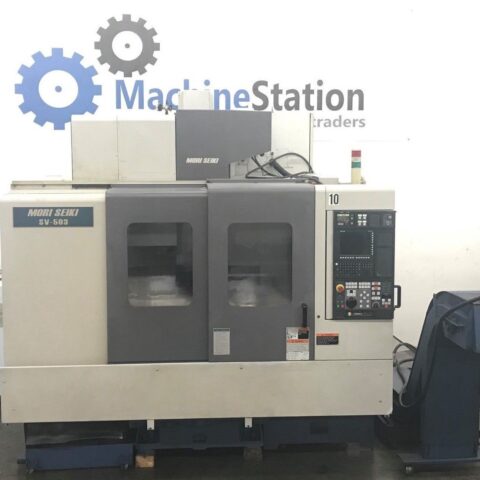

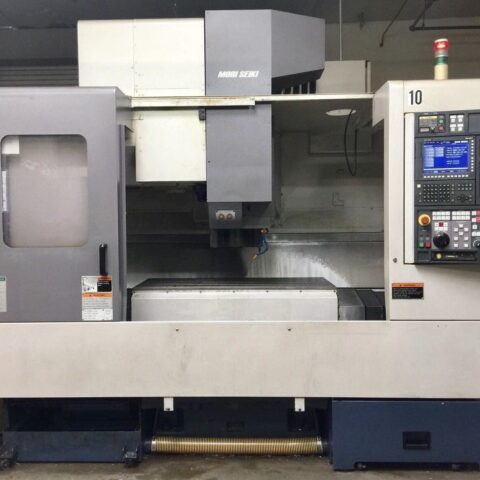

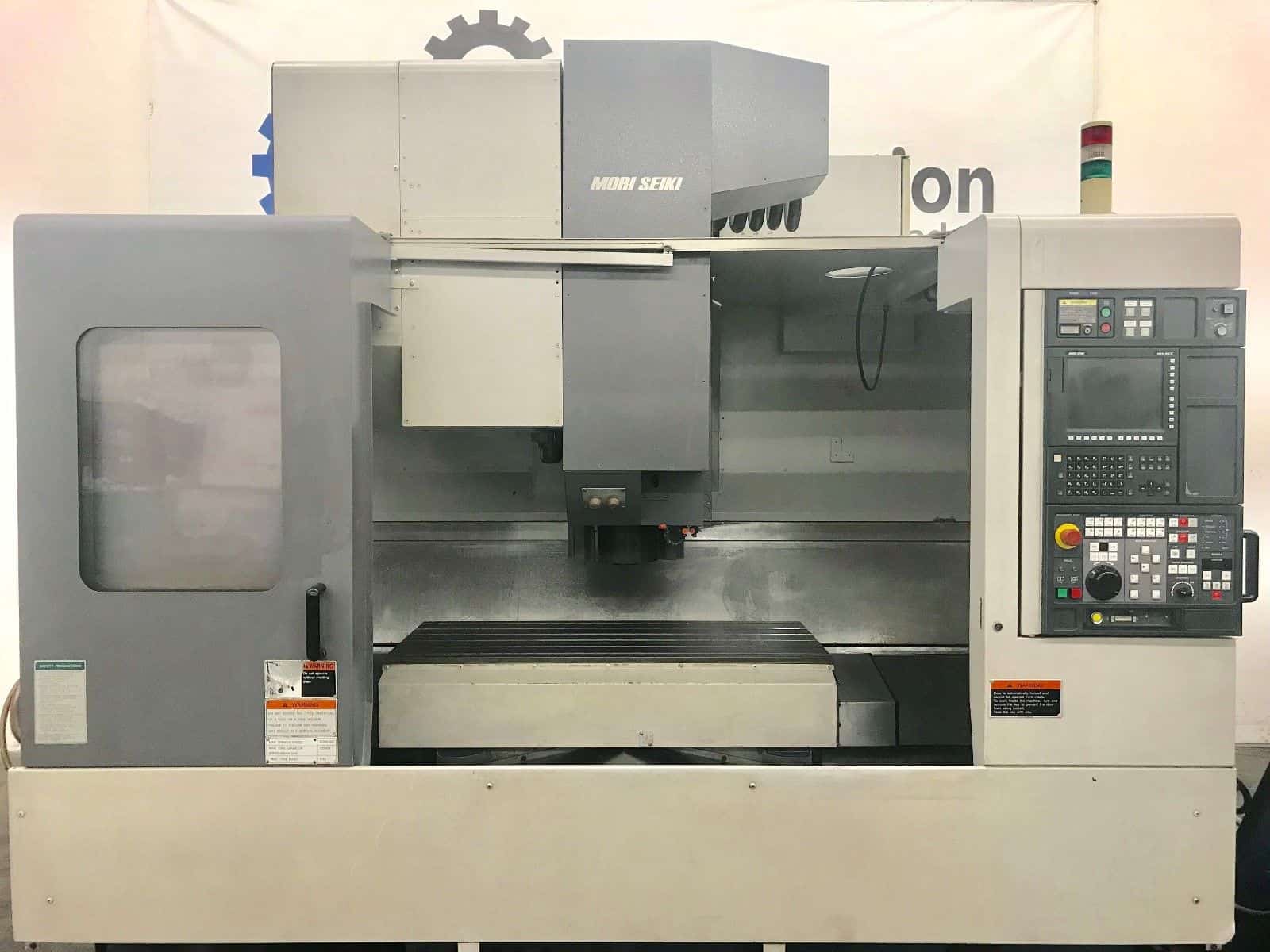

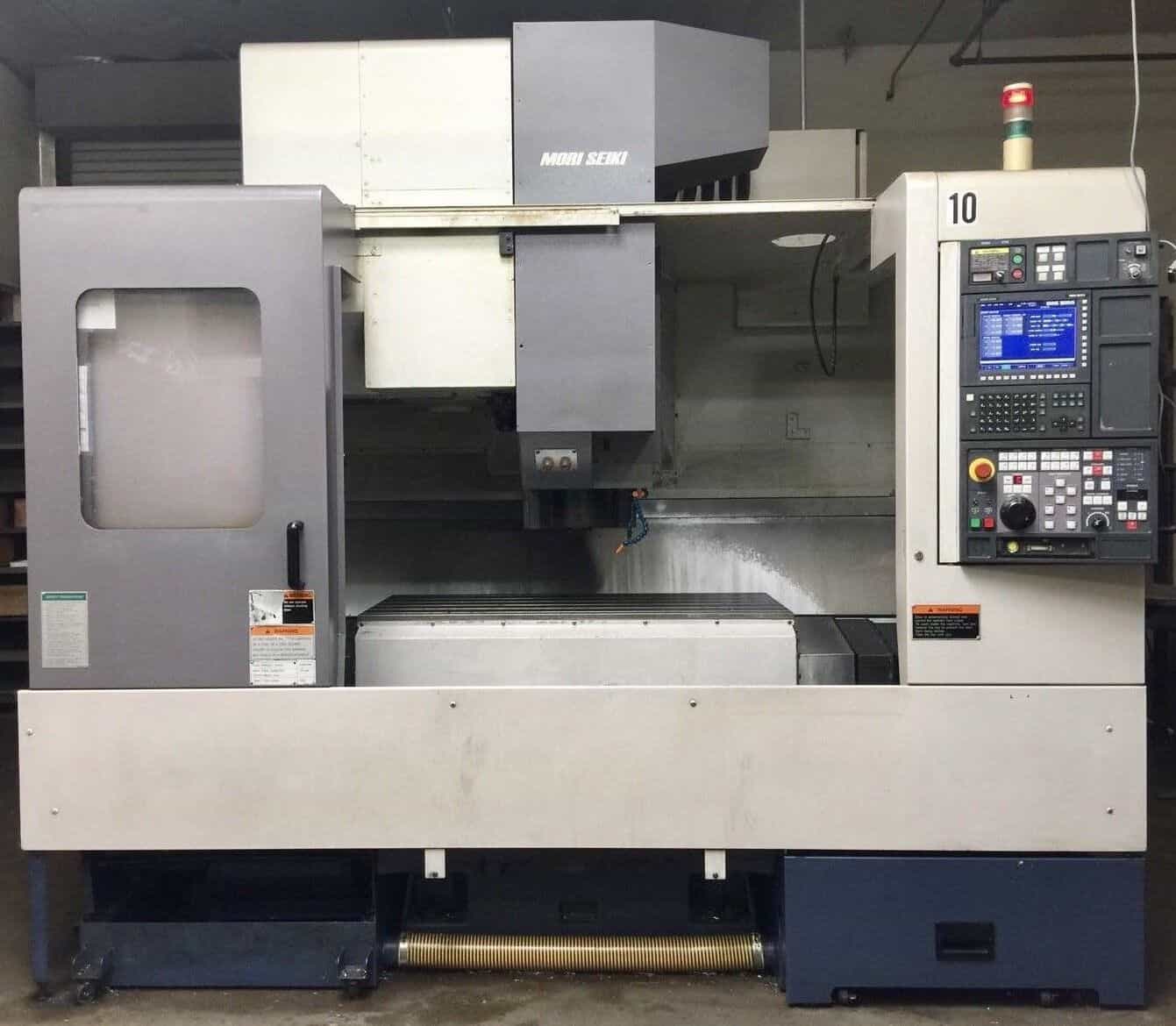

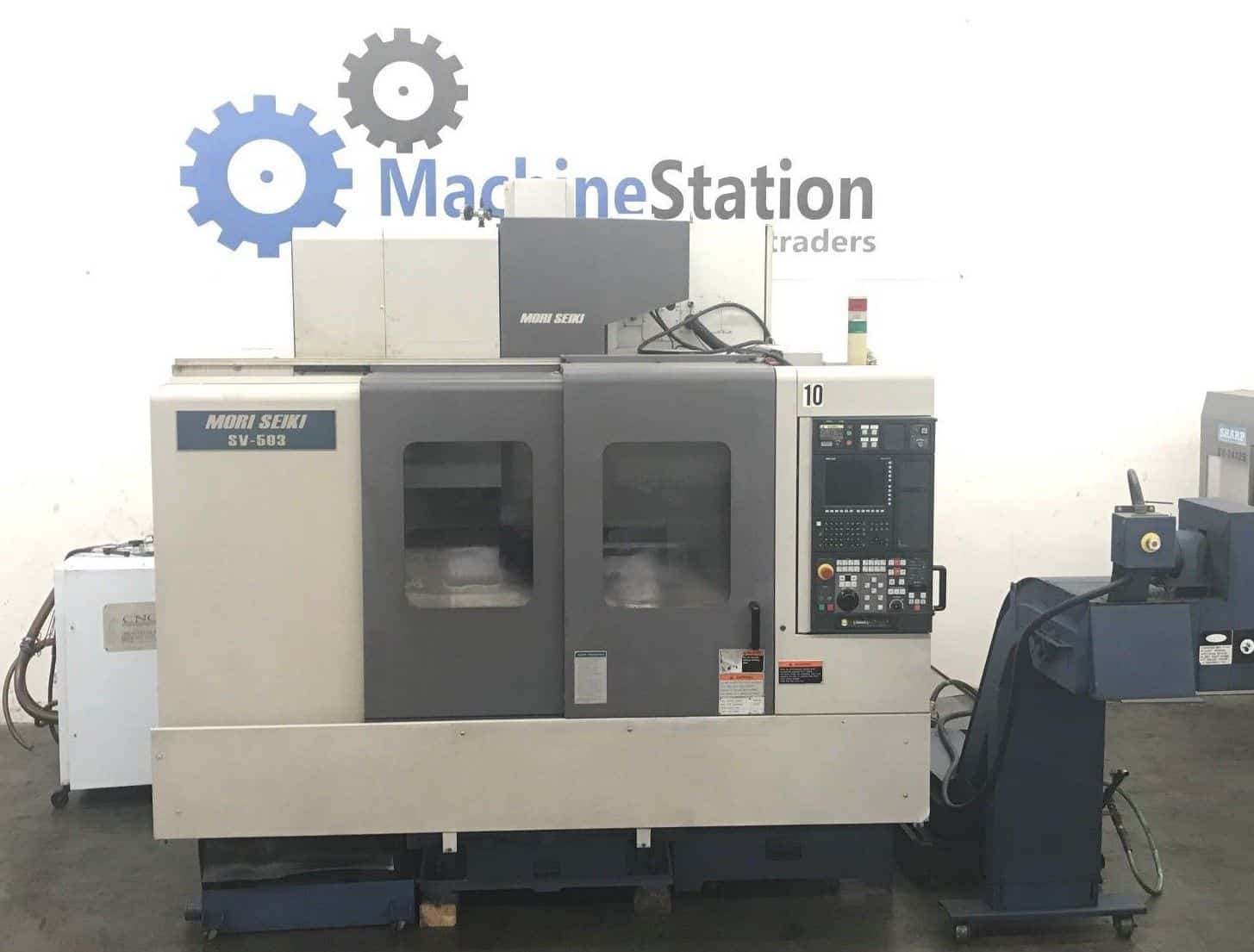

MORI SEIKI SV-503B VERTICAL MACHINING CENTER
Make Mori Seiki
Model No. SV-503B
Year of Manufacture: 2001

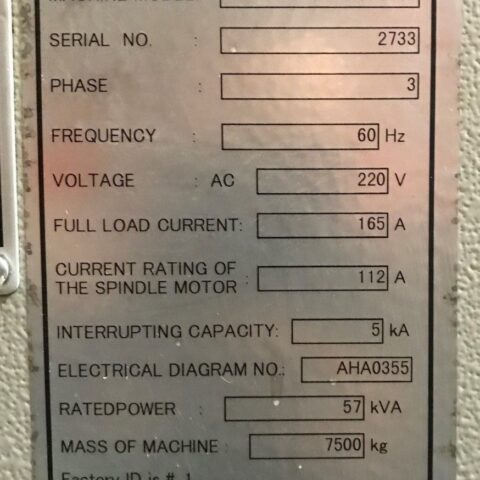

Serial # 2733
Condition Very Good
  • MORI SEIKI SV-503B Features:

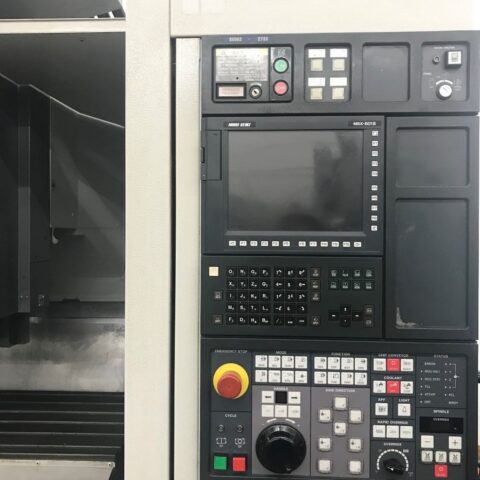

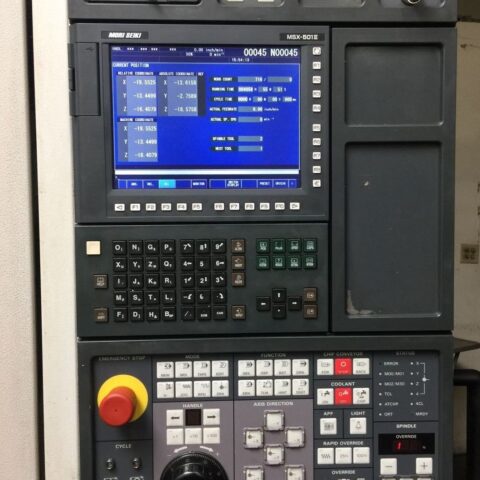

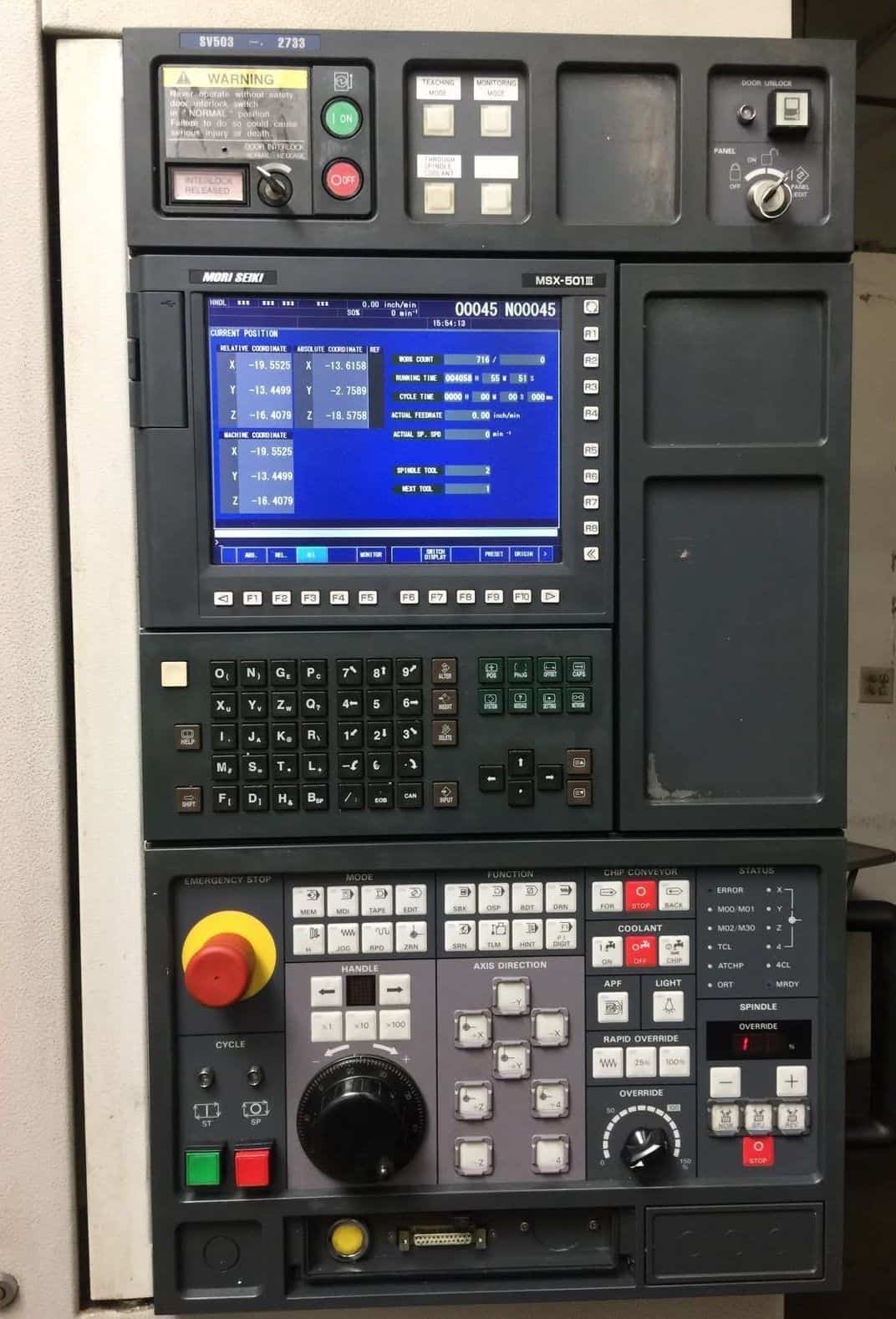

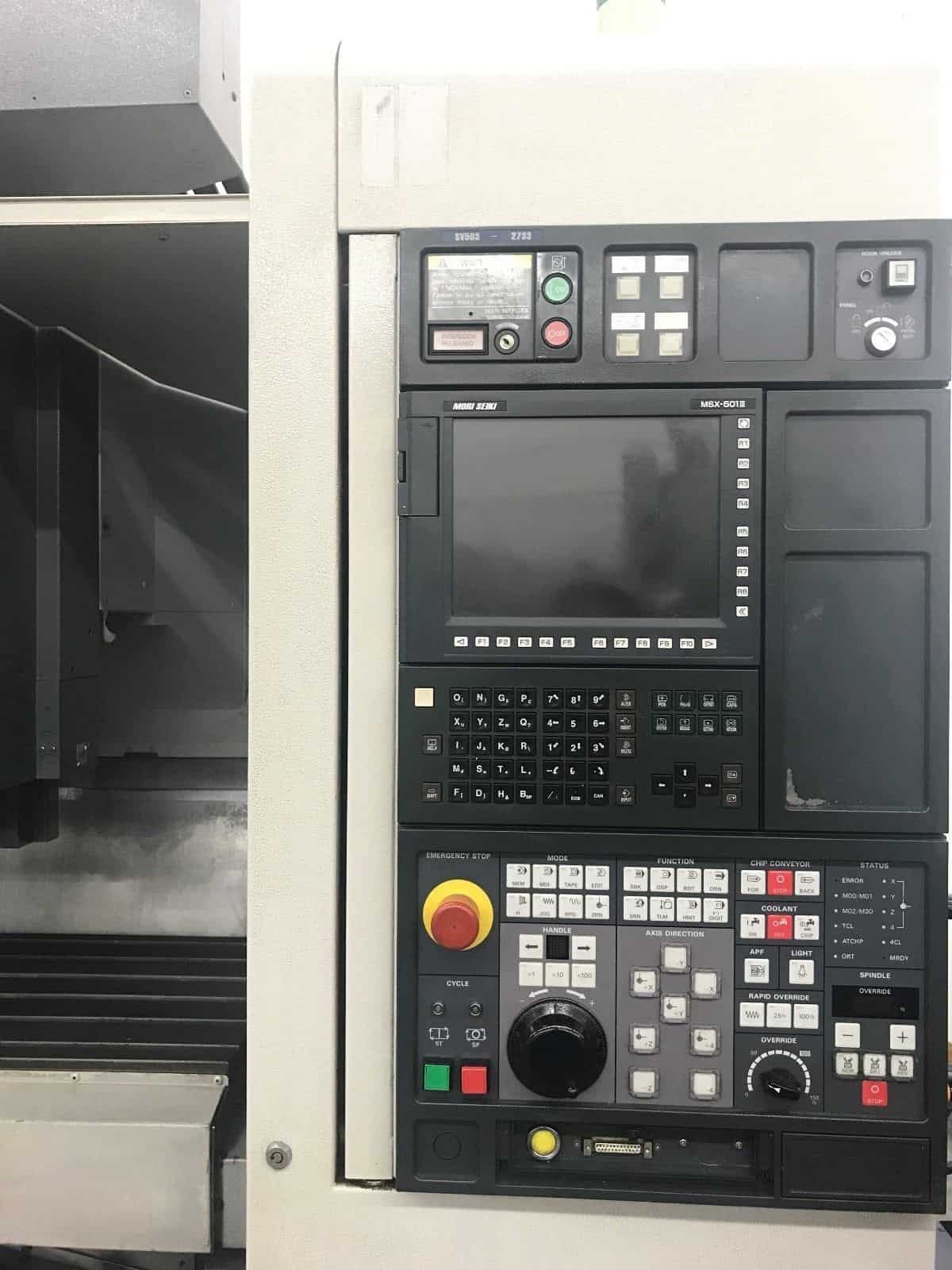

  • MSX-501III CNC Control
  • Upgraded to MAPPS IV
  • High Pressure Thru Spindle Coolant
  • 30 Tools Side Mount Bidirectional Tool Changer
  • High precision 10,000 RPM Spindle
  • Dual USB Ports
  • Box Way Construction
  • Powerful 30 hp high torque spindle motor
  • Spindle Chiller
  • Spindle Orientation
  • Rigid Tapping
  • Custom Micro B (User Definable)
  • Fast Rapid Traverse Rate
  • High Pressure Coolant System with Tank
  • Chip Conveyor
  • Work light
  • Books and Manuals
  • MORI SEIKI SV-503B Specifications:
  • Travels:
  • X-Axis: 40.16″
  • Y-Axis: 20.1″
  • Z-Axis: 20.1″
  • Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

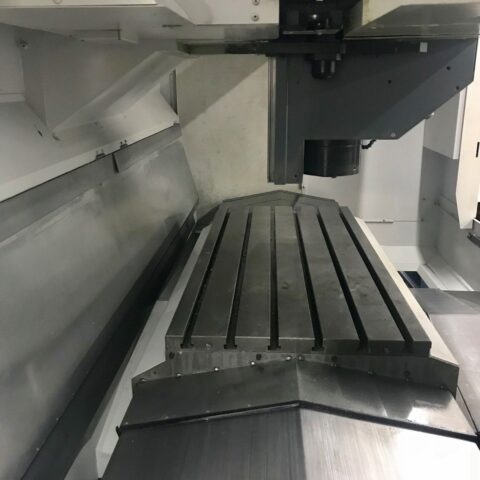

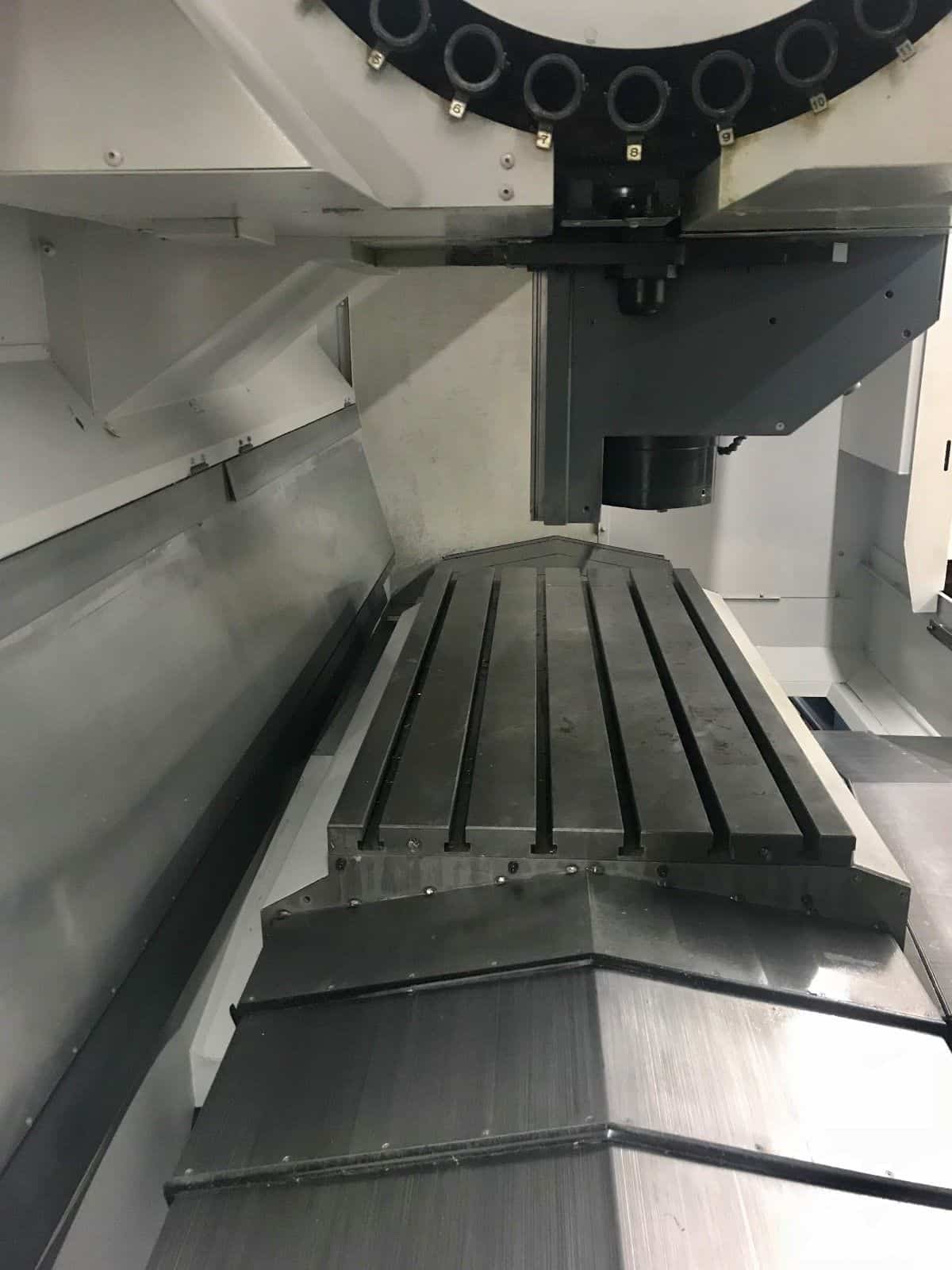

  • Table:
  • Length: 52″
  • Width: 23.62″
  • Max Weight on Table: 2700 lbs
  • Spindle:
  • Taper Size: 40
  • Speed Range: 60 – 10,000 RPM
  • Spindle Power: 30 HP
  • Feed rates:
  • Rapid X,Y & Z: 1260 inch/P.M
  • Cutting Feedrate: 630″ inch/ P.M
  • Automatic Tool Changer:
  • 40 Taper
  • Capacity: 30
  • Max Tool Weight: 31 lbs
  • Max Tool Length: 11.8″
  • Max Tool Dia.: 4.90″
  • General:
  • Air Required: 80 psi, 4 scfm

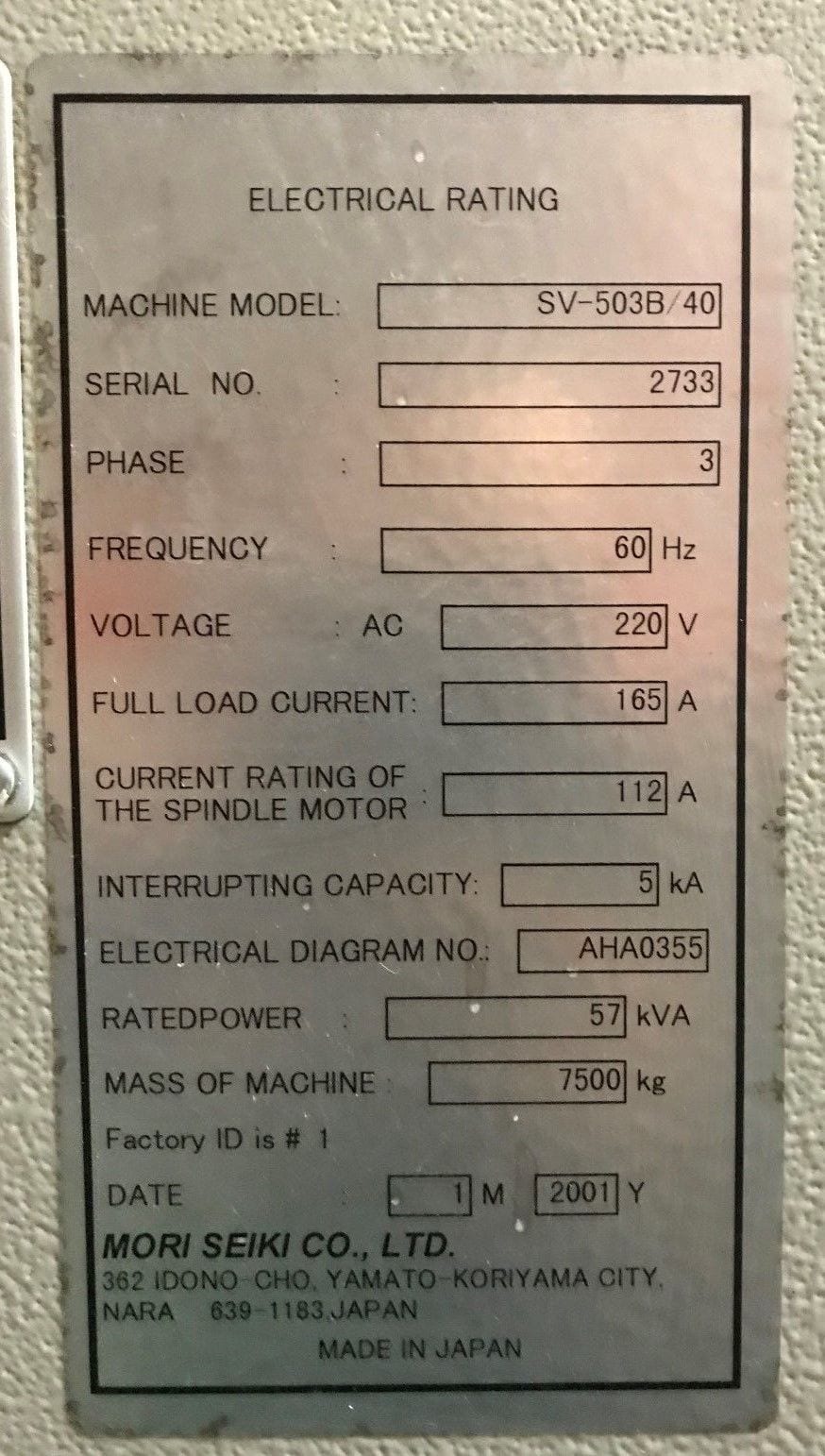

  • Power: 205-220v / 66FLA / 3-Phase
  • Overall Dimensions: ” High
  • Weight: 16500 lbs
