Nakamura TMC-18 CNC Turning Center Lathe

Out of stock
SKU: 1529
Make/Model: Nakamura TMC-18
Video: [fusion_button link=”https://www.youtube.com/watch?v=5f_v4EVAyMA” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1529

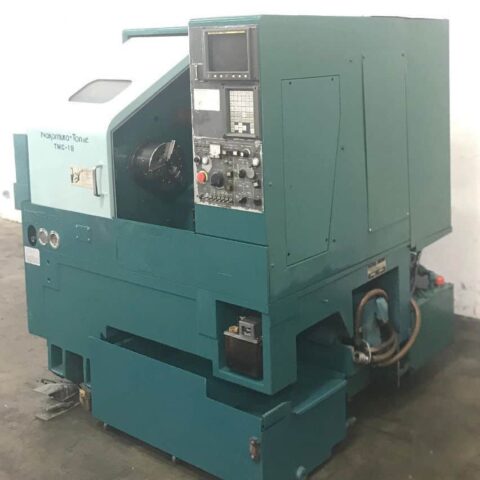

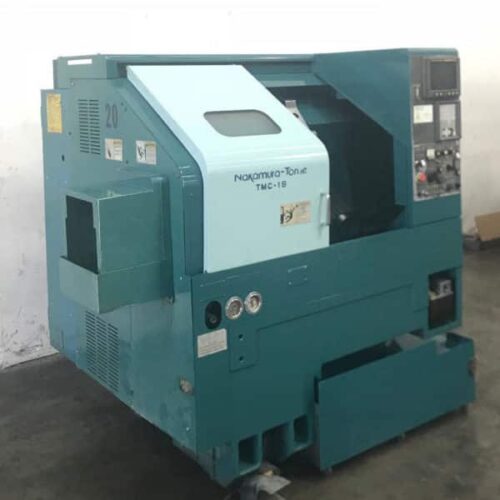

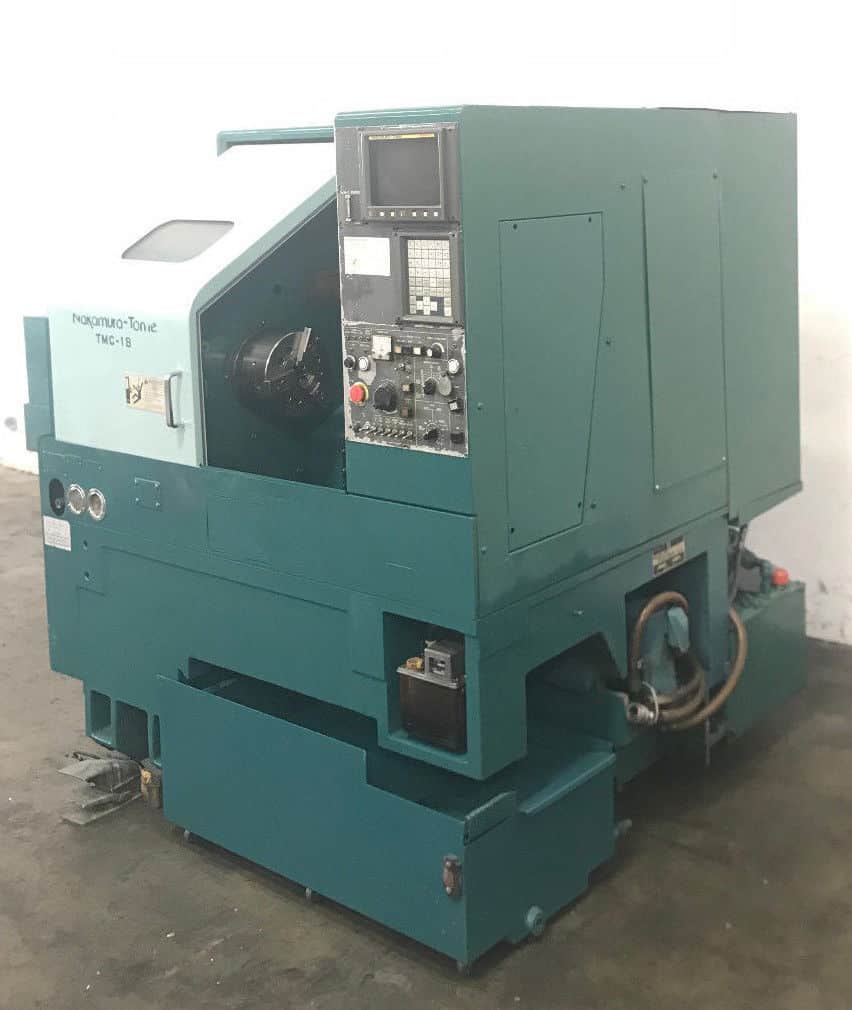

NAKAMURA TMC-18 CNC TURNING CENTER LATHE
Make Nakamura
Model No. TMC-18

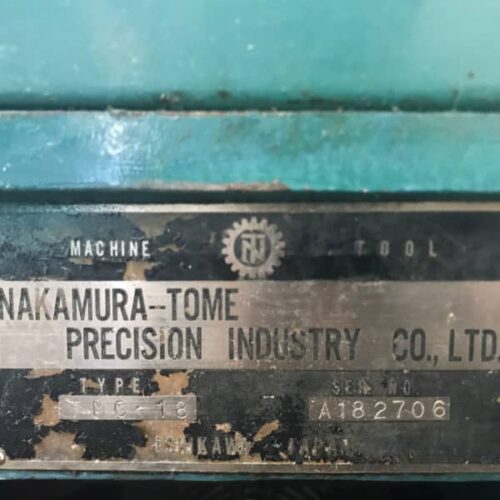

Serial # A182706
Condition Very Good
  • NAKAMURA TMC-18 CNC  Equipped With:

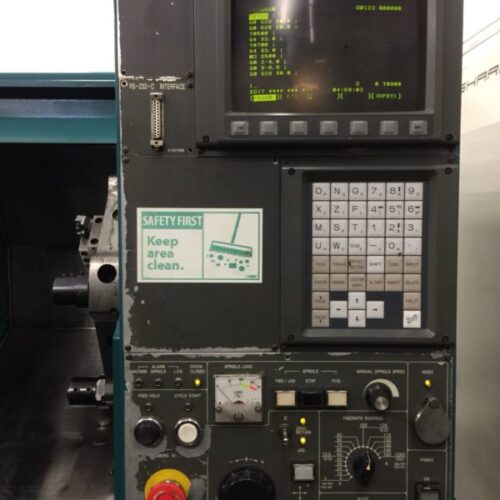

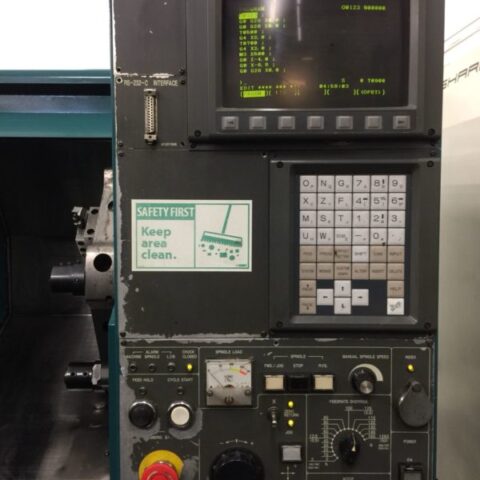

  • Fanuc 21T CNC Control

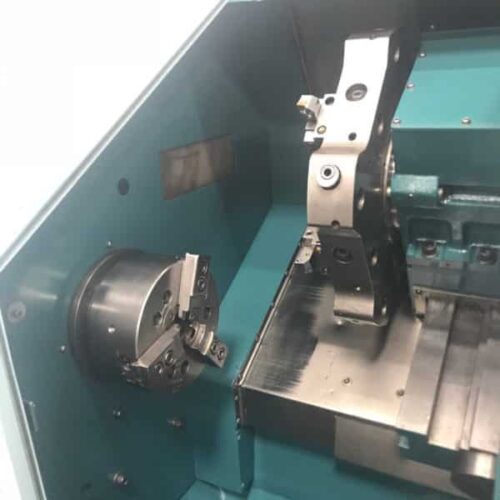

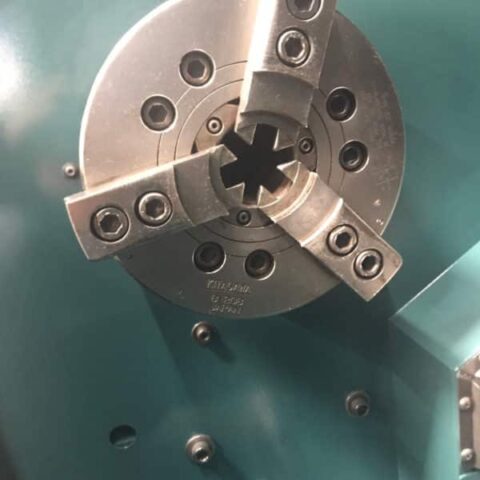

  • 8″ 3 Jaw Hydraulic Chuck
  • A2-6 Spindle
  • Coolant System
  • Barfeed Interface
  • RS-232 port

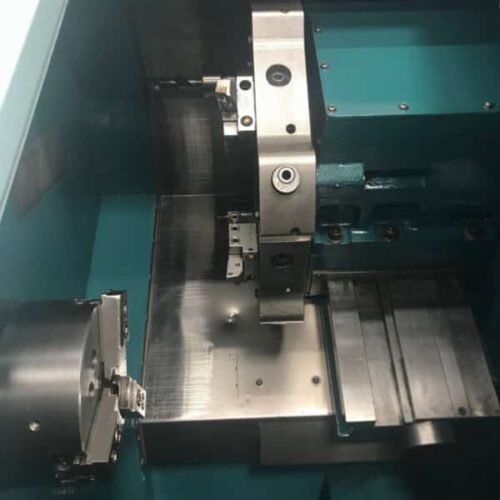

  • 10 Station Automatic Turret
  • Foot Switch
  • Manuals
  • General:
  • Power:  220v / 3-Phase
  • Overall Dimensions: 70″ x 66″ x 70″ High
  • Weight: 6000 lbs
  • NAKAMURA TMC-18 CNC  Specifications:
  • Capacity:
  • Max Turning Diameter: 11.02″
  • Max Turning Length: 11.22″
  • Max Bar Capacity: 2.05″
  • Swing Over Bed: 15.75″
  • X Axis Travel: 6.3″
  • Z Axis Travel: 12.5″
  • Rapid Traverse X Axis: 630 IPM
  • Rapid Traverse Z Axis: 787 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 2.3″
  • Spindle Speed: 0 – 4500 RPM
  • Spindle Motor: 15 HP
  • Turret Capacity: 10 Stations
  • Turret Index Time: 1 Second
