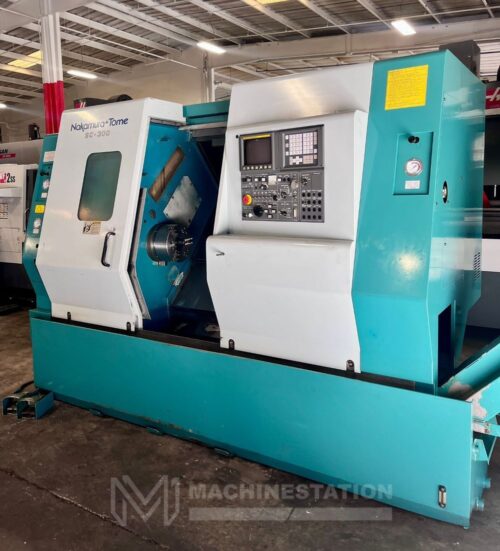

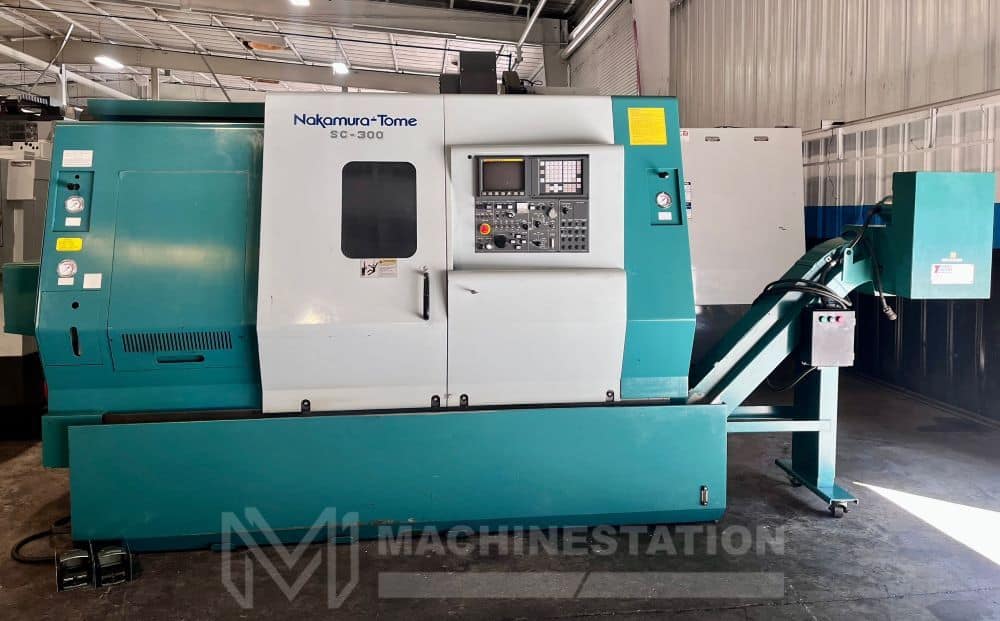

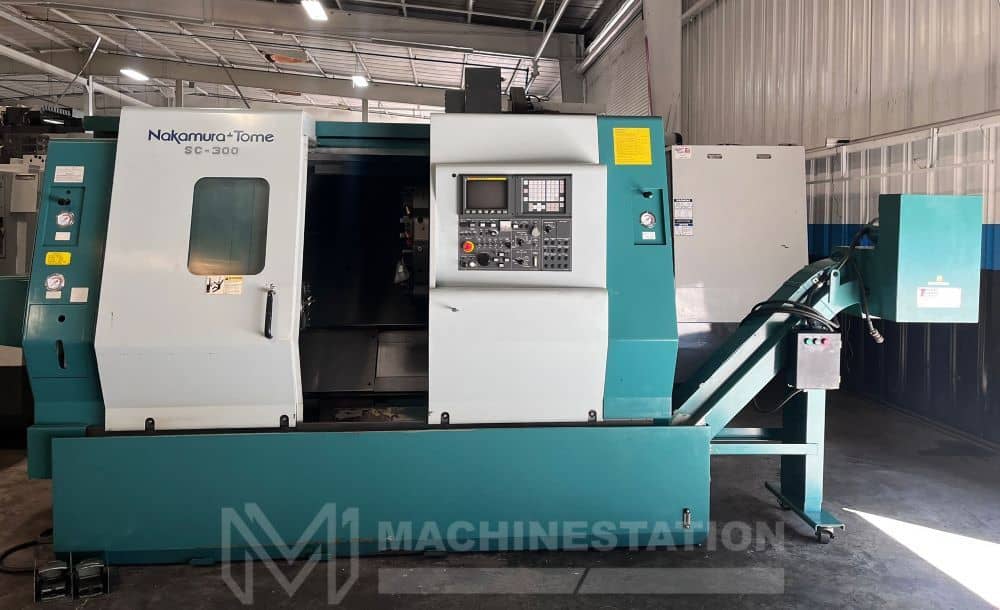

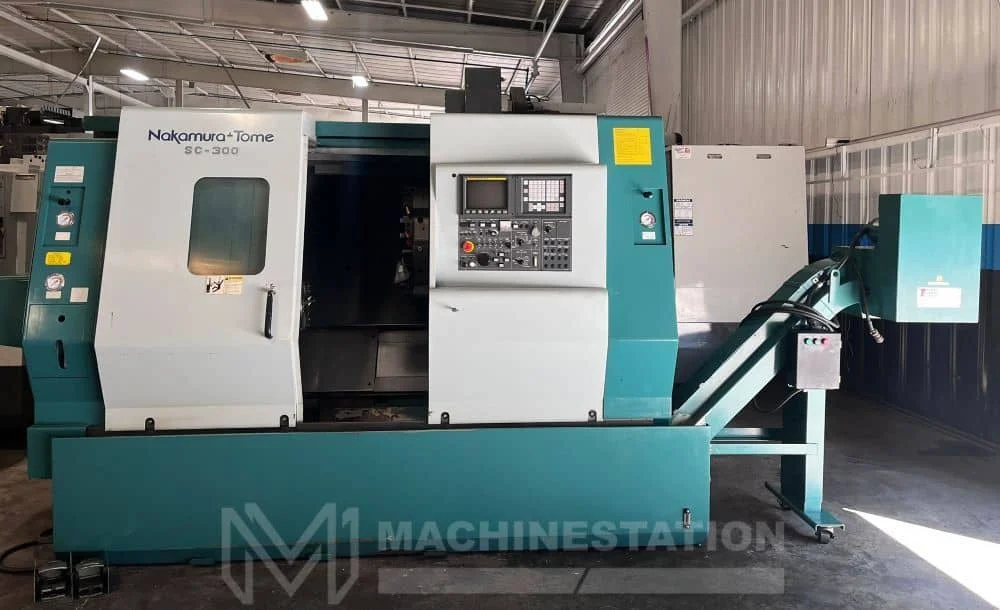

Nakamura Tome SC-300 CNC Turning Center – Lathe

$345 per month

1 in stock

Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.

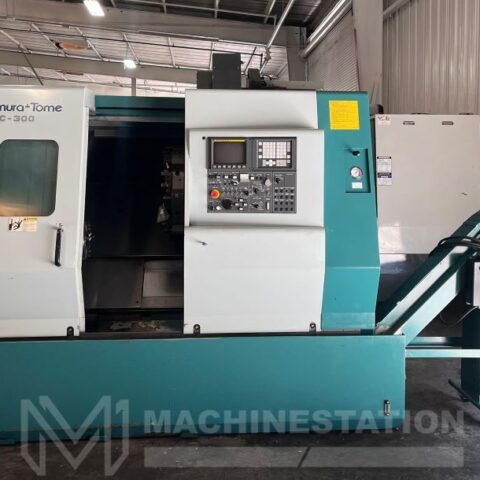

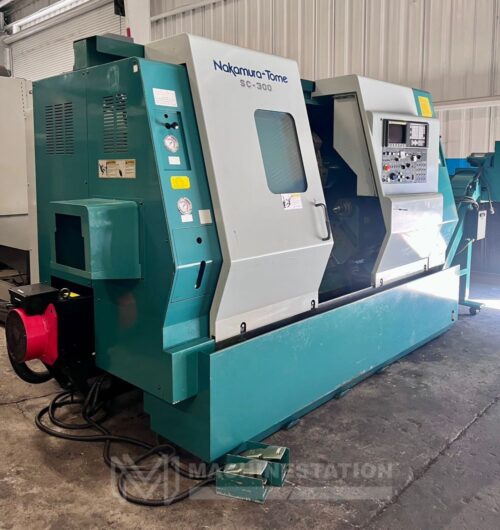

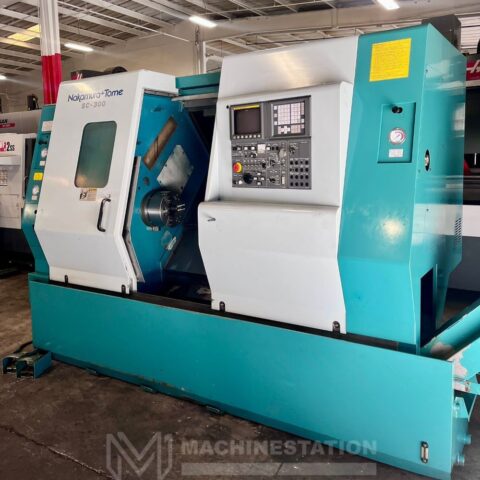

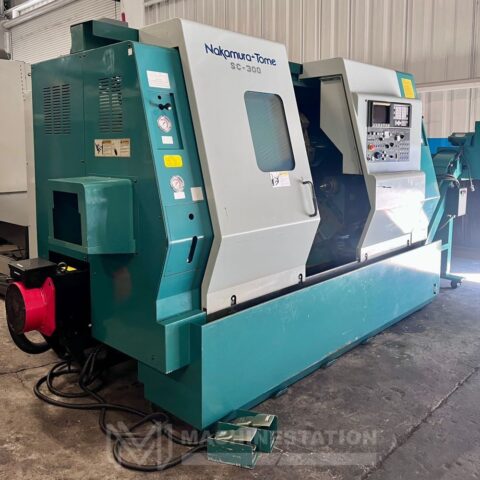

Used Nakamura Tome SC-300 CNC Turning Center For Sale

Location: Lake Elsinore, CA
SKU: 112704
Make/Model: Nakamura Tome SC-300
Year: 1998
Video: On Request
Condition: Used – Good



SKU: 112704

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Nakamura Tome
Model: SC-300
Year: 1998
Condition: Used – Good



Equipped With:

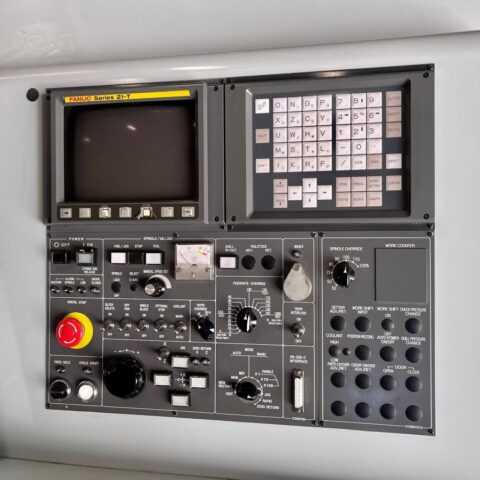

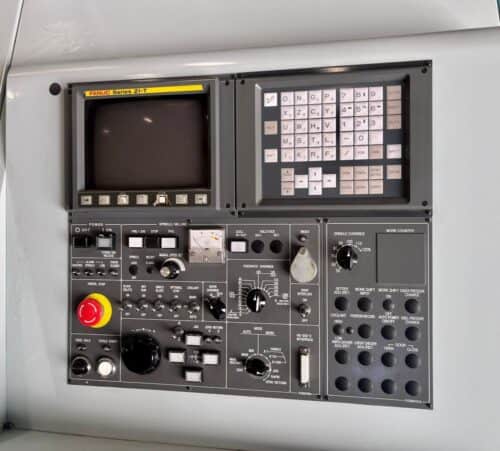

  • Fanuc 21-T CNC Control

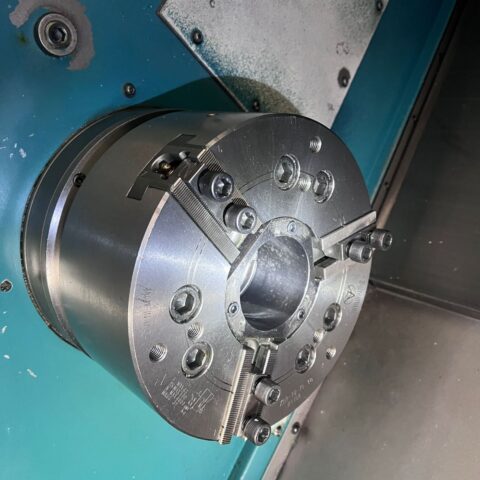

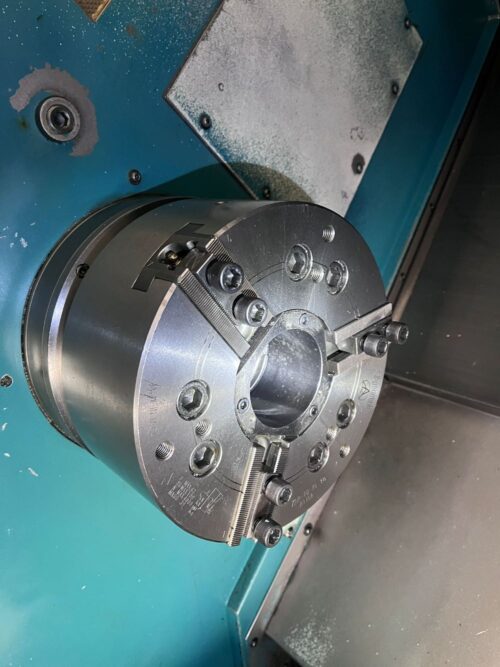

  • 10″ 3-Jaw Chuck

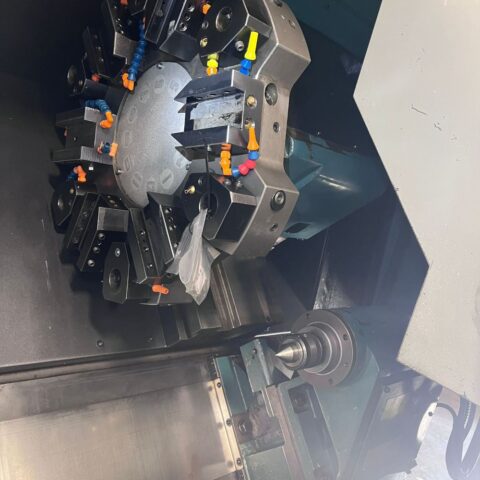

  • 12 Station Automatic Turret
  • Tailstock
  • Rigid Tapping
  • Foot Switches
  • Coolant System

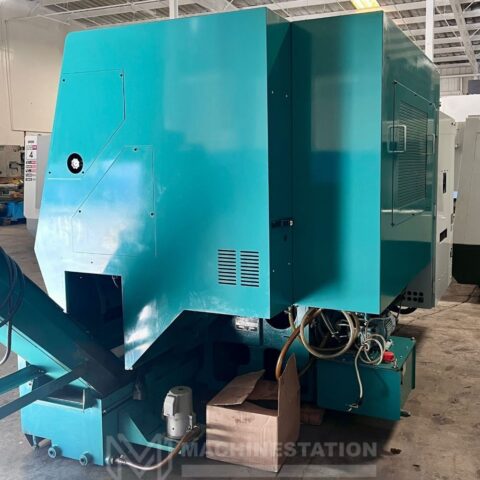

  • Chip Conveyor

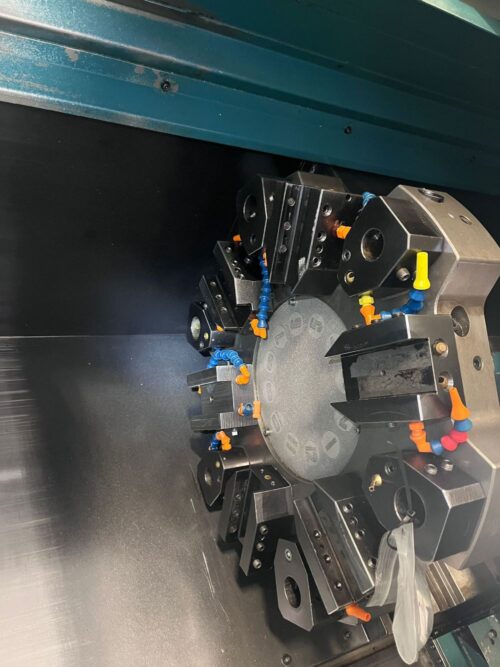

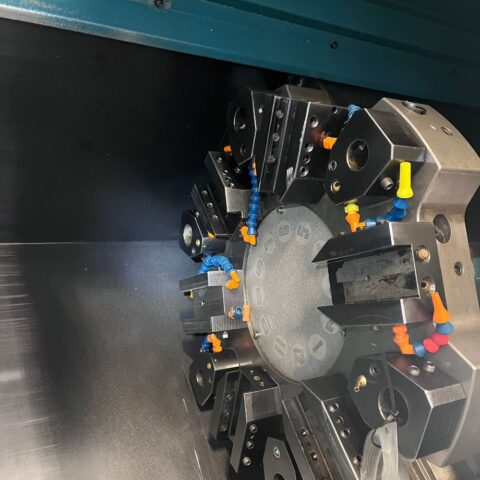

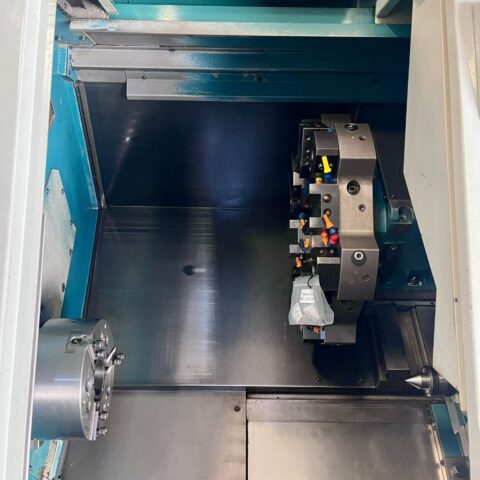

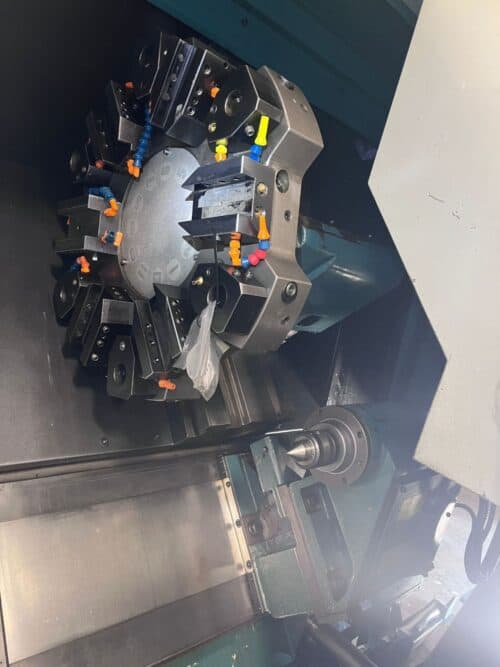

  • (6) Boring & (6) Turning Tool Holders are Mounted on Turret (As shown in the images)



Capacity:
  • Max Turning Diameter: 13.77″
  • Max Turning Length: 23.62″
  • Max Bar Capacity: 2.79″
  • Swing Over Bed: 22.00″
  • Swing Over Carriage: 17.70″
  • Distance Between Centers: 28.09″



Travels:
  • X Axis Travel: 8.75″
  • Z Axis Travel: 25.00″
  • Rapid Traverse X Axis:  629 IPM
  • Rapid Traverse Z Axis:  787 IPM



Spindle:
  • Spindle Nose: A2-8
  • Spindle Bore: 3.20″
  • Spindle Speed: 3500 RPM
  • Spindle Motor: 30 HP



Turret:
  • Turret Capacity: 12 Stations
  • Tool Holders Type: VDI



Tailstock:
  • Taper Size: MT#5
  • Tailstock Travel: 15.74″
  • Quill Diameter: 3.54″
  • Quill Travel: 3.93″



General:

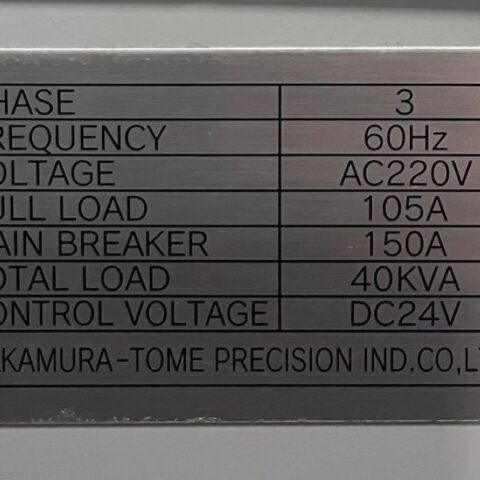

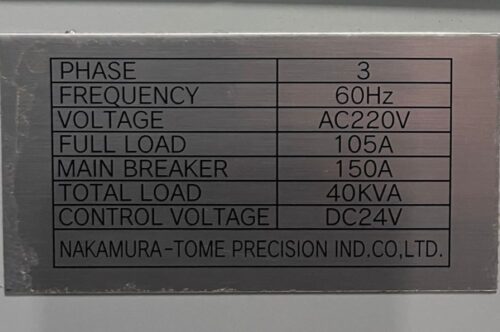

  • Power: 40 kva, 220v / 3-Phase
  • Overall Dimensions: 126″ x 68″ x 77″ High Approx.
  • Weight: 10,140 lbs. Approx.
