*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2429 |

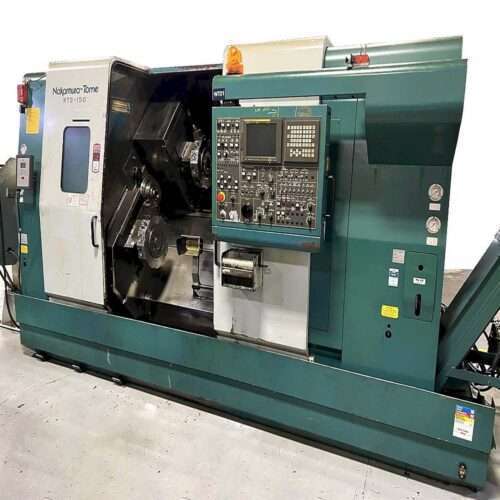

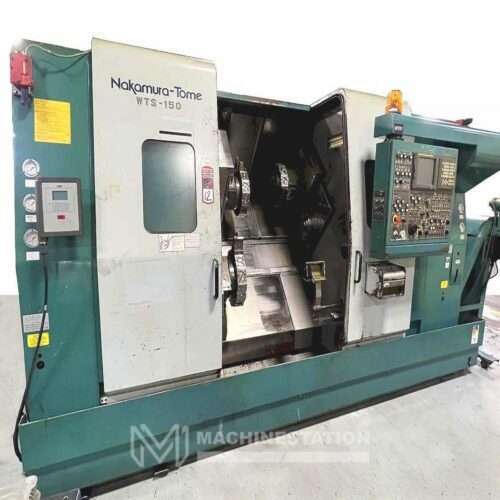

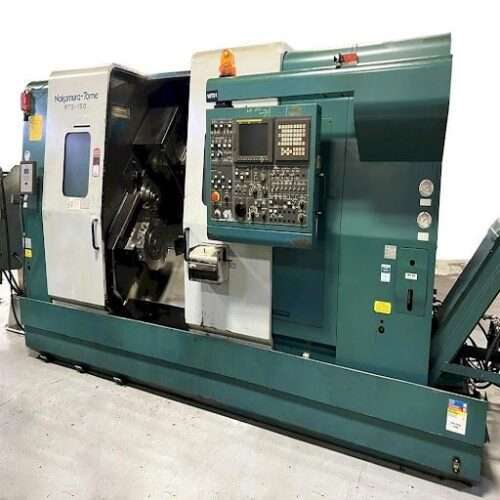

| Make: | Nakamura Tome |
| Model: | WTS-150 |
| Year: | 2004 |
| Features: |
|---|

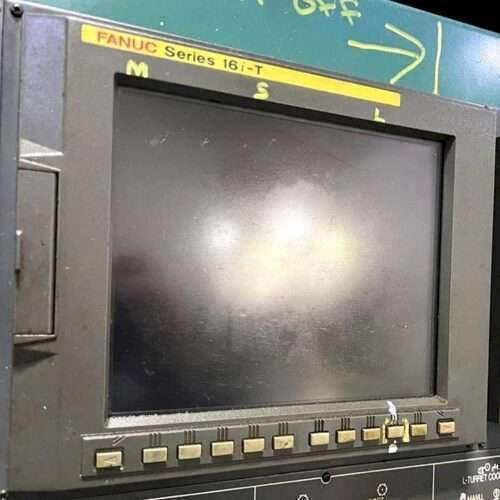

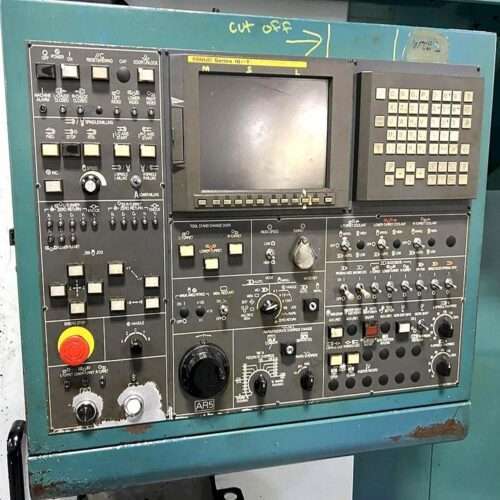

| Fanuc 16i-T CNC Control |

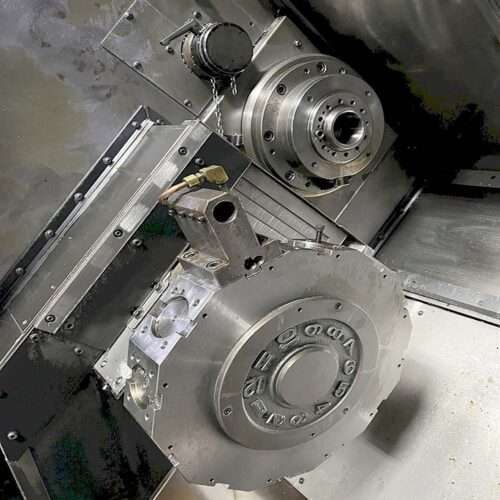

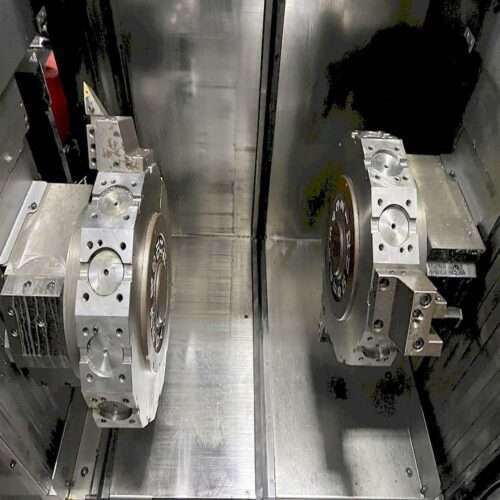

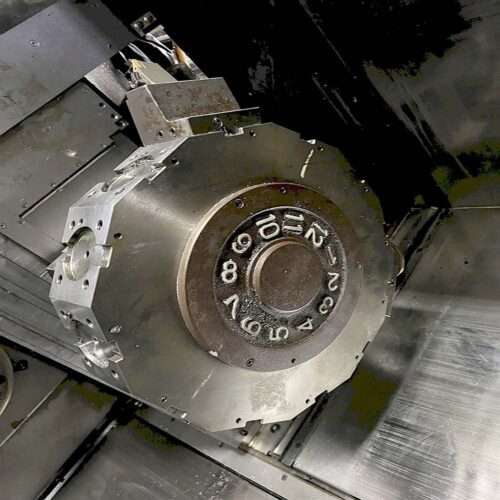

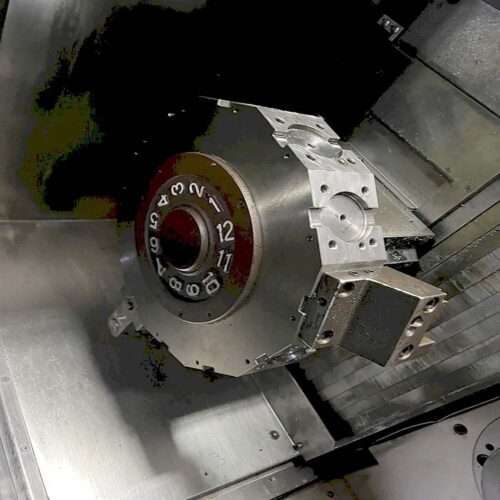

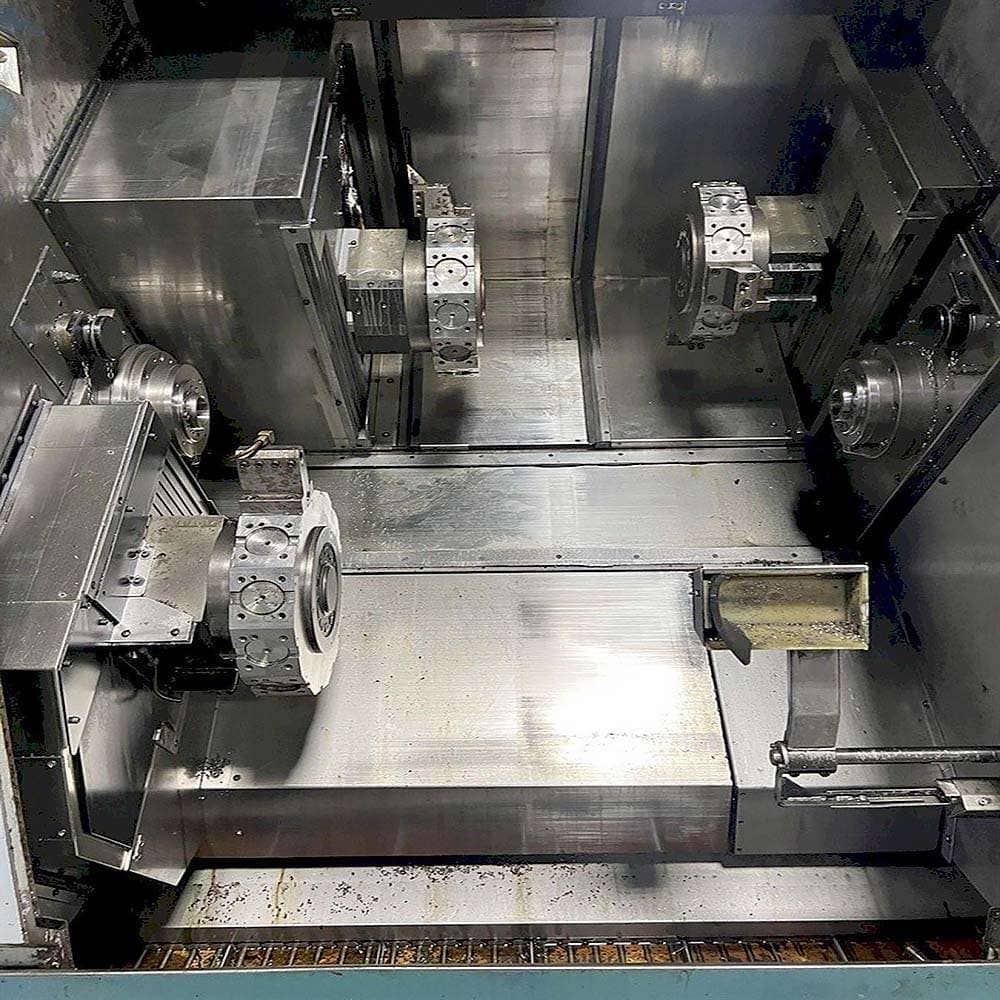

| (2) 12 Station Upper Turrets With Live Milling |
| (1) 12 Station Lower Turret With Live Milling |
| Y Axis Capability Upper Turrets Only |
| Servo Controlled Full C-Axis on Both Spindles |

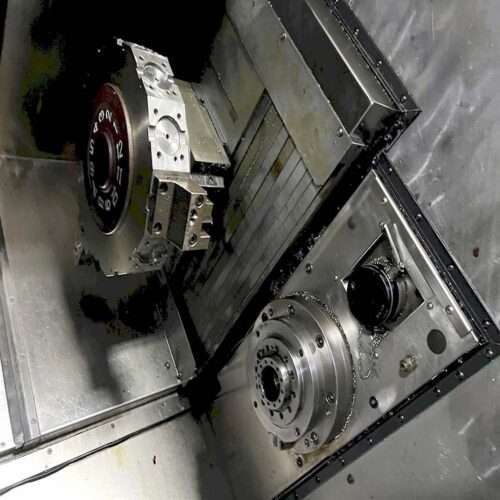

| Main Spindle & Sub Spindle |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |
| High Pressure Coolant System |
| Part Catcher |

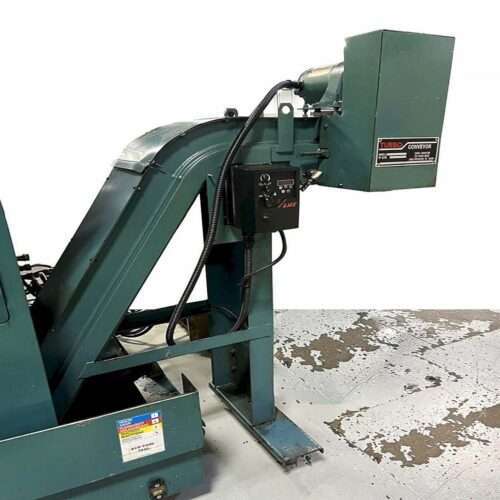

| Chip Conveyor |
| Capacity |
|---|
| Max Turning Diameter : 12.20″ |
| Max Turning Length : 10.03″ |
| Max Bar Capacity Main Spindle : 1.65″ |
| Max Bar Capacity Sub Spindle : 1.25″ |
| Distance Between Spindle Nose : 42″ |
| Travel: |
|---|
| X Axis Travel Upper : 8.16″ |
| Z Axis Travel Upper : 11.81″ |
| Y Axis Travel Upper : 4.72″ (+/-2.36″) |
| B2 Axis Travel Upper : 34.4″ |
| X Axis Travel Lower : 8.16″ |
| Z Axis Travel Lower : 31.49″ |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| X Axis: 1181 IPM Rapid Traverse |
| Z Axis: 1181 IPM Rapid Traverse |
| Y Axis: 787 IPM Rapid Traverse |
| B Axis: 787 IPM Rapid Traverse |
| Spindle: |
|---|
| Left Spindle Bore: ″ |
| Right Spindle Bore: ″ |
| Left Spindle Nose: A2-6 |
| Right Spindle Nose: A2-6 |
| Left Spindle Speed: 6000 RPM |
| Right Spindle Speed: 8000 RPM |
| Left Spindle Power: 20 HP |
| Right Spindle Power: 20 HP |
| Sub Spindle Power: 20 HP |
| Turret: |
|---|
| (2) Upper Turret Capacity: 12 Stations |
| (1) Lower Turret Capacity: 12 Stations |
| Live Tool Speed: 6000 RPM |
| Live Tool Power: 5 HP |
| General: |
|---|

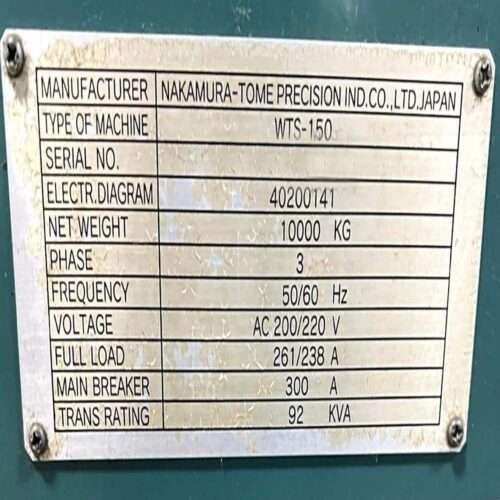

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 92 kva |
| Overall Dimensions: 152″ x 92″ x 92″ |
| Weight: 22,000 lbs Approx. |
“No Charges for loading at list Price”
Comes as shown in pictures..
