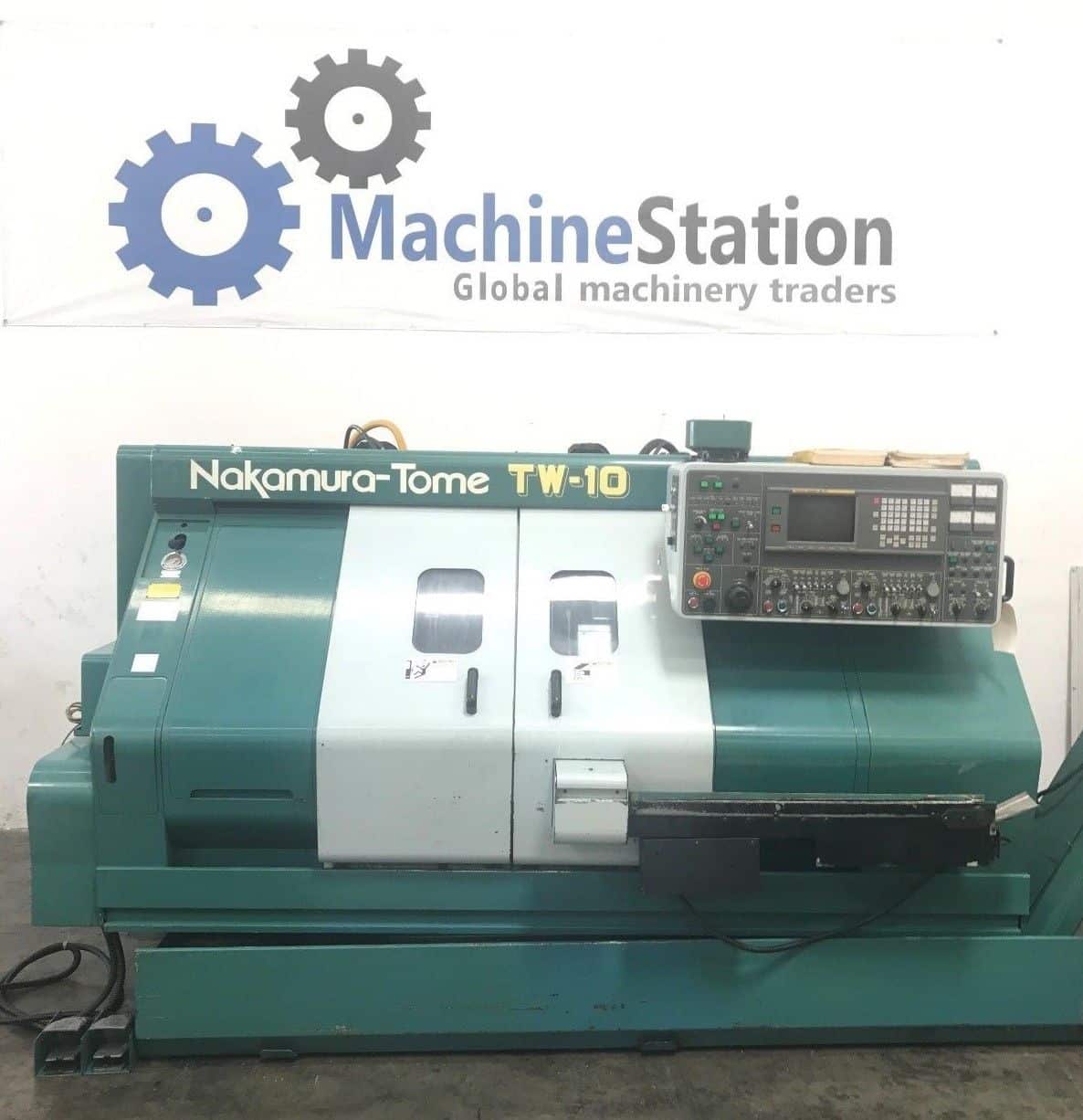

Nakamura TW-10MM CNC Multi Axis Turning Center

Out of stock

Very Clean Machine on Our Floor now, Fully powered / tested & is in Great working condition. All working Axis, Live Tools Comes with Chip conveyor, Tool holders.”

SKU: 1499
Make/Model: Nakamura TW-10MM
Video: [fusion_button link=”https://www.youtube.com/watch?v=6asiavyMR6w” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1499

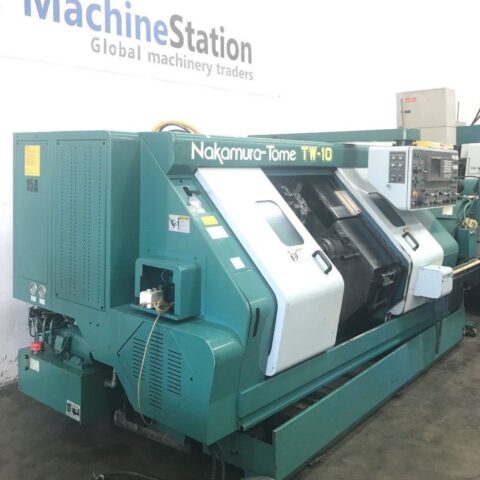

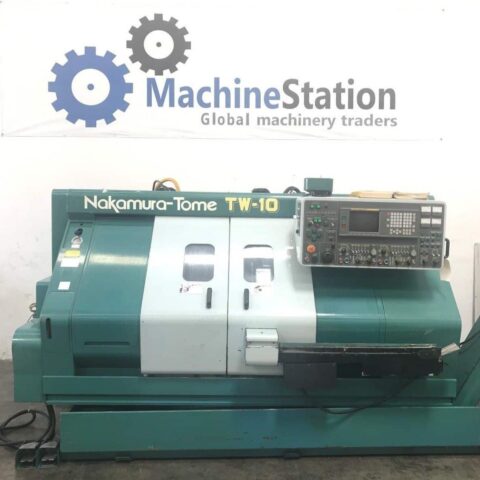

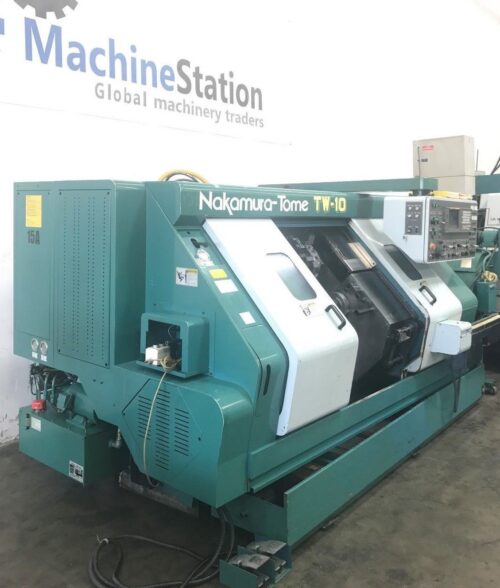

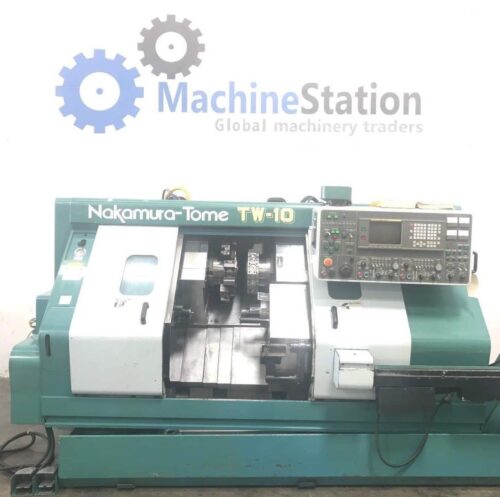

NAKAMURA TW-10MM CNC MULTI AXIS TURNING CENTER
Make Nakamura
Model No. TW-10MM
Year 1996
Serial # W101501
Country of Origin: Japan

Condition: Fully Working Condition

“Very Clean Machine on Our Floor now, Fully powered / tested & is in Great working condition. All working Axis, Live Tools Comes with Chip conveyor, Tool holders.”

  • NAKAMURA TW-10MM Equipped With:

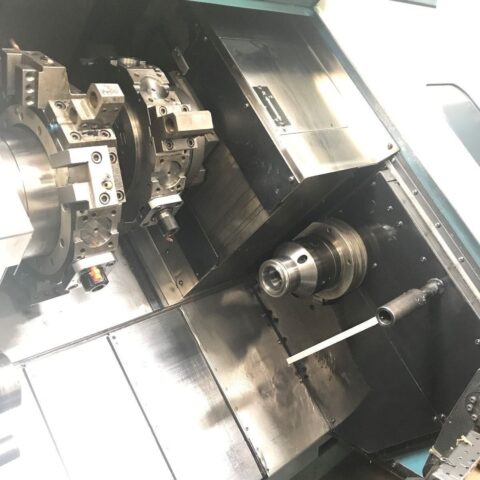

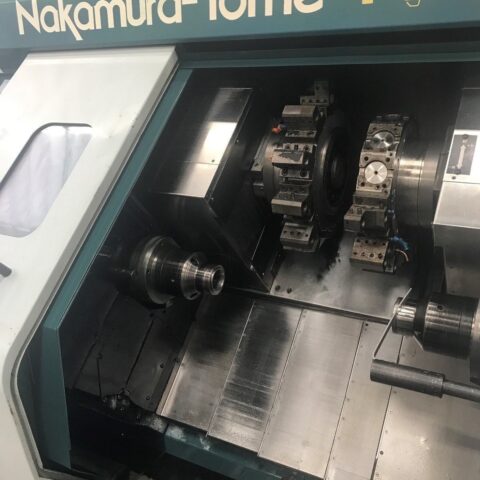

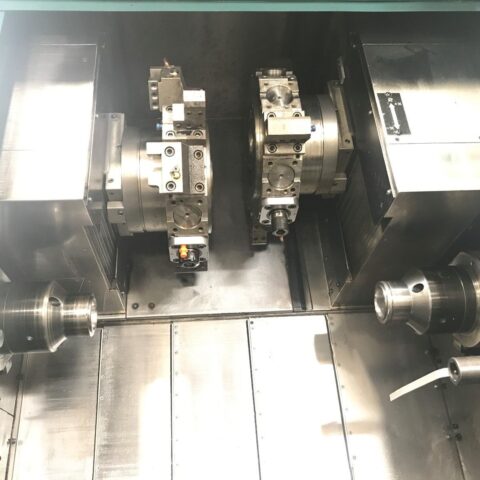

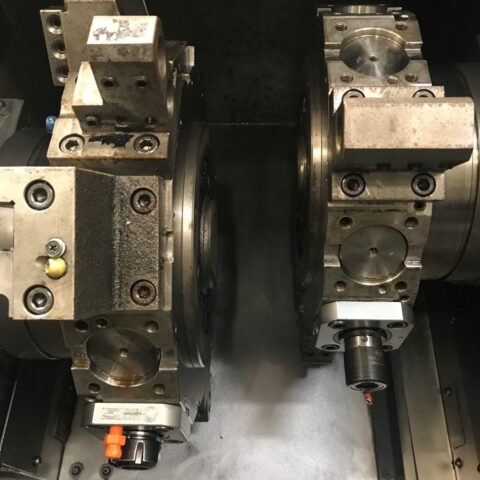

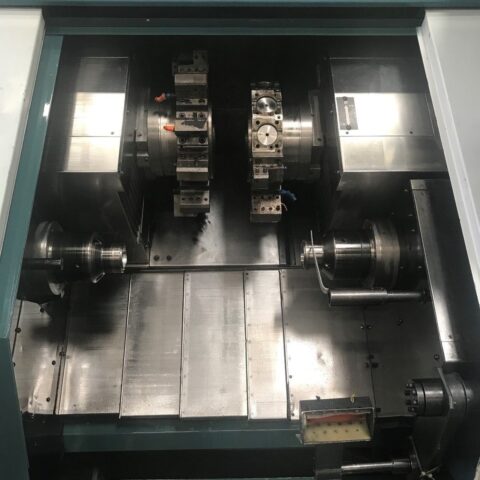

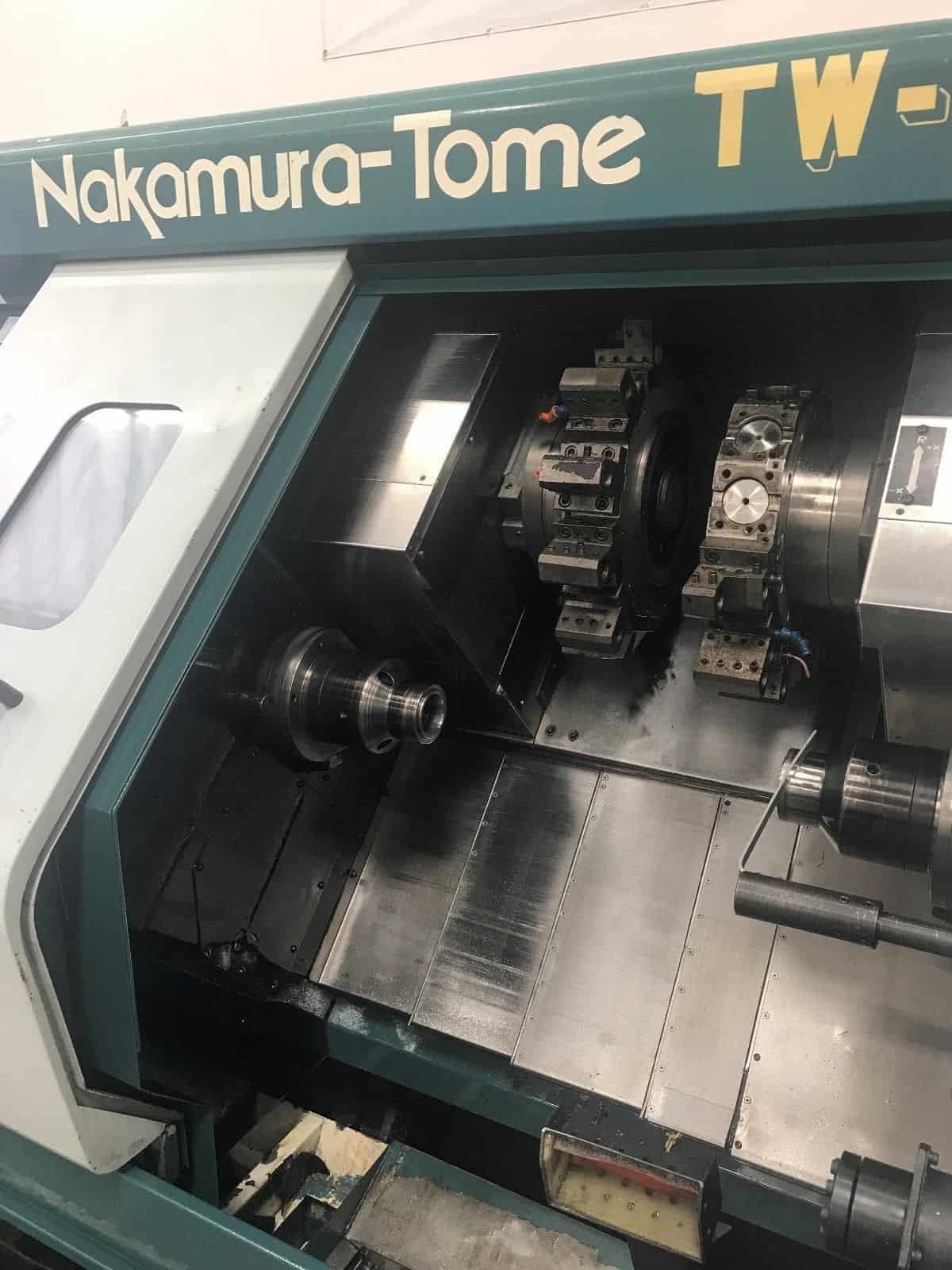

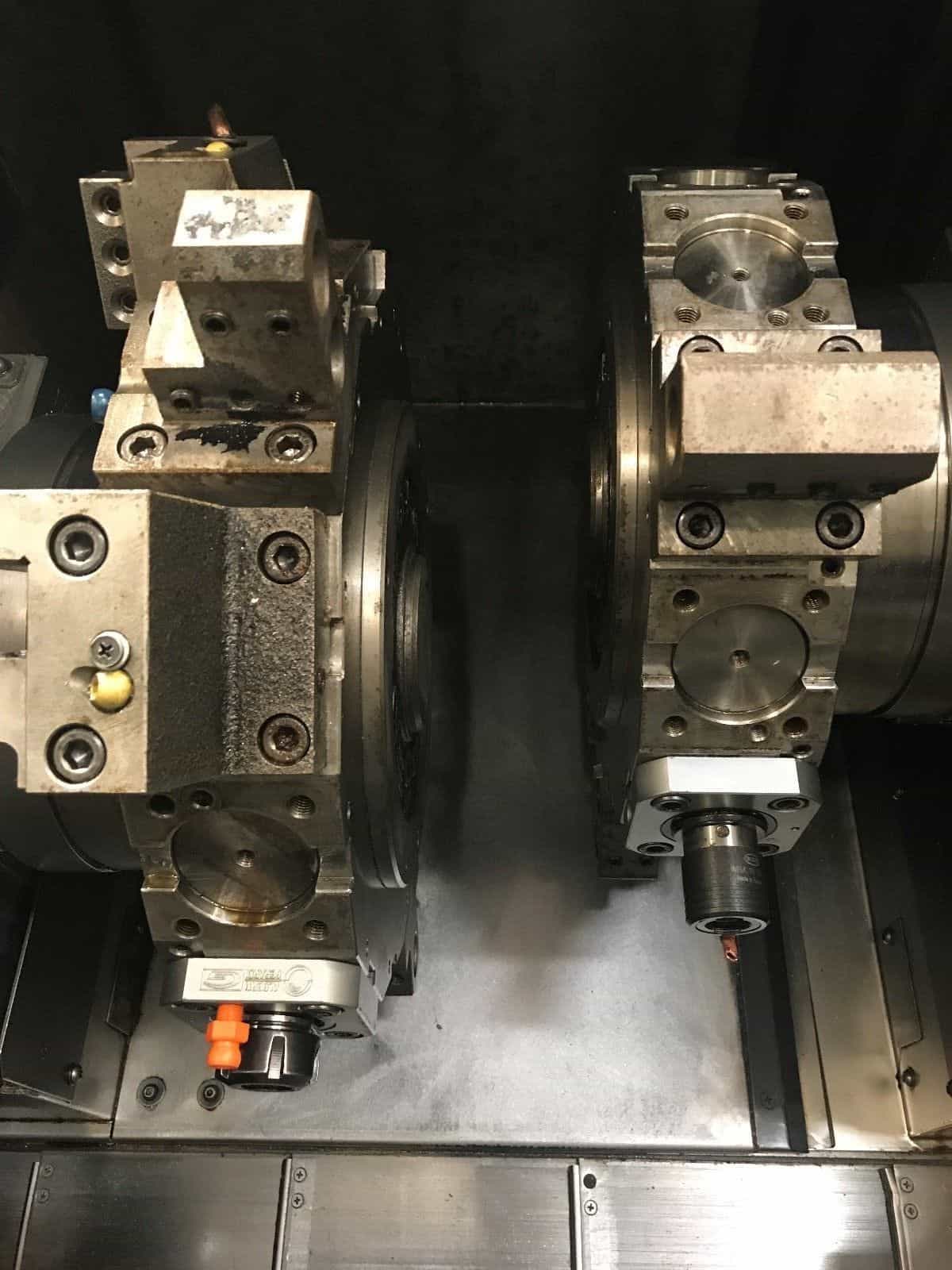

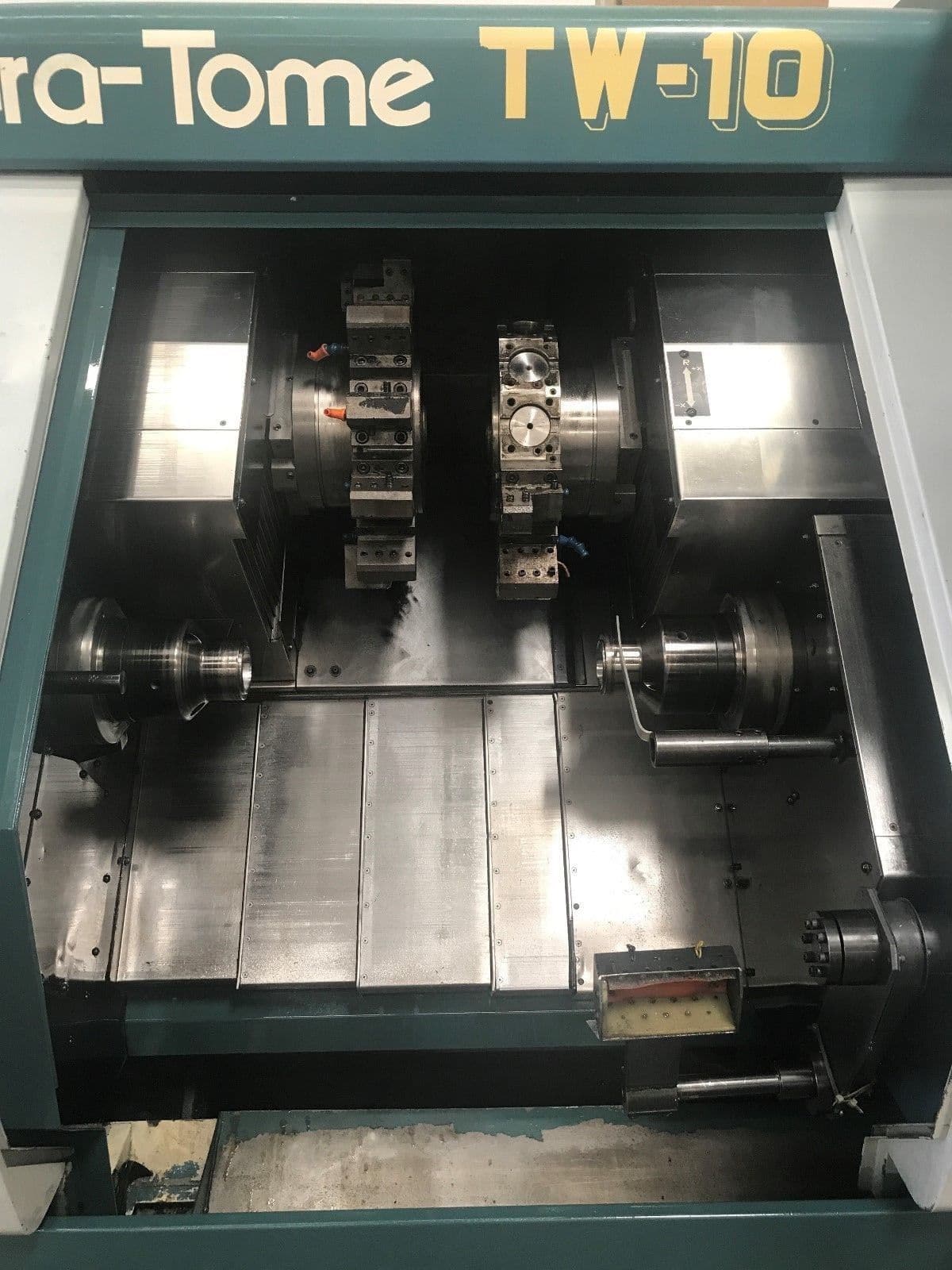

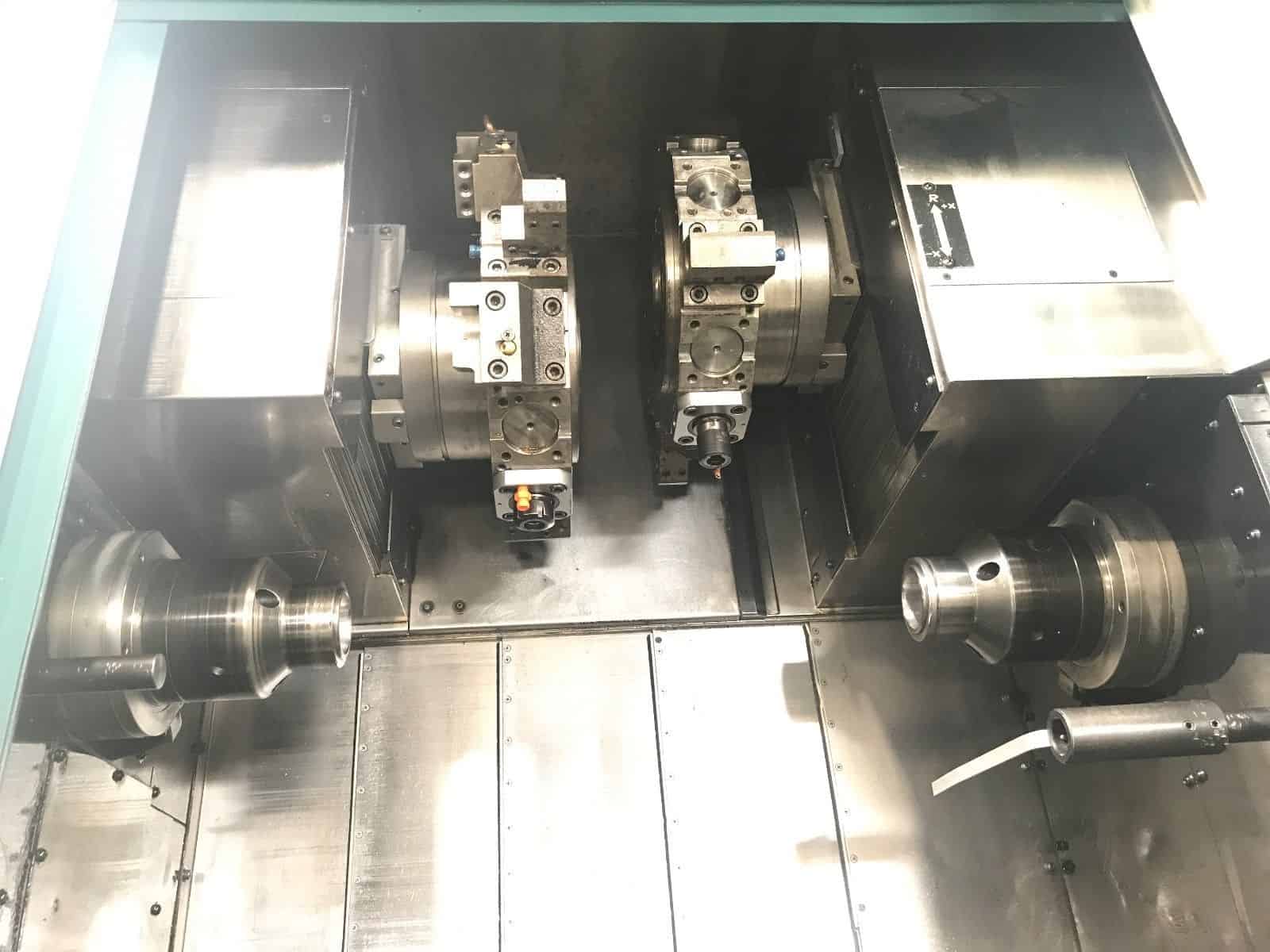

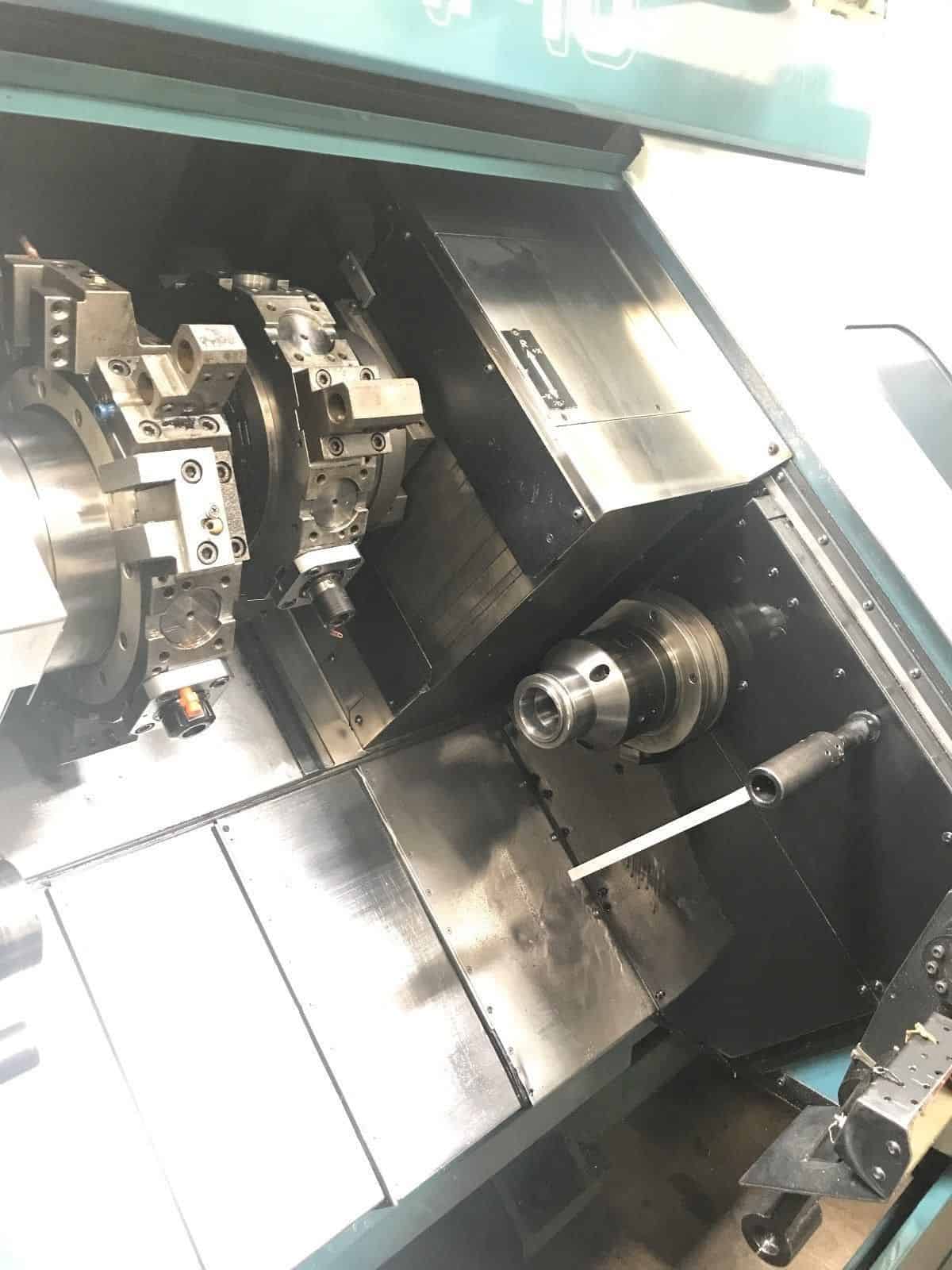

  • Twin Turret / Twin Spindle with C Axis

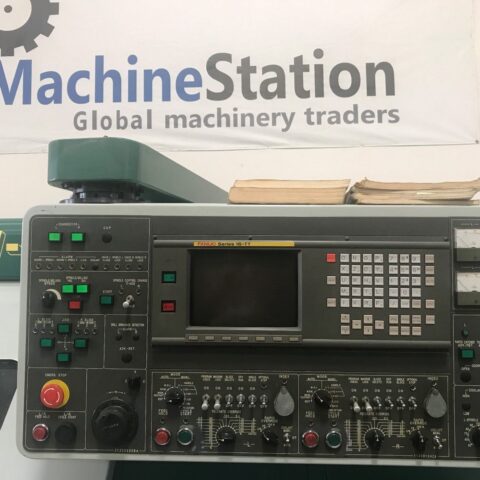

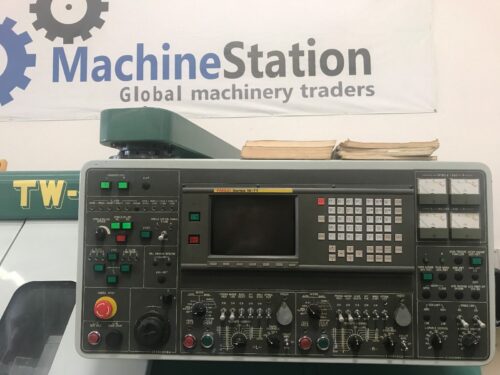

  • Fanuc 18-TC CNC Control
  • All 12 Live Tools Turret
  • Hydraulic Collet Chucks on Both Spindle
  • Auto Parts Catcher
  • Both Spindle Synchronization
  • Chip Conveyor
  • Parts Conveyor
  • High Pressure Coolant System
  • Automatic Lubrication system
  • Foot Switches
  • Coolant Tank
  • Comes with Chip Conveyor, 2 X Live Tools, Tool Holders & Manuals.
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Overall Dimensions: 120″ x 75″ x 72″ High
  • Weight : 10,000 lbs Approx.
  • NAKAMURA TW-10MM Specifications:
  • Max Turning Diameter: 8.27″ (210 mm)
  • Max Turning Length: 6.10″ (155 mm) each side
  • Max Bar Capacity: 1.69″ (43mm)
  • Max Swing Over Slide: 8.27″
  • Max Distance Between Spindles: 34.25″
  • X Axis Travel Both Side: 7.28″
  • Z Axis Travel Left: 7.87″
  • Z Axis Travel Right: 24.40″
  • C Axis Index: 1 Degree
  • Rapid Traverse X Axis: 472 IPM
  • Rapid Traverse Z Axis: 1417 IPM
  • Spindle Index: 1 Degree
  • Spindle C Axis: 0.001 Degree
  • Spindle Taper: A2-5
  • Spindle Bore: 2.04″
  • Spindle Speed: 55-5500 RPM
  • Spindle Motor: 10 HP
  • Tool Capacity: 12 Each Turret
  • Live Tools: All 12 Position
  • Live Tool Speed: 50-6000 RPM
  • Live Tool Motor: 5 HP

NAKAMURA TW-10MM Comes as shown in pictures.
