*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

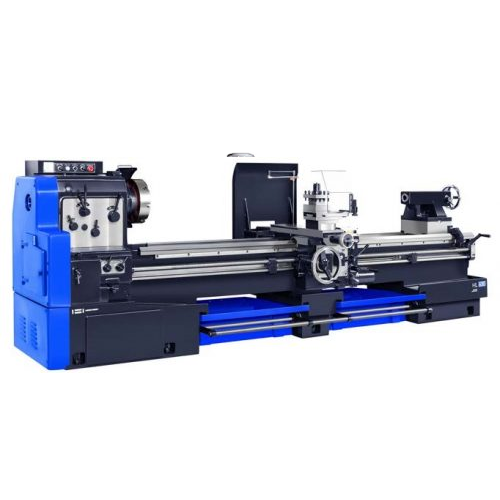

| Make | Hwacheon |
| Model No. | HL-720-3000 |
| Condition | Brand New |
| Equipped with: |
|---|
| Center Sleeve |
| Change Gear 78T |
| Face Plate |
| Installation Block |
| Coolant Equipment |
| Tool Kits & Box |
| Carbide Center M.T. #5 |
| Worm Gear |
| Steady Rest (Standard 6″ – 11″) |
| Carriage Micro Stopper |
| Driving Plate |
| Face Plate |
| Capacity: |
|---|
| Swing Over Bed: 28.34″ |
| Swing Over Cross Slide: 18 1/2″ |
| Swing Over Gap: Non-Gap |
| Distance Between Centers: 118.11″ |

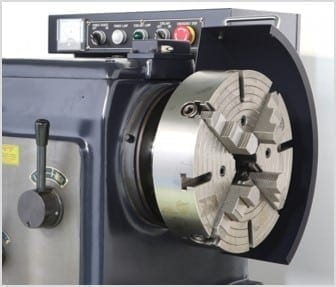

| Spindle: |
|---|
| Spindle Nose: A1-8″ or D1-8″ |
| Spindle Bore: 3.03″ |
| Taper of Spindle Bore: M.T. #7 |
| Taper of Center: M.T. #5 |
| Number of Spindle Speeds: 12 |
| Range of Spindle Speeds: 27 – 1,205 RPM |
| Carriage: |
|---|
| Number of Feed Changes: 40 Steps |
| Longitudinal Feed (Z-Axis): 0.0015″ ~ 0.0216″ /Rev. |
| Cross Feed (X-Axis): 0.0016″ ~ 0.0228″ /Rev. |
| Cross Slide Travel: 15.35″ |
| Compound Rest Travel: 6.69″ |
| Bite Holder Size: 1 1/4″ x 1 1/4″ |
| Threads: |
|---|
| Lead Screw: 1.57″ x 0.47″ |
| Inch Threads: 56 ~ 2 TPI |
| Metric Threads: 0.0196″ ~ 0.55″ |
| D.P. Threads: 4 ~ 56 |
| Module Threads: 1 ~ 7 |

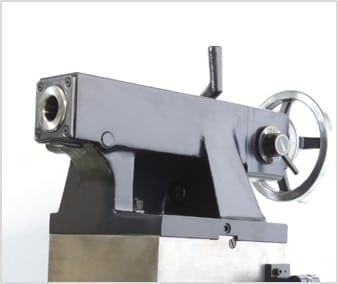

| Tail Stock: |
| Spindle Travel: 5.90″ |
| Taper of Center: M.T. #5 |
| Bed: |
|---|
| Width: 20.07″ |
| Length: 175.27″ |
| Motors: |
|---|
| Coolant Pump: 0.13 HP |
| Main Motor: 14.74 HP |
| Mechanical Specifications: |
|---|
| Dimensions: 186.22″ x 61″ x 57 3/4″ H |
| Weight: approx. 10,185 lbs. |
