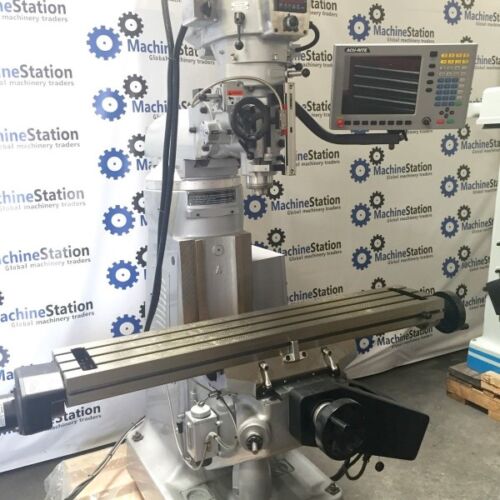

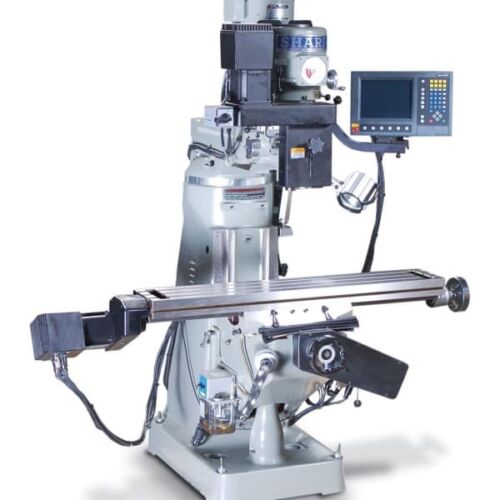

NEW SHARP LMV 50 CNC VERTICAL MILLING

Share

Description

SHARP LMV 50 CNC VERTICAL MILLING W/ ACCURITE MP2 G2 CONTROL – DVS HEAD

We are a stocking dealer of New & Used Machine Tools located in Southern California & are members of the MDNA. We have thousands of different Manual, CNC Machines and Tooling in stock for both fabrication & metal cutting.

We are an authorized dealer of Sharp Machinery. Please keep in mind that Sharp is constantly looking for new technology and design to enhance the quality and features of its products. Specifications and features will change over time. Call us to confirm details of a particular machine as well as stock levels before deciding to purchase

Make Sharp
Model No. LMV/DVS-50
Condition New, With a 1 Year Warranty, 3 phase power, 220 or 440 volts.
FREE SHIPPING WITHIN USA.
  • SHARP LMV 50 CNC VERTICAL MILLING Features:
  • Head:
  • To dissipate heat in the 3 HP motor drive head, a pair of high output fans are is installed. This allows the machine to work demanding jobs for extended periods without damaging the motor, belts and bearings. A unique SHARP feature
  • The motor shaft and Vari Drive pulleys are dynamically balanced, then hard-chromed this allows vibration free milling even at high speed
  • Since the Vari-speed drive system is operated by sliding the Vari Drive pulley up and down the motor shaft. The motor shaft is therefore chrome-plated, and has an oil channel that is fed by a grease fitting on the lower end for self-lubricating purpose. This ensures the sliding motion is trouble free at all times. A unique SHARP feature
  • The motor shaft that drives the pulley and the spindle is subject to a lot of lateral stress. A roller bearing is installed for the lower support of the motor shaft. A unique SHARP feature
  • Beside swiveling 90 degree side to side, the head can also swivel up and down by the virtue of a knuckle joint design. The new design developed by Sharp uses 6 bolts, 3 each side, that fits into a circular T-slot milled on the inside of the over arm and secured by nuts from the outside. It secures the head tightly and offers high accuracy in milling operations.
  • A matched pair of super-precision ABEC-7 angular contact bearings support the spindle. The quill is CNC-ground to a mirror finish, and then chromed to fit the housing. Together, they insure spindle run out of no more than 0.00002″ TIR – the best in the industry
  • Column, Table and Knee
  • Certified MEEHANITE castings are used for superior rigidity and better dampening of vibrations
  • Table and saddle backlash is controlled by a double-nut design that keeps the feed screw in contact with a pair of bronze nuts at all times. A unique SHARP feature
  • The end of the table and saddle are mounted with thrust bearings that pre-load the feed screw, eliminating endplay for precisely controlled lateral movement
  • Instead of hand scraping the top of the knee ways for oil retention, the matching underside of the saddle is hand scraped. This extra step helps to avoid having chips and dirt embedded in  the knee ways and damage the sliding area
  • “Bridgeport-style” vertical knee mill

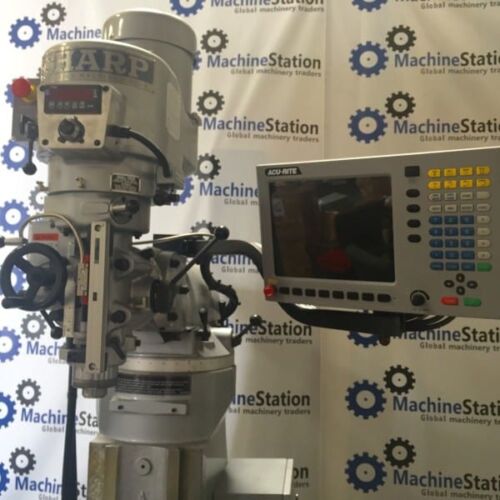

  • DVS Head
  • High reliability with fewer moving parts than regular vari-speed head
  • Dynamic brake
  • Low voltage control
  • Large Digital RPM Display
  • Fully enclosed display unit
  • Dependable Inverter Drive System
  • Machine can run on single phase or 3 phase electricity
  • Safety device prevents machine from self starting after power failure or after emergency stop being pushed
  • Optional Accessories for SHARP LMV 50 CNC VERTICAL MILLING: (Please call for pricing and additional information)
  • Acu-rite Electrical Edge Finder
  • 6” “Kurt” Vise with Swivel Base
  • Drill Chuck &  Drill Arbor
  • Coolant System with Chip Pan At Base
  • “Maxi-Torque Rite” Power Draw Bar
  • R-8 Collet (Set of 11) – 1/8” – 3/4” by 1/16”
  • Clamping Kit (52 pcs/steel rack)
  • Halogen Work light
  • 440 V transformer
  • Sharp also offer Fagor 8055i control for this mill
  • SHARP LMV 50 CNC VERTICAL MILLING Specifications:
  • Table:
  • Working Surface: 9″ x 50″
  • T-Slot Number, Size: 3, 5/8″
  • Capacity:
  • Table travel; x-axis 32” (w/CNC Millpwr Installed)
  • Saddle travel; y-axis 11”
  • Ram travel 12”
  • Quill travel; z-axis 5”
  • Knee travel 16”
  • Spindle to column (nim-max) 6 ¾” – 18 ½”
  • Spindle to nose to table 2 1/8”-18”
  • Spindle:
  • Motor: 3 HP
  • Wiring Voltage: 220/440V, 3 phase, 60 Hz
  • Taper: R-8
  • Speed (Vari-speed): 60 – 4,500 RPM
  • Quill Feed (IPR): 0.0015″, 0.003″, 0.006″
  • Head Swivel: 360 Degrees
  • Head Tilt (Right to left each way): 45 Degrees
  • Head Tilt (Up and down each way): 45 Degrees
  • Dimensions & Weight:
  • Floor Area (WxDxH): 7′ x 6-1/2′ x 6-3/4′
  • Net Weight (approx.): 2,500 lbs
  • Standard Equipment for SHARP LMV 50 CNC VERTICAL MILLING:
  • Hard-chrome way

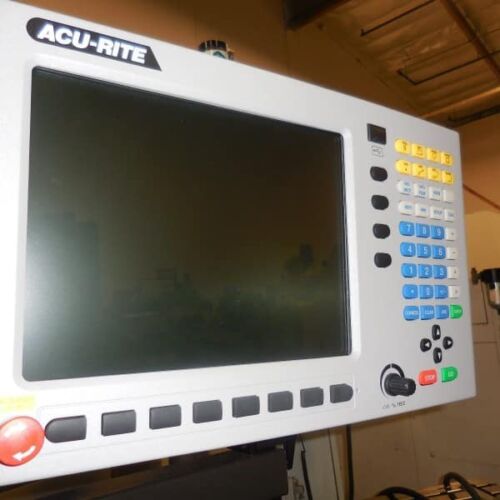

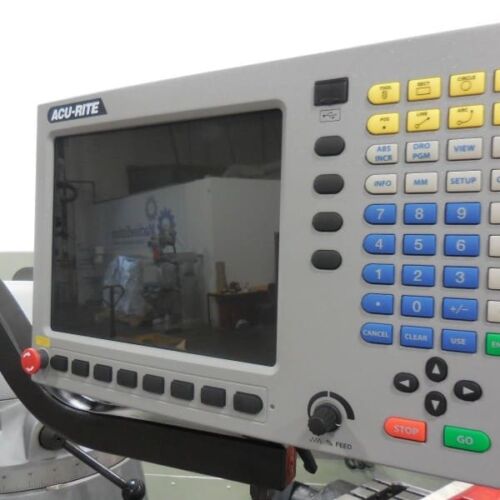

  • ACCURITE CNC Millpwr MP2 G2 2 Axis Control , 3rd Axis Readout
  • Front and rear way cover
  • Automatic Lube System
  • DVS head, 220 V only needs a  transformer for 440 V application
  • Tool Kit includes: Machine manual, Half nut wrench, Wrench 17, & 19m, Set of 6 Allen wrenches, Phillip screwdriver, Flat head screw driver, Oil can, Grease Gun, Rear way cover bracket, Pin for indicator, Can of paint

SHARP LMV 50 CNC VERTICAL MILLING.

PAYMENT: Banker’s check or wire transfer are preferred when dealing with transactions that exceed $1000. Any purchase of over $1000 will come with an extra 3% charge when paying through Paypal or with a Credit/Debit Card. All major credit cards are accepted.

WARRANTY: Sharp Industries warrants to the original purchaser, other than a purchaser for resale, (the “Purchaser”) that Sharp Industries machine tools shall be free of defects in materials and workmanship. For a period of one (1) year from completion of installation, Sharp Industries will, at its sole and exclusive discretion, either replace or repair any machine or part thereof defective in workmanship or material, at no charge to the Purchaser.

All warranty repairs must either be performed by Sharp Industries or MachineStation. To obtain warranty service, Purchaser must contact MachineStation. Purchaser must provide verification of the date of delivery/installation when requesting warranty service (dated installation report). Ground freight charges (UPS regular or common carrier truck) for all warranty replacement parts are paid by Sharp Industries. If machine is not operational, Sharp Industries will pay next-day air shipment charges for necessary parts weighing 100 lbs. or less. Materials or parts alleged to be defective shall be returned to Sharp Industries, at Sharp Industries’ request, transportation charges prepaid. After the warranty repair or replacement of a defective part, Sharp Industries’ warranty for such part shall continue for ninety (90) days or for the remainder of the original Limited Warranty, whichever is longer.

MACHINE USE AND SAFETY: Buyer acknowledges that the Seller has no knowledge or control over the application of these goods by the Buyer. It is the Buyer’s (user’s), responsibility to provide proper safety devices, equipment and instructions for any particular use, and to take all necessary steps to confirm to all Federal, State or Local Government Safety Standards and including OSHA.

BUYER IS RESPONSIBLE FOR SCHEDULING TRANSPORTATION OF THIS MACHINE, AS WELL AS ALL COST TO MOVE IT. IF YOU NEED HELP WITH SCHEDULING, PLEASE CONTACT US AND WE WILL ASSIST YOU. WE SHIP GLOBALLY.
