NICCO NSG156 CNC HYDRAULIC SURFACE GRINDER

Out of stock
SKU: 1182
Make/Model: Nicco NSG 156
Video: [fusion_button link=”https://www.youtube.com/watch?v=zt89sf5PLe4″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1182
NICCO NSG156 CNC SURFACE GRINDER
Make Nicco
Model No. NSG 156
YOM: 1994-10
Serial # K-1002
Condition Very Good
  • NICCO NSG156 CNC Features:

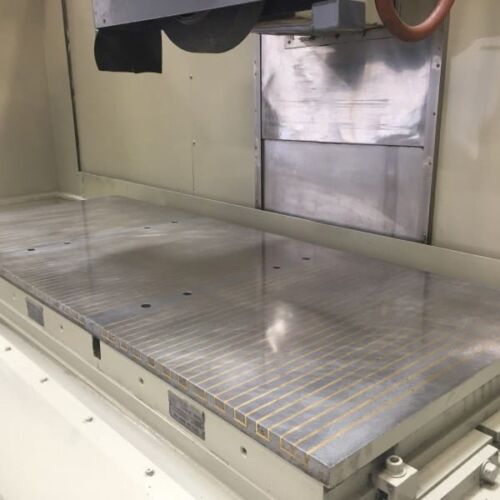

  • 24″ X 60″ Fuji Electromagnetic Chuck

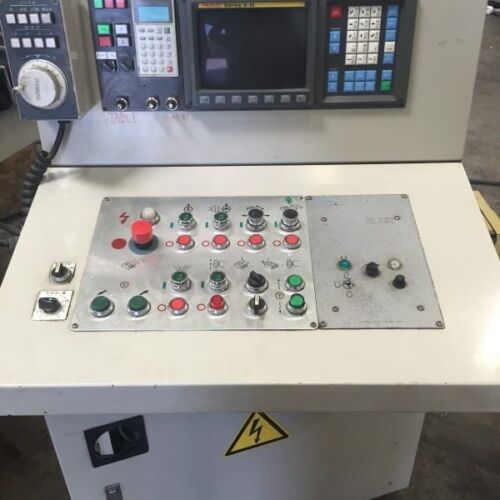

  • Fanuc OM CNC Control with Several Grinding Cycles
  • Criss Cross, Surface, Plunge & Pitch Mode
  • Oil Chiller
  • Automatic Incremental Downfeed
  • CNC  Wheel Dressing and Compensation
  • 5.5 Kw Mitsubishi Spindle Motor

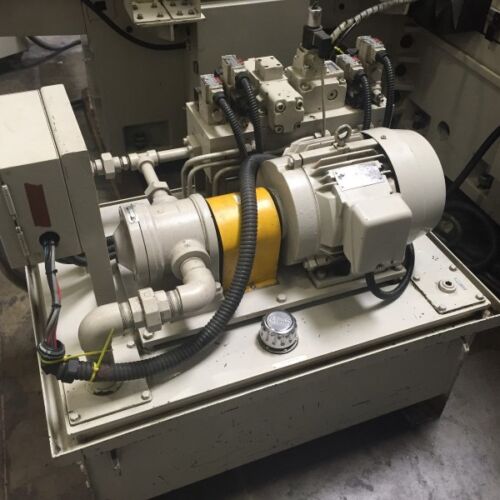

  • 10 hp Hydraulic Pump Motor
  • Auto Lubrication
  • NICCO NSG 156 CNC Specifications:
  • Travels:
  • Table Travel – Longitudinal: 64.5″
  • Table Travel – Cross: 25.5″
  • Z Axis Travels: 22.5″
  • Table:
  • Length: 62″
  • Width: 24″
  • Table Speed: 13 to 70 ft/min
  • Power Cross Feed of Column:50 in/min
  • Power Head Elevation:50 in/min
  • Distance Table to Spindle Center: 30.50″
  • Grinding Wheel:
  • Max Diameter: 16″
  • Max Width: 2″
  • Hole Size: 5″
  • Spindle Power: 5.5 kw
  • General:
  •  Power: 220v / 3-Phase
  • Overall Dimensions: 220″ x 105″ x 120″ High
  • Weight: 20,000 lbs

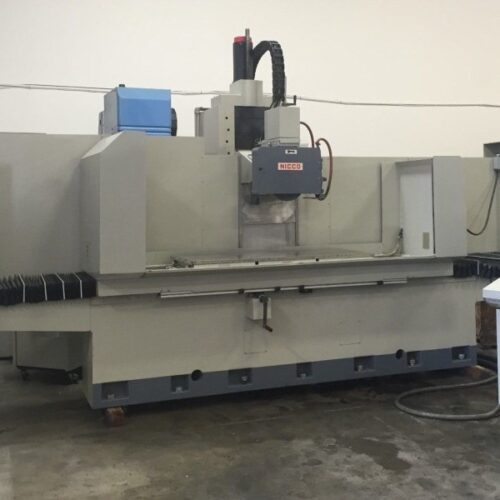

NICCO NSG 156 CNC Comes as shown in pictures.
