Okamoto OGM 8-20U CNC Grinder

Share

Description

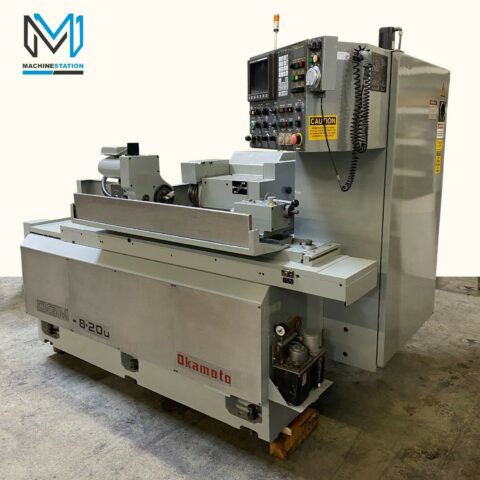

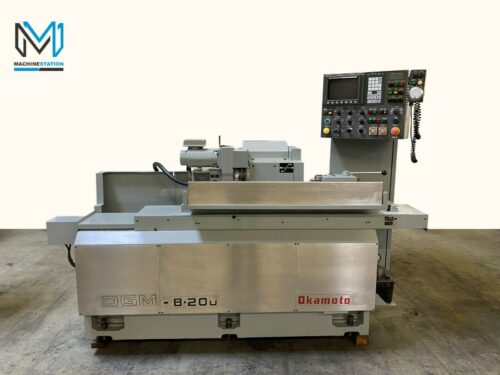

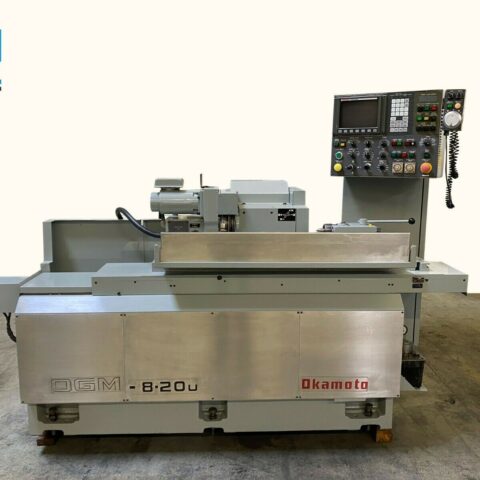

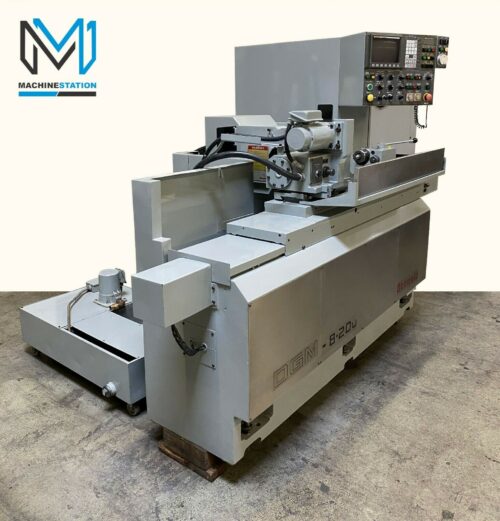

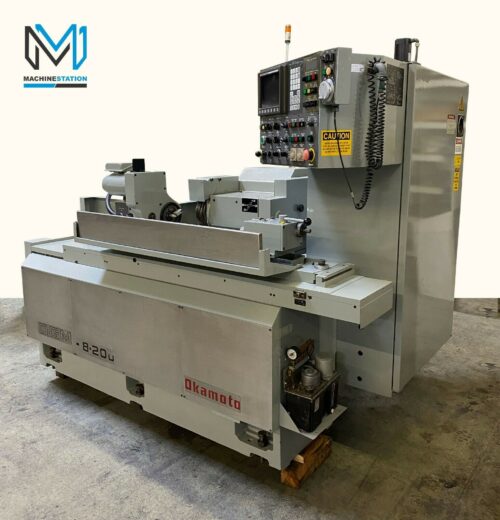

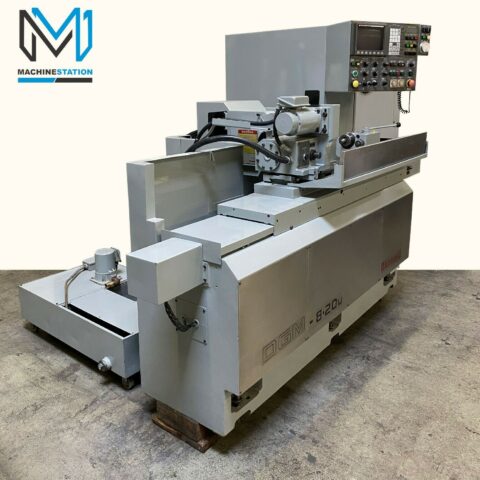

OKAMOTO OGM 8-20U CNC OD GRINDER
SKU 2017
Make Okamoto
Model No. OGM 8-20U

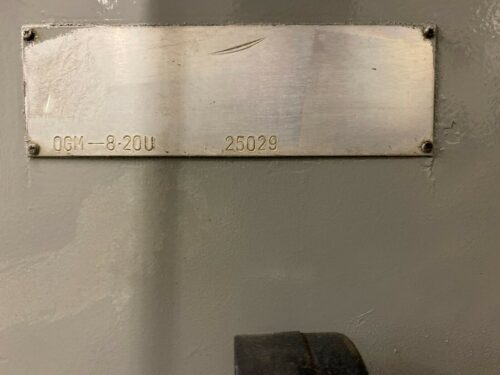

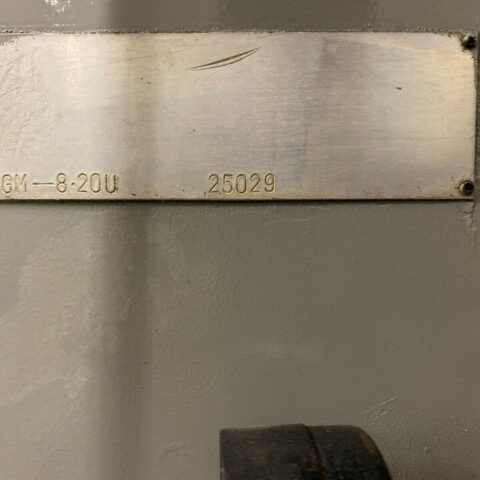

Serial # 25029
Condition Very Good
  • Okamoto OGM 8-20U Equipped With:

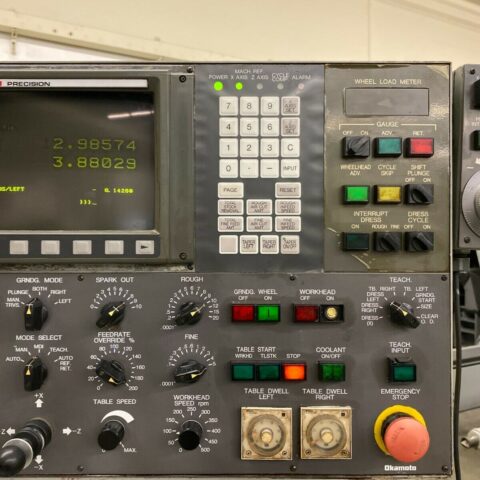

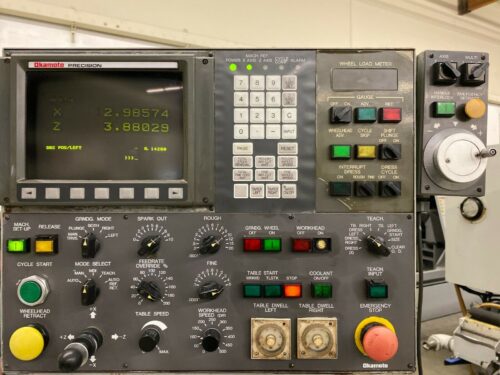

  • Fanuc 21-GA
  • Absolute/Incremental Combined Programming
  • 4 x Subprograms
  • Swivelable Table & Wheel-Head
  • MPG Control
  • Inch / Metric Conversion
  • Stored Stroke Check
  • Auto Reference Point Return
  • Automatic Acceleration & Deceleration
  • Coolant System
  • Automatic Lubrication system
  • Manuals
  • Okamoto OGM 8-20U Specifications:
  • Max Grinding Diameter: 7.87″
  • Max Grinding Length: 19.68″
  • Max load Capacity: 44 lbs
  • Swing Over Table: 8.66″
  • Distance Between Centers: 19.68″
  • Grinding Wheel:
  • Speed: 2010 RPM
  • wheel Size: 12″ X 1″ X 5″

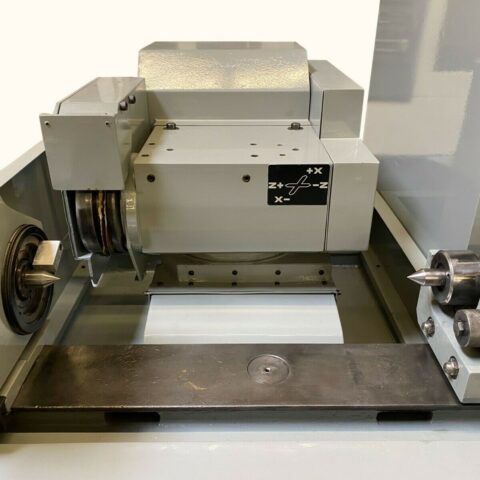

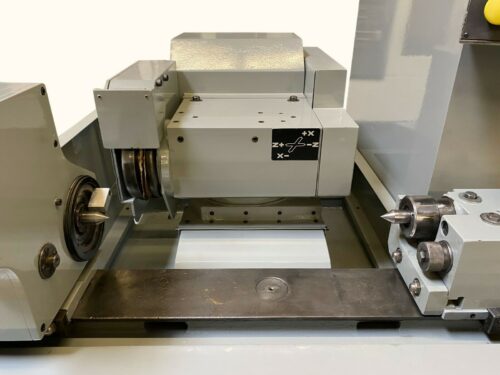

  • Wheelhead:
  • X Axis, Infeed Travel: 7.87″
  • Swivel Angle: +/- 30°
  • Least Travel Increment: 0.0001”
  • Rapid Feed Rate: 158″
  • Cont. Feed Rate: 0.0001″ to 158″
  • Motor: 5 HP
  • Workhead:
  • Swivel Angle: +30 – 90°
  • Center Taper: MT-3
  • Spindle Bore Dia.: 0.68″
  • Speed: 15-500 RPM
  • Motor: 1 HP
  • Table:
  • Z Axis Travel: 25.59″
  • Swivel Angle: +4 /-9°
  • Least Tavel Increment: 0.0001”
  • Rapid Feed Rate: 158″
  • Cont. Feed Rate: 0.0001″ to 158″
  • Tailstock:
  • Tailstock Quill Stroke: 0.78″
  • Tailstock Taper: MT-3
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 15 kva
  • Overall Dimensions: 106″ x 63″ x 66″ High
  • Weight : 5500 lbs Approx.

“No Charges for loading at list Price”
