*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

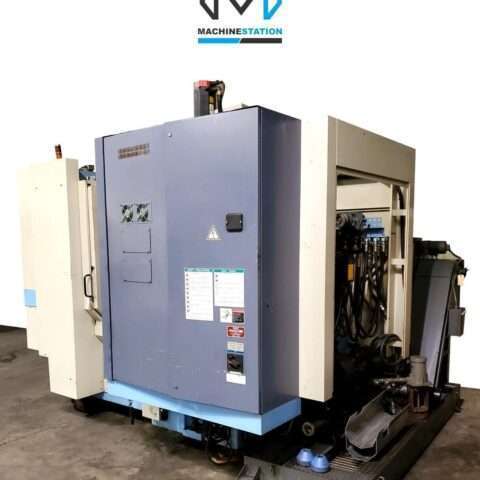

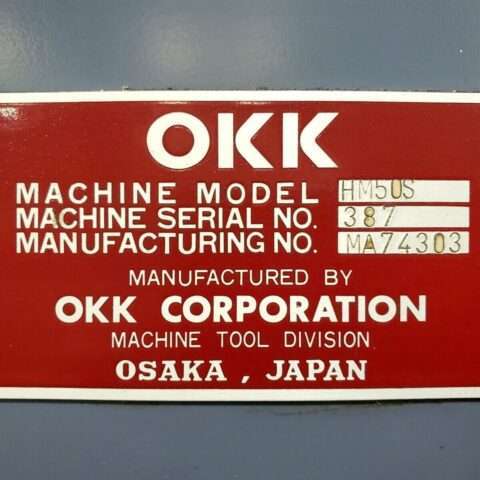

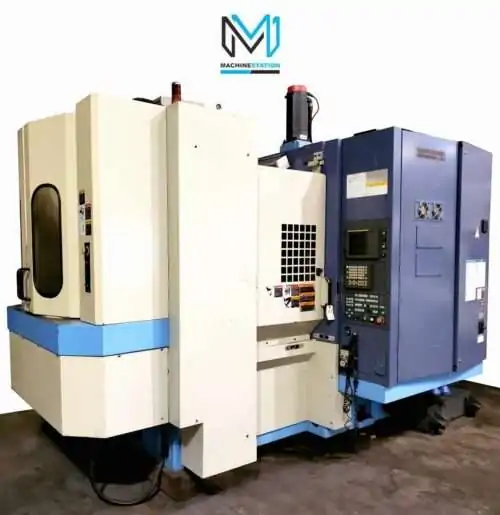

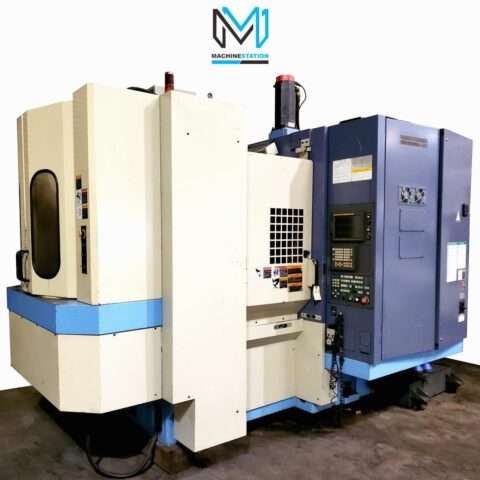

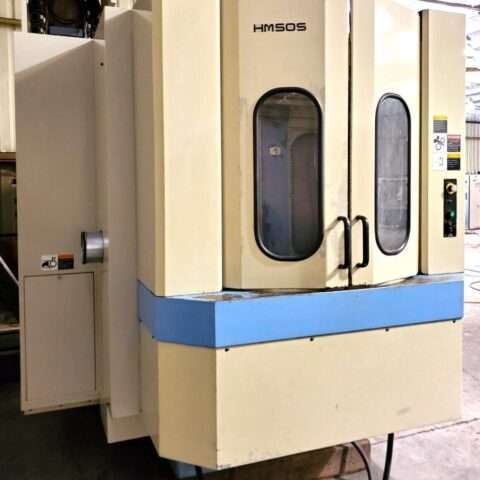

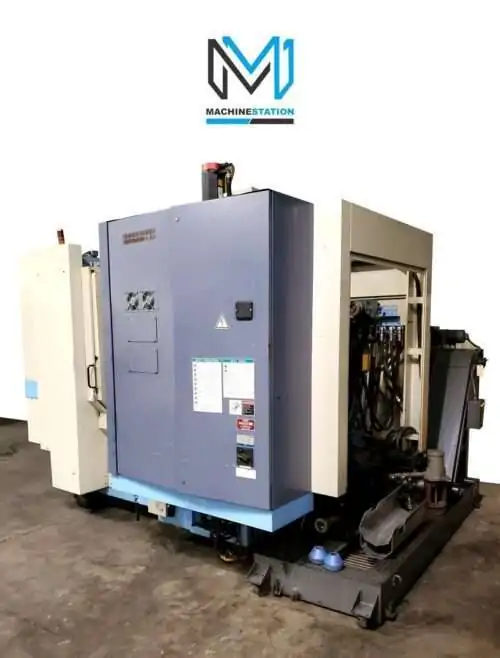

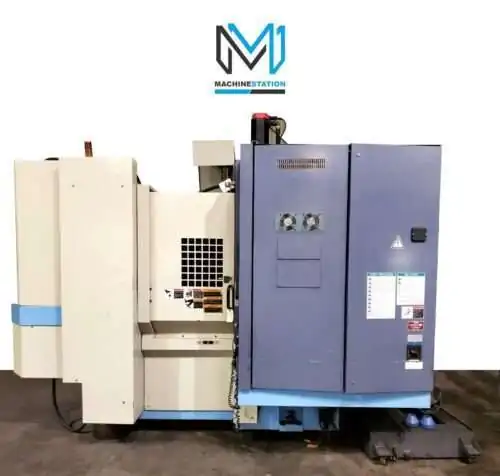

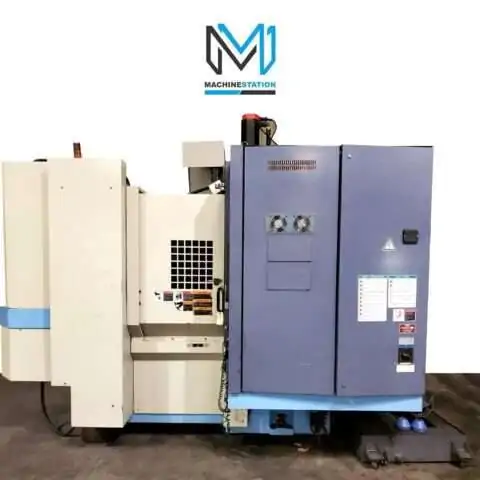

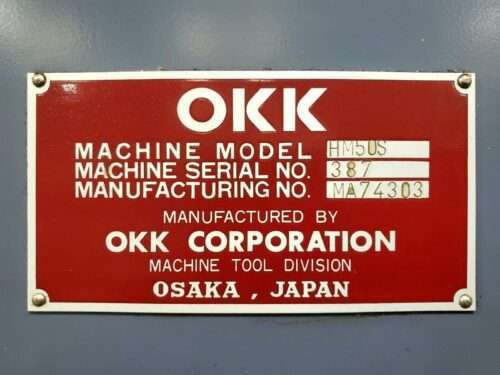

| Make: | OKK |

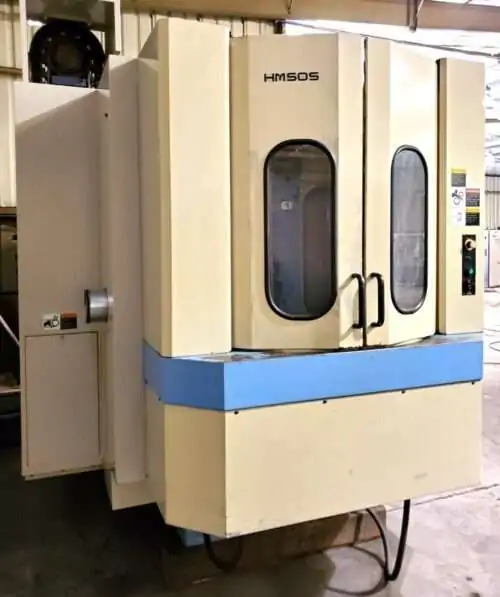

| Model: | HM-50S |
| Year: | |
| Condition: | Used – Good |
| Equipped With: |
|---|

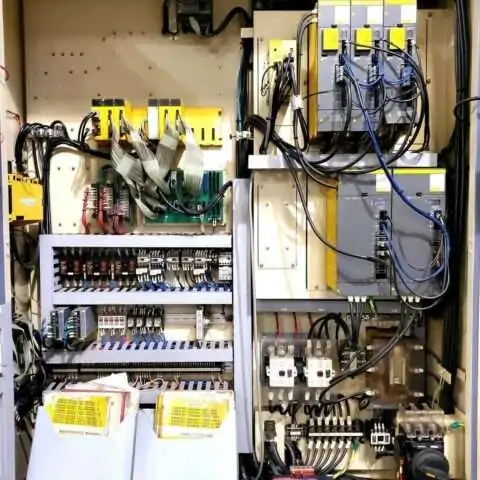

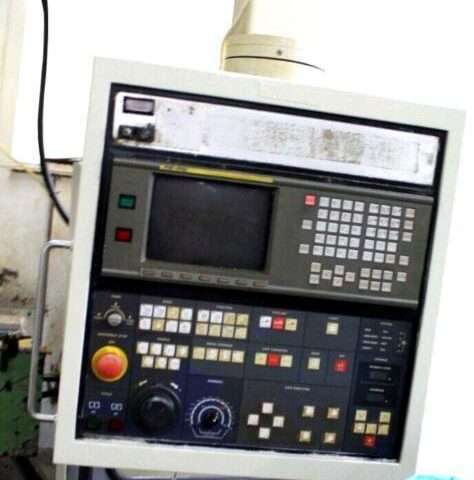

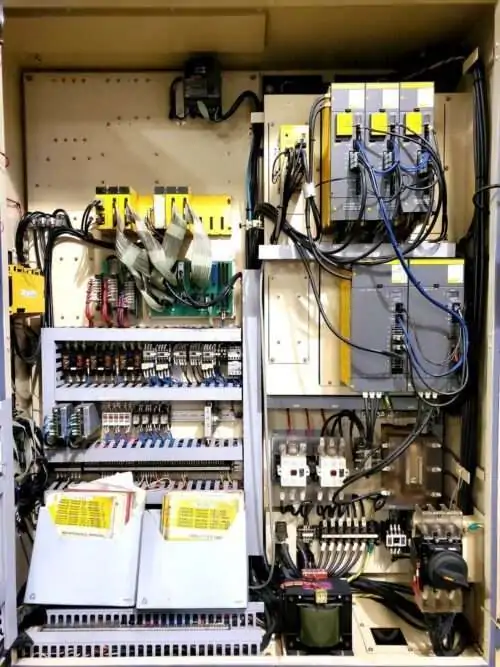

| Fanuc 16iMB CNC Control |
| Full 4th Axis |
| 10000 RPM Spindle |
| Through Spindle Coolant |

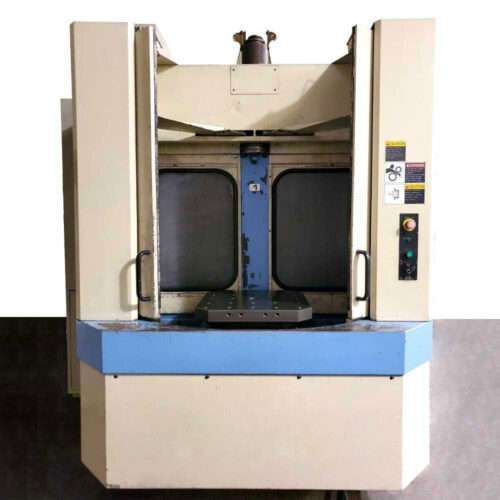

| Twin Pallet Changer |

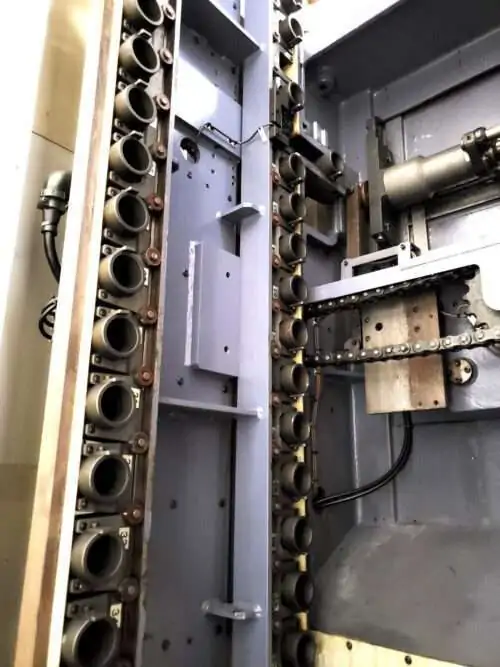

| 60 Station High Speed Tool Changer |
| PCMCIA Card Slot |
| MPG Control |
| 50 MB Memory |
| Spindle Orientation |
| Rigid Tapping |
| Fast Rapid Traverse Rate |
| Spindle Chiller |
| Flood coolant with large separate coolant tank |
| Chip Conveyor |
| Books & Manuals |
| Travels: |
|---|
| X Axis: 24.40″ |
| Y Axis: 22.05″ |
| Z Axis: 22.05″ |
| B Axis: 0.001° ( Full 4th ) |

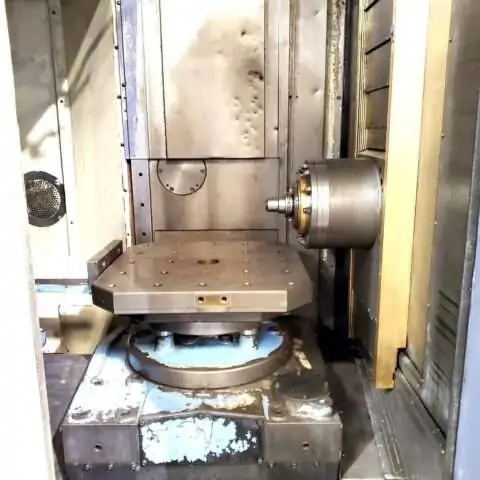

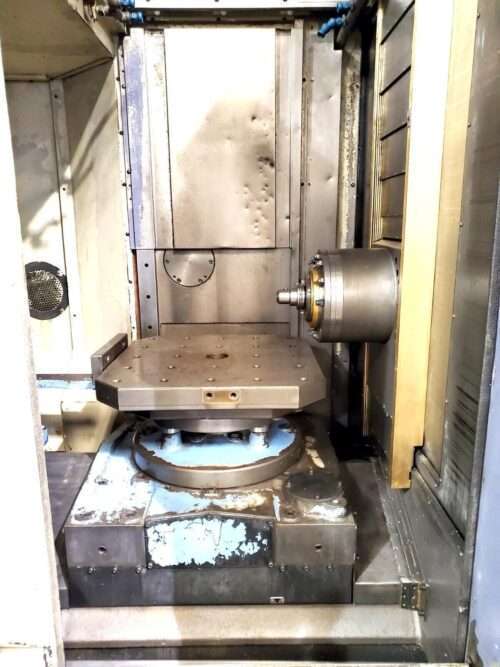

| Table: |
|---|
| Length: 19.7″ |
| Width: 19.7″ |
| Max Weight on Table: 882 lbs ? |
| Max Workpiece Dia: 27.5″ ? |
| Max Workpiece Height: 37.8″ ? |
| Index Time: 5 seconds |
| Spindle: |
|---|
| Taper Size: CAT 40 |
| Max. Speed: 10000 RPM |
| Power: 30 HP |
| Torque: 76.7 ft/lbs |
| Feed Rates: |
|---|
| Rapid X Y & Z : 1574 Inch Per Minute |
| Cutting Feedrate: 984 Inch Per Minute |

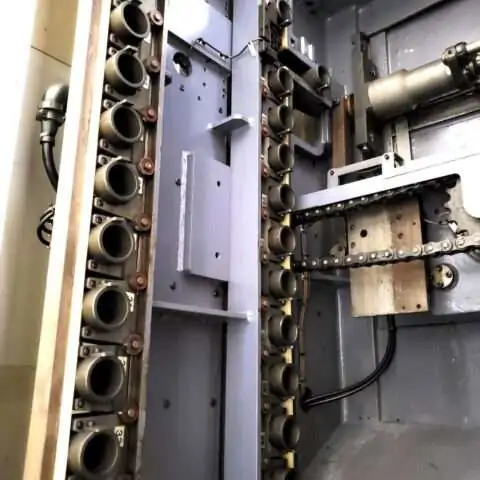

| Tool Changer: |
|---|
| Capacity: 60 Tools |
| Max Tool Size: 5.9″ |
| Max Tool Length: 17.7″ |
| Max Tool Weight: 22 lbs. |
| Tool Change Time: 1.3 Second |
| General: |
|---|
| Air Required: 90 psi 4 scfm |
| Power: 45kva / 205-220v / 3-Phase |
| Overall Dimensions: 156″ X 120″ x 115″ High |
| Weight: 30700 lbs |
| “No Charges for loading at list Price” |
