Okuma Cadet LNC-8C CNC Turning Center

Okuma Cadet LNC-8C CNC Turning Center

Out of stock

One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with Hydraulic Chuck, Tailstock, chip conveyor, Tool holders.”



SKU: 1573
Make/Model: Okuma Cadet LNC-8
Video:



SKU: 1573 Category:

Description

OKUMA CADET LNC-8C CNC TURNING CENTER
MakeOkuma
Model No.LNC-8C
Country of Origin:Japan

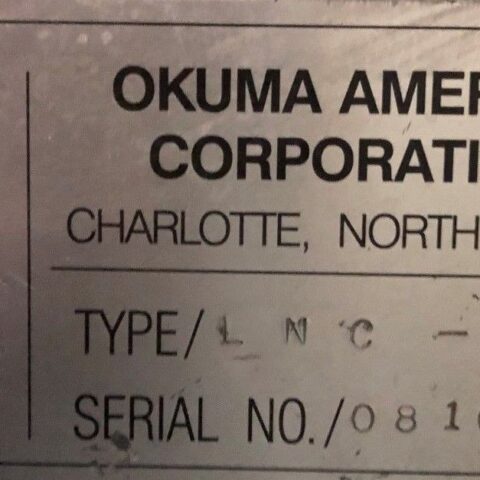

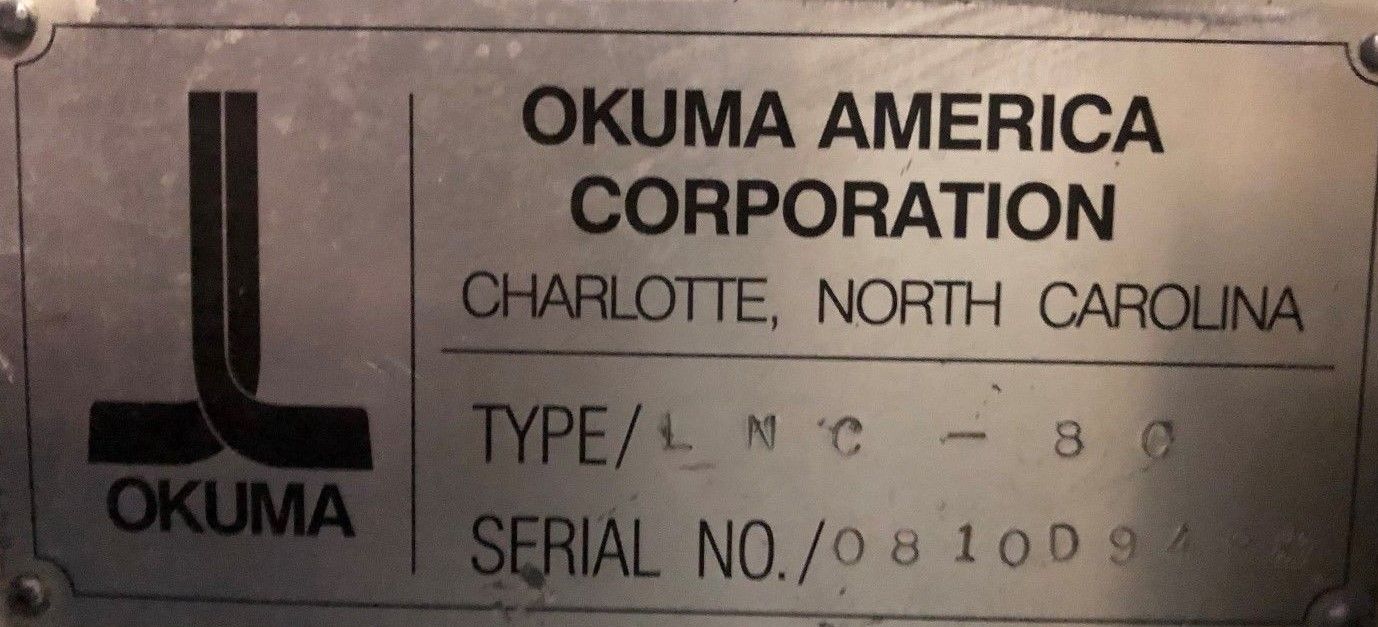

Serial #D948
ConditionVery Good

“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with Hydraulic Chuck, Tailstock, chip conveyor, Tool holders.”
Watch *VIDEO* in Spanish

  • Okuma Cadet LNC-8C Equipped With:

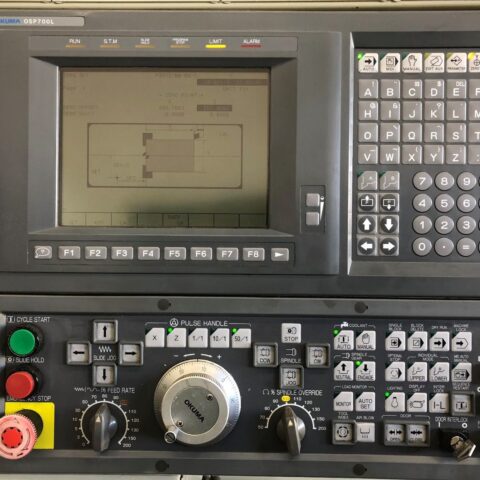

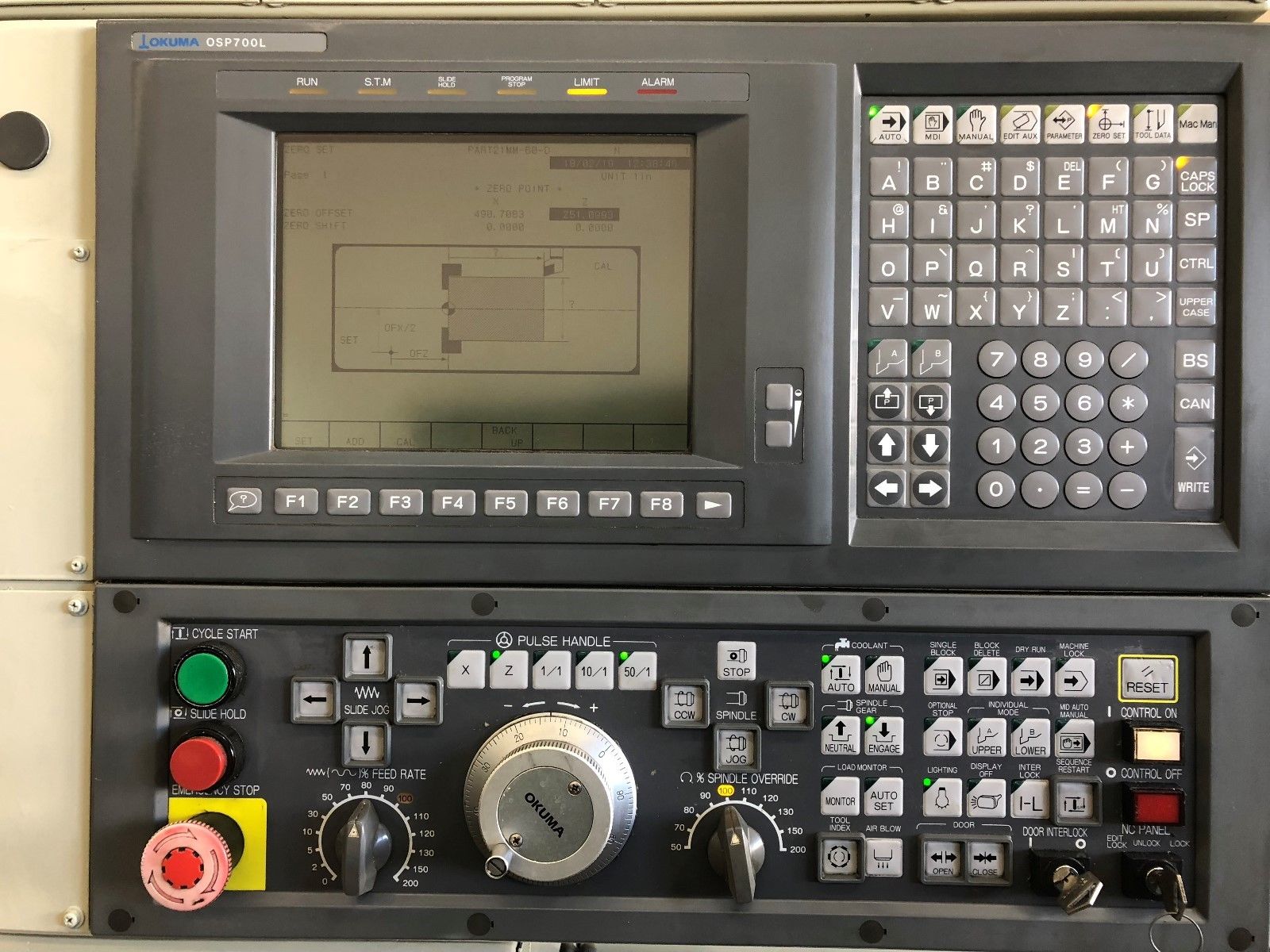

  • Okuma OSP-700L CNC Control
  • IGF – Interactive Graphic Function
  • Hardinge A2-8-65DL Hydraulic Collet Chuck

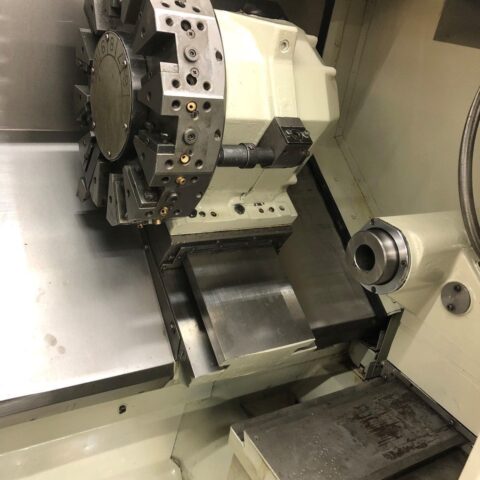

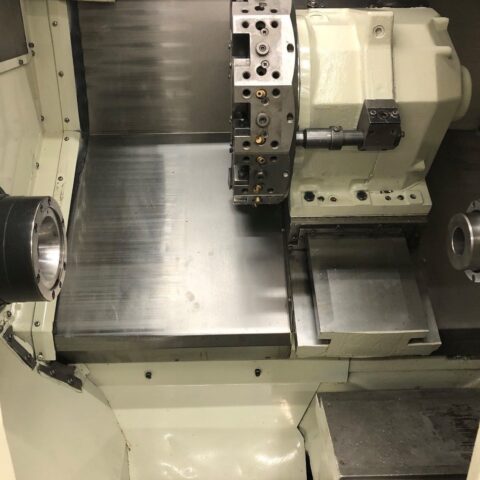

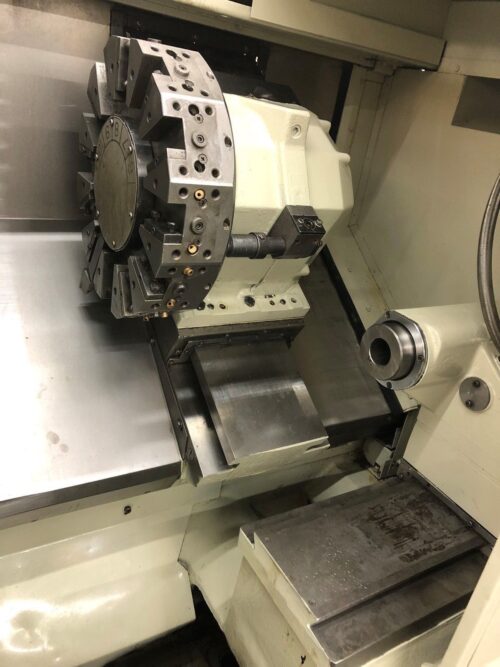

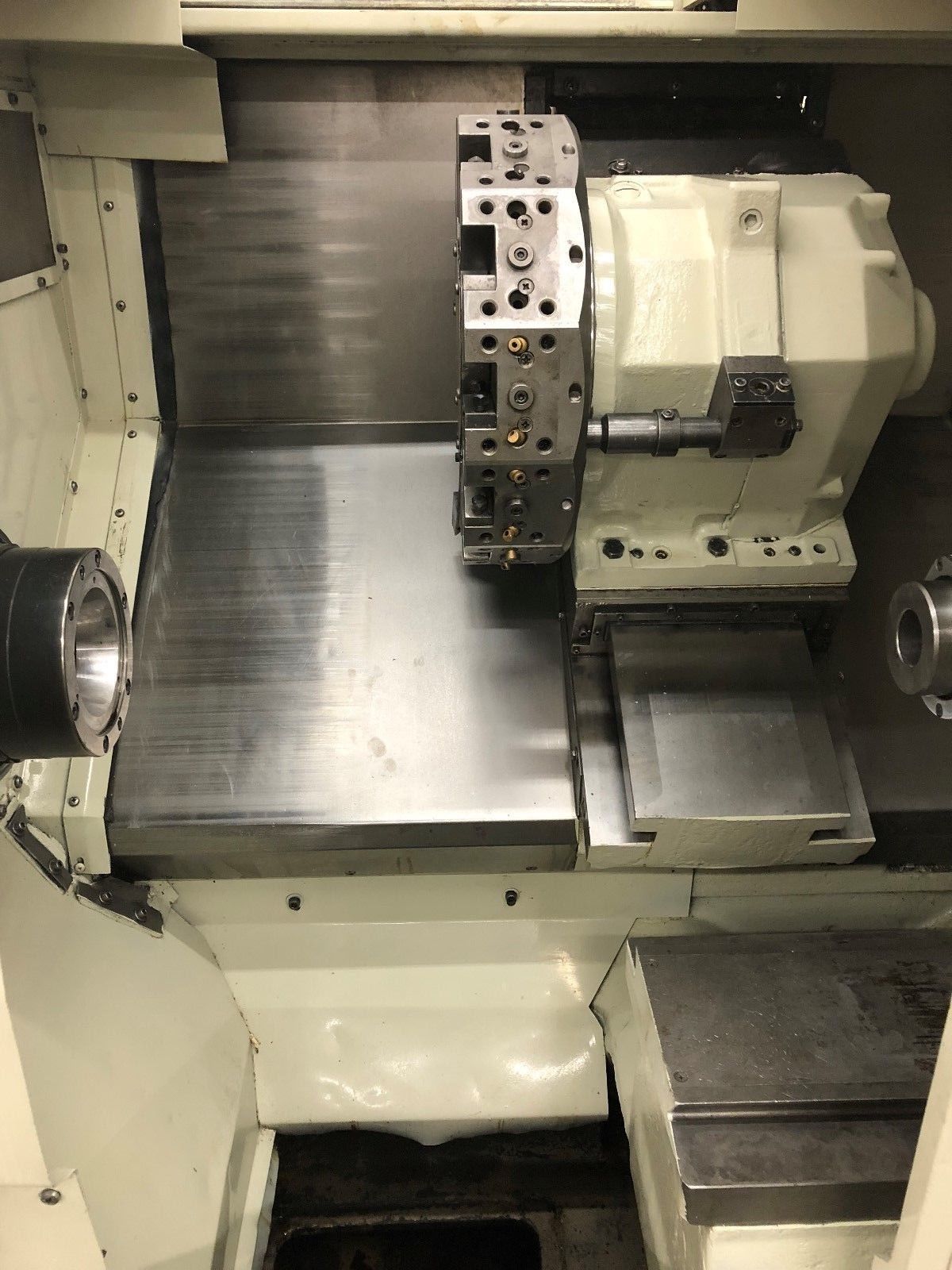

  • 12-Station Turret
  • Hydraulic Tailstock
  • Floppy Drive
  • Slant Bed Rigid Box Way Machine
  • Chip Conveyor
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck & Tailstock
  • Coolant Tank
  • Comes with Chuck, Chip Conveyor, Manuals.
  • General:

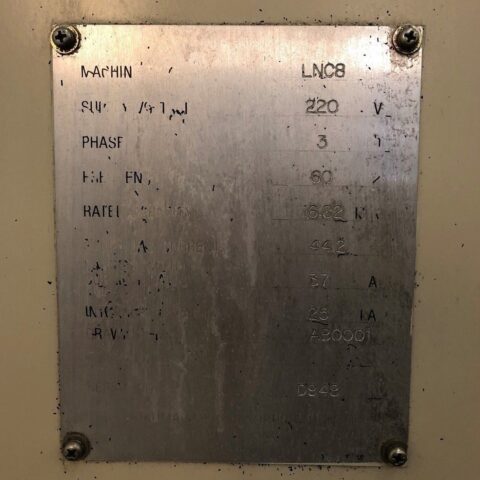

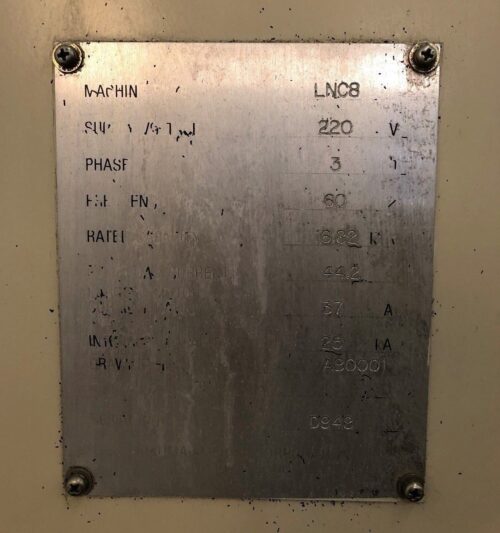

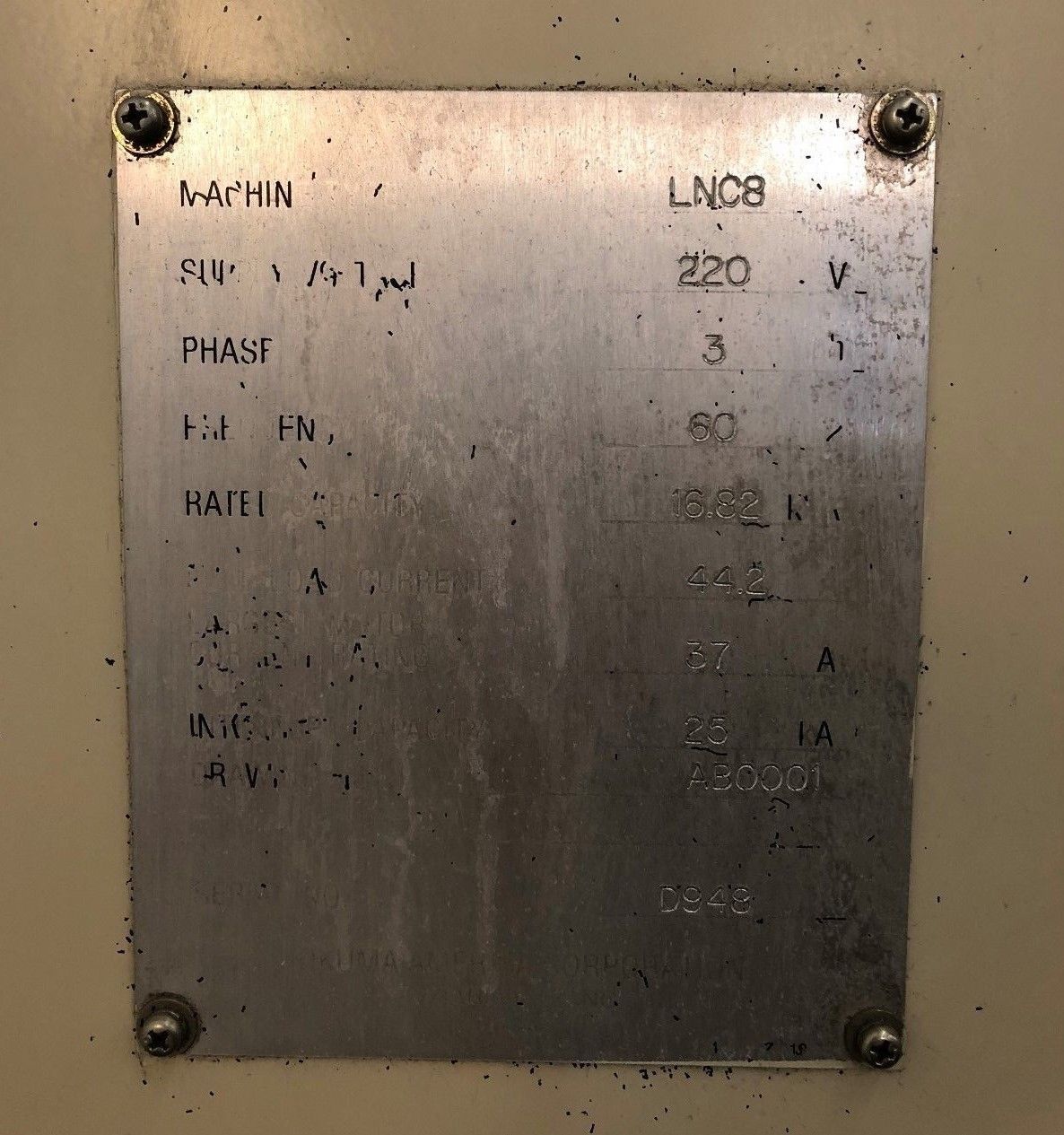

  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Overall Dimensions: 110″ x 76″ x 80″ High
  • Overall Dimensions: 156″ x 76″ x 80″ High W/Chip Conveyor
  • Weight : 9500 lbs Approx.
  • Okuma Cadet LNC-8C Specifications:
  • Max Turning Diameter: 9.84″
  • Max Turning Length: 19.59″
  • Max Bar Capacity: 3.0″
  • Swing Over Bed: 15.75″
  • Distance Between Centers: 22.4″
  • X Axis Travel: 6.89″
  • Z Axis Travel: 20.47″
  • Rapid Traverse X Axis: 472 IPM
  • Rapid Traverse Z Axis: 591 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.15″
  • Spindle Speed: 65-3500 RPM
  • Spindle Motor: 15 kw
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.9 Second
  • Tailstock Quill Dia.: 3.94″
  • Tailstock Quill Stroke: 4.72″
  • Tailstock Taper: MT-5

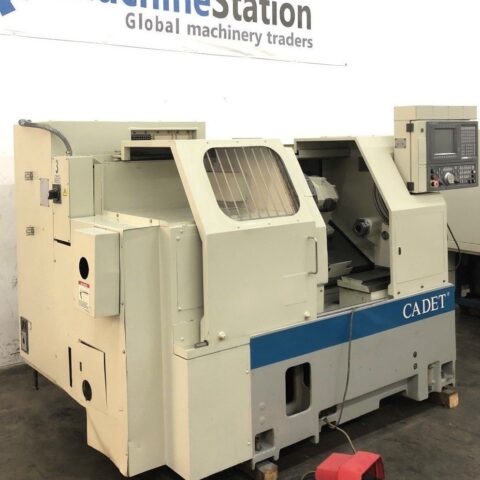

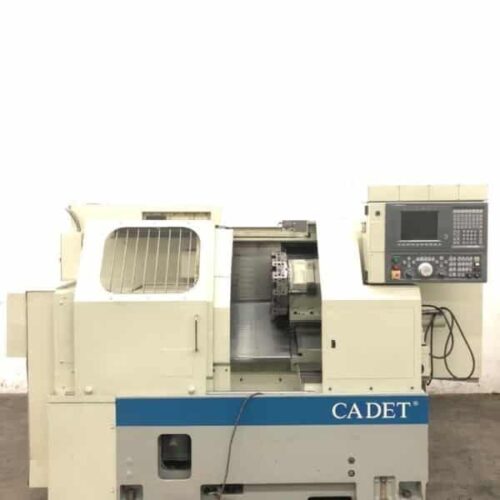

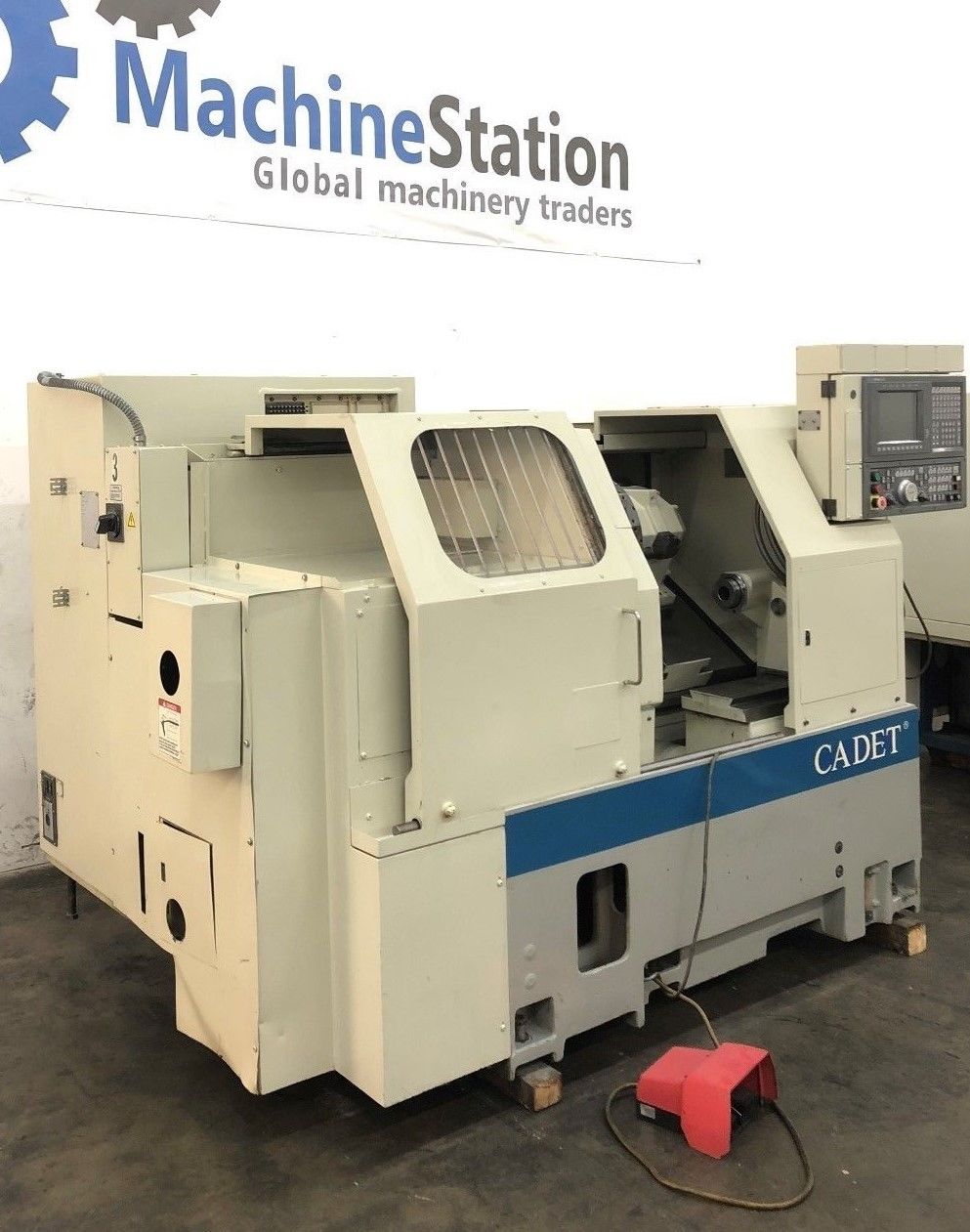

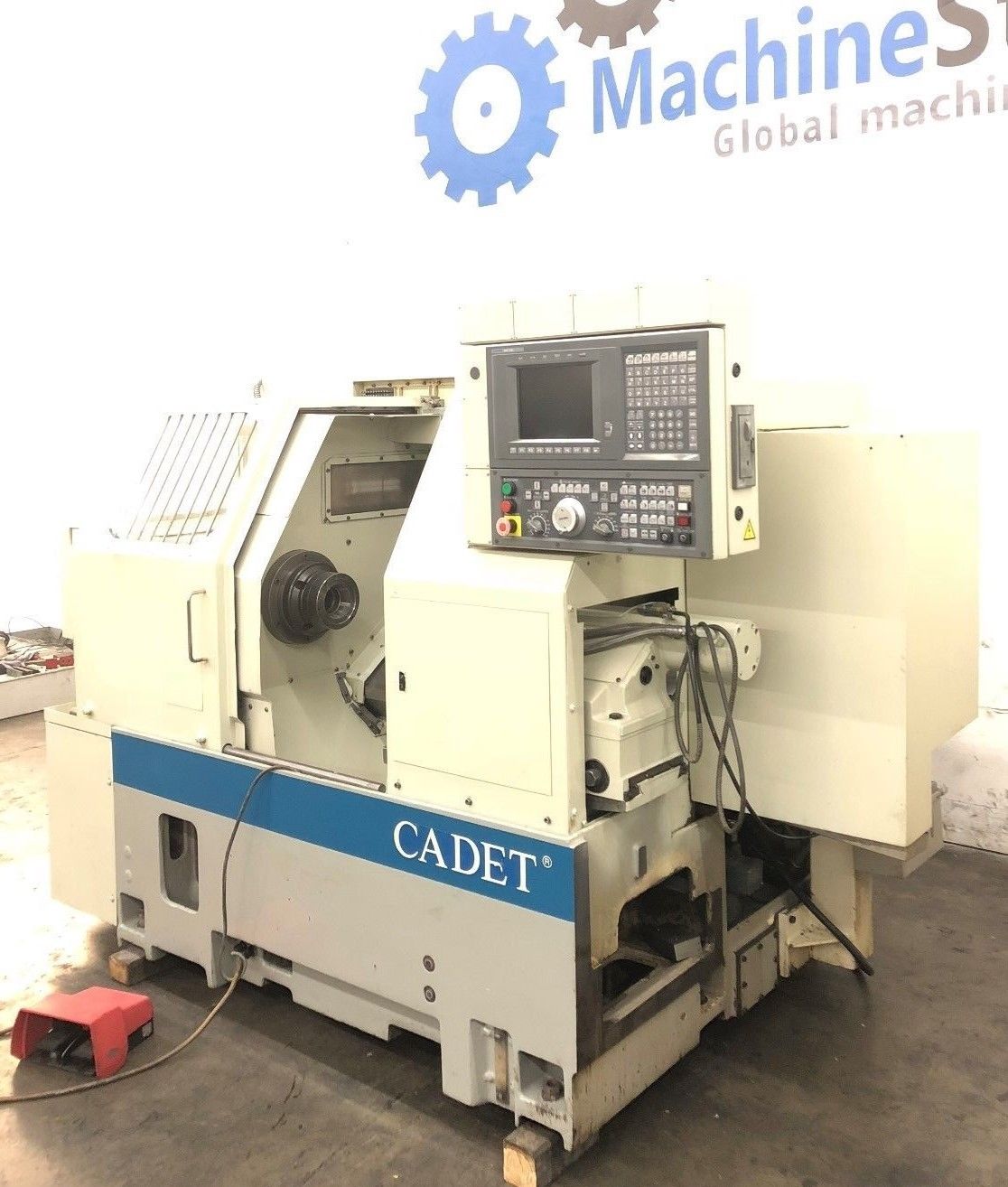

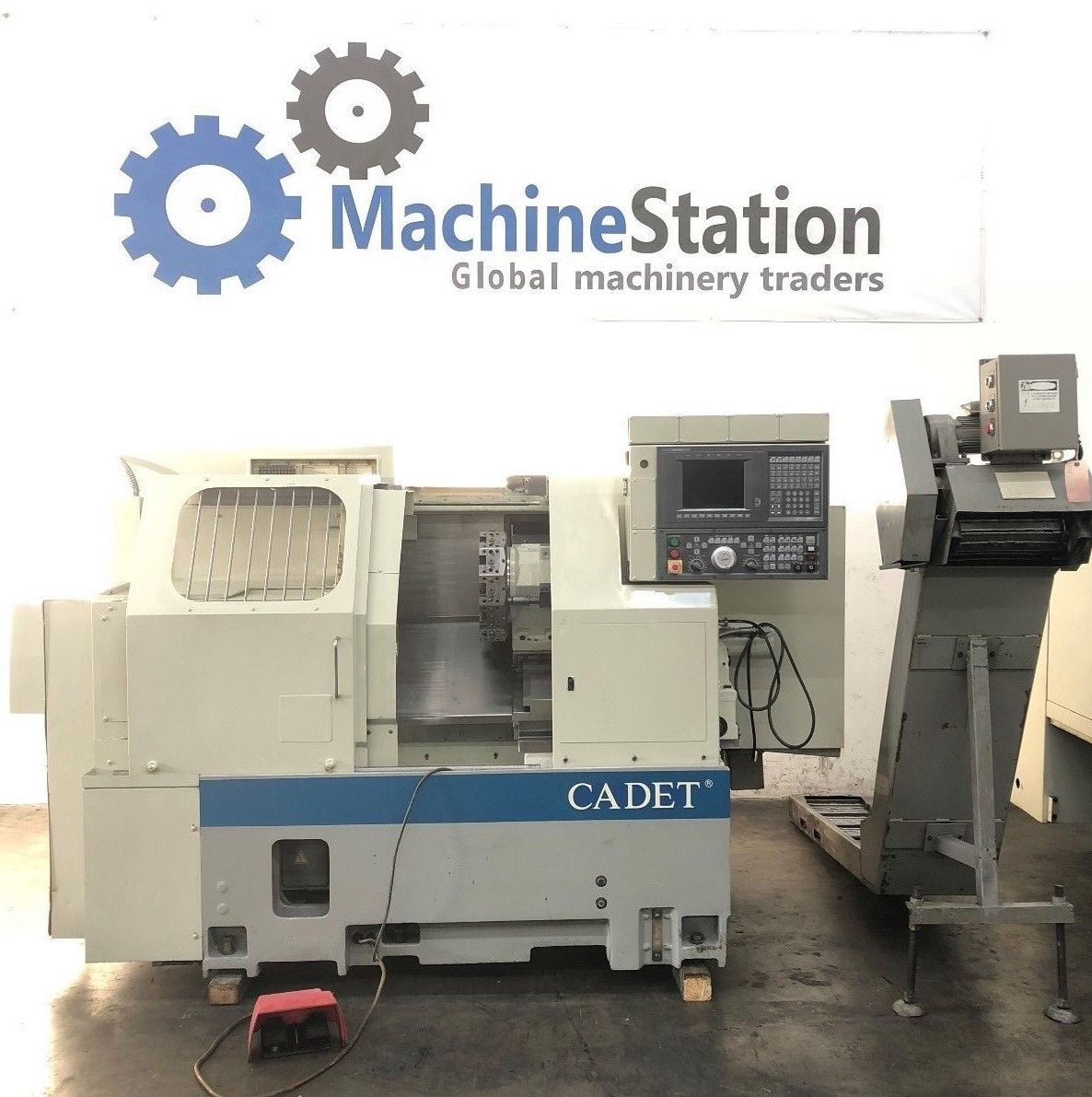

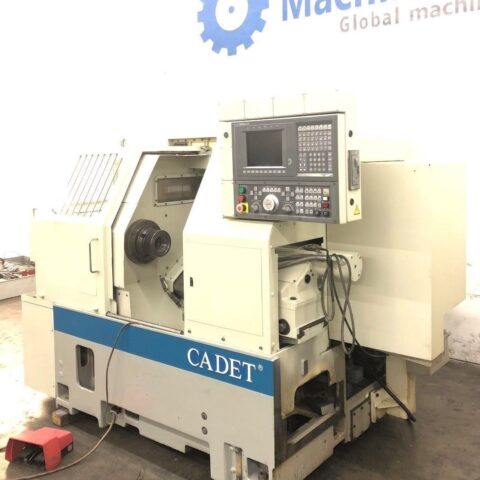

Okuma Cadet LNC-8C Comes as shown in pictures.
