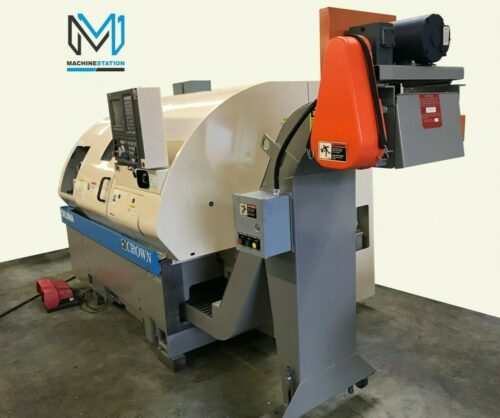

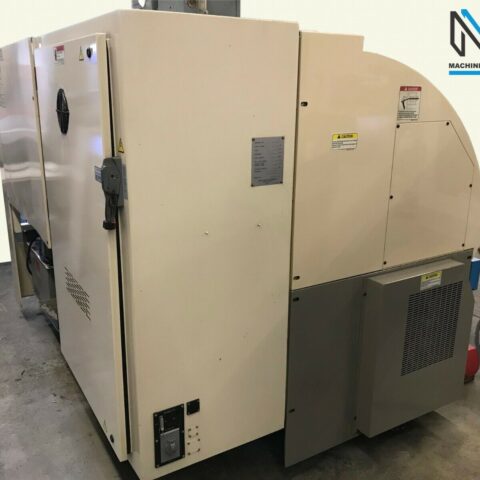

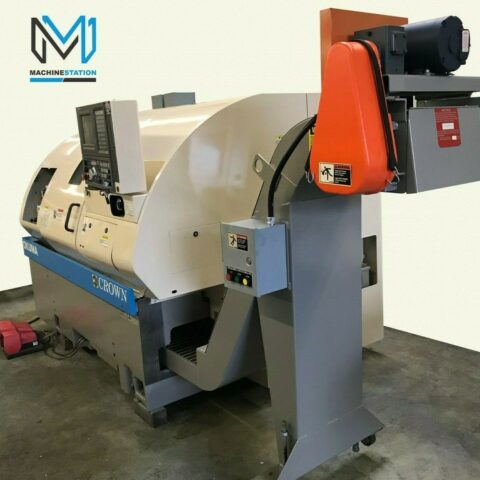

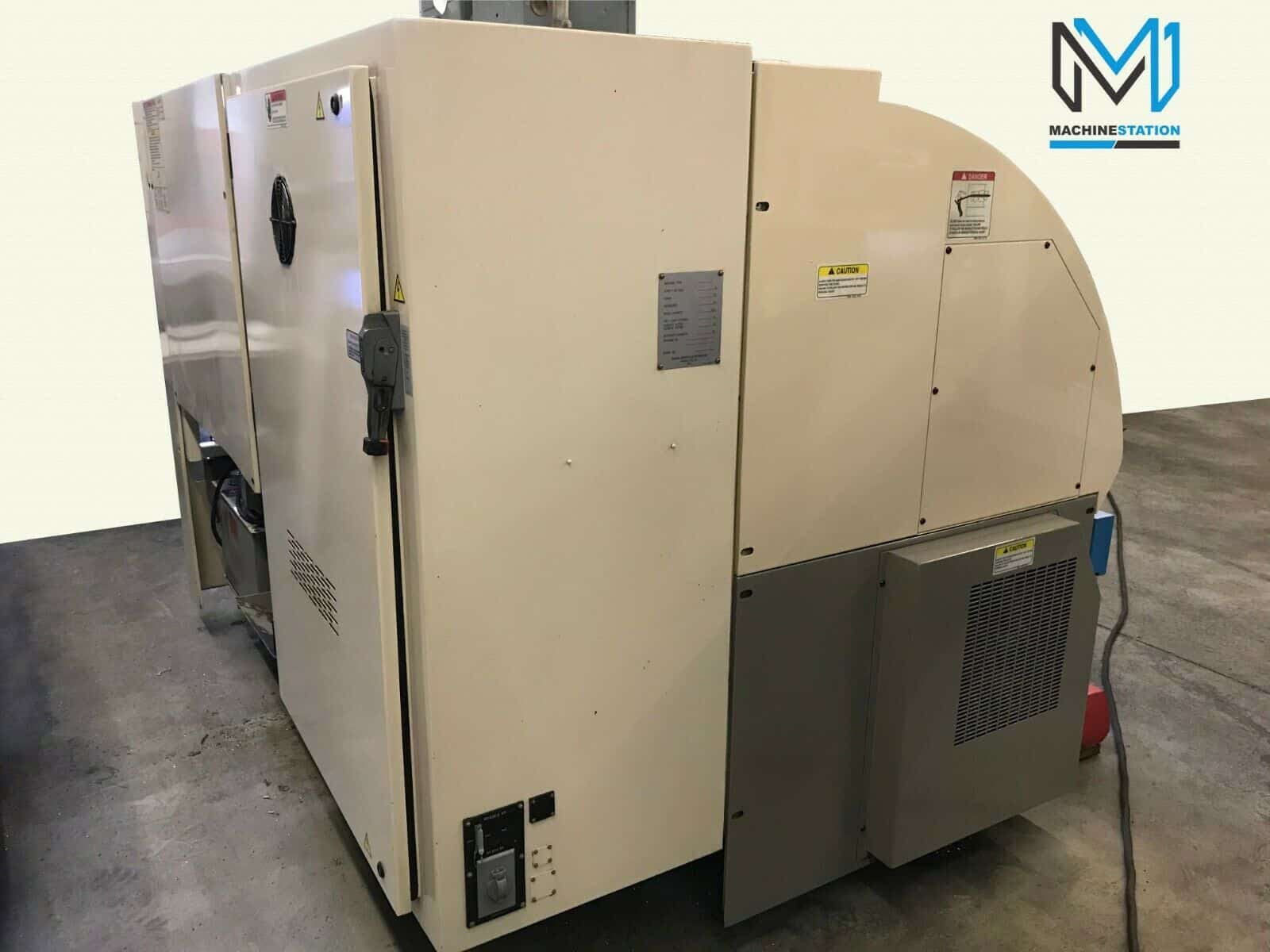

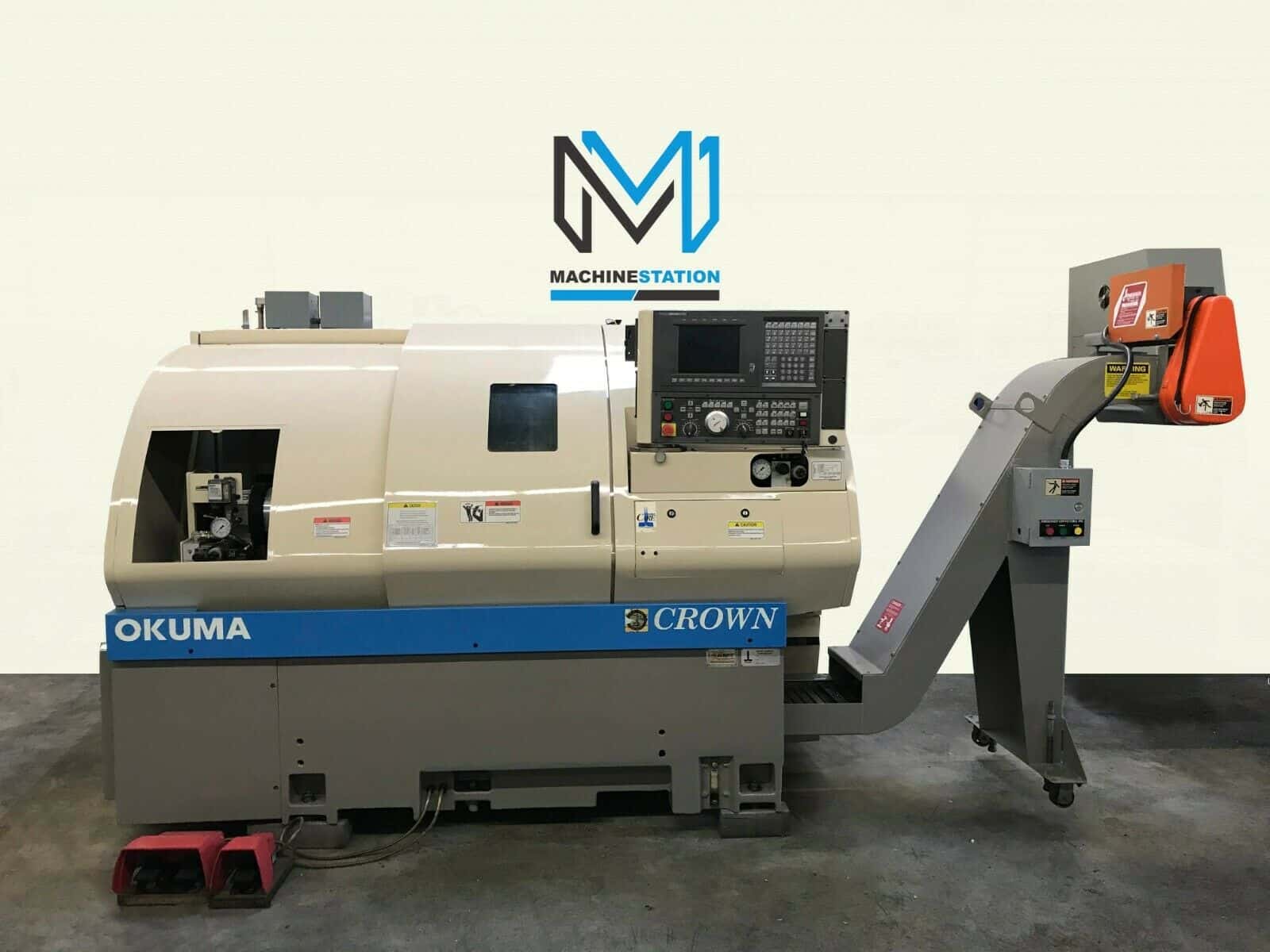

Okuma Crown 762S CNC Turning Center
Out of stock
| OKUMA CROWN 762S CNC TURNING CENTER |
| SKU |
2078 |
| Make |
Okuma |
| Model No. |
Crown 762S-SB |
| Year |
2000 |
| Serial # |
20520 |
| Condition |
Very Good |
- Okuma Crown 762S CNC Turning Center Equipped With:

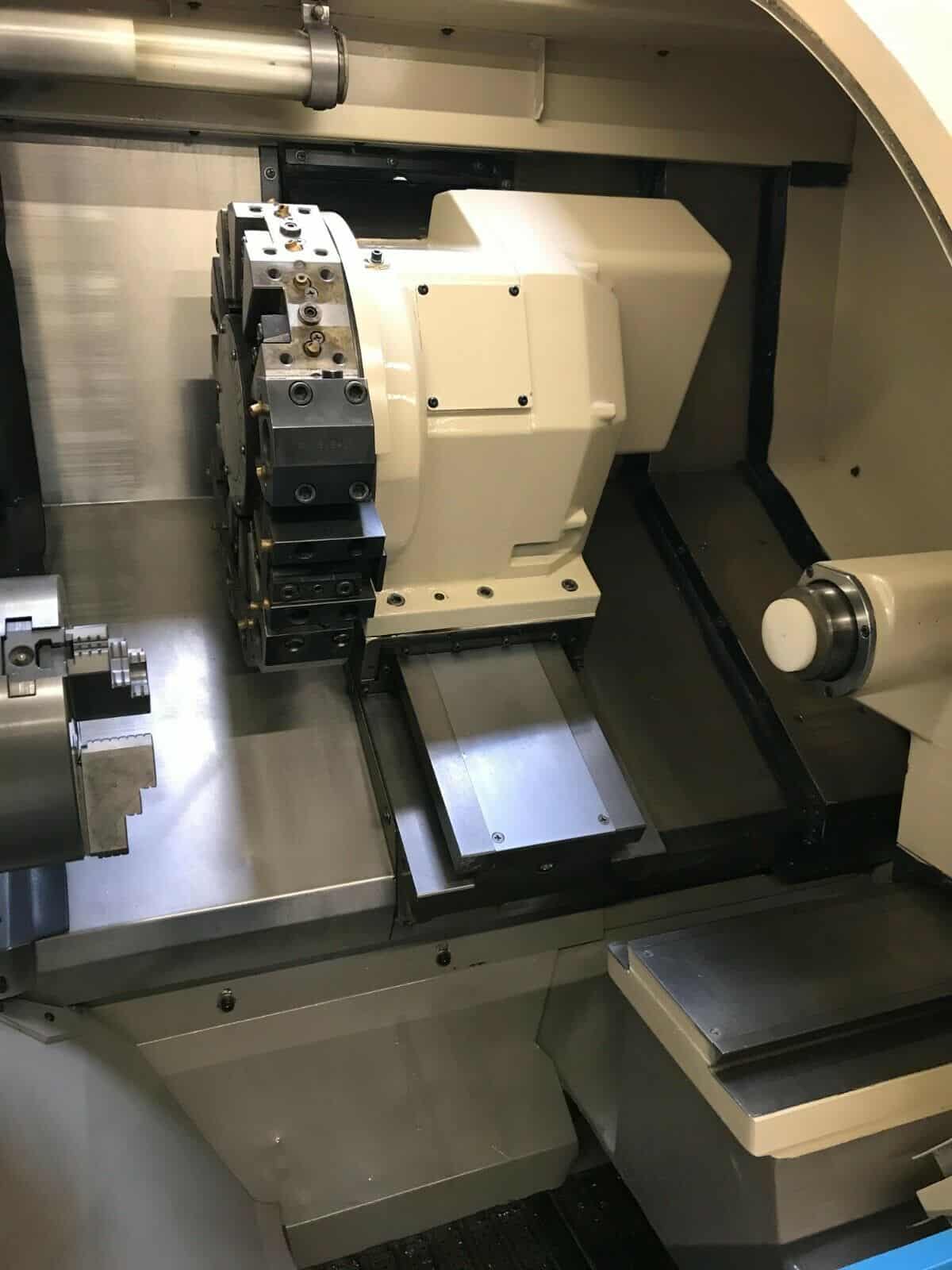

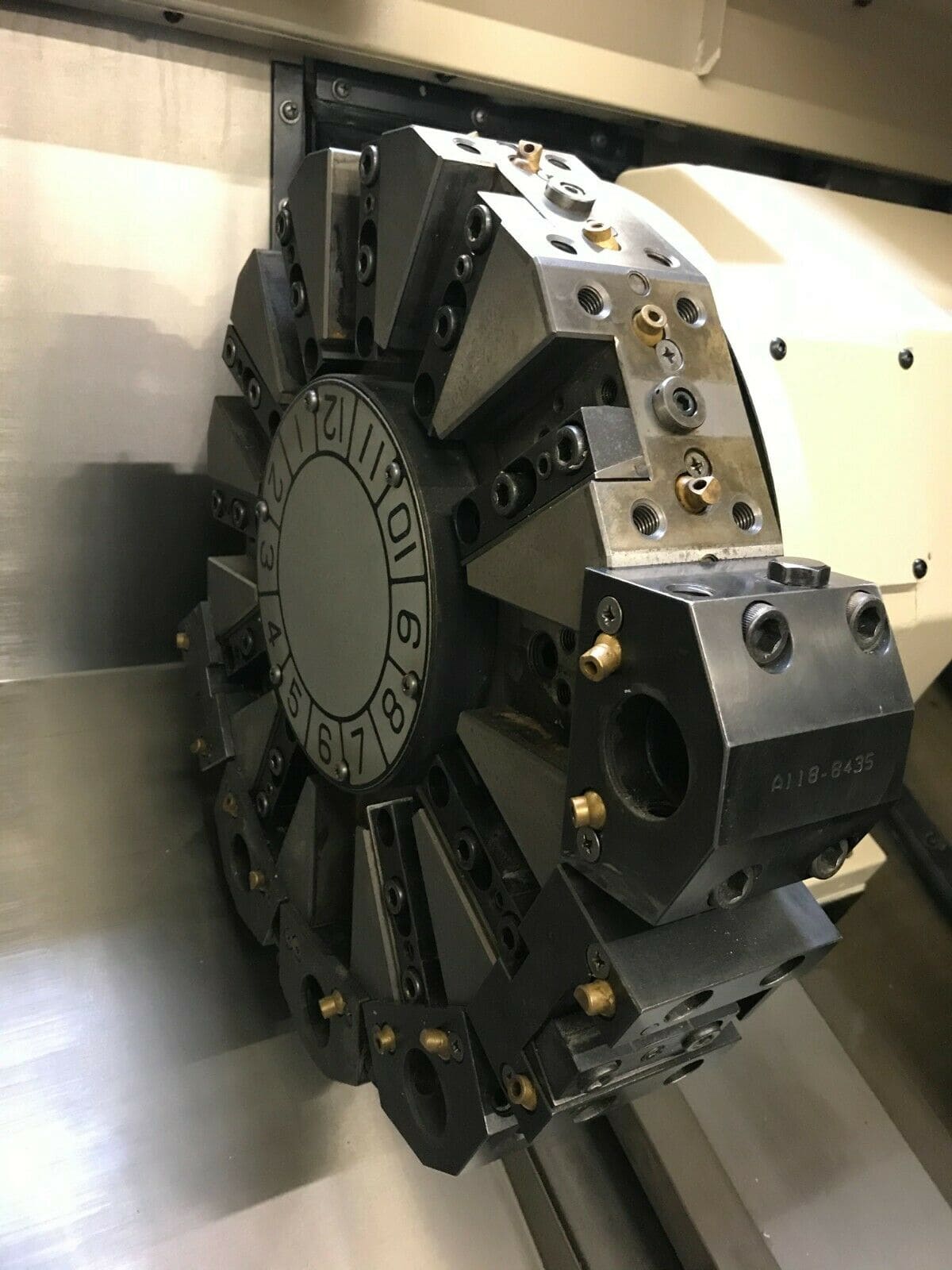

- 12-Station Turret

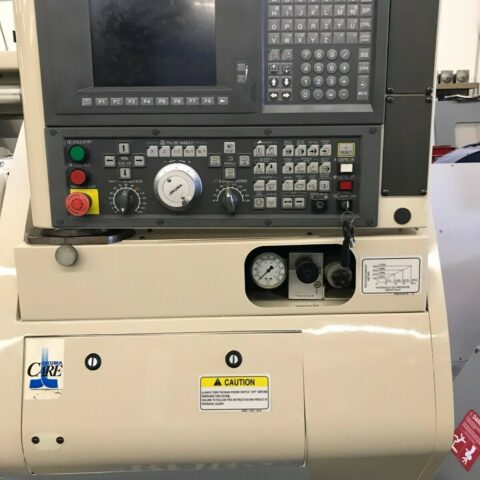

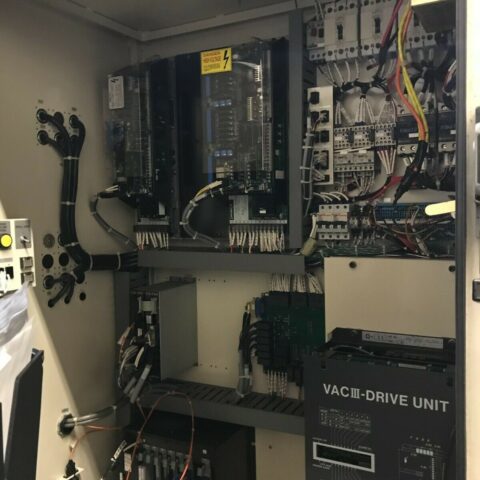

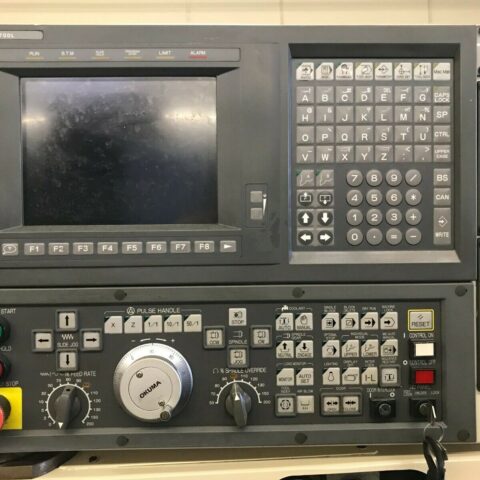

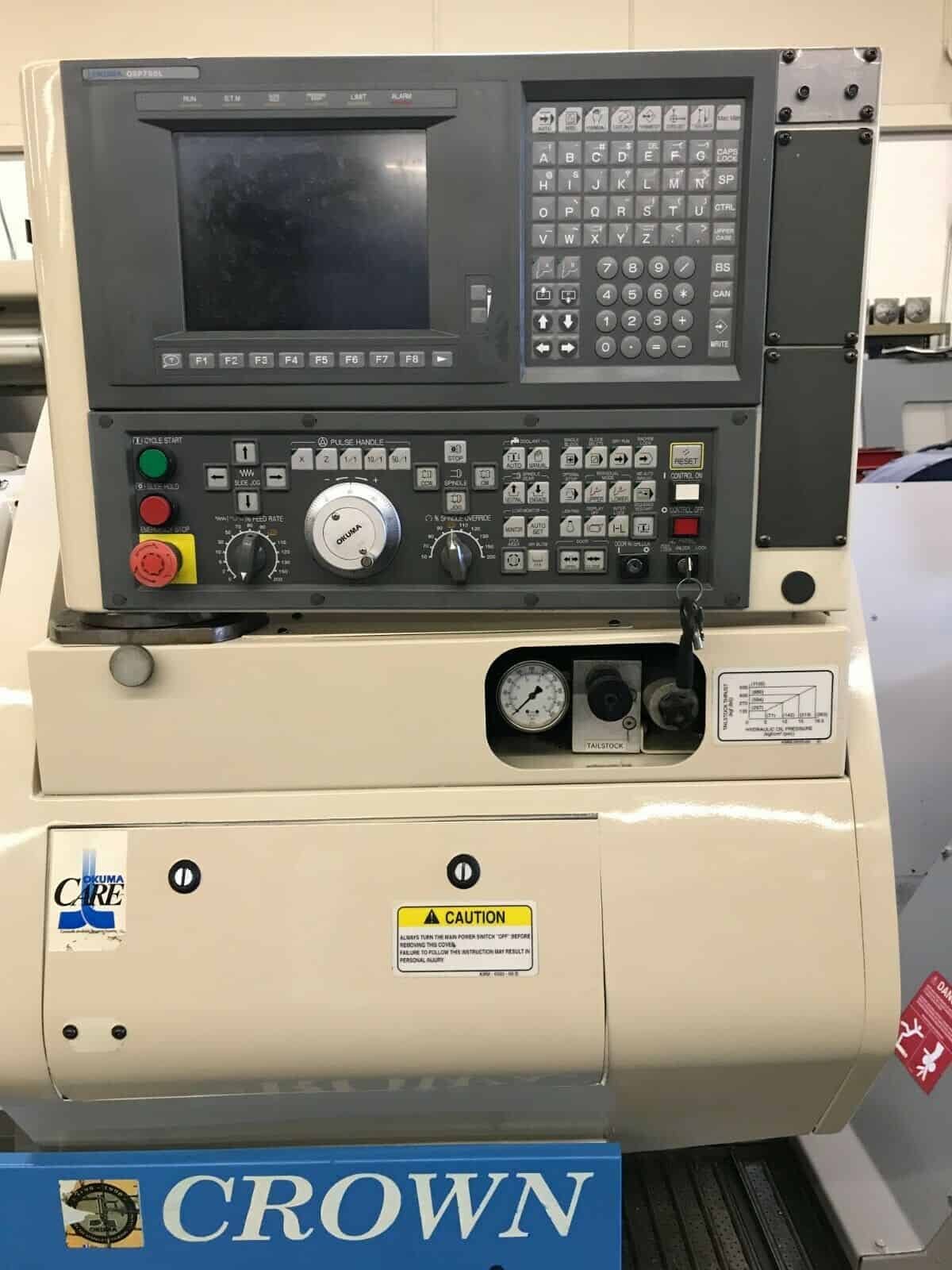

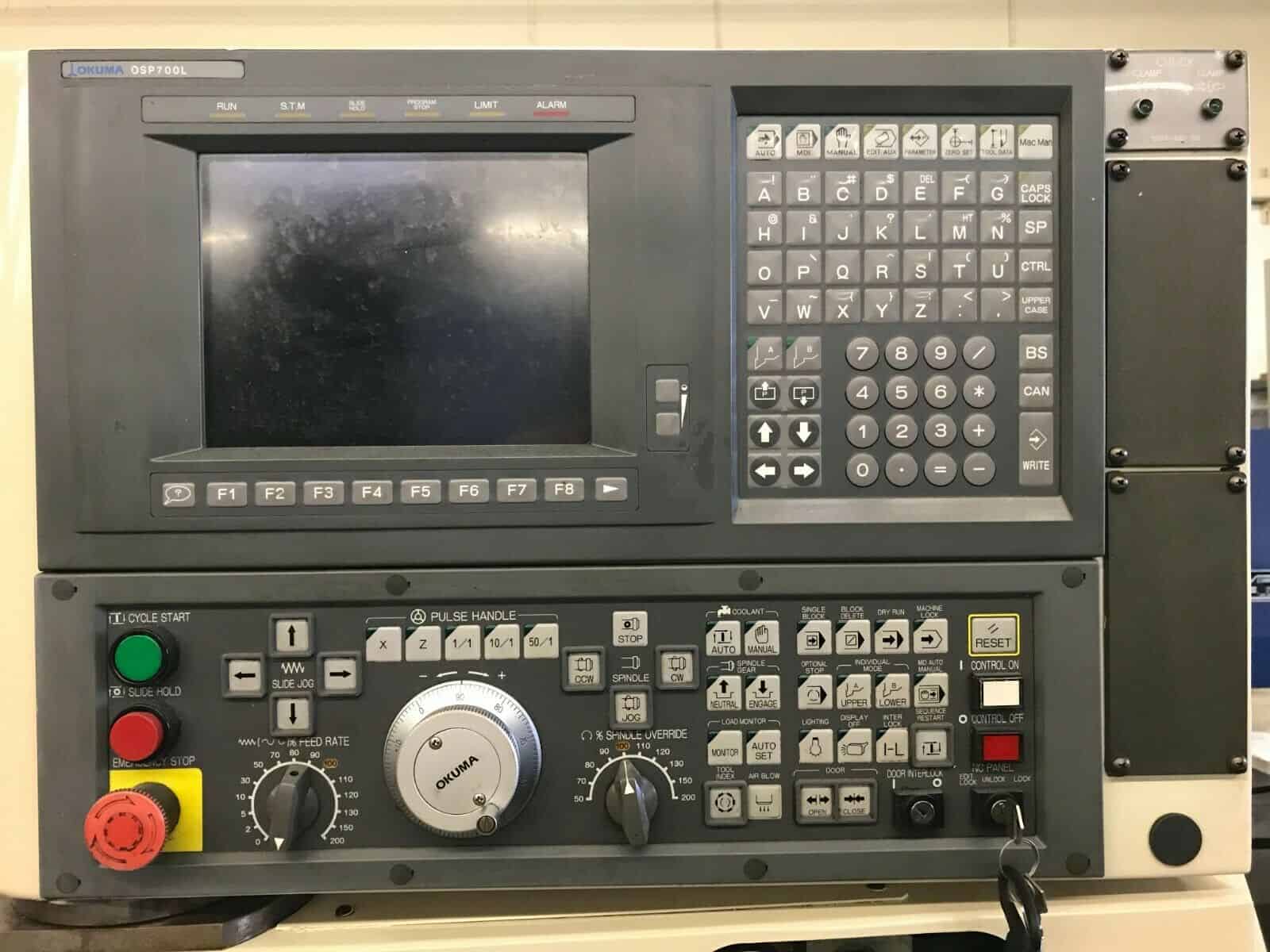

- OSP-U10L CNC Control
- One Touch IGF Programming
- Floppy Drive

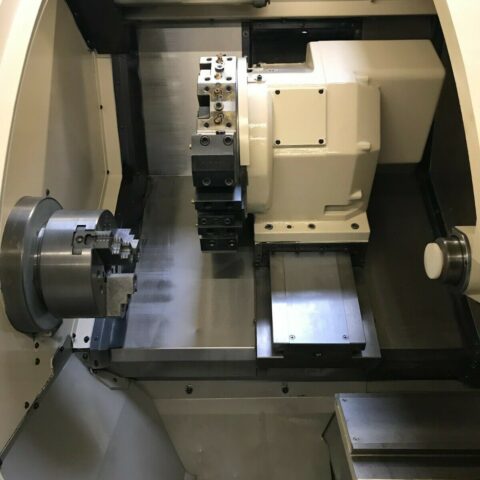

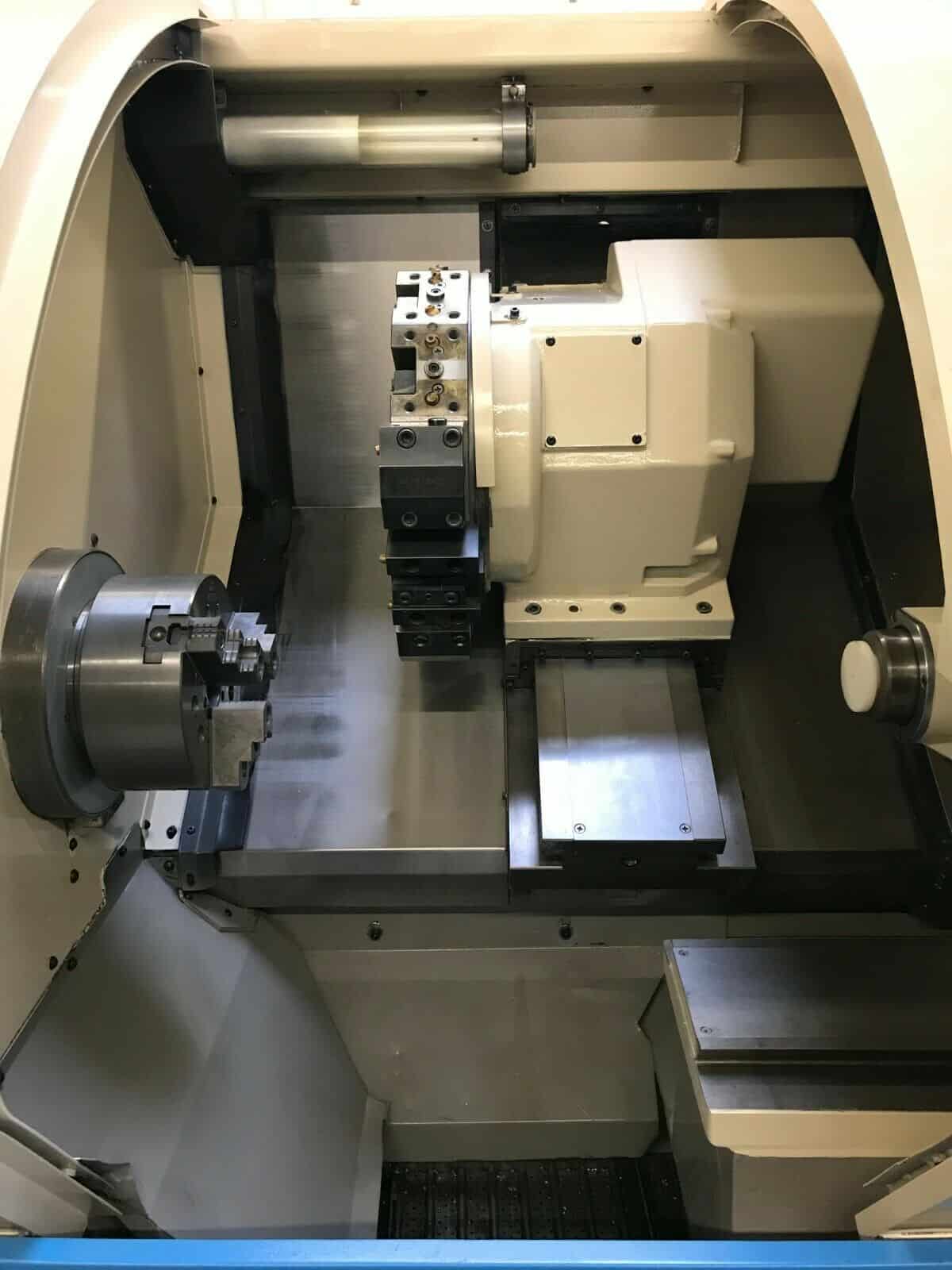

- 8″ Hydraulic Chuck ( 10″ Capable )

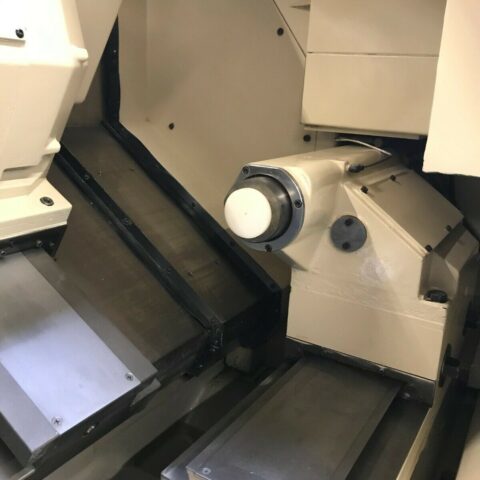

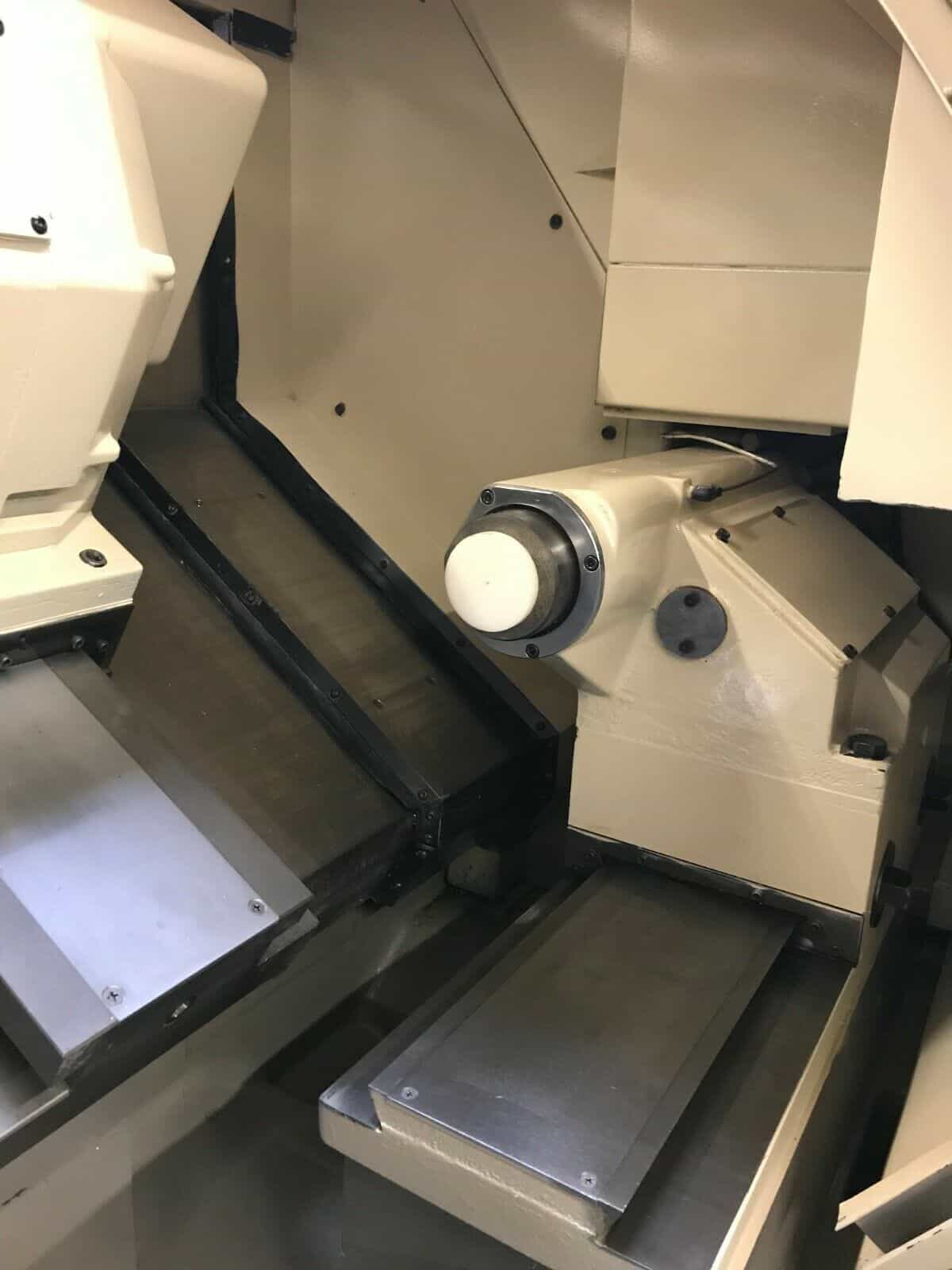

- Hydraulic Tailstock with Power Quill

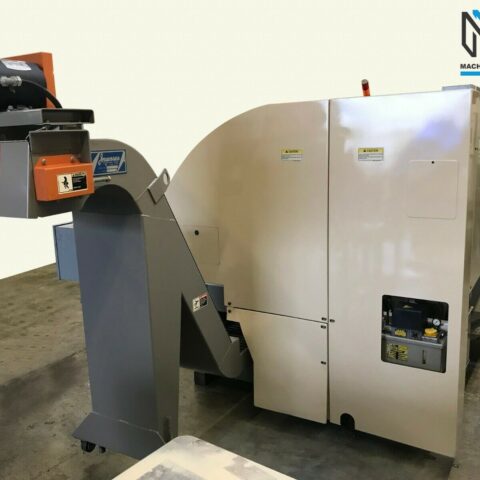

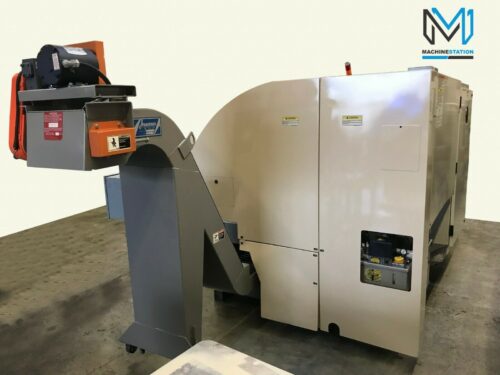

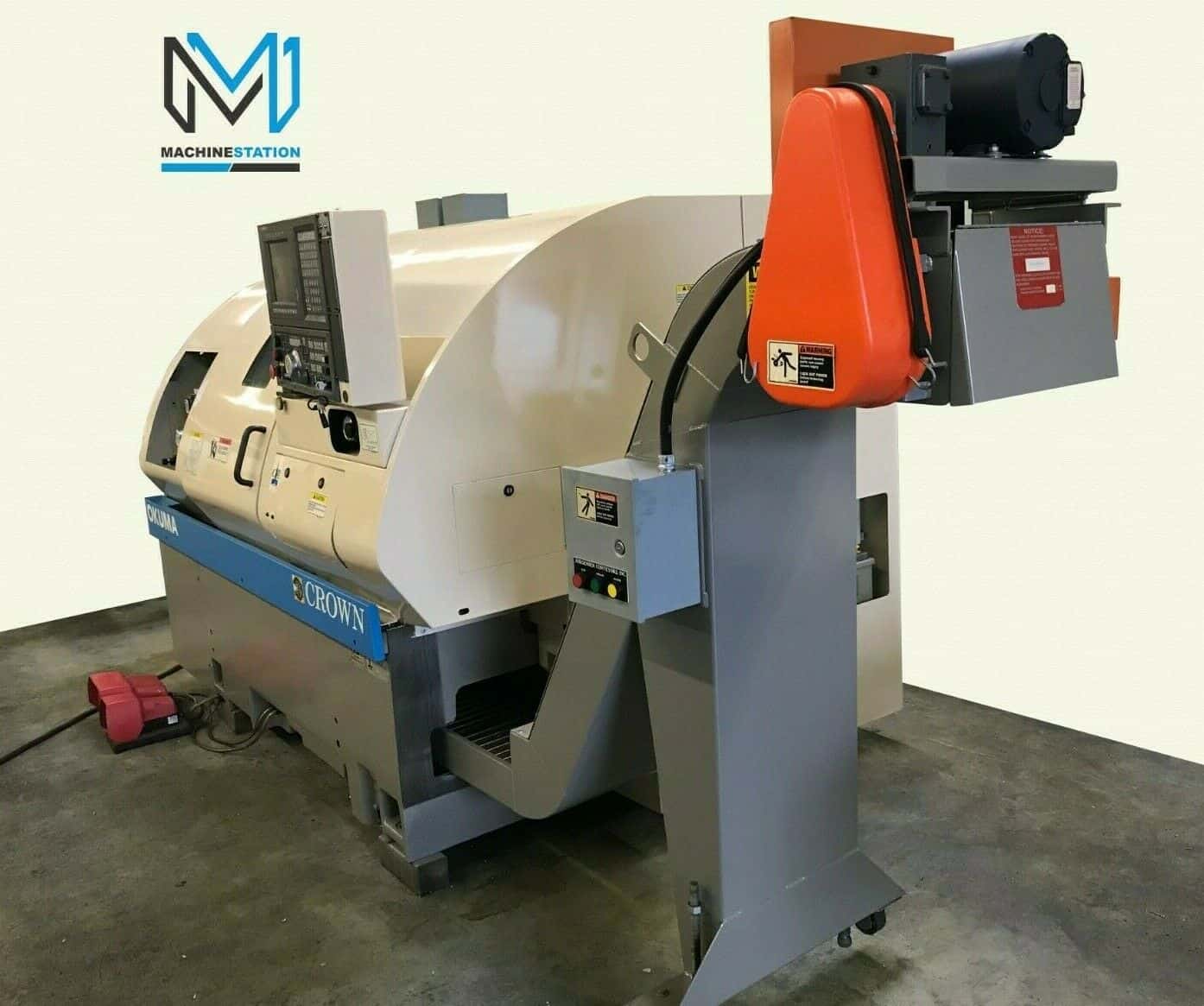

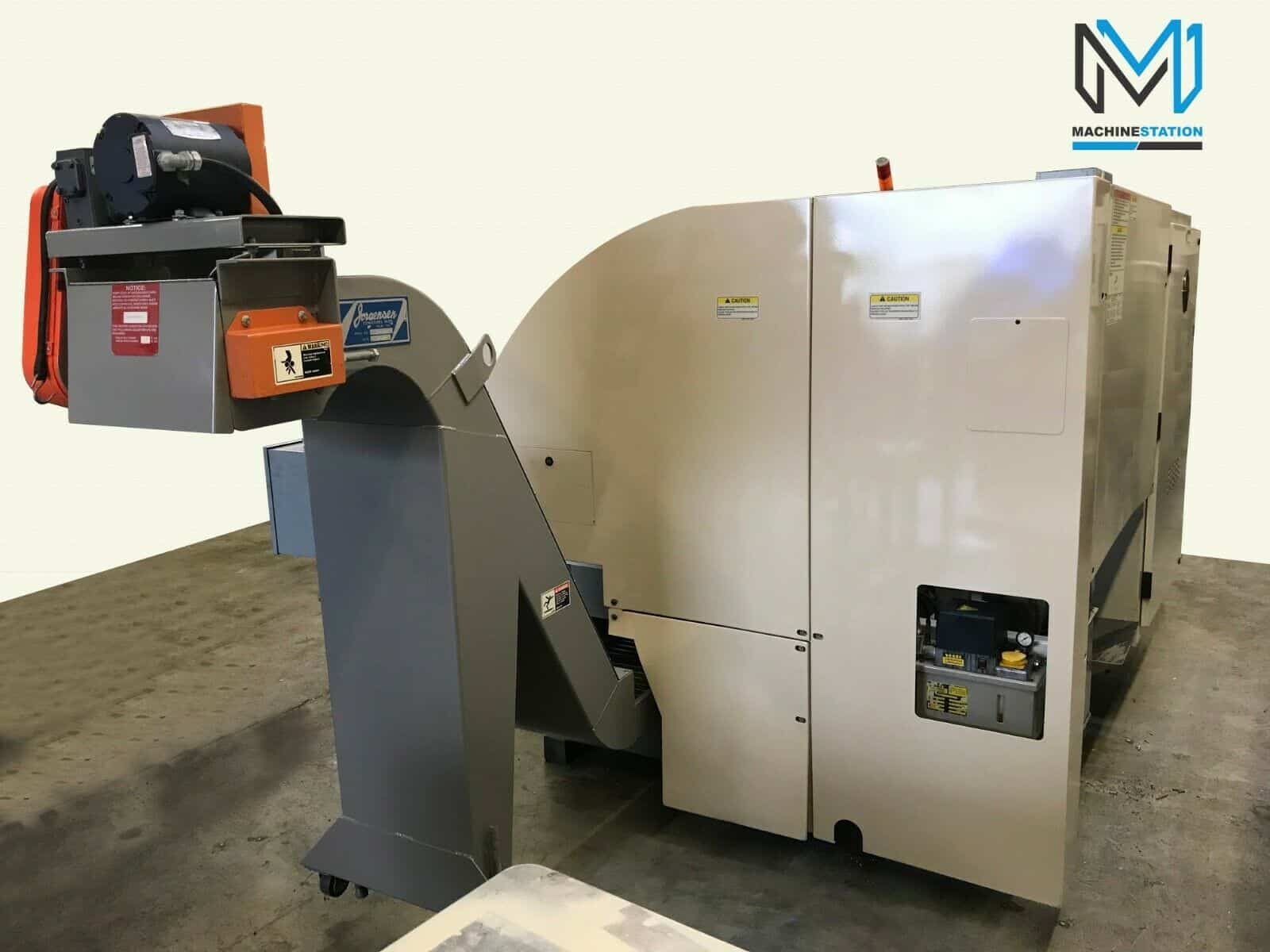

- Chip Pan and Chip Conveyor
- Coolant System
- Automatic Lubrication system
- Foot Operated Control for Chuck and Tailstock
- Okuma Crown 762S CNC Turning Center Specifications:
- Max Turning Diameter: 10.63″
- Max Turning Length: 19.68″
- Max Bar Capacity: 2.05″
- Swing Over Slide: 15.78″
- Swing Over Bed: 21.65″
- Distance Between Centers: 22.29″
- Travel:
- X Axis Travel: 7.28″
- Z Axis Travel: 20.47″
- Rapid Traverse X Axis: 591 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle:
- Spindle Nose: A2-6
- Spindle Bore: 2.44″
- Spindle Speed: 4200 RPM
- Spindle Motor: 20 HP

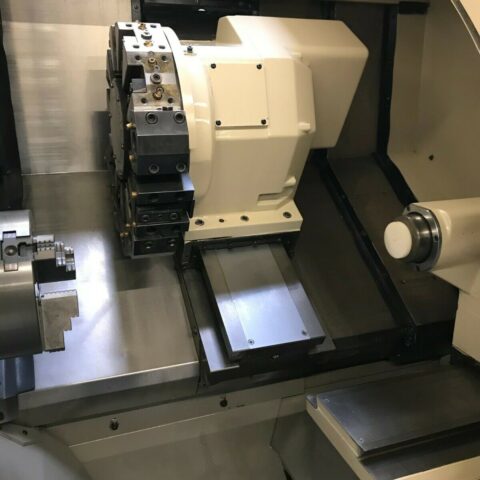

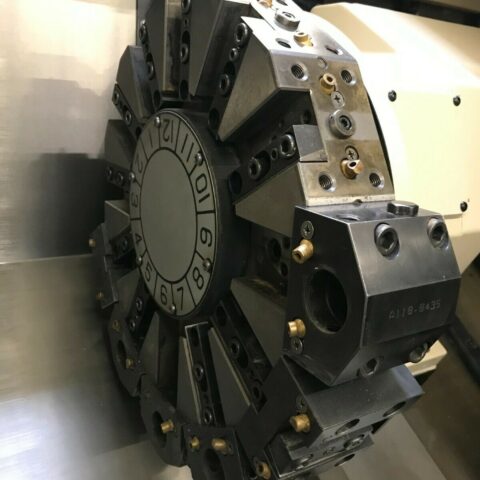

- Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 0.5 Second
- Tailstock:
- Tailstock Body Travel: 14.3″
- Tailstock Quill Dia.: 3.54″
- Tailstock Quill Stroke: 3.93″
- Tailstock Taper: MT-45

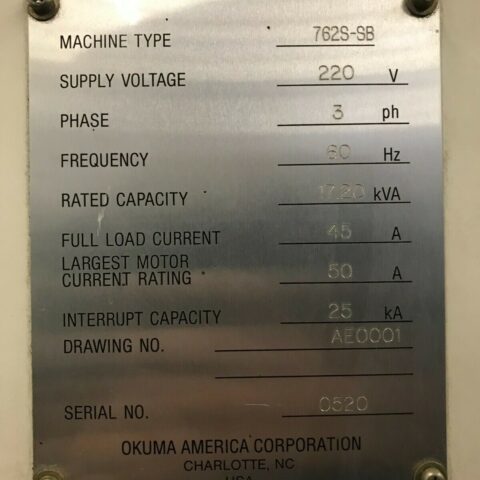

- General:

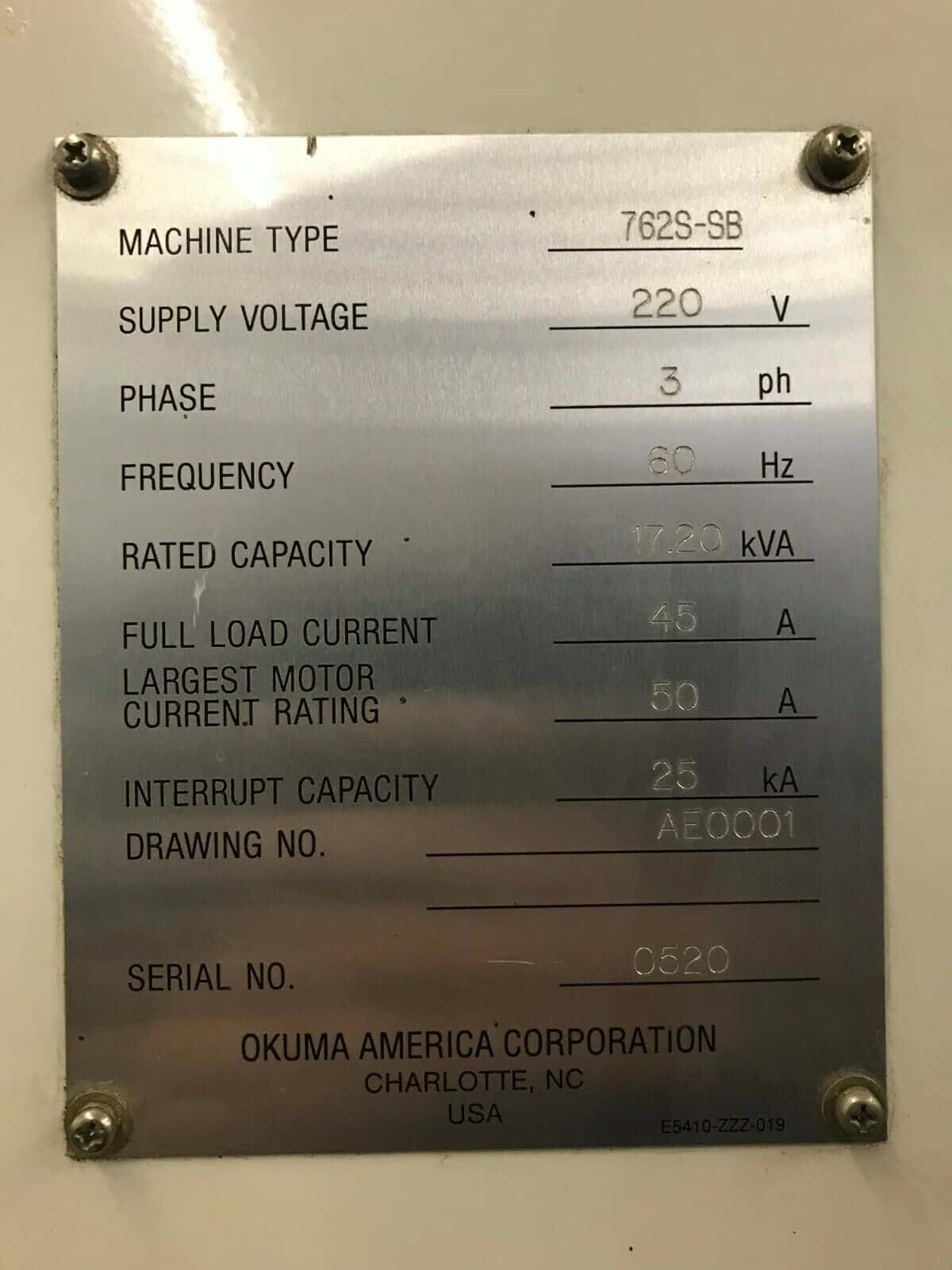

- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 68 Amps
- Overall Dimensions: 110″ x 68″ x 80″ High
- Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor
- Weight : 8500 lbs Approx.
