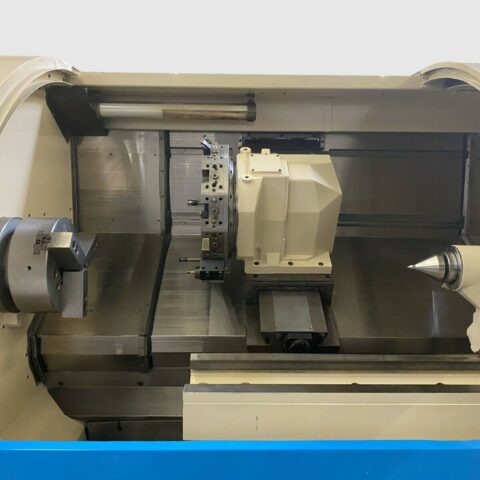

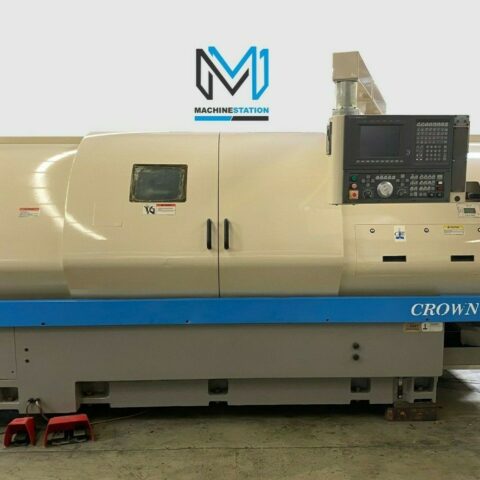

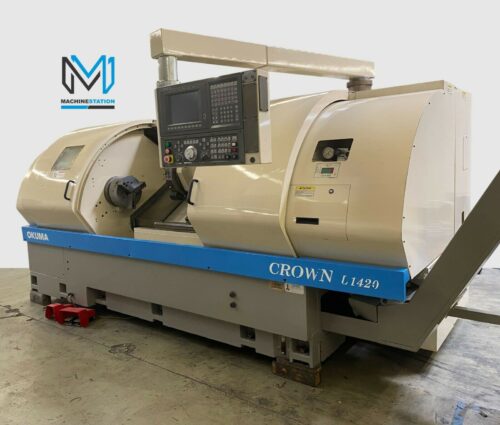

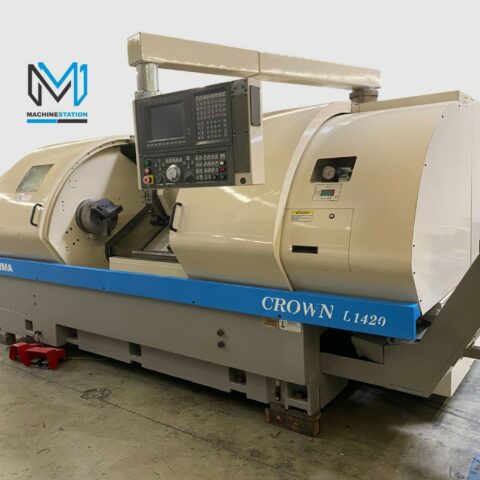

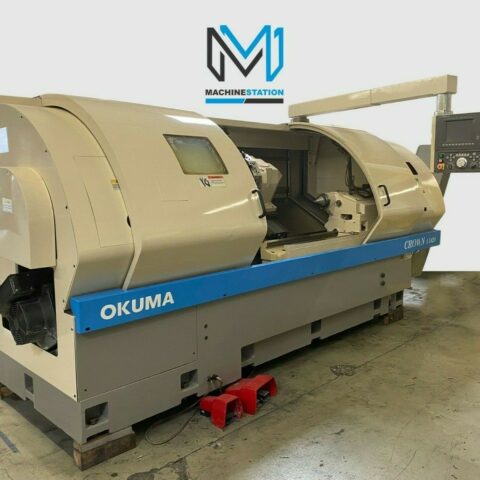

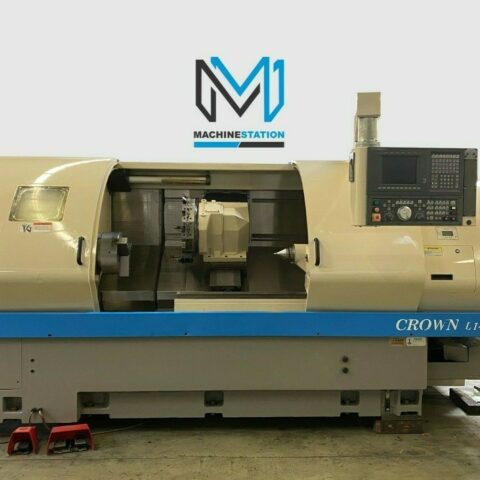

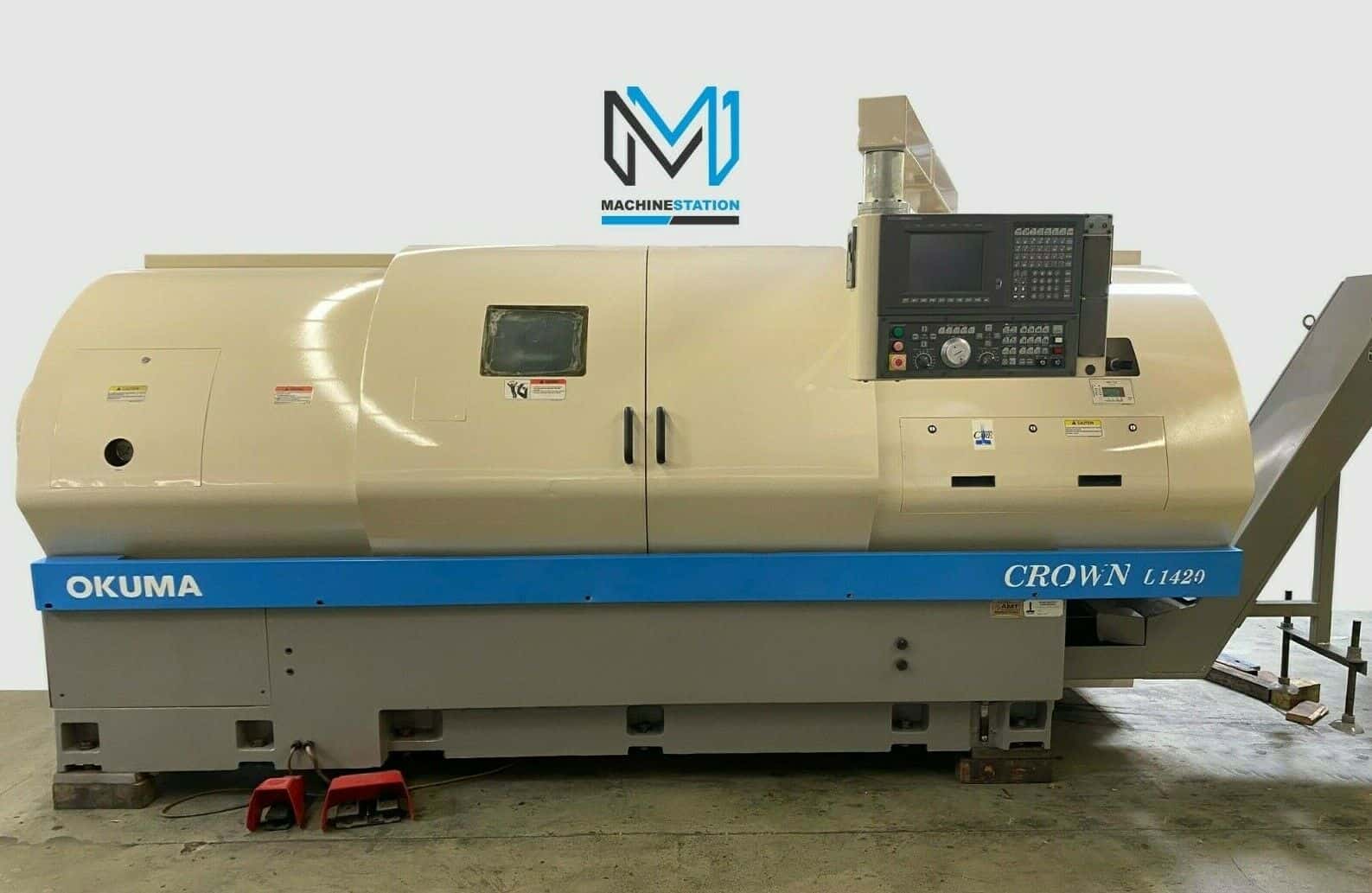

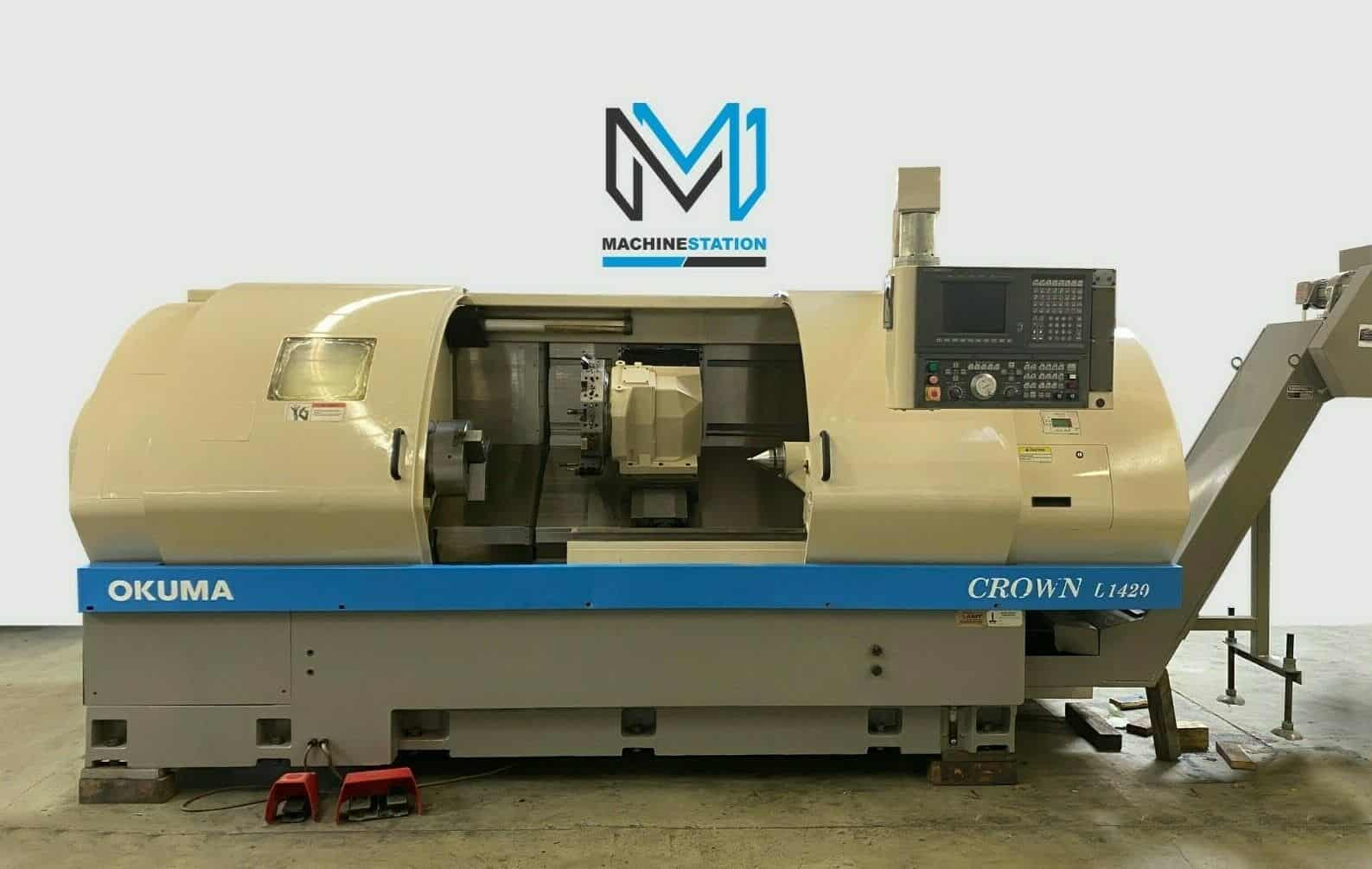

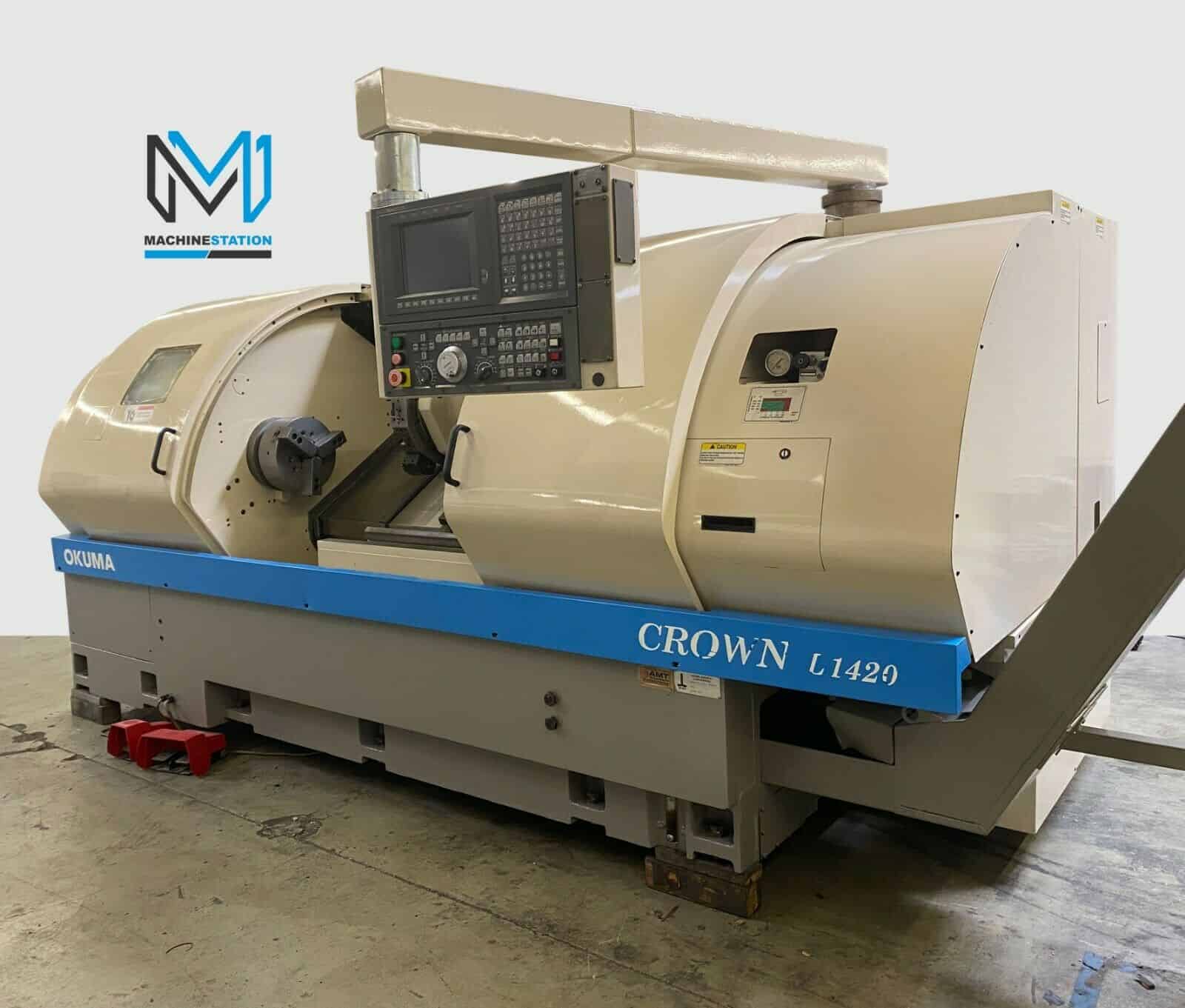

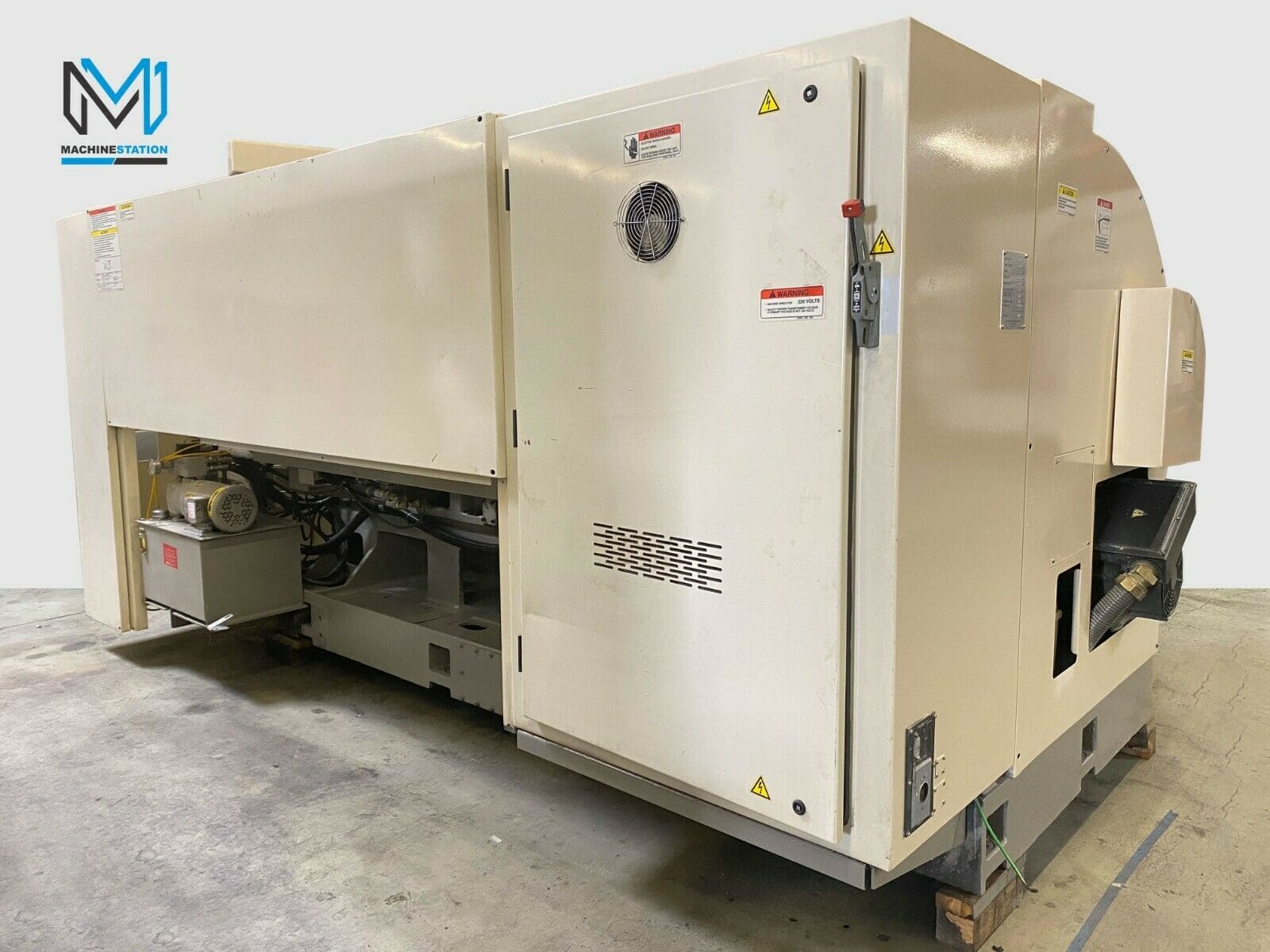

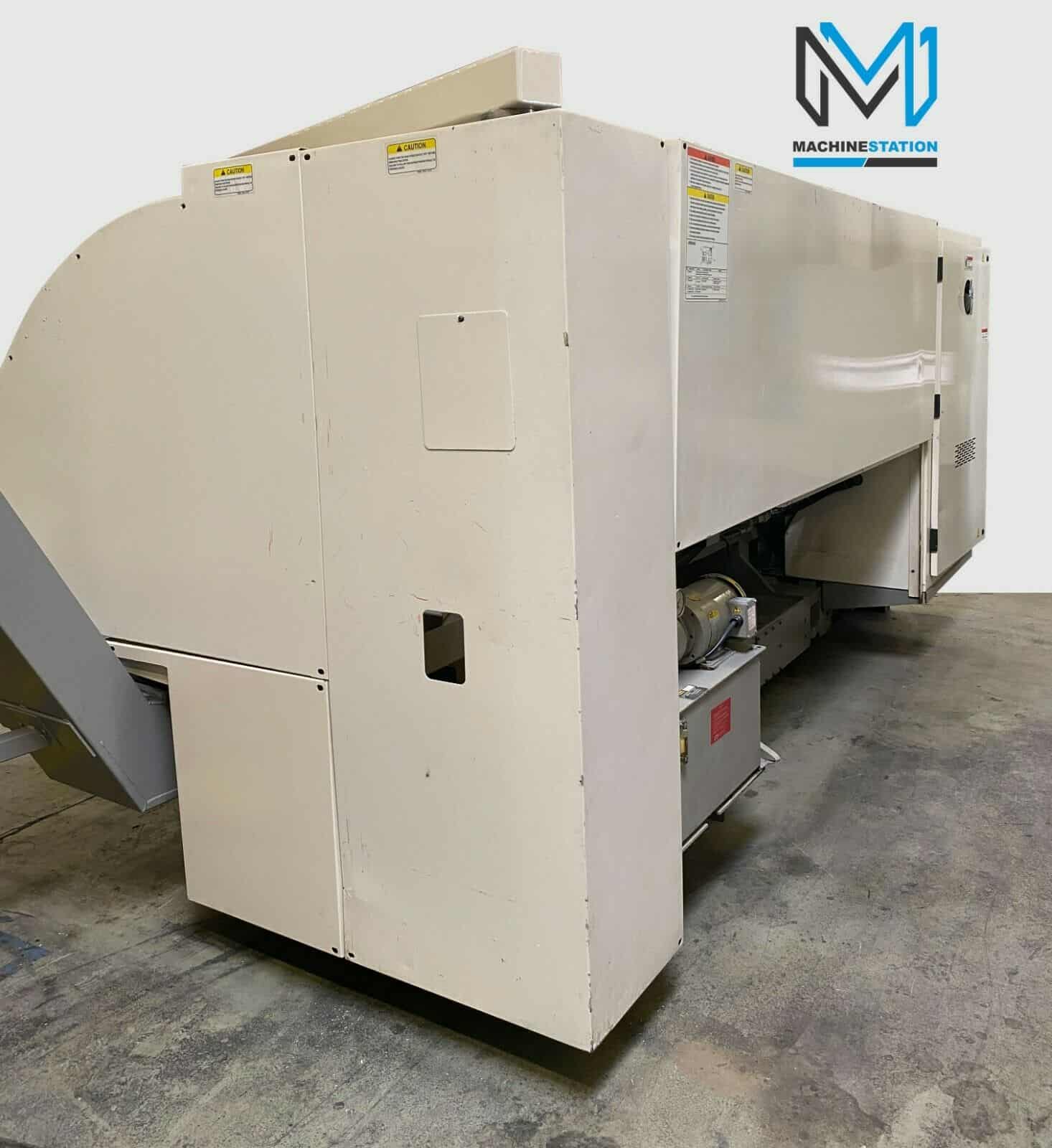

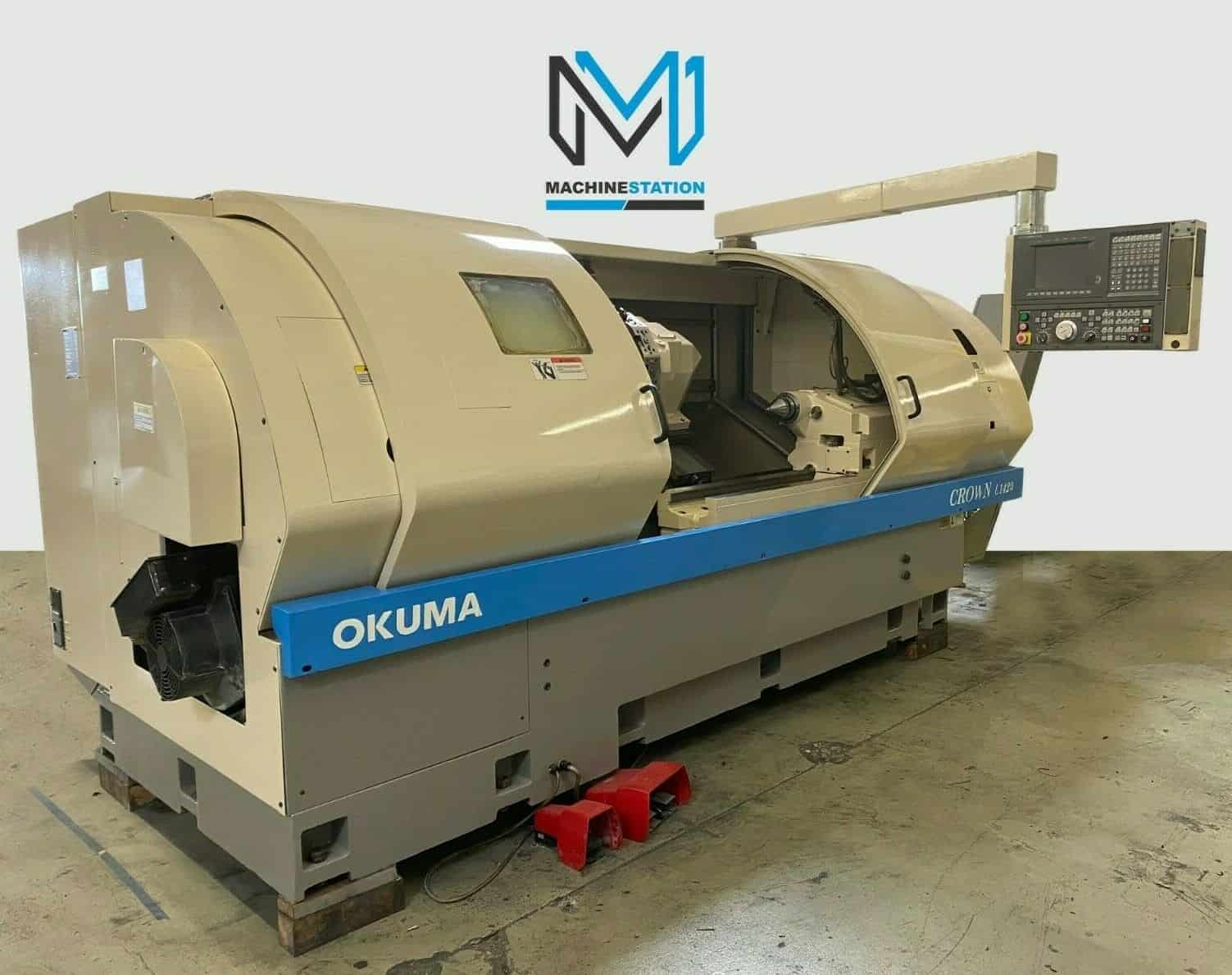

Okuma Crown 769S L1420/1250 CNC Turning Center
Out of stock
| OKUMA CROWN 769S L1420/1250 CNC TURNING CENTER |
| SKU |
1965 |
| Make |
Okuma |
| Model No. |
Crown 769S |
| Year |
2000 |
| Serial # |
0234 |
| Condition |
Very Good |
- Okuma Crown 769S L1420/1250 Equipped With:

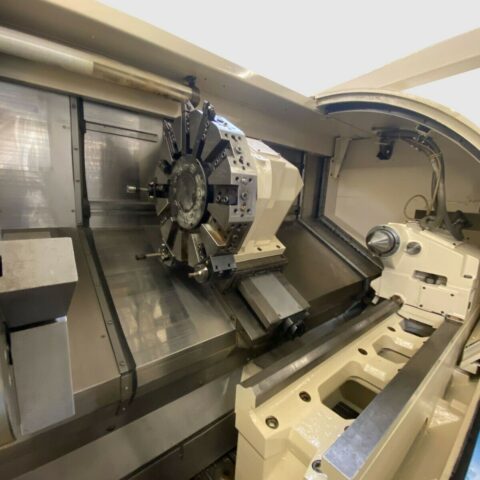

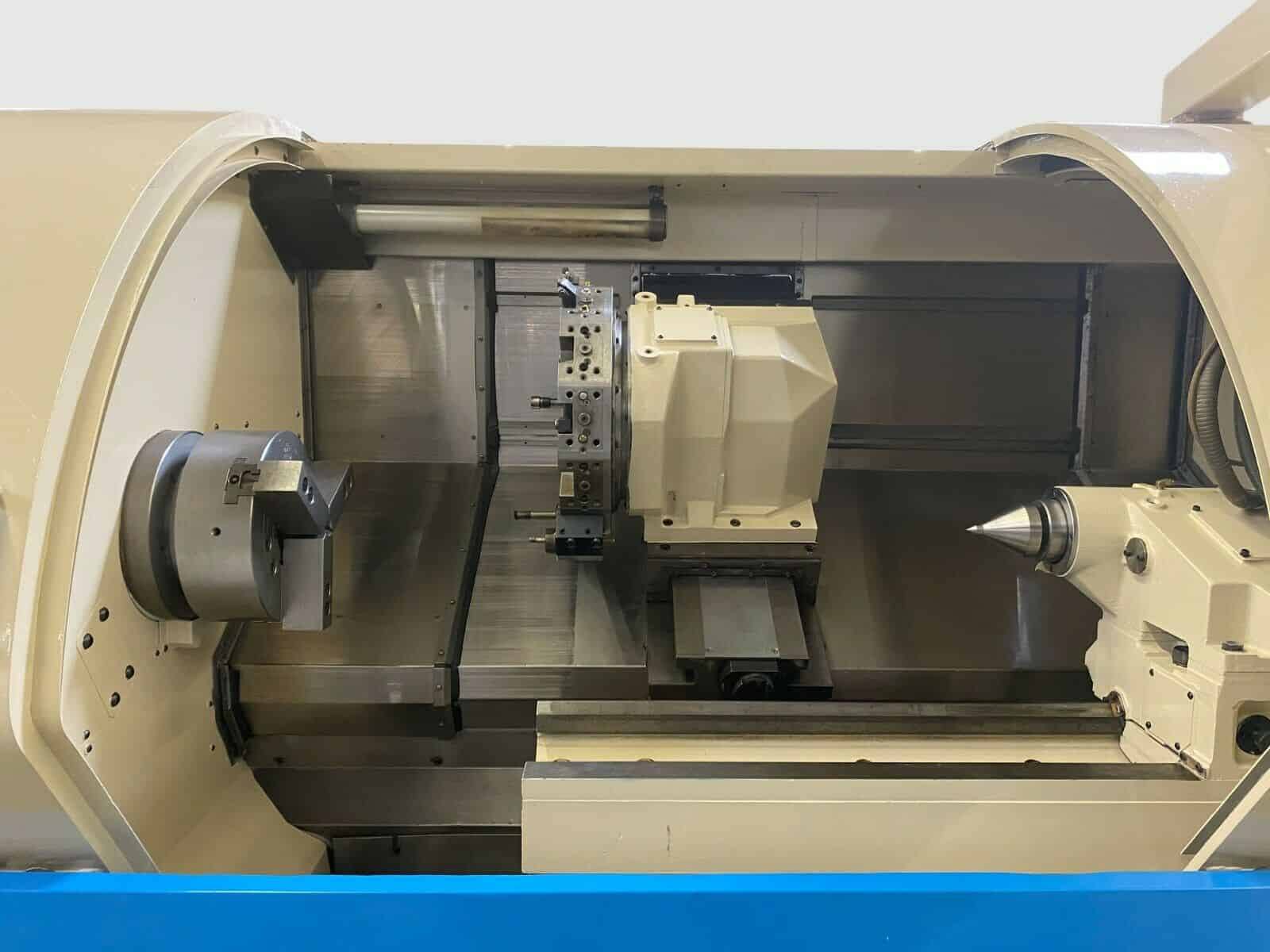

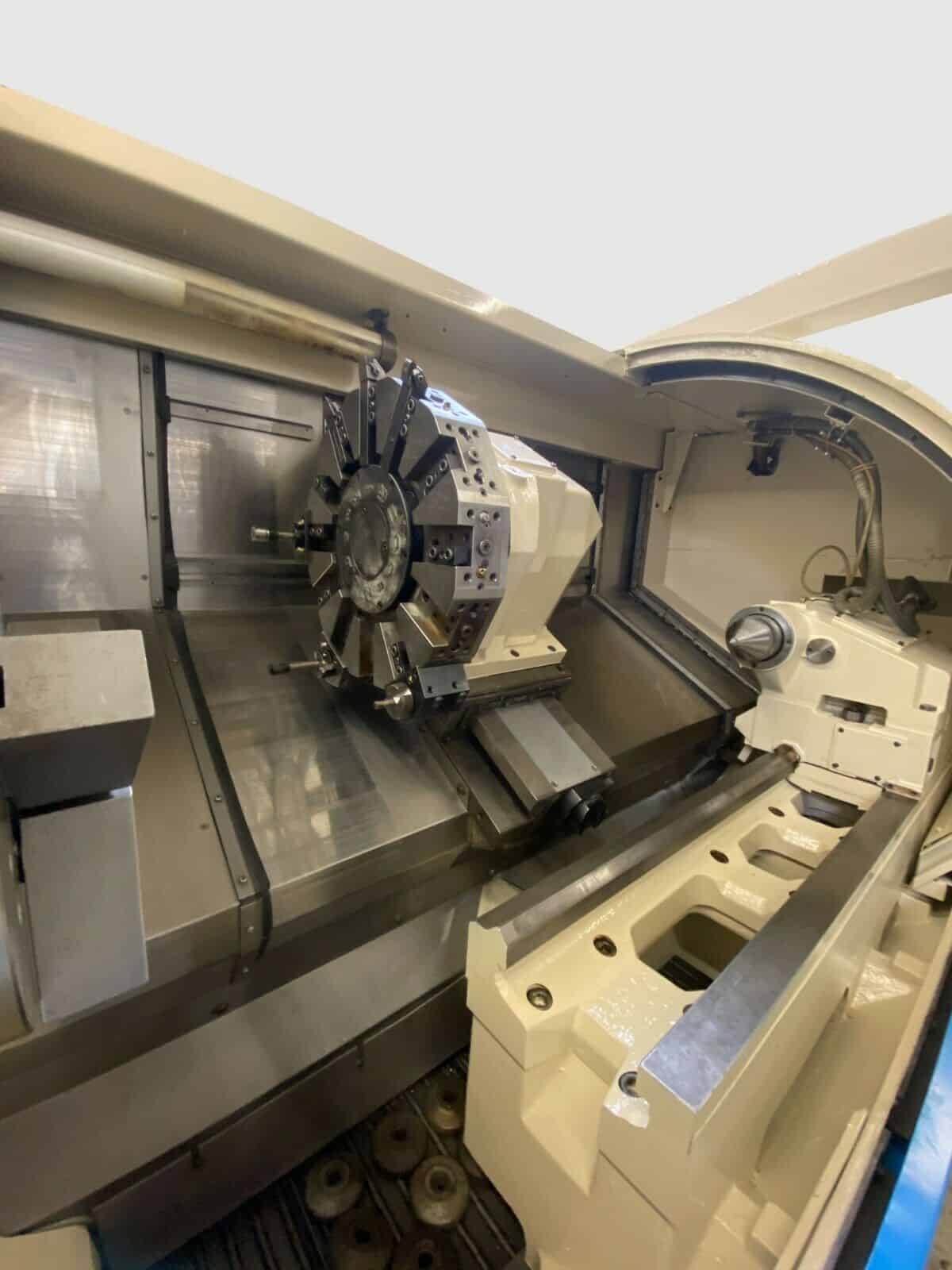

- 12-Station Turret

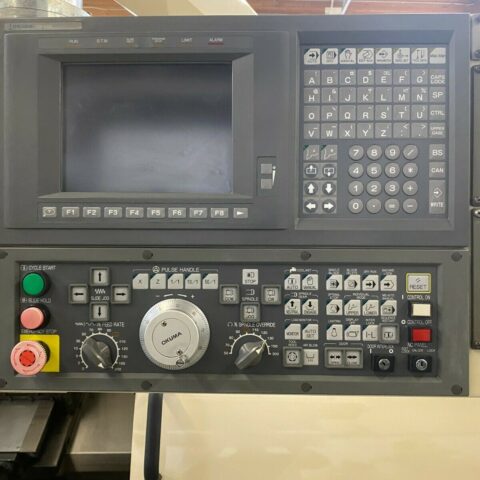

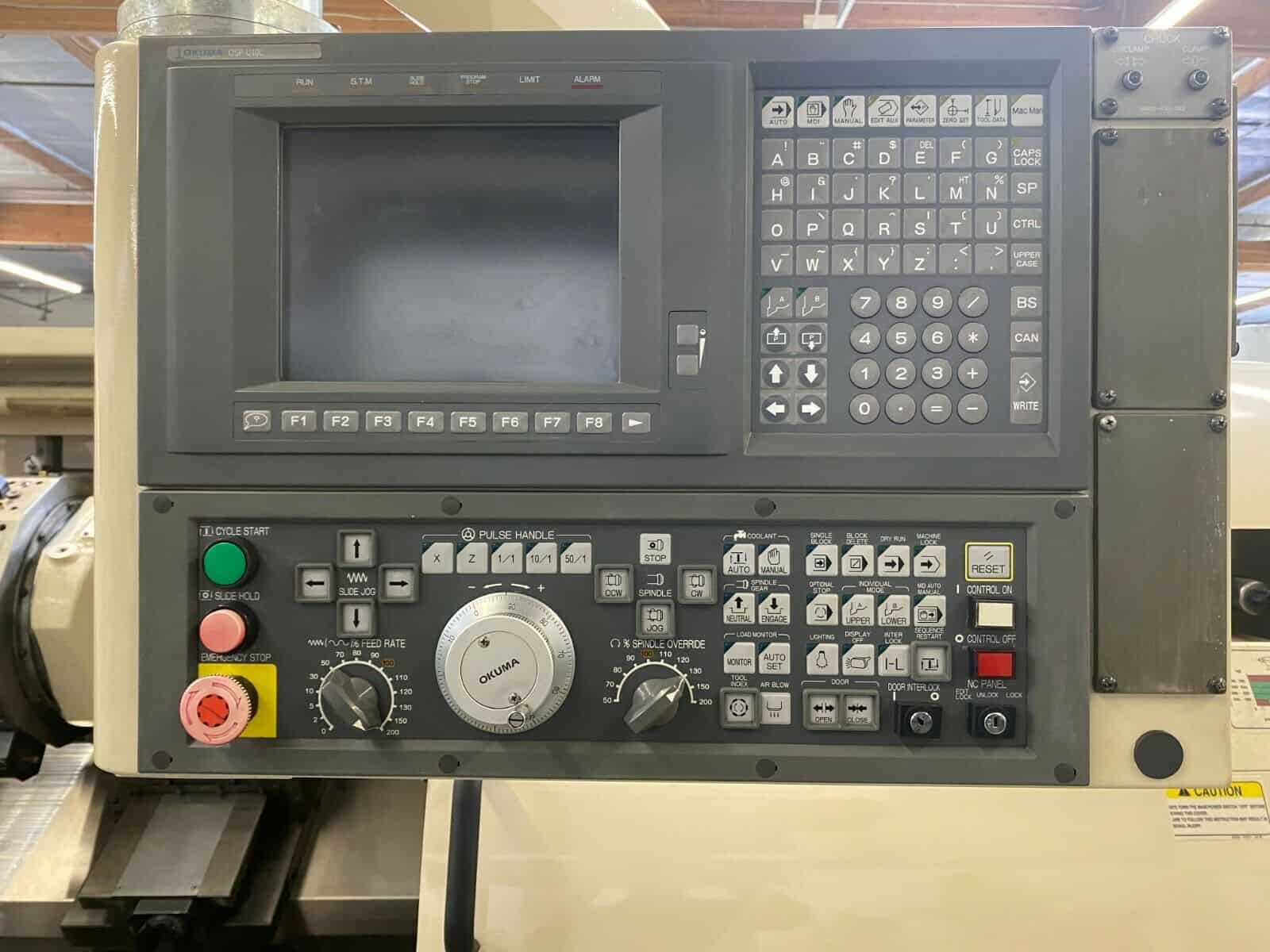

- OSP-U10L CNC Control
- One Touch IGF Programming
- Floppy Drive

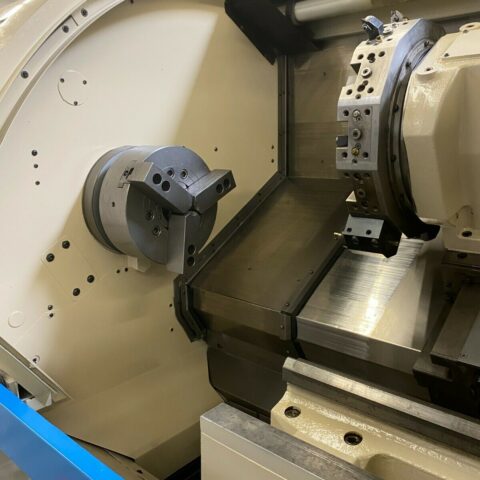

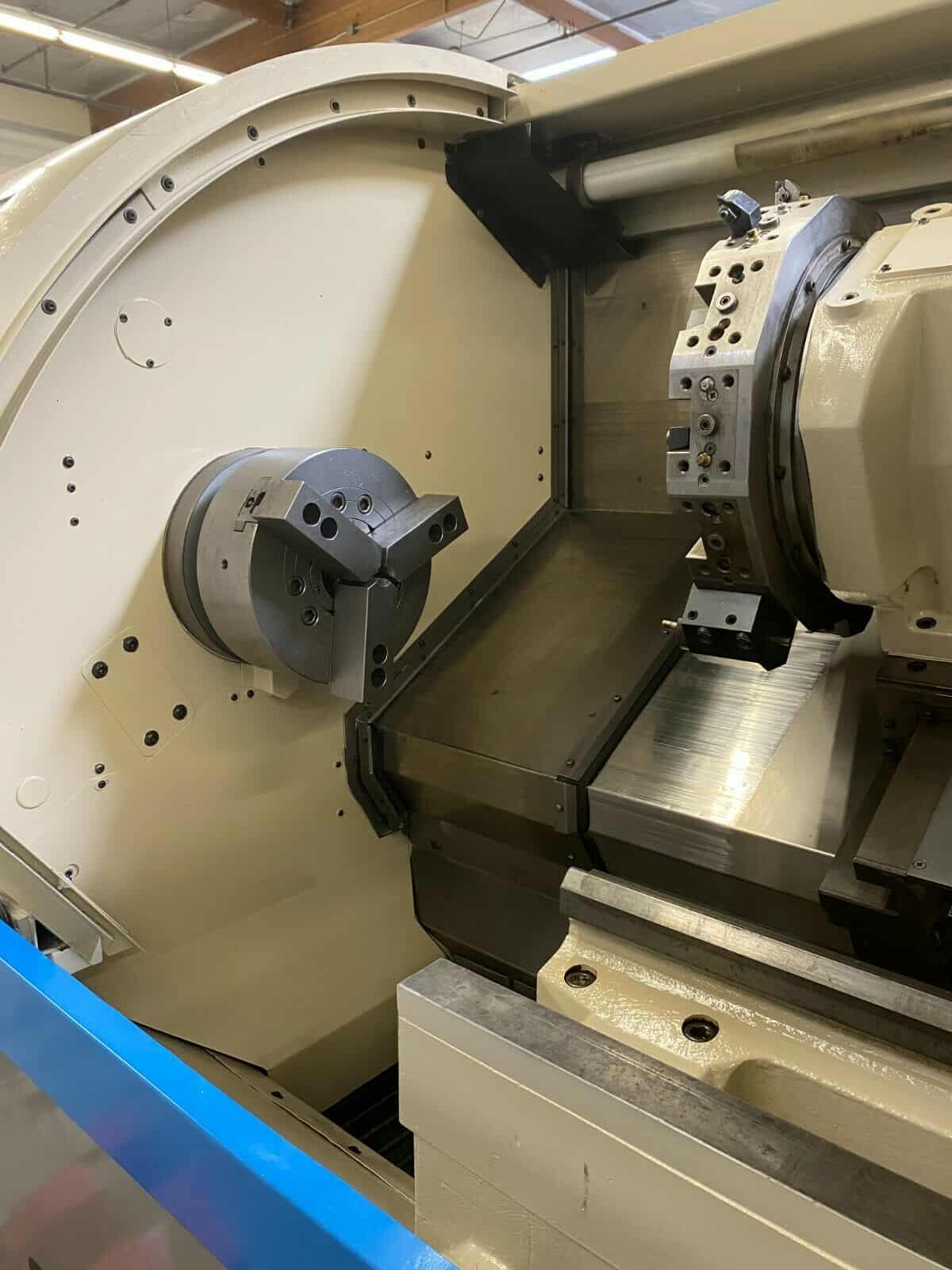

- 12″ Kitagawa B212Hydraulic Chuck
- Hydraulic Tailstock with Power Quill
- Chip Pan and Chip Conveyor
- Coolant System
- Automatic Lubrication system
- Foot Operated Control for Chuck and Tailstock
- Books and Manuals
- 3 X Boring bar holders
- Levelling pads
- Okuma Crown 769S L1420/1250 Specifications:
- Max Turning Diameter: 14.17″
- Max Turning Length: 49.21″
- Max Bar Capacity: 3.15″
- Swing Over Slide: 15.78″
- Swing Over Bed: 24.41″
- Distance Between Centers: 50.4″
- Travel:
- X Axis Travel: 9.1″
- Z Axis Travel: 50.01″
- Rapid Traverse X Axis: 591 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle:
- Spindle Nose: A2-8
- Spindle Bore: 3.54″
- Spindle Speed: 3500 RPM
- Spindle Motor: 30 HP

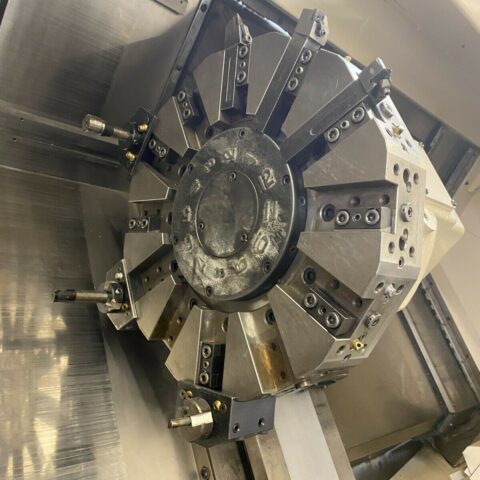

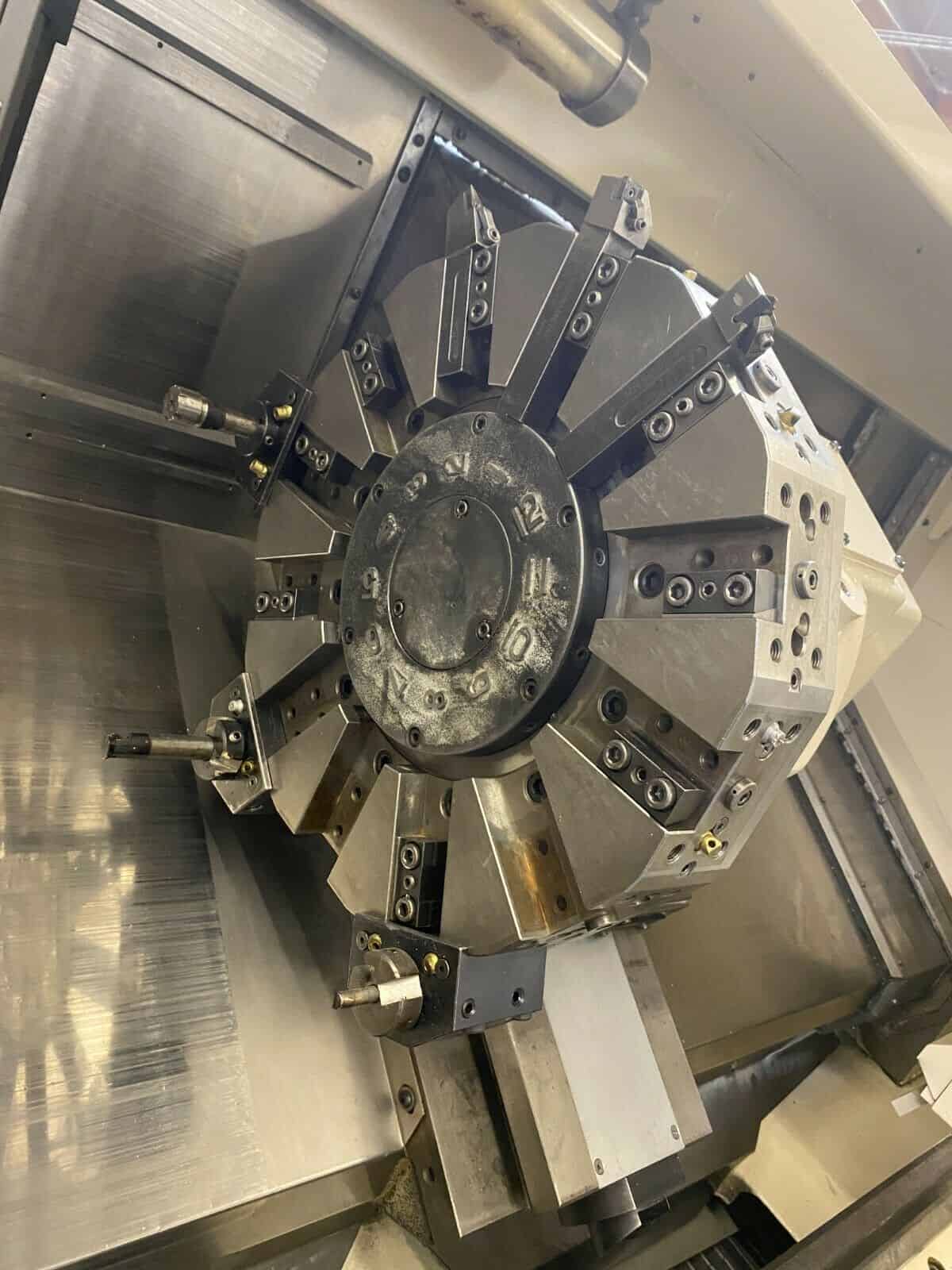

- Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock:
- Tailstock Body Travel: 34.3″
- Tailstock Quill Dia.: 3.94″
- Tailstock Quill Stroke: 4.72″
- Tailstock Taper: MT-5
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Power Requirement: 42 kva
- Overall Dimensions: 140″ x 76″ x 80″ High
- Overall Dimensions: 160″ x 76″ x 80″ High with Chip Conveyor
- Weight : 13,500 lbs Approx.
