All specifications are approximations and are subject to verification.
| Make | Okuma |
| Model No. | Crown 769S L1420 |
| Year | 20..? |
| Serial # | 0389 |
| Condition | Very Good |
| Okuma Crown 769S L1420/650 CNC Equipped With: |
|---|
| 12-Station Turret |
| OSP-U10L CNC Control |
| One Touch IGF Programming |
| Floppy Drive |
| 15″ Hydraulic Chuck |
| Hydraulic Tailstock with Power Quill |
| Chip Pan and Chip Conveyor |
| Coolant System |
| Automatic Lubrication system |
| Foot Operated Control for Chuck and Tailstock |
| Okuma Crown 769S L1420/650 CNC Specifications: |
|---|
| Max Turning Diameter: 14.17″ |
| Max Turning Length: 49.21″ |
| Max Bar Capacity: 3.15″ |
| Swing Over Bed: 28.41″ |
| Distance Between Centers: 30.4″ |
| Travel: |
|---|
| X Axis Travel: 9.1″ |
| Z Axis Travel: 25.59″ |
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Z Axis: 591 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.99″ |
| Spindle Speed: 65-3500 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 14.3″ |
| Tailstock Quill Dia.: 3.54″ |
| Tailstock Quill Stroke: 4.72″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 68 Amps |
| Overall Dimensions: 126″ x 68″ x 80″ High |
| Overall Dimensions: 150″ x 68″ x 80″ High with Chip Conveyor |
| Weight : 15000 lbs Approx. |

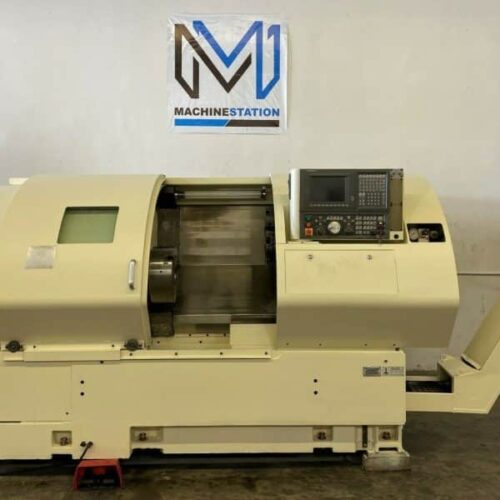

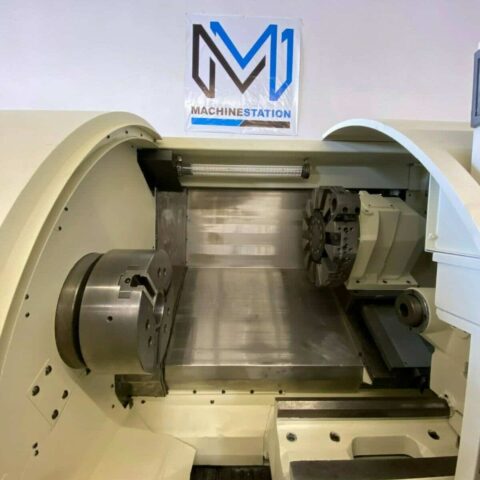

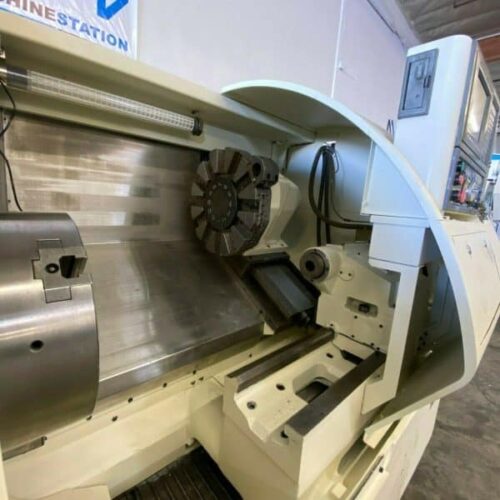

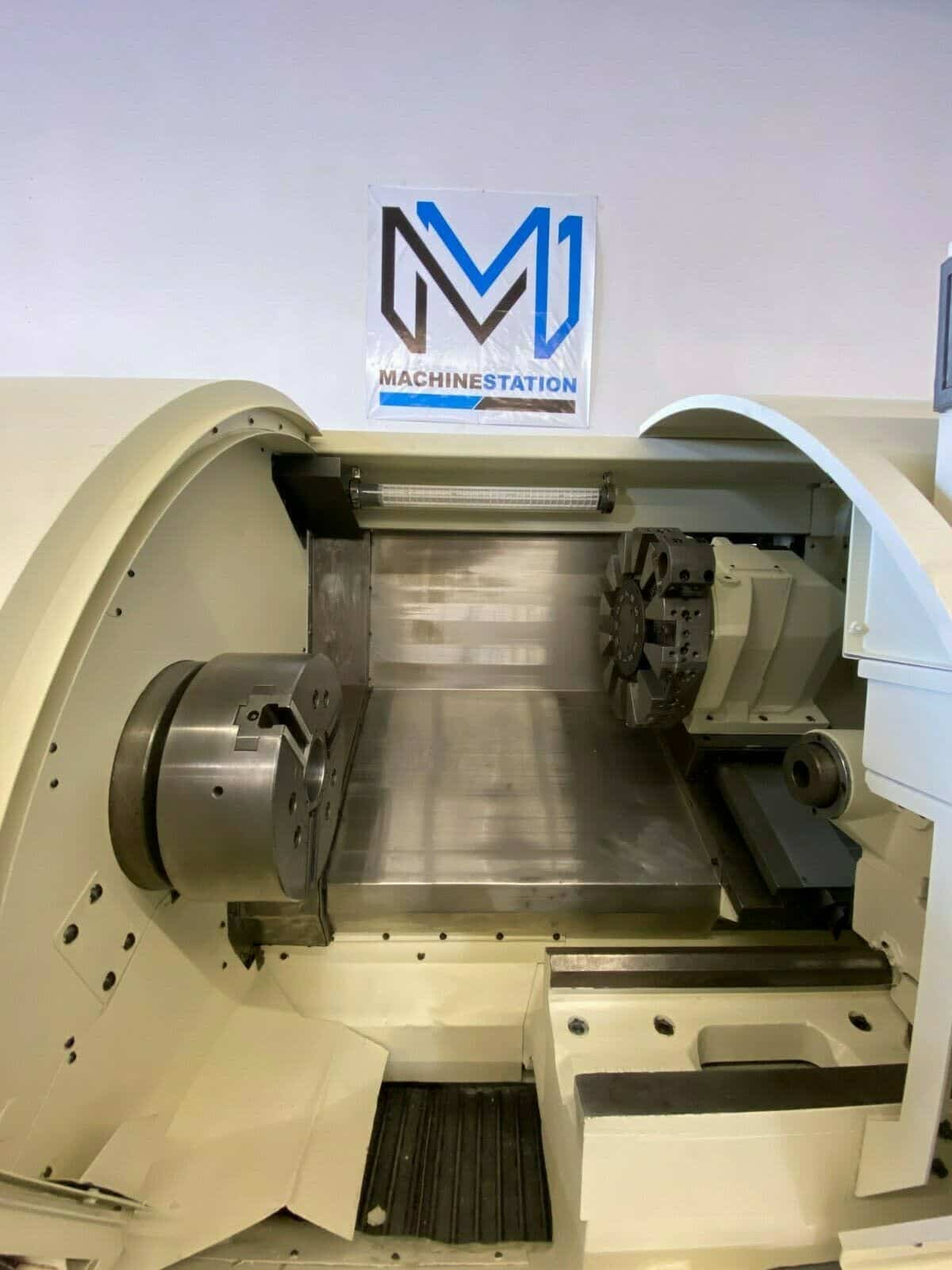

Okuma Crown 769S L1420/650 CNC Comes as shown in Picture…“No Charges for loading at list Price”
