*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

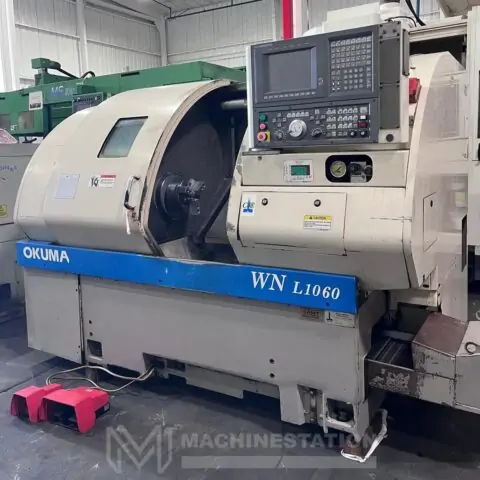

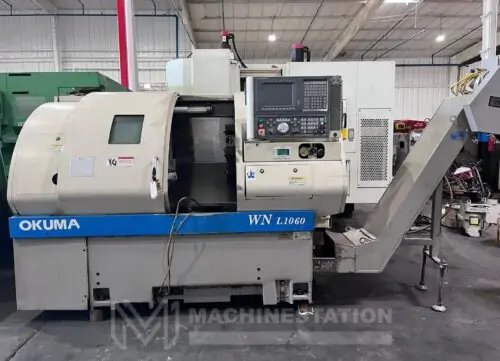

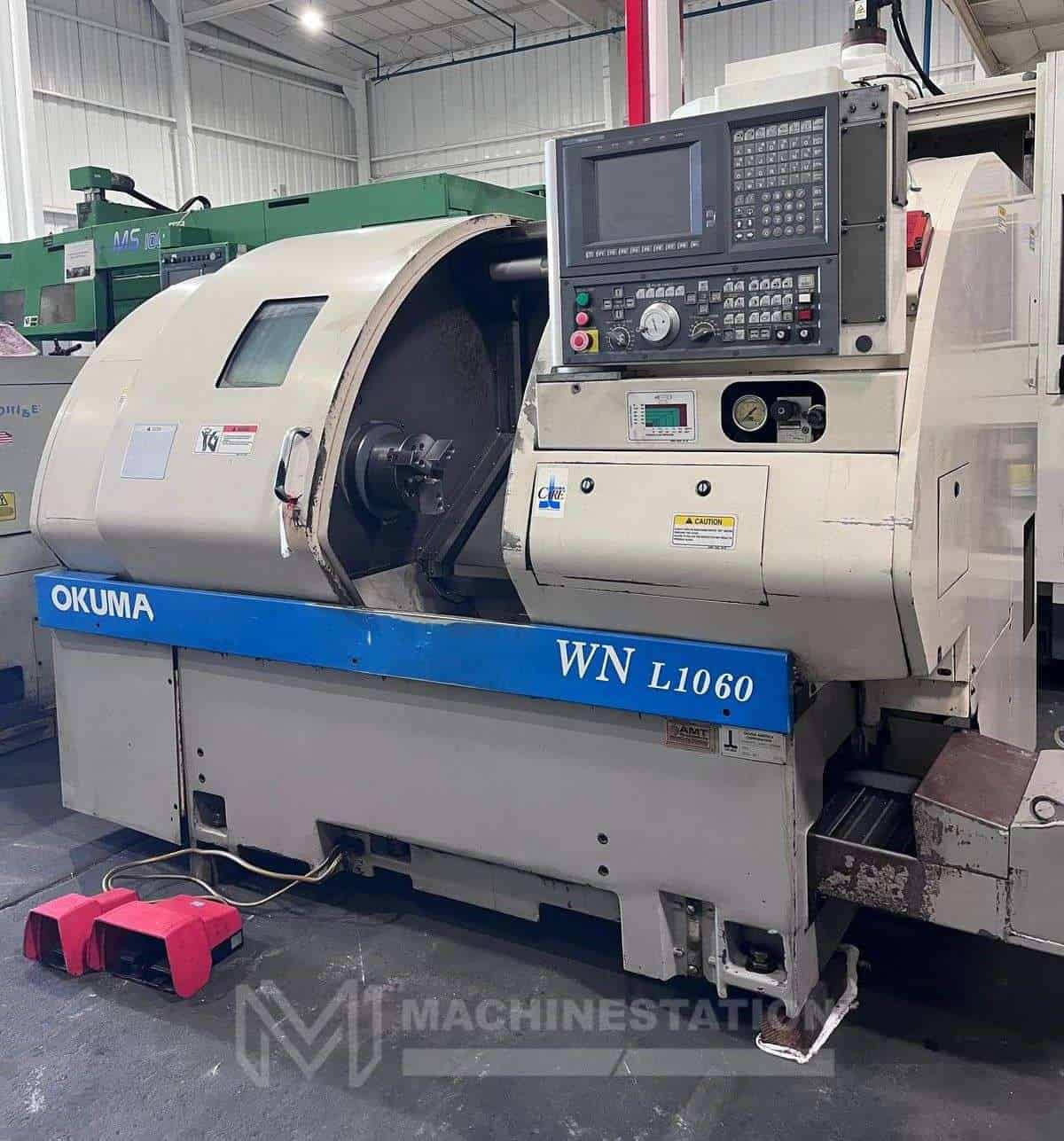

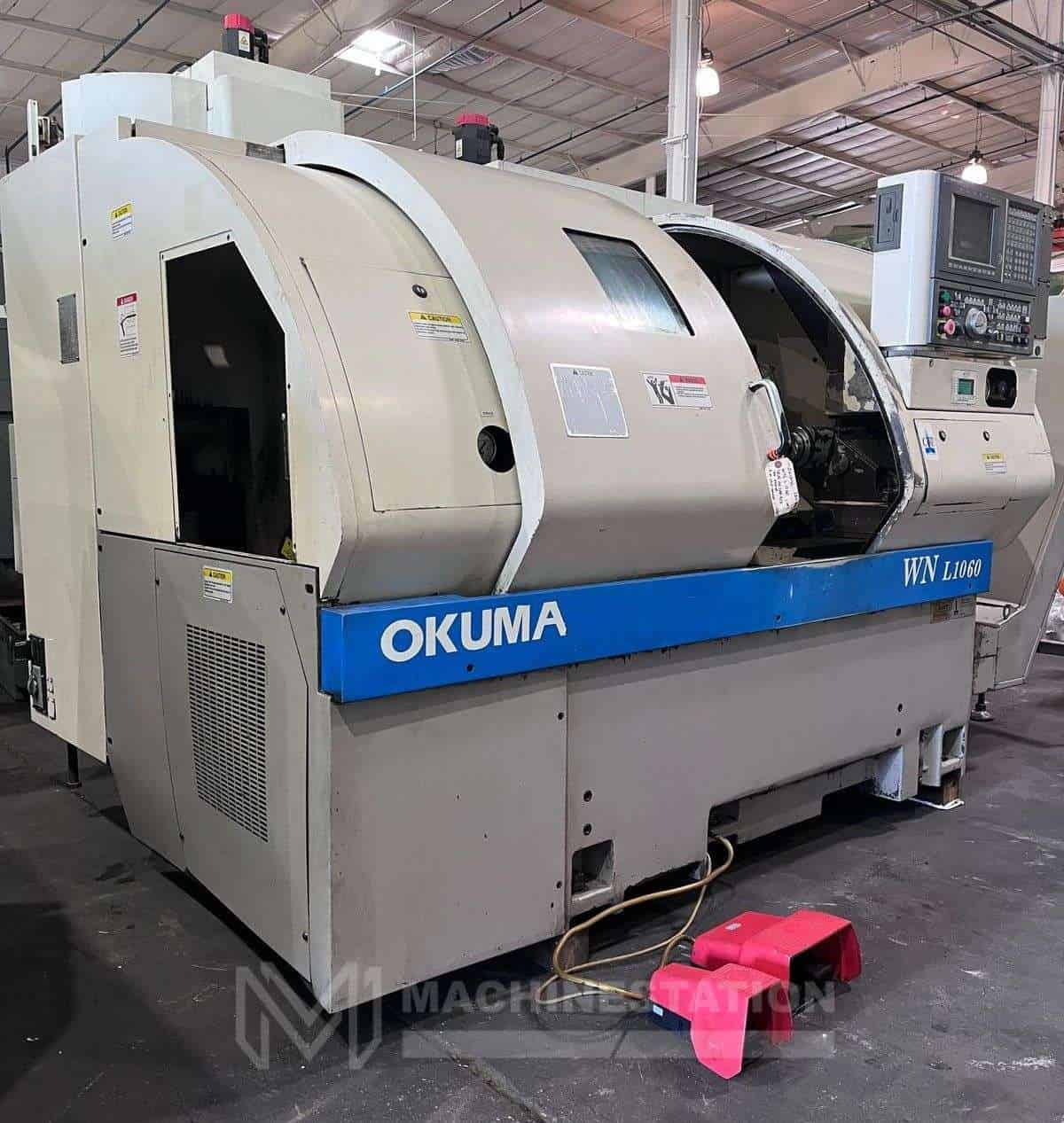

| Make: | OKUMA |
| Model: | Crown L1060 762E |
| Year: | 2001 |
| Condition: | Used – Good |
| Equipped With: |
|---|

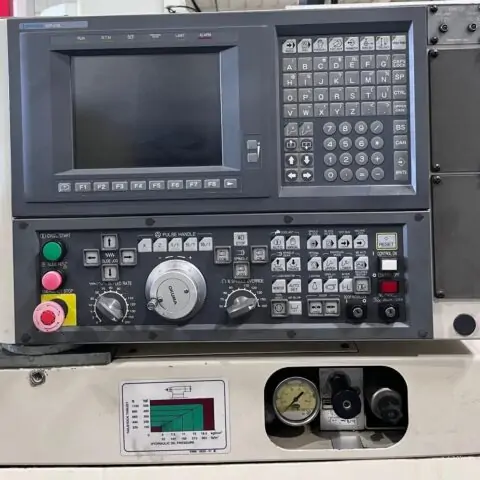

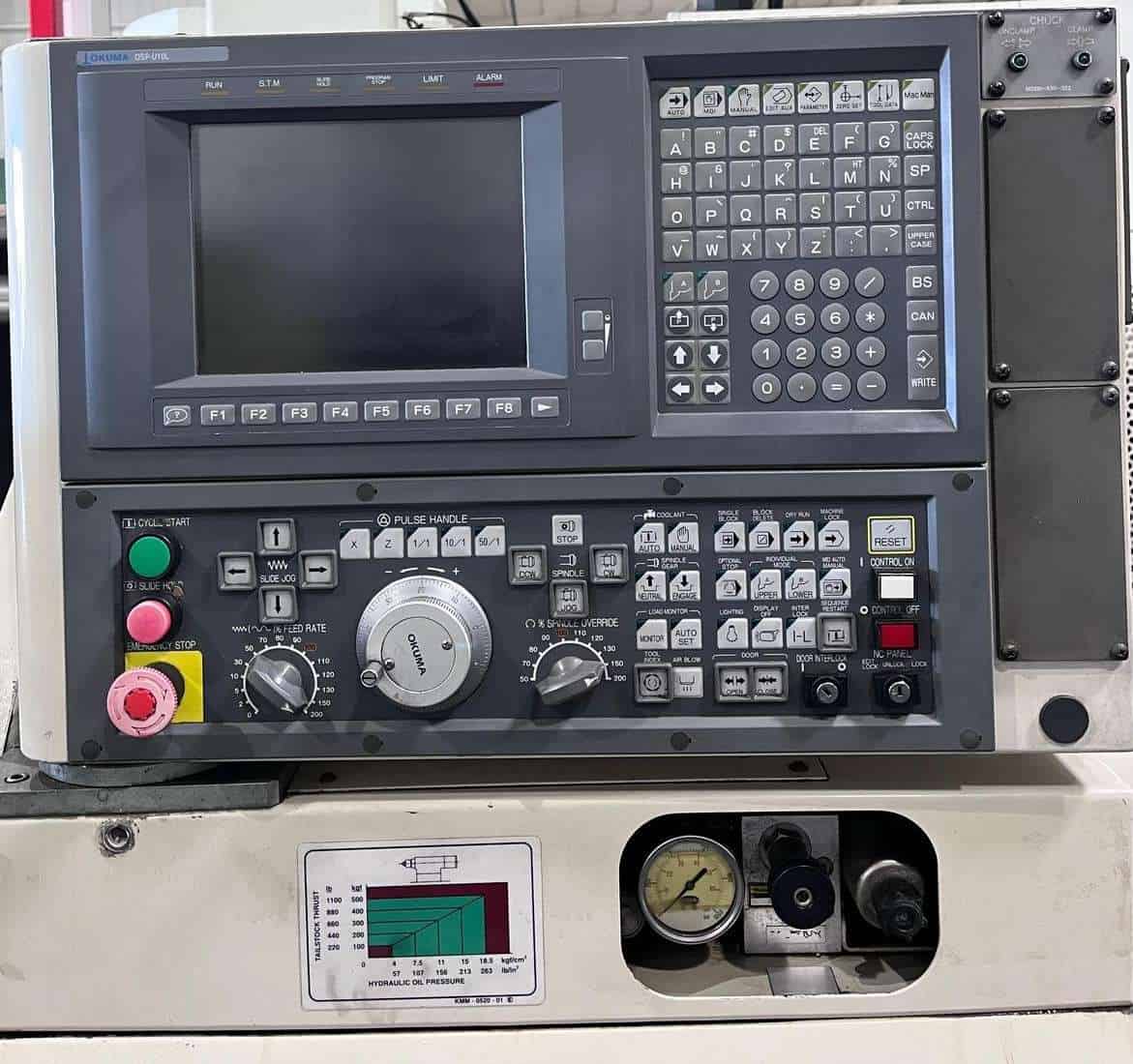

| OSP-U10L CNC Control |
| One Touch IGF Programming |

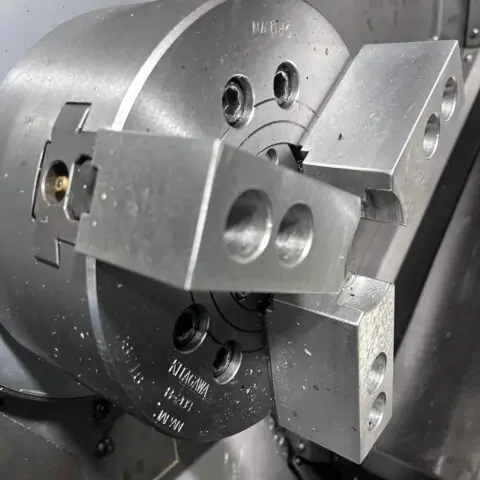

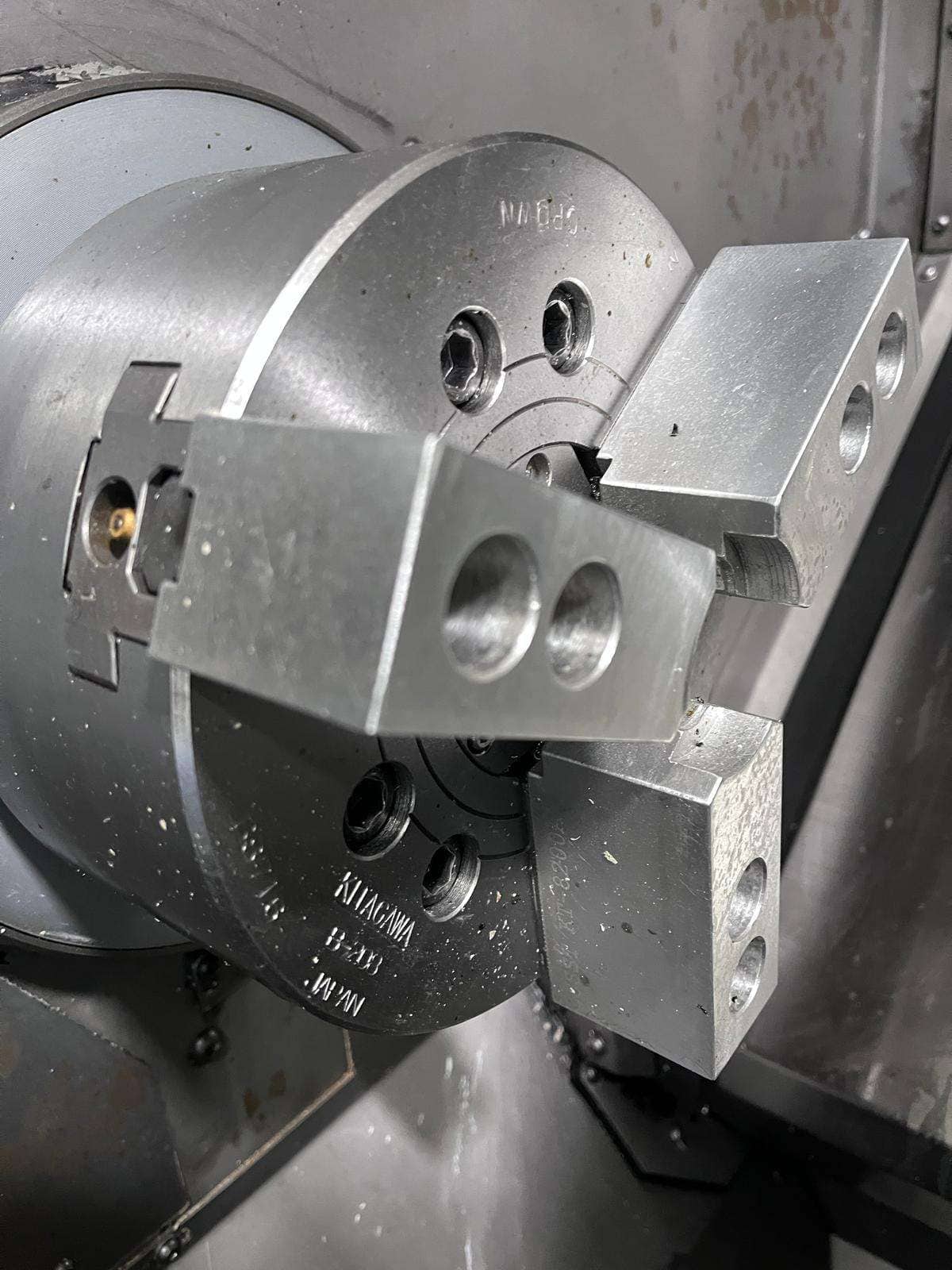

| 8″ 3-Jaw Hydraulic Chuck |

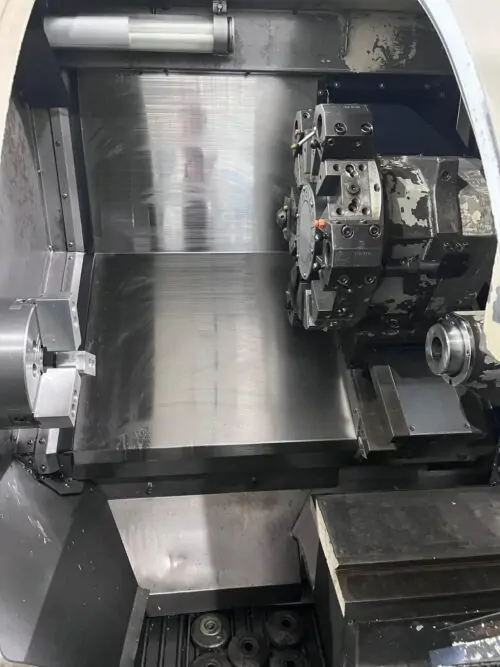

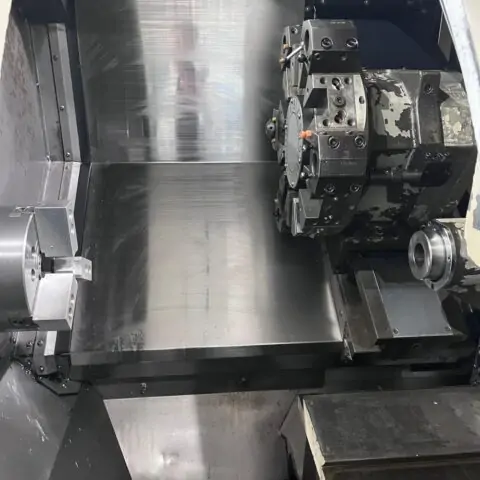

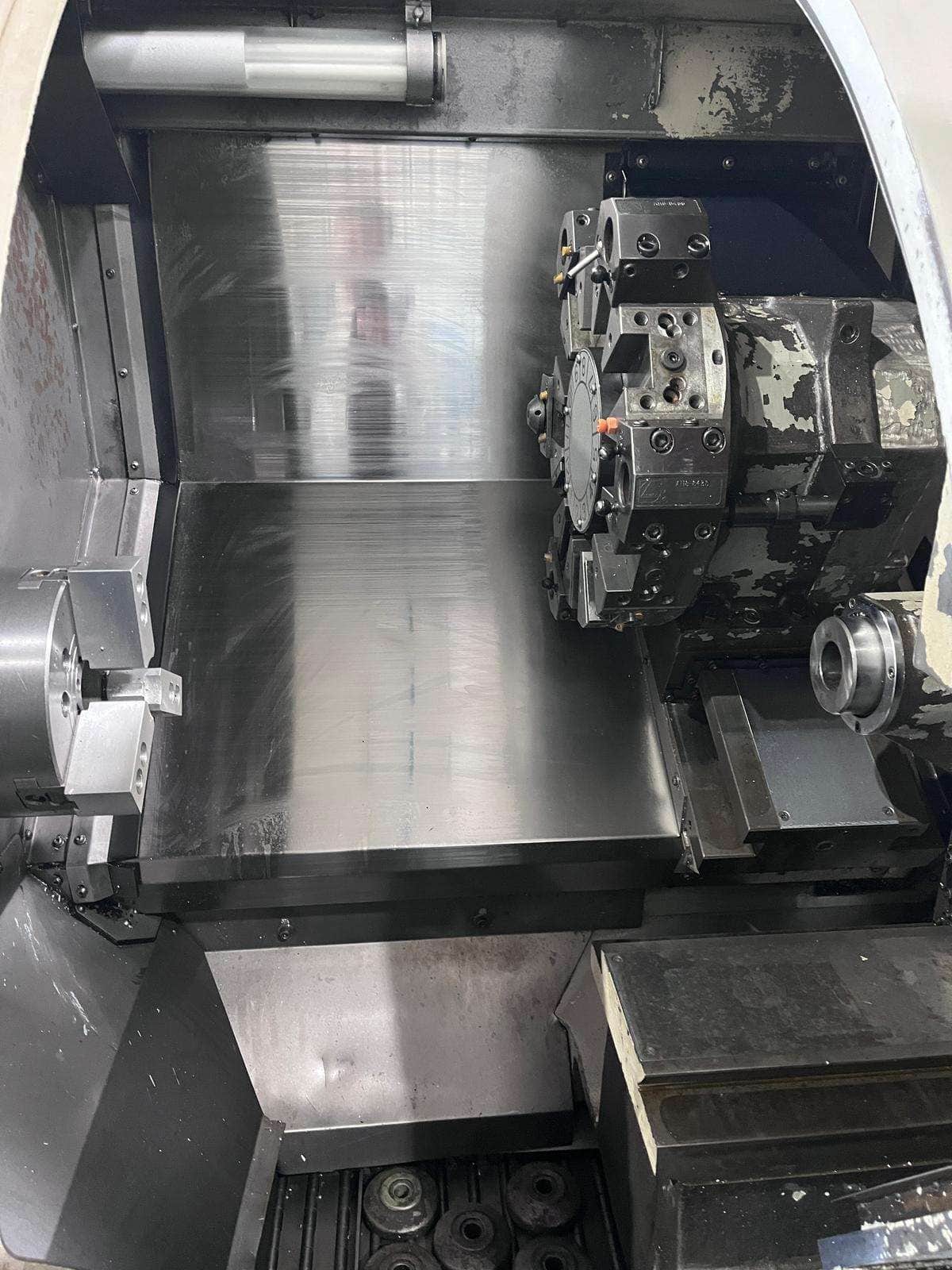

| 12-Station Automatic Turret |
| Floppy Drive |
| Hydraulic Tailstock |

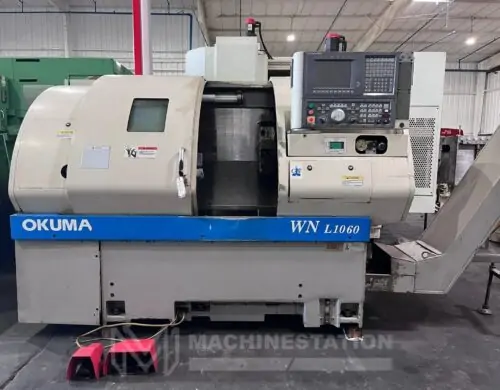

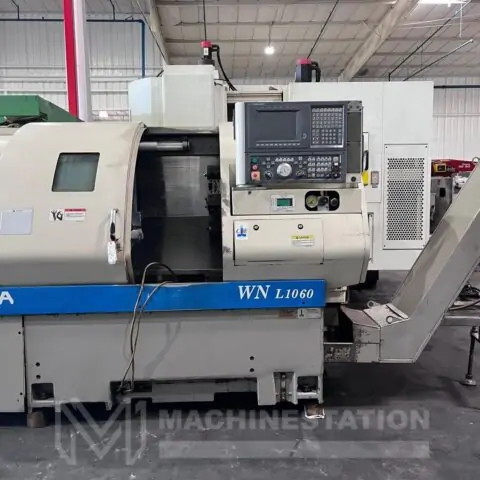

| Chip Conveyor |
| Coolant System |
| Automatic Lubrication system |

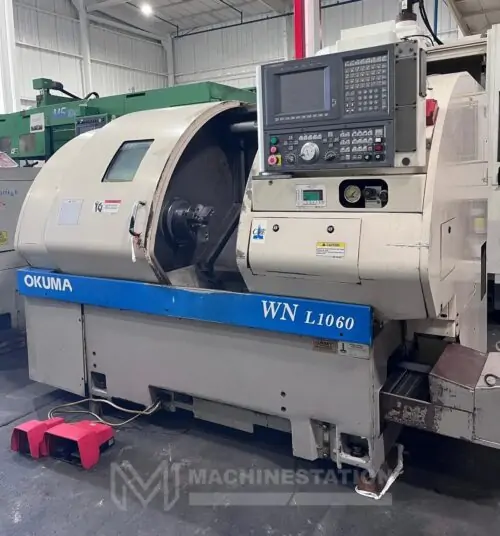

| Foot Operated Control for Chuck and Tailstock |
| Capacity: |
|---|
| Max Turning Diameter: 10.63″ |
| Max Turning Length: 19.68″ |
| Max Bar Capacity: 2.05″ |
| Swing Over Slide: 15.78″ |
| Swing Over Bed: 21.65″ |
| Distance Between Centers: 20″ |
| Travels: |
|---|
| X Axis Travel: 7.28″ |
| Z Axis Travel: 20.47″ |
| Rapid Traverse X Axis: 591 IPM |
| Rapid Traverse Z Axis: 787 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.44″ |
| Spindle Speed: 4200 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 14.5″ |
| Tailstock Quill Dia.: 3.54″ |
| Tailstock Quill Stroke: 3.93″ |
| Tailstock Taper: MT-4 |
| General: |
|---|

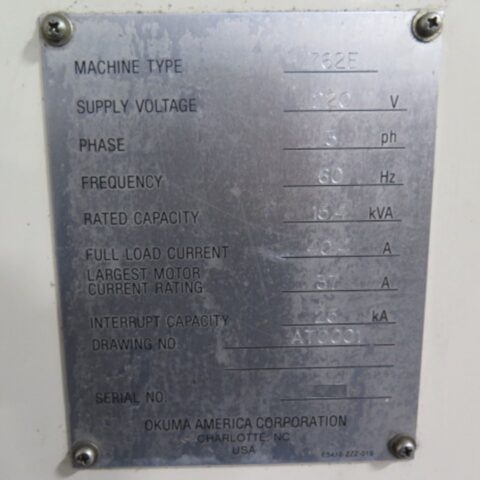

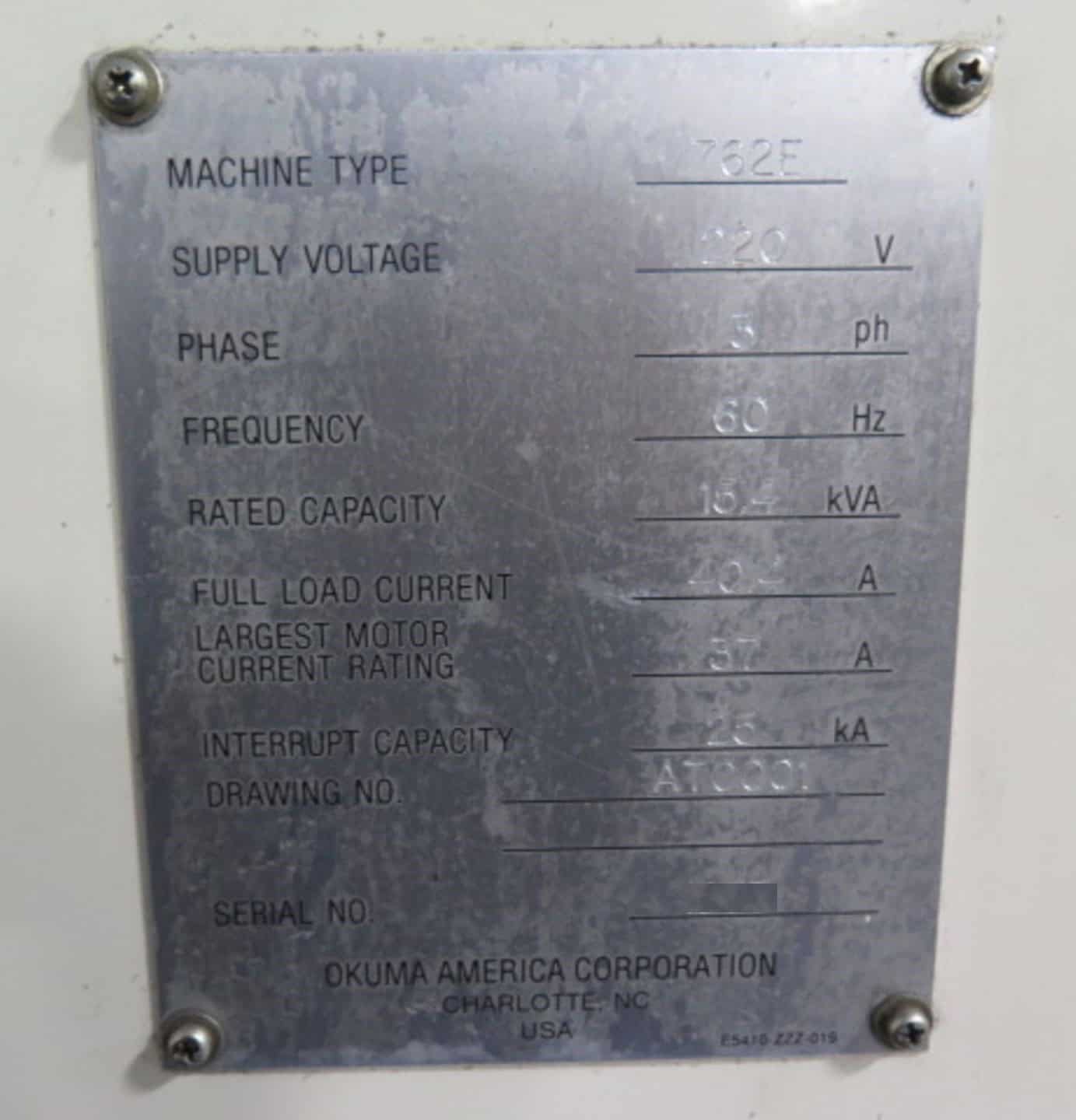

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 15.4 kva |
| Overall Dimensions: 110″ x 68″ x 80″ High |
| Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor |
| Weight : 8,500 lbs Approx. |
