SOLD OUT!

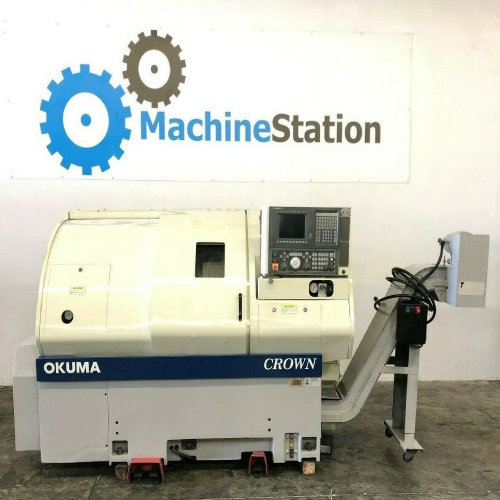

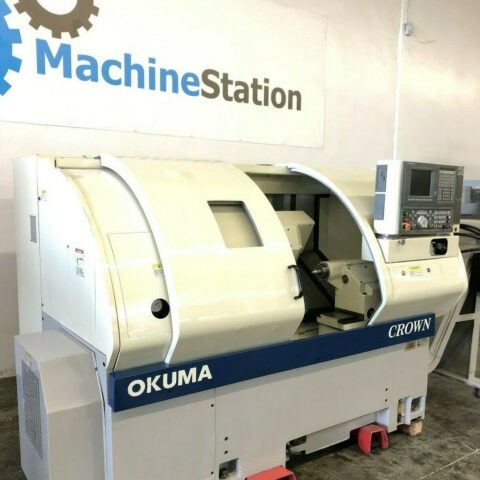

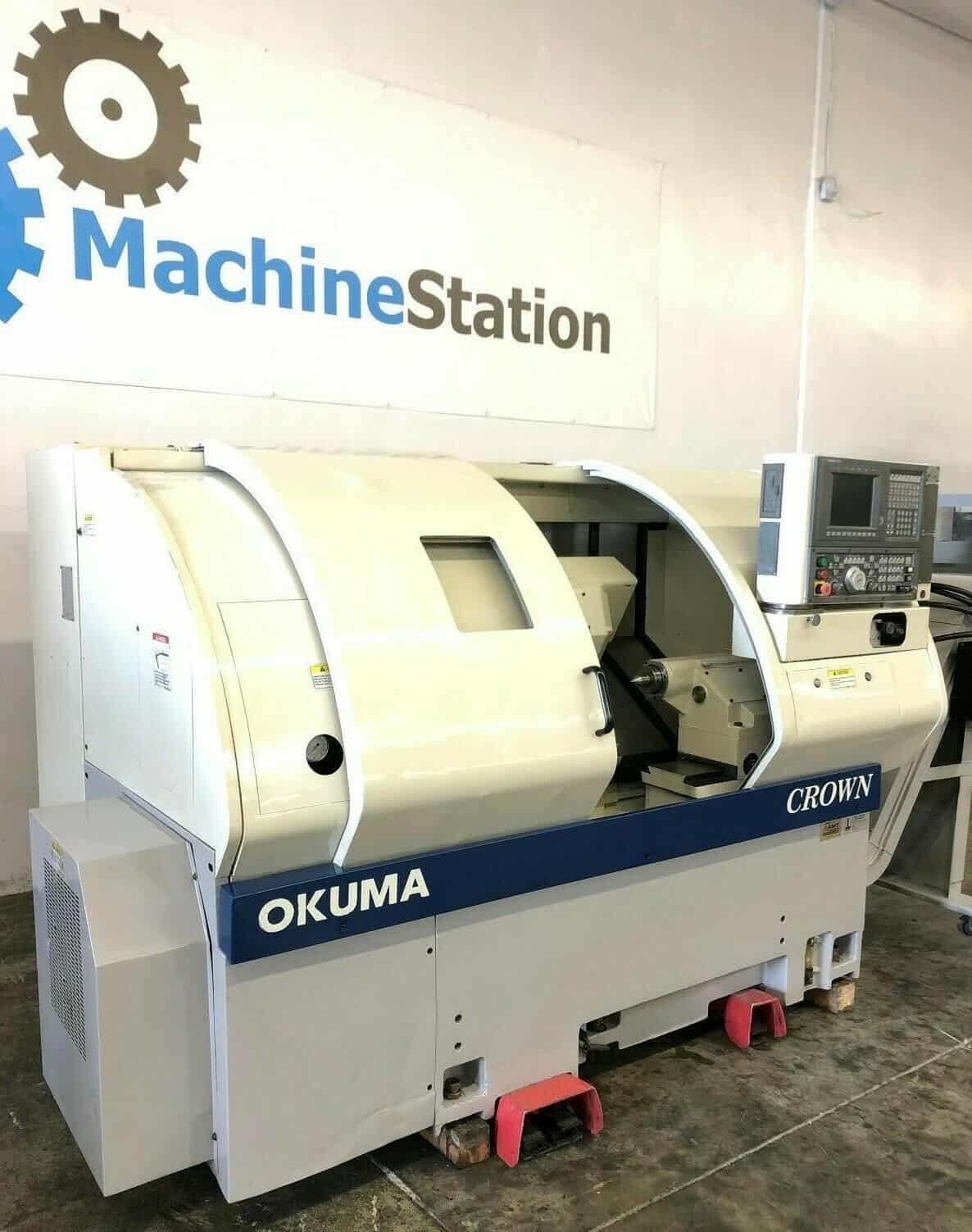

Okuma Crown L1060 762S-BB CNC Turning Center

On Our Floor now, Big Bore Machine Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 10″ Chuck, Tool holders, Manuals & Chip Conveyor.”

Share

Description

OKUMA CROWN L1060 762S-BB  CNC TURNING CENTER
Make Okuma
Model No. Crown 762S-BB
Country of Origin: Japan

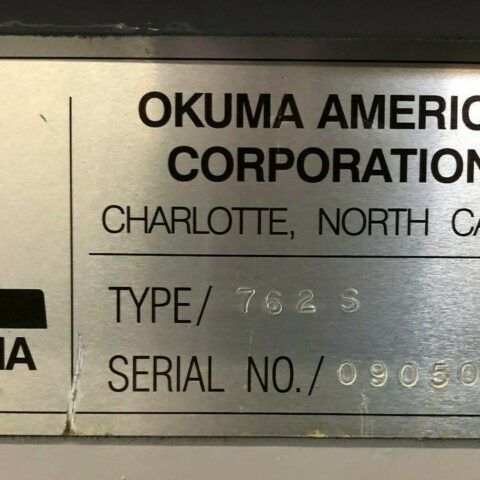

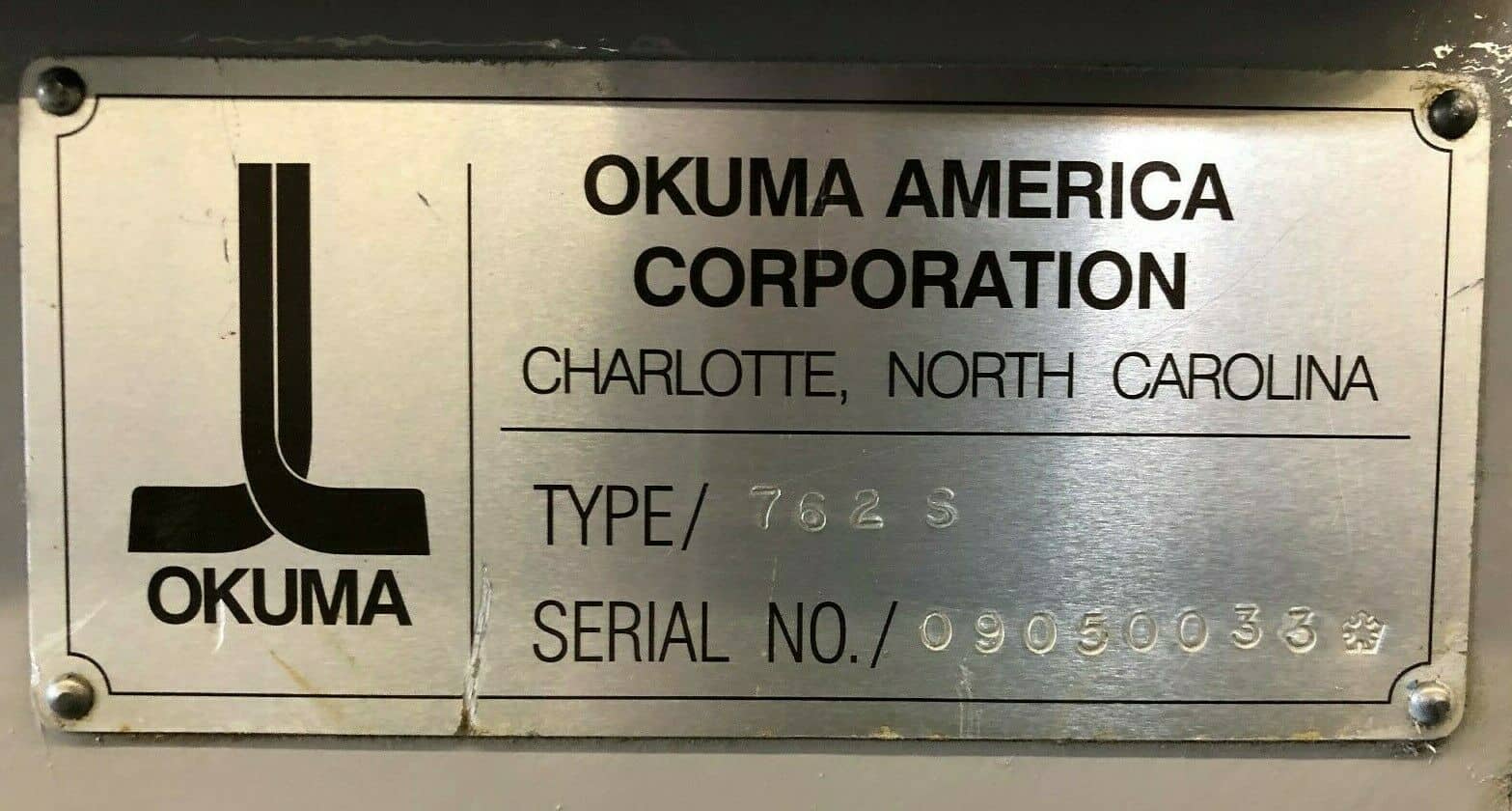

Serial # 09050033
Condition Very Good
  • Okuma Crown L1060 762S-BB CNC Equipped With:

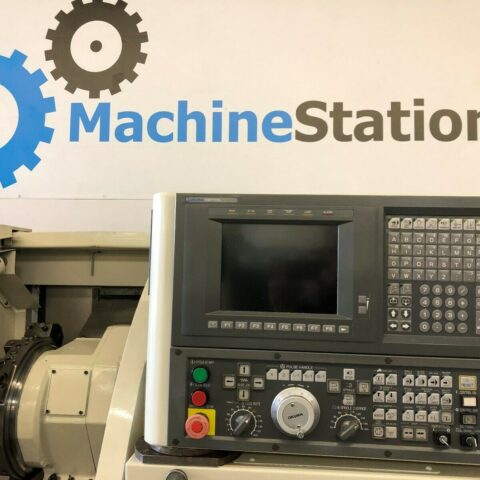

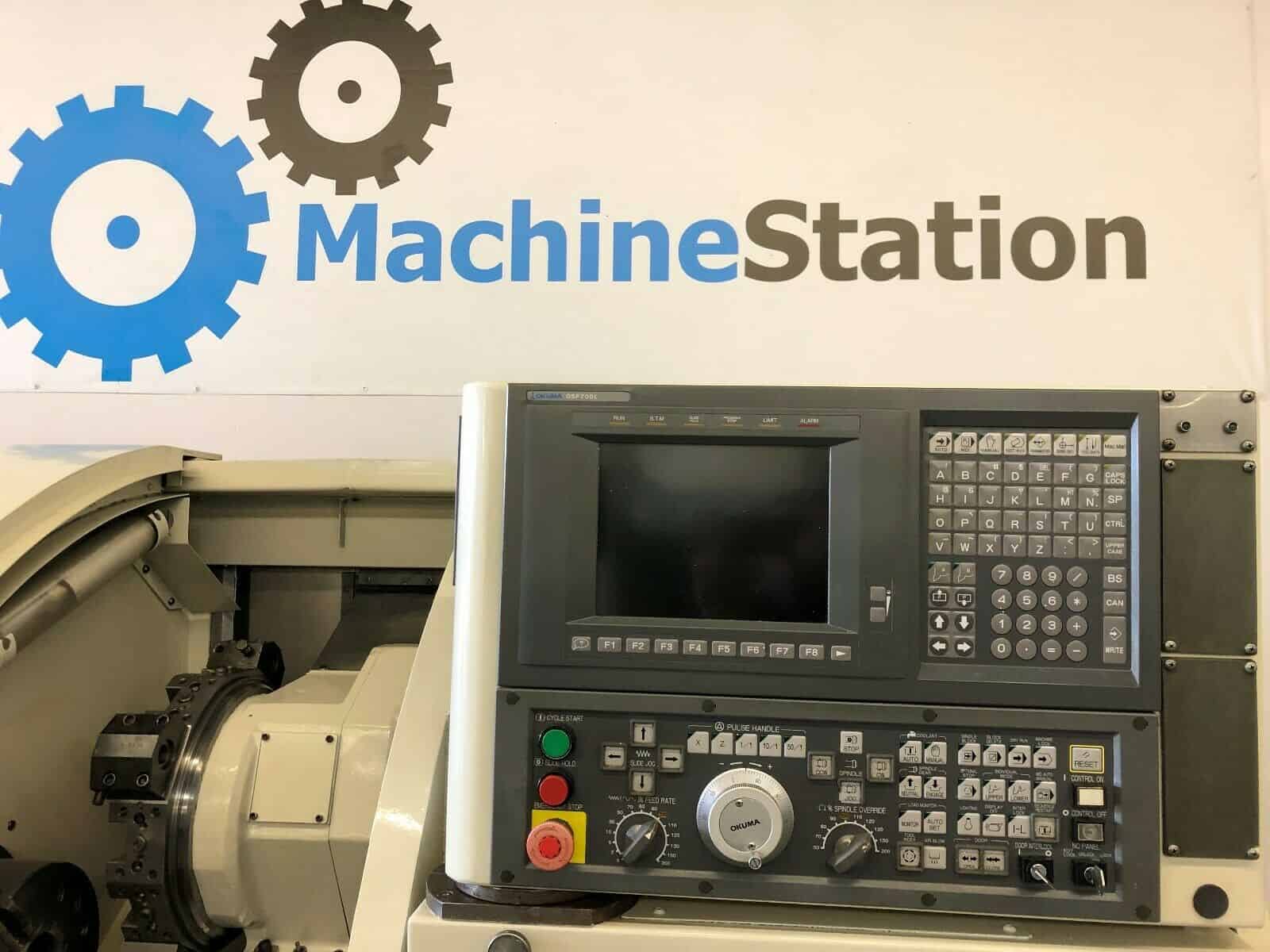

  • Okuma OSP-700L CNC Control

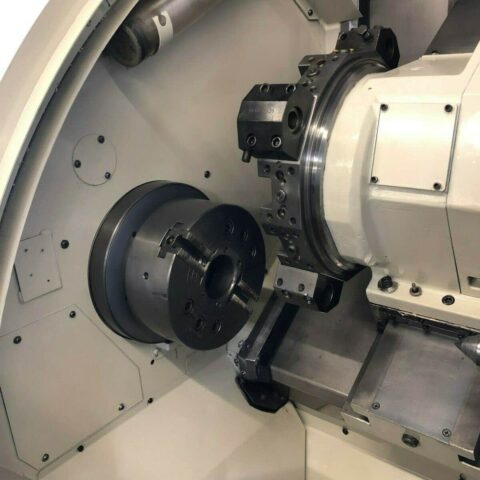

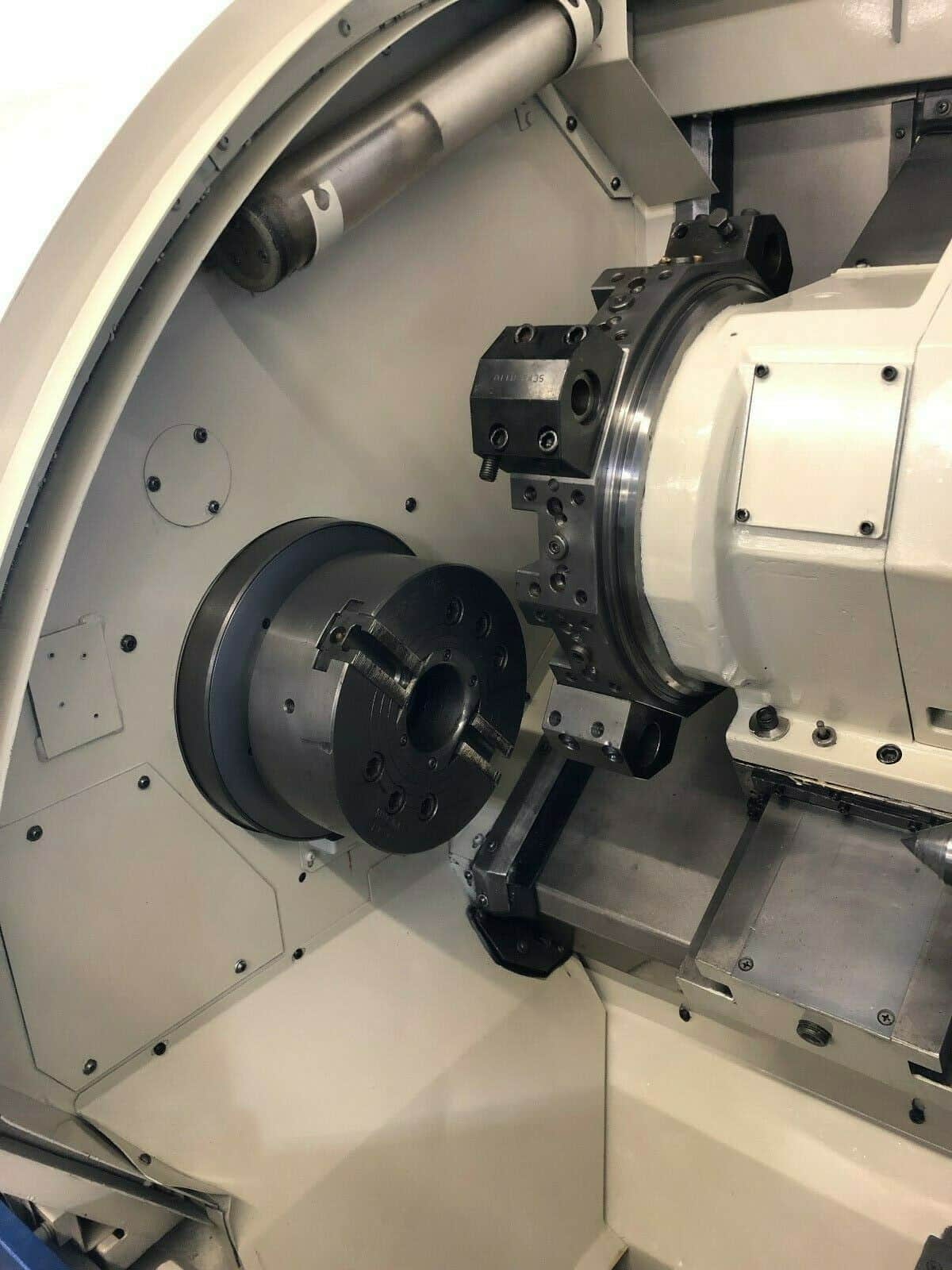

  • 10″ Hydraulic Chuck
  • Floppy Disk Drive

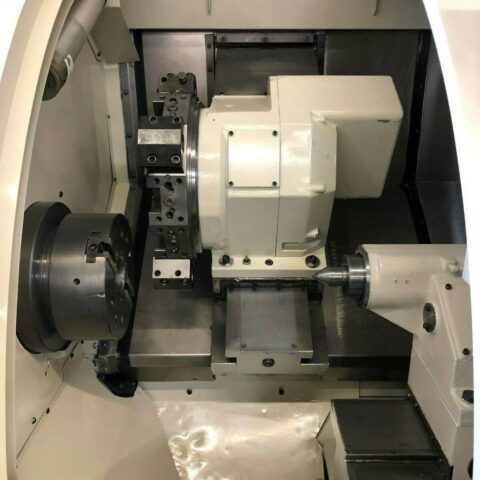

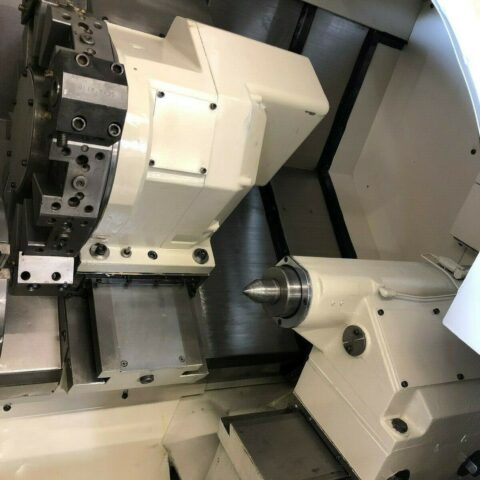

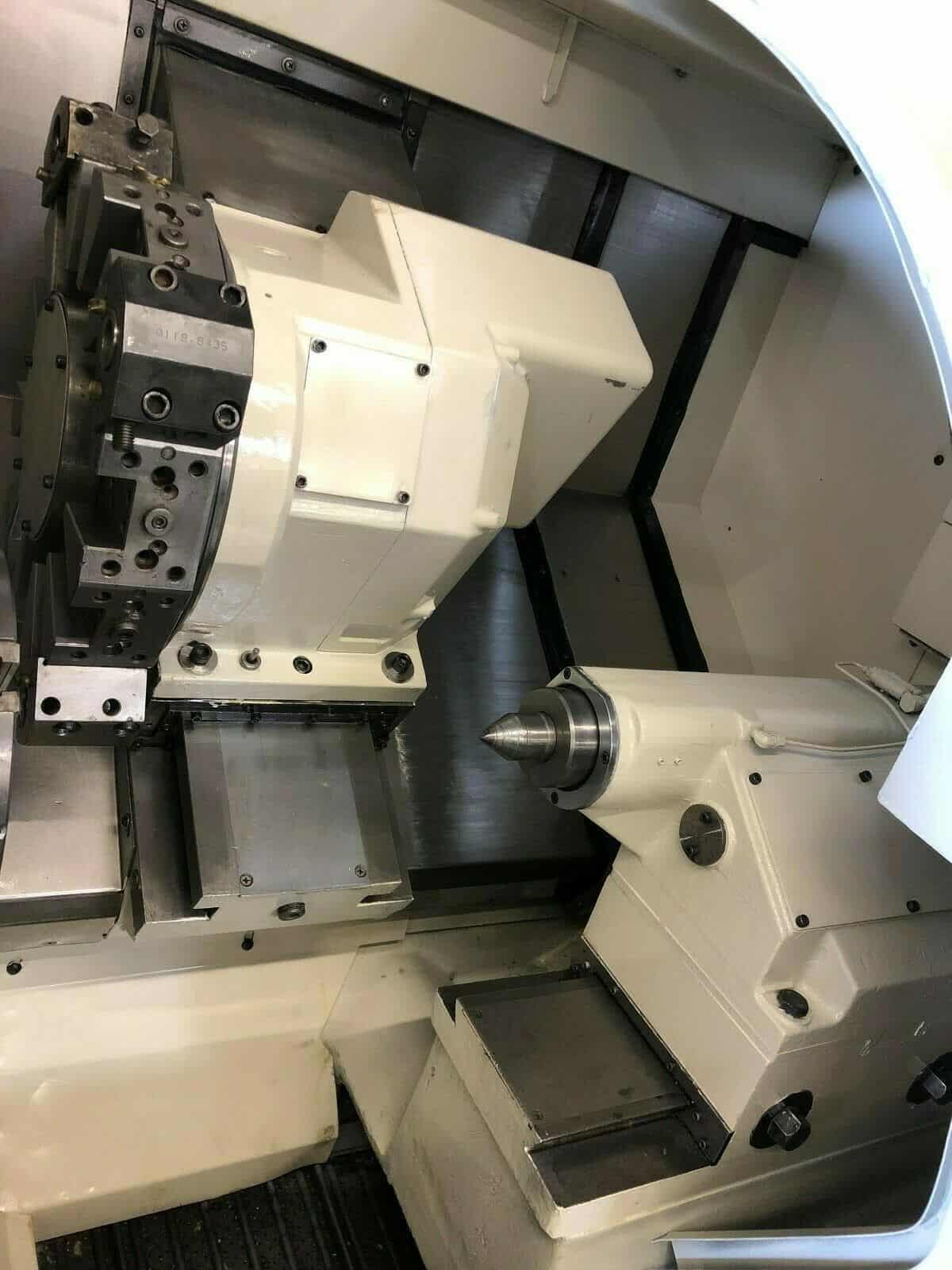

  • Hydraulic Tailstock with Programmable Quill
  • 12 Station Automatic Turret
  • Coolant System & Tank
  • Barfeed Interface
  • RS-232 Interface

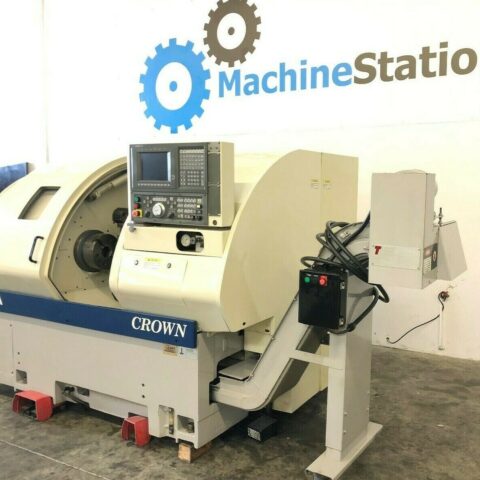

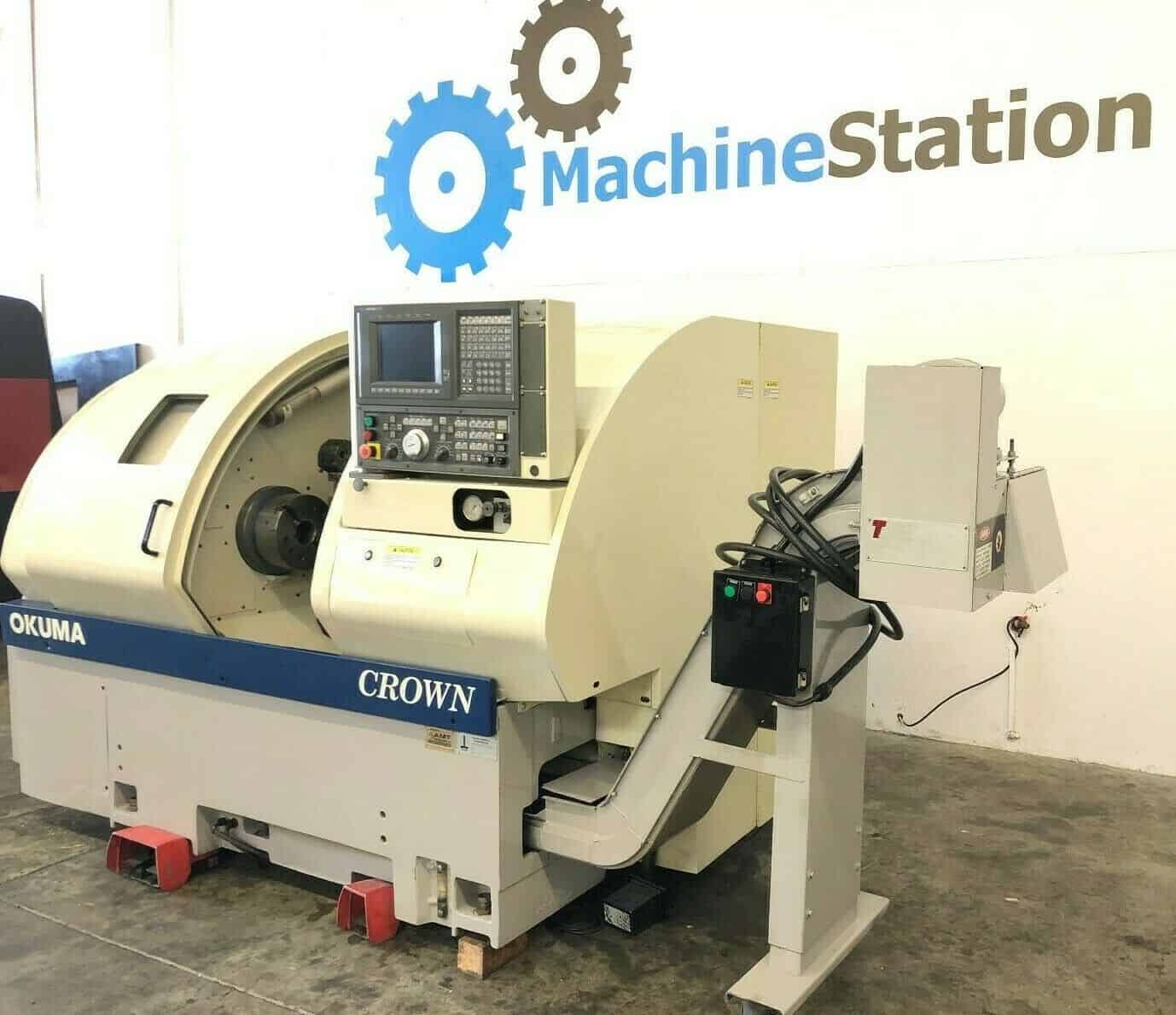

  • Chip Conveyor
  • Comes with Chip Conveyor, Levelling Pads, Manuals & Floppy Disks
  • General:

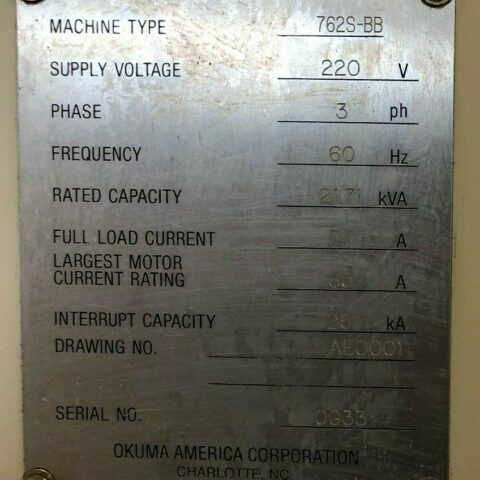

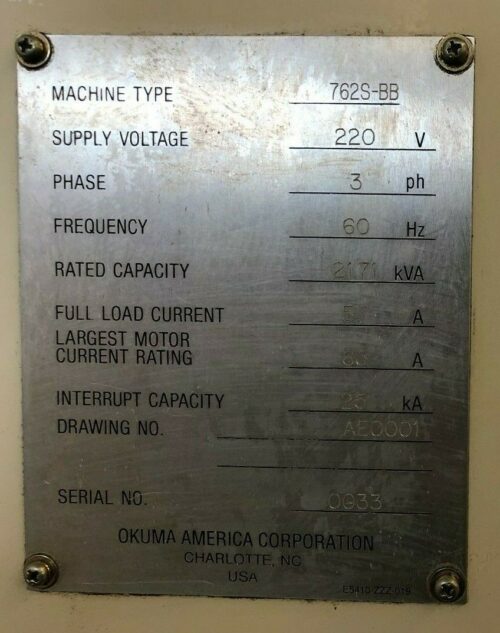

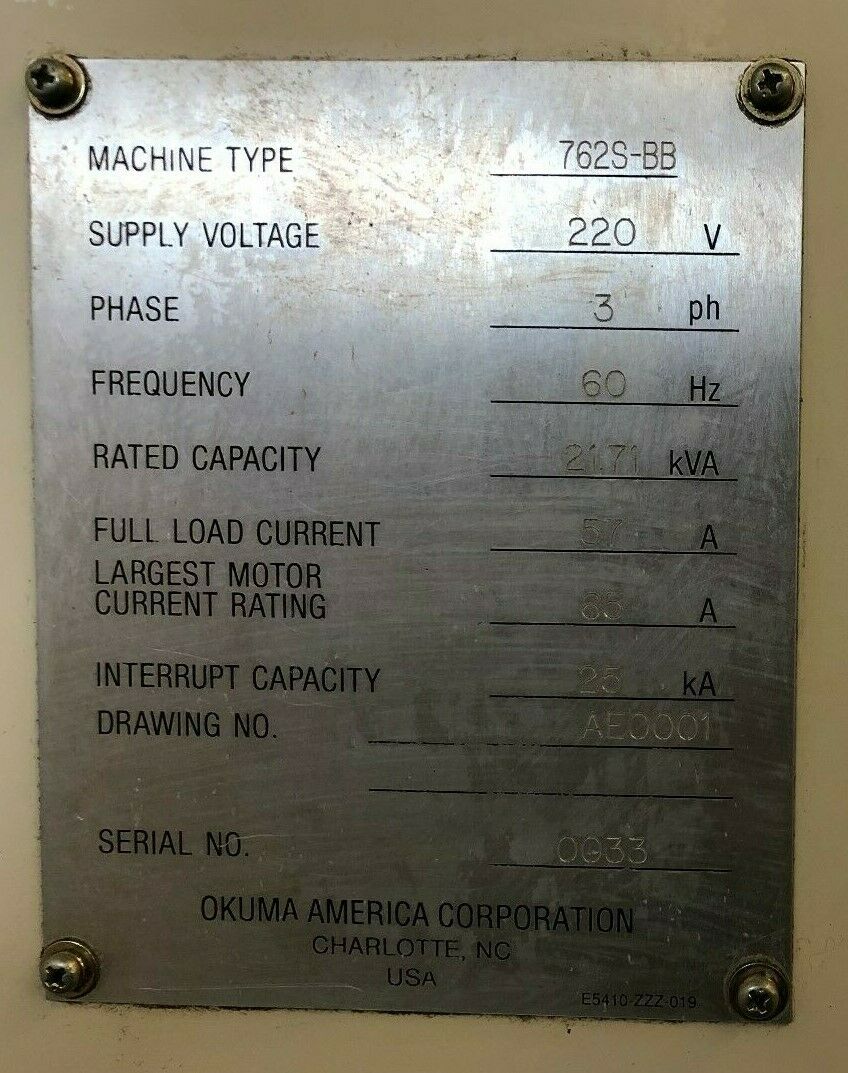

  • Power: 220v / 3-Phase
  • Overall Dimensions: 104″ x 74″ x 72″ High
  • Weight: 10,000 lbs
  • Okuma Crown L1060 762S-BB Specifications:
  • Capacity:
  • Max Turning Diameter: 10.63″
  • Max Turning Length: 19.68″
  • Distance Between Centers: 22.29″
  • Max Bar Capacity: 3.05″
  • Swing Over Bed: 21.65″
  • Swing Over Cross Slide: 15.75″
  • X Axis Travel: 7.28″
  • Z Axis Travel: 20.47″
  • Rapid Traverse X Axis: 590 IPM
  • Rapid Traverse Z Axis: 787 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.15″
  • Spindle Speed: 65 – 3500 RPM
  • Spindle Motor: 20 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 1 Second
  • Tailstock Taper: MT-5
  • Tailstock  Quill Dia.: 3.54″
  • Tailstock Quill Travel: 4.72″

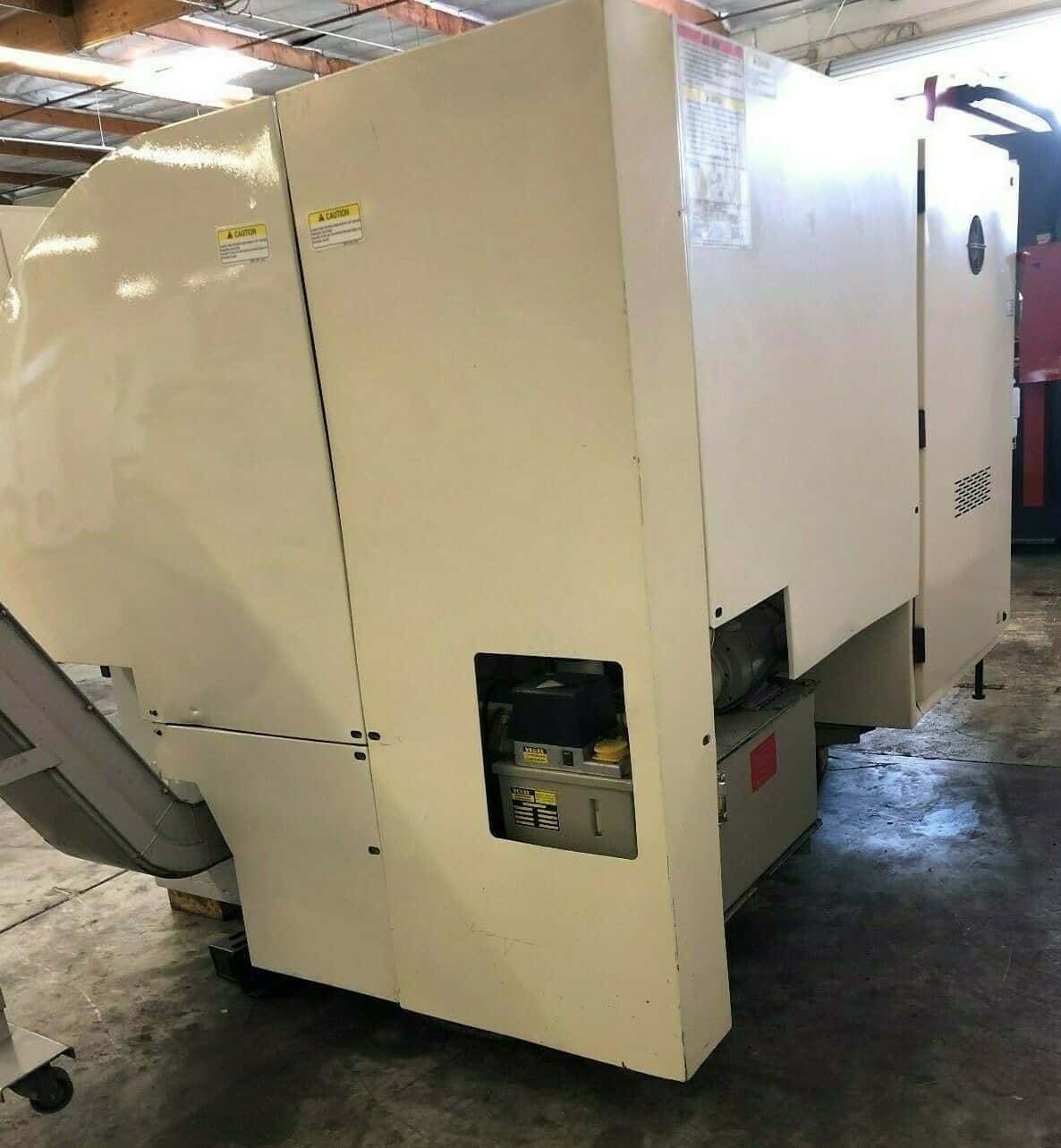

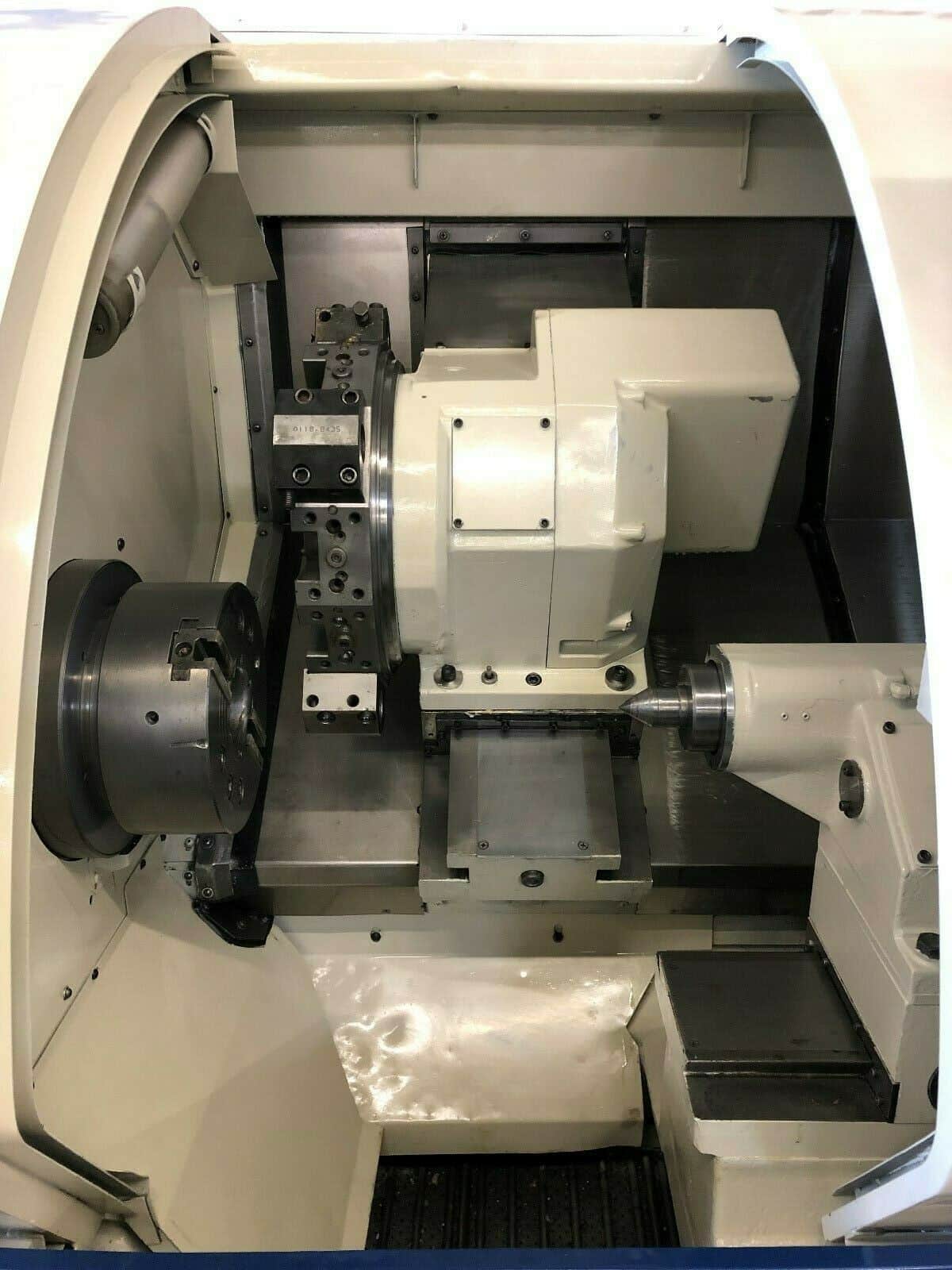

Okuma L1060 762S-BB CNC Comes as shown in pictures..
