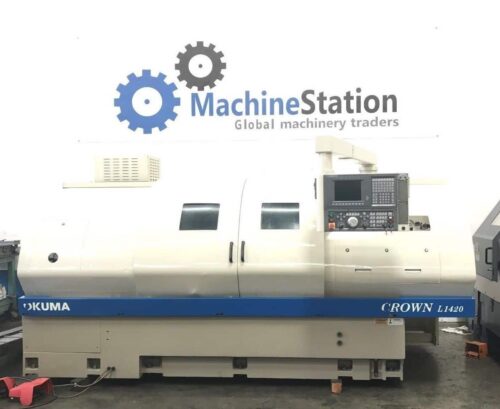

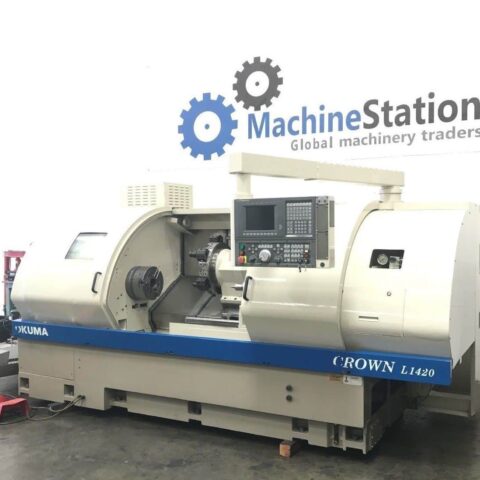

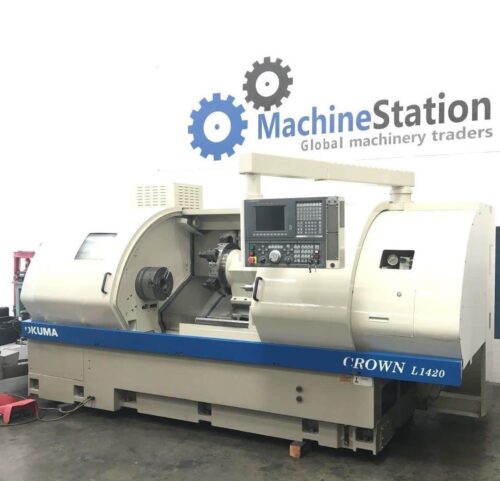

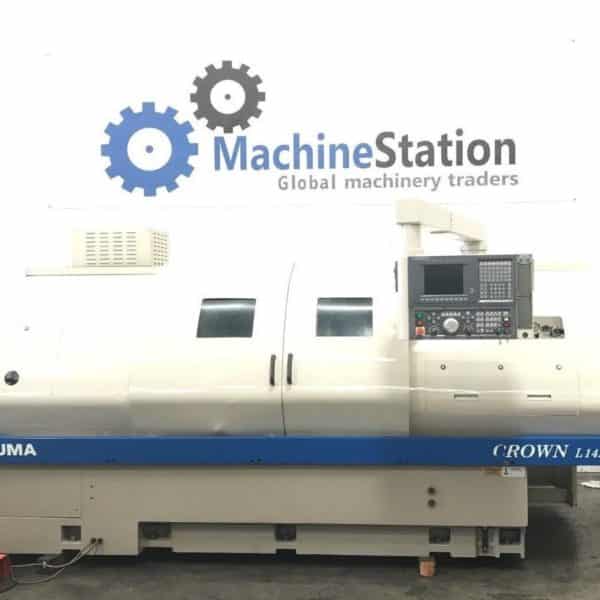

OKUMA CROWN L1420 /1250 CNC TURNING CENTER | |
---|---|
Make | Okuma |
Model No. | Crown L1420 |
Year | 2000 |

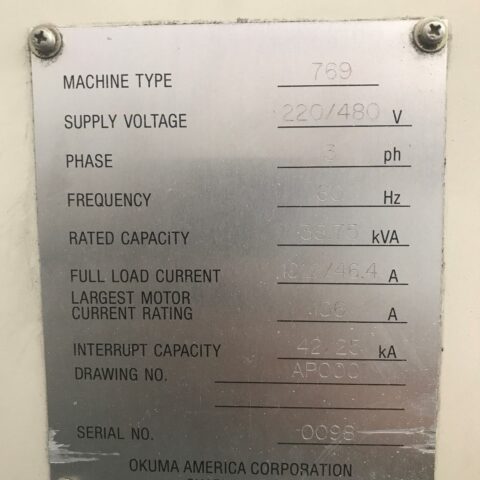

Serial # | 0098 |
Condition | Very Good |
Country of Origin: | Japan |
All specifications are approximations and are subject to verification.
“Long Bed Okuma Crown One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with 12″ Hydraulic Chuck, Tailstock, chip conveyor, Tool holders.”
- OKUMA CROWN L1420 /1250 Equipped With:

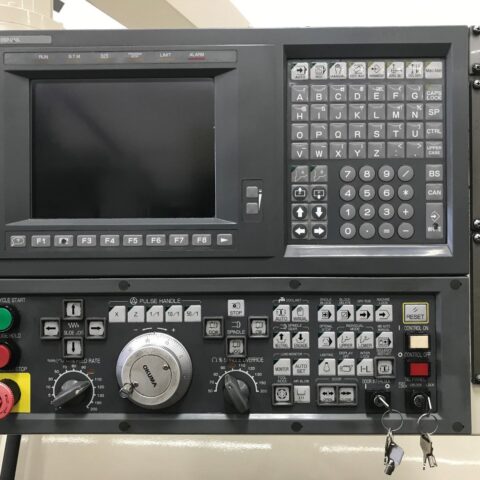

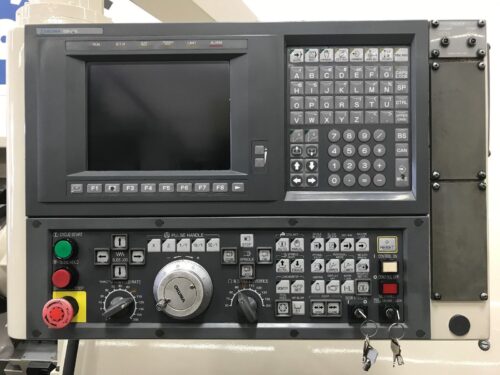

- Okuma OSP-O10L CNC Control
- IGF – Interactive Graphic Function

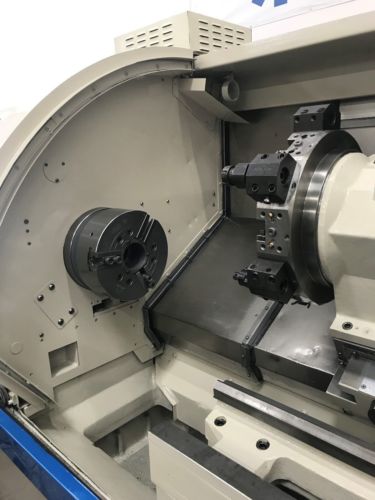

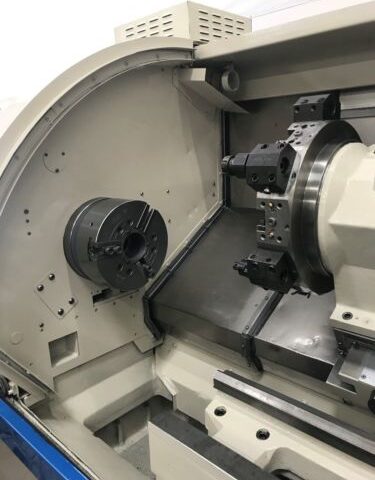

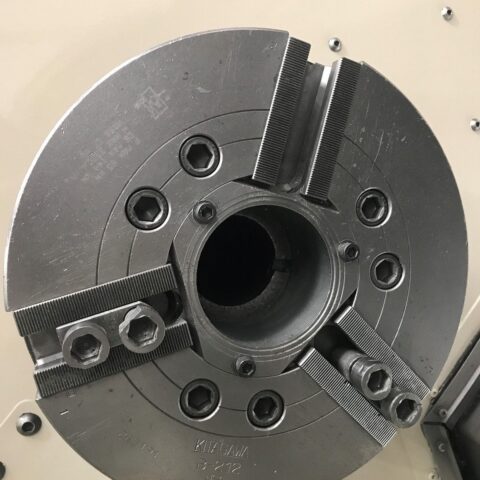

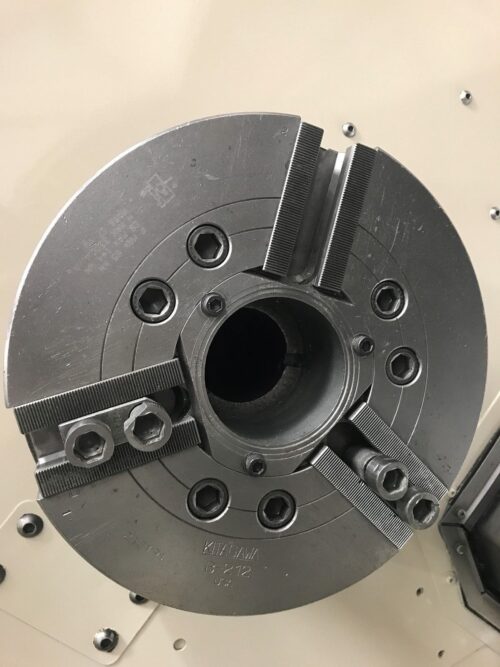

- 12″ 3-Jaw Kitagawa Hydraulic Chuck

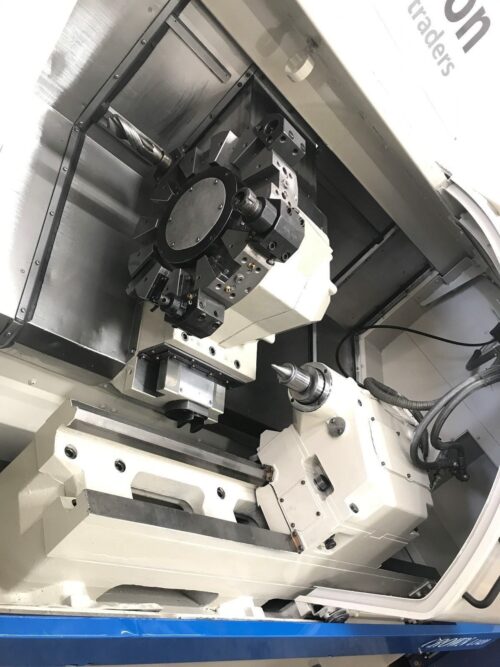

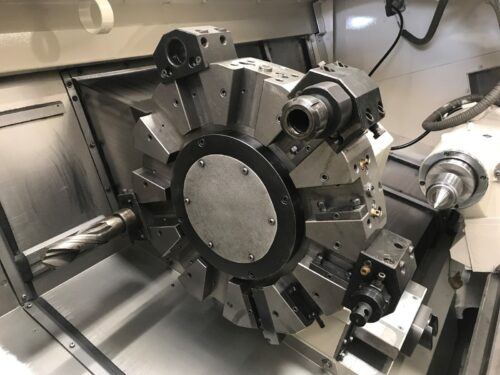

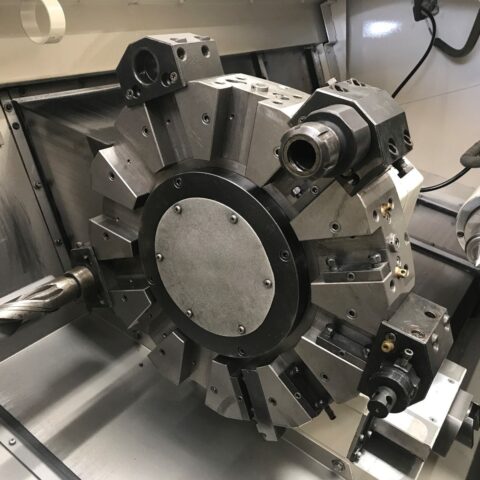

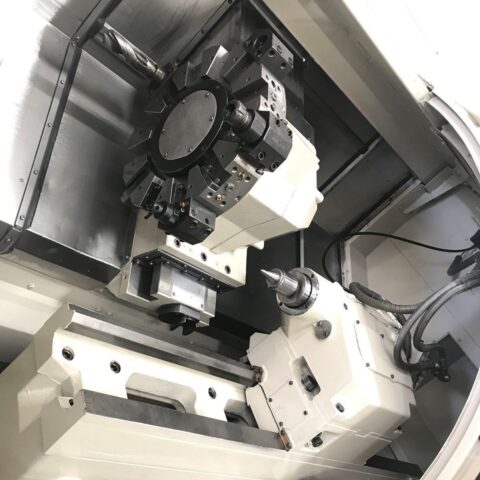

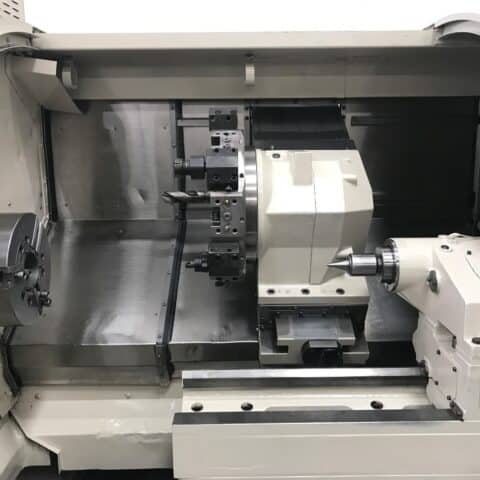

- 12-Station Turret with Tooling

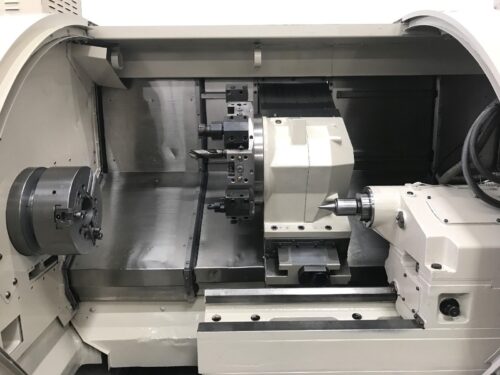

- Hydraulic Tailstock
- Slant Bed Rigid Box Way Long Bed Machine

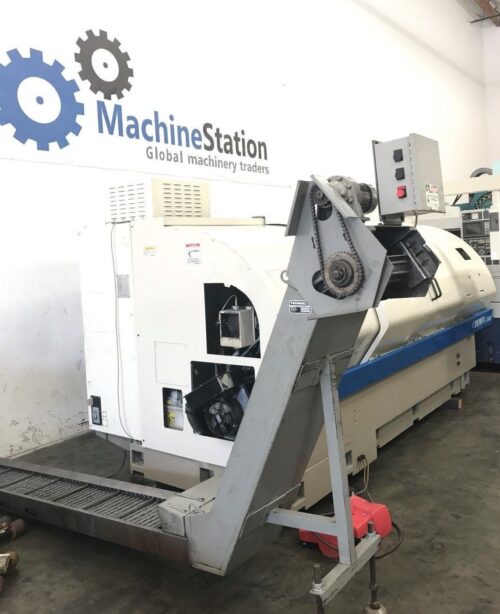

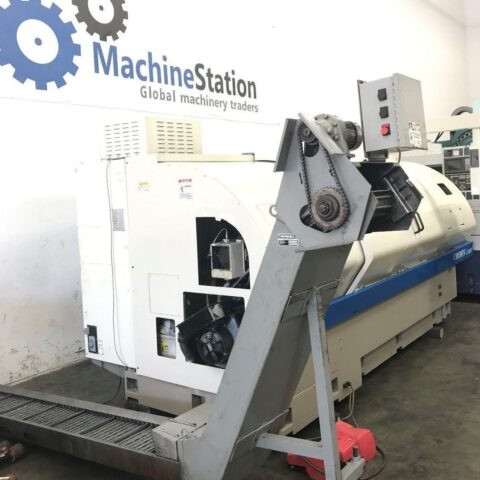

- Chip Conveyor
- Coolant System.
- Automatic Lubrication system
- Foot Operated Control for Chuck & Tailstock
- Coolant Tank
- Comes with Chip Conveyor, Levelling Pads, Manuals.
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 126″ x 76″ x 80″ High
- Overall Dimensions: 150″ x 76″ x 80″ High W/Chip Conveyor
- Weight : 13,500 lbs Approx.
- OKUMA CROWN L1420 /1250 Specifications:
- Max Turning Diameter: 14.17″
- Max Turning Length: 49.21″
- Max Bar Capacity: 3.15″
- Swing Over Bed: 24.41″
- Distance Between Centers: 50.4″
- X Axis Travel: 9.1″
- Z Axis Travel: 50.01″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 591 IPM
- Spindle Nose: A2-8
- Spindle Bore: 3.54″
- Spindle Speed: 65-3500 RPM
- Spindle Motor: 30 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Quill Dia.: 3.94″
- Tailstock Quill Stroke: 4.72″
- Tailstock Taper: MT-5
OKUMA CROWN L1420 /1250 Comes as shown in pictures.
