Okuma ES-L10 Big Bore CNC Lathe

Out of stock

One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with Hydraulic Chuck, Tailstock, chip conveyor.”

SKU: 1616
Make/Model: Okuma ES-L10
Video: [fusion_button link=”https://www.youtube.com/watch?v=pNjPjW6PsDU” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1616

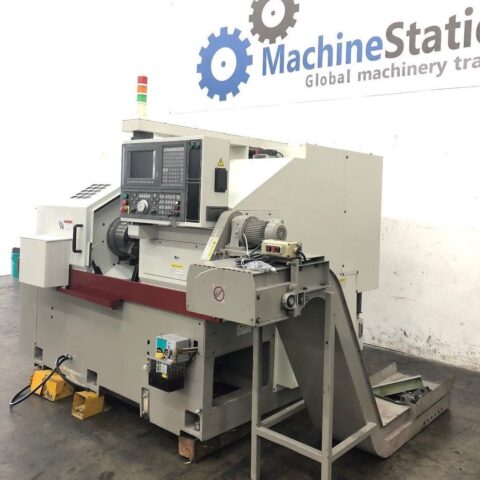

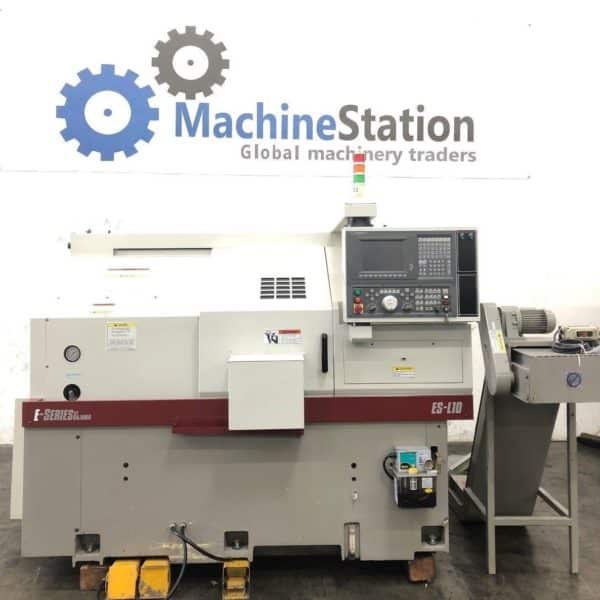

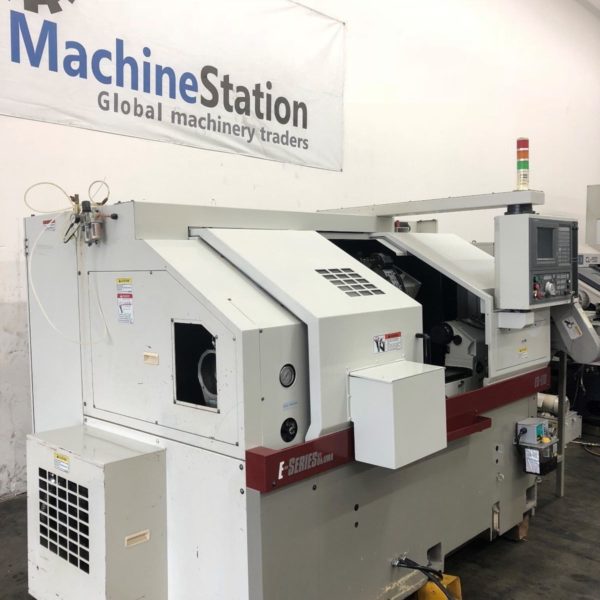

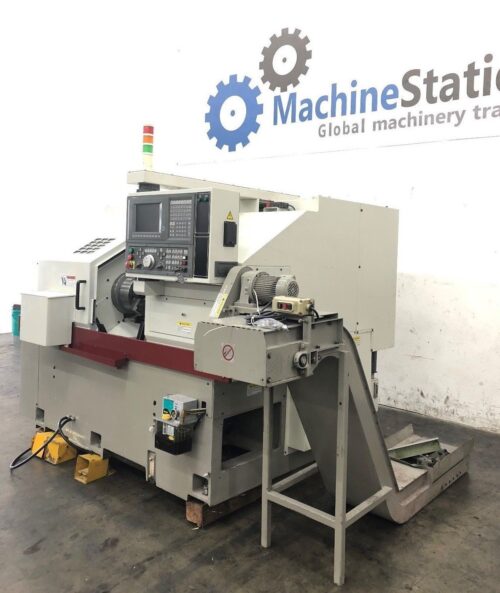

OKUMA ES-L10 CNC TURNING CENTER BIG BORE LATHE
Make Okuma
Model No. ES-L10

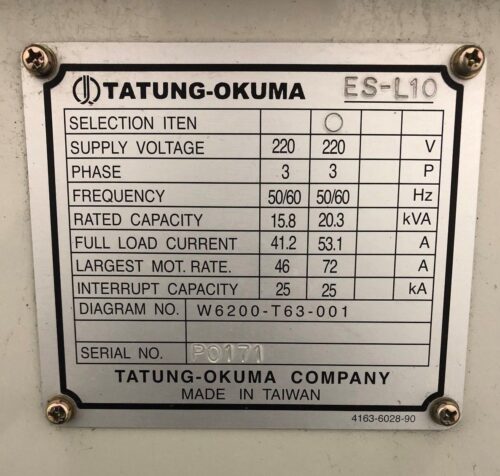

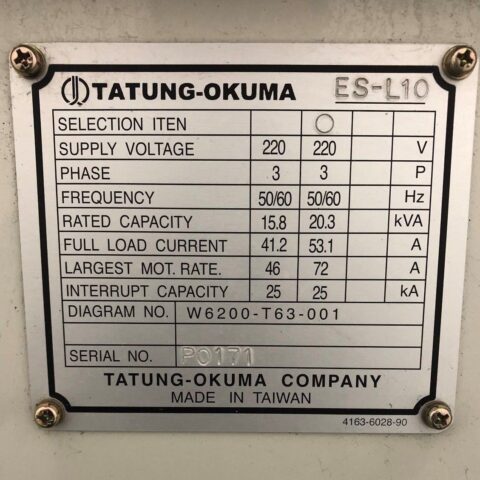

Serial # P0171
Condition Very Good

“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with Hydraulic Chuck, Tailstock, chip conveyor.”
Watch *VIDEO* in Spanish

  • Okuma ES-L10 Equipped With:

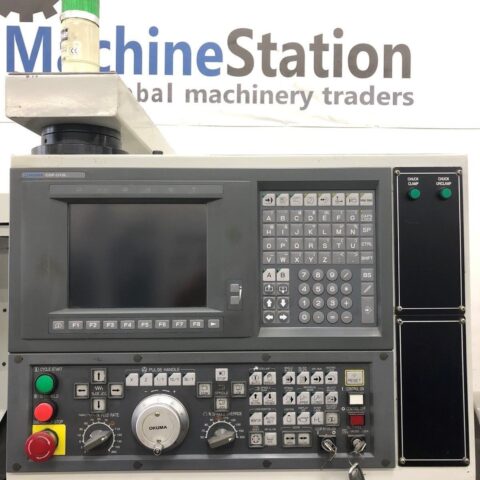

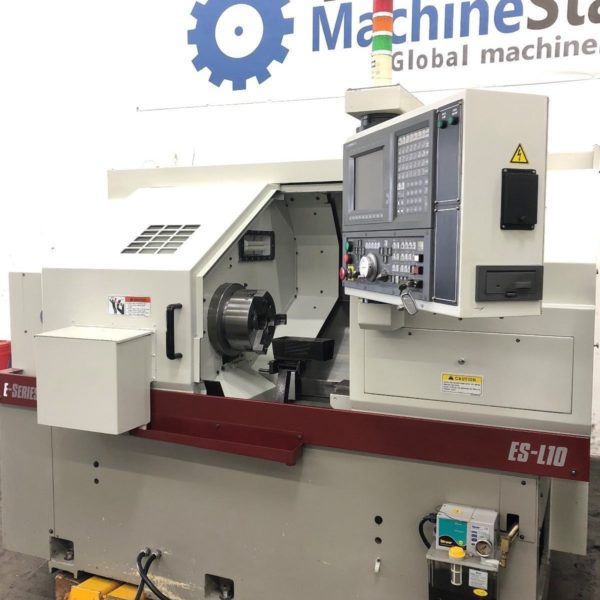

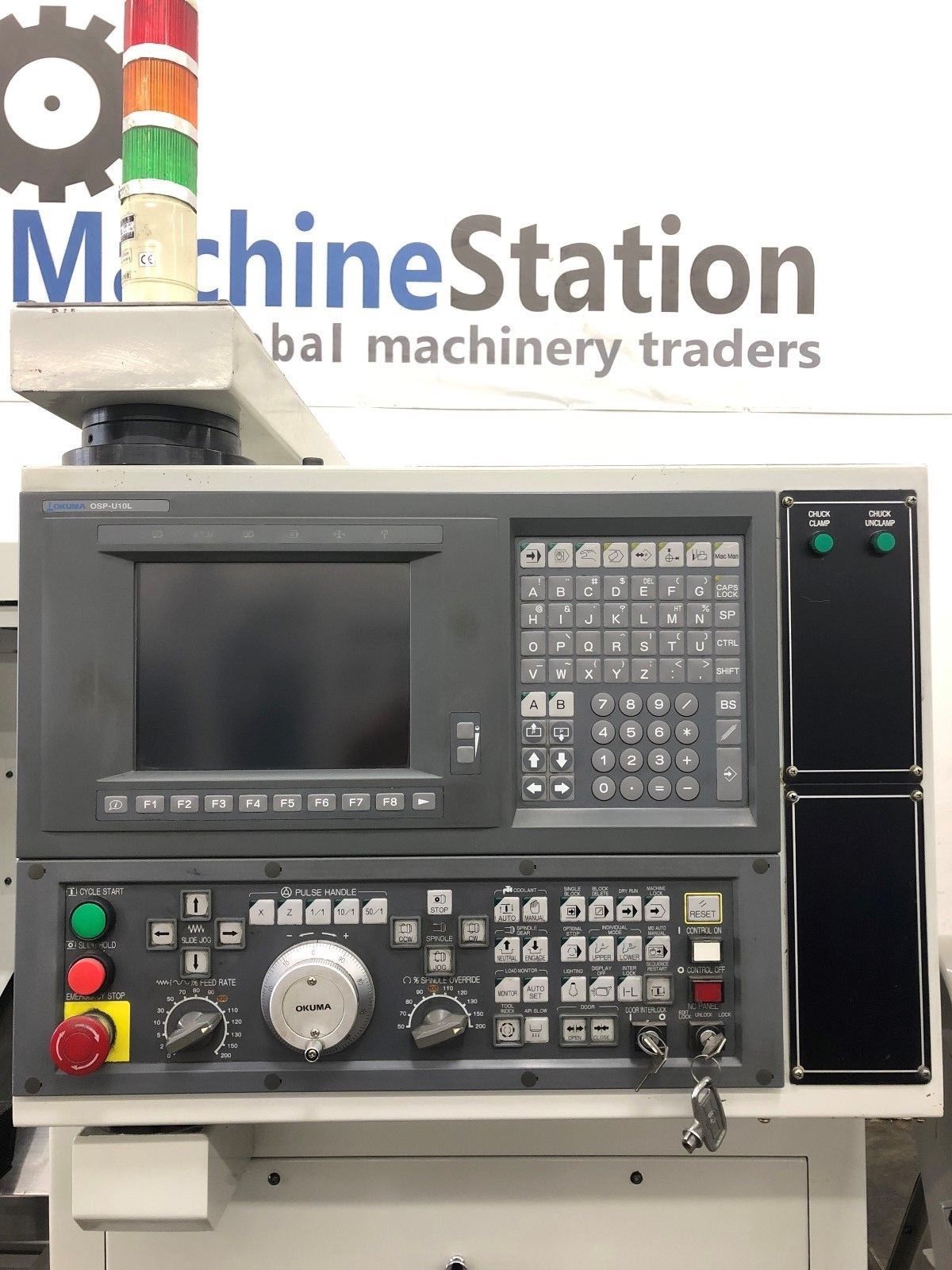

  • Okuma OSP-U10L CNC Control
  • One Touch IGF – Interactive Graphic Function
  • Cycle time Calculator
  • MacMan Feature

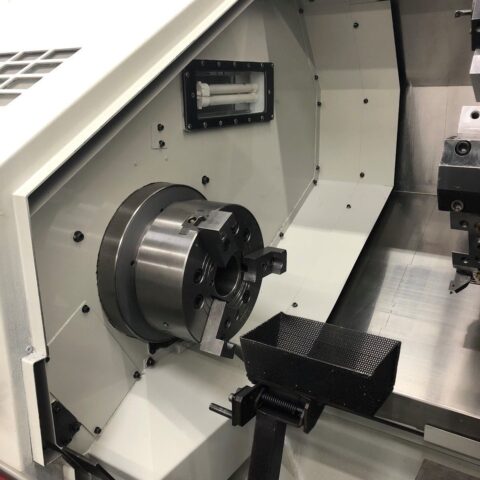

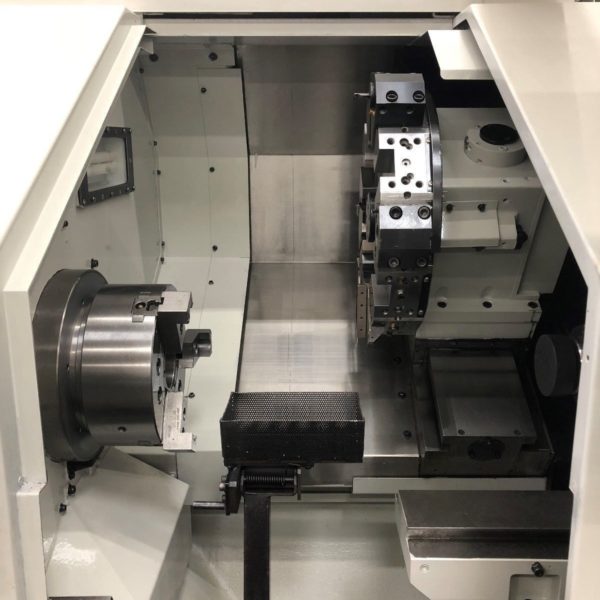

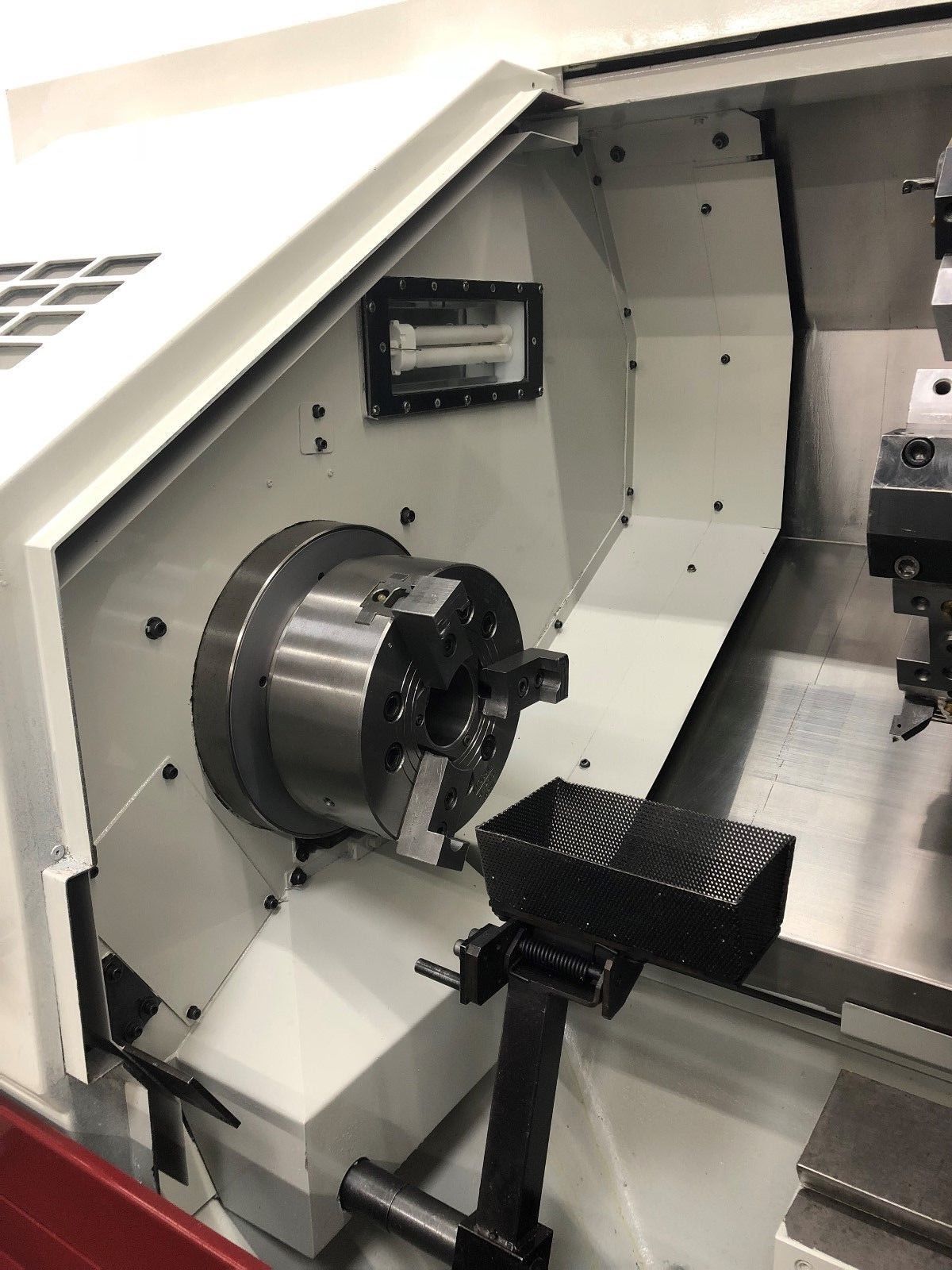

  • Kitagawa B-210 Hydraulic Chuck

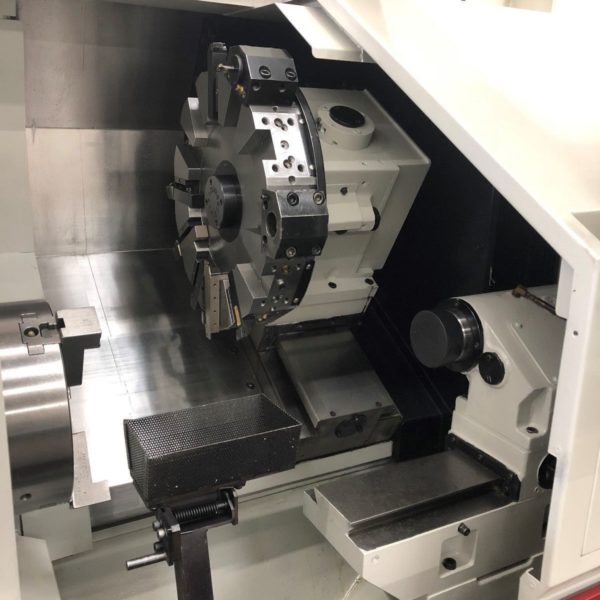

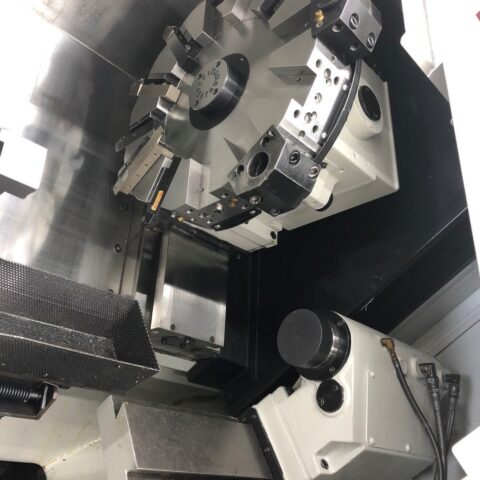

  • 12-Station Turret

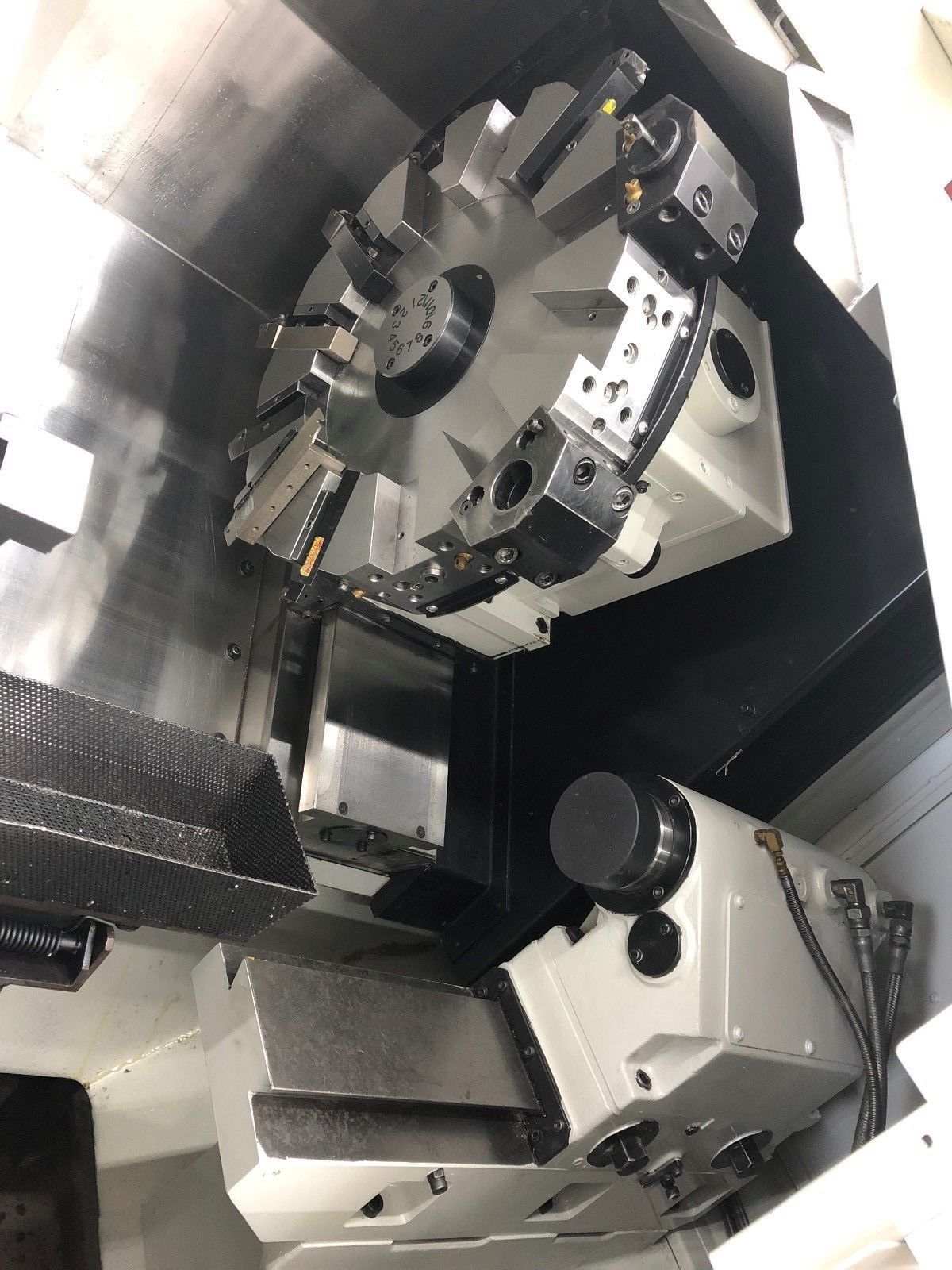

  • Hydraulic Tailstock with Quill
  • Parts Catcher
  • Floppy Drive
  • Slant Bed Rigid Box Way Machine
  • Chip Conveyor
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck & Tailstock
  • Coolant Tank
  • Comes with Chuck, Chip Conveyor, Manuals and Floppies.
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Overall Dimensions: 104″ x 76″ x 72″ High
  • Overall Dimensions: 142″ x 76″ x 80″ High W/Chip Conveyor
  • Weight : 8500 lbs Approx.
  • Okuma ES-L10 Specifications:
  • Max Turning Diameter: 12.2″
  • Max Turning Length: 19.68″
  • Max Bar Capacity: 3.05″
  • Swing Over Bed: 21.65″
  • Distance Between Centers: 22.29″
  • X Axis Travel: 8.1″
  • Z Axis Travel: 20.47″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 984 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.15″
  • Spindle Speed: 30-3000 RPM
  • Spindle Motor: 20 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 1 Second
  • Tailstock Quill Dia.: 3.54″
  • Tailstock Quill Stroke: 4.72″
  • Tailstock Taper: MT-5

Okuma ES-L10 Comes as shown in pictures.
