OUT OF STOCK

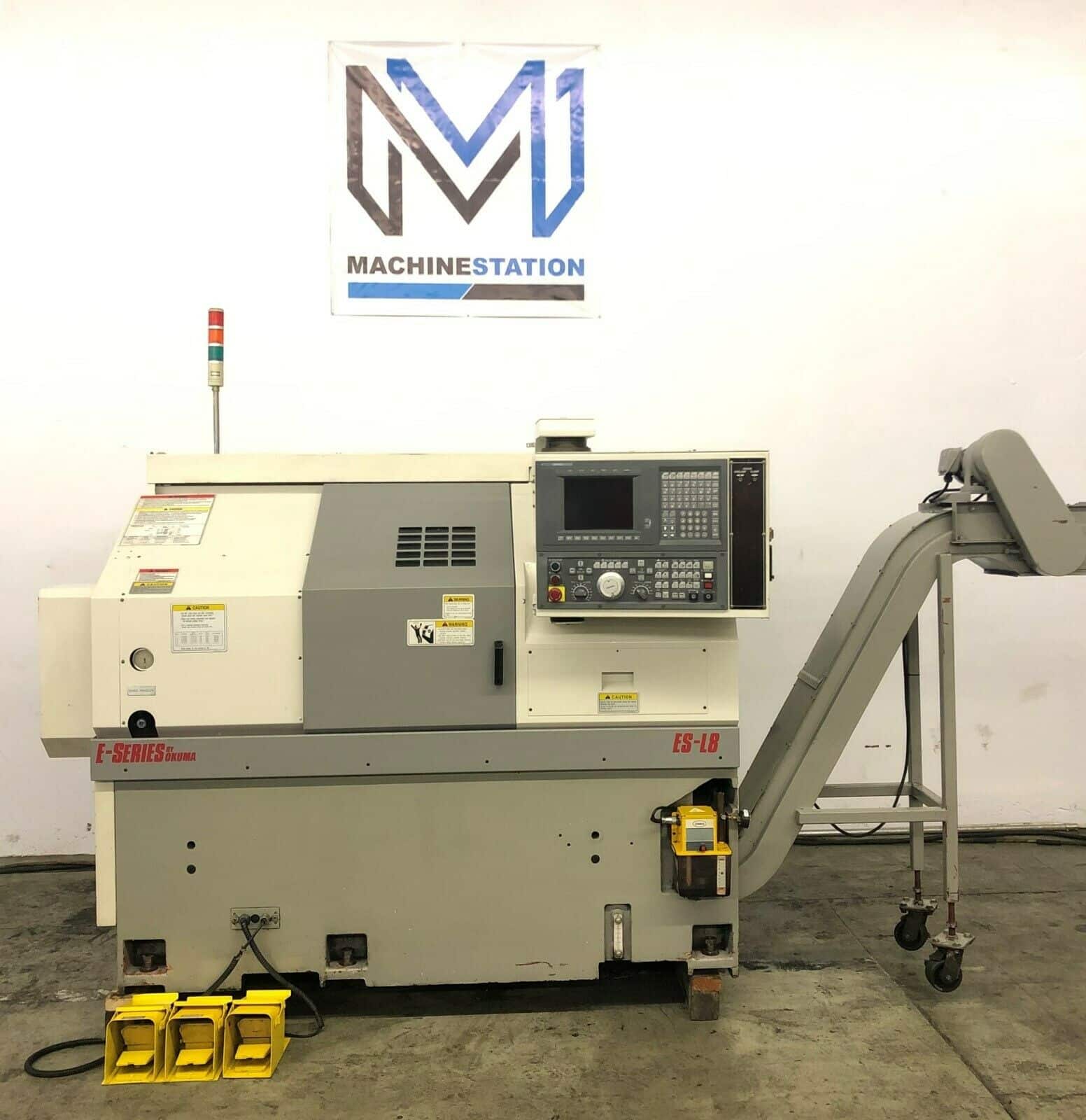

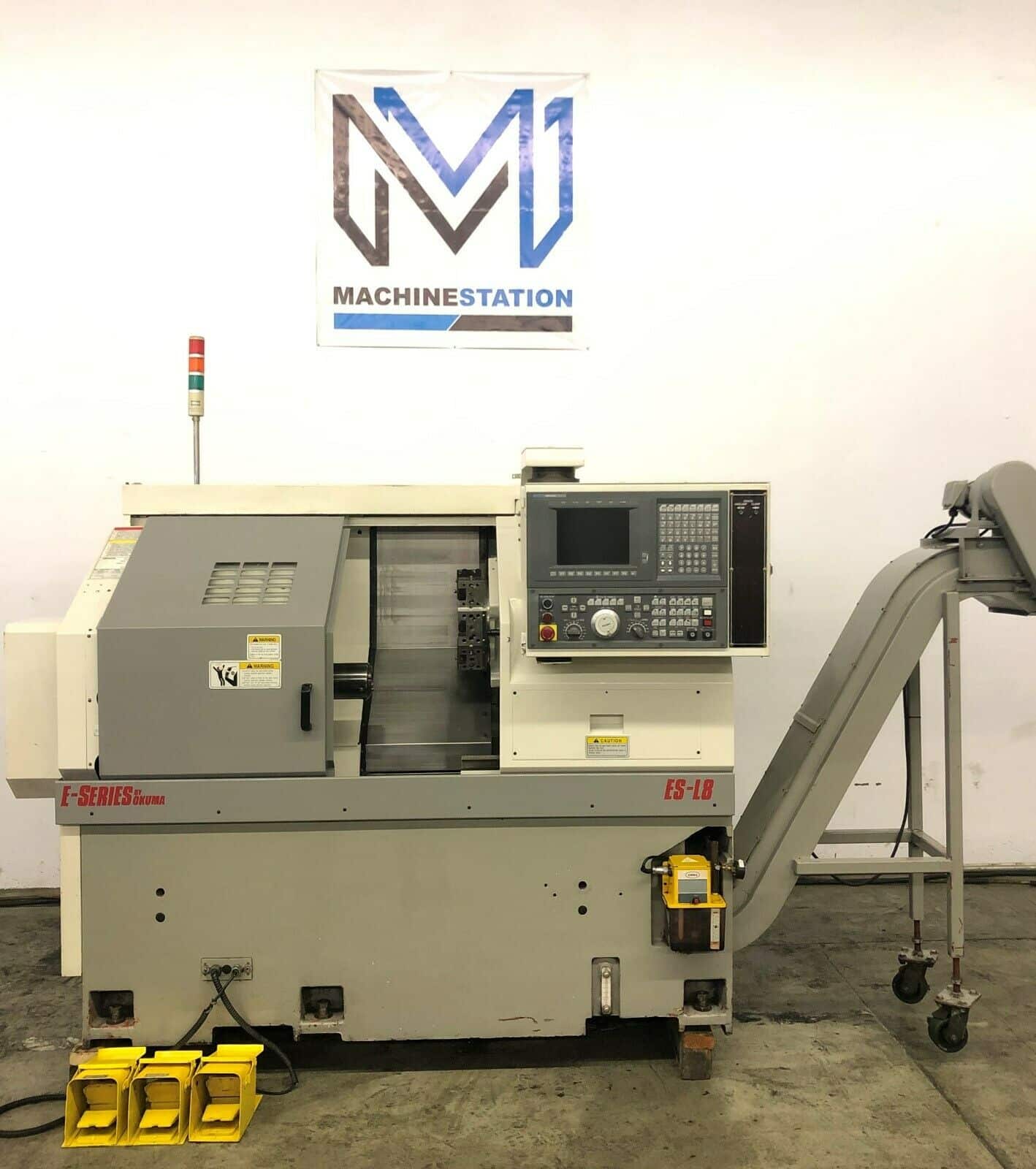

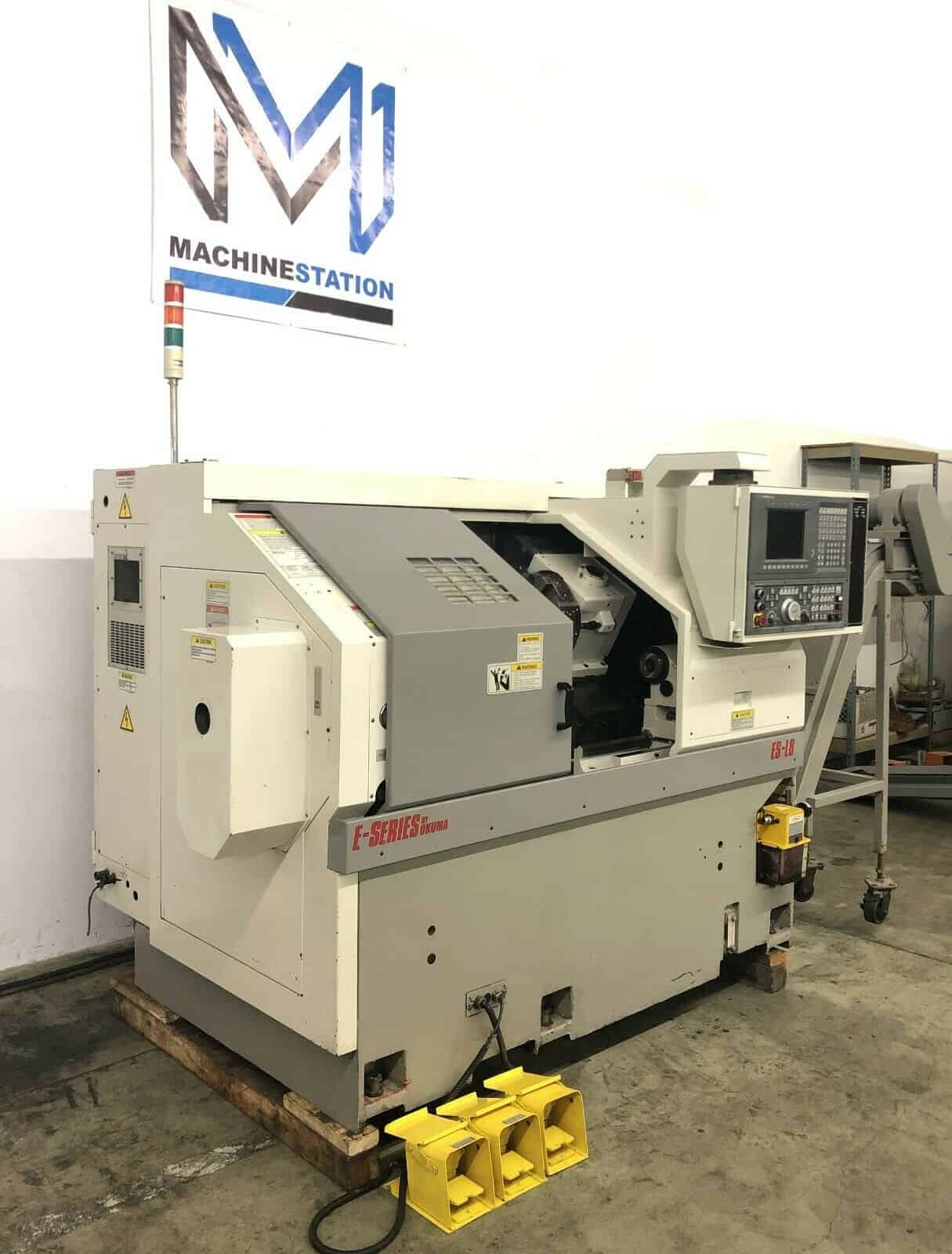

Okuma ES-L8 CNC Turning Center

“This machine is in very Good running condition. It is equipped with Collet Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”

Share

Description

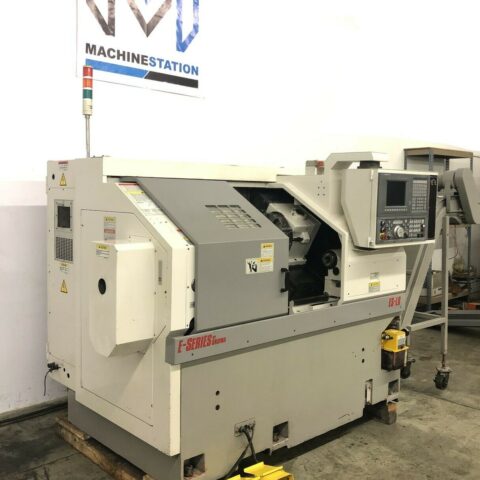

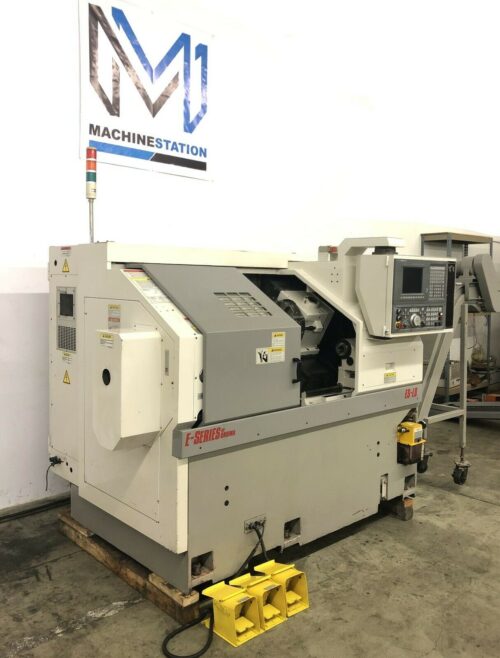

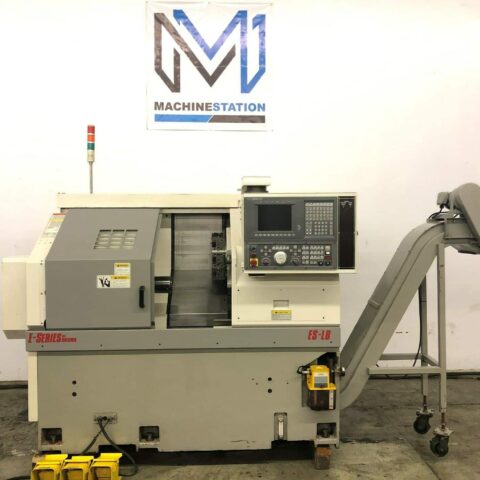

OKUMA ES-L8 CNC TURNING CENTER
Make Okuma
Model No. ES-L8
Year 2000

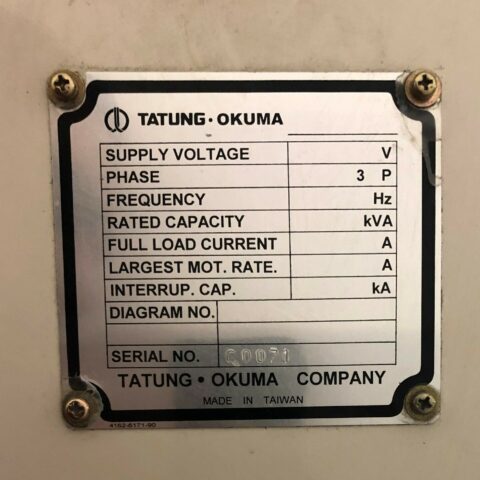

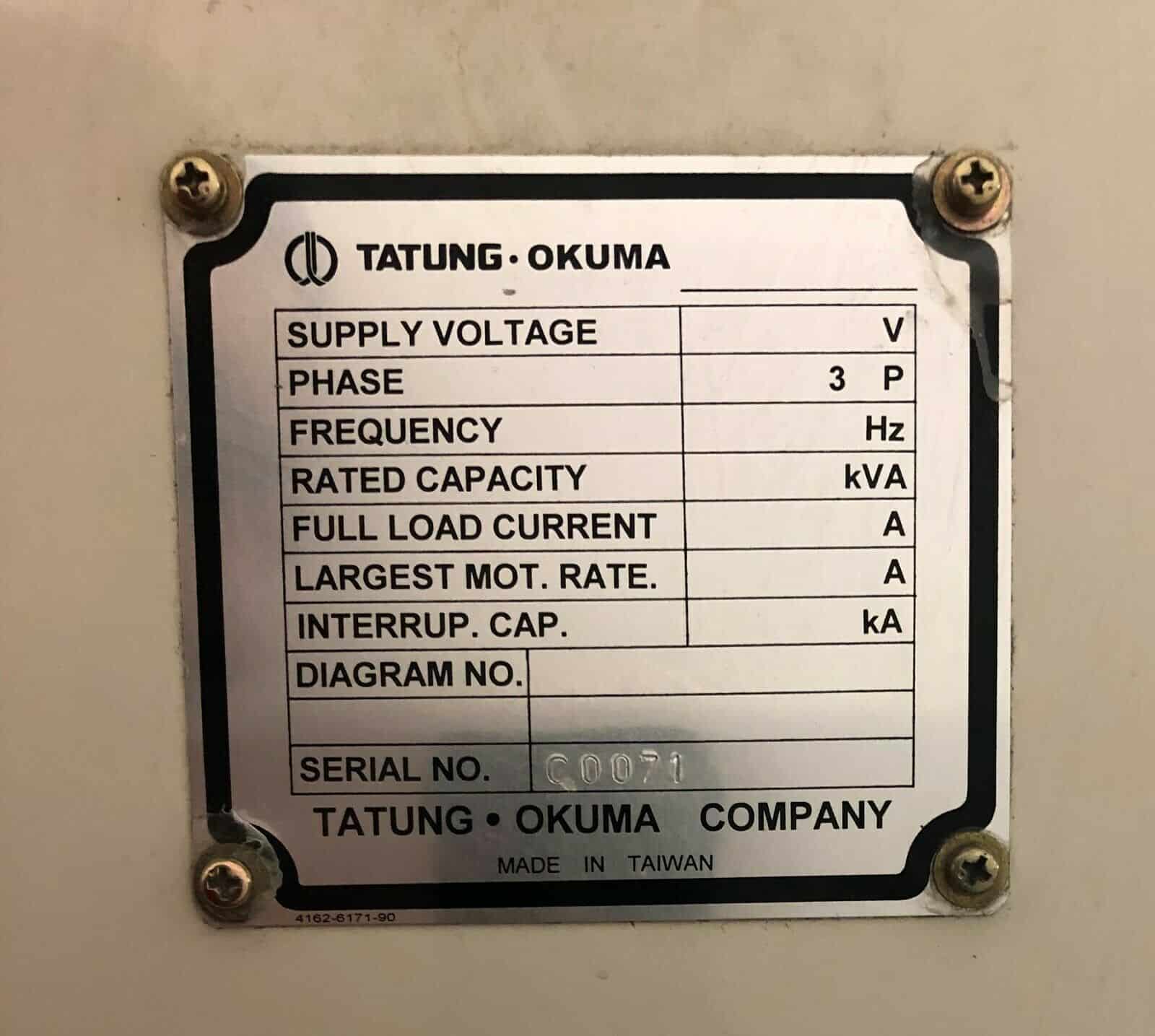

Serial # C0071
Condition Very Good

“This machine is in very Good running condition. It is equipped with Collet Chuck, Tailstock & chip conveyor. On Our Floor fully powered / tested & is in Great working condition.”

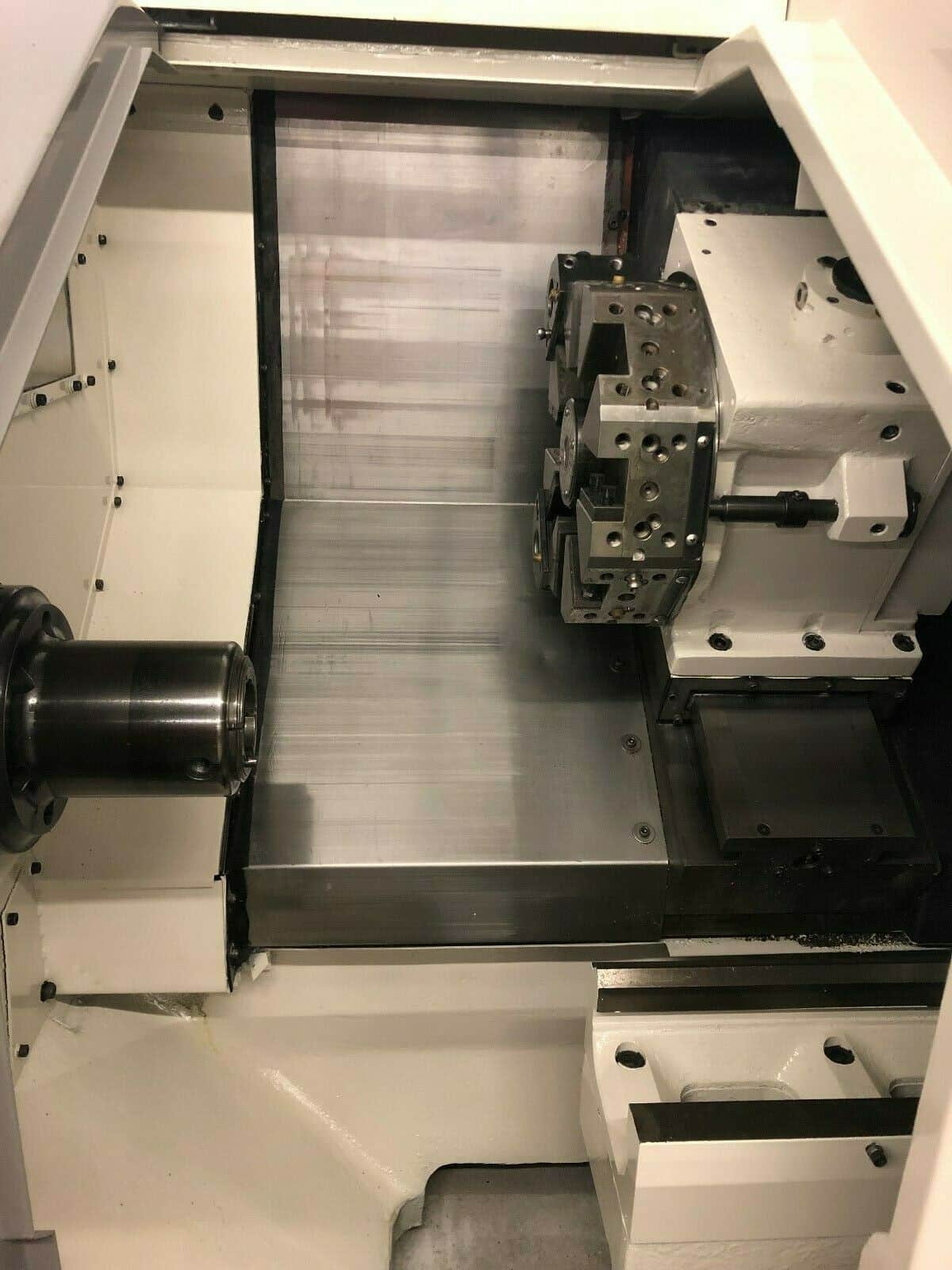

  • Okuma ES-L8 Equipped With:

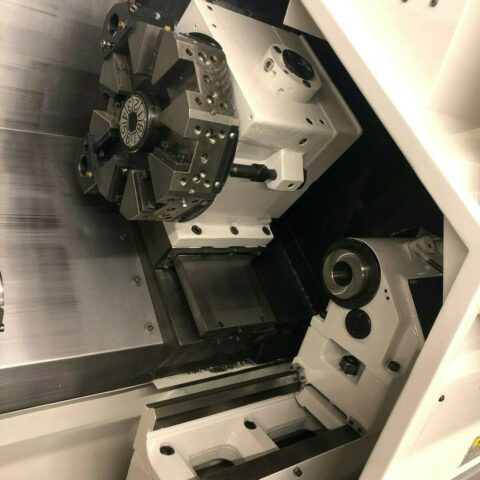

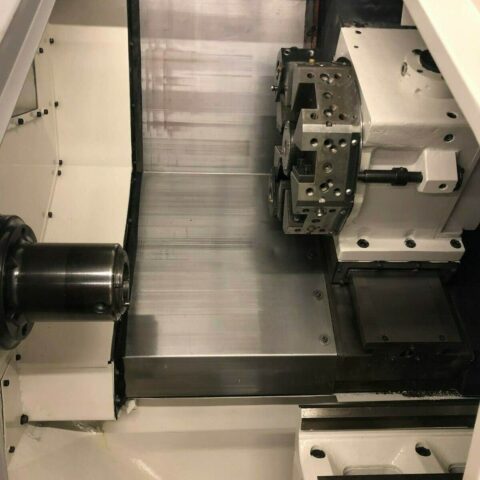

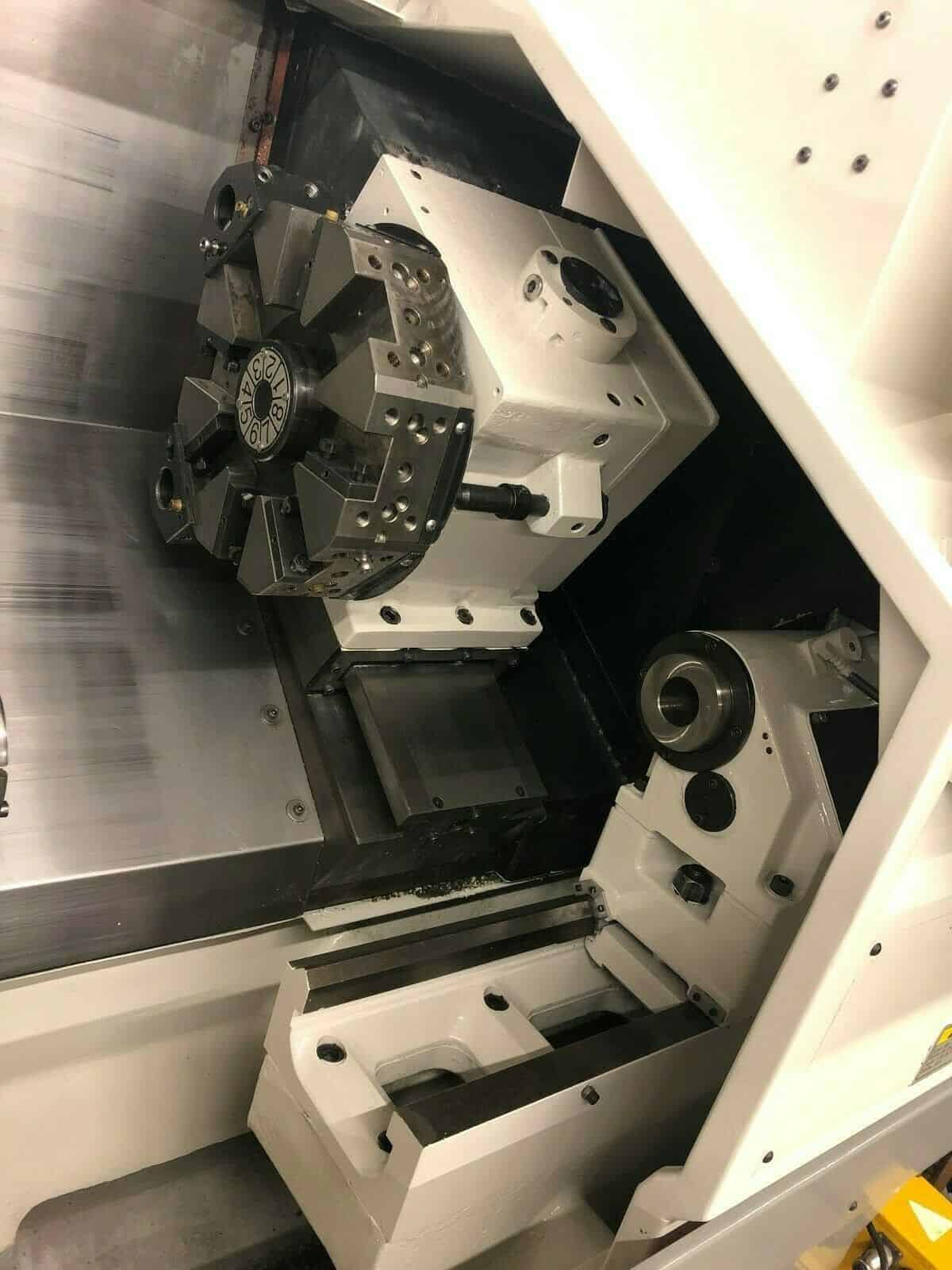

  • 8-Station Turret

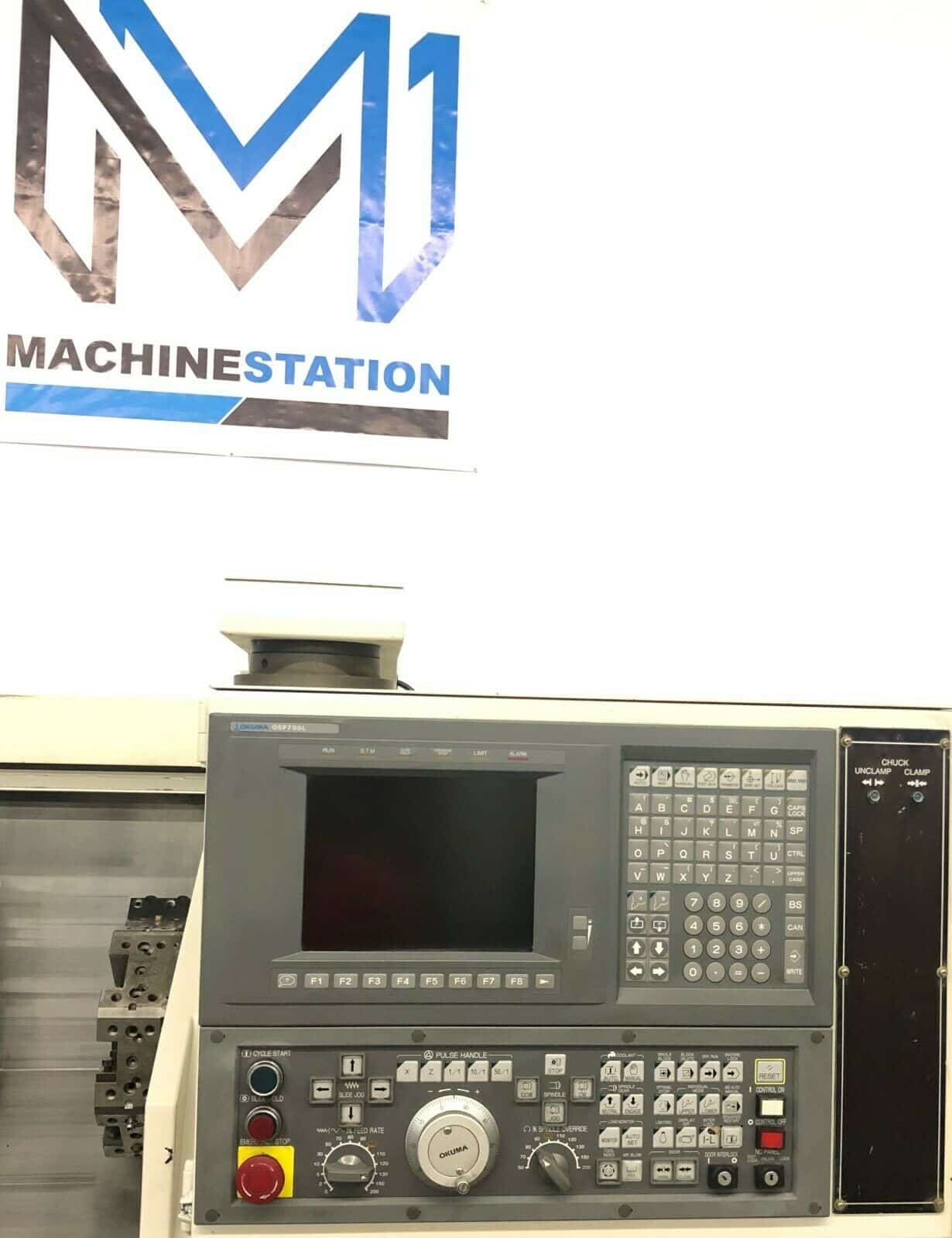

  • OSP 700L CNC Control
  • One Touch IGF Programming
  • Floppy Drive

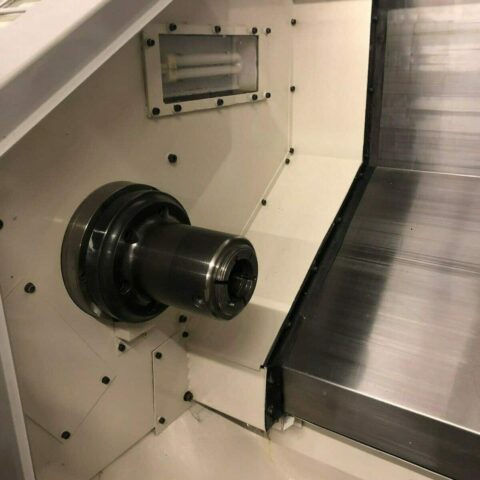

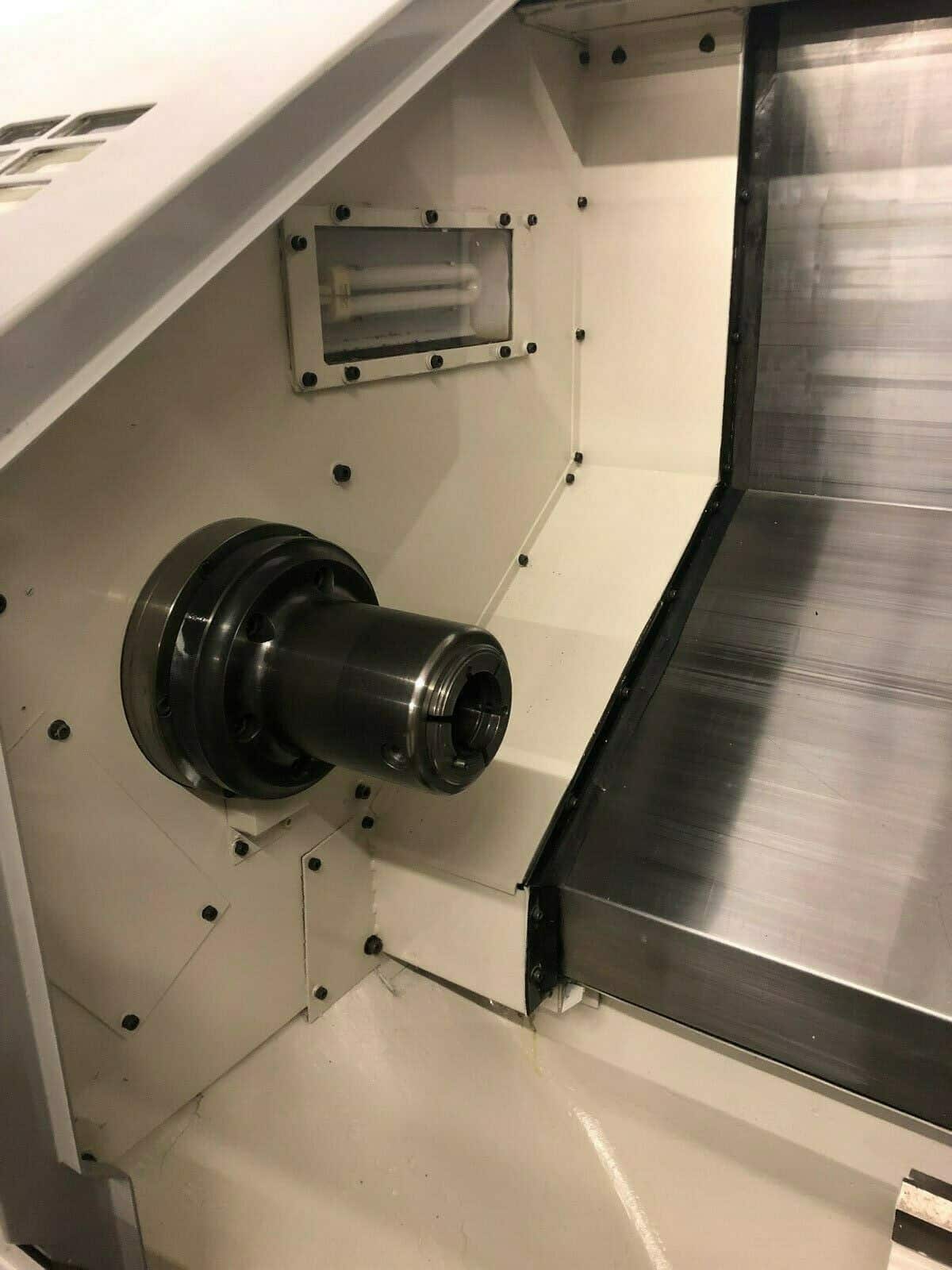

  • ATS Big Bore Collet Hydraulic Chuck ( 8″ Capable )
  • Hydraulic Tailstock with Power Quill

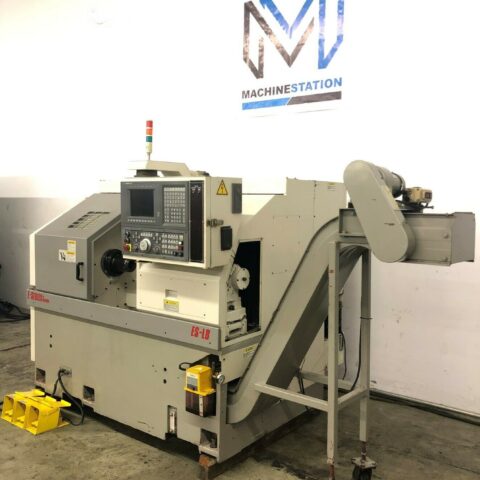

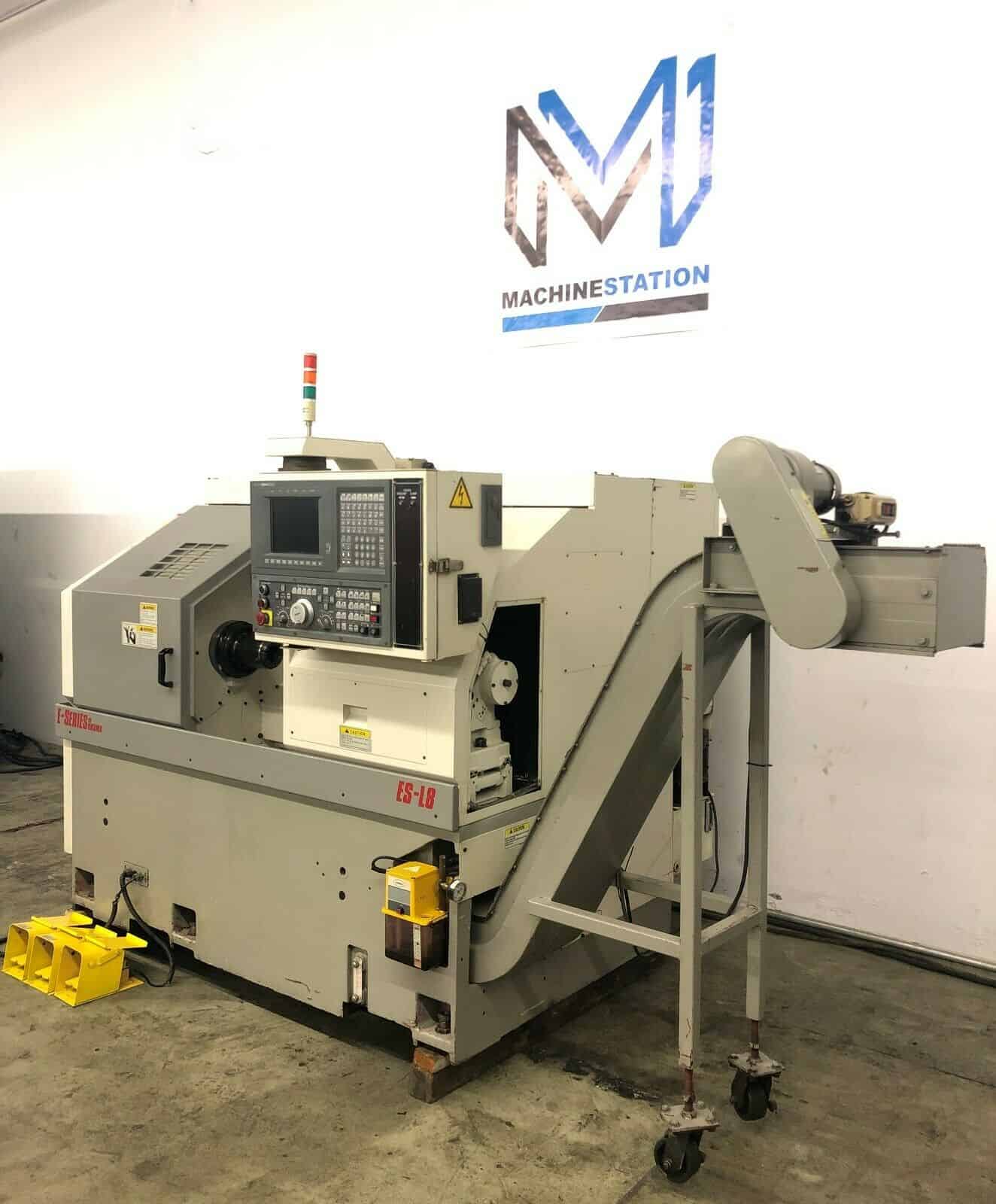

  • Chip Pan and Chip Conveyor
  • Coolant System
  • Automatic Lubrication system
  • Foot Operated Control for Chuck and Tailstock
  • Okuma ES-L8 Specifications:
  • Max Turning Diameter: 10.63″
  • Max Turning Length: 19.6″
  • Max Bar Capacity: 2.04″
  • Swing Over Slide: 13.78″
  • Swing Over Bed: 17.72″
  • Distance Between Centers: 24.6″
  • Travel:
  • X Axis Travel: 6.1″
  • Z Axis Travel: 20.47″
  • Rapid Traverse X Axis: 591 IPM
  • Rapid Traverse Z Axis: 787 IPM
  • Spindle:
  • Spindle Nose: A2-6
  • Spindle Bore: 2.44″
  • Spindle Speed: 5000 RPM
  • Spindle Motor: 15 HP
  • Turret:
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.5 Second
  • Tailstock:
  • Tailstock Body Travel: 14.3″
  • Tailstock Quill Dia.: 3.54″
  • Tailstock Quill Stroke: 3.93″
  • Tailstock Taper: MT-4
  • General:
  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Power Requirement: 68 Amps
  • Overall Dimensions: 110″ x 68″ x 80″ High
  • Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor
  • Weight : 8500 lbs Approx.

Okuma ES-L8 comes as Shown in Pictures………….
