Okuma ESV-3016 CNC Vertical Machining Center

Out of stock
SKU: 1723
Make/Model: OKUMA ESV-3016
Video: [fusion_button link=”https://www.youtube.com/watch?v=nKW4-TPyJBs” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1723

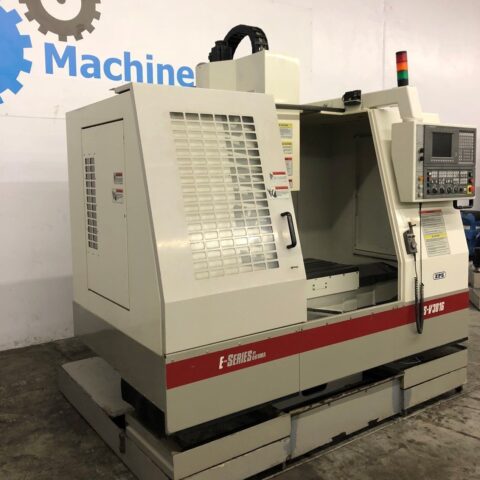

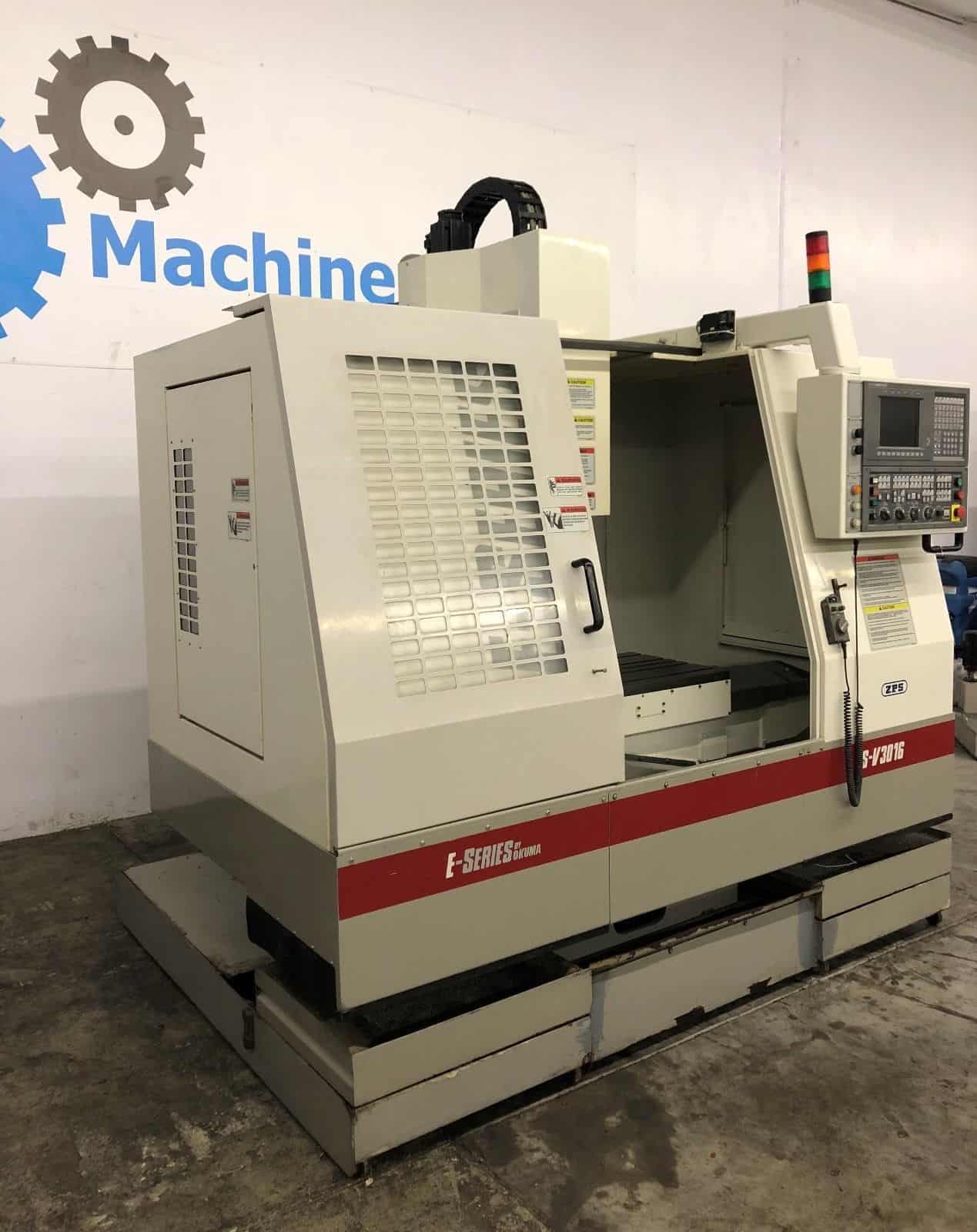

OKUMA ESV-3016 CNC VERTICAL MACHINING CENTER
Make OKUMA
Model No. ESV-3016
Year 2001
Serial # 5034
Condition Very Good
  • Okuma ESV-3016 Features:

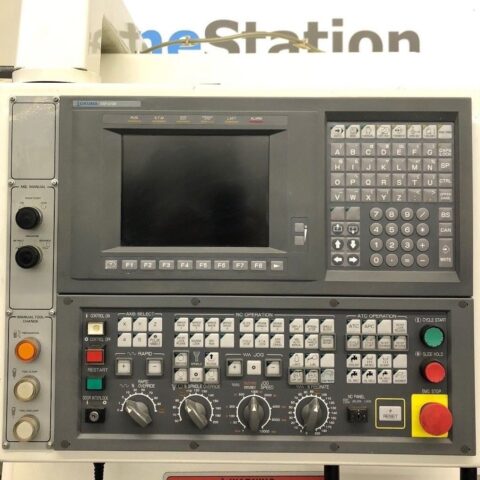

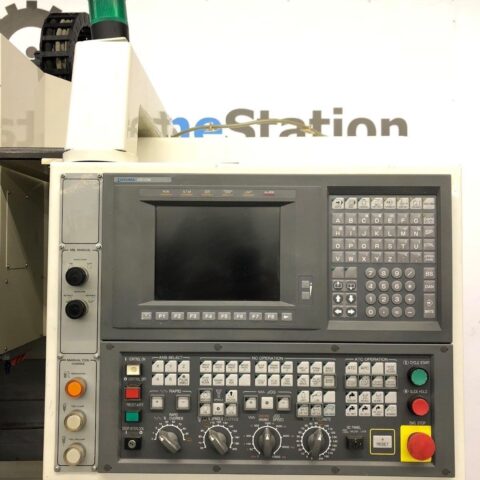

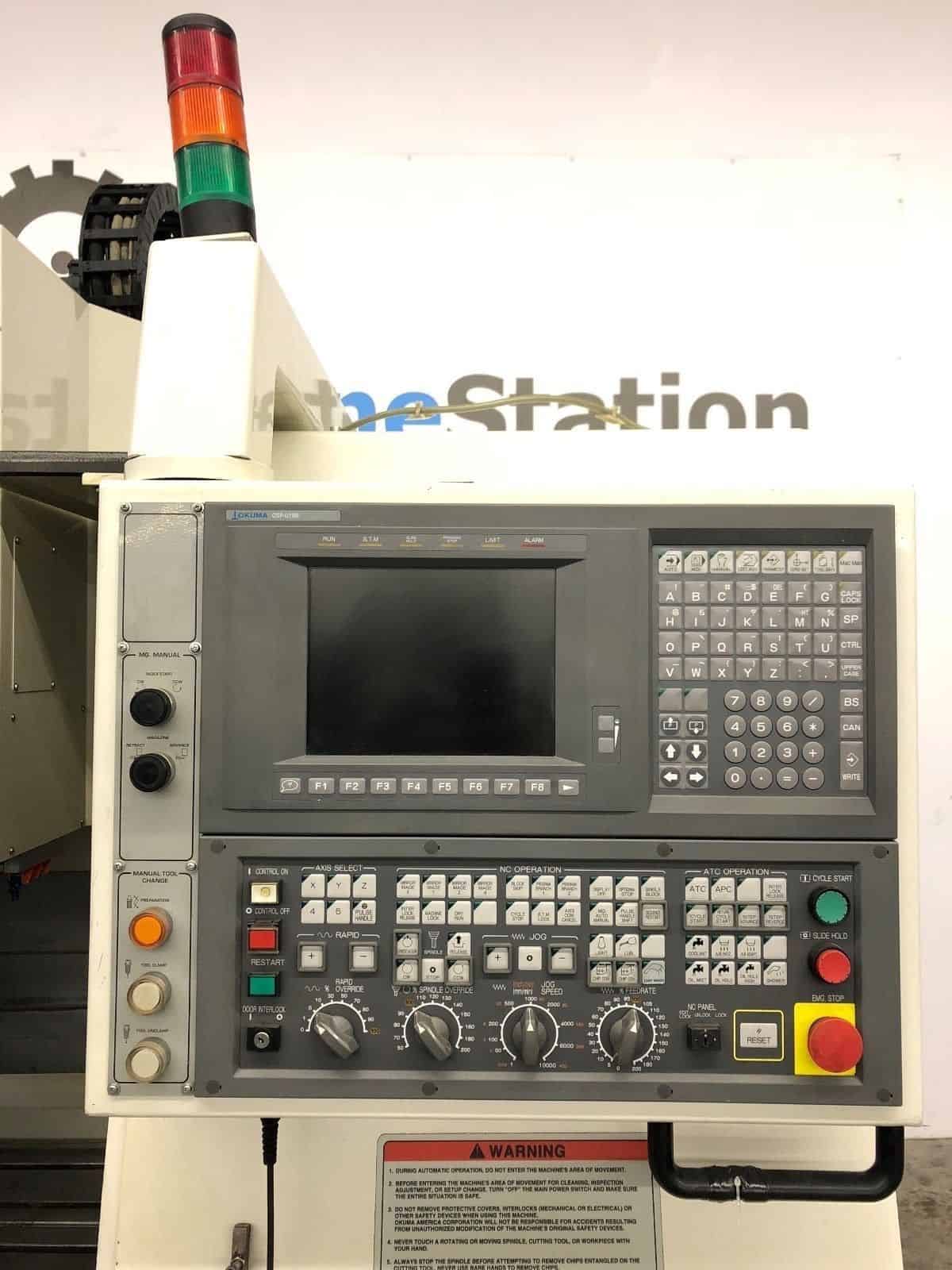

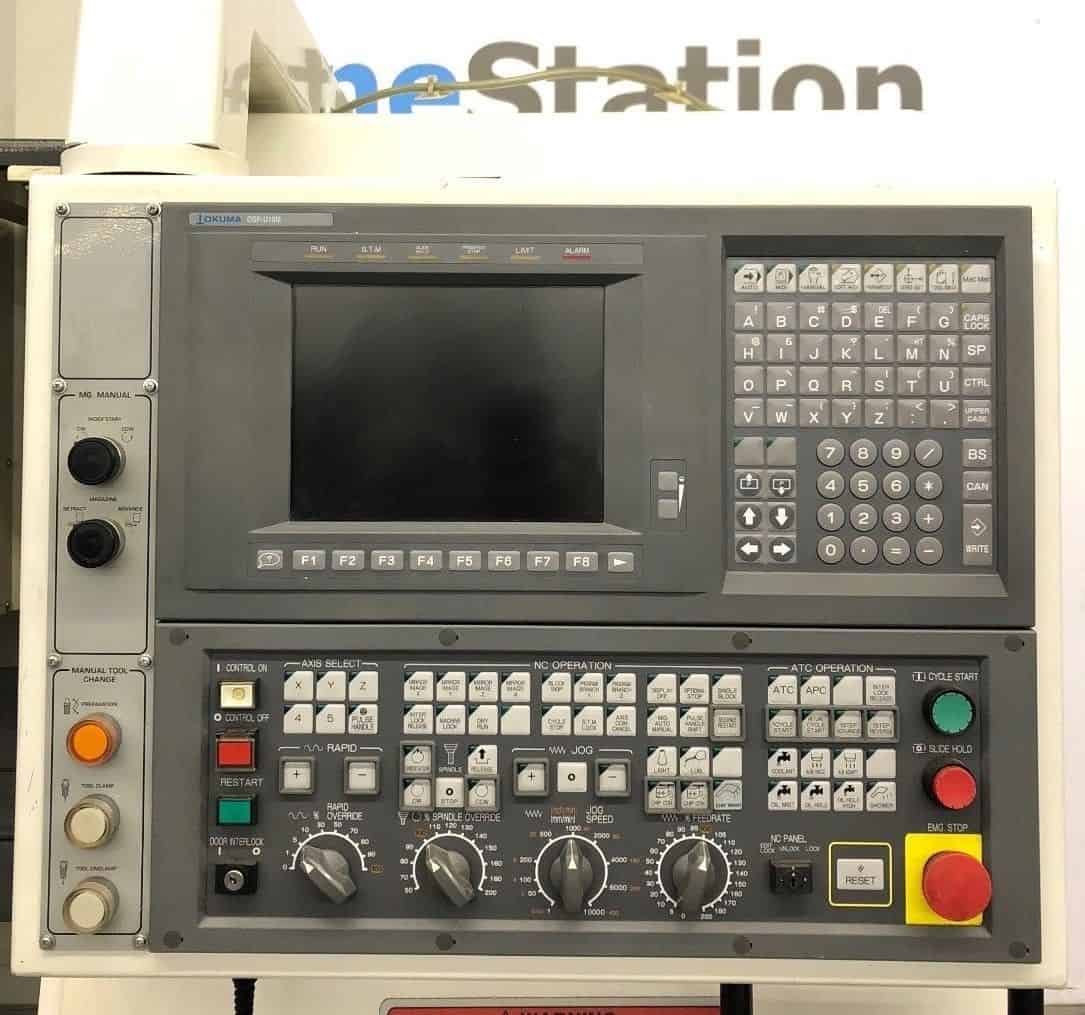

  • OSP – U10M CNC Control
  • High Precision 8,000 RPM Spindle
  • MPG Control
  • 20 Tools Automatic Changer
  • Powerful 15 hp high torque spindle motor
  • Spindle Orientation
  • Synchronized Tapping
  • Helical Cutting
  • Flood coolant with large separate coolant tank
  • Work light
  • Okuma ESV-3016 Specifications:
  • Travels:
  • X-Axis: 30.0″
  • Y-Axis: 16.14″
  • Z-Axis: 20.59″
  • Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

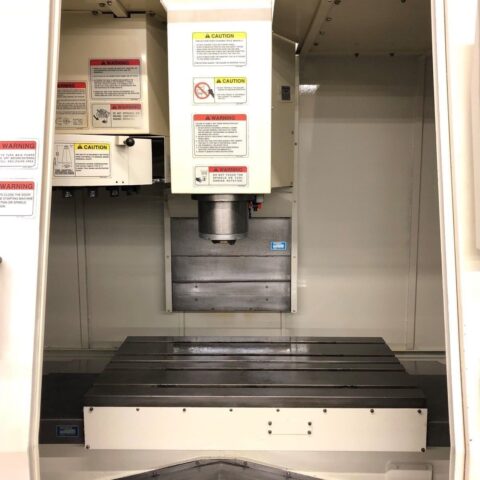

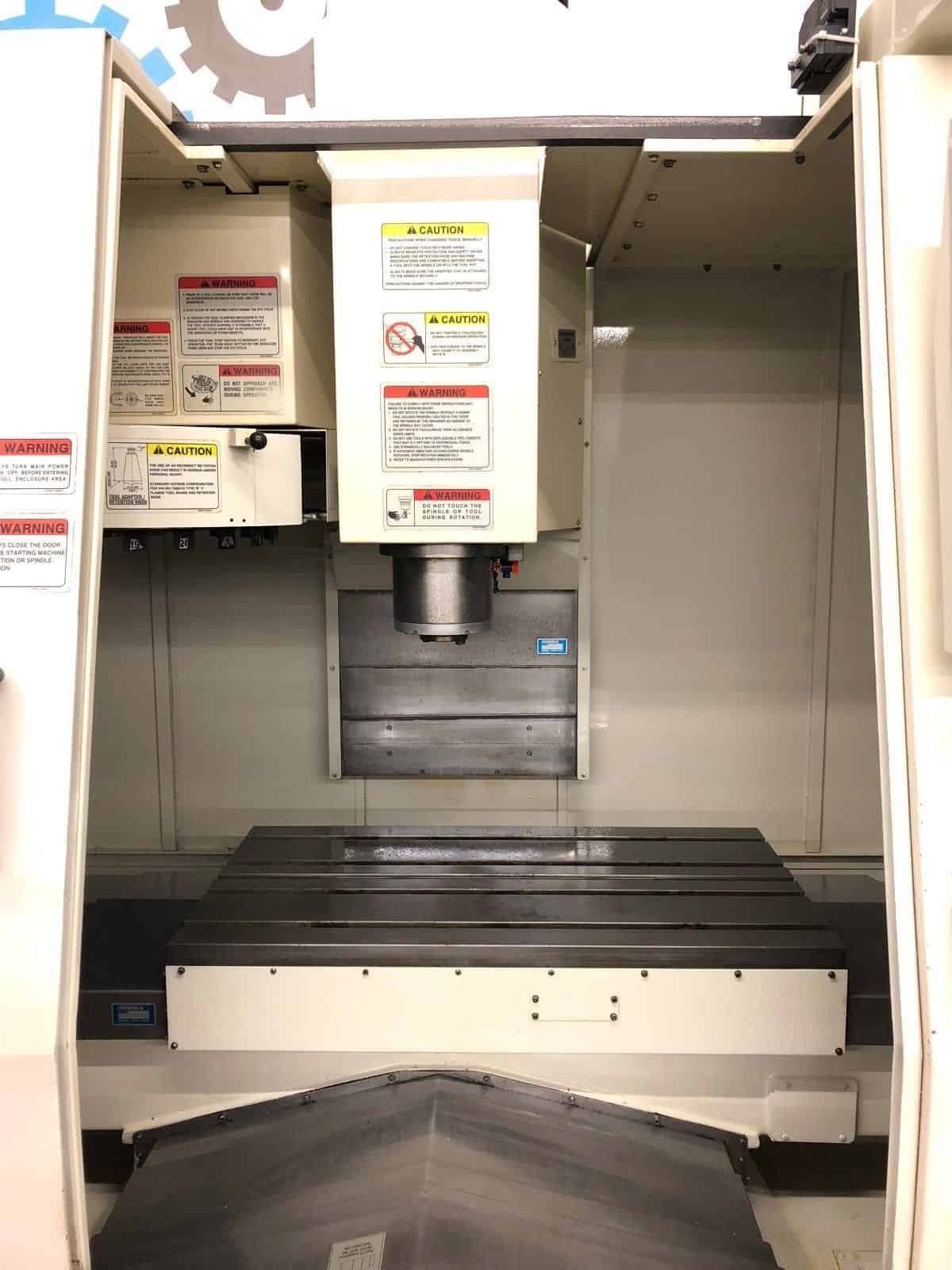

  • Table:
  • Length: 37.0″
  • Width: 18.0″
  • Max Weight on Table: 800 lbs
  • T-Slot no. & Width: 5 X 0.7″
  • Gear Head Spindle:
  • Taper Size: CAT-40
  • Speed Range: 60 – 80,000 RPM
  • Spindle Power: 15 HP
  • Feed rates:
  • Rapid X,Y & Z: 941 inch/Per Minute
  • Cutting Feedrate: 475 inch/ Per Minute
  • Automatic Tool Changer:
  • CAT-40 Taper
  • Capacity: 20
  • Max Tool Weight: 13.2 lbs
  • Max Tool Length: 11.8″
  • Max Tool Dia.: 5.9″
  • Tool Change Time: 3.6 second
  • General:
  • Air Required: 90 psi, 4 scfm

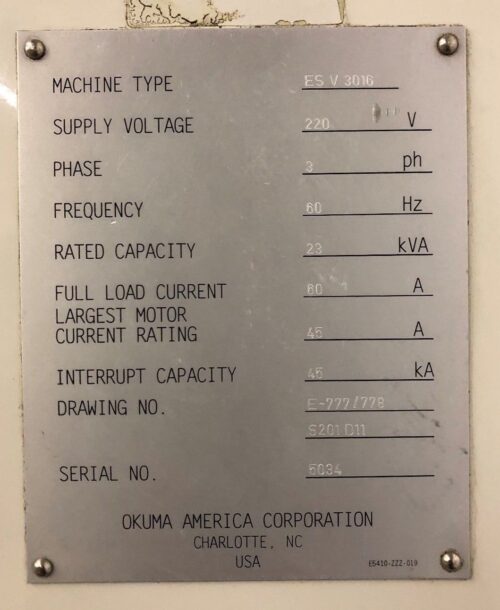

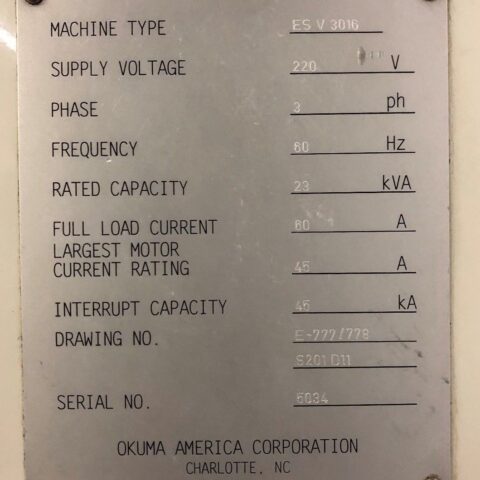

  • Power: 205-220v / 50kva / 3-Phase
  • Overall Dimensions: 100″ x 92″ x 100″ High
  • Weight: 10,000 lbs
