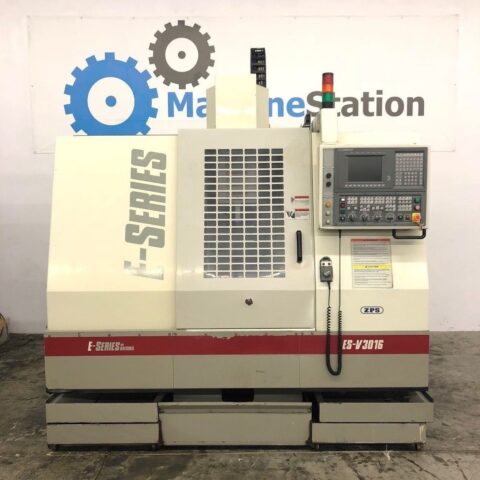

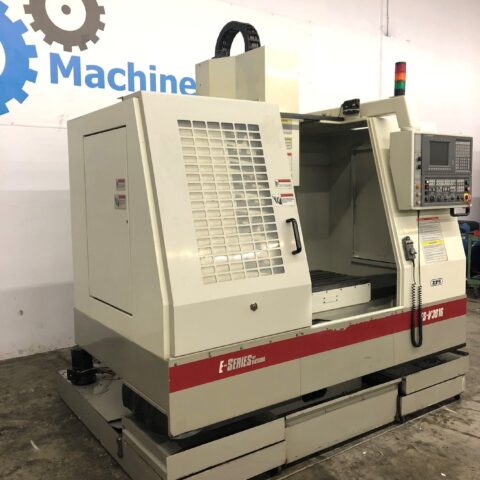

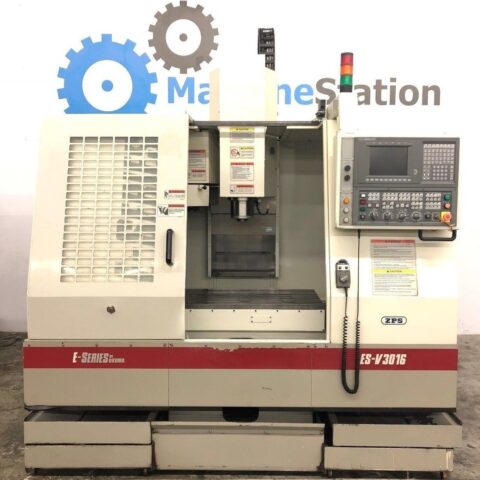

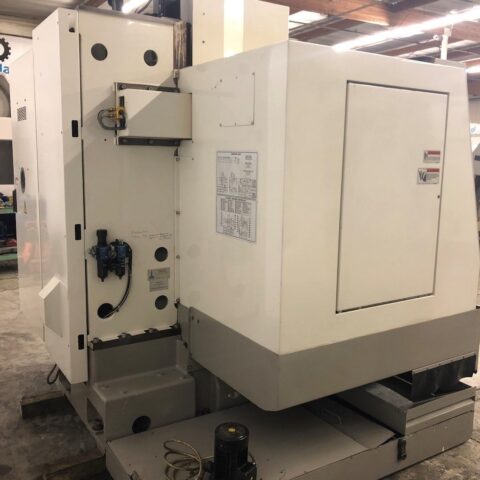

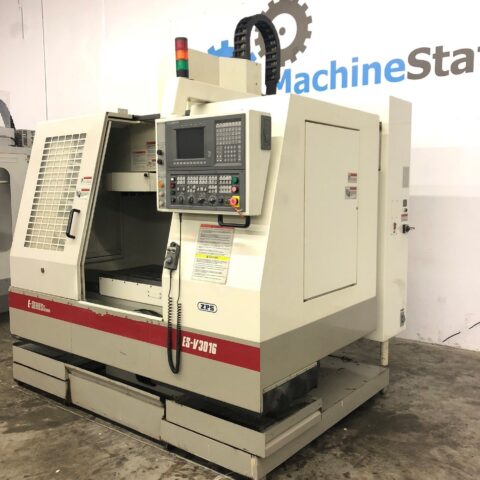

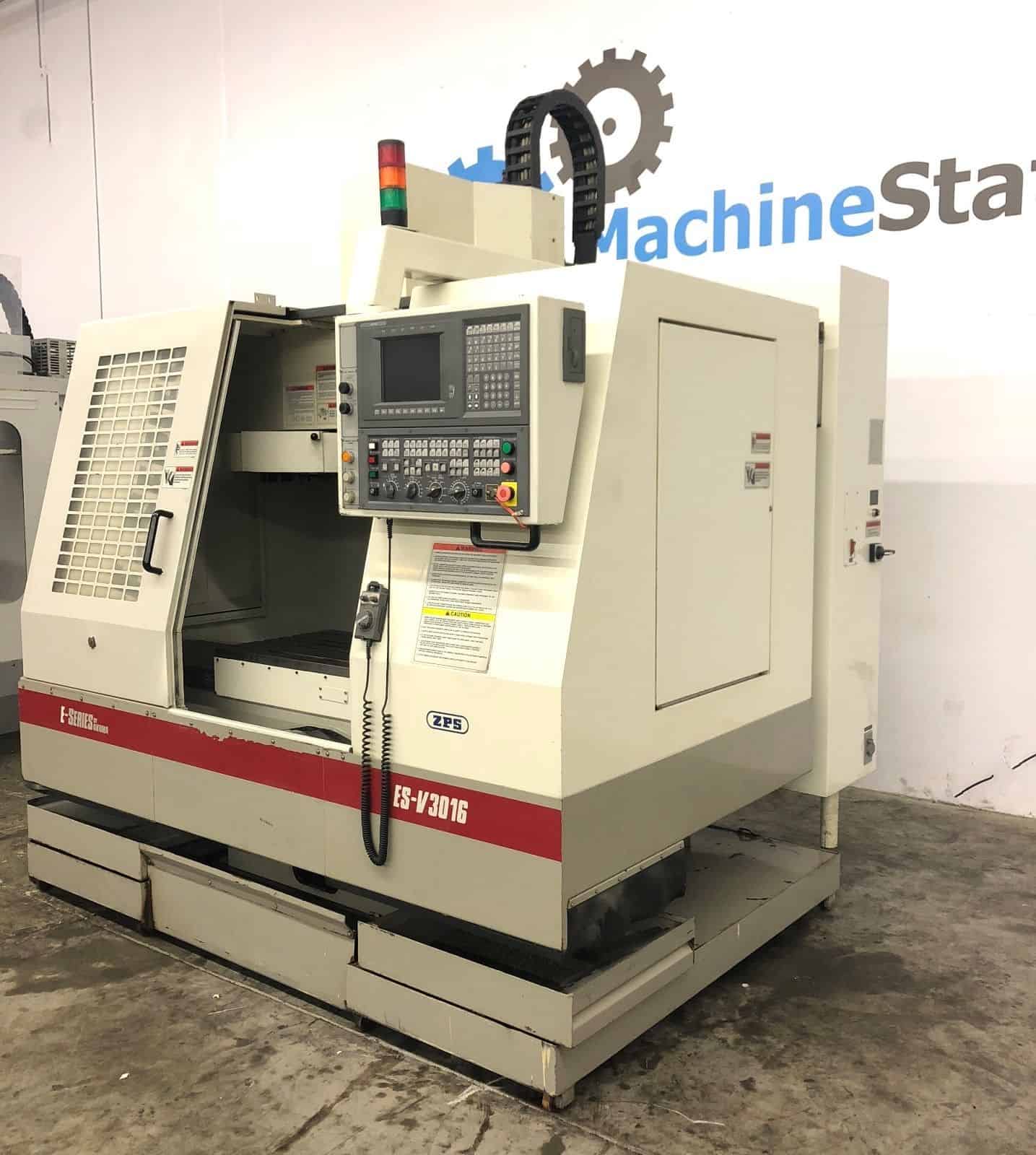

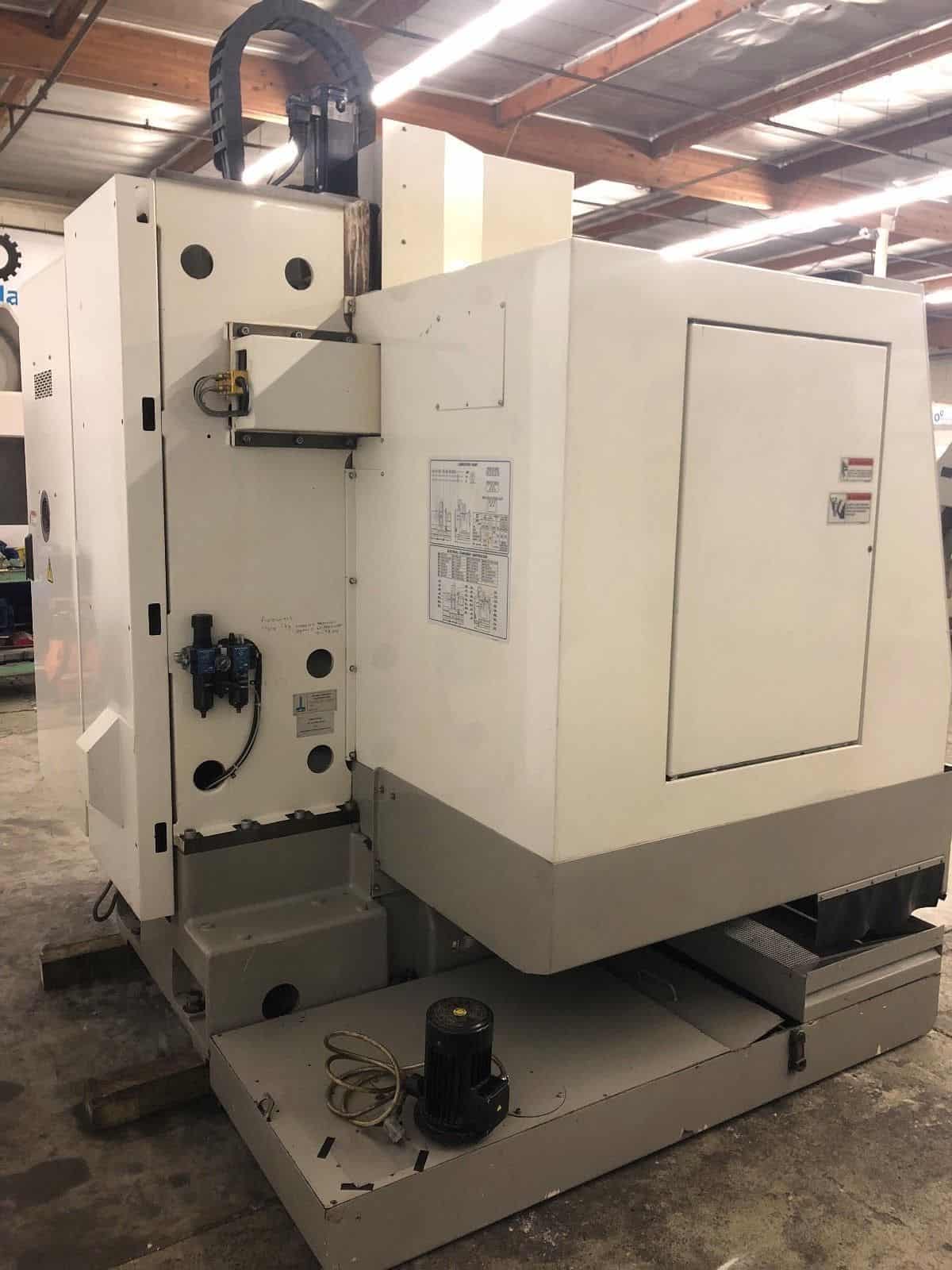

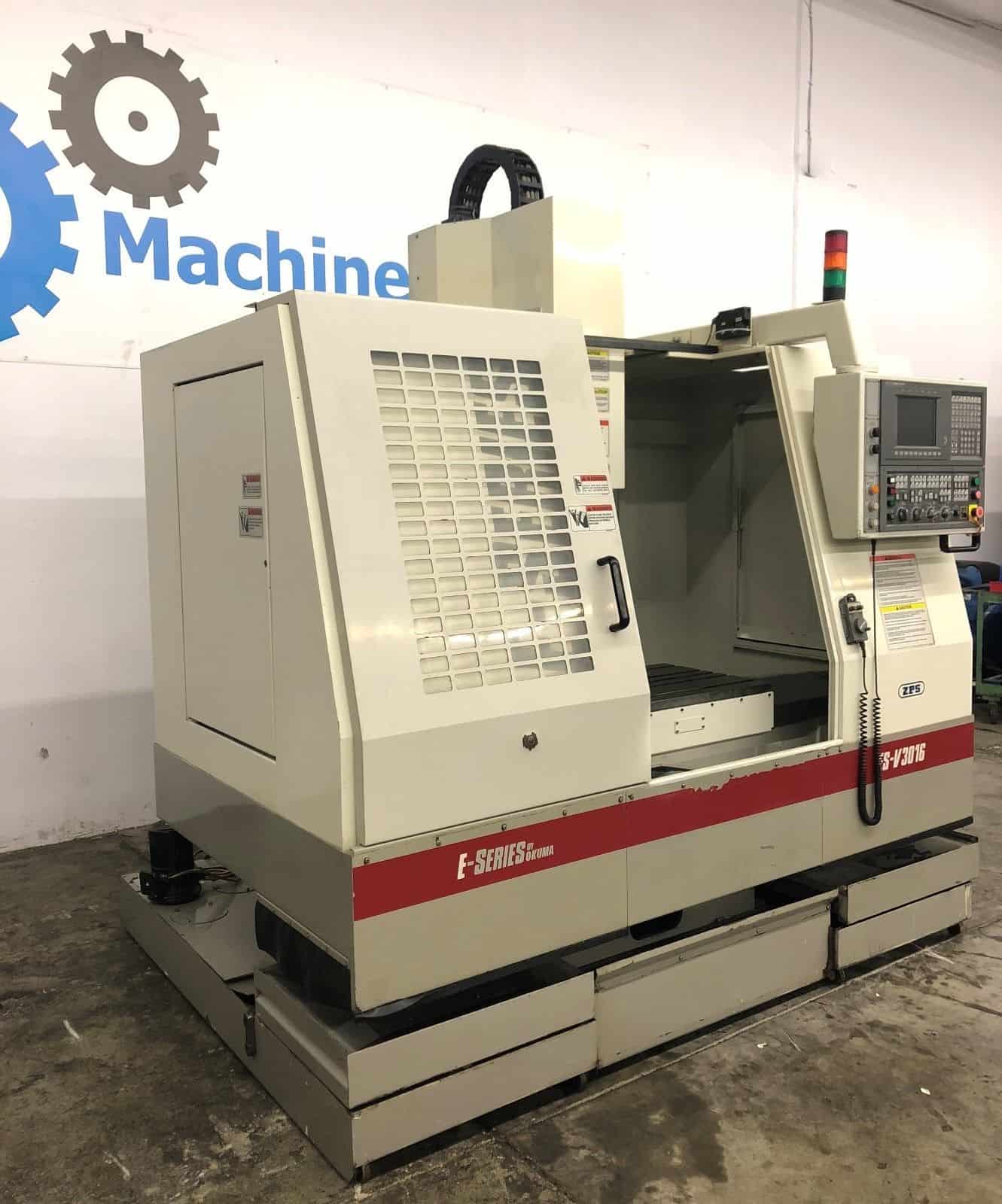

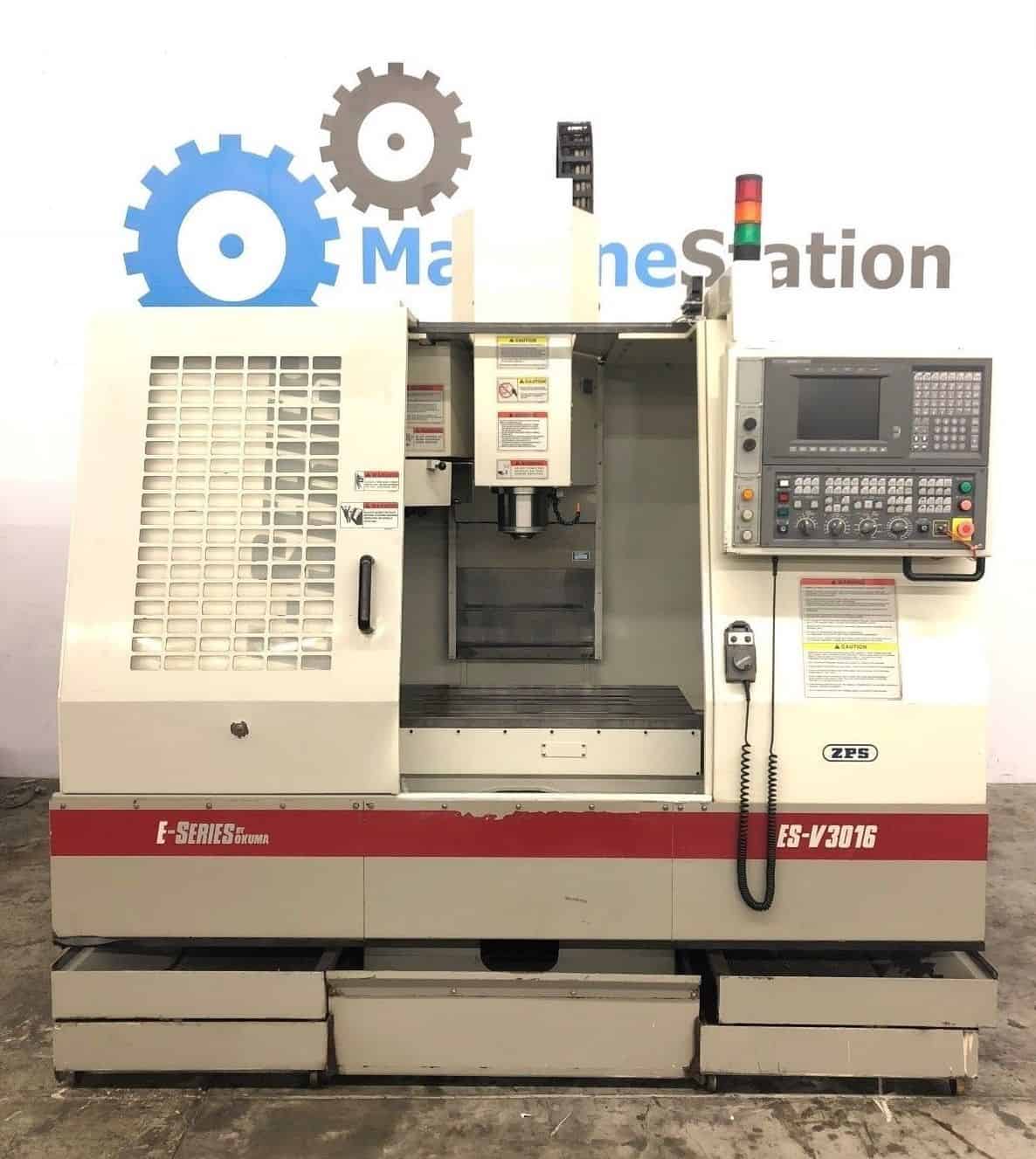

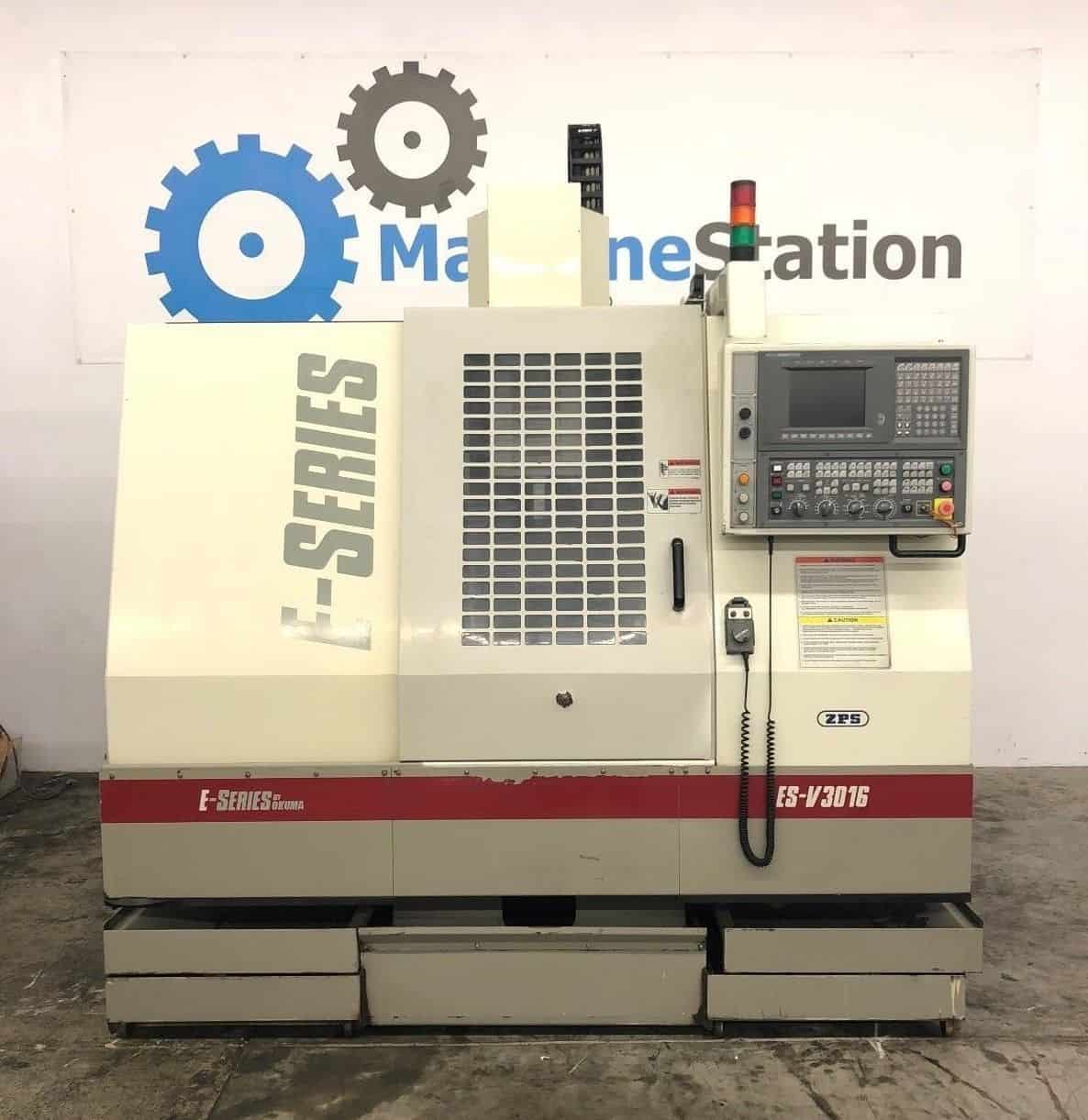

Okuma ESV-3016 Vertical Machining Center
Out of stock
SKU: |
1724 |
Make/Model: |
OKUMA ESV-3016 |
Video: |
[fusion_button link=”https://www.youtube.com/watch?v=Ewif7l2qwIU” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button] |
- Okuma ESV-3016 Features:

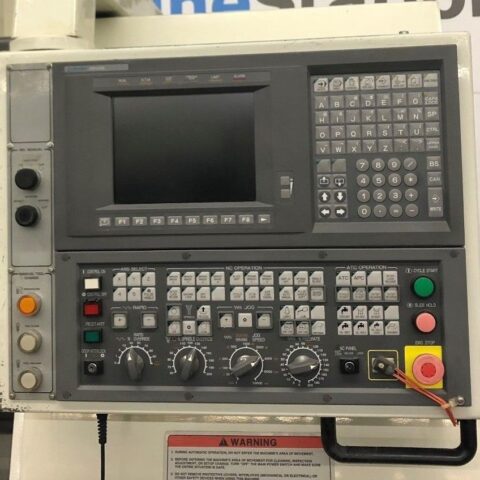

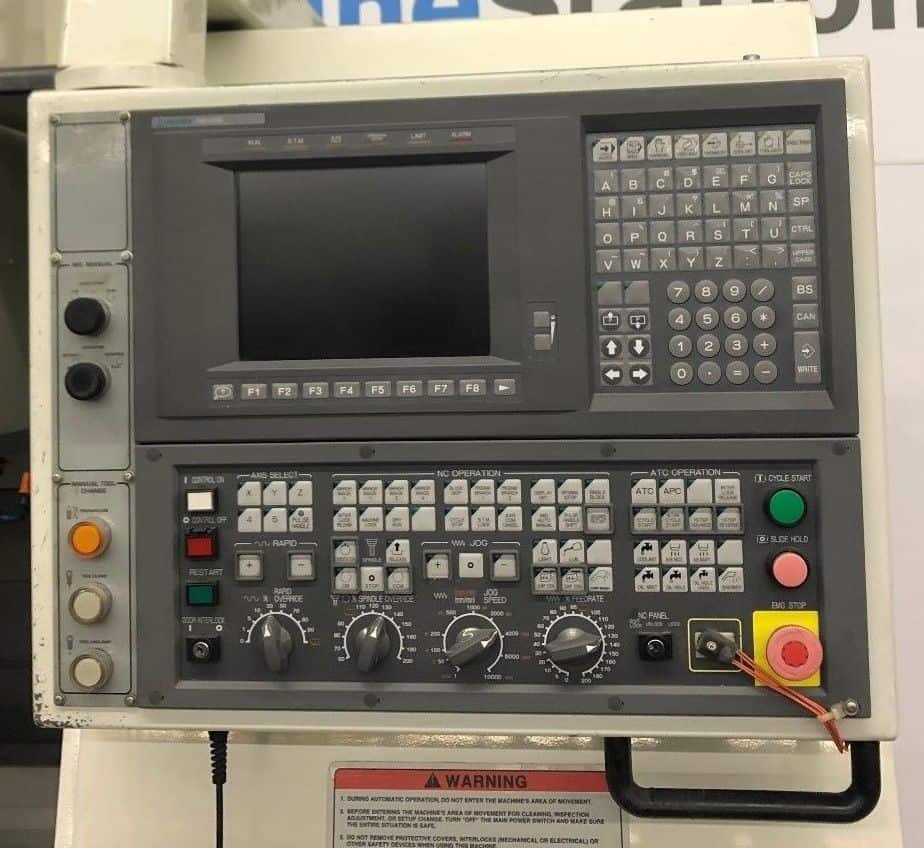

- OSP – U10M CNC Control
- High Precision 8,000 RPM Spindle
- MPG Control
- 20 Tools Automatic Changer
- Powerful 15 hp high torque spindle motor
- Spindle Orientation
- Synchronized Tapping
- Helical Cutting
- Flood coolant with large separate coolant tank
- Work light
- Okuma ESV-3016 Specifications:
- Travels:
- X-Axis: 30.0″
- Y-Axis: 16.14″
- Z-Axis: 20.59″
- Spindle Nose to Table (Min.- Max.): 5.91″ – 25.98″

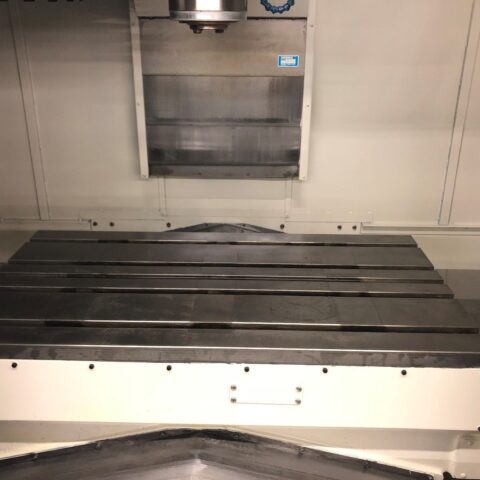

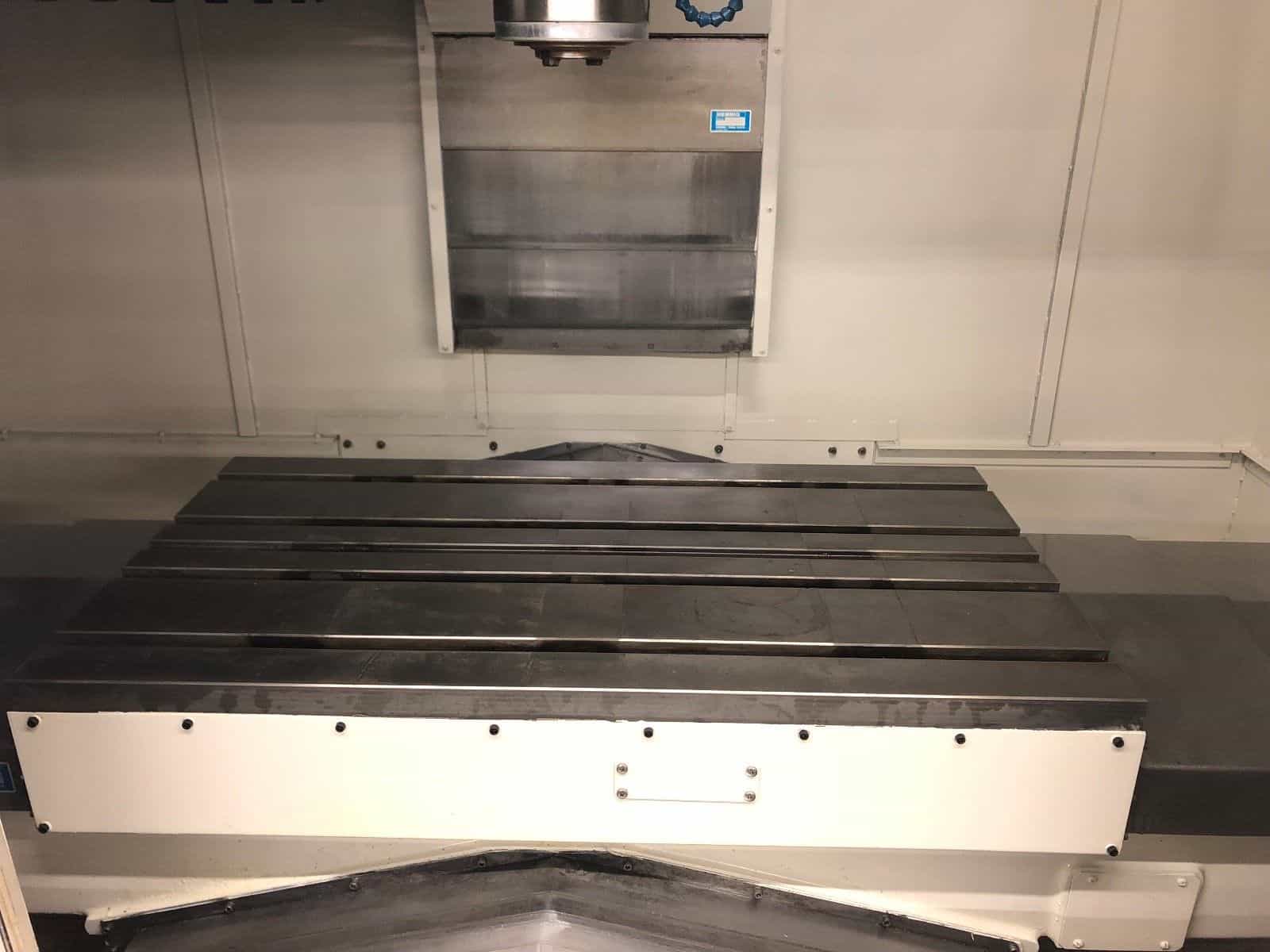

- Table:
- Length: 37.0″
- Width: 18.0″
- Max Weight on Table: 800 lbs
- T-Slot no. & Width: 5 X 0.7″
- Gear Head Spindle:
- Taper Size: CAT-40
- Speed Range: 60 – 80,000 RPM
- Spindle Power: 15 HP
- Feed rates:
- Rapid X,Y & Z: 941 inch/Per Minute
- Cutting Feedrate: 475 inch/ Per Minute
- Automatic Tool Changer:
- CAT 40 Taper
- Capacity: 20
- Max Tool Weight: 13.2 lbs
- Max Tool Length: 11.8″
- Max Tool Dia.: 5.9″
- Tool Change Time: 3.6 second
- General:
- Air Required: 90 psi, 4 scfm

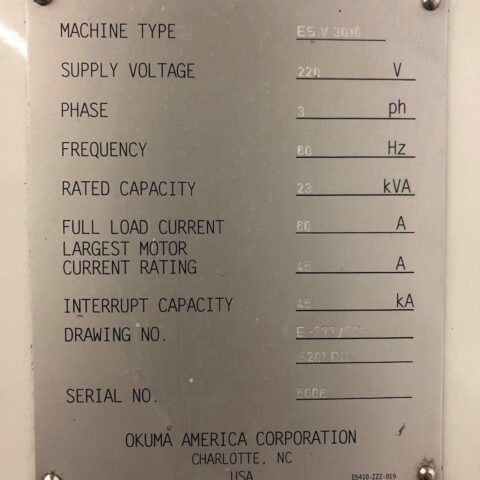

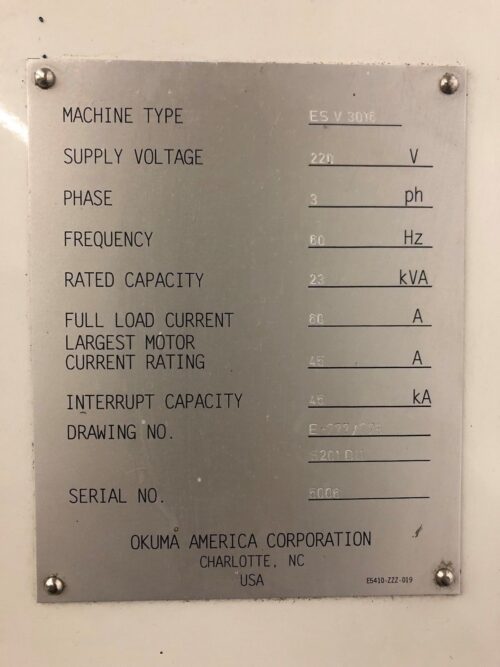

- Power: 205-220v / 50kva / 3-Phase
- Overall Dimensions: 100″ x 92″ x 100″ High
- Weight: 10,000 lbs
