Okuma ESV-4020 Vertical Machining Center

Equipped with 8,000rpm, Tool Changer, OSP-U10M Control. On our Floor now, fully powered / tested & is in working condition.”

Share

Description

OKUMA ESV-4020 VERTICAL MACHINING CENTER
Make OKUMA
Model No. ESV-4020

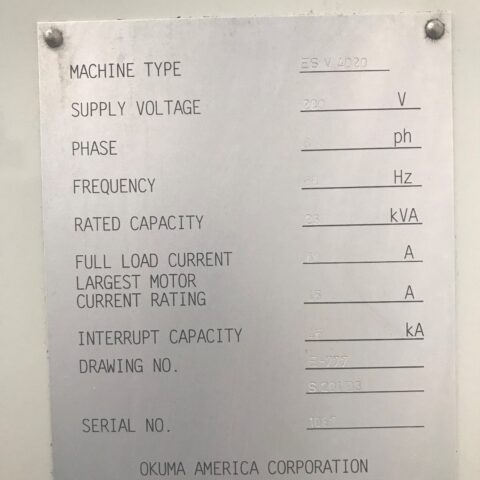

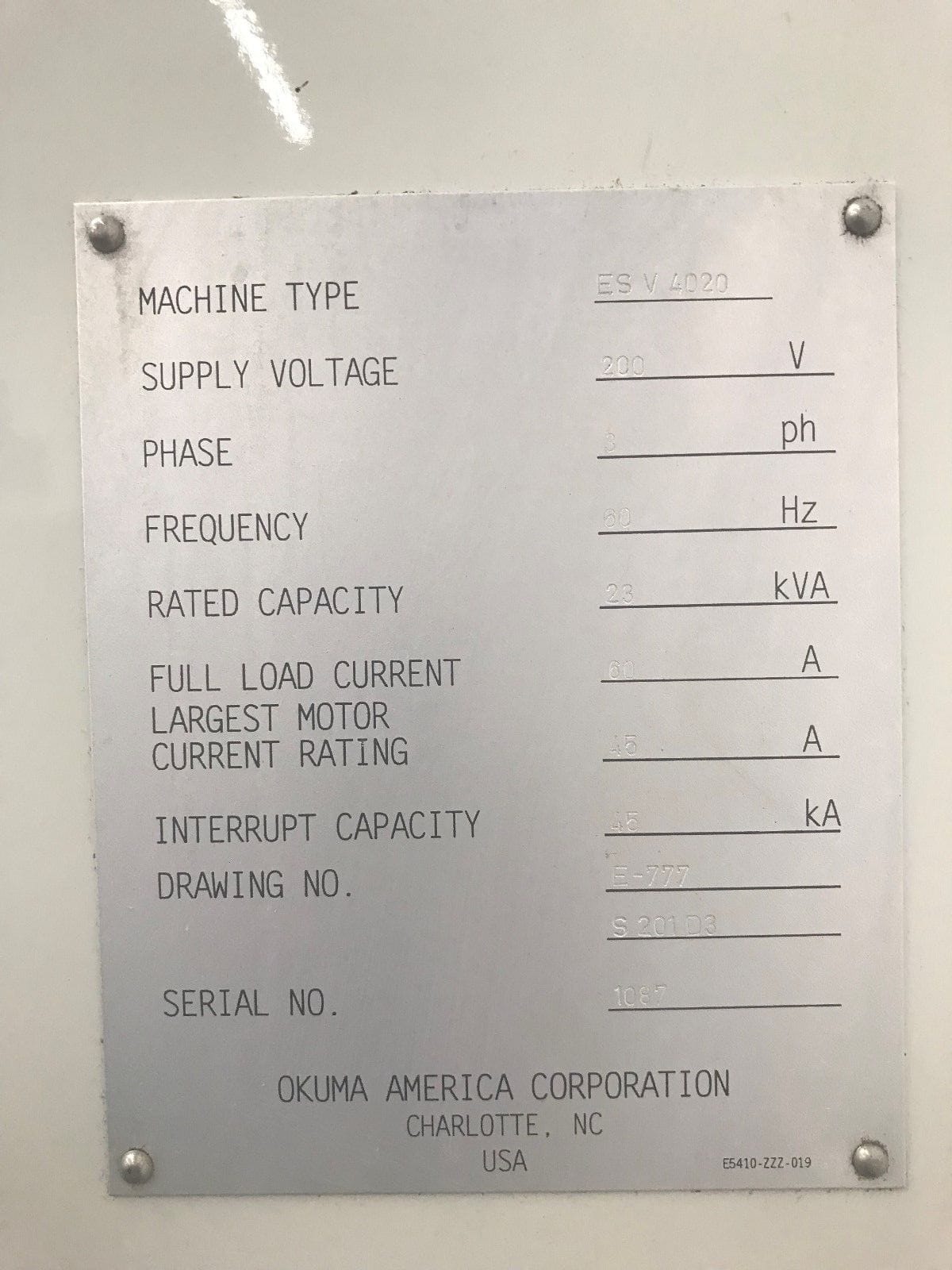

Serial # 1087
Condition Very Good

“Equipped with 8,000rpm, Tool Changer, OSP-U10M Control. On our Floor now, fully powered / tested & is in working condition.”

  • OKUMA ESV-4020 Features:

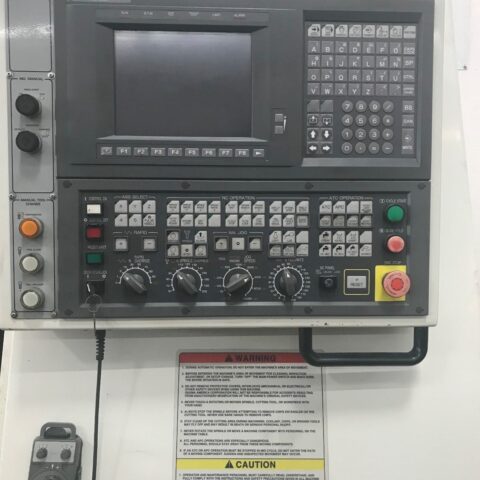

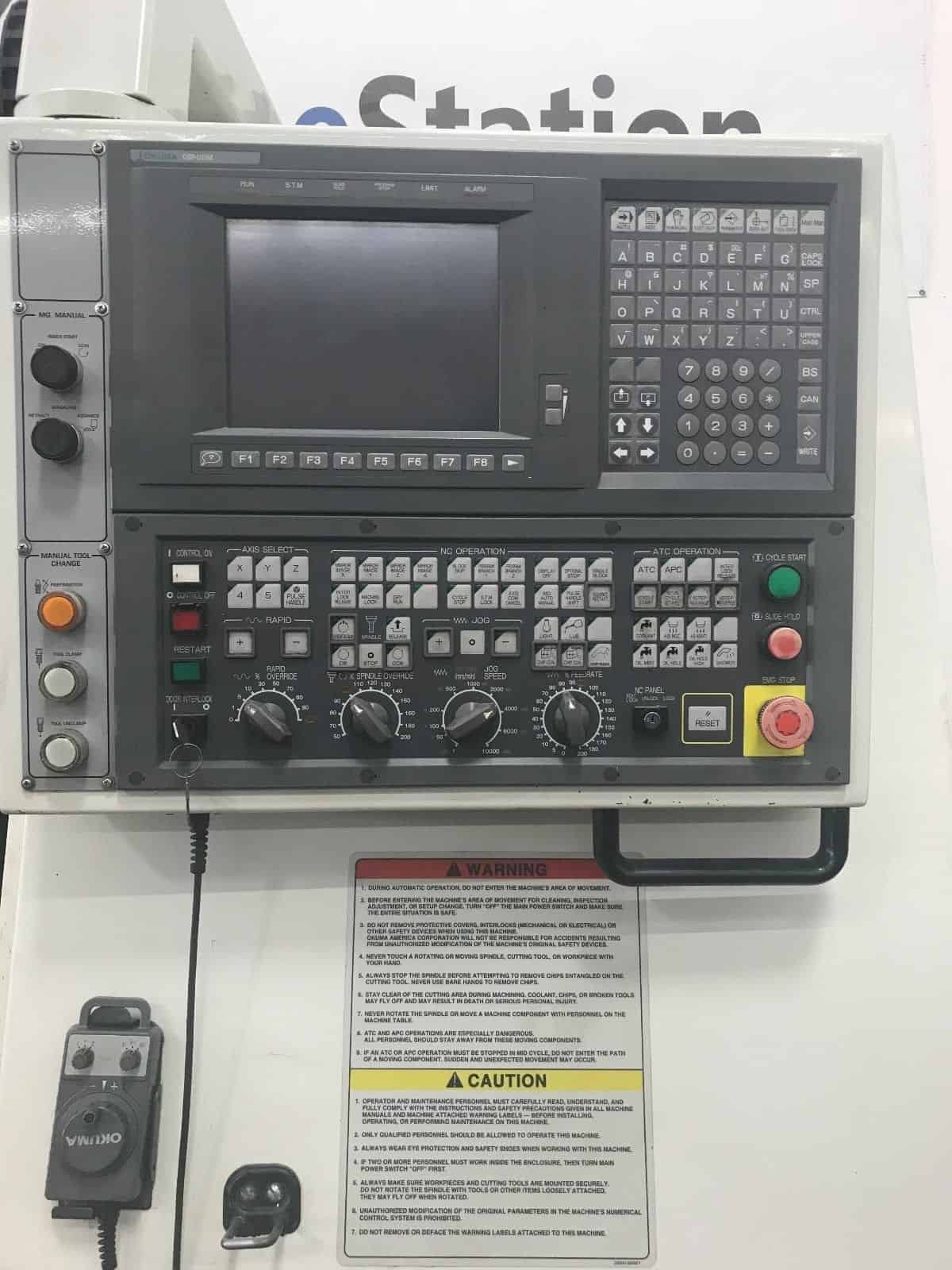

  • OSP-U10M CNC Control
  • 20 Automatic  tool changer
  • RS 232 Port
  • Floppy Drive
  • Rigid Tapping
  • Brush-type servo drive motors on all axis
  • Telescopic way covers
  • Flood Coolant system with Tanks
  • OKUMA ESV-4020 Specifications:
  • Travels:
  • X-Axis: 40.1″
  • Y-Axis: 20.3″
  • Z-Axis: 20.8″
  • Rapid Traverse Rates: 941 Inch Per Minute
  • Cutting Feed Rates: 475 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 6.1″ – 26.1″
  • Table:
  • Length: 47″
  • Width: 20″
  • Number of Std T-Slots: 3
  • T-Slot Width: 5/8″
  • Max Weight on Table: 1100 lbs
  • Spindle:
  • Taper Size: 40
  • Speed Range: 40 – 8,000 RPM
  • Spindle Power: 15 HP
  • Max Torque: 90ft-lb @ 2000RPM
  • Automatic Tool Changer:
  • Capacity: 20
  • Max Tool Weight: 13.2 lbs
  • Max Tool Dia: 5.90 ”
  • Max Tool Length: 12″
  • Tool Changing Time: 3.6 Seconds
  • General:
  • Air Required: 80 psi, 4 scfm
  • Power: 240v / 35 KVA / 3-Phase
  • Overall Dimensions: 150″ x 92″ x 99″ High
  • Weight: 11000 lbs

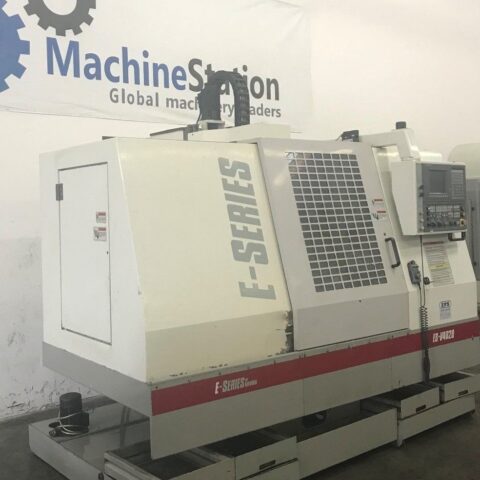

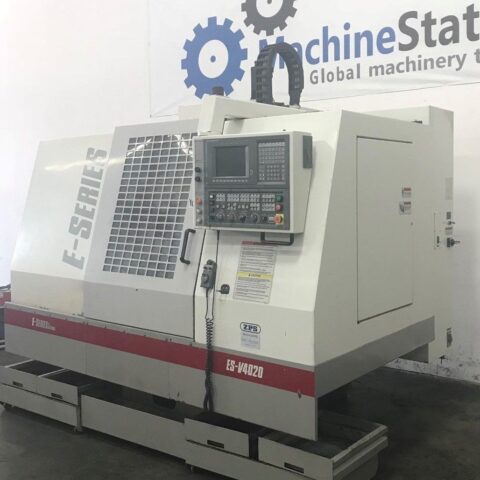

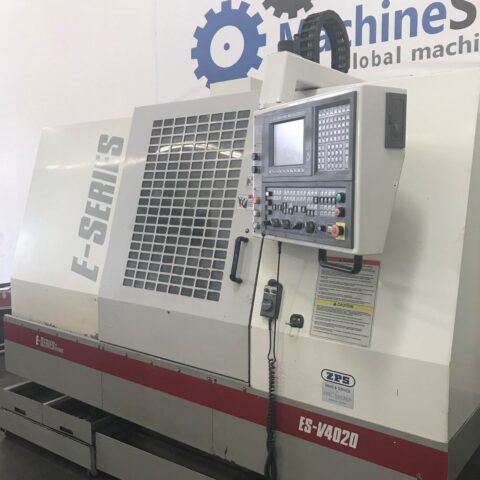

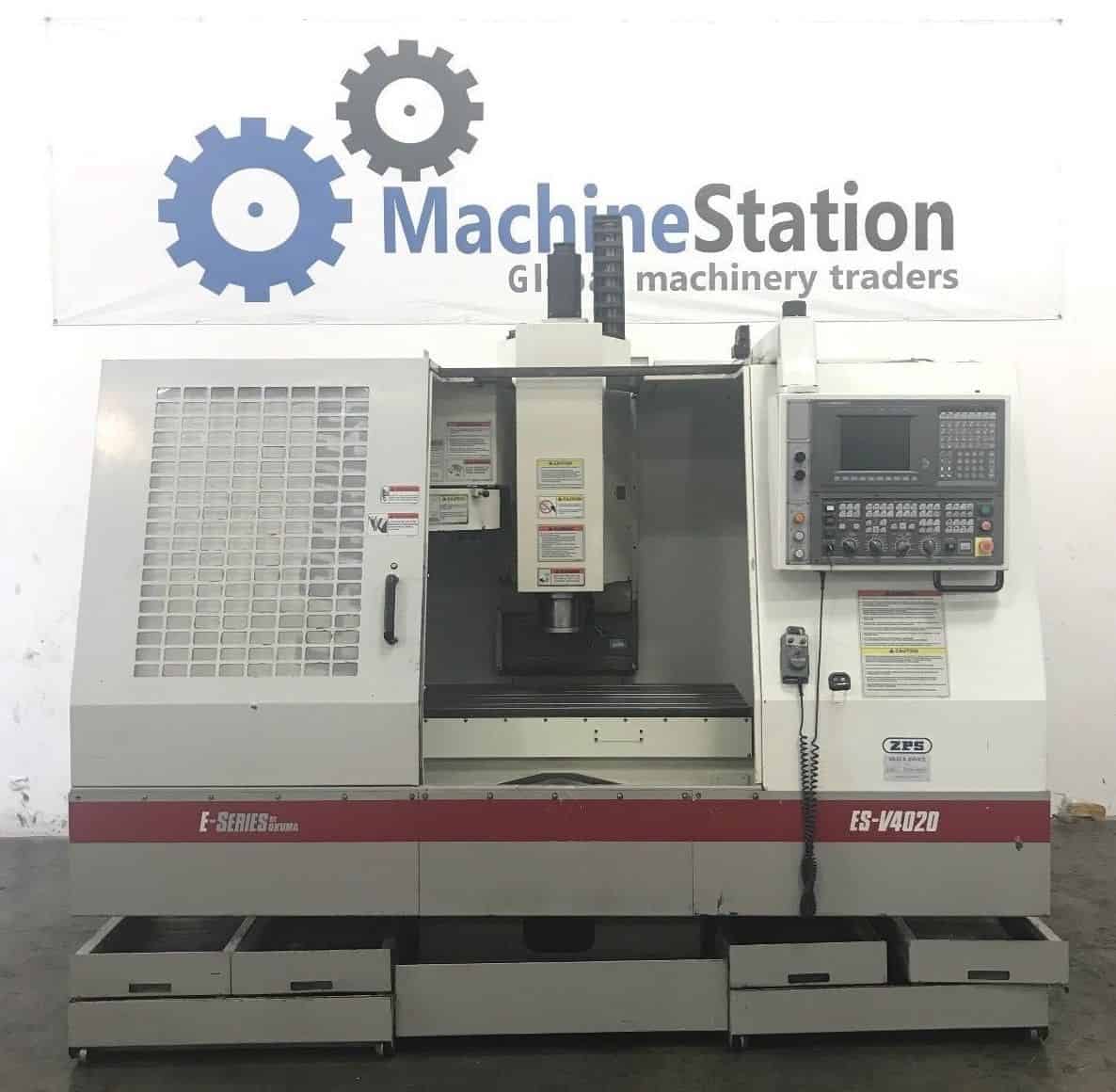

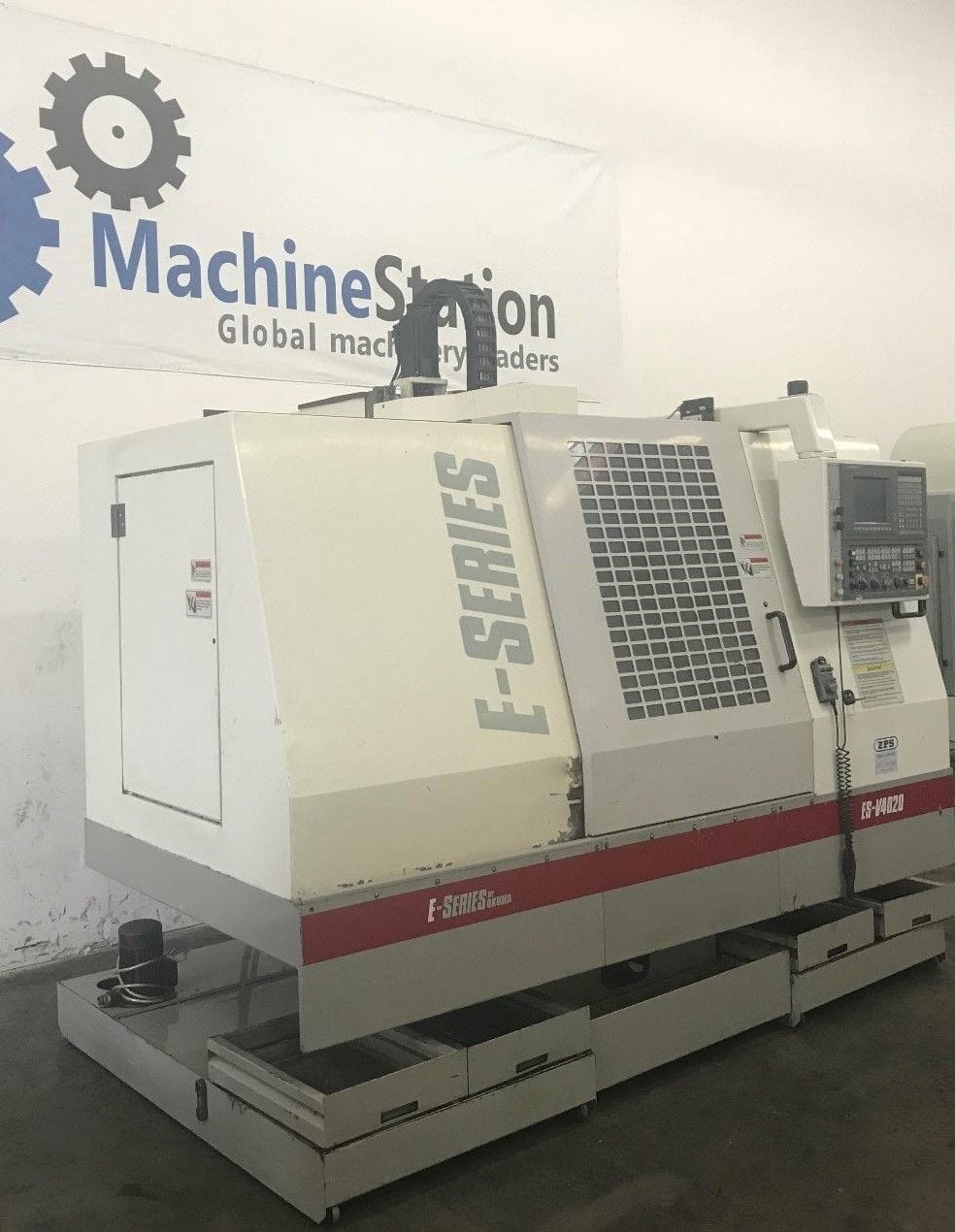

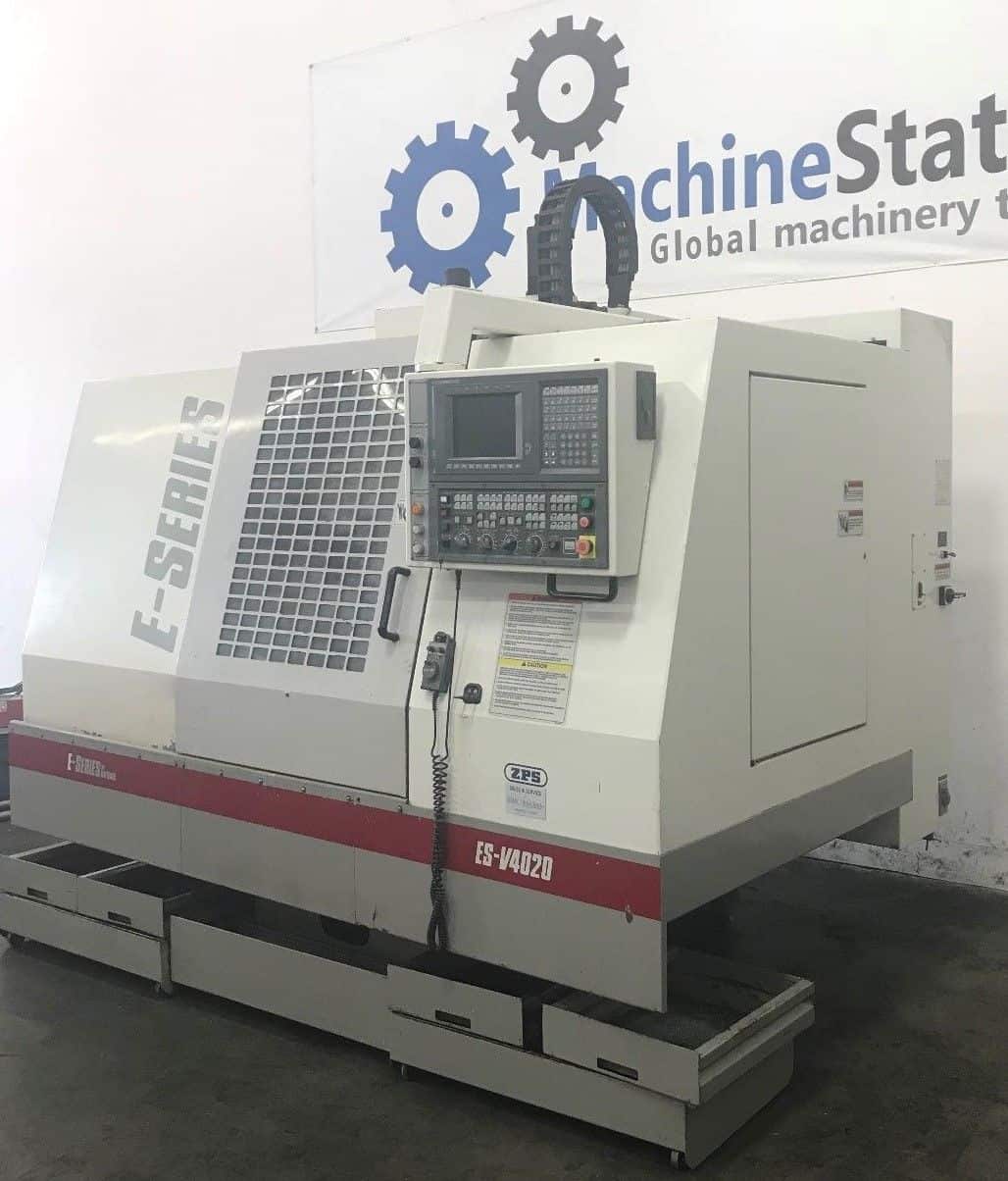

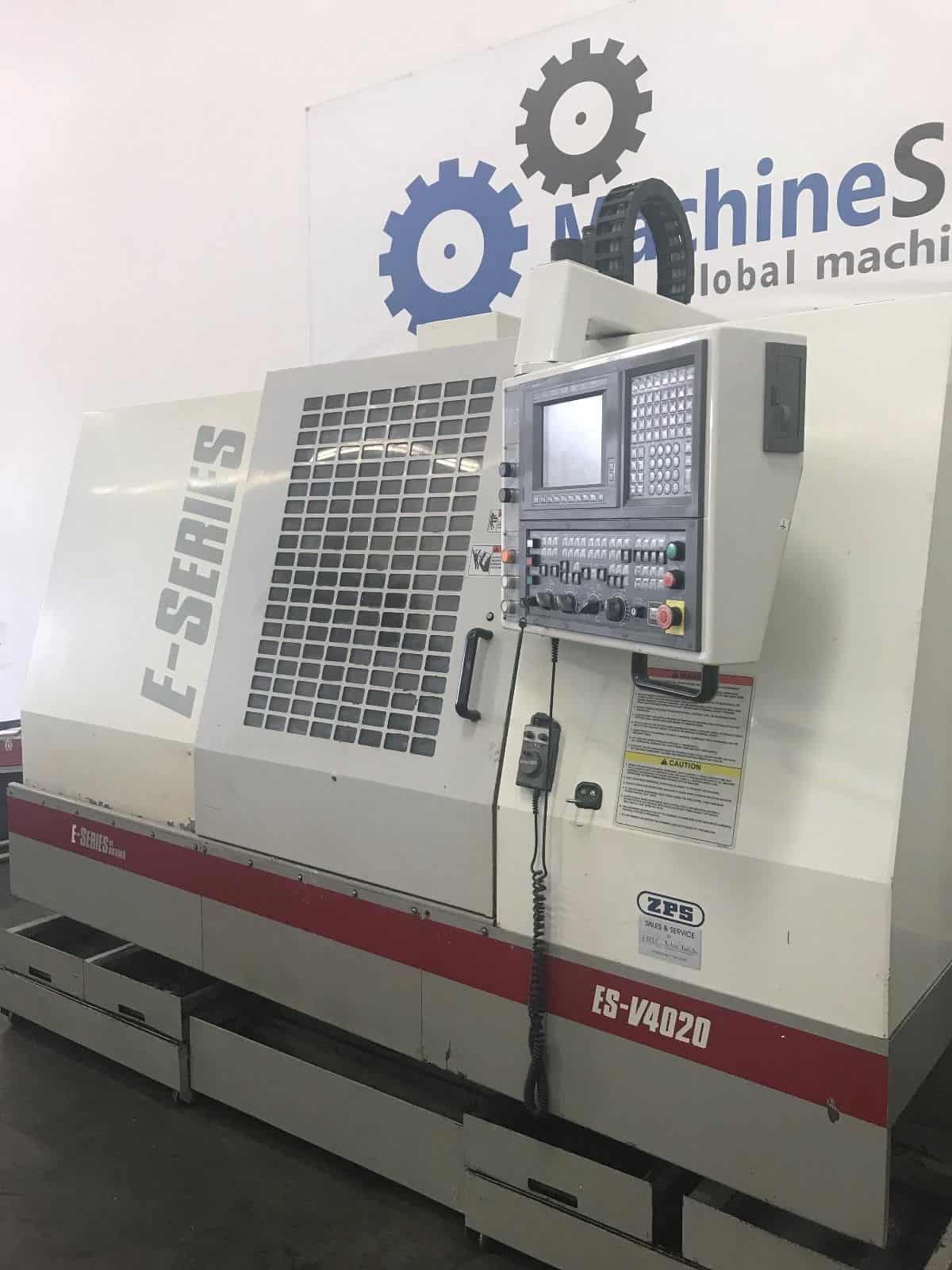

OKUMA ESV-4020 Comes as shown in pictures..
