*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

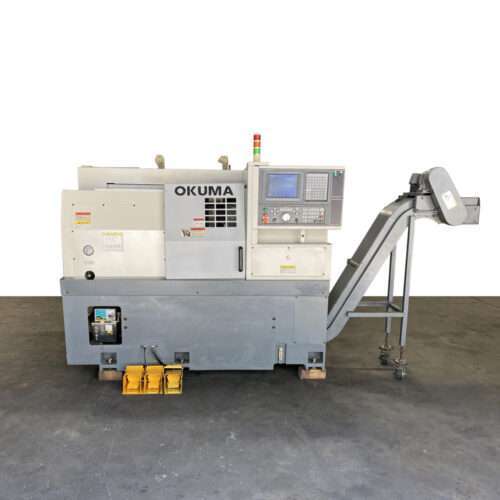

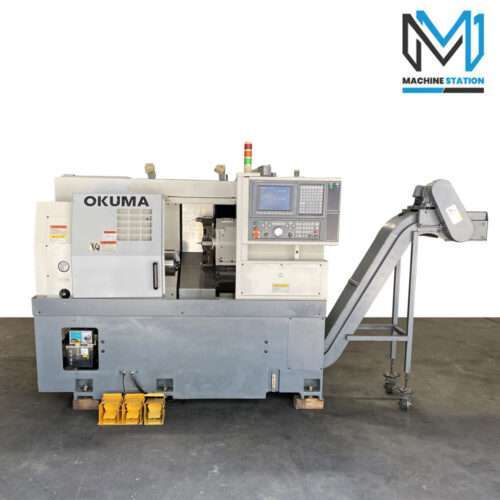

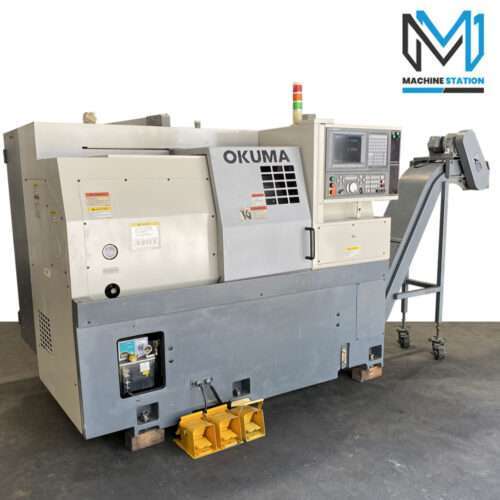

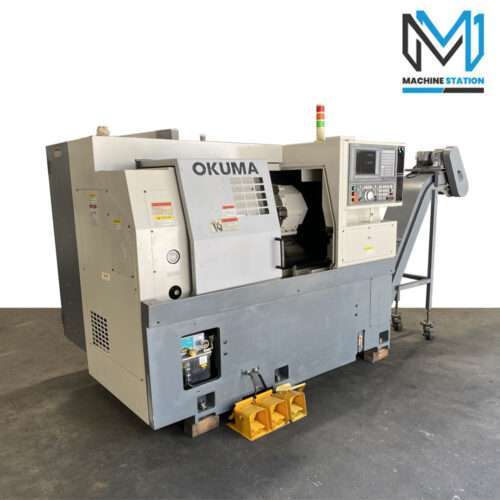

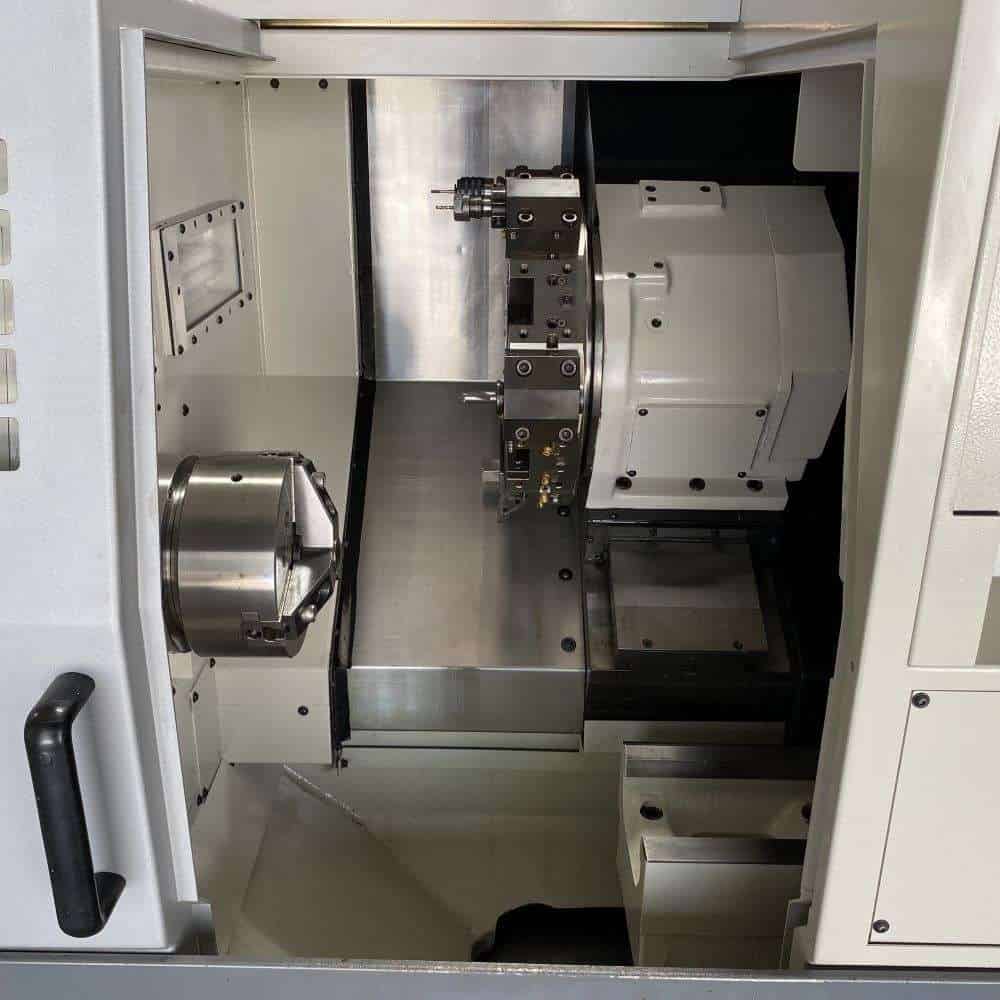

| Make: | Okuma Heritage |
| Model: | ES-L8II |
| Year: | 2006 |
| Condition: | Used – Good |
| Equipped With: |
|---|

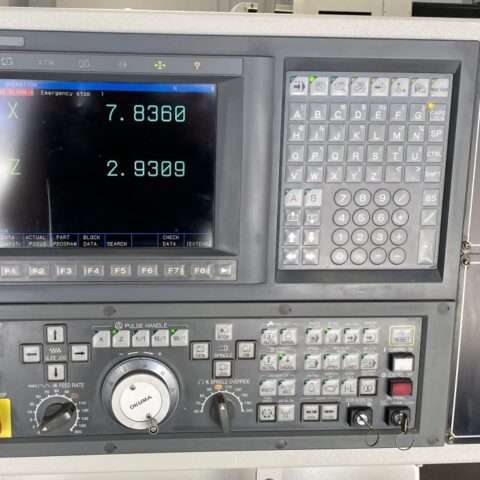

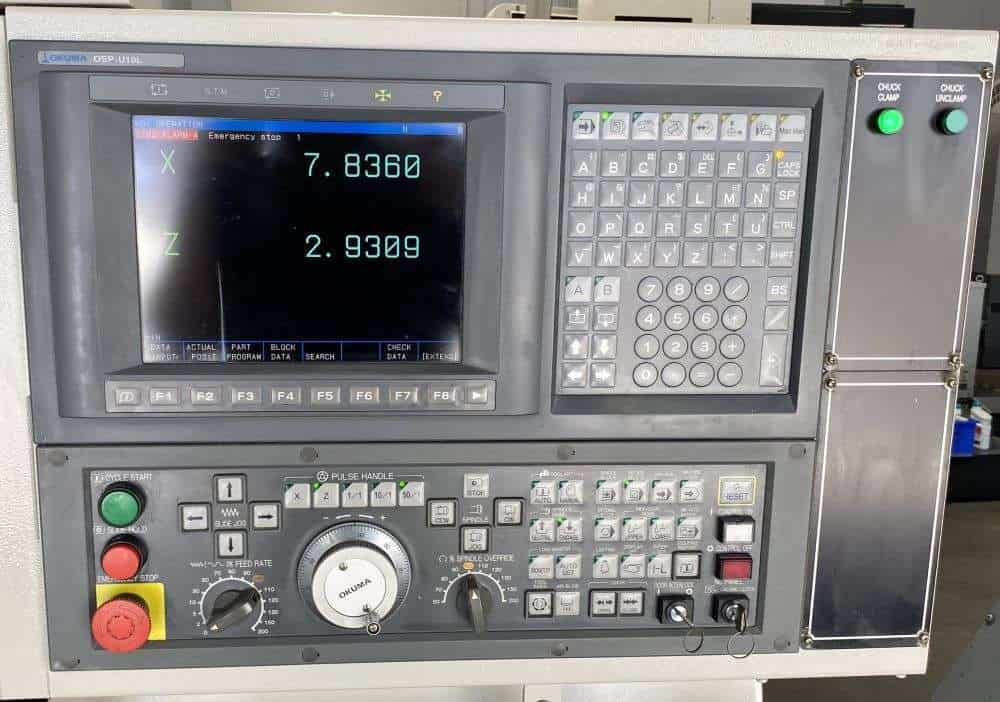

| Okuma OSP-U10L CNC Control |

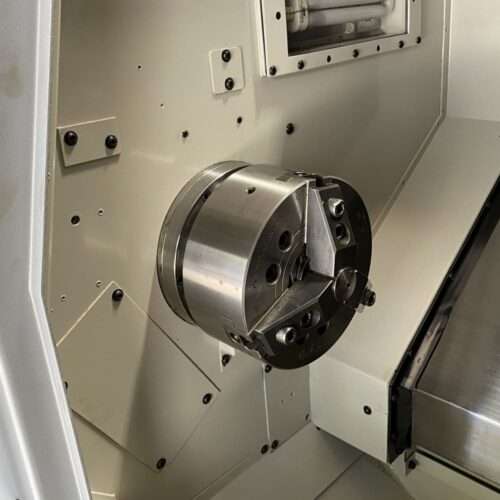

| 8″ 3-Jaw Hydraulic Chuck |

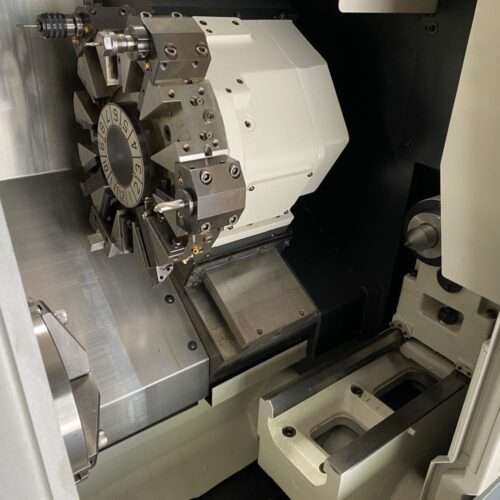

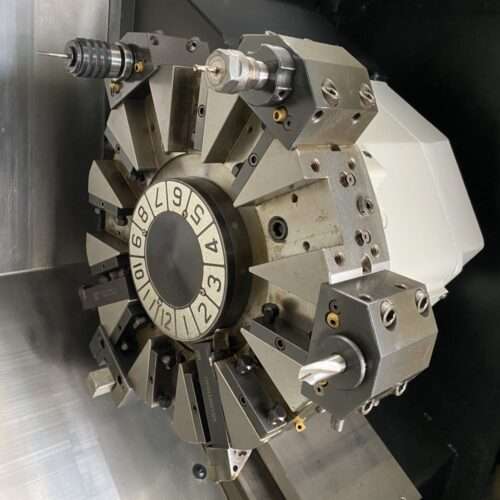

| 12-Station Turret |
| One Touch IGF Programming |
| Floppy Drive |

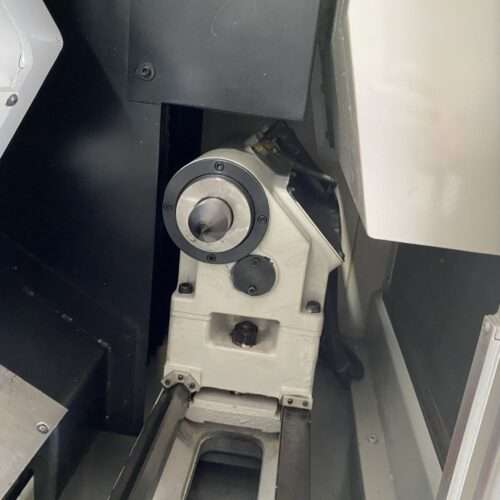

| Hydraulic Tailstock with Power Quill |

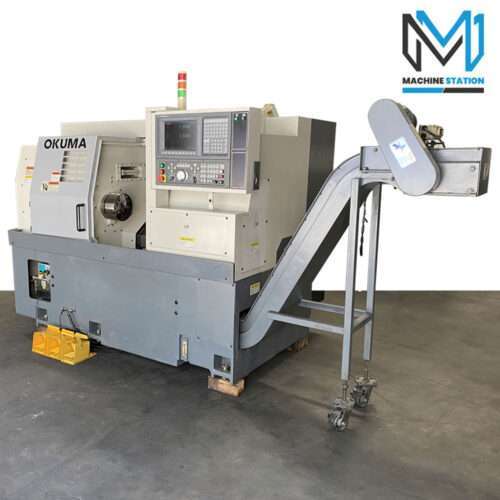

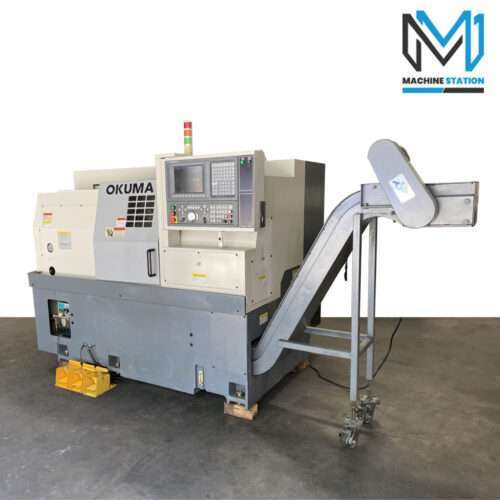

| Chip Pan and Chip Conveyor |
| Coolant System |
| Automatic Lubrication system |

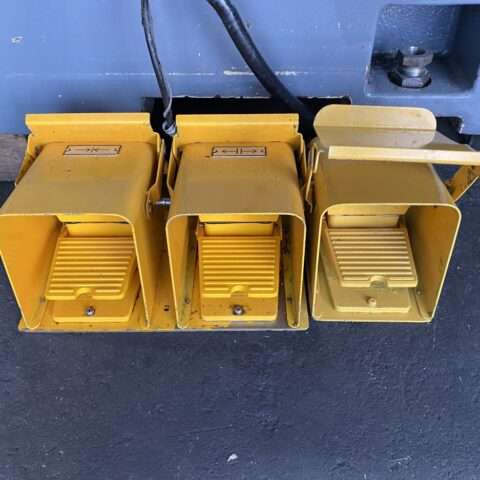

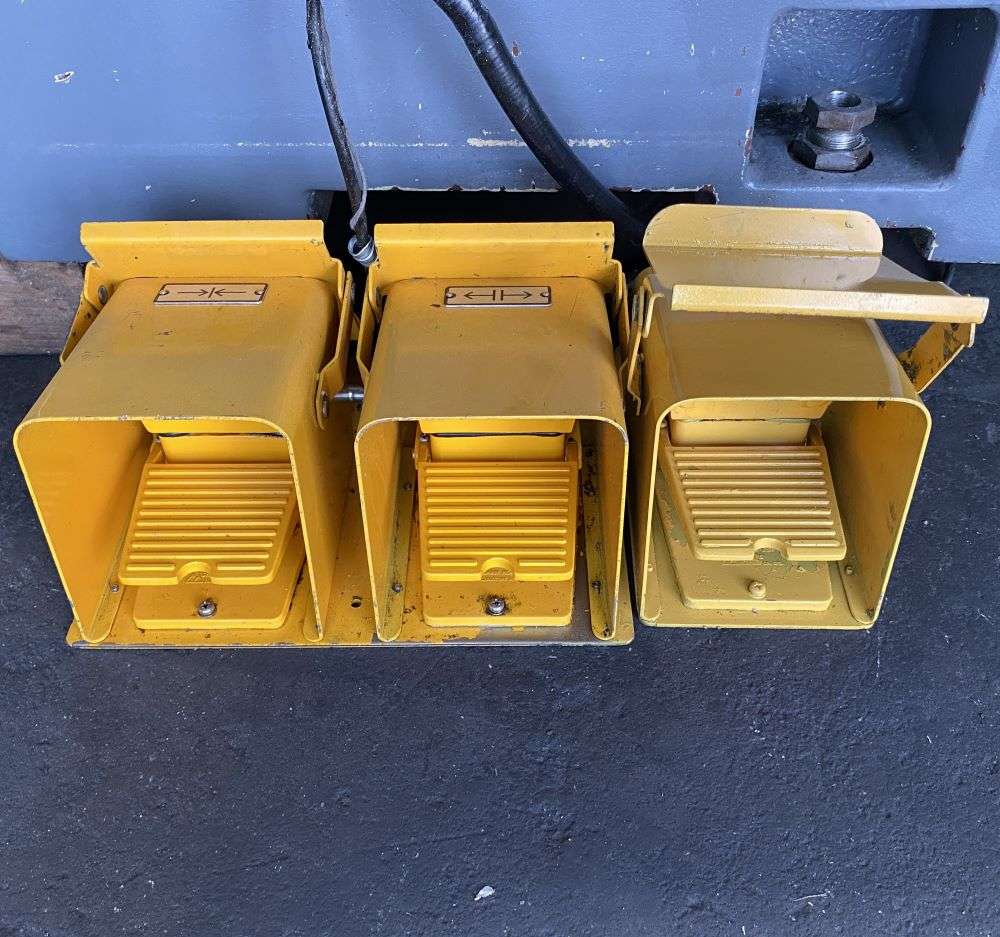

| Foot Operated Control for Chuck and Tailstock |
| Capacity: |
|---|
| Max Turning Diameter: 8.26″ |
| Max Turning Length: 19.69″ |
| Max Bar Capacity: 2.04″ |
| Swing Over Slide: 13.78″ |
| Swing Over Bed: 17.72″ |
| Travels: |
|---|
| X Axis Travel: 6.10″ |
| Z Axis Travel: 20.47″ |
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 984 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 2.44″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: 15 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.5 Second |
| Tailstock: |
|---|
| Tailstock Body Travel: 14.3″ |
| Tailstock Quill Dia.: 3.54″ |
| Tailstock Quill Stroke: 3.94″ |
| Tailstock Taper: MT-5 |
| General: |
|---|

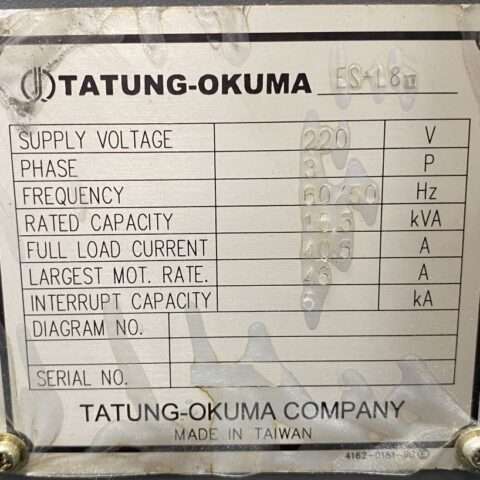

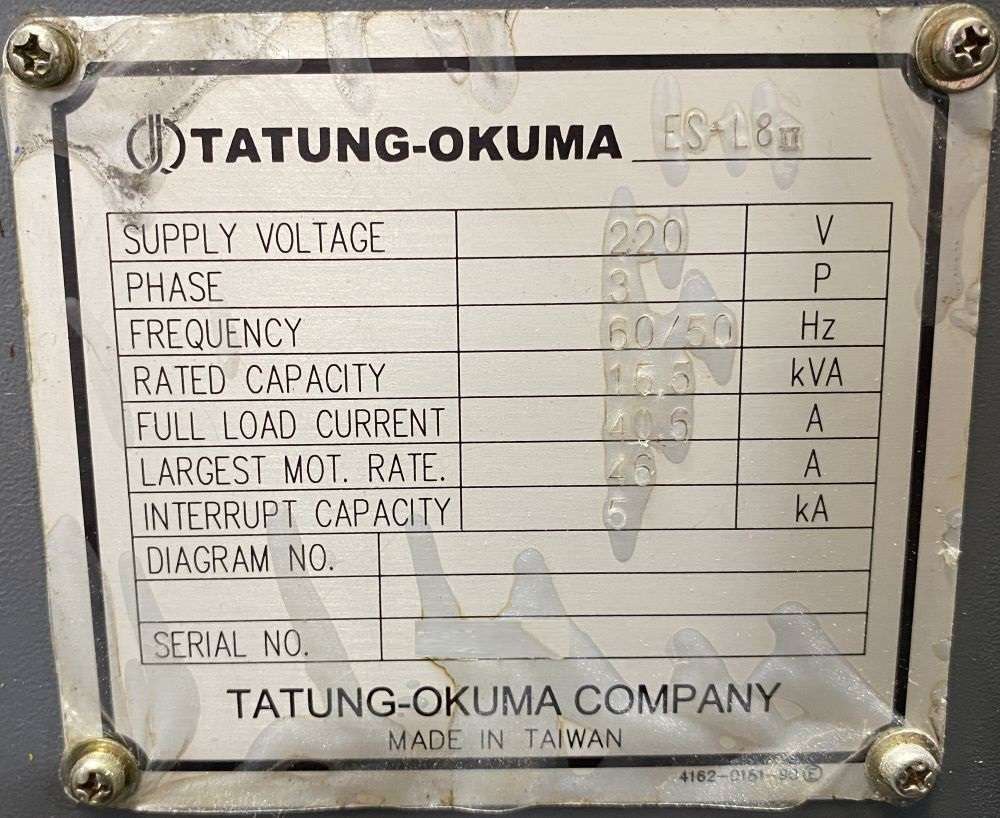

| Power Source: AC 220 V, Three Phase, 60 Hz |
| Power Requirement: 68 Amps |
| Overall Dimensions: 110″ x 68″ x 80″ High |
| Overall Dimensions: 140″ x 68″ x 80″ High with Chip Conveyor |
| Weight : 8500 lbs Approx. |
