“On Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 8″ Chuck, Tool holders, Manuals & Chip Conveyor.”

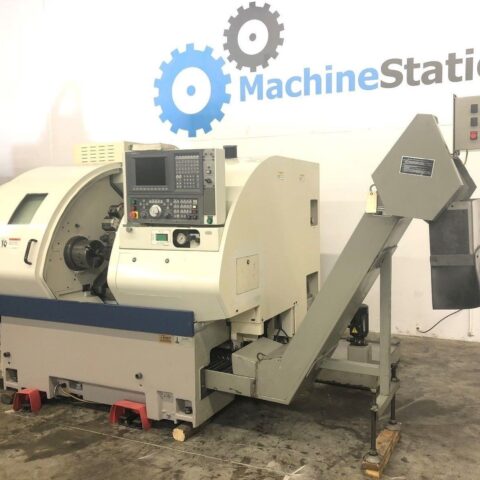

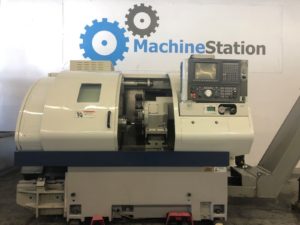

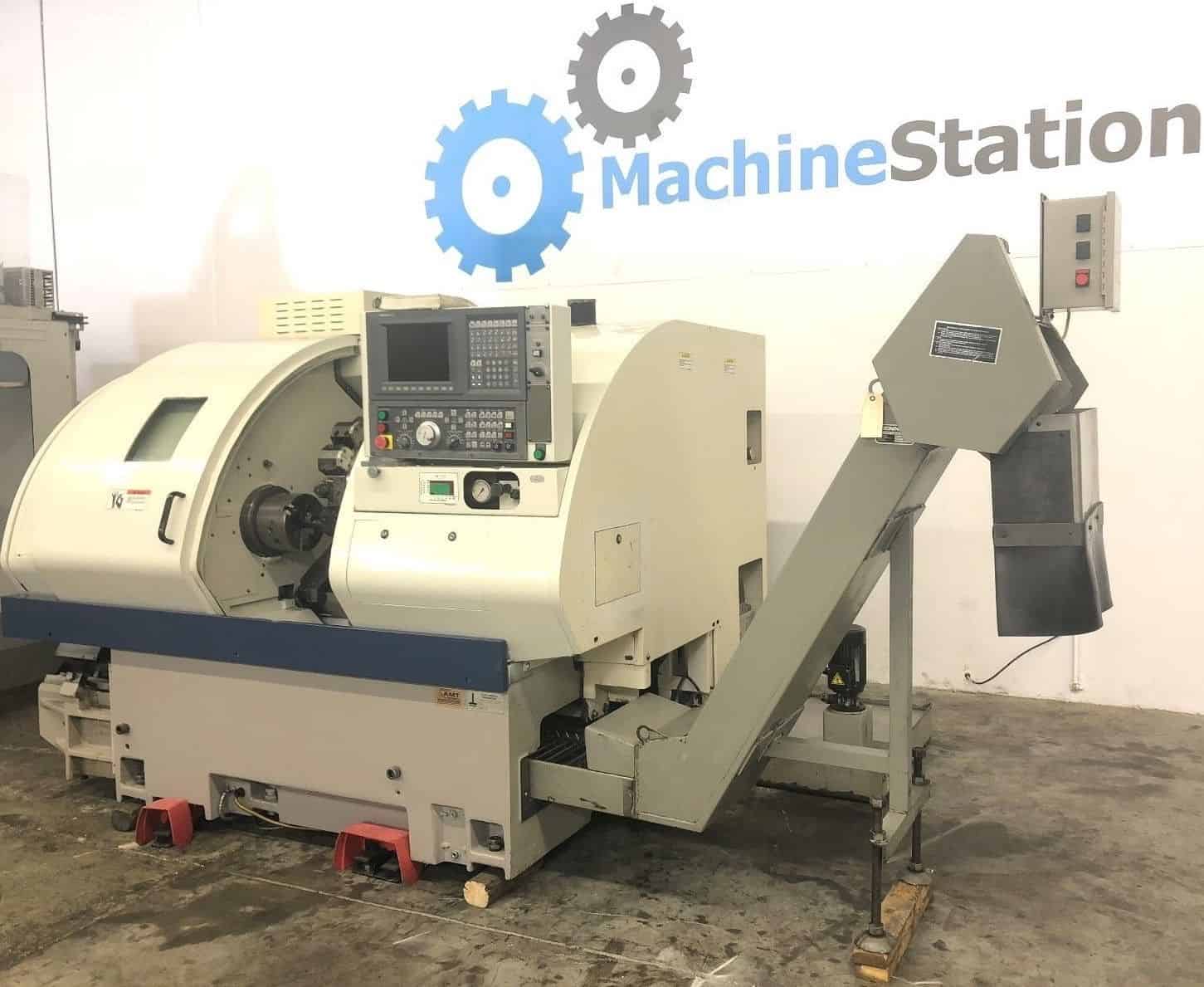

Okuma L1060 762S-SB CNC Turning Center
Out of stock
Description
| Okuma L1060 762S-SB CNC Turning Center | |
|---|---|
| Make | Okuma |
| Model No. | Crown 762S-SB |
| Serial # | 10081021 |
| Condition | Very Good |
| Country of Origin: | Japan |
All specifications are approximations and are subject to verification.
“On Our Floor now, Fully powered / tested & is in Great working condition. Low Cutting Hours. Equipped with 8″ Chuck, Tool holders, Manuals & Chip Conveyor.”
- Okuma L1060 762S-SB Equipped With:

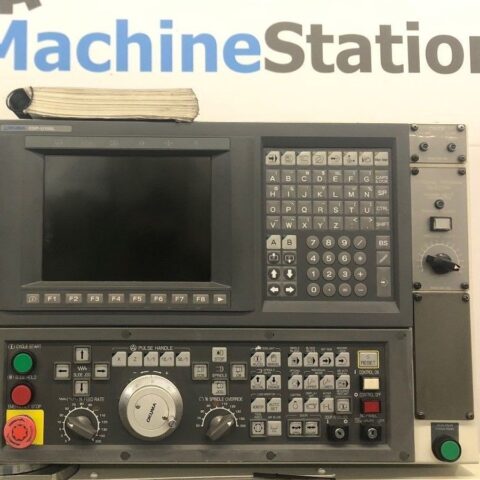

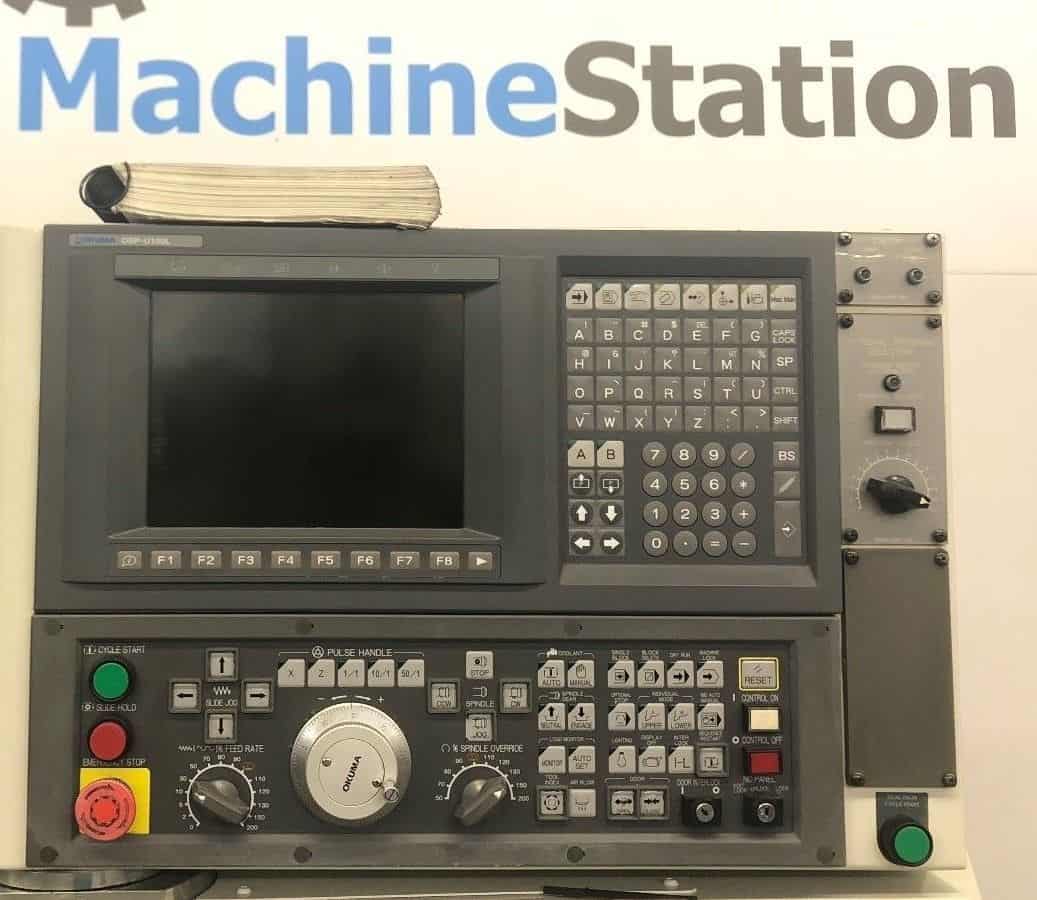

- Okuma OSP-U100L CNC Control

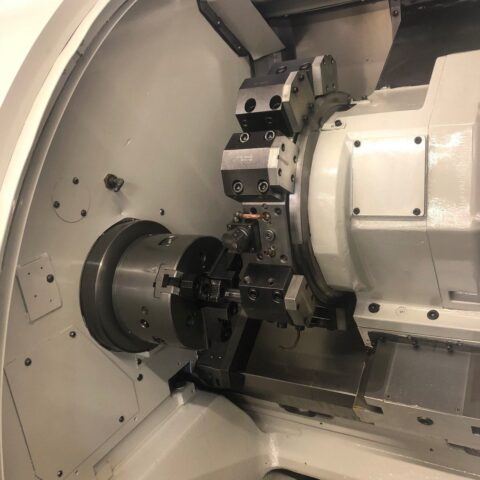

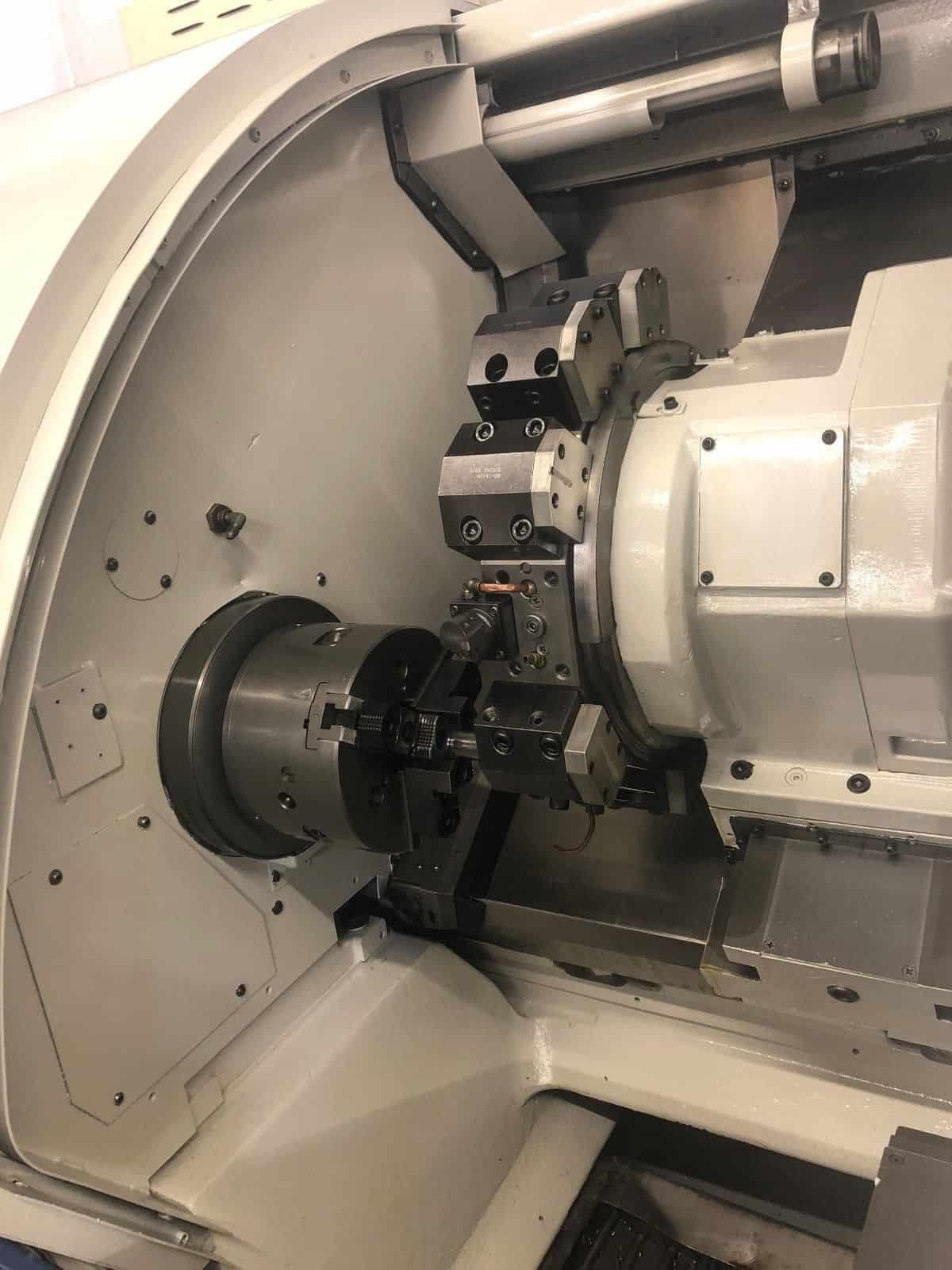

- 3 Jaw Hydraulic Chuck
- Floppy Disk Drive
- Hydraulic Tailstock with Programmable Quill

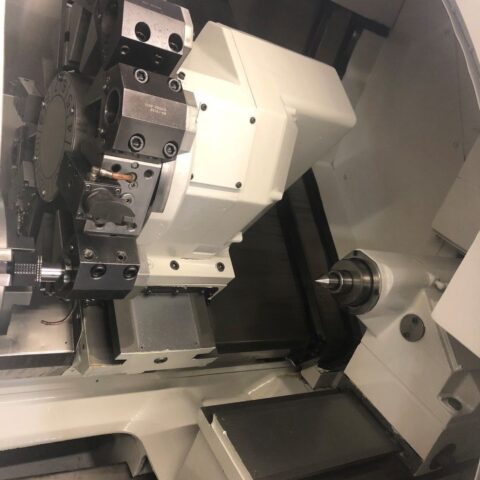

- 12 Station Automatic Turret
- Coolant System & Tank
- Barfeed Interface
- RS-232 Interface
- Comes with Chip Conveyor, Levelling Pads, Manuals & Floppy Disks
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 104″ x 74″ x 72″ High
- Weight: 10,000 lbs
- Okuma L1060 762S-SB Specifications:
- Capacity:
- Max Turning Diameter: 10.63″
- Max Turning Length: 19.68″
- Distance Between Centers: 22.29″
- Max Bar Capacity: 2.05″
- Swing Over Bed: 21.65″
- Swing Over Cross Slide: 15.75″
- X Axis Travel: 7.28″
- Z Axis Travel: 20.47″
- Rapid Traverse X Axis: 590 IPM
- Rapid Traverse Z Axis: 787 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.44″
- Spindle Speed: 75 – 4200 RPM
- Spindle Motor: 20 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 3.54″
- Tailstock Quill Travel: 4.72″

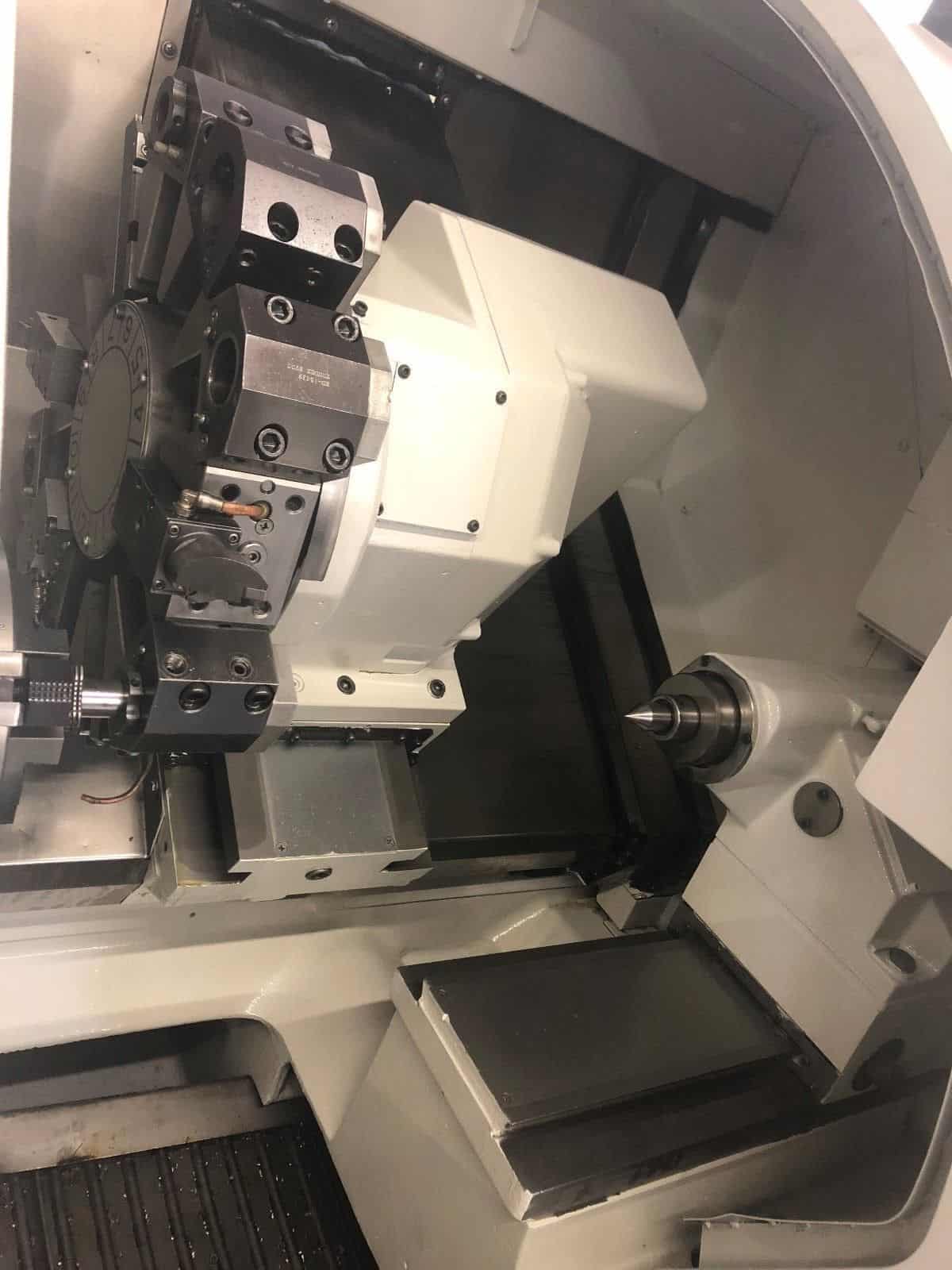

Okuma L1060 762S-SB Comes as shown in pictures.
