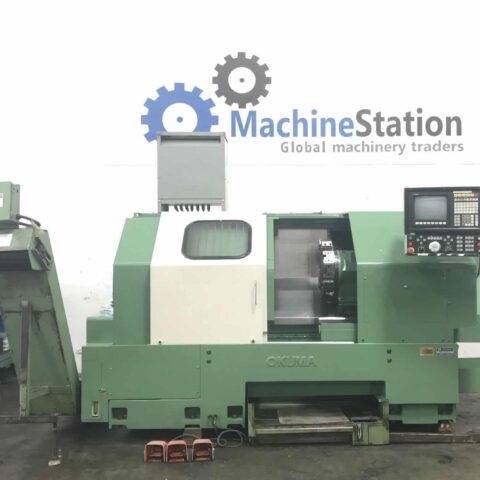

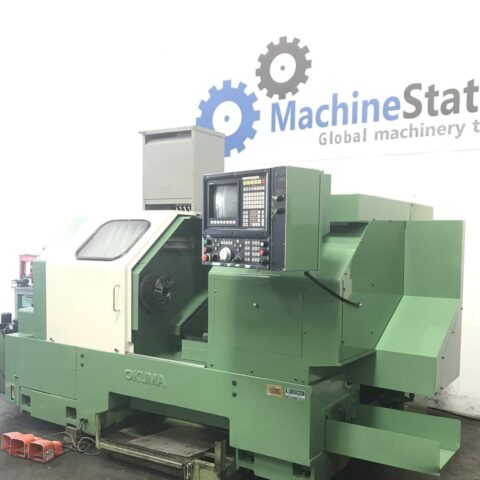

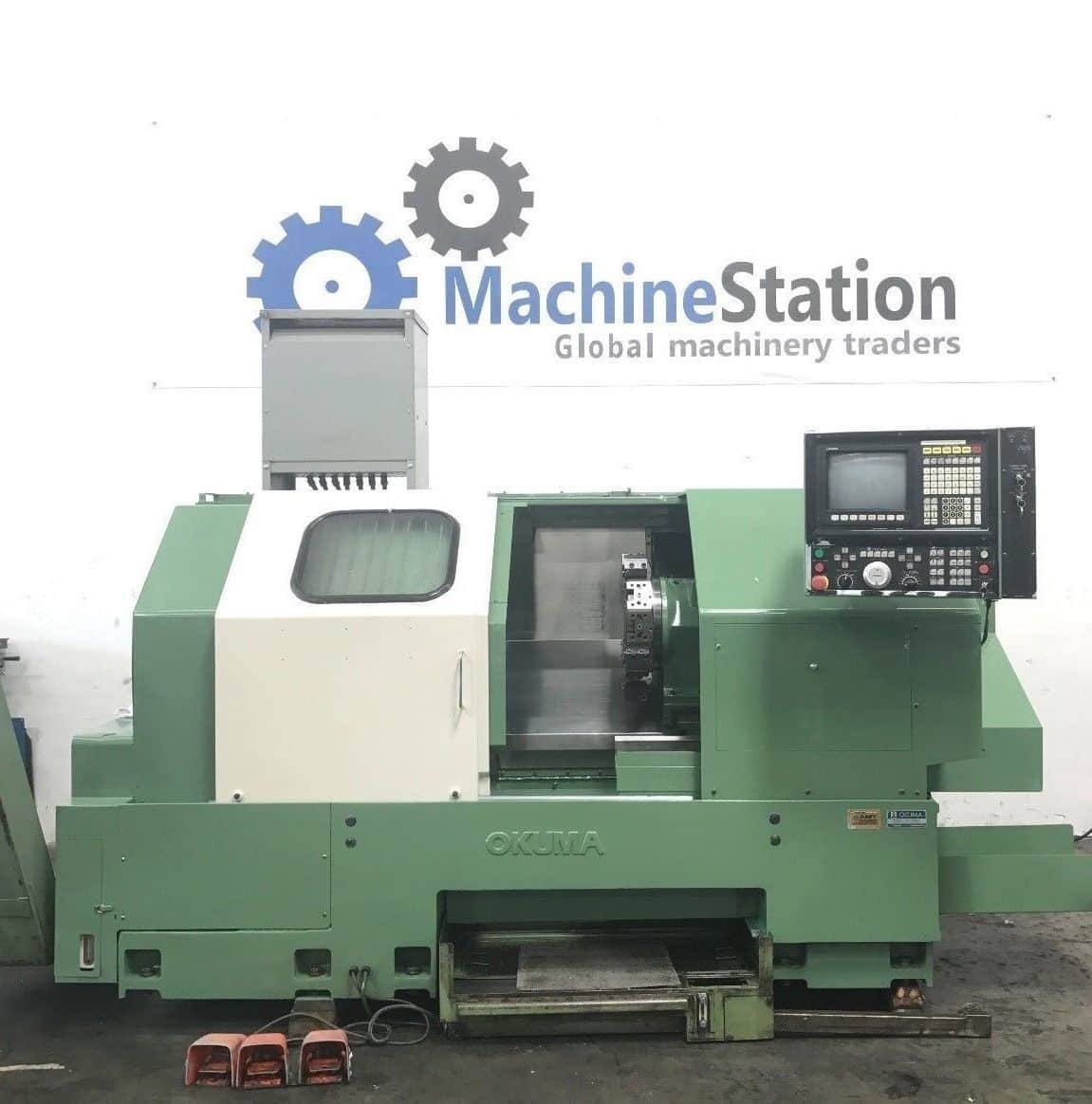

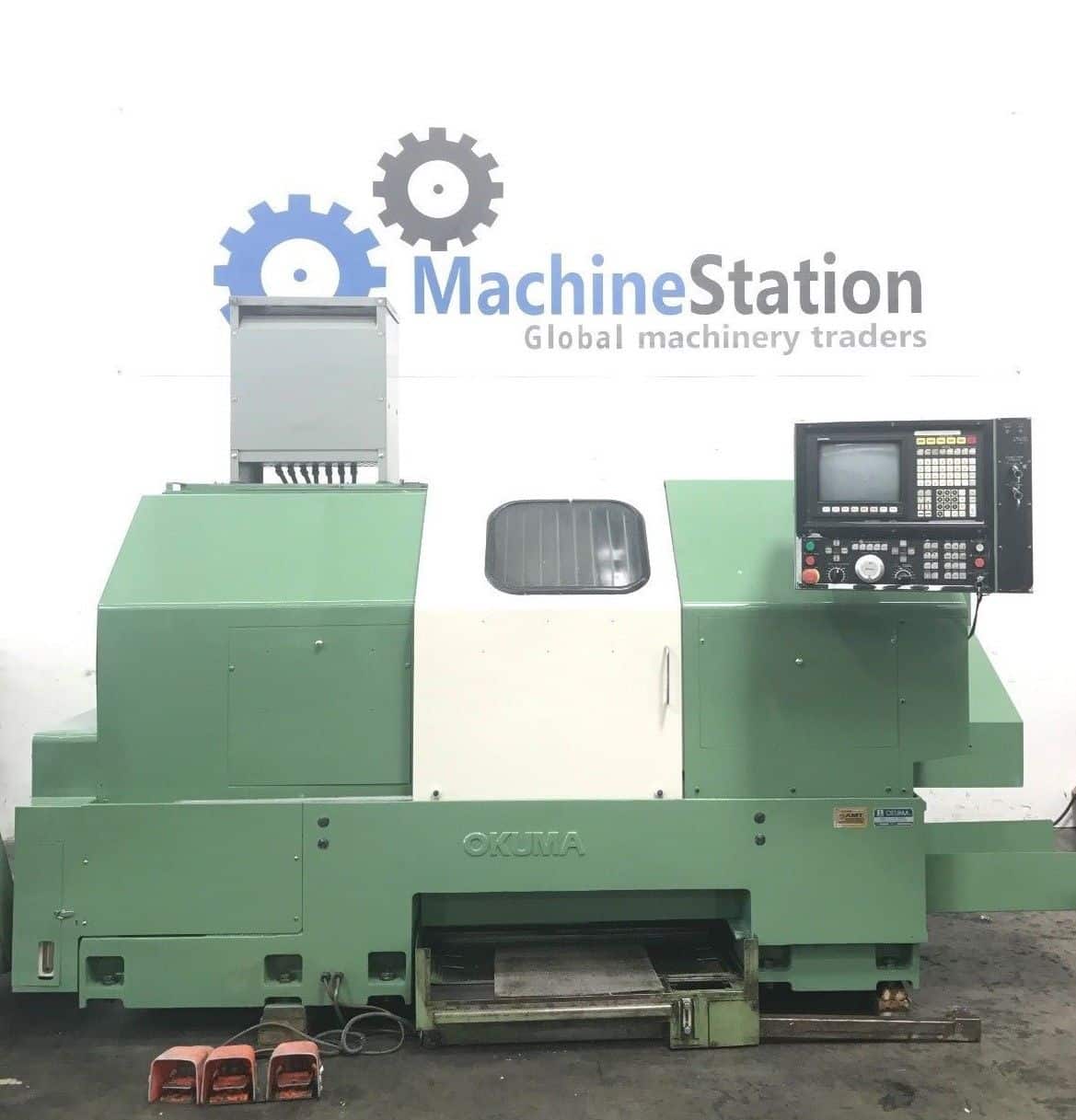

Okuma LB-25C CNC Turning Center Lathe

One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with 10″ Hydraulic Chuck, Tailstock, chip conveyor, Tool holders.”

Share

Description

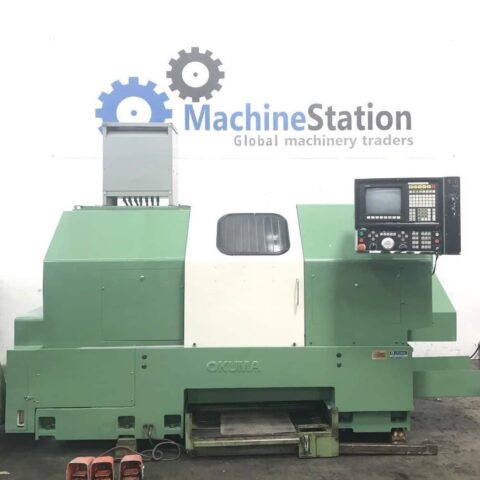

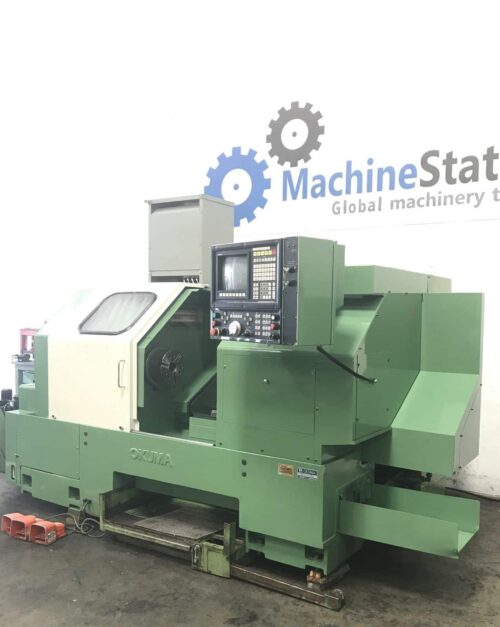

OKUMA LB-25C CNC TURNING CENTER LATHE
Make Okuma
Model No. LB-25C
Year 1995

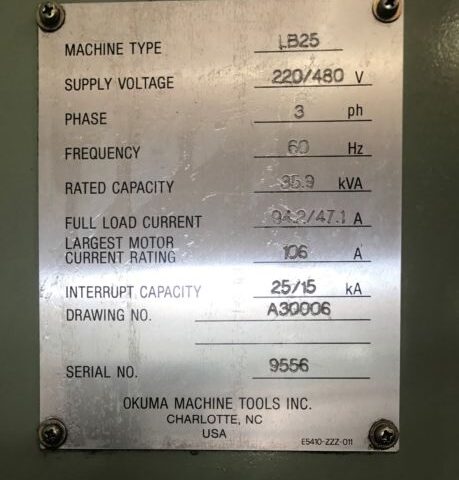

Serial # 9556
Condition Very Good
Country of Origin: Japan

“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Equipped with 10″ Hydraulic Chuck, Tailstock, chip conveyor, Tool holders.”

  • OKUMA LB-25C Equipped With:

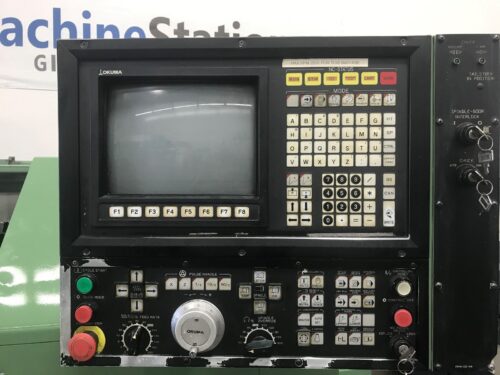

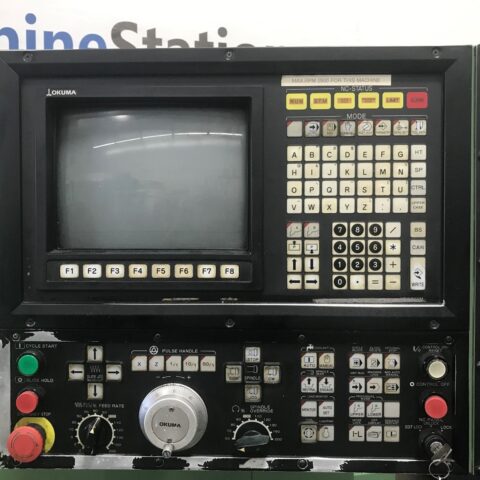

  • Okuma OSP-5020L CNC Control
  • IGF – Interactive Graphic Function

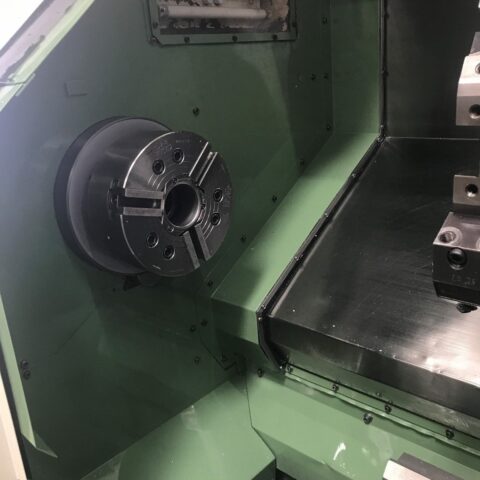

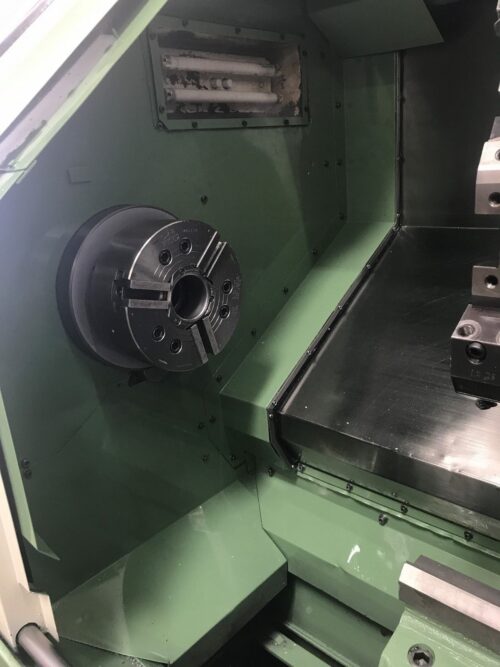

  • 10″ 3-Jaw Kitagawa Hydraulic Chuck

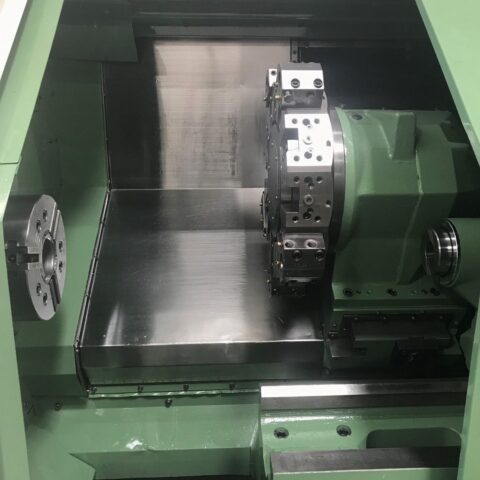

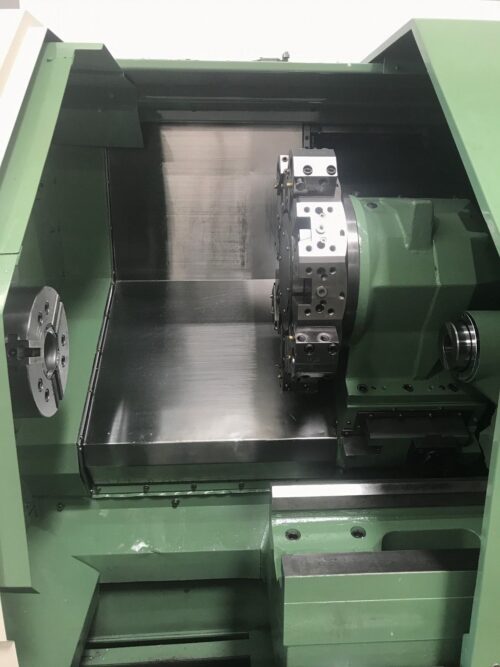

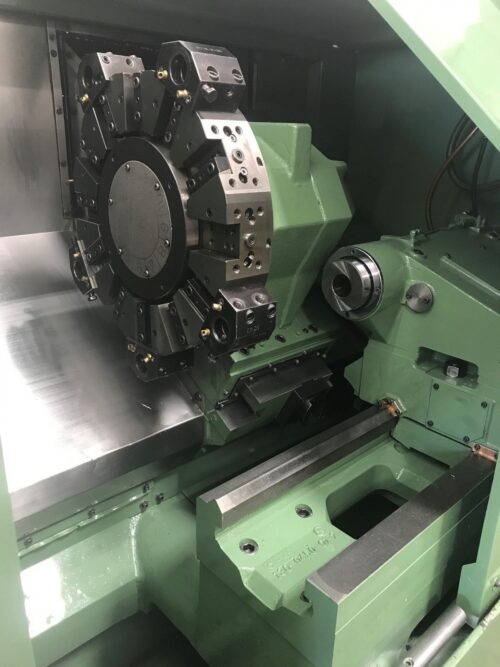

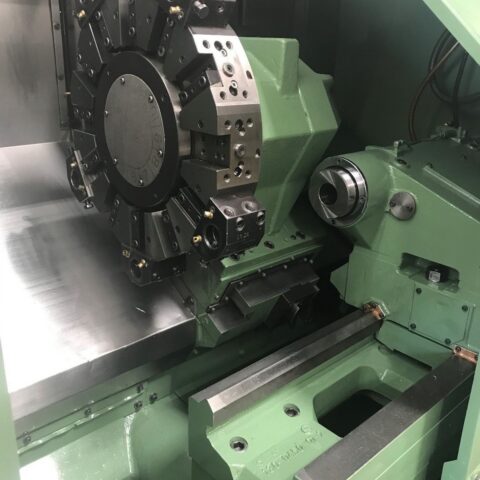

  • 12-Station Turret with Tooling
  • Hydraulic Tailstock
  • Slant Bed Rigid Box Way Machine
  • Chip Conveyor
  • Coolant System.
  • Automatic Lubrication system
  • Foot Operated Control for Chuck & Tailstock
  • Coolant Tank
  • Comes with Chip Conveyor, Levelling Pads, Manuals.
  • General:

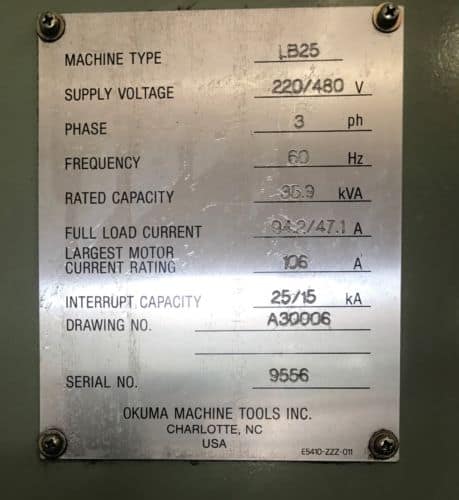

  • Power Source: AC 220 V, Three Phase, 60 Hz
  • Overall Dimensions: 135″ x 76″ x 80″ High
  • Overall Dimensions: 170″ x 76″ x 80″ High W/Chip Conveyor
  • Weight : 12,500 lbs Approx.
  • OKUMA LB-25C Specifications:
  • Max Turning Diameter: 14.17″
  • Max Turning Length: 25.59″
  • Max Bar Capacity: 3.15″
  • Swing Over Bed: 18.9″
  • Distance Between Centers: 27.4″
  • X Axis Travel: 9.1″
  • Z Axis Travel: 26.38″
  • Rapid Traverse X Axis: 472 IPM
  • Rapid Traverse Z Axis: 591 IPM
  • Spindle Nose: A2-8
  • Spindle Bore: 3.54″
  • Spindle Speed: 65-3500 RPM
  • Spindle Motor: 15 kw
  • Turret Capacity: 12 Stations
  • Turret Index Time: 1 Second
  • Tailstock Quill Dia.: 3.94″
  • Tailstock Quill Stroke: 4.72″
  • Tailstock Taper: MT-5

OKUMA LB-25C Comes as shown in pictures.
