OKUMA LU-15MW CNC SUB SPINDLE LIVE TOOL TURNING CENTER LATHE | |
---|---|
Make | Okuma |
Model No. | LU-15MW |

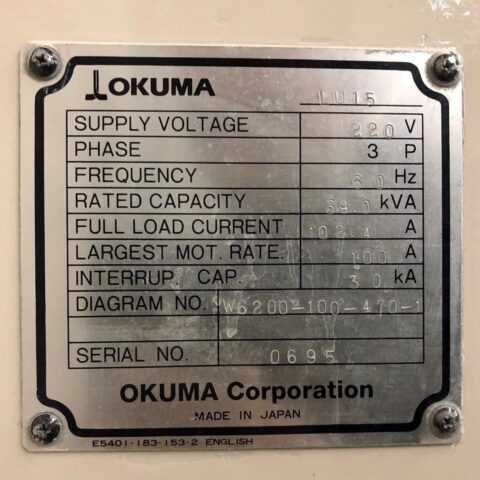

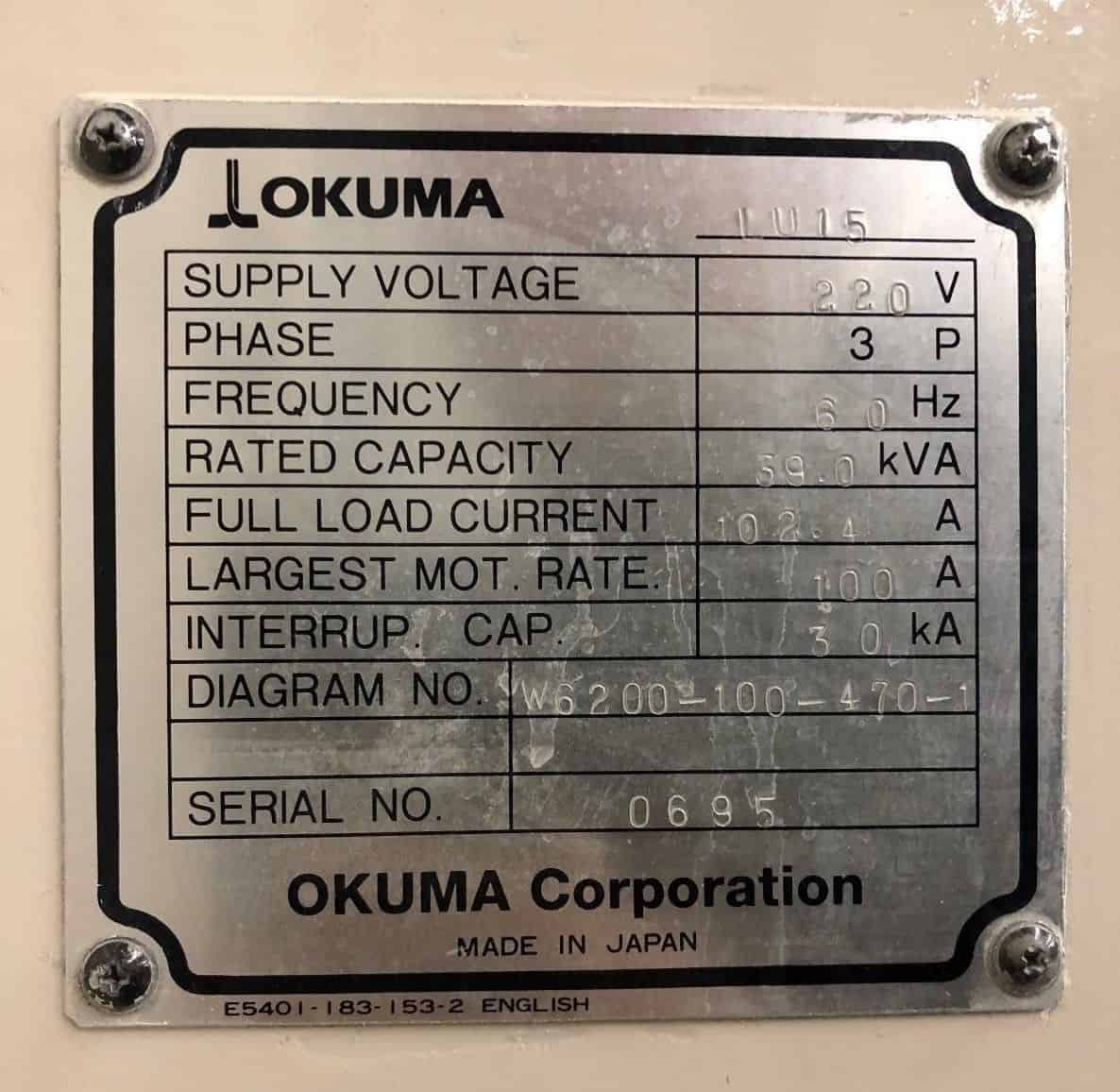

Serial # | 0695 |
Condition | Very Good |
Comes with “2 Chucks, Tool Holders & Chip Conveyor. |
All specifications are approximations and are subject to verification.
- Okuma LU-15MW Equipped With:

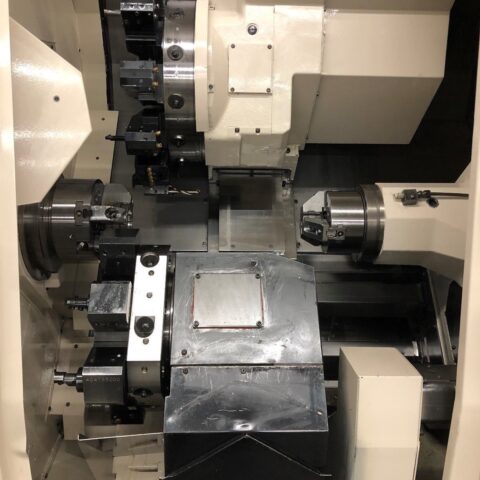

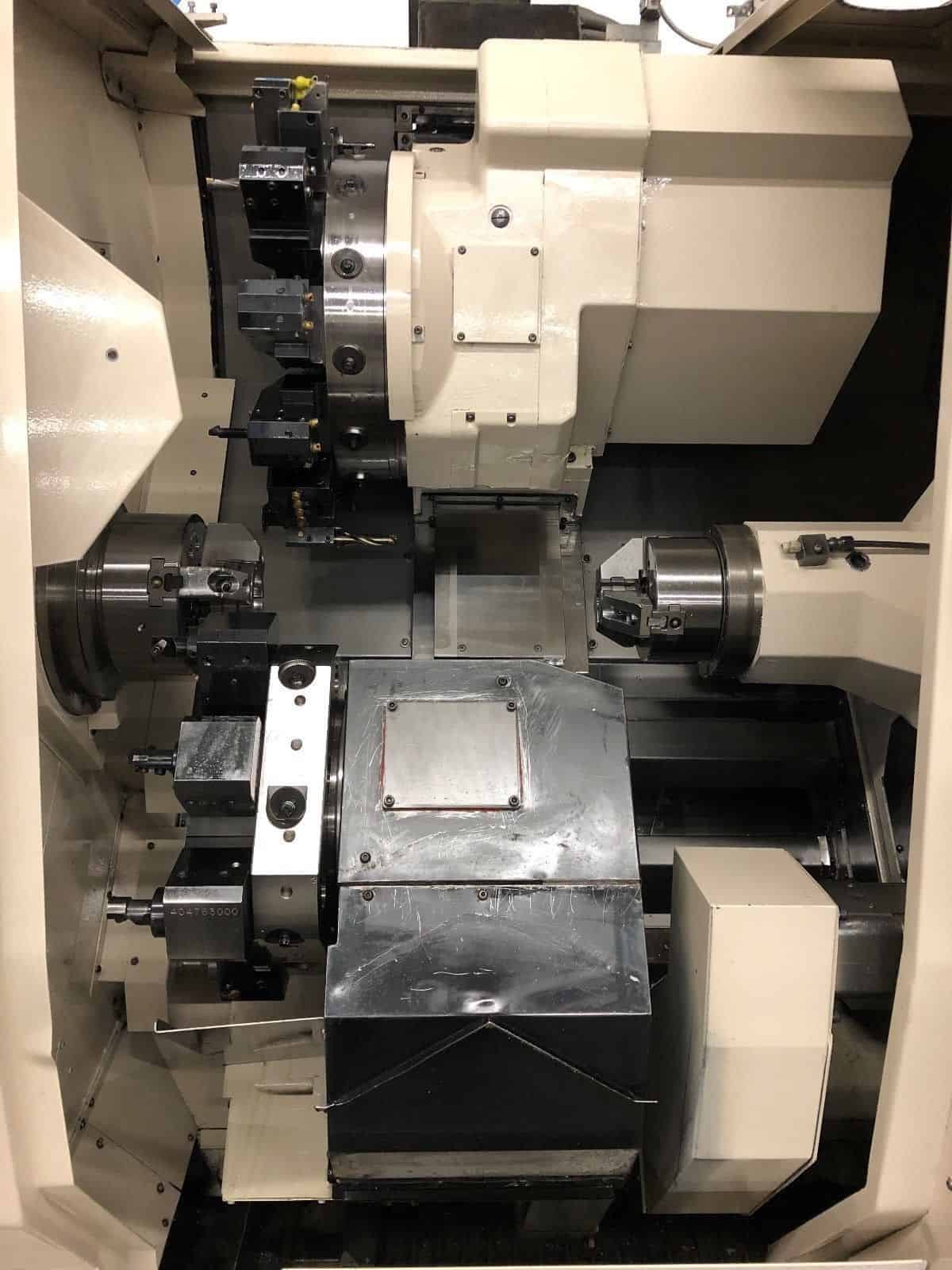

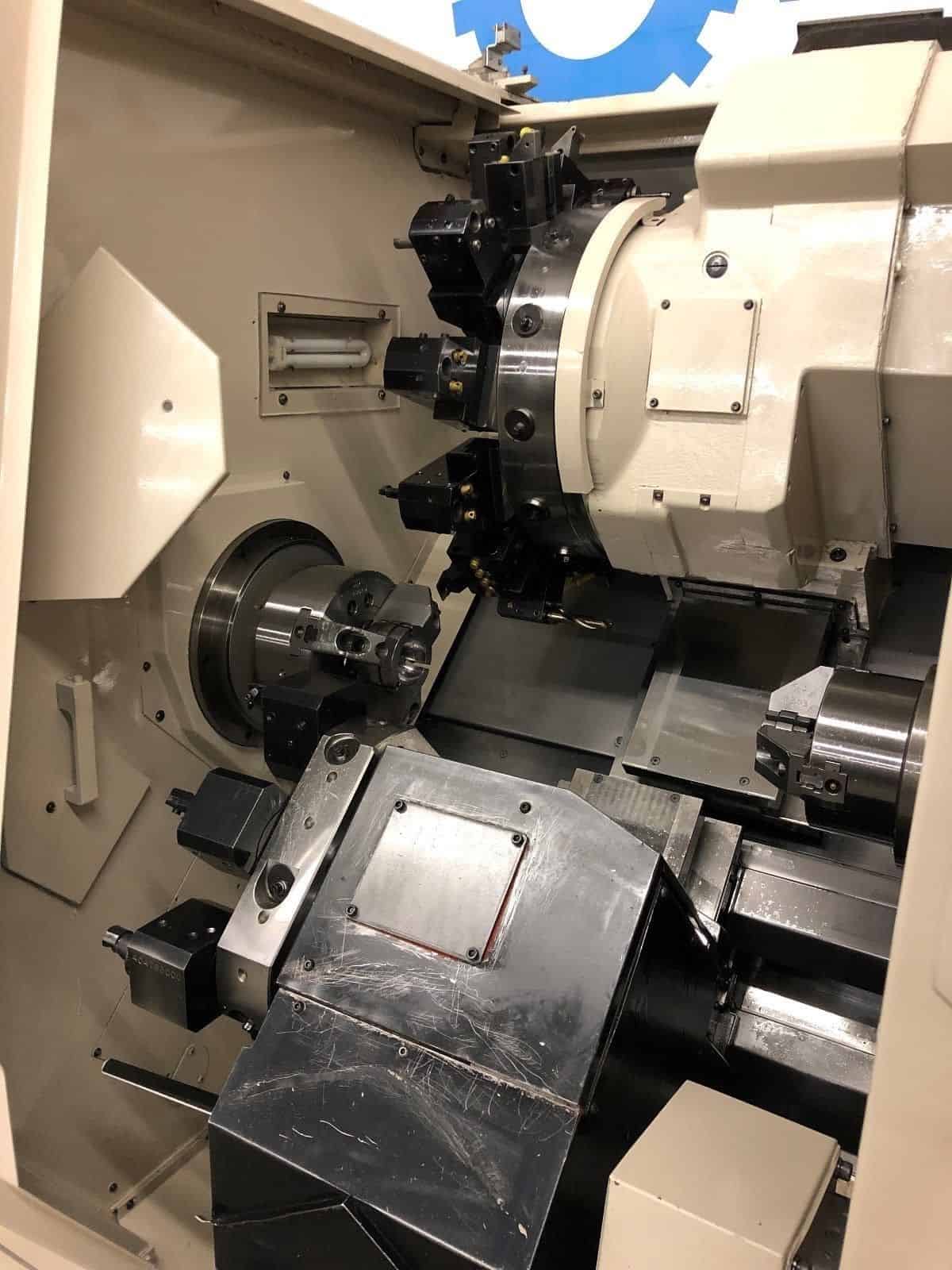

- 12-Station Upper Turret – Live / Rotary Tools8-Station Lower Turret
- Servo Controlled Full C-Axis on Both Spindles
- OSP 7000L CNC Control with IGF
- Floppy Drive
- Tool Presetter
- 8″ Chuck on Main Spindle
- 6″ Chuck on Sub Spindle
- Rigid Tapping on Both Spindles
- Foot Operated Control for Chuck

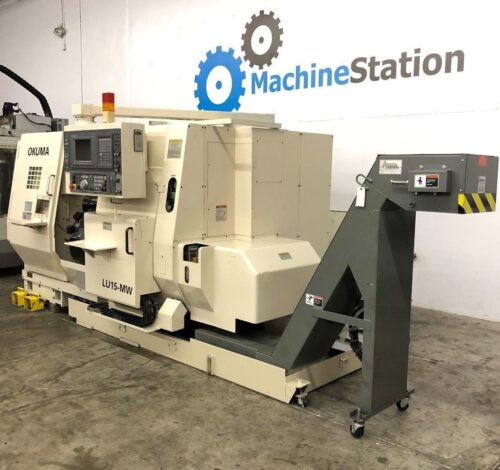

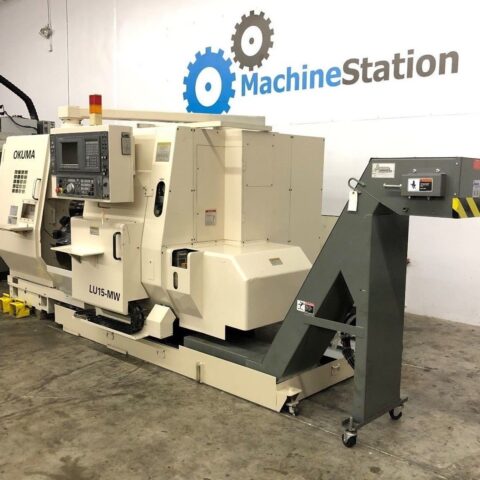

- Chip Conveyor
- Comes with Tool Holders, Chip Conveyor, Books and Manuals
- Okuma LU-15MW Specifications:
- Capacity:
- Max Turning Diameter: 14.17″
- Max Turning Length: 24.37″
- Max Bar Capacity: 2.6″
- Swing Over Bed: 20.87″
- Swing Over Cross Slide: 14.96″
- Travels:
- Upper, X Axis Travel: 10.24″
- Lower, X Axis Travel: 5.51″
- Upper, Z Axis Travel: 25.20″
- Lower, Z Axis Travel: 24.41″
- Sub Spindle, W Travel: 24.21″
- C Axis: 360° (0.001°) Both Spindle
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle:
- Main Spindle Bore: 2.44″
- Sub Spindle Bore: 2.08″
- Main Spindle Nose: A2-6
- Sub Spindle Nose: A2-6
- Main Spindle Speed: 75-4500 RPM
- Sub Spindle Speed: 50-4500 RPM
- Live Tool Speed: 45-4500 RPM
- Main Spindle Power: 30/20 hp
- Sub Spindle Power: 10/7 hp
- Upper Turret Capacity: 12 Live Stations
- Turret Index Time: 0.2 Second
- Lower Turret Capacity: 8 Stations
- General:
- Power: 35 kva, 220v / 3-Phase
- Overall Dimensions: 130″ x 67″ x 72″ High
- Overall Dimensions: 146″ x 62″ x 72″ High with Chip Conveyor
- Weight: 12,500 lbs

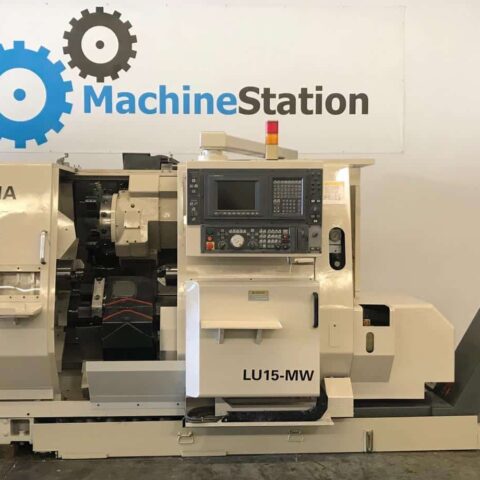

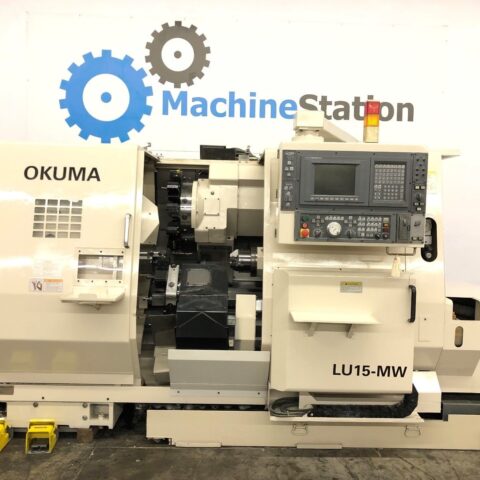

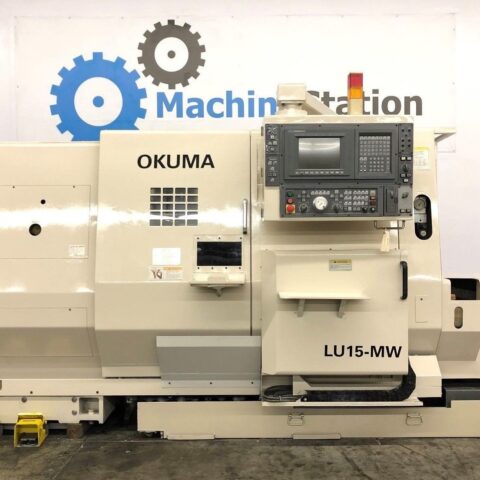

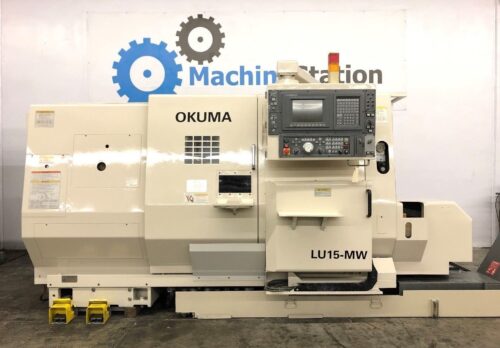

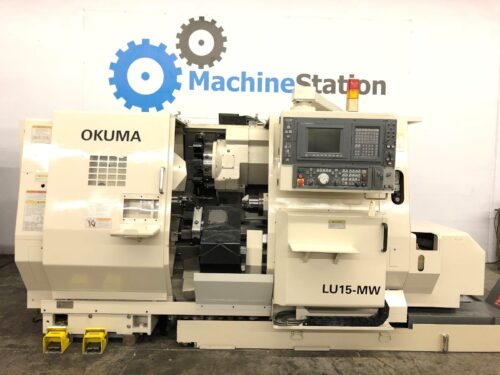

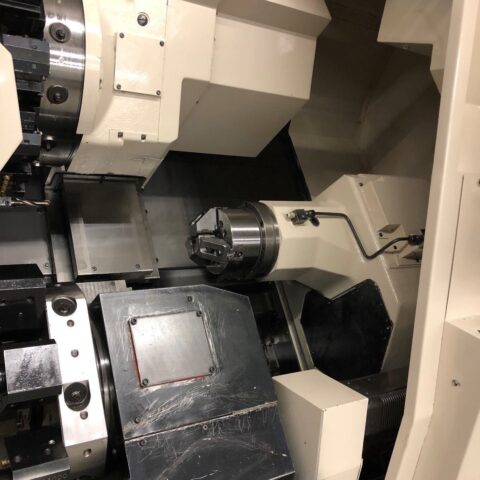

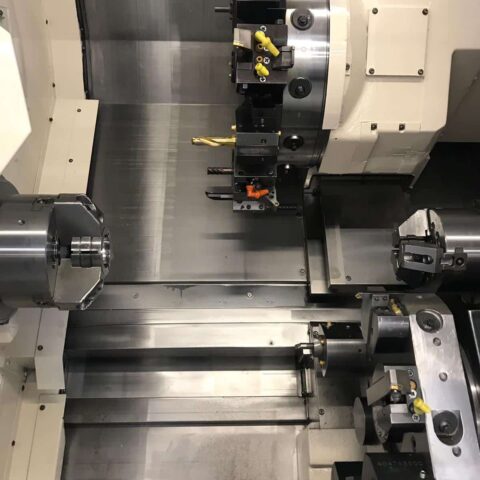

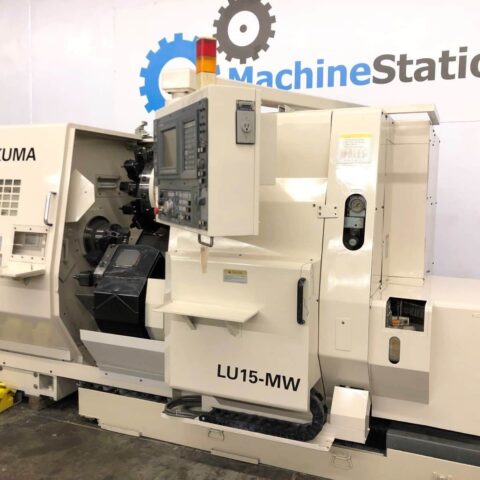

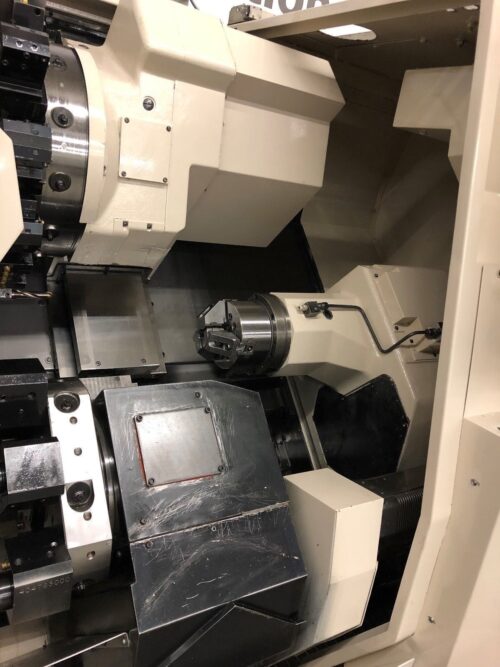

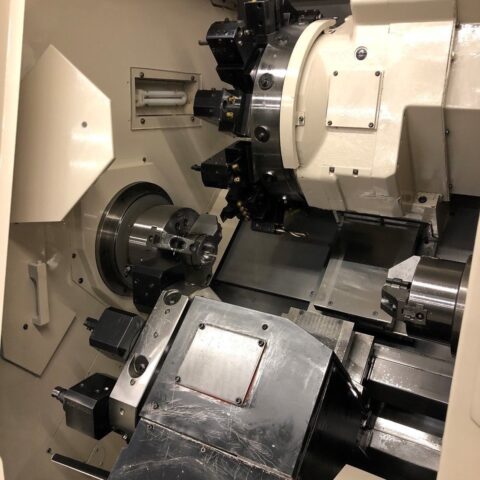

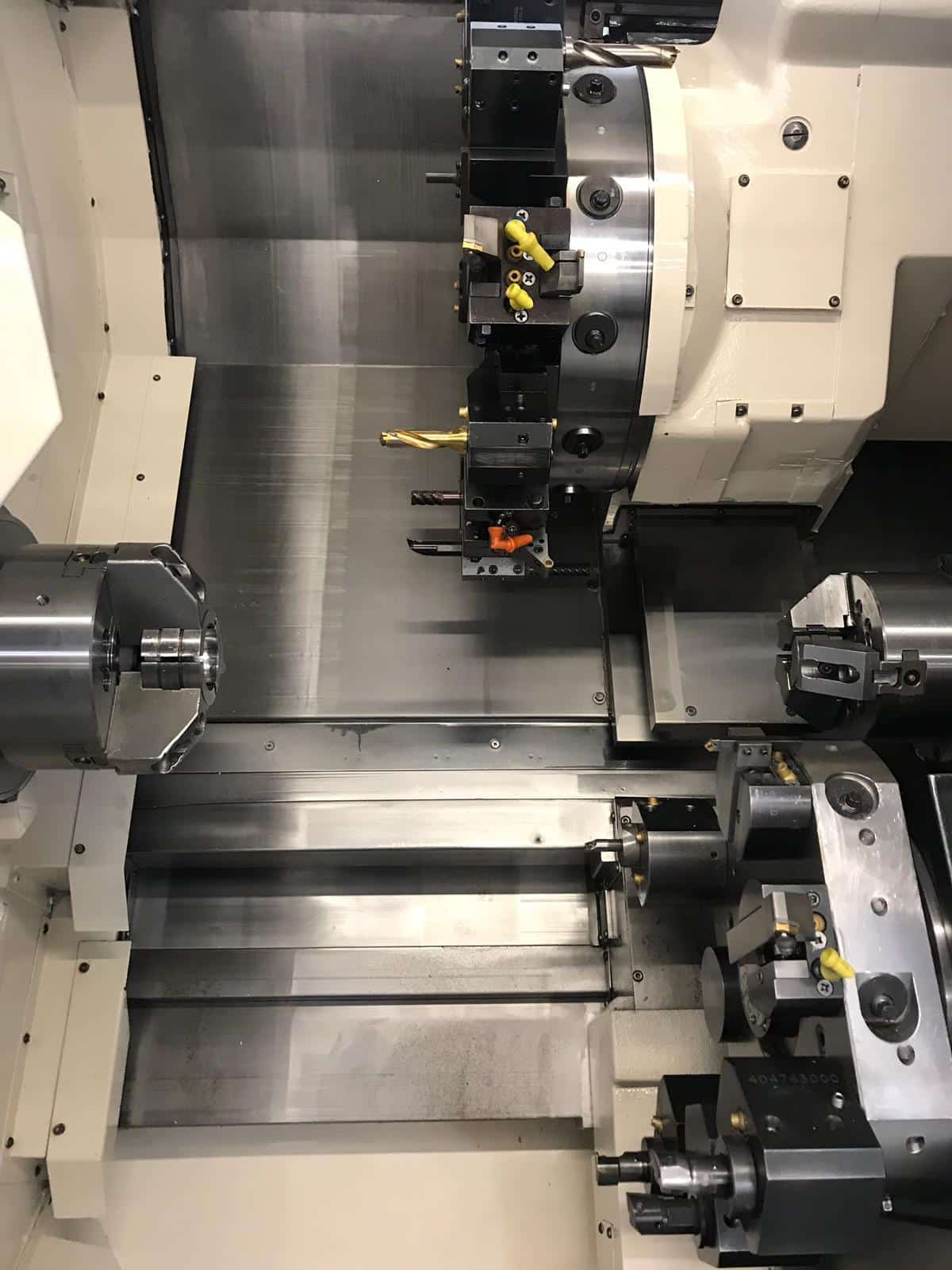

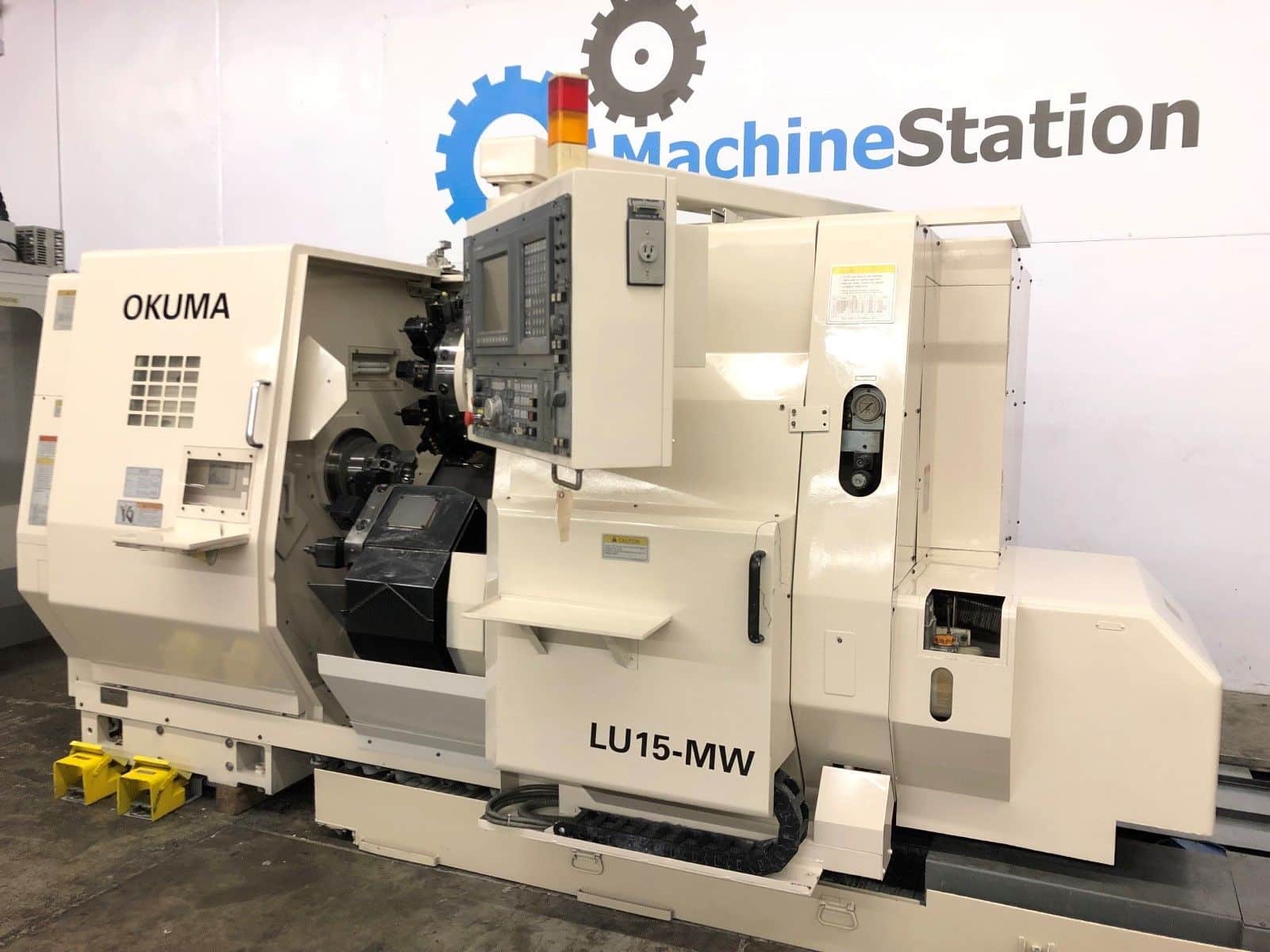

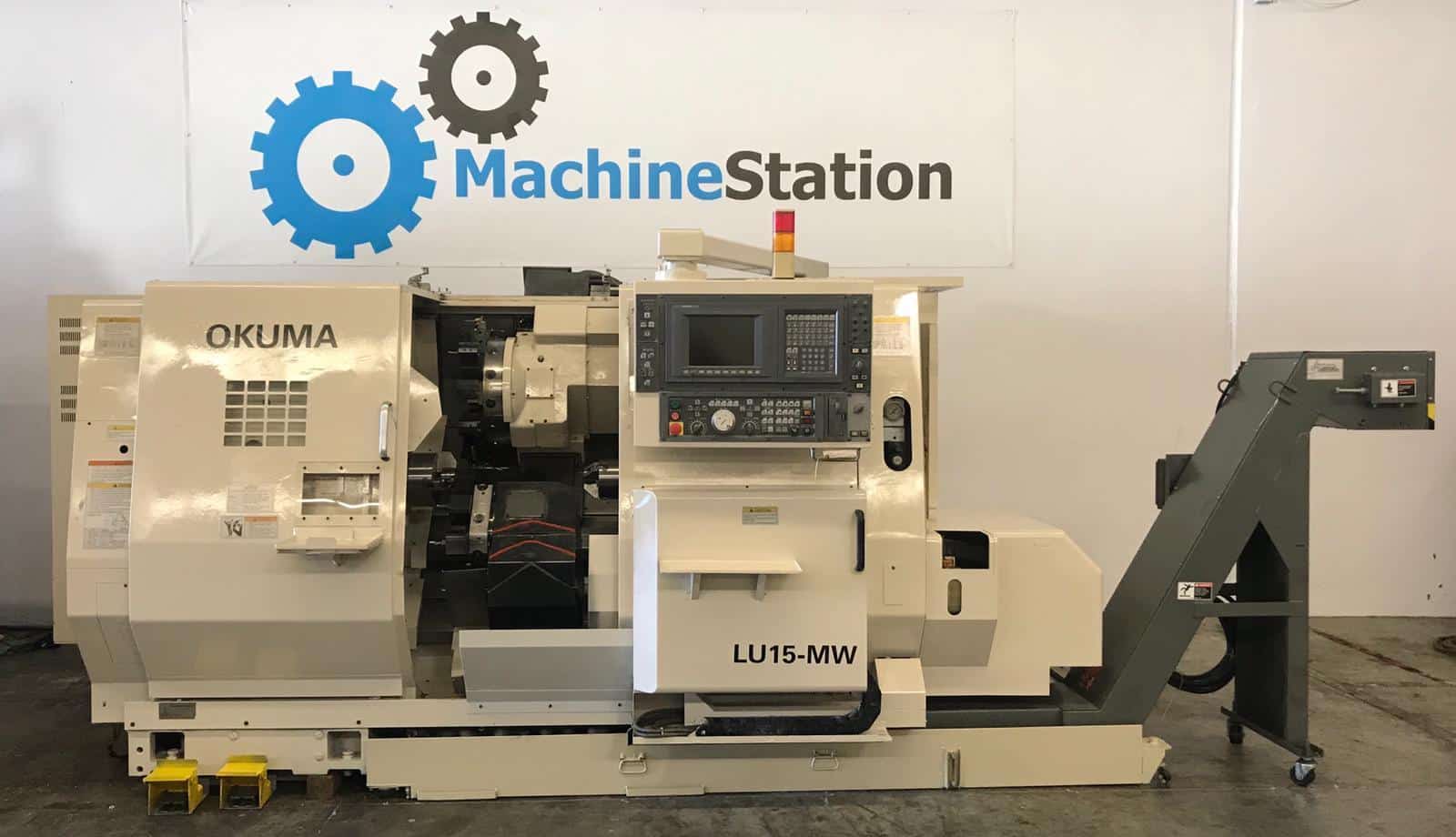

Okuma LU-15MW Comes as shown in pictures..
