*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

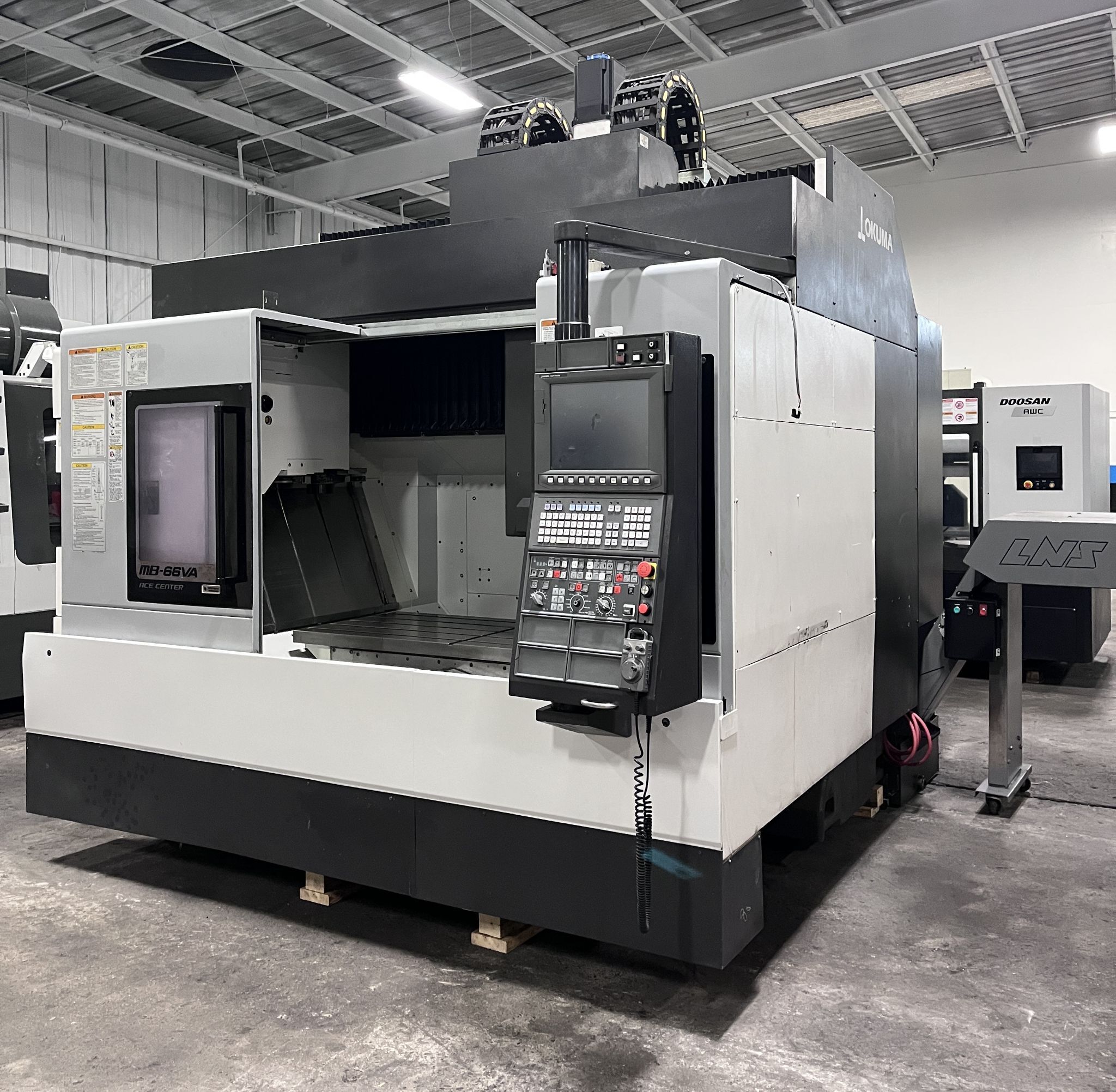

| Make: | Okuma |

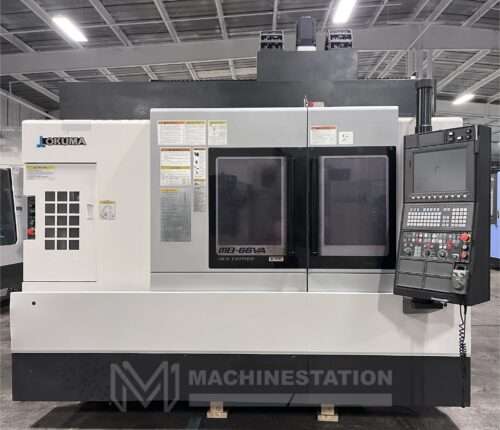

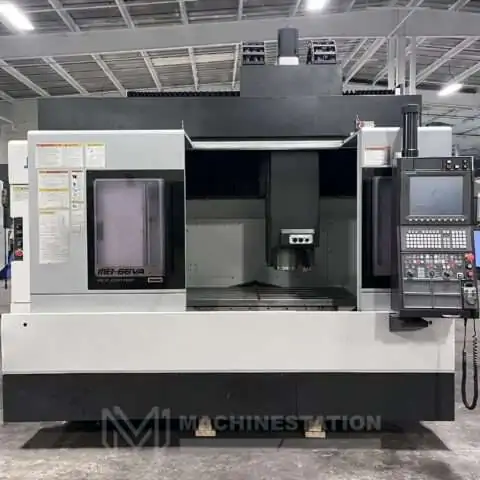

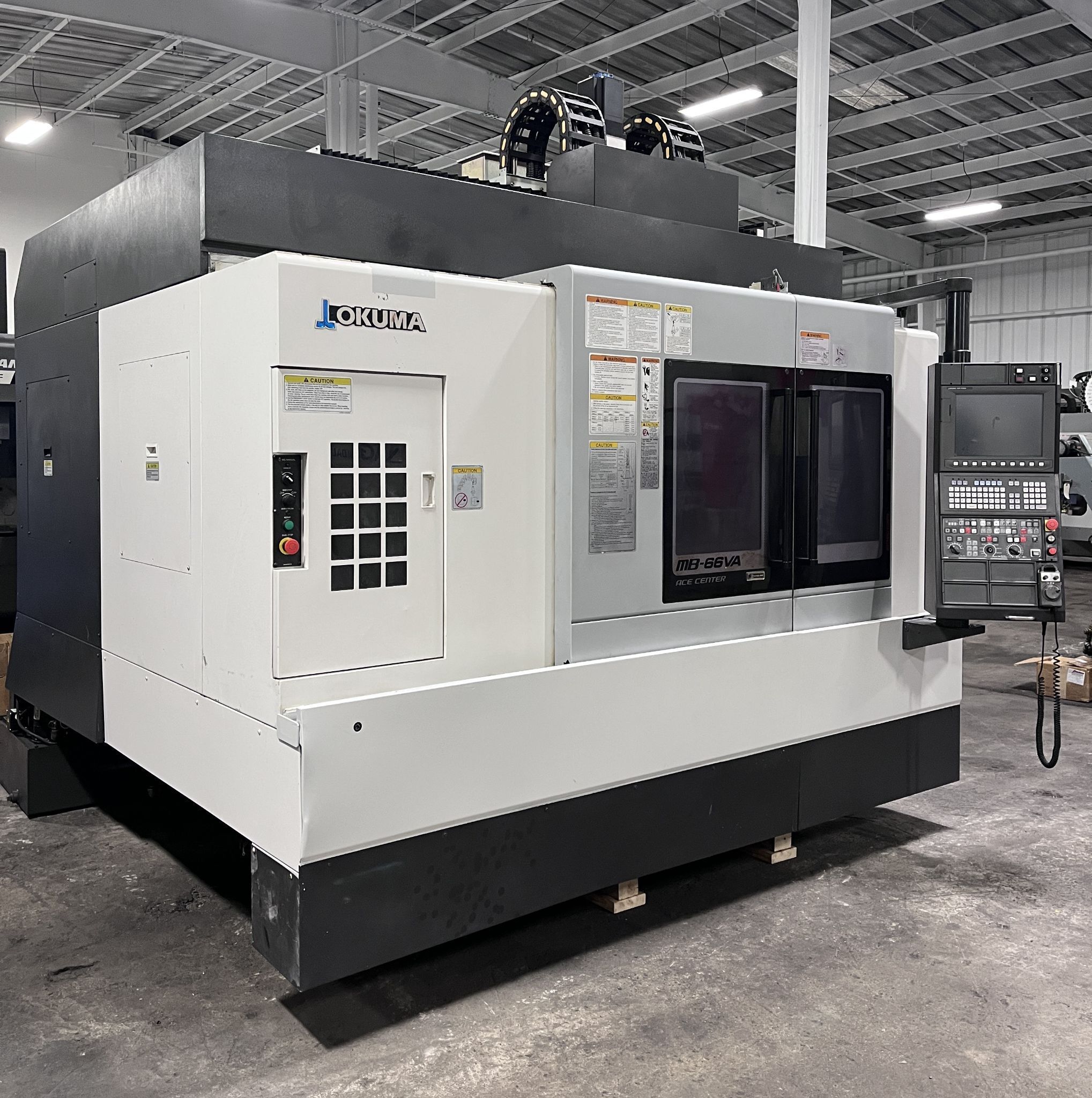

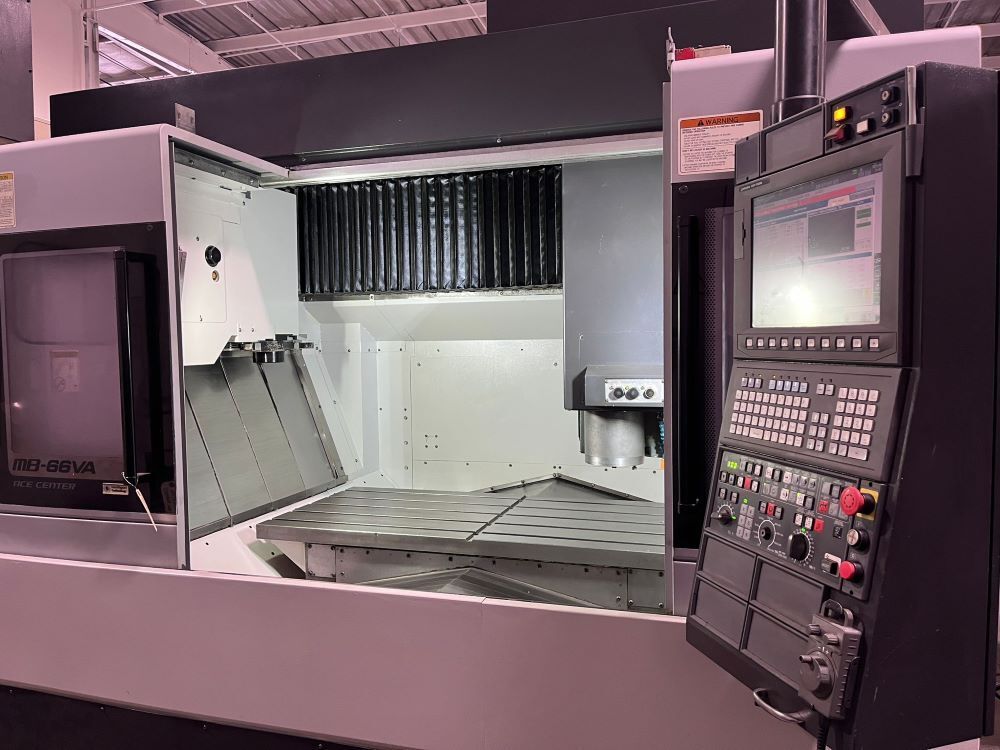

| Model: | MB-66VA |
| Year: | 2013 |
| Condition: | Used – Good |
| Features: |
|---|

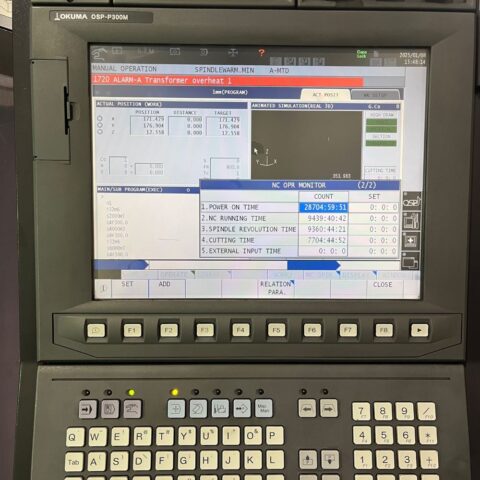

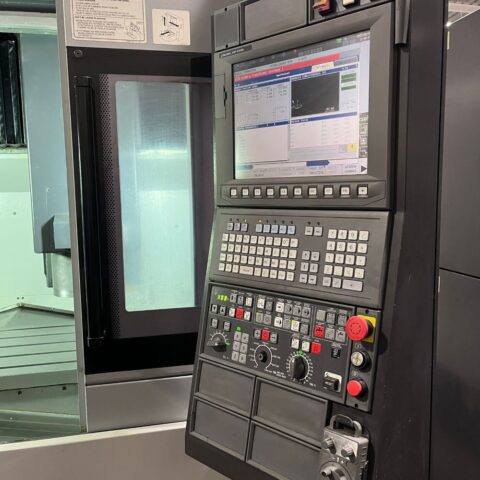

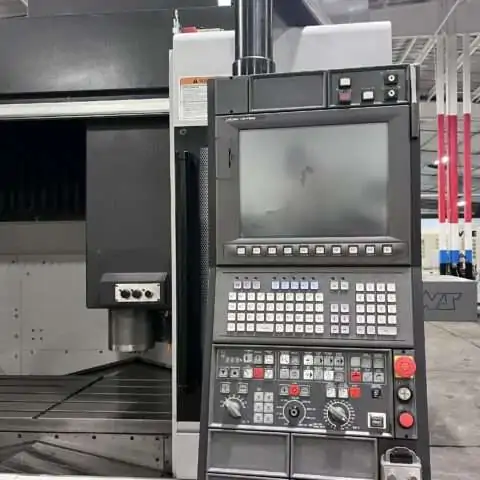

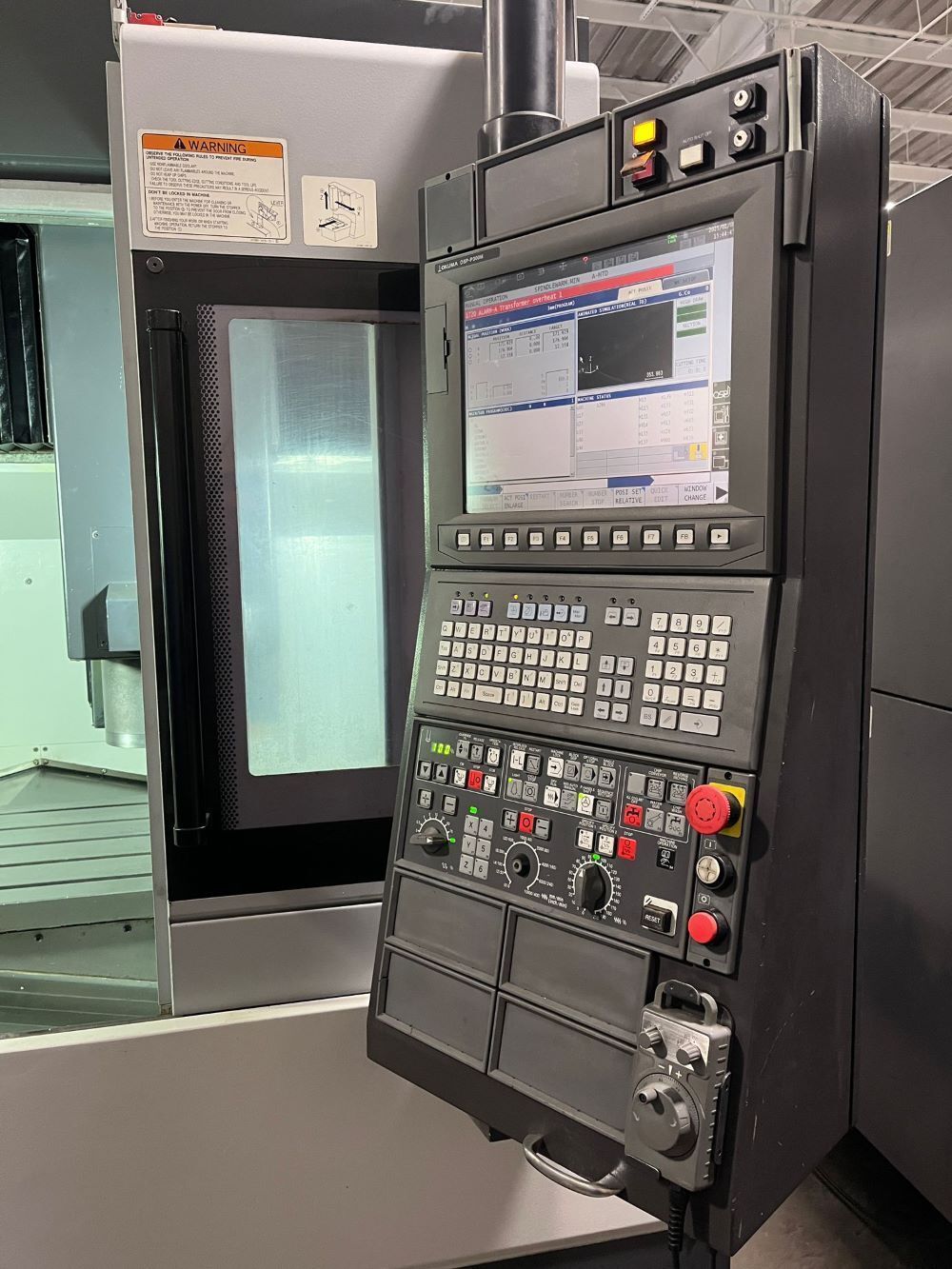

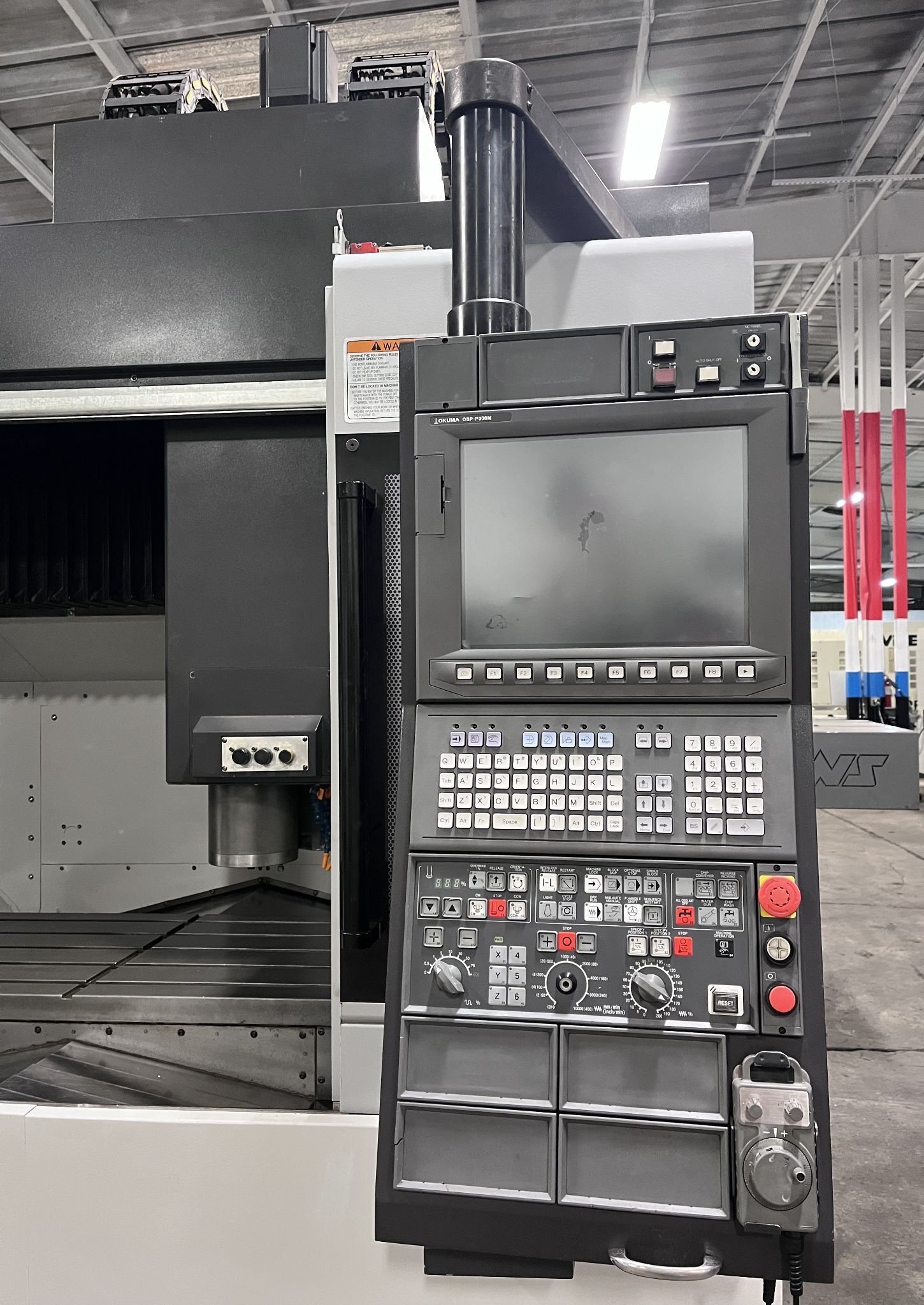

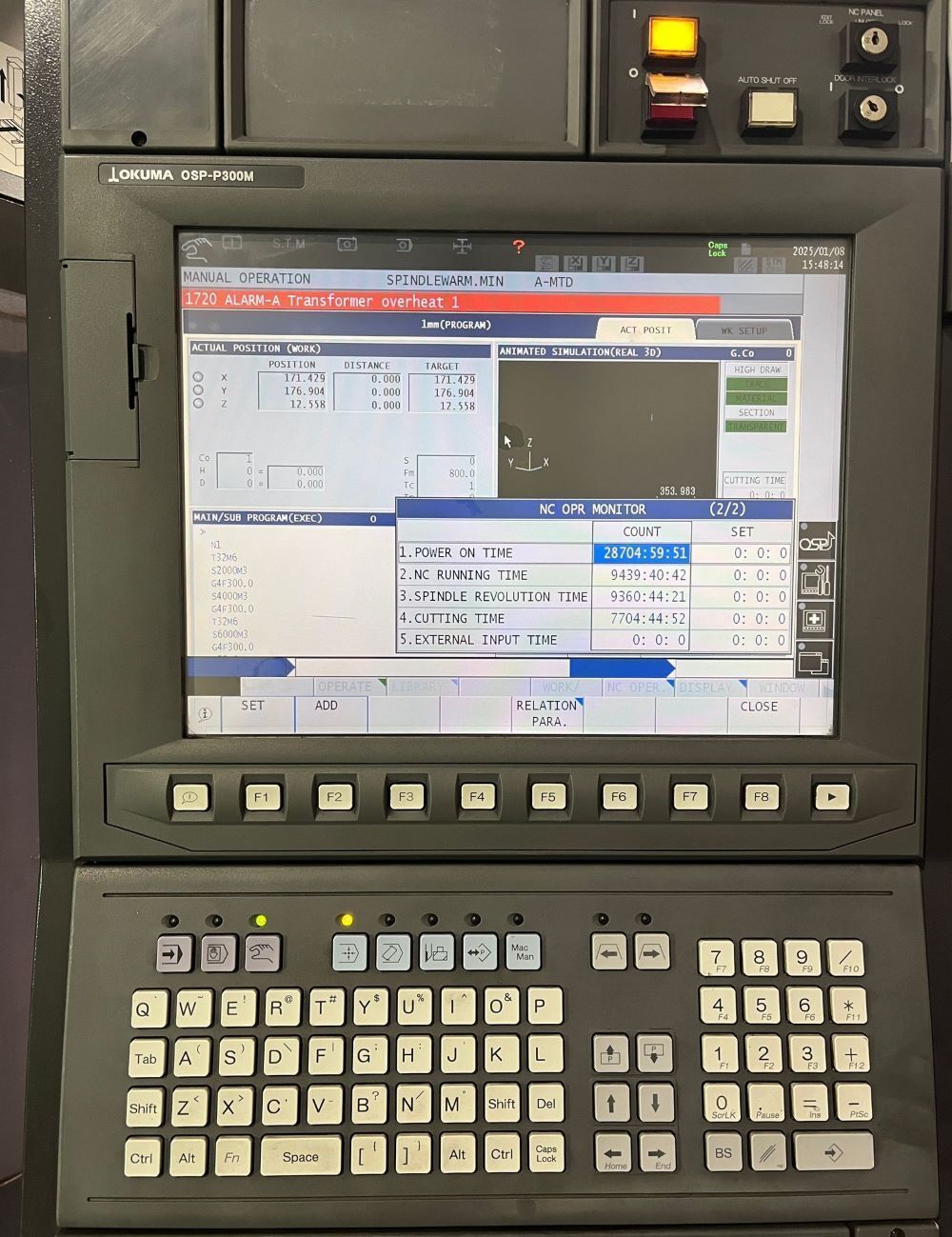

| Okuma OSP-P300M CNC Control |

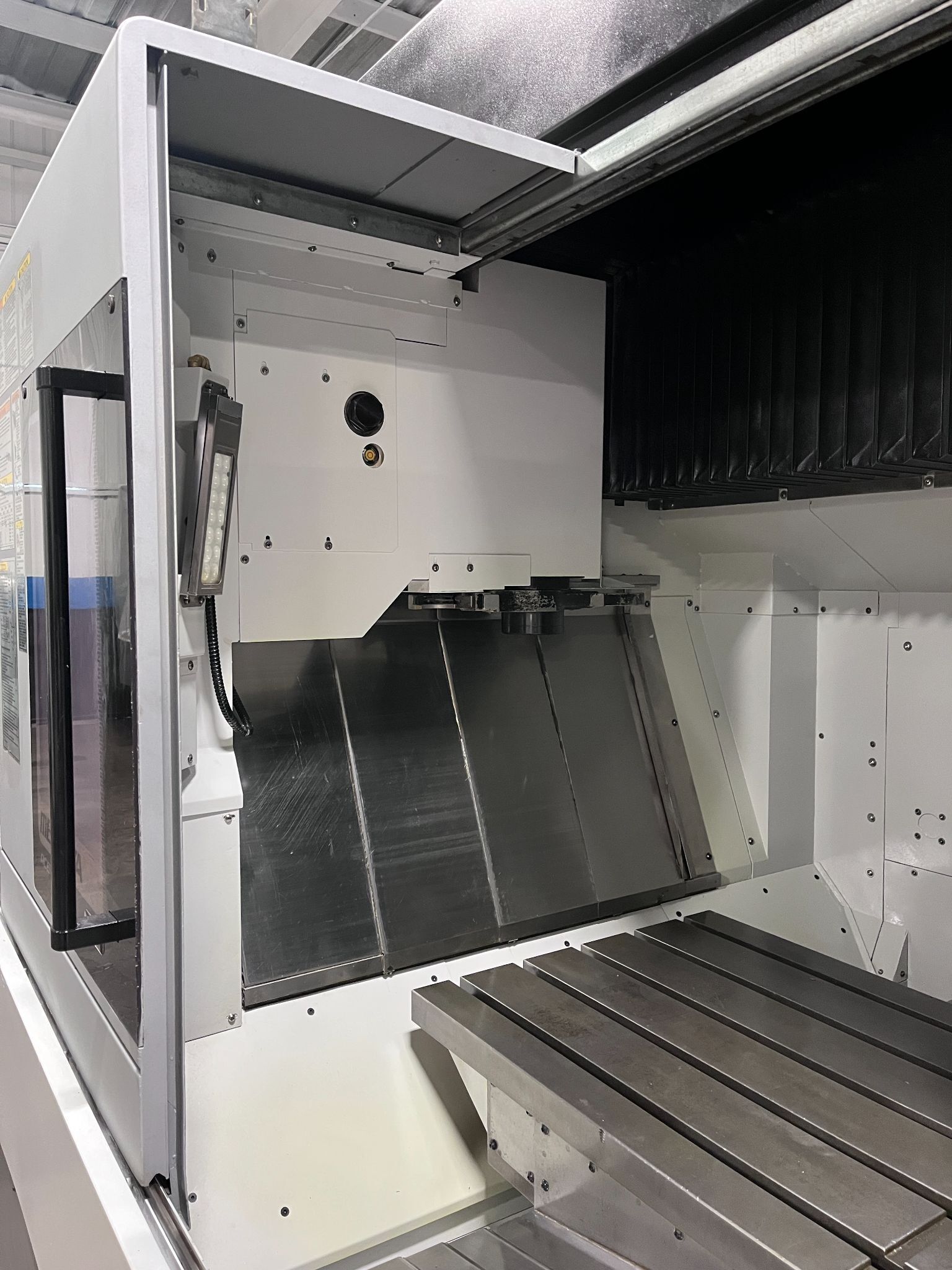

| Box Way Construction |
| 15,000 RPM High Speed Spindle |
| Through Coolant Spindle |

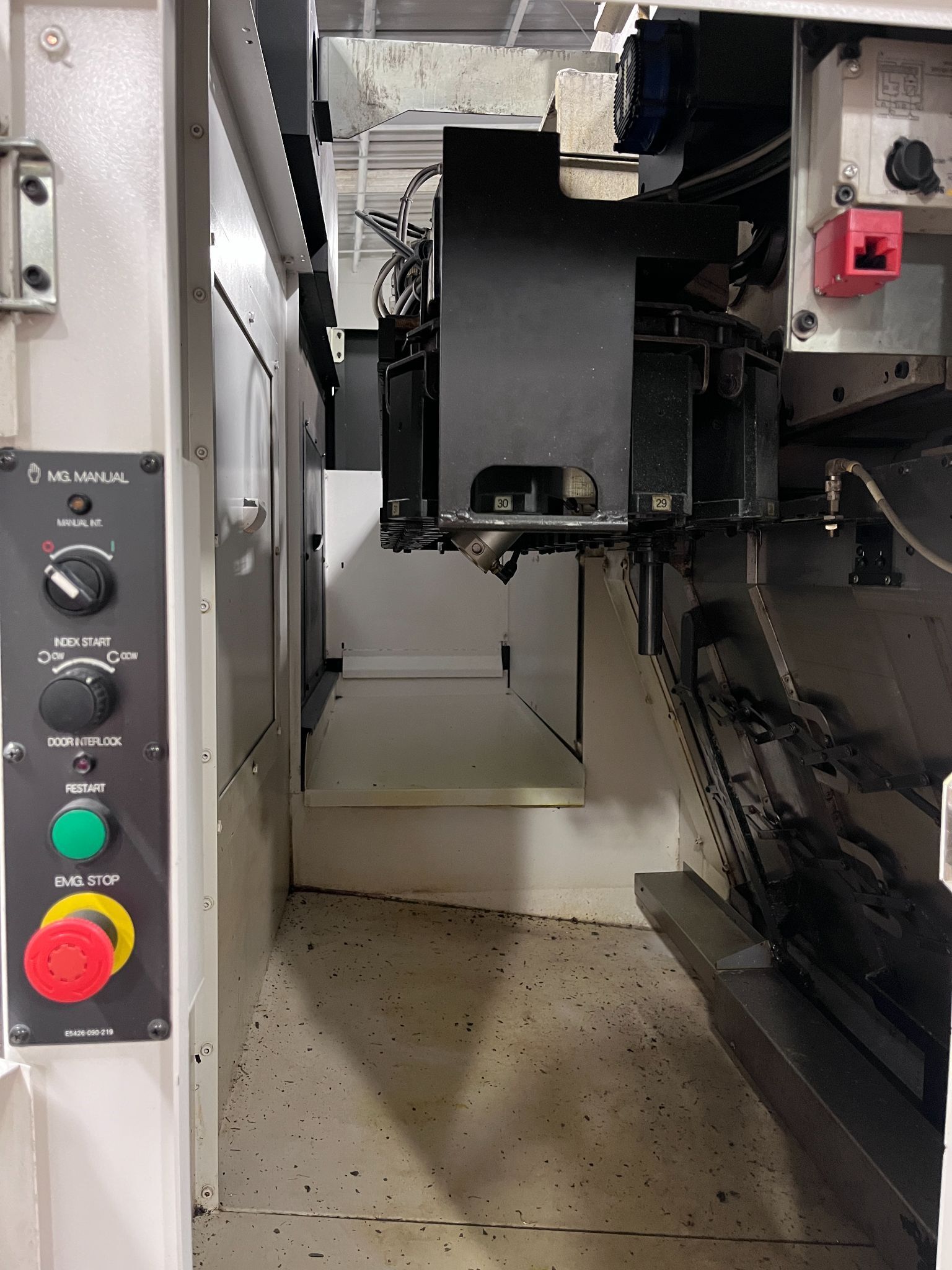

| 30 Station Automatic tool changer |
| 40 Taper Spindle |

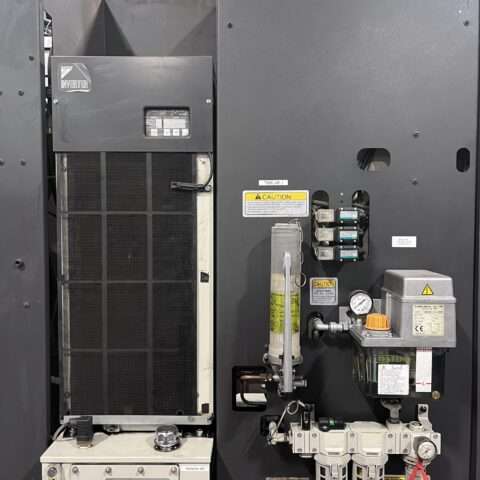

| Spindle Chiller Unit |
| PCMCIA Card Slot |
| MPG Control |
| Rigid Tapping |
| Flood Coolant System |
| Telescopic Way Covers |

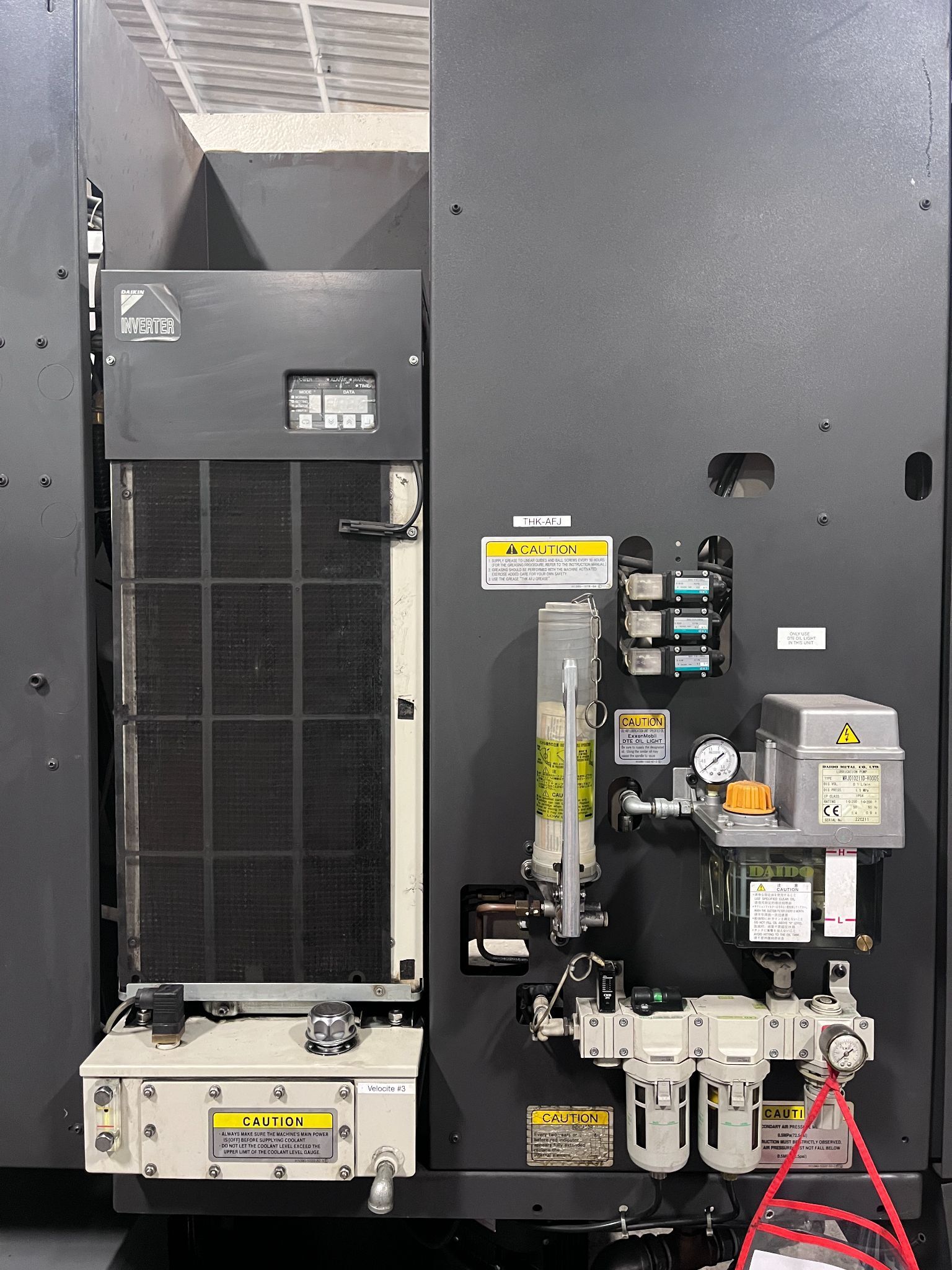

| Automatic Lubrication System |

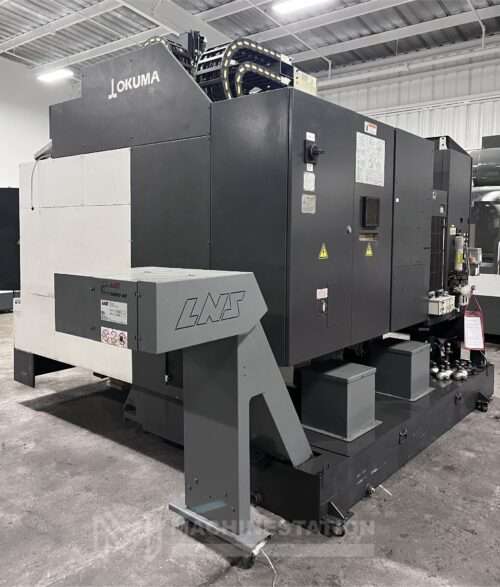

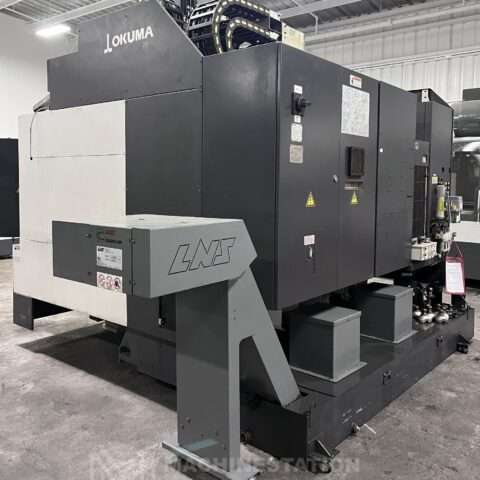

| Chip Conveyor |

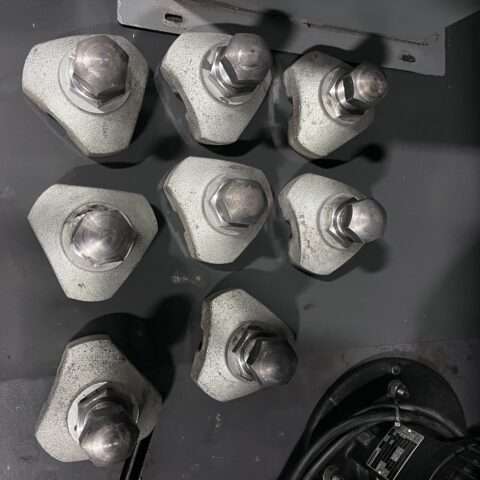

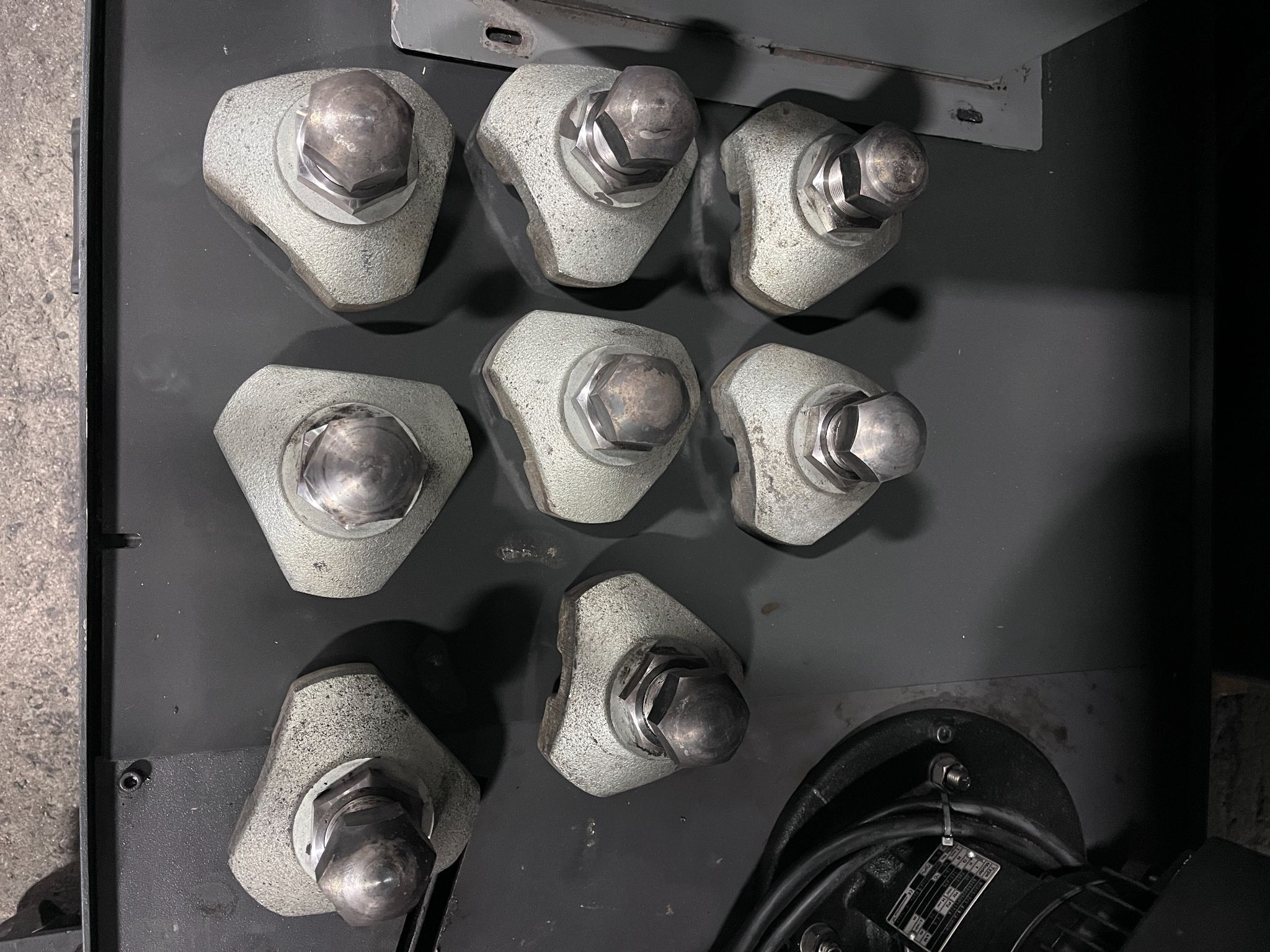

| Levelling Pads |
| Travels: |
|---|
| X-Axis: 59.06″ |
| Y-Axis: 25.98″ |
| Z-Axis: 25.98″ |
| X, Y Axis Rapid Traverse rates: 1575 IPM |
| Z Axis Rapid Traverse rates: 1260 IPM |
| Cutting Feedrate: 1260 IPM |

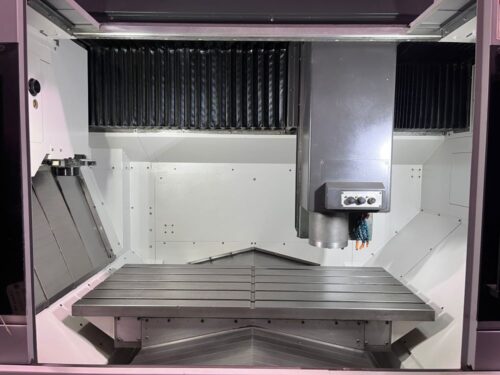

| Spindle Nose to Table (Min.- Max.): 5.91″ – 31.89″ |

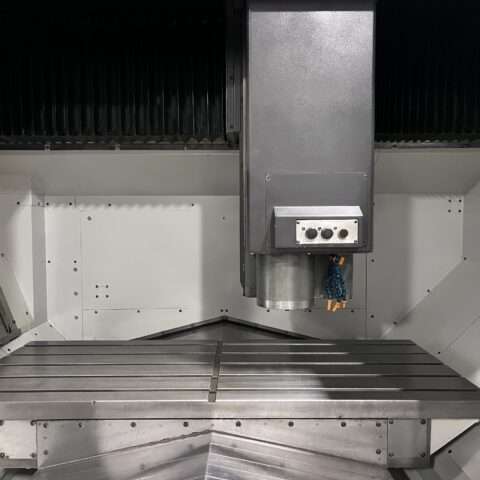

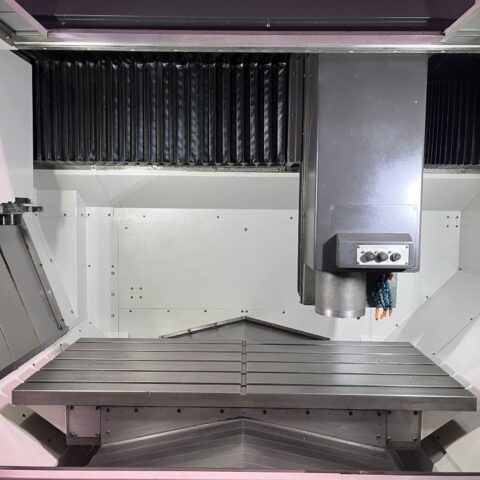

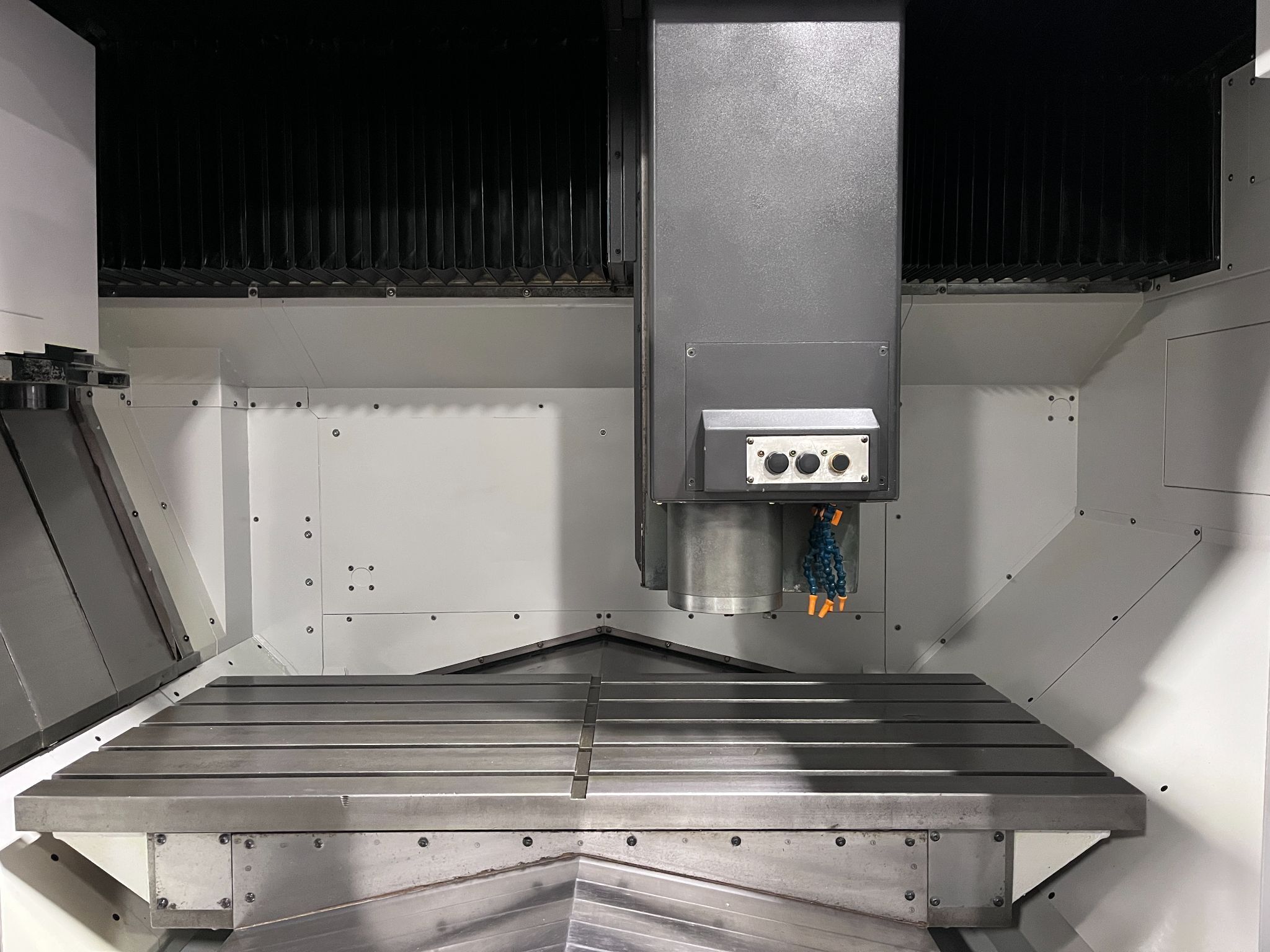

| Table: |
|---|
| Length: 60.24″ |
| Width: 25.98″ |
| T-Slot no. & Width: 5 X 0.7″ |
| Max Weight on Table: 3300 lbs |

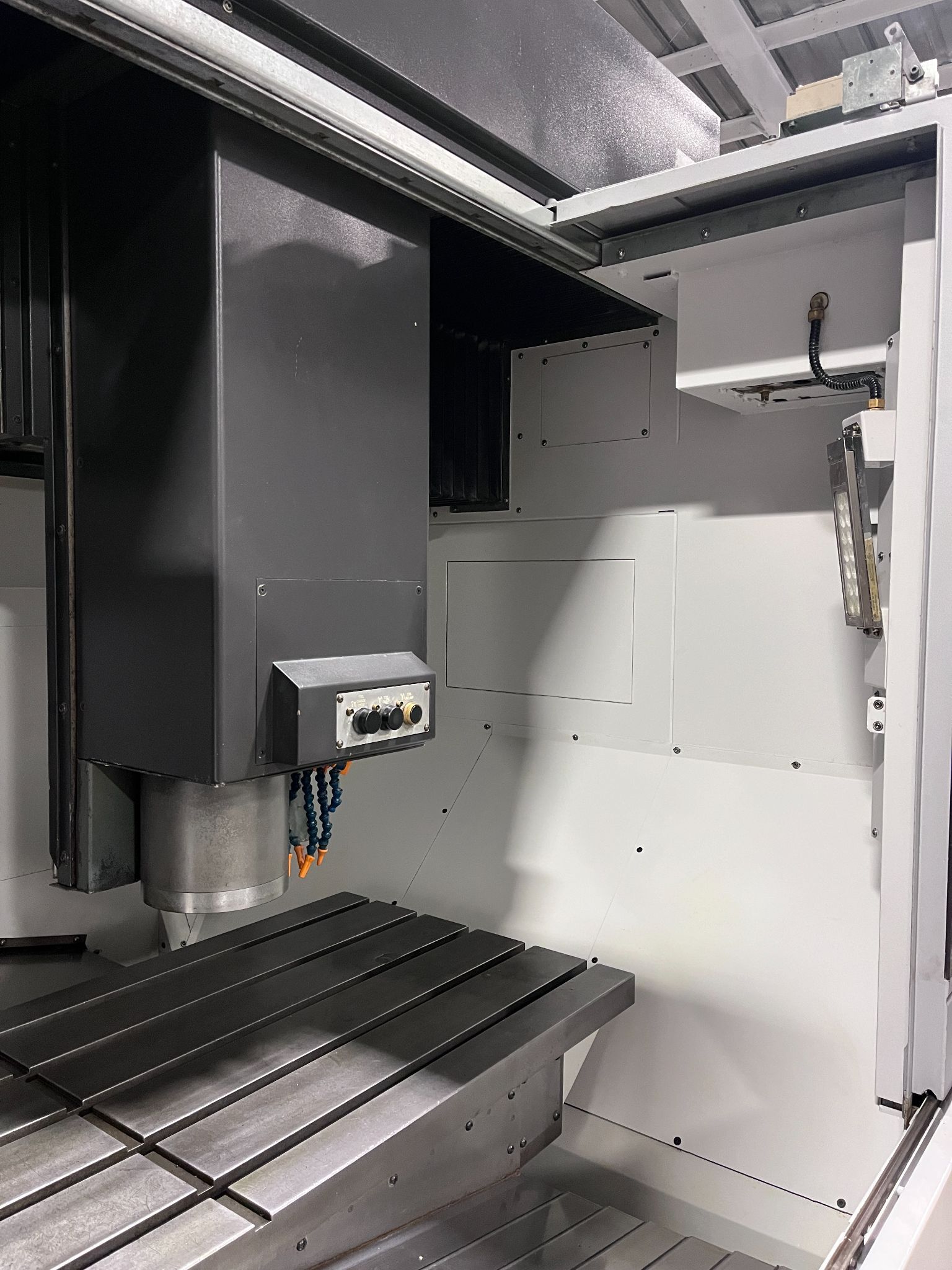

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 15,000 RPM |
| Spindle Power: 30 HP |

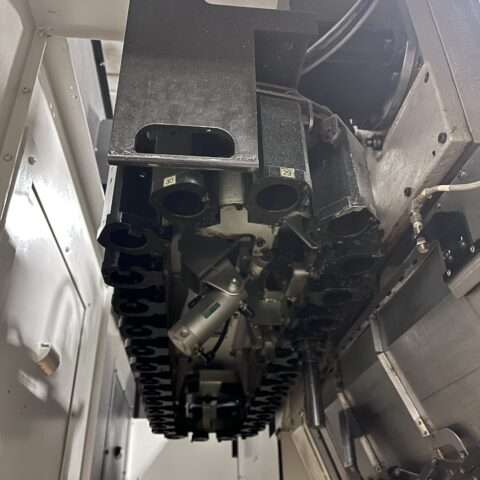

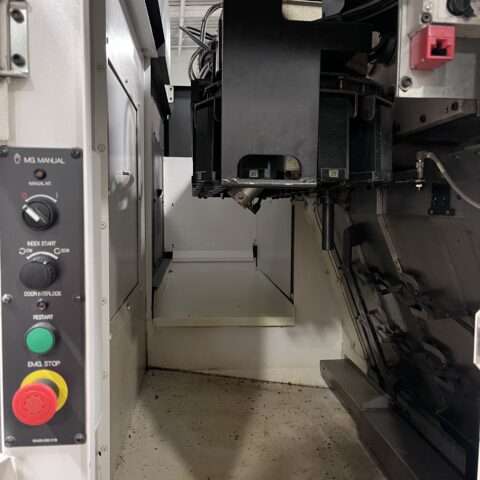

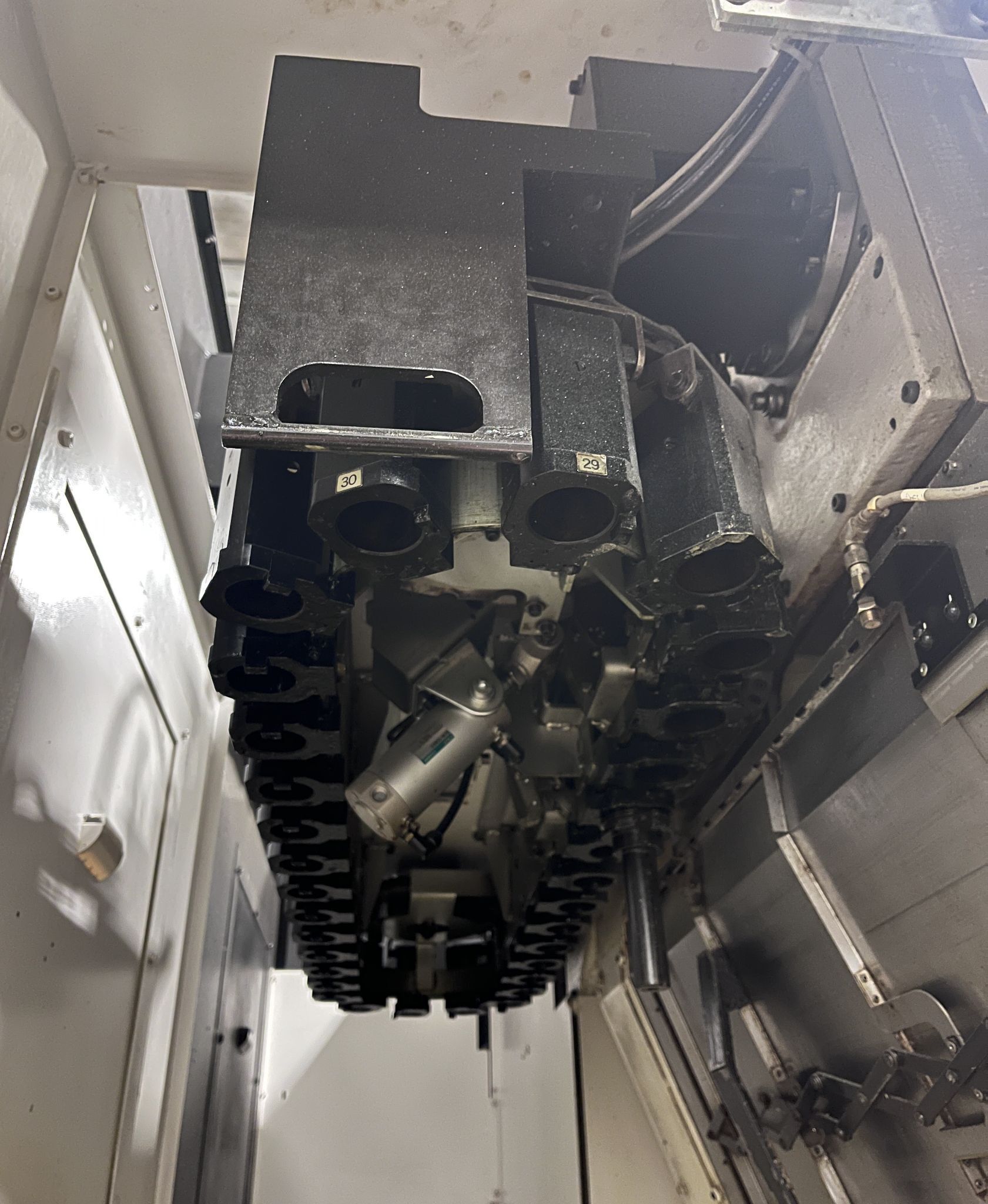

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 33 lbs |
| Max Tool Length: 11.81″ |
| Max Tool Diameter: 4.92″ |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |

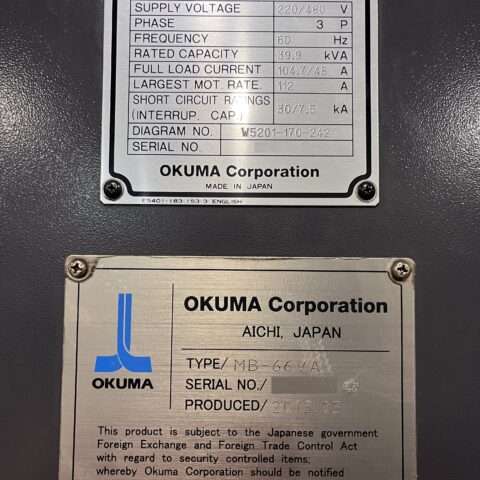

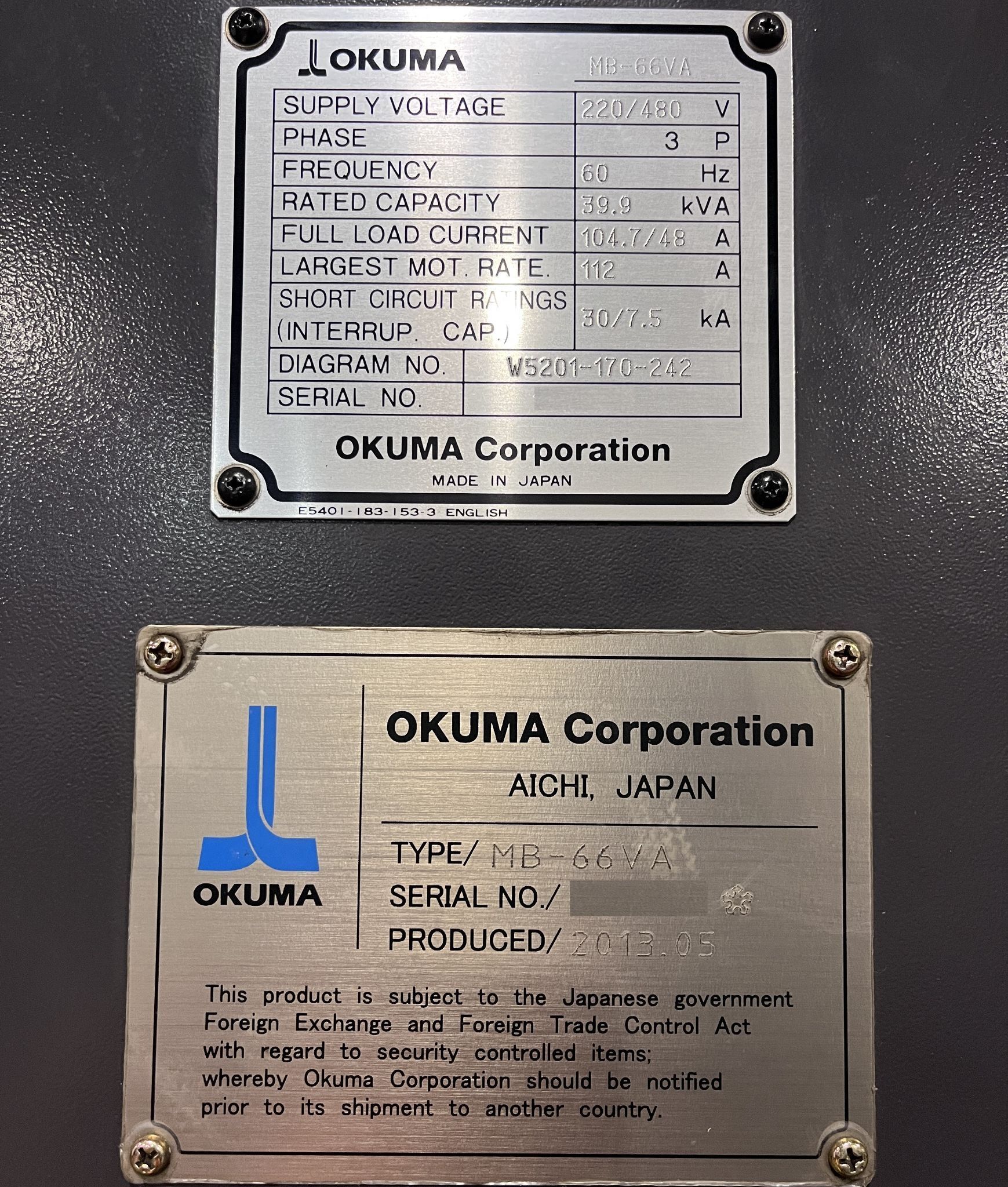

| Power: 205-220v / 40kva / 3-Phase |
| Overall Dimensions: 119″ x 131″ x 130″ High |
| Weight: 24, 640 lbs. Approx. |
