*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

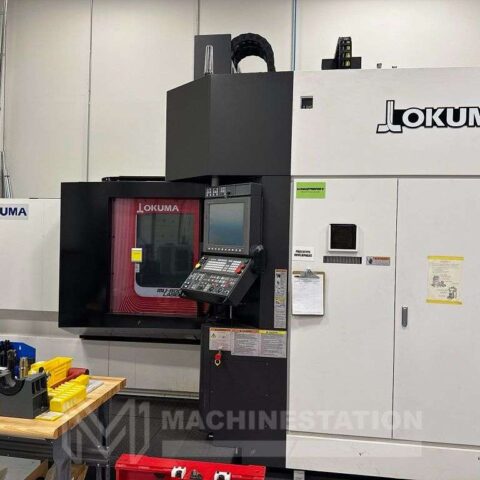

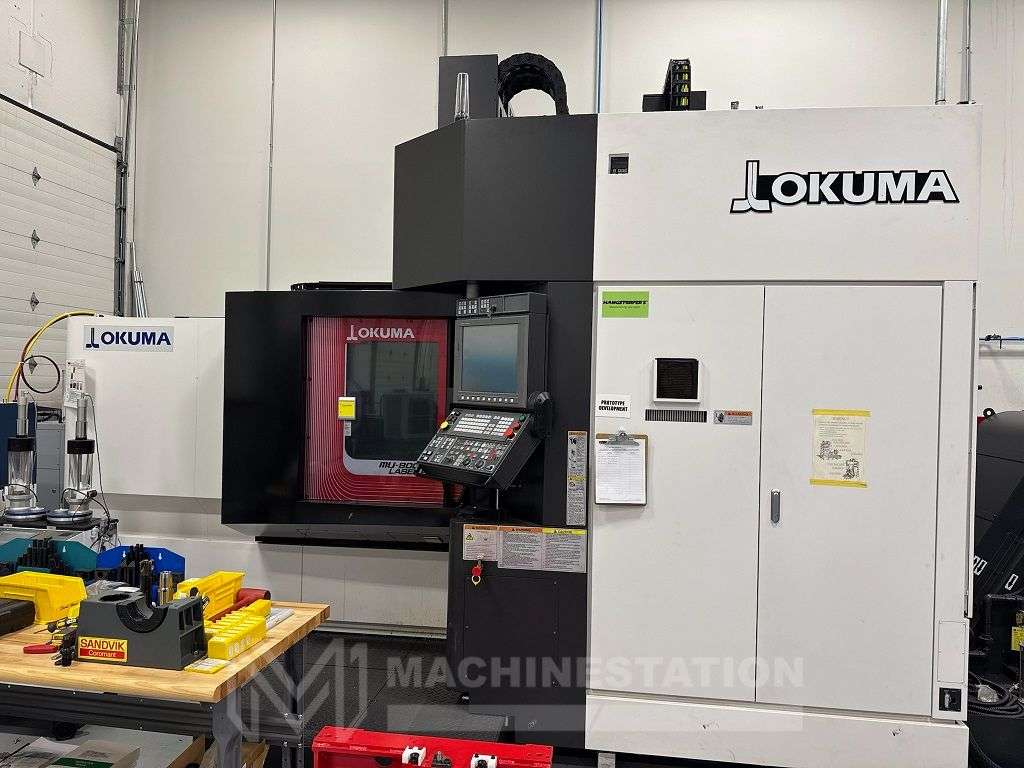

| Make: | Okuma |
| Model: | MU-8000V-L |
| Year: | 2017 |
| Features: |
|---|

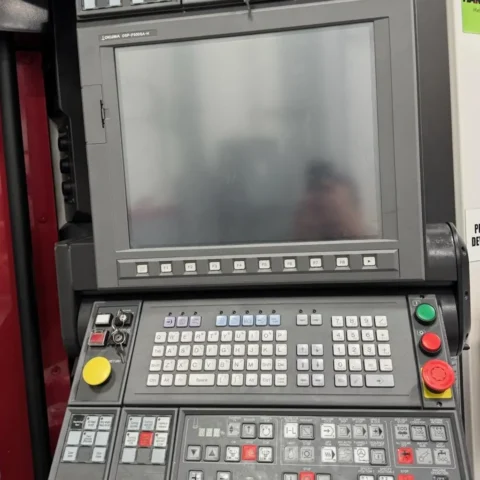

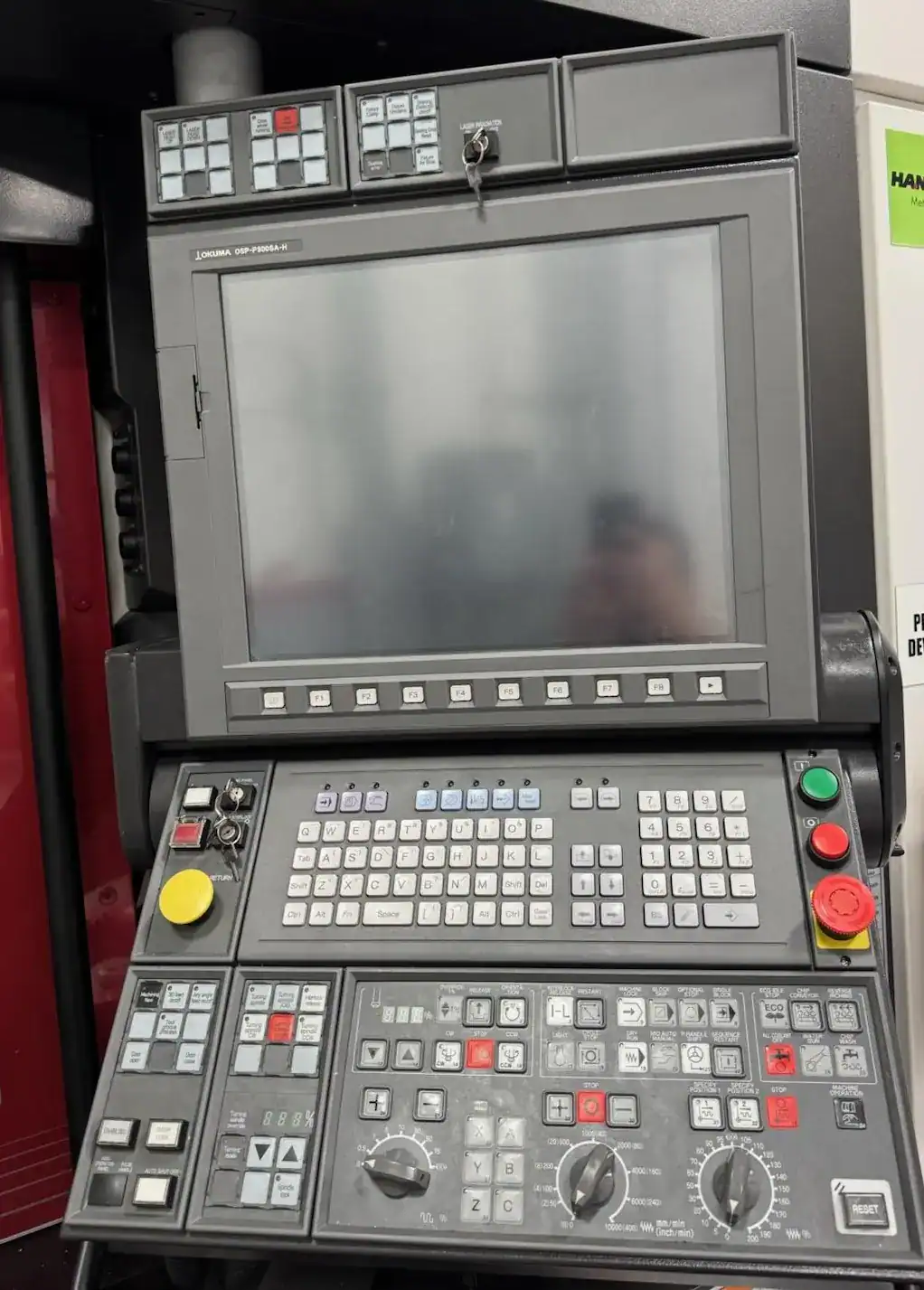

| Okuma OSP-P3005A-H CNC Control |
| 5 Axis Simultaneous Machining |

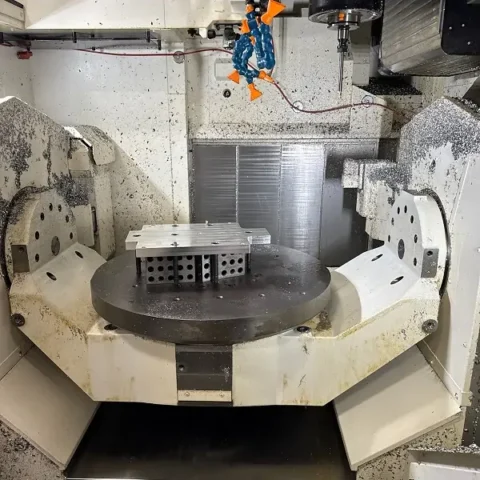

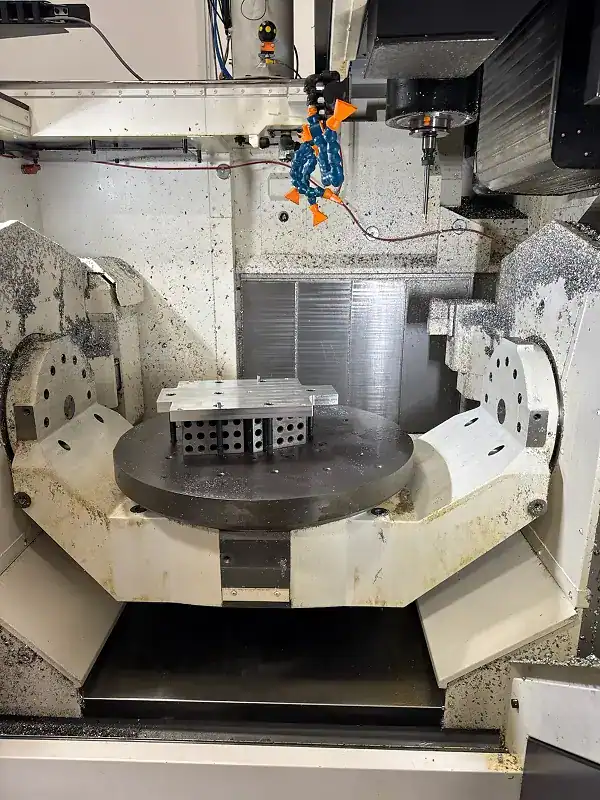

| Programmable Swiveling Trunnion Table |
| 15,000 RPM High Speed Spindle |
| 48 Station Automatic Tool Changer |
| HSK-A100 Spindle Taper |
| Turning Operation Up to 8,00 RPM on C Axis |
| Blum Tool Break detection |
| Auto Gauging |
| Gear Cutting Pkg |
| Laser Oscillation Device 4KW – TruDisk 4002 |
| Powder Nozzles, Powder Feed unit, Powder Conveyor |
| Chiller for Laser Oscillation Device |
| Dust Proof for Axis |
| Dynamic Fixture Offset |
| Riedel Chiller & Dust Collection |

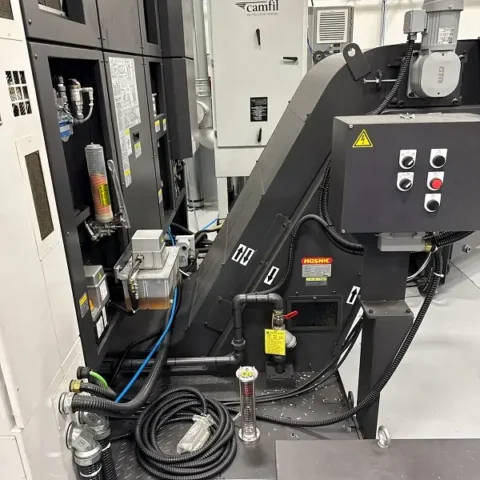

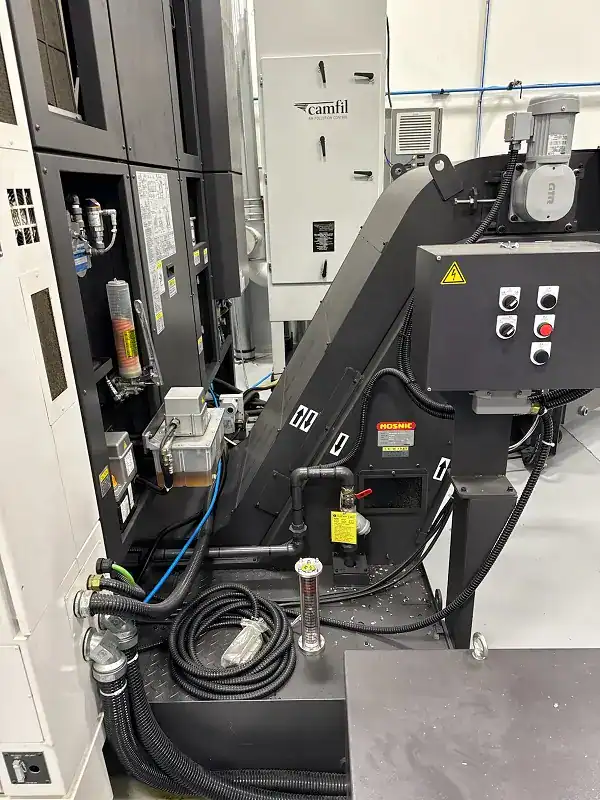

| Chip Conveyor with Right Side Disposal |
| Coolant System |
| Machine Can Be Used With or Without Laser Device |
| Travels: |
|---|
| X – Axis: 36.42″ |
| Y – Axis: 41.34″ |
| Z – Axis: 23.62″ |
| Swivel range (A-axis): + 90 / – 120 Degrees |
| Turning range (C-axis): 360 degrees |
| Distance Between Spindle Nose and Table: 7.87″ – 31.50″ |
| Rapid Traverse Rates X,Y,Z Axis: 1,969 IPM |
| Max Cutting Feedrate X,Y,Z Axis: 1,969 IPM |
| Rotary Table: |
|---|
| Table Size: ⌀ 31.50″ |
| Workpiece Diameter: ⌀ 31.50″ |
| Workpiece Height: 21.65″ |
| Max Weight on Table: 1540 lbs |
| Turning Table Speed: 800 RPM |
| Spindle: |
|---|
| Taper Size: HSK-A100 |
| Speed Range: 15,000 RPM |
| Spindle Power: 35 hp |
| Automatic Tool Changer |
|---|
| Capacity: 48 Tools |
| Taper: HSK-A100 |
| Max Tool Size: 5.98″ x 15.75″ |
| Max Tool Weight: 26.4 lbs. |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 60 Hz / 3-Phase |
| Overall Dimensions: 208″ x 118″ x 143″ High |
| Machine weight: 40,920 lbs. Approx. |
