Okuma Simulturn LU-400 2SC/650 CNC Turning Center

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”



Share

Description

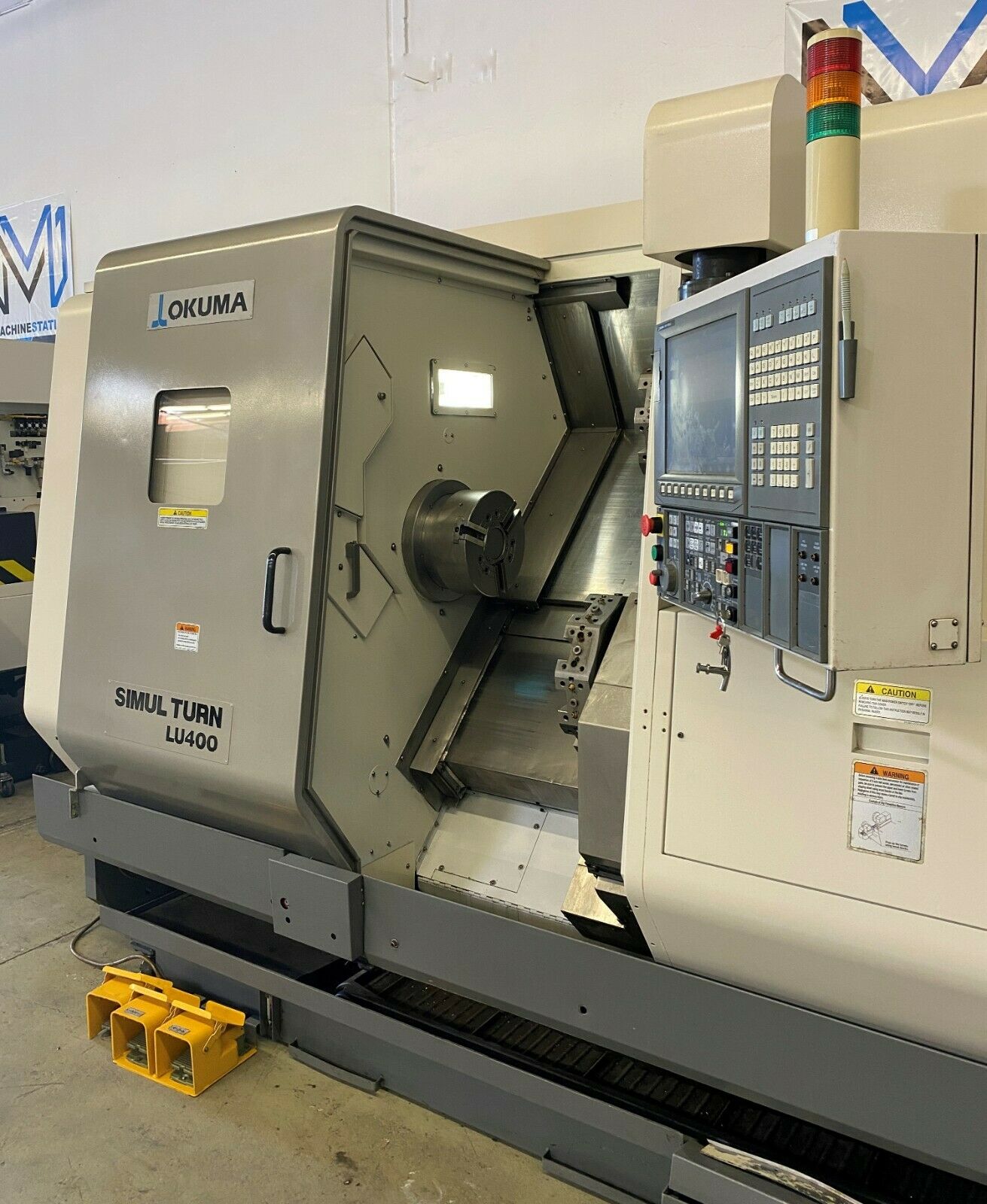

OKUMA SIMULTURN LU-400 2SC/650 CNC TURNING CENTER
Make Okuma
Model No. SimulTurn LU-400 2SC/650
Year 2011/09 ( Sold 2012 )

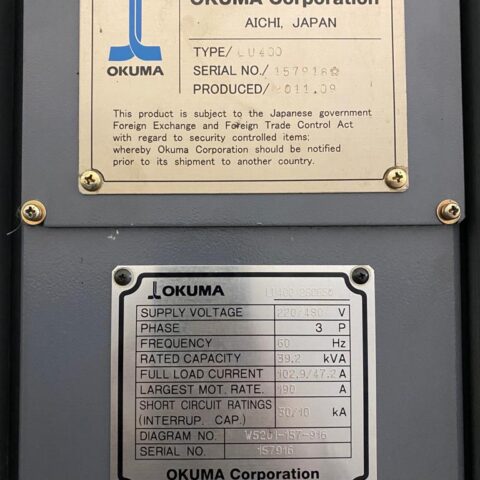

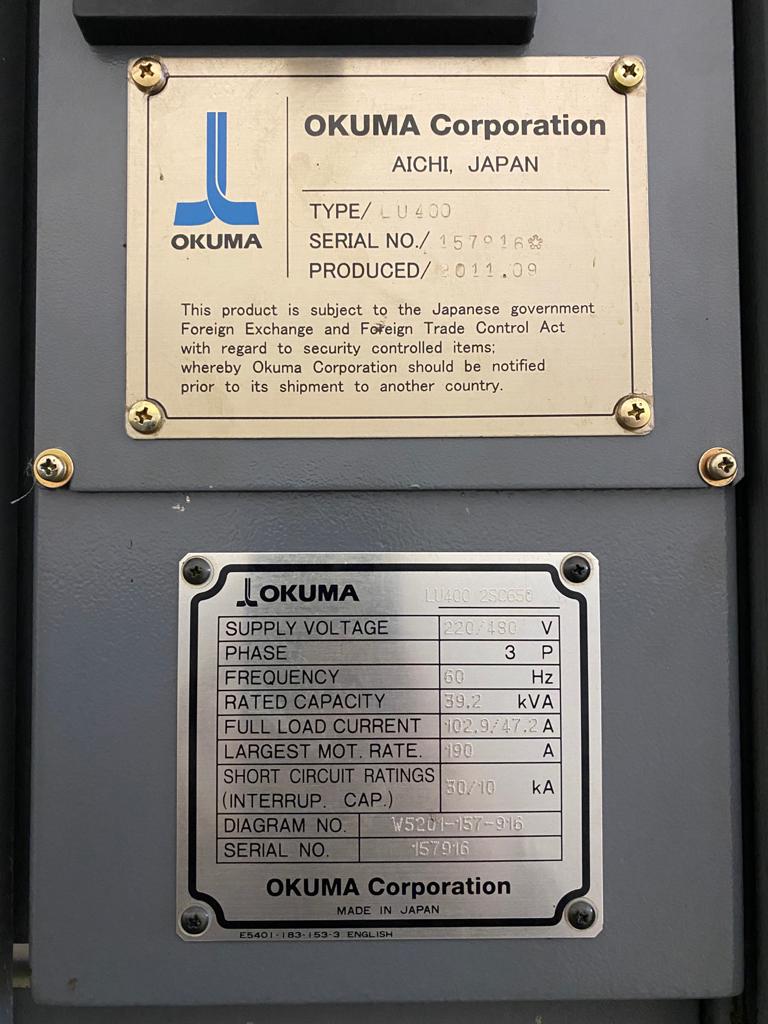

Serial # 157916
Condition Very Good
Time: 8491 Cutting Hours
Comes with 12″ Chuck, tailstock, tool presetter, books & Chip Conveyor.
  • Okuma Simulturn LU-400 2SC Equipped With:

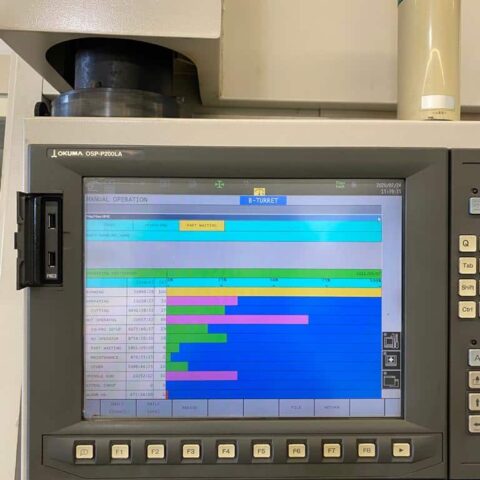

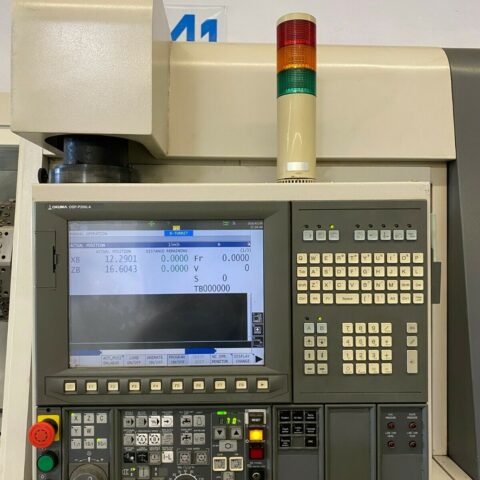

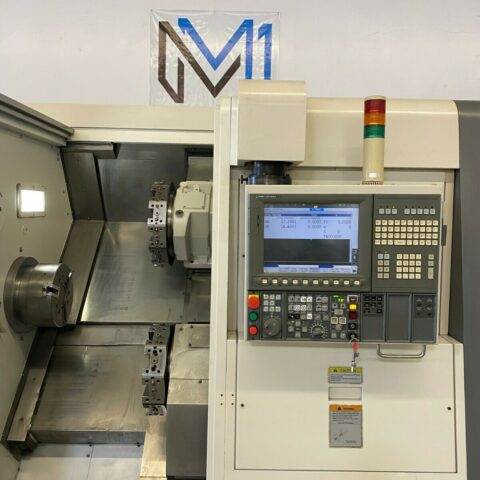

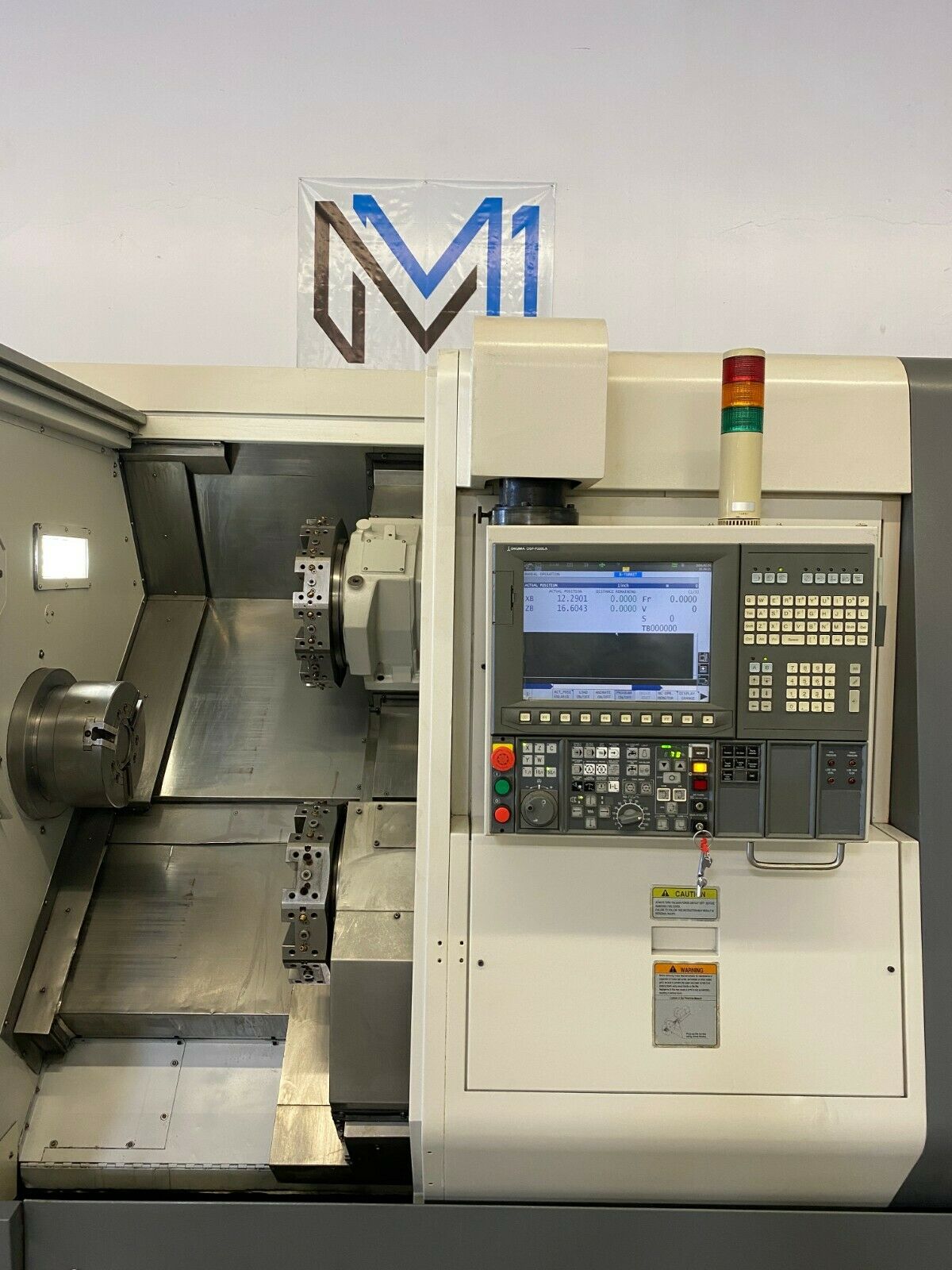

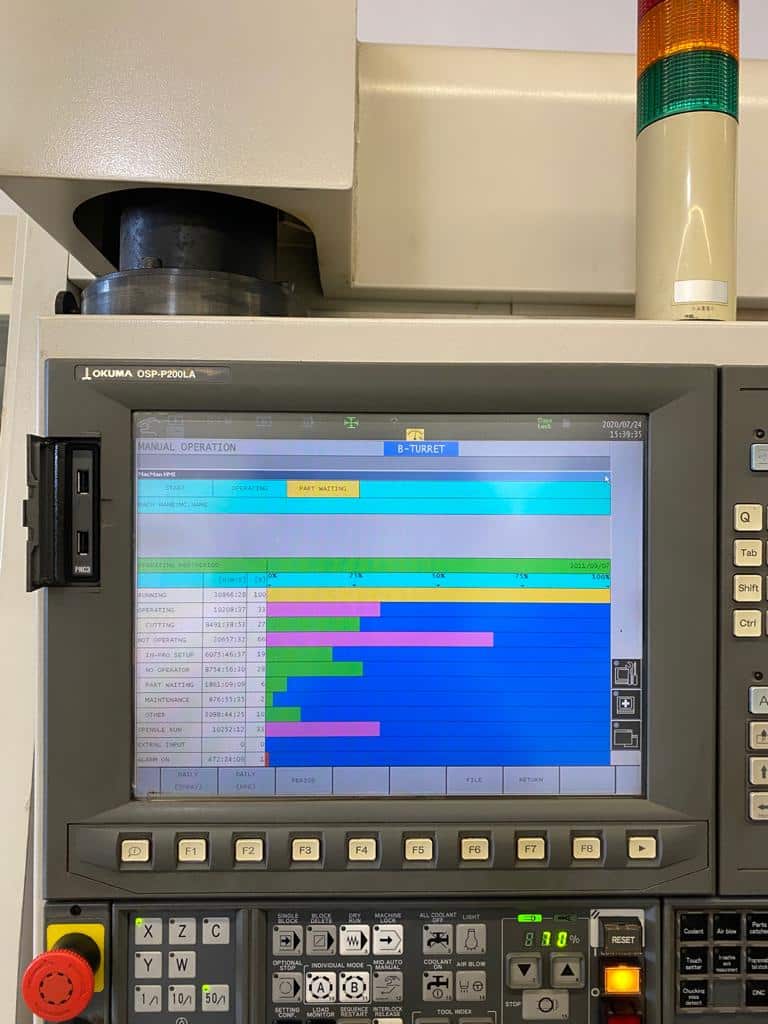

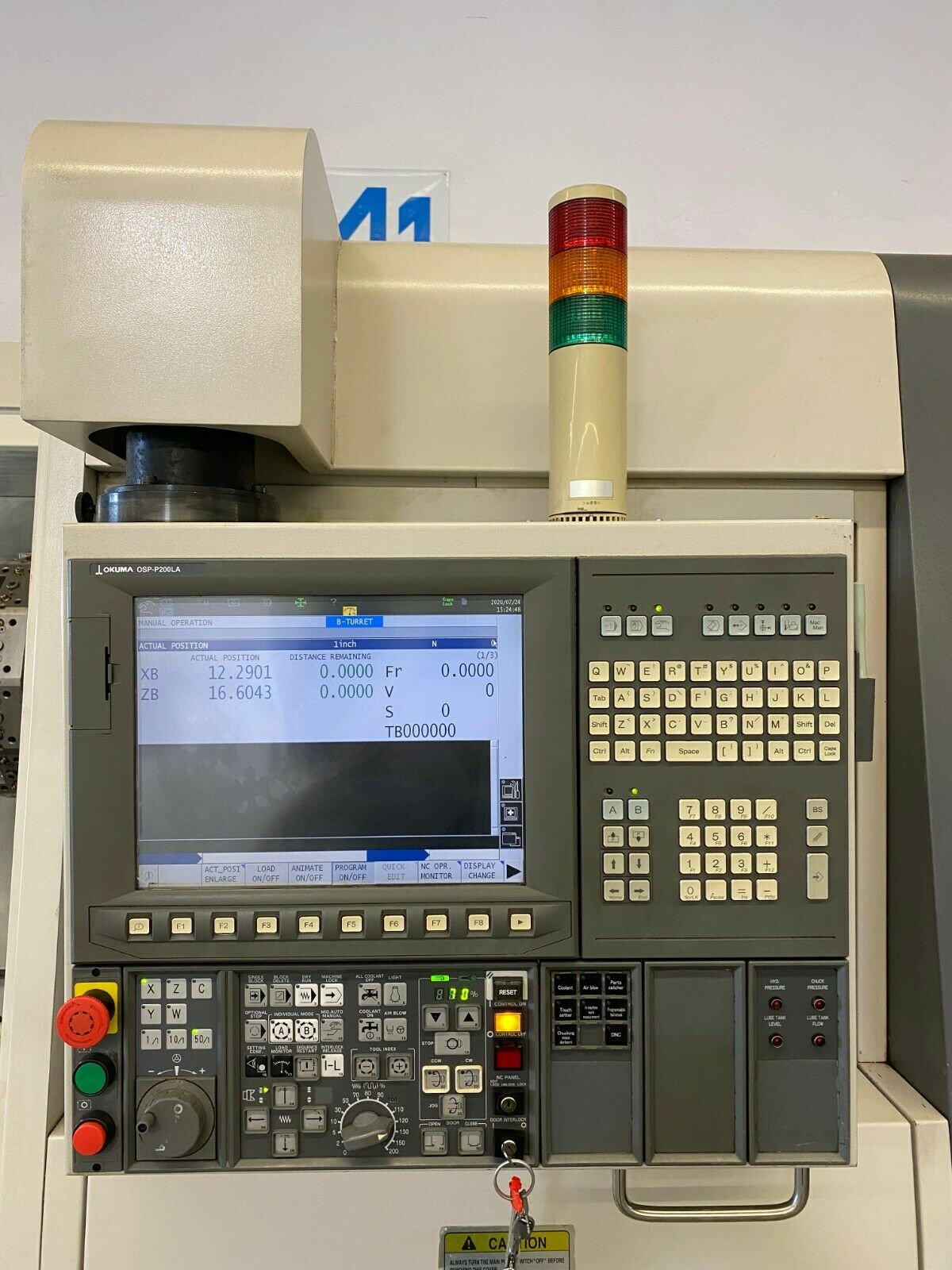

  • Okuma OSP-P200LA CNC Control
  • 12″ LCD Touch Screen Monitor with Stylus

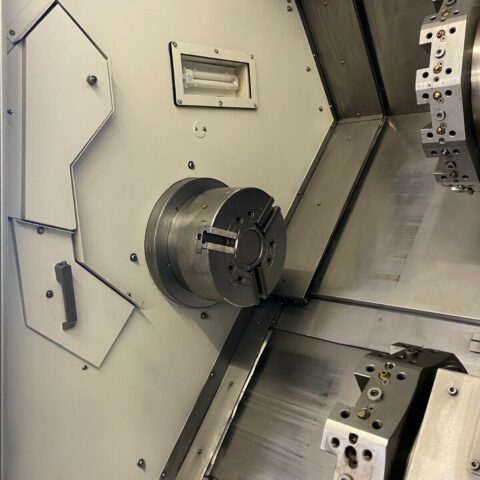

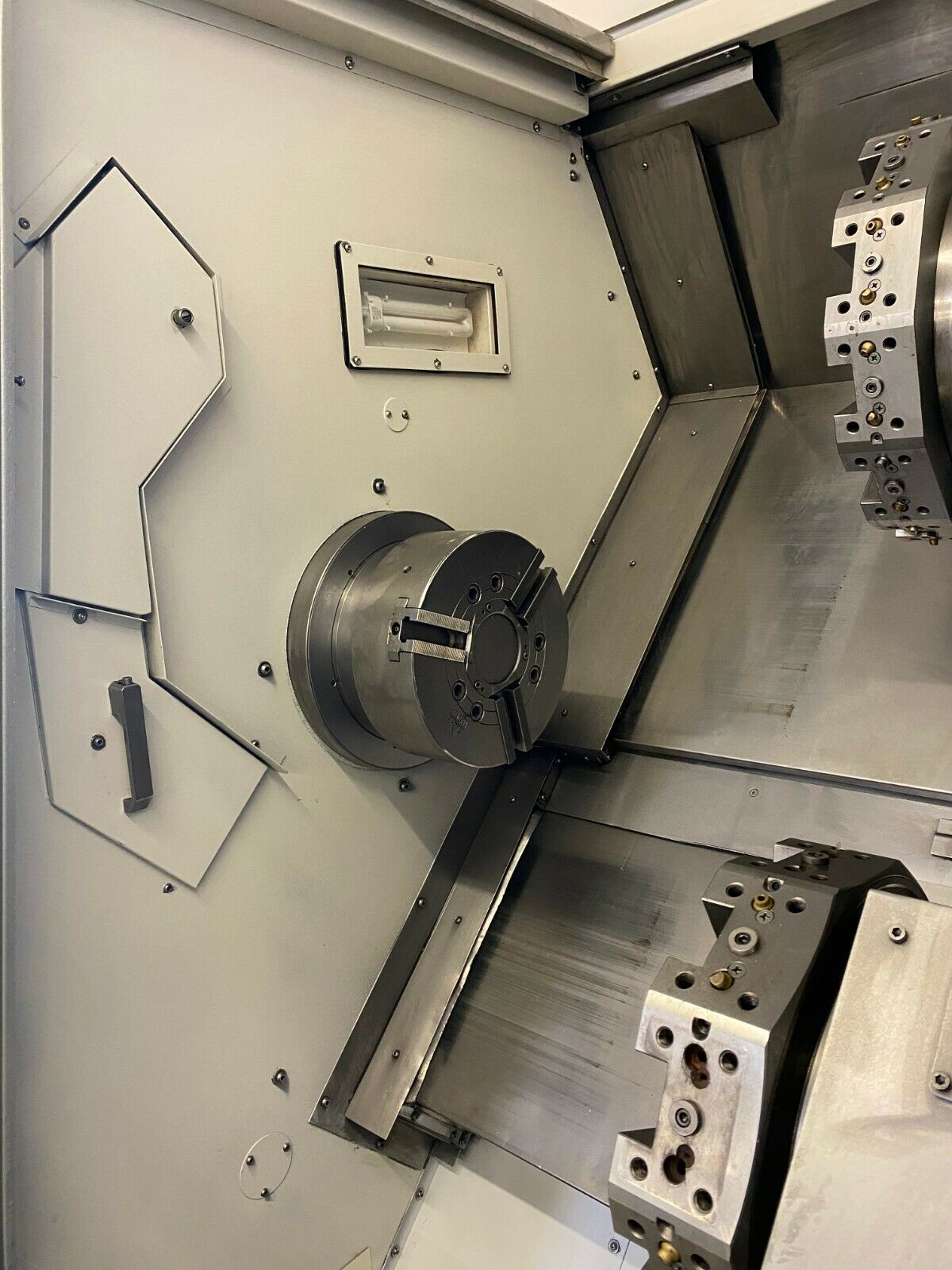

  • 12″ 3 Jaw Kitagawa Hydraulic chuck

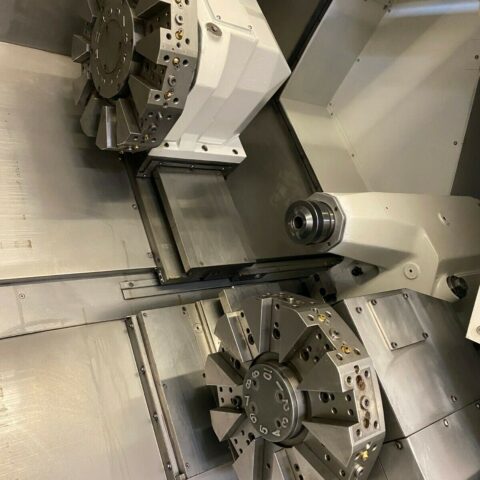

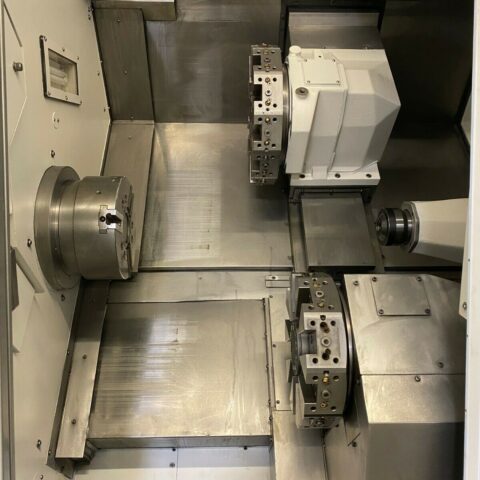

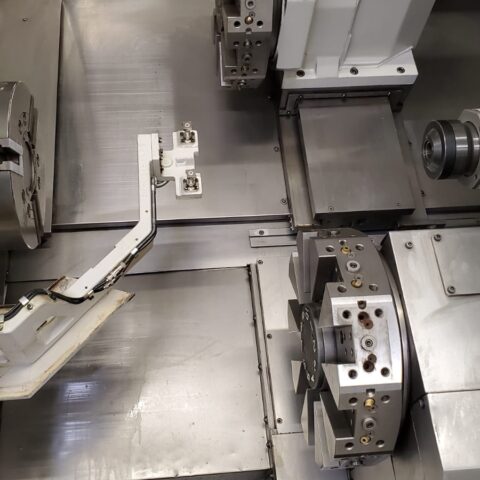

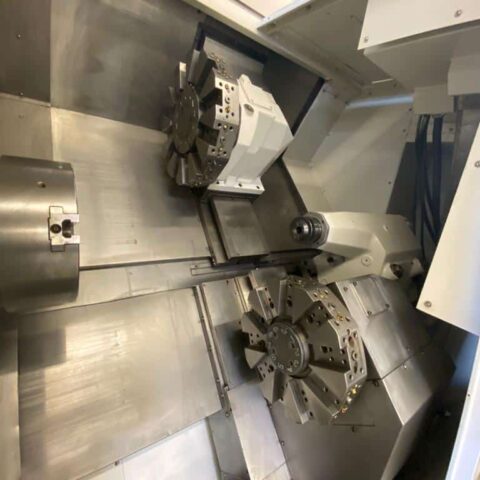

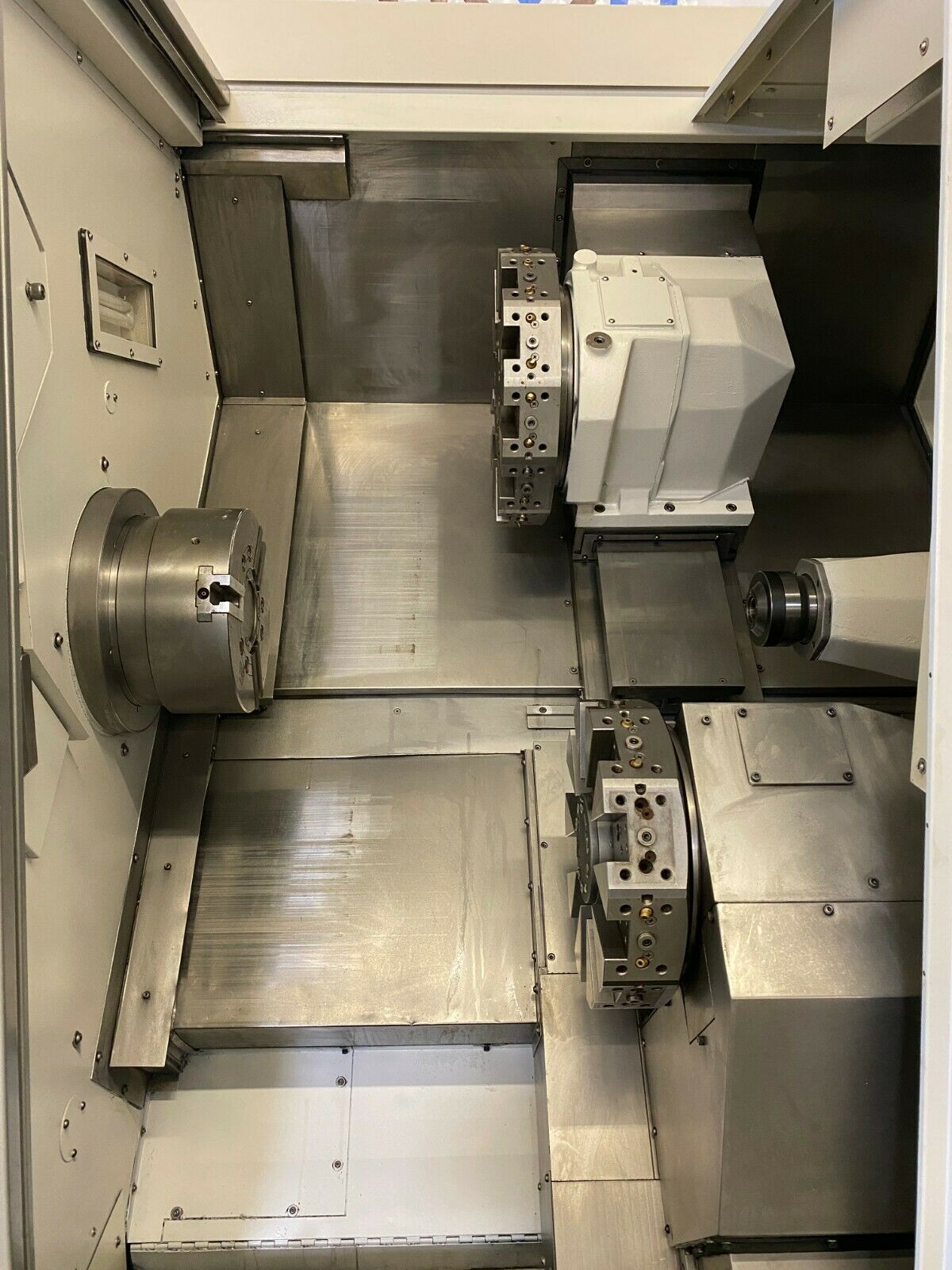

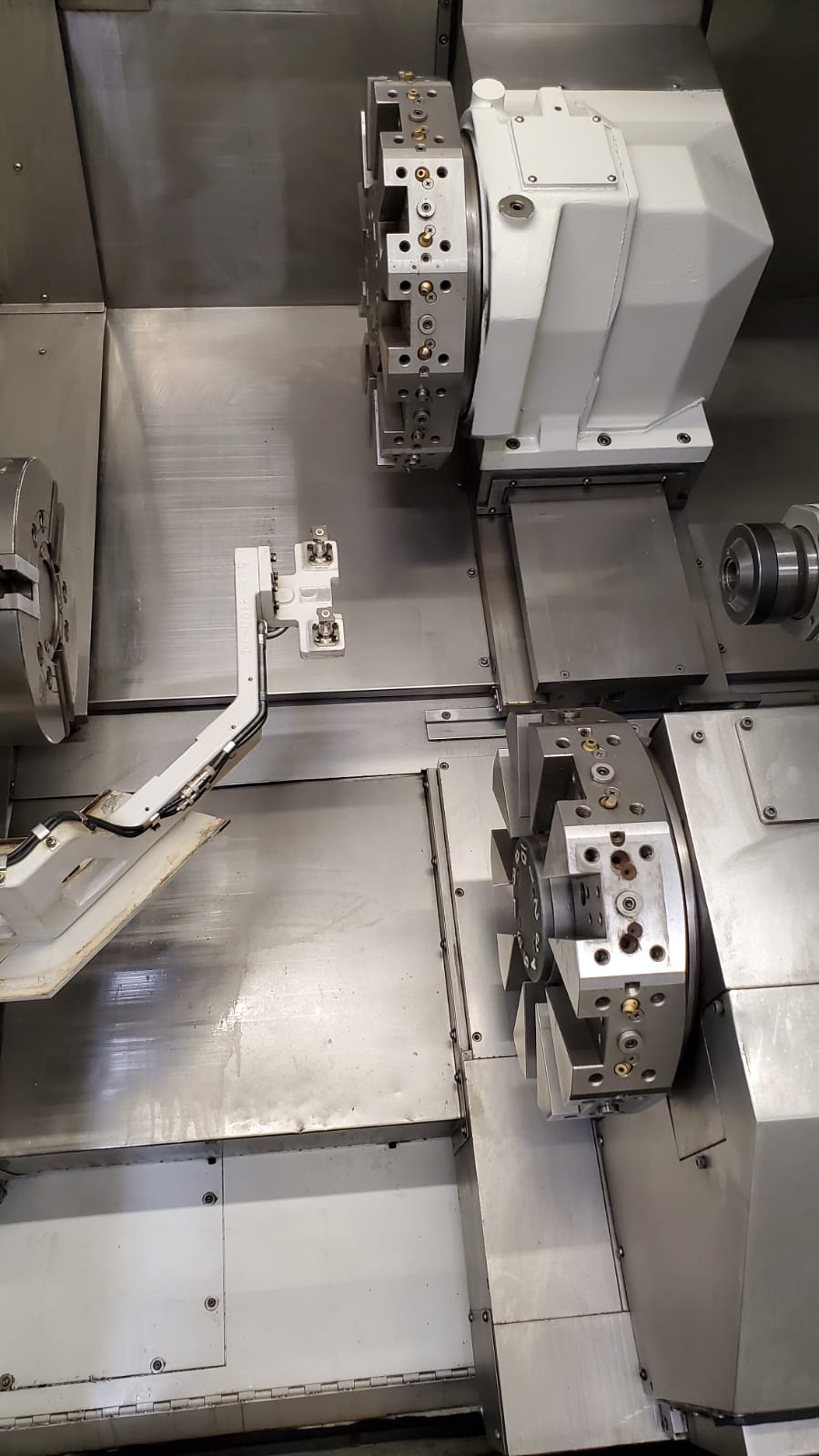

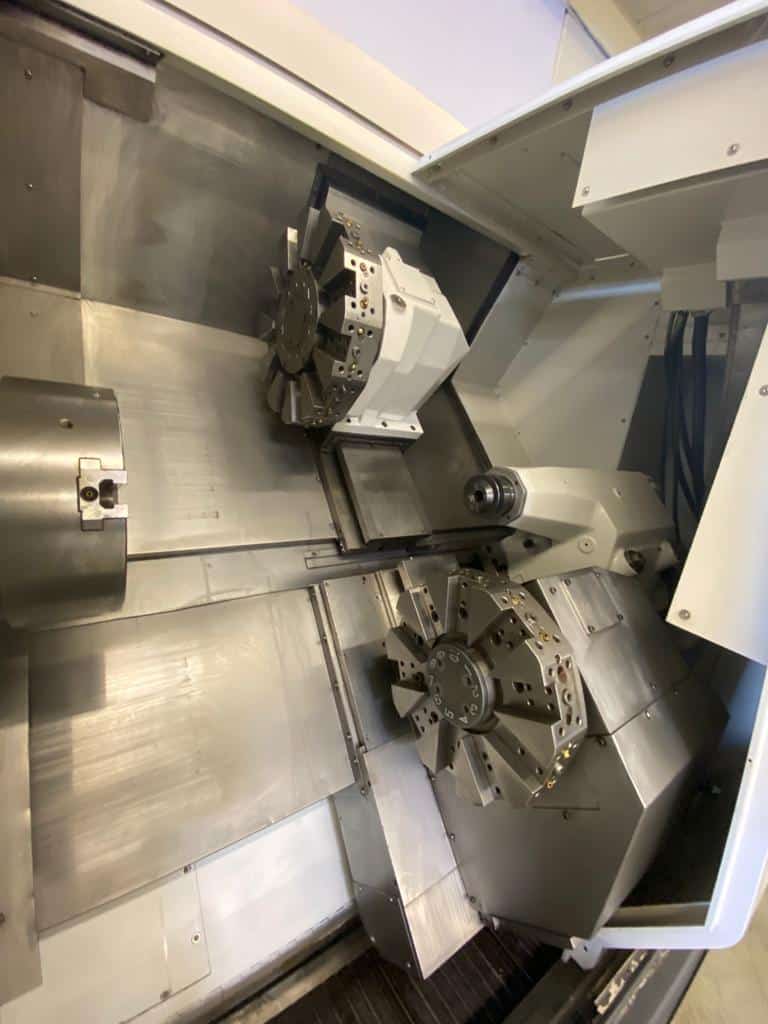

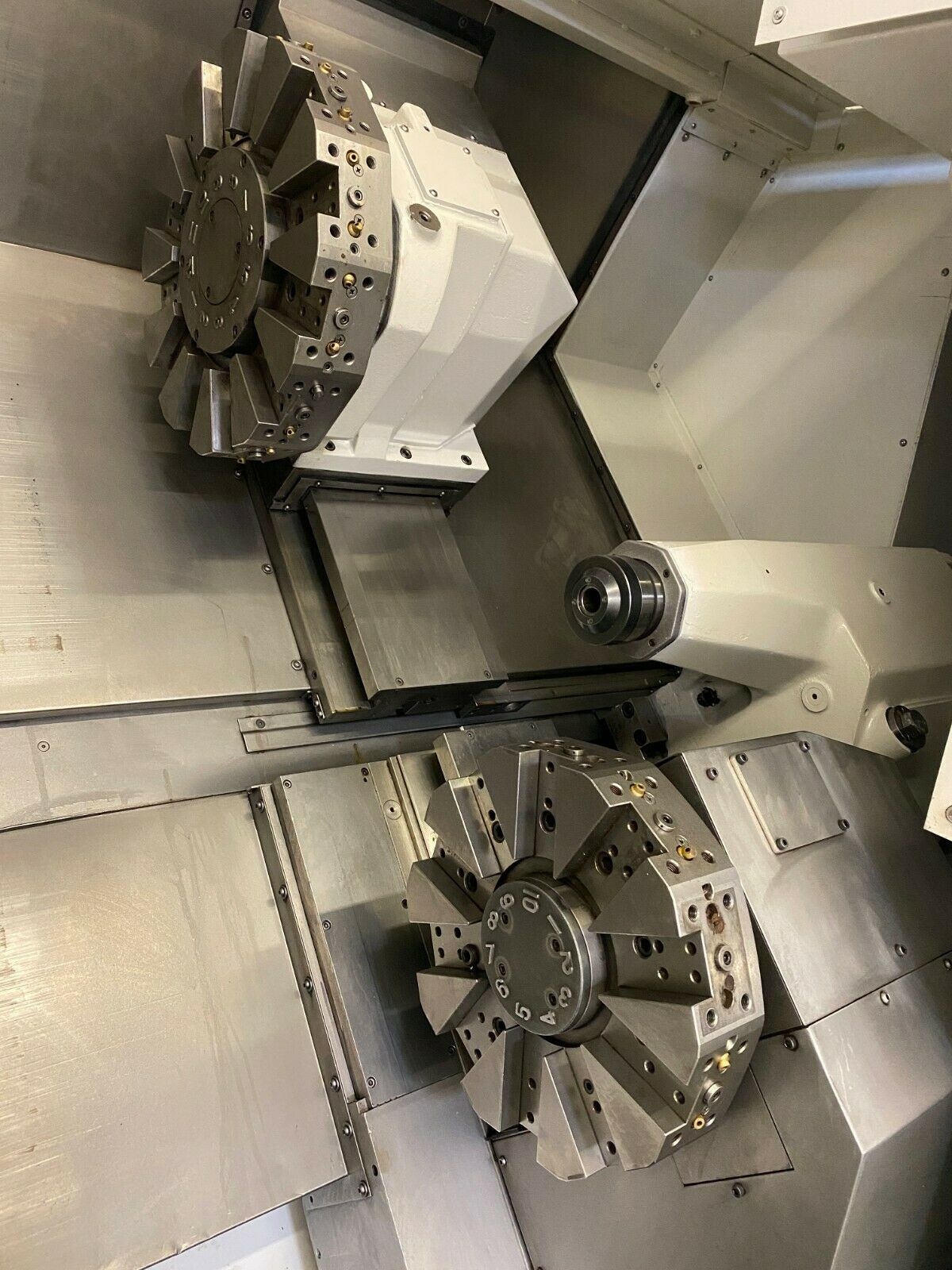

  • Twin Turret

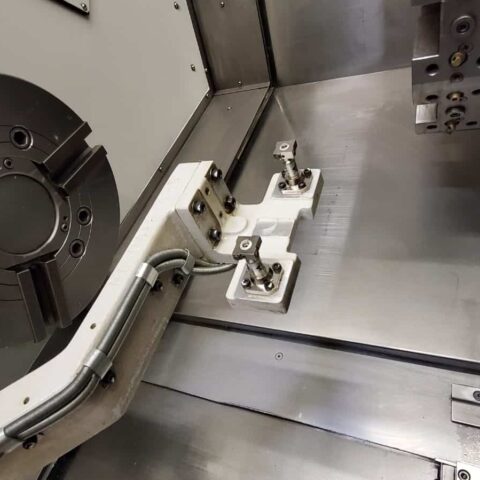

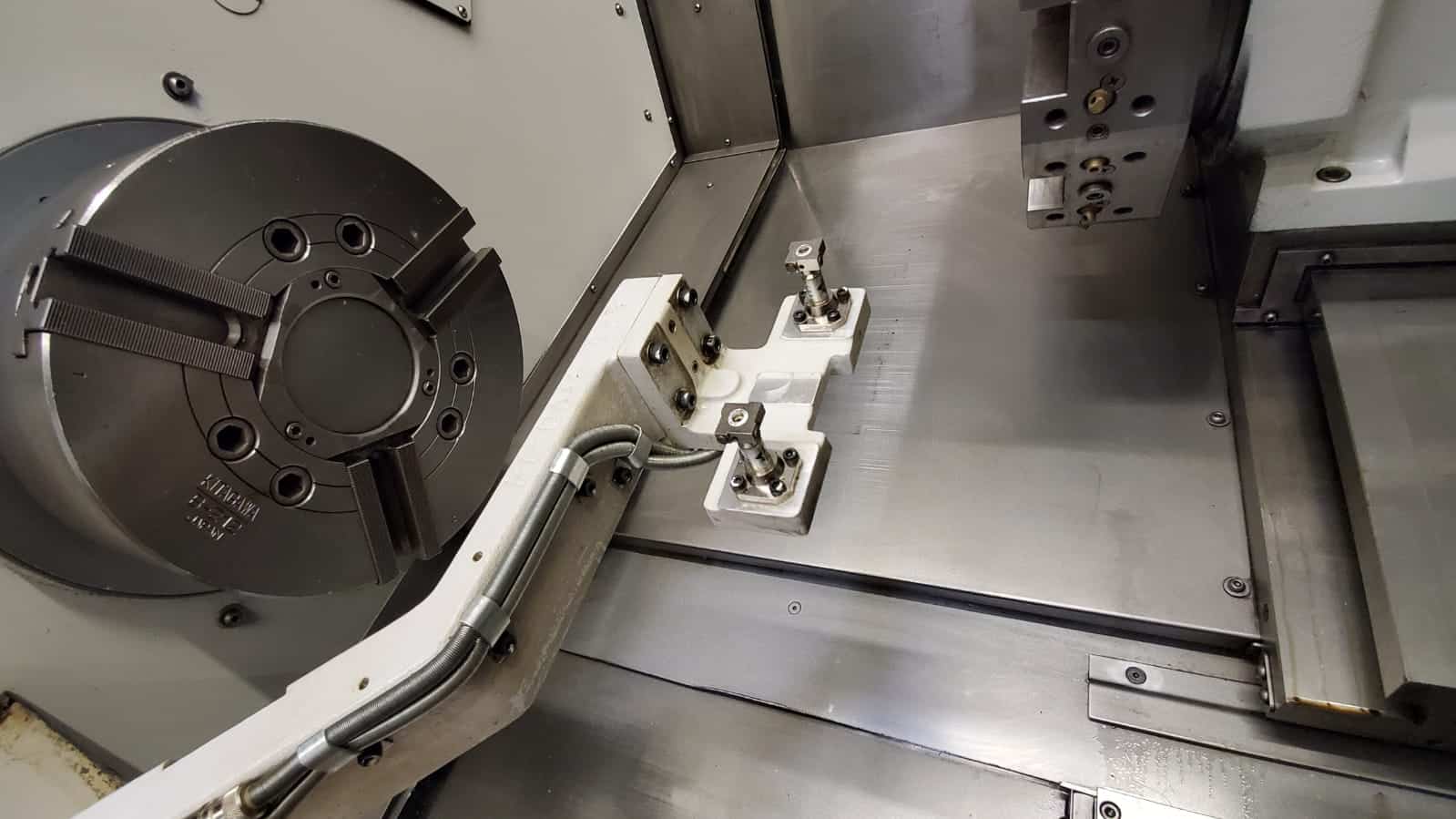

  • Tool Presetter
  • Programmable Tailstock
  • USB Drive
  • One Screen easy operation feature

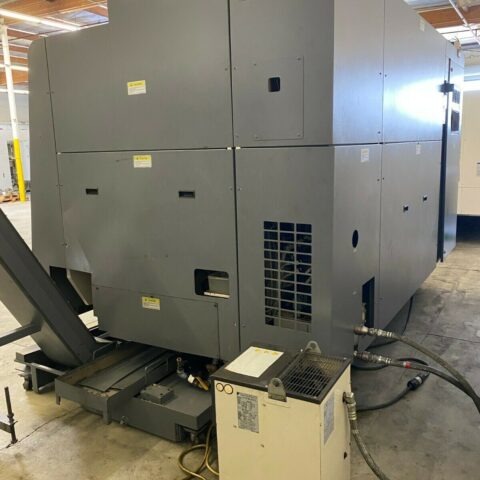

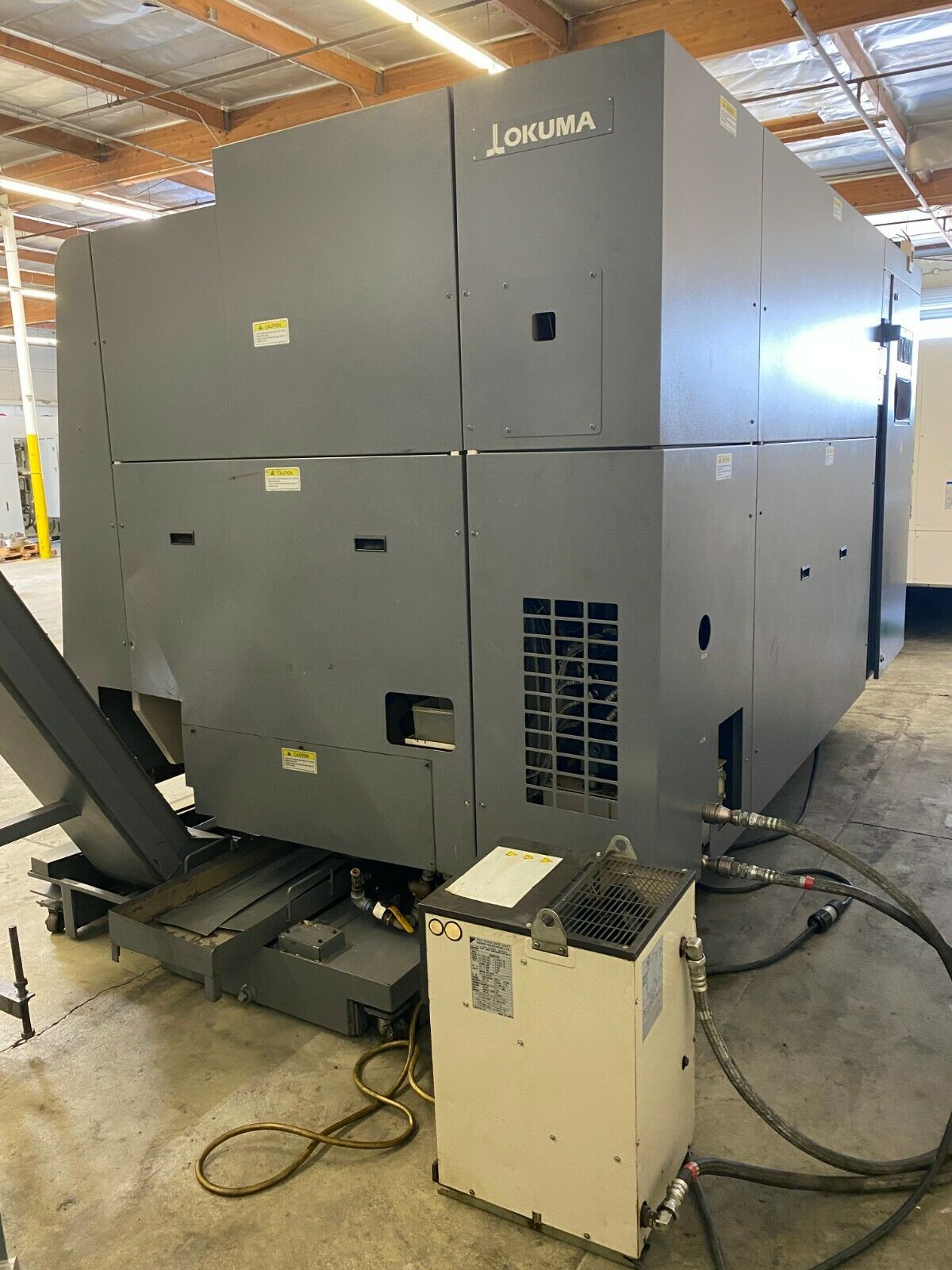

  • Chiller Unit
  • Foot Operated Control for Chuck
  • Work Lights
  • Coolant Tank & Pump

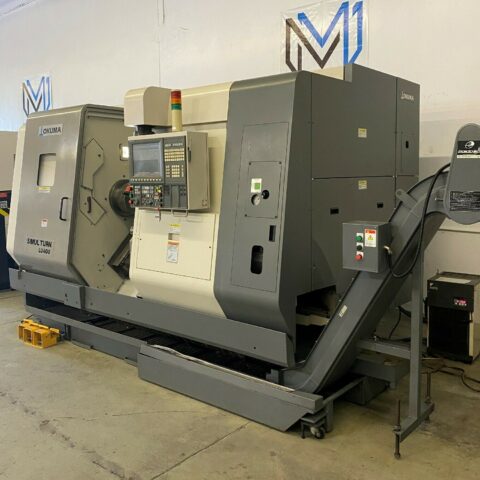

  • Chip Conveyor
  • Okuma Simulturn LU-400 2SC Specifications:
  • Capacity:
  • Max Turning Diameter: 16.54″
  • Max Turning Length: 25.59″
  • Max Bar Capacity: 3.15/4.33″?
  • Max Swing over bed: 25.59″
  • Max Swing over carriage: 16.54″
  • Distance between Centers:26.59″
  • Max Weight between Centers: 1320 lbs
  • Travels:
  • X Axis Travel Upper: 11.73″
  • X Axis Travel Lower: 7.67″
  • Z Axis Travel Upper: 26.57″
  • Z Axis Travel Lower: 26.38″
  • Rapid Traverse X Axis: 984 IPM
  • Rapid Traverse Z Axis: 984 IPM
  • Spindle:
  • Spindle Bore: 3.5″
  • Spindle Nose: A2-8
  • Spindle Speed: 45-3800 RPM
  • Main Spindle Power: 35 HP
  • Turret:
  • Upper Turret Capacity: 12 Stations
  • Lower Turret Capacity: 10 Stations
  • Turret Index Time: 0.2 Second
  • Tailstock:
  • Taper: MT 5
  • Tailstock Quill Dia: 3.94
  • Tailstock Quill Travel: 5.91
  • General:
  • Power: 40 kva, 220/480v  3-Phase
  • Overall Dimensions: 137 X 85 X 86″ High
  • Overall Dimensions: 169 X 85 X 86″ with Chip Conveyor
  • Weight: 19,800 lbs

“No Charges for loading at list Price”

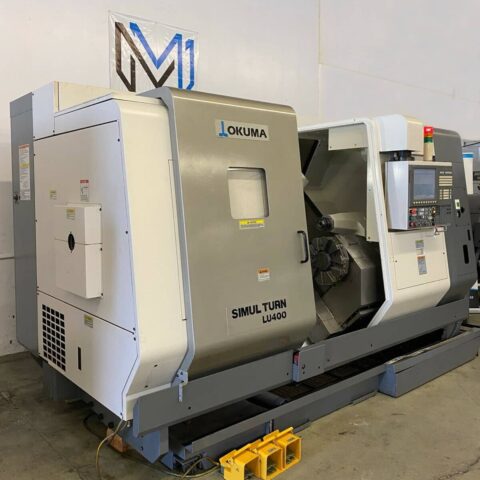

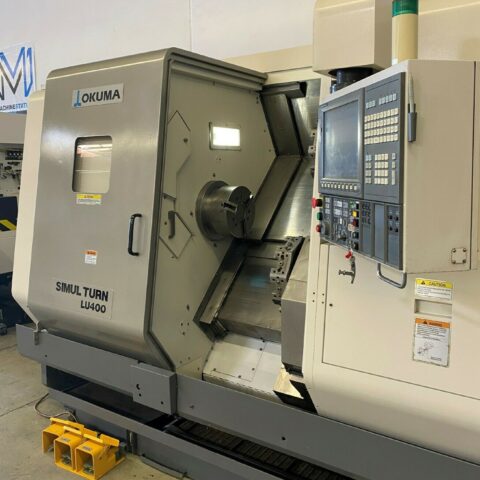

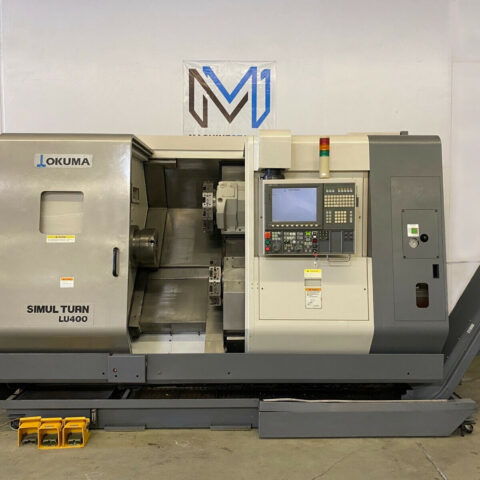

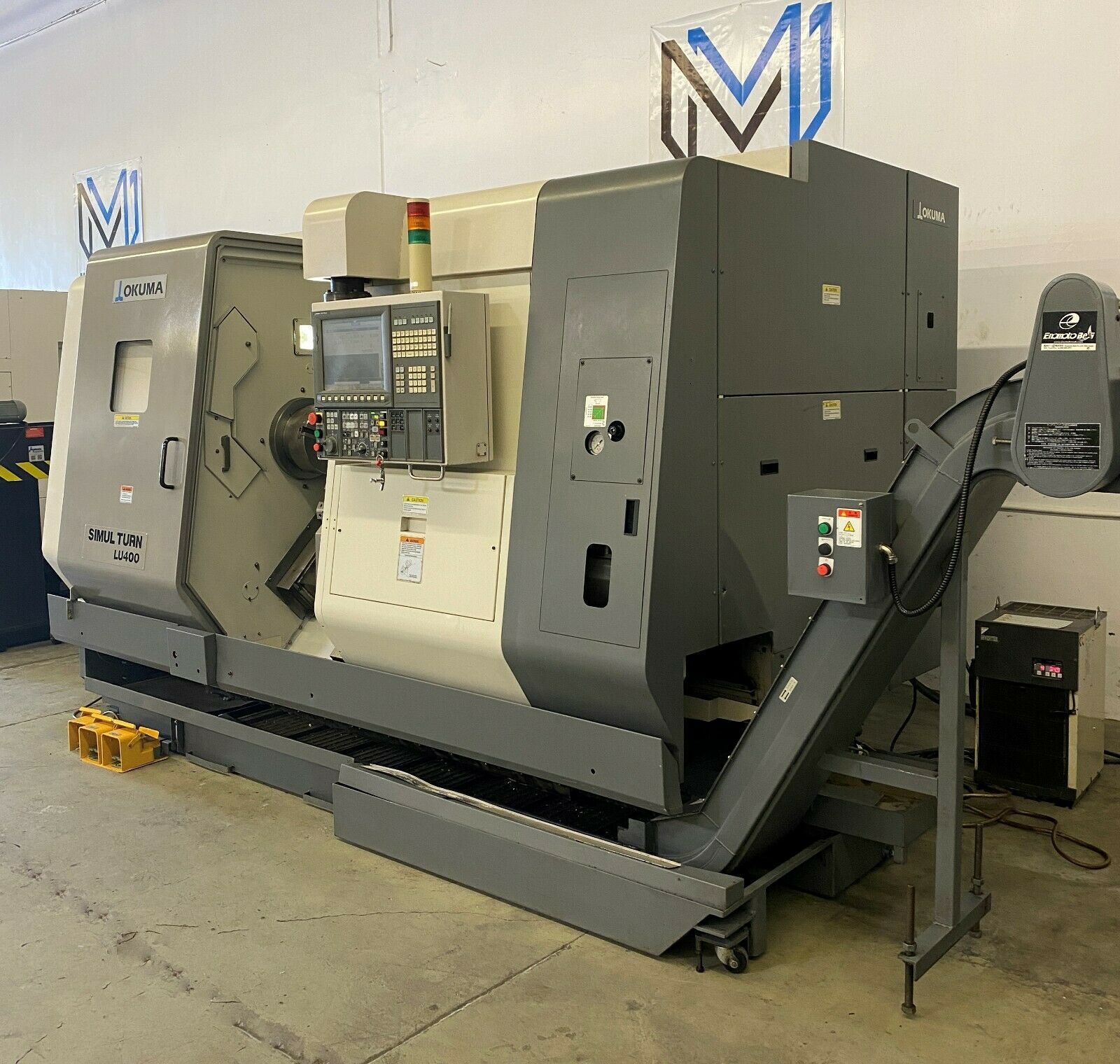

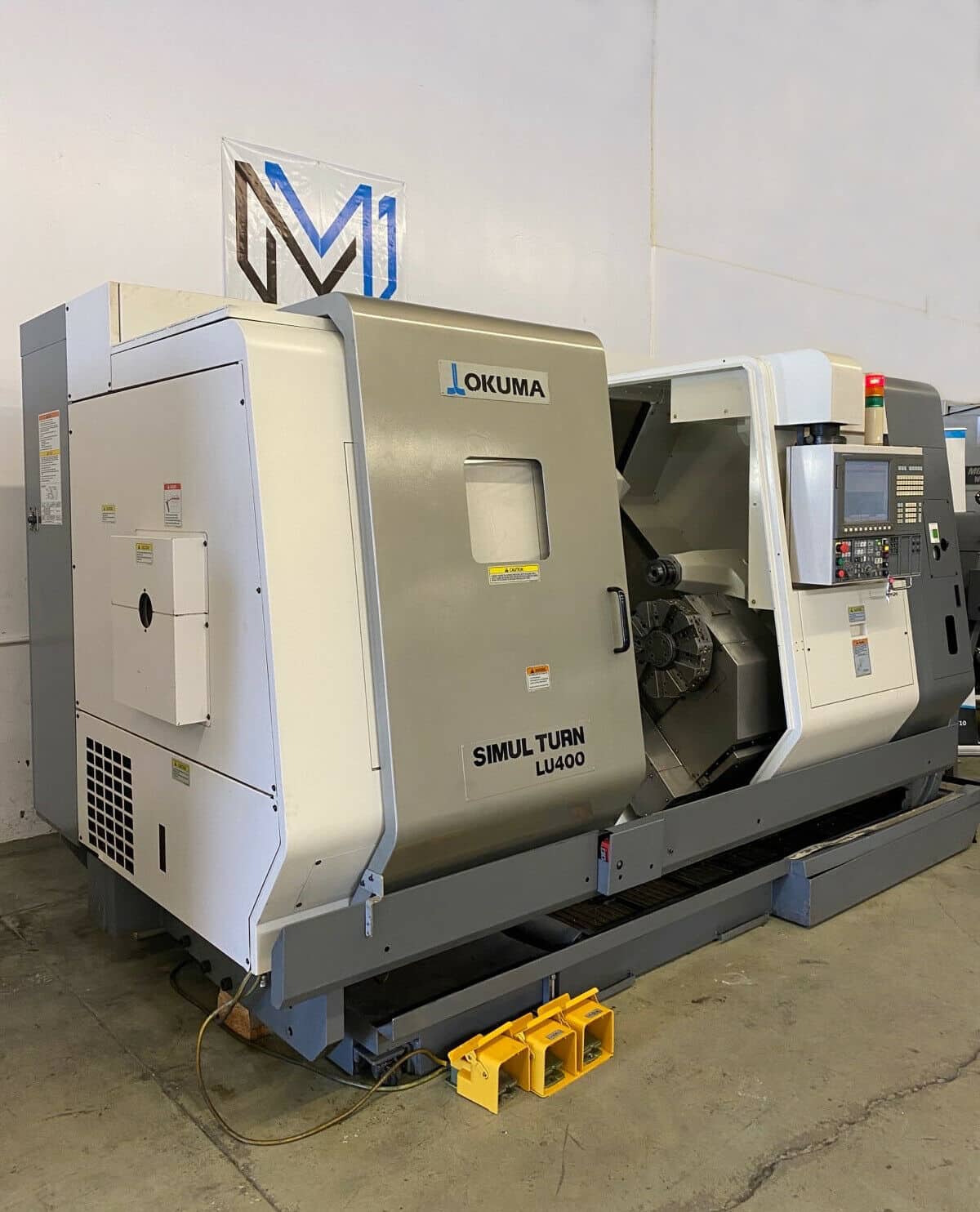

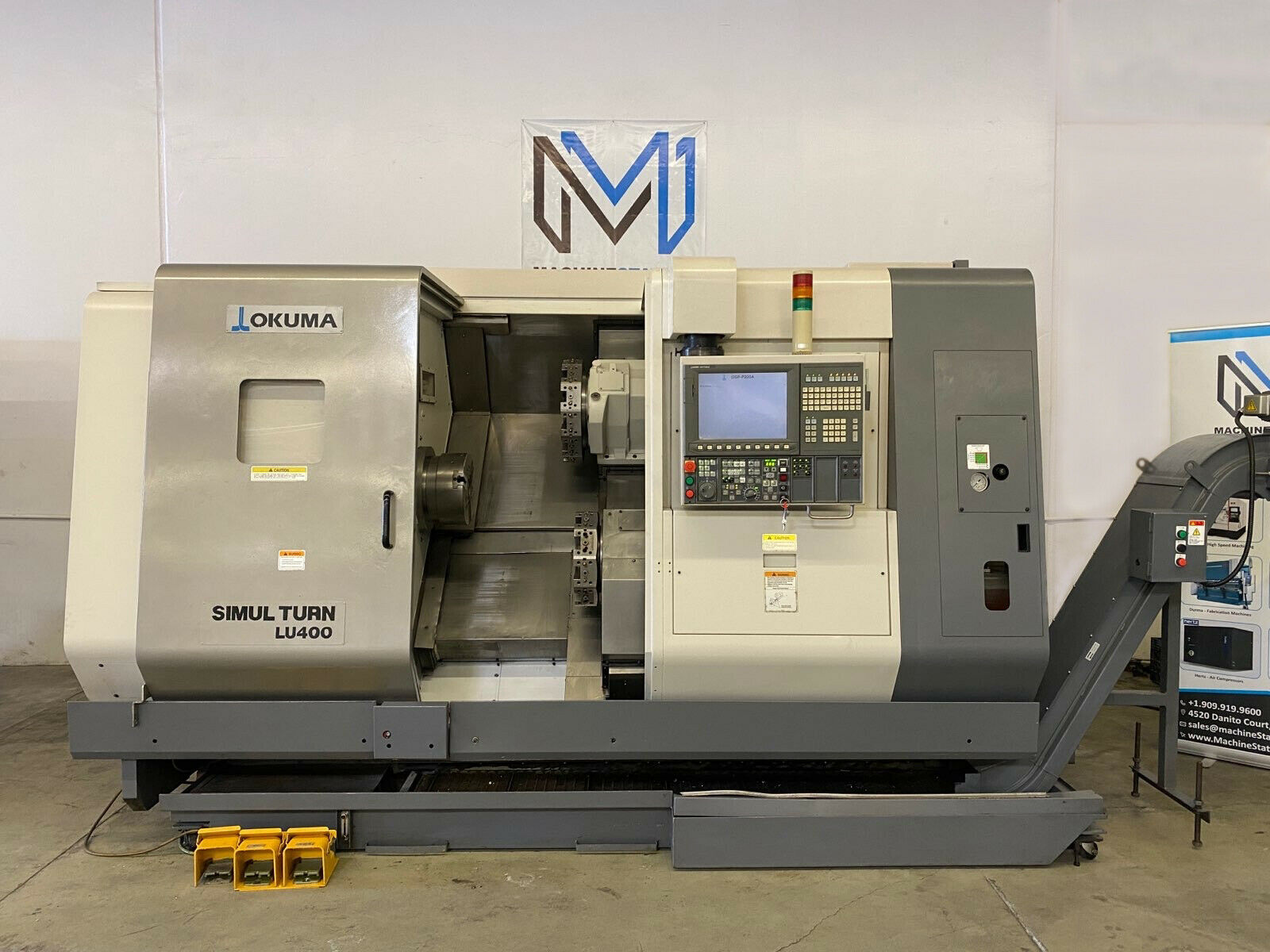

Okuma Simulturn LU-400 comes as Shown in Pictures…
