Omniturn GT-75II CNC Turning Center

Out of stock
SKU: 1905
Make/Model: Omniturn G75
Video: [fusion_button link=”https://www.youtube.com/watch?v=C1YhrmwG2HE” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1905

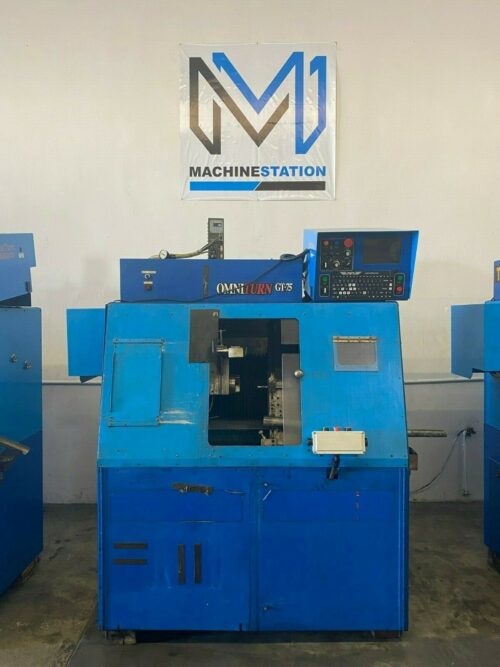

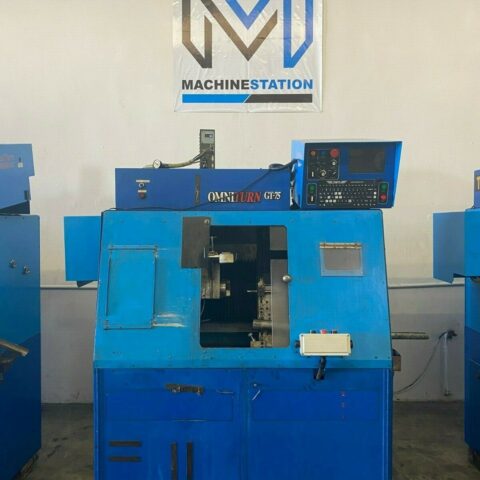

OMNITURN GT-75II CNC TURNING CENTER
Make Omniturn
Model No. G75
Year July 2002

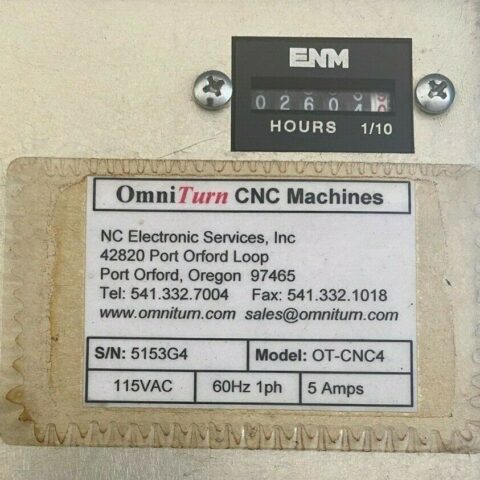

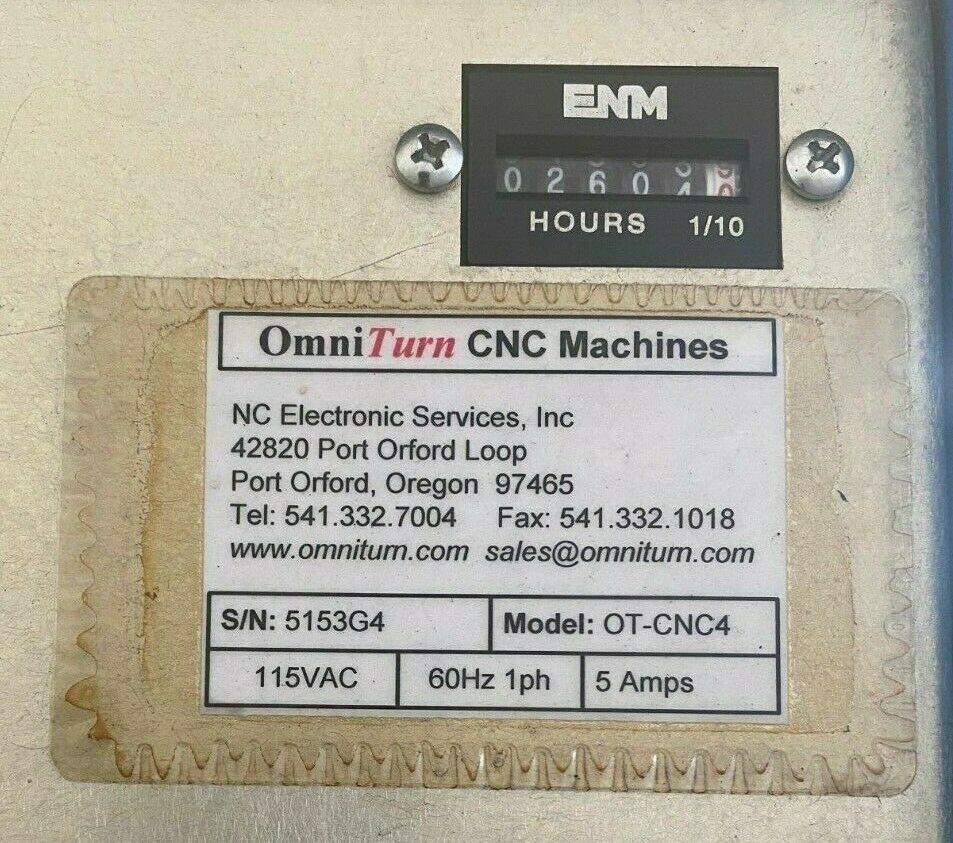

Serial # 5153G4
Condition Very Good
  • Omniturn GT-75II CNC Turning Center Equipped With:

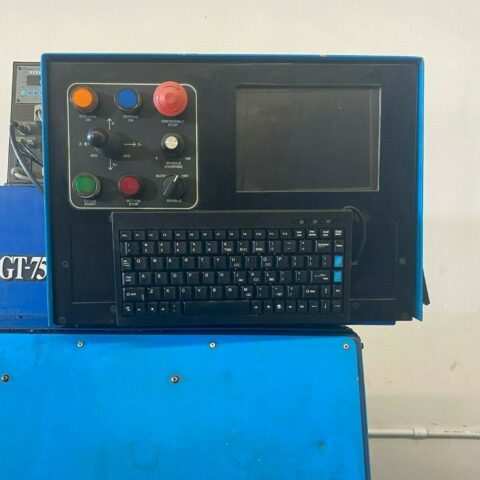

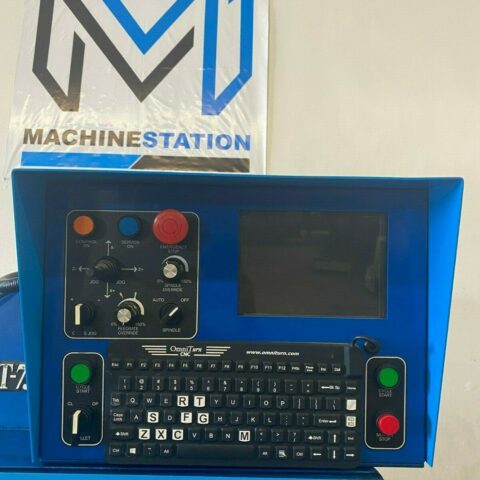

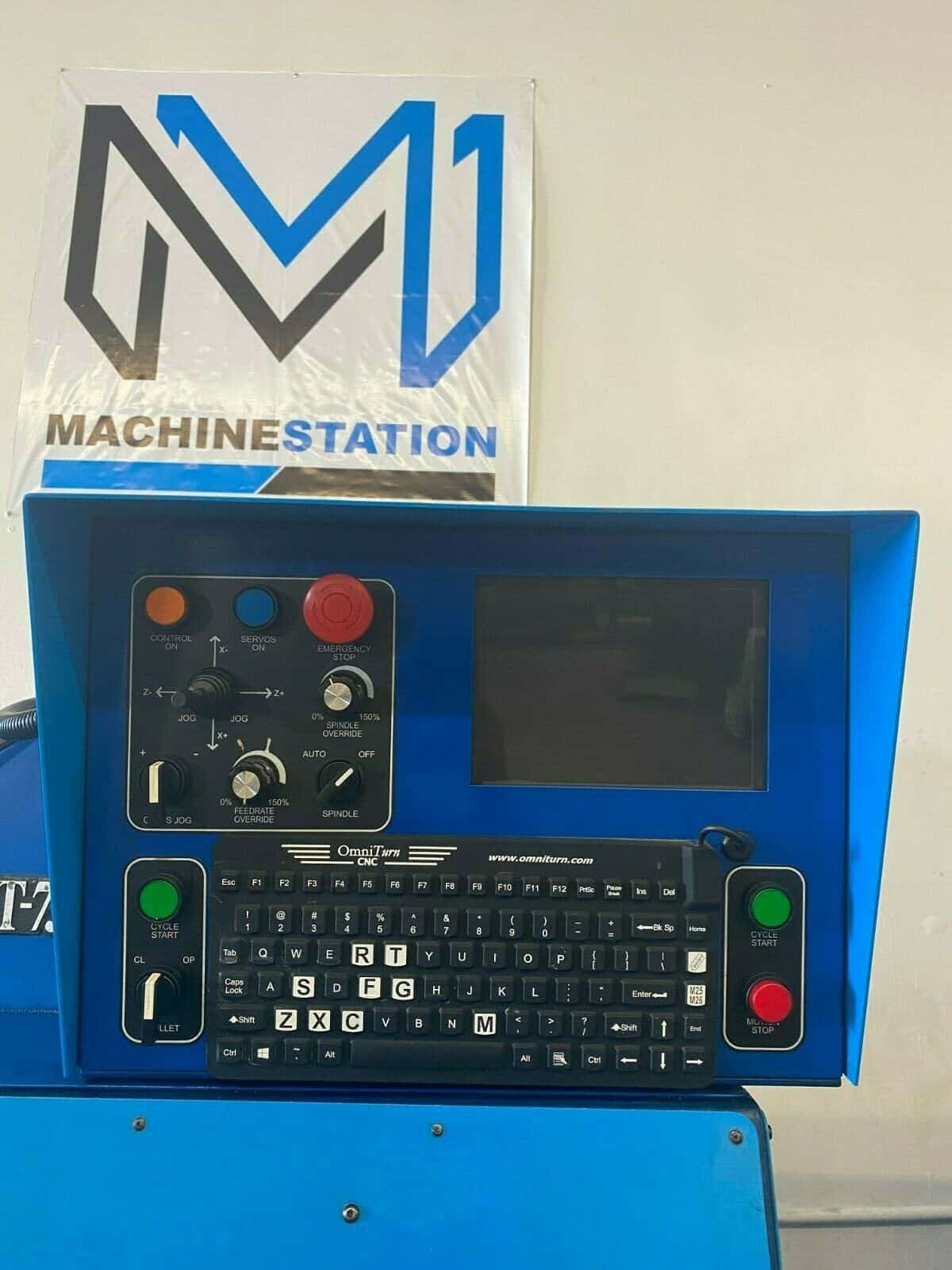

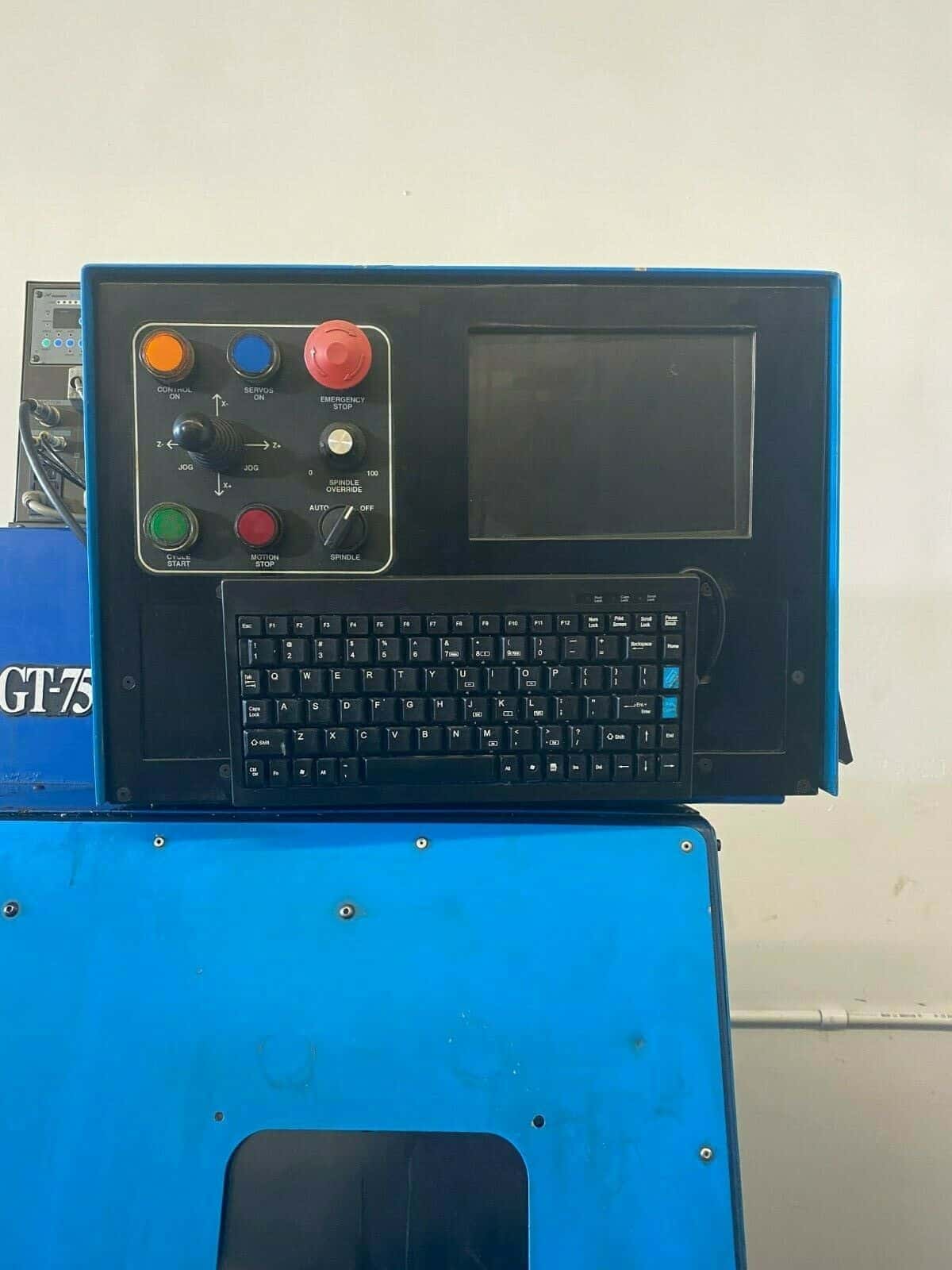

  • New G4 CNC Control installed in Oct 2016

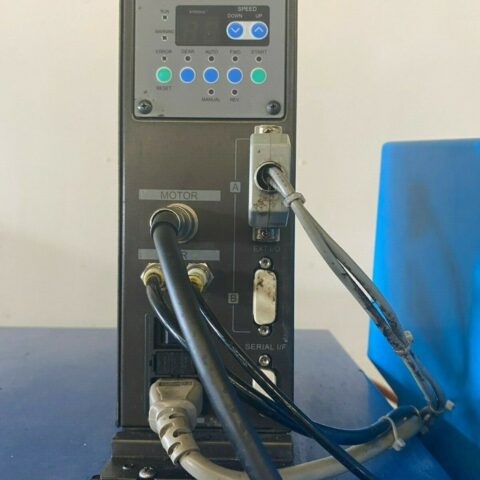

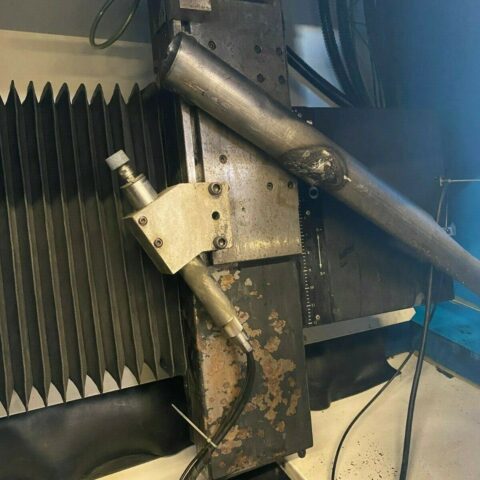

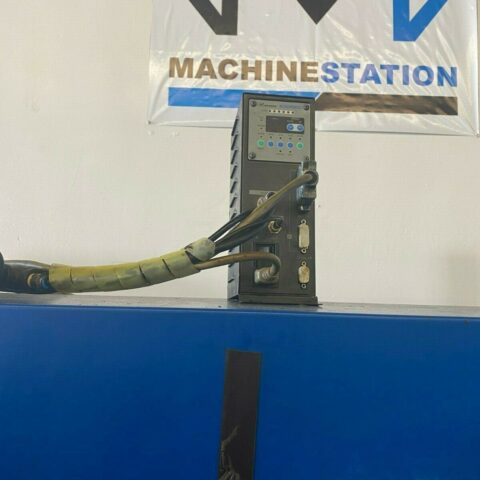

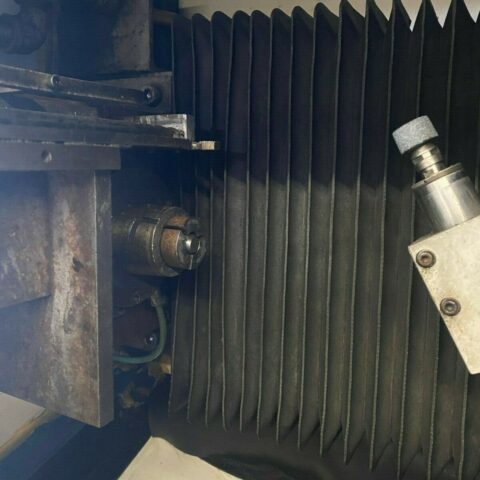

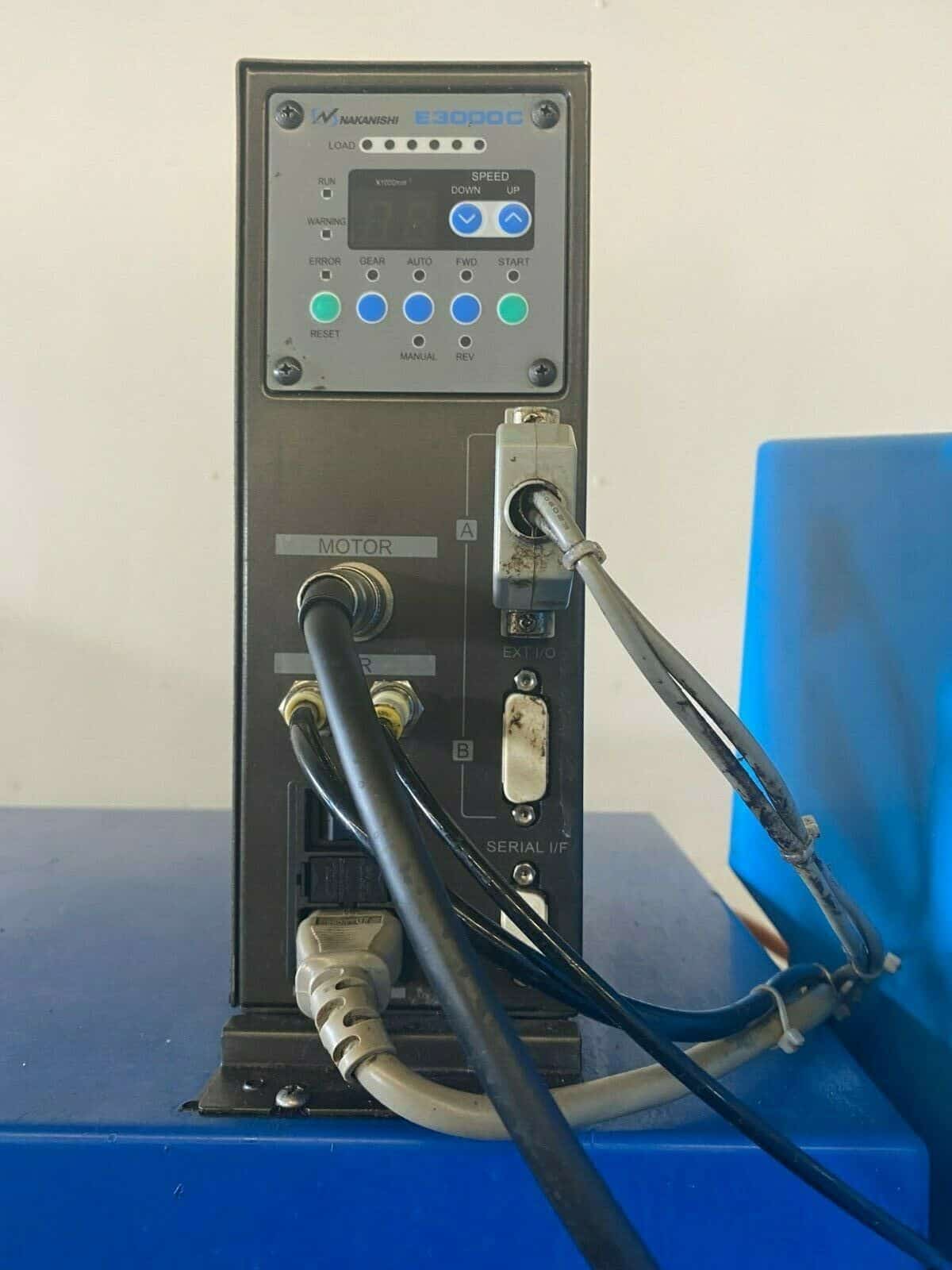

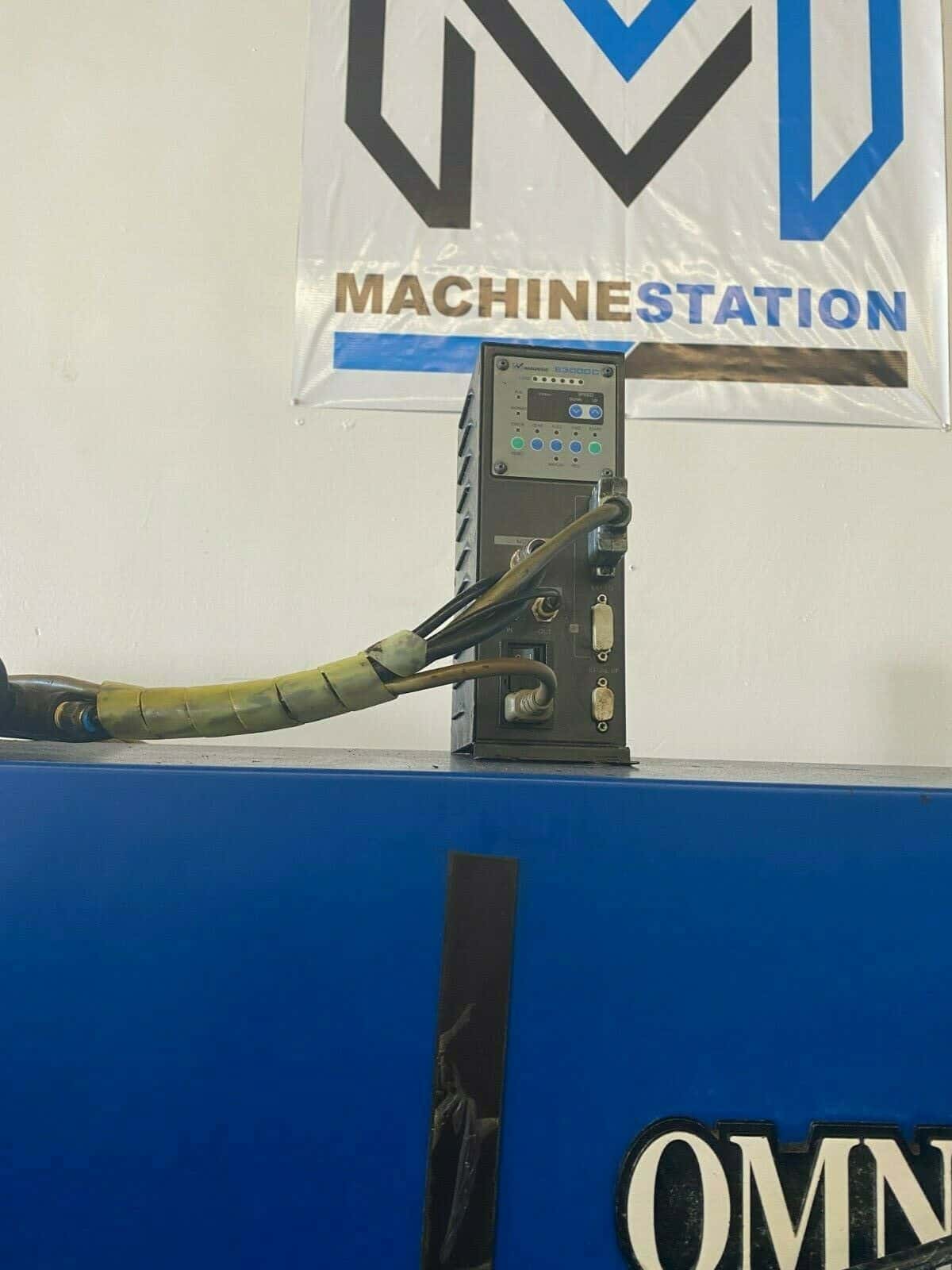

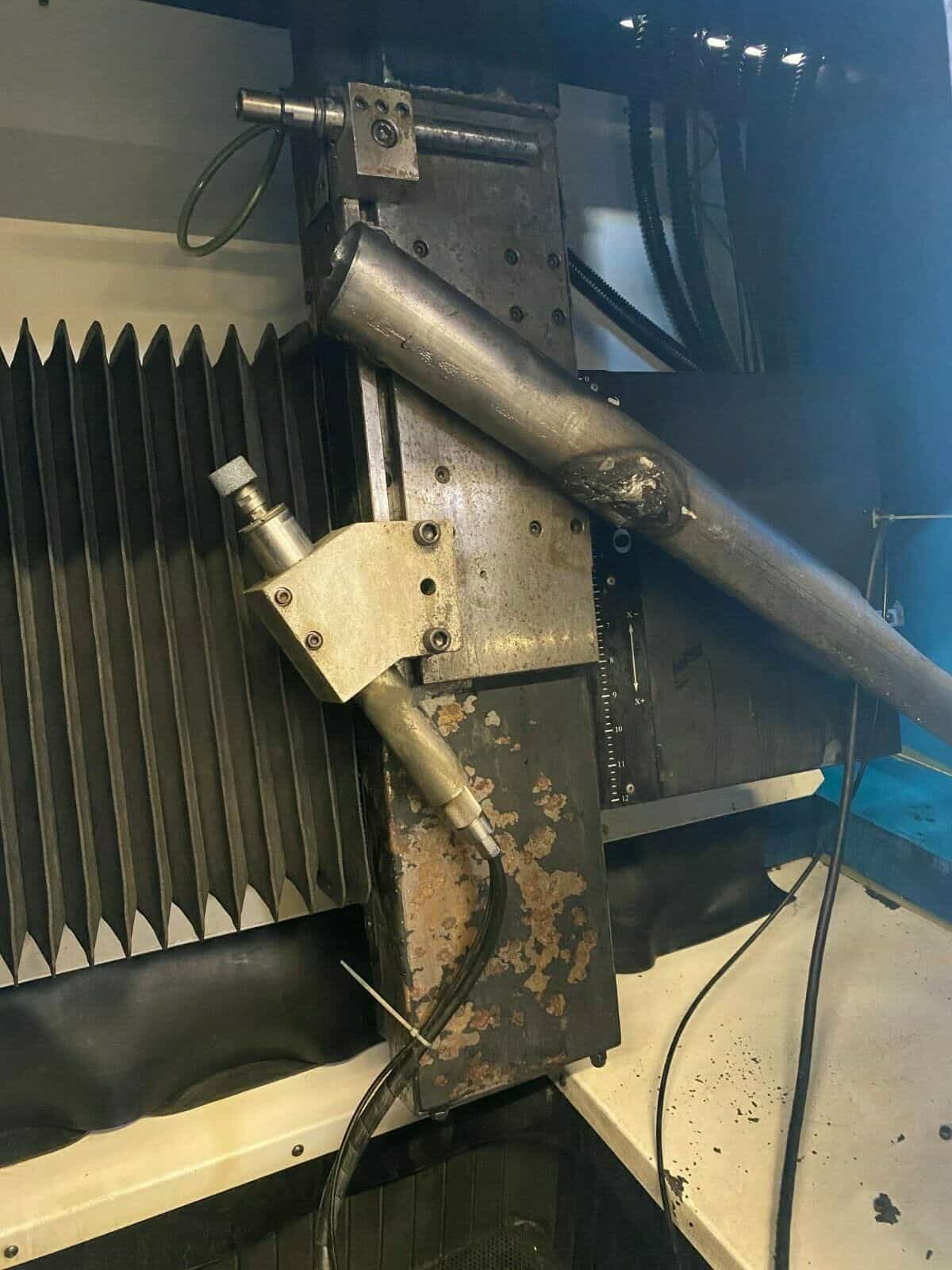

  • NSK Nakanishi E3000C 30000 RPM Grinding Spindle
  • General:
  • Power: 220v / 3-Phase
  • Overall Dimensions: 60″ x 40″ x 70″ High
  • Weight : 1700 lbs Approx.
  • Omniturn GT-75II CNC Turning Center Specifications:
  • Capacity:
  • Max Turning Diameter: 6″
  • Max Turning Length: 11.6″
  • Max Bar Capacity: 1.06″
  • X Axis Travel: 12.01″
  • Z Axis Travel: 9.0″
  • Rapid Traverse X Axis: 472 IPM
  • Rapid Traverse Z Axis: 472 IPM

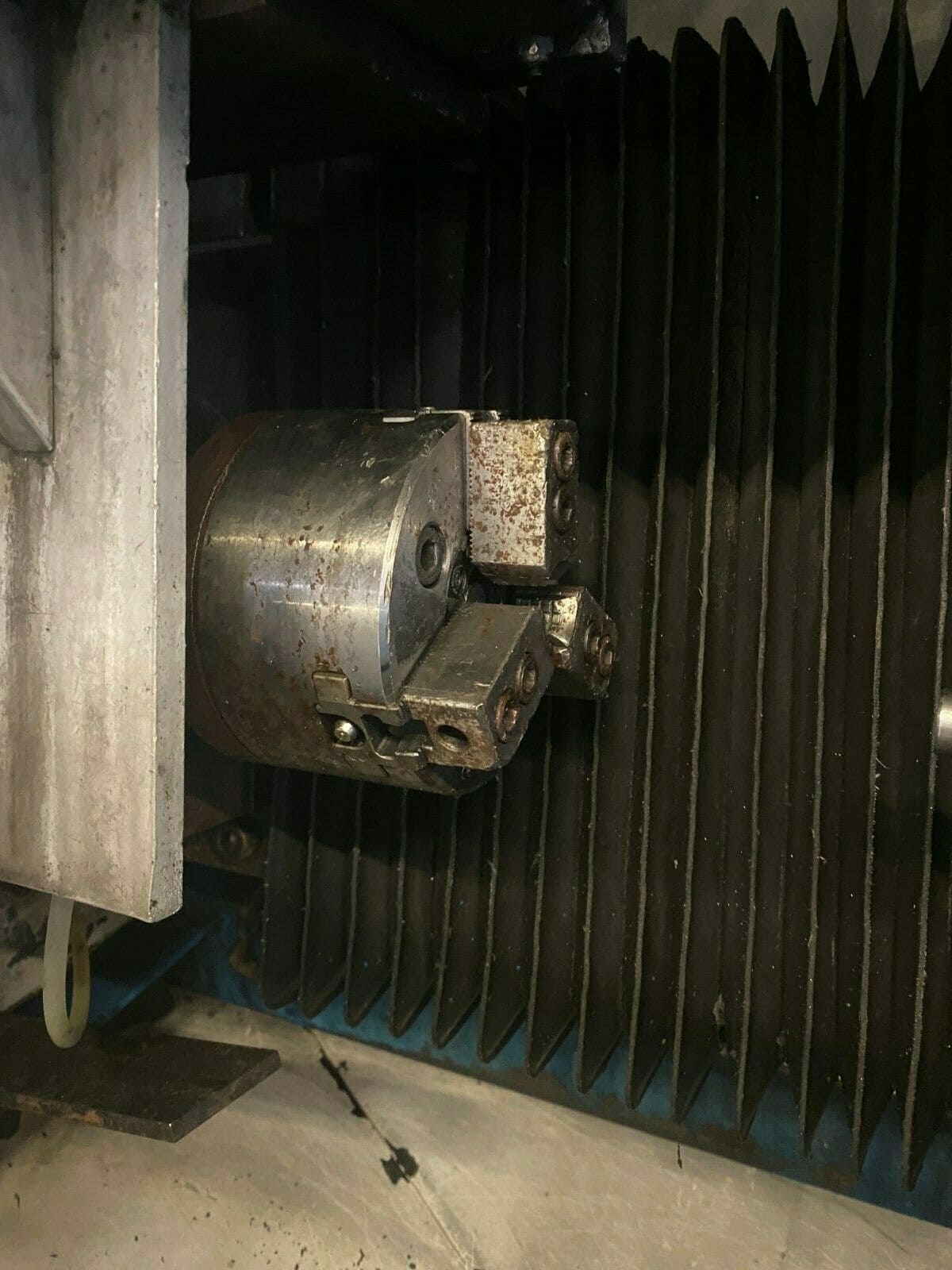

  • Spindle Nose: 5C w/ 4 degree Camlock (Hardinge Taperlock)
  • Spindle Bore: 1.125″
  • Spindle Speed: 40 – 4000 RPM
  • Spindle Motor: 5 HP

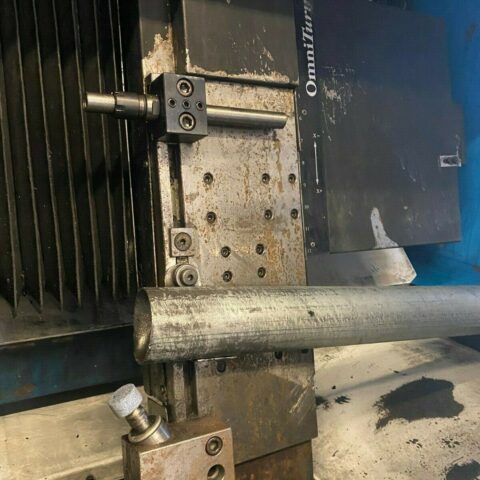

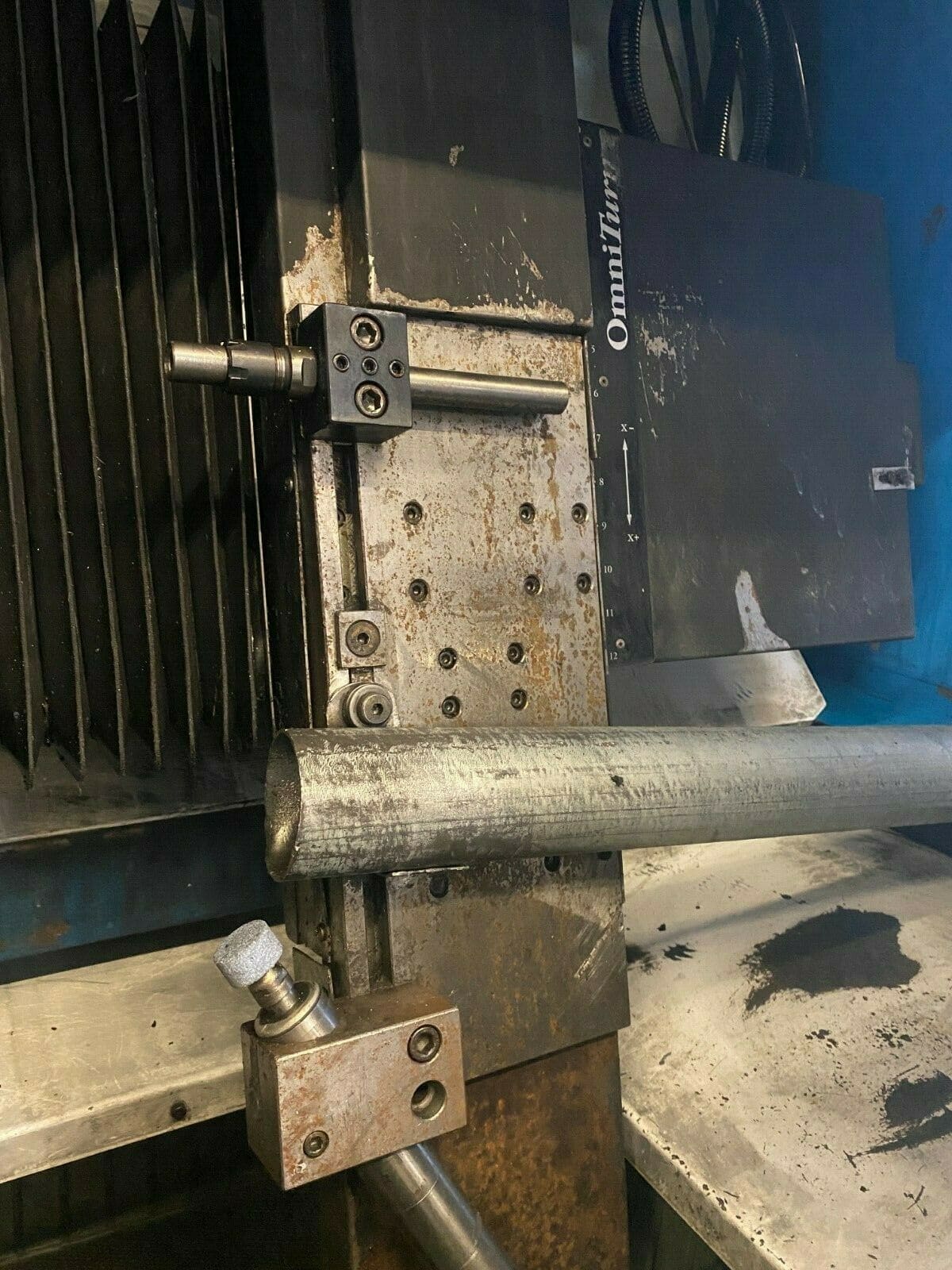

  • Tooling Plate: 6″ x 14″ with 3/8″ T-Slot
