*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

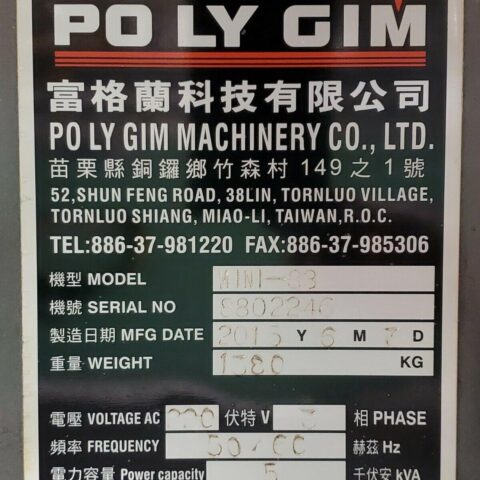

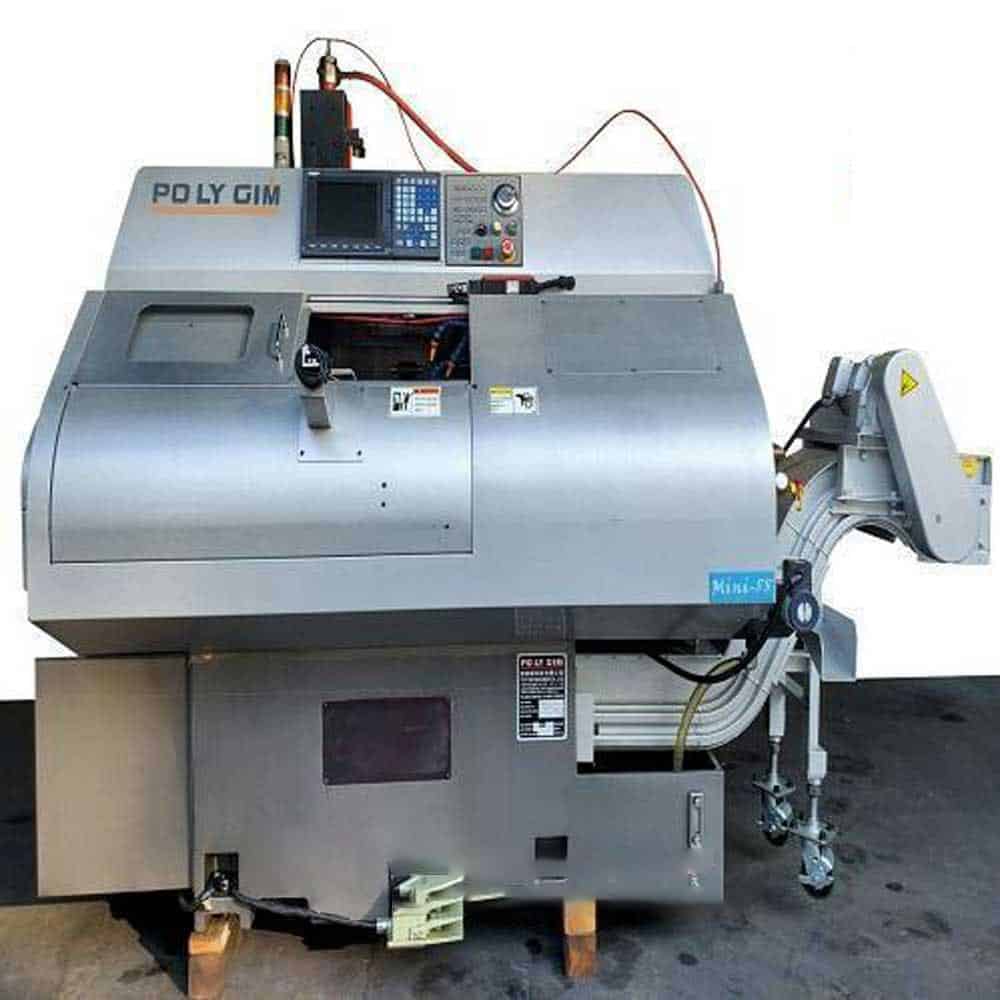

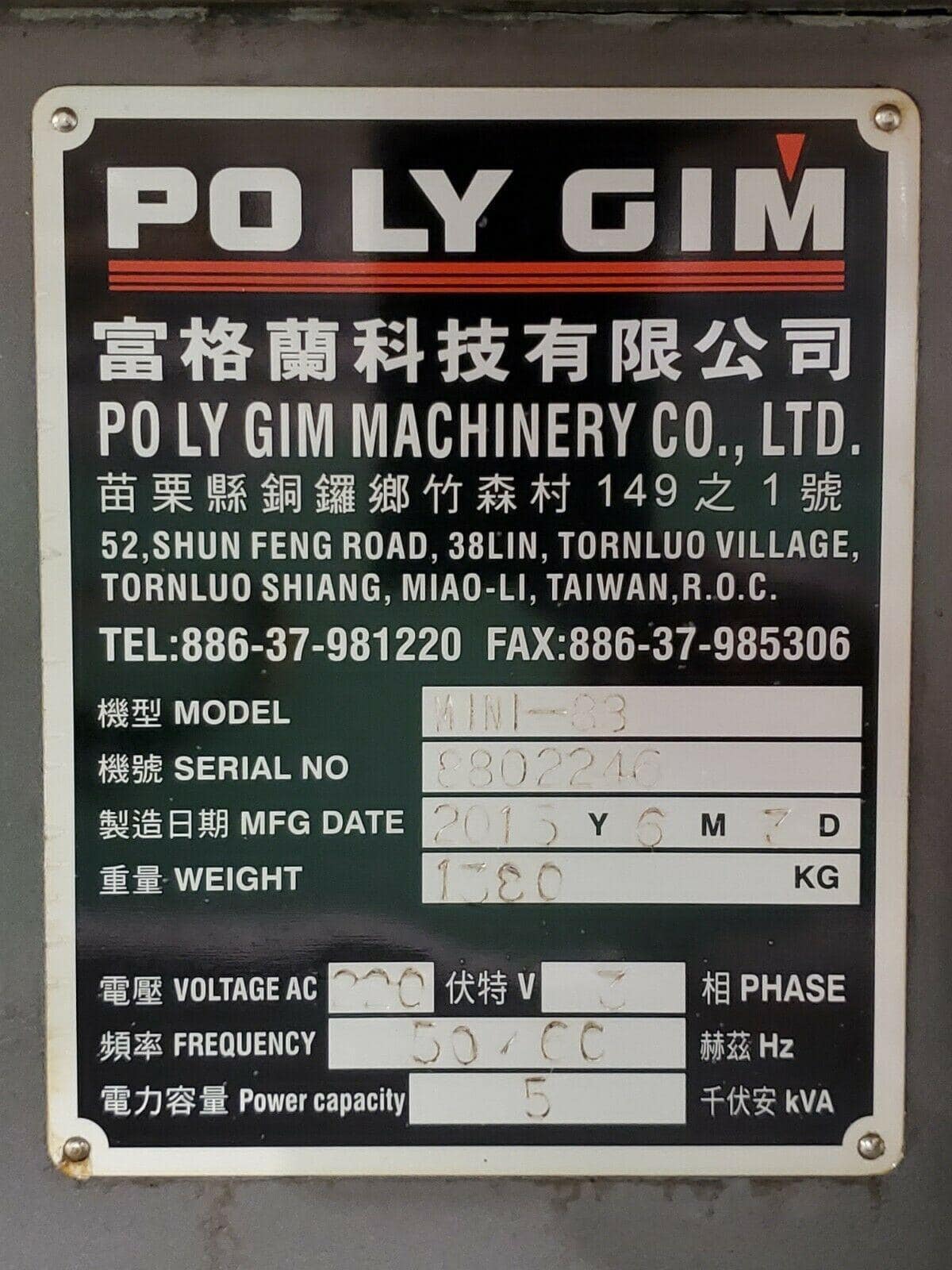

| Make: | POLYGIM |
| Model: | MINI-88-25 |
| Year: | 2015 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

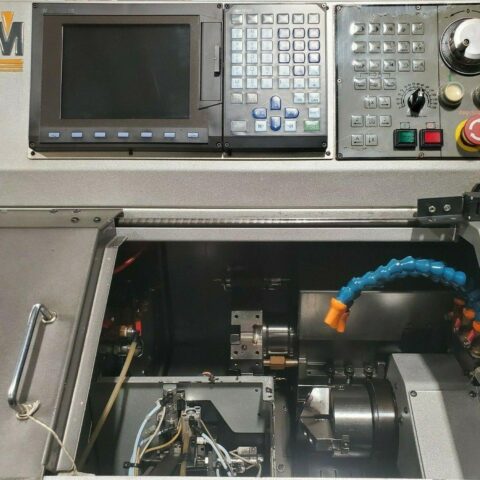

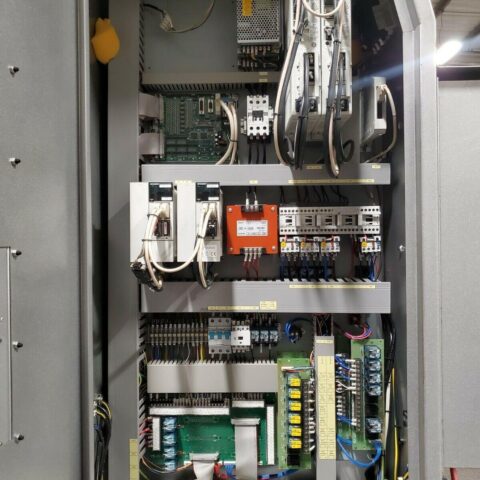

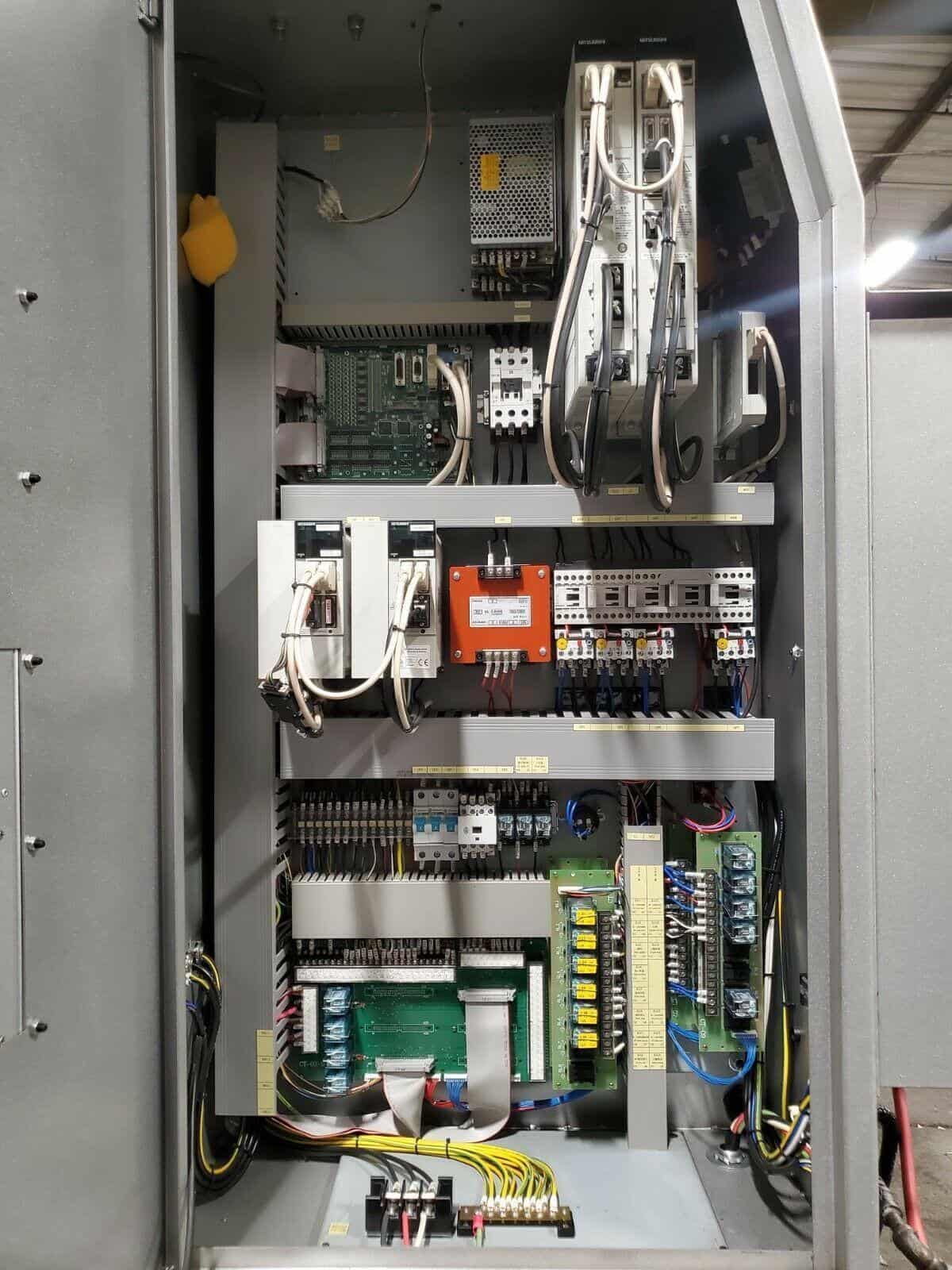

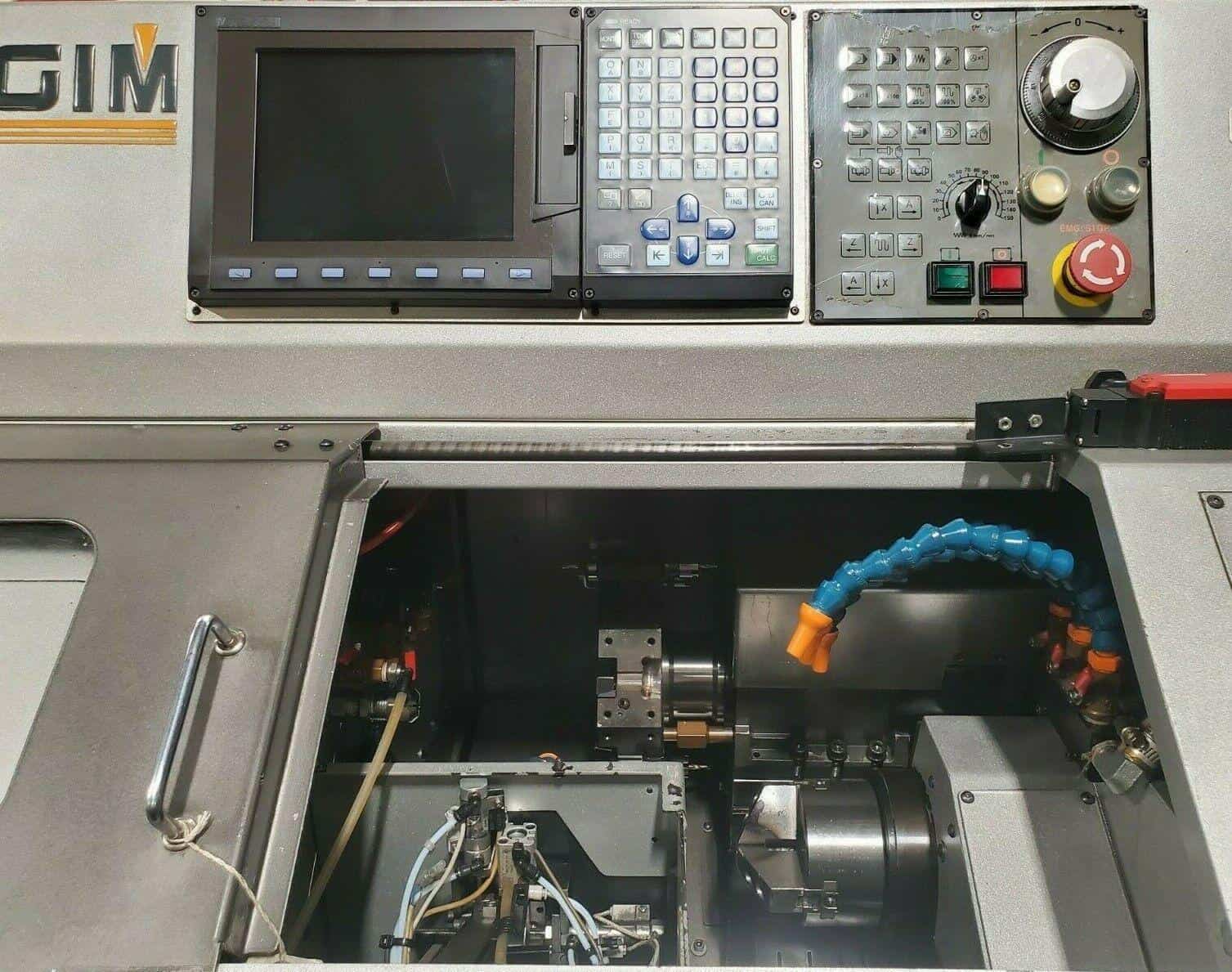

| Mitsubishi CNC Control |

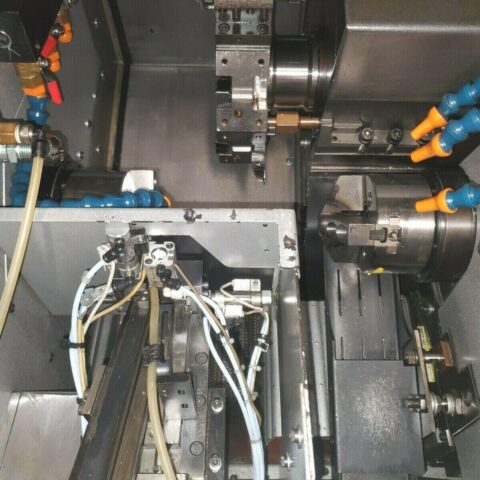

| Auto Parts Loader |

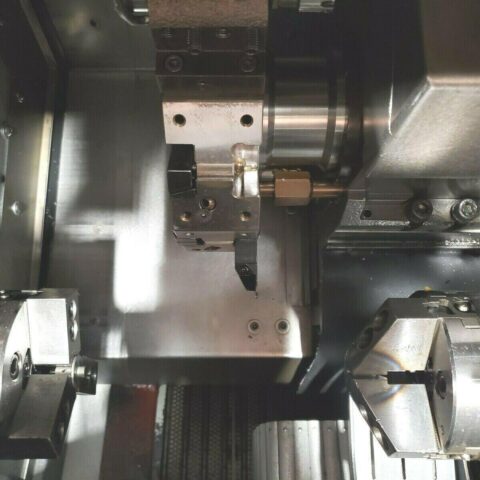

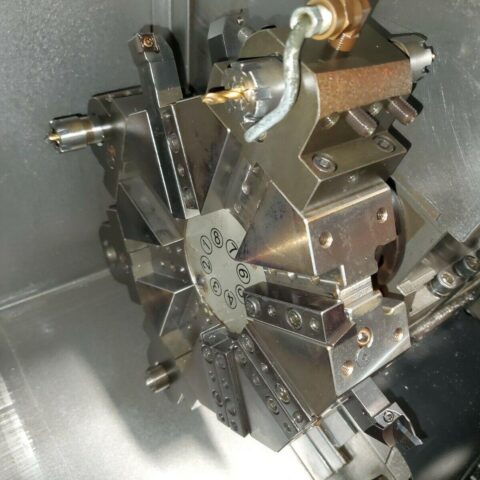

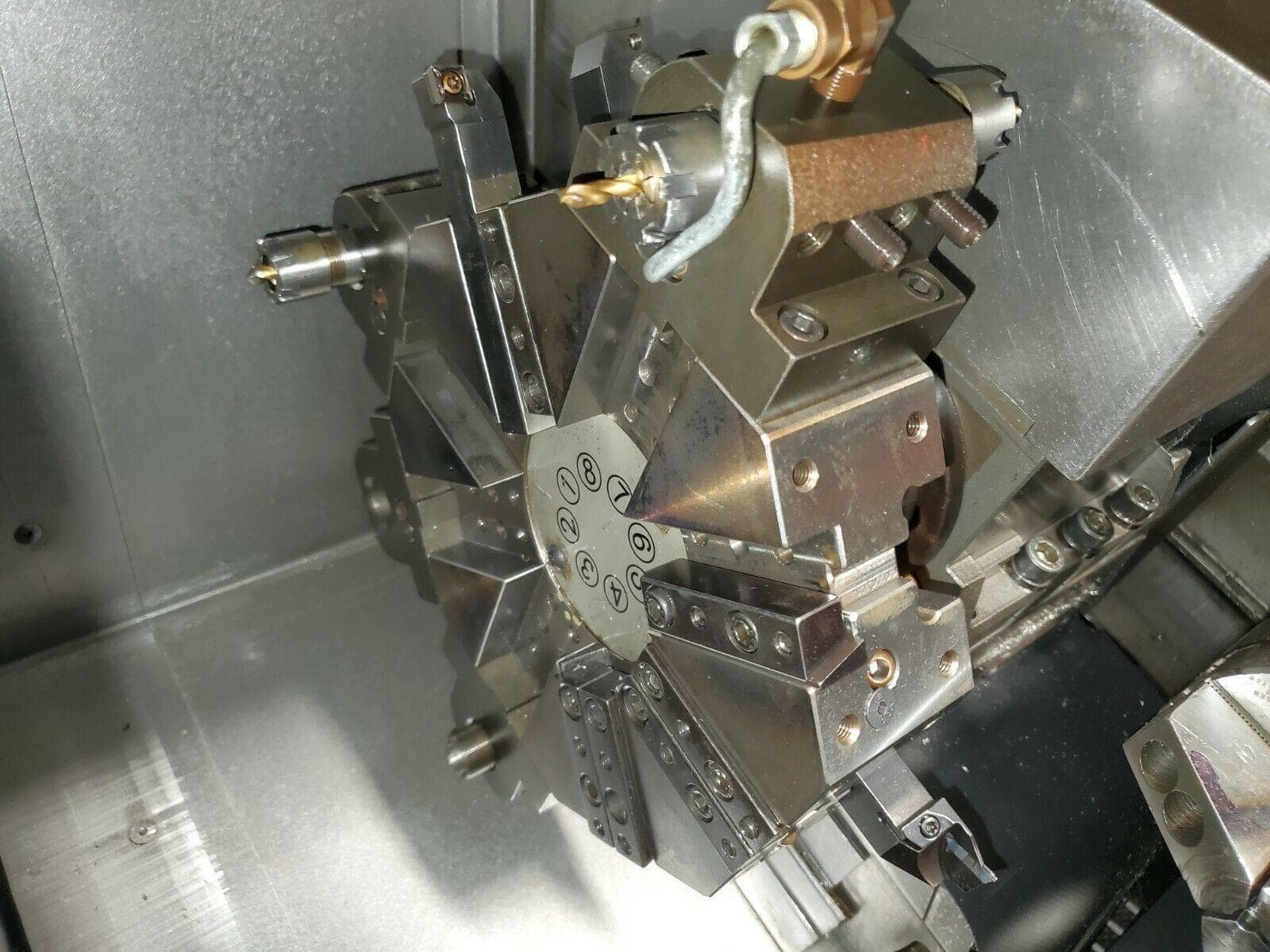

| 8 -Station Servo Turret |
| Spindle Synchronization |

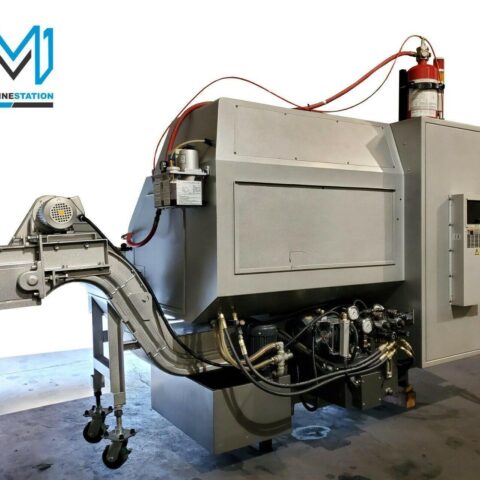

| FireTrace fire suppression system |

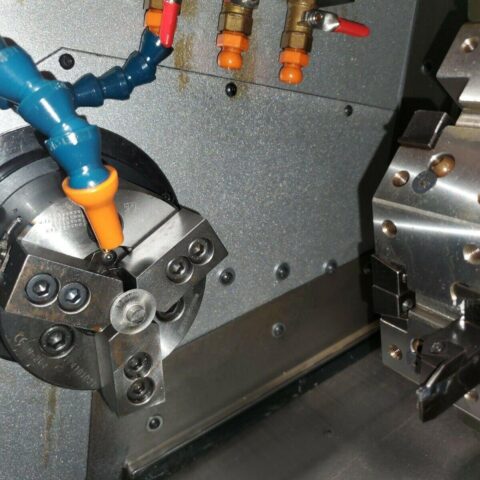

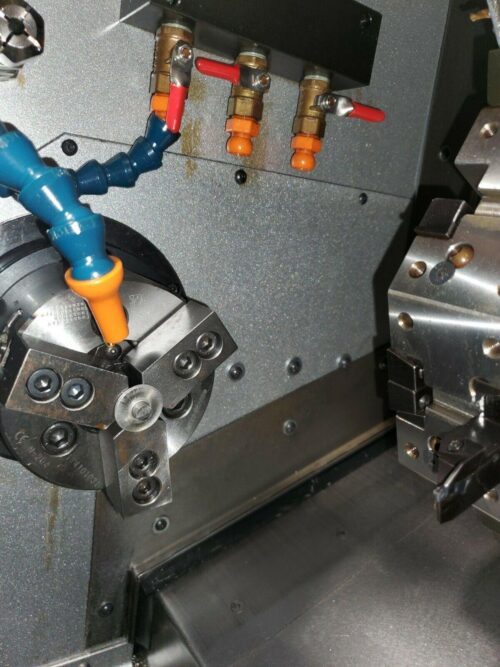

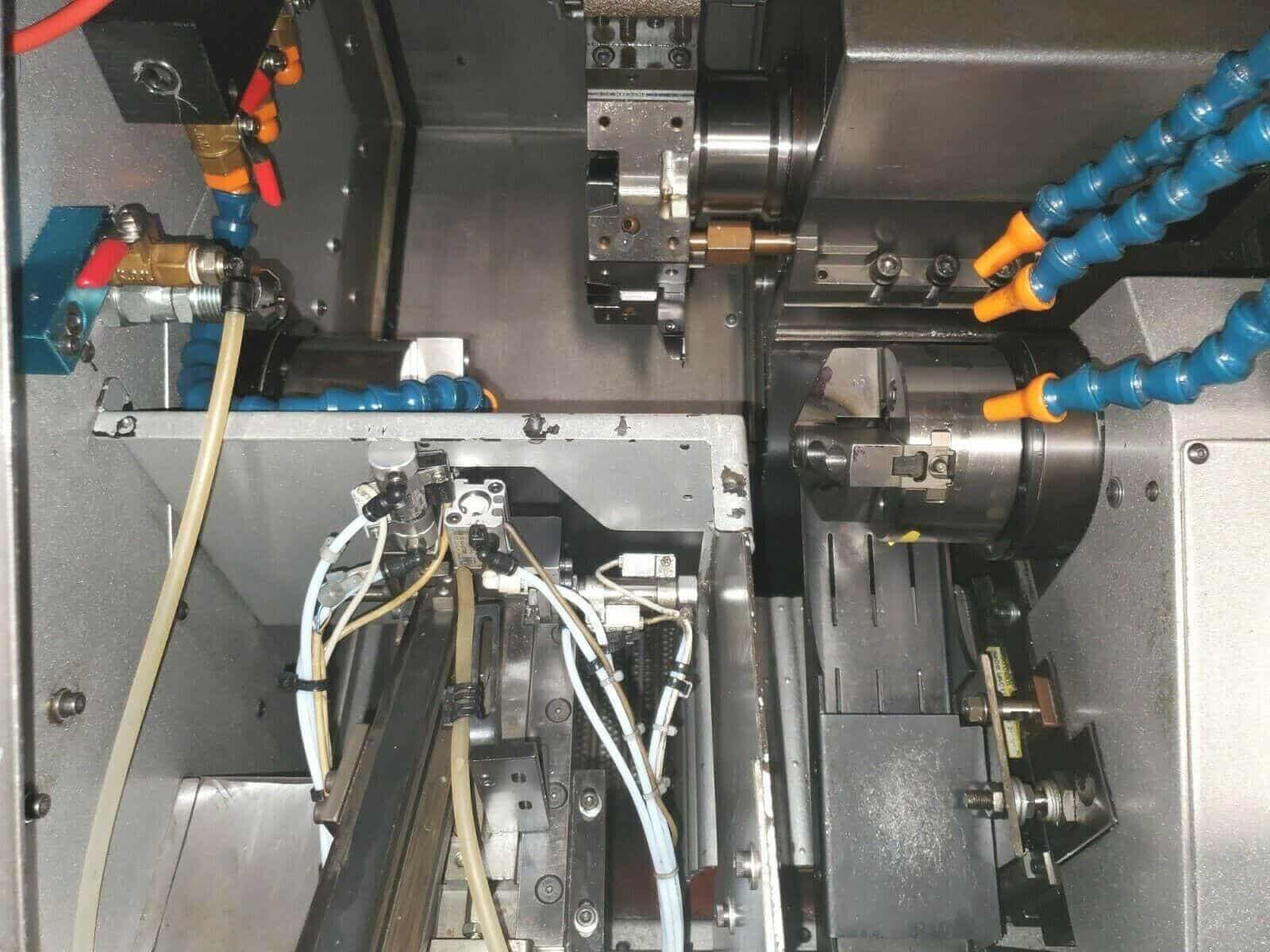

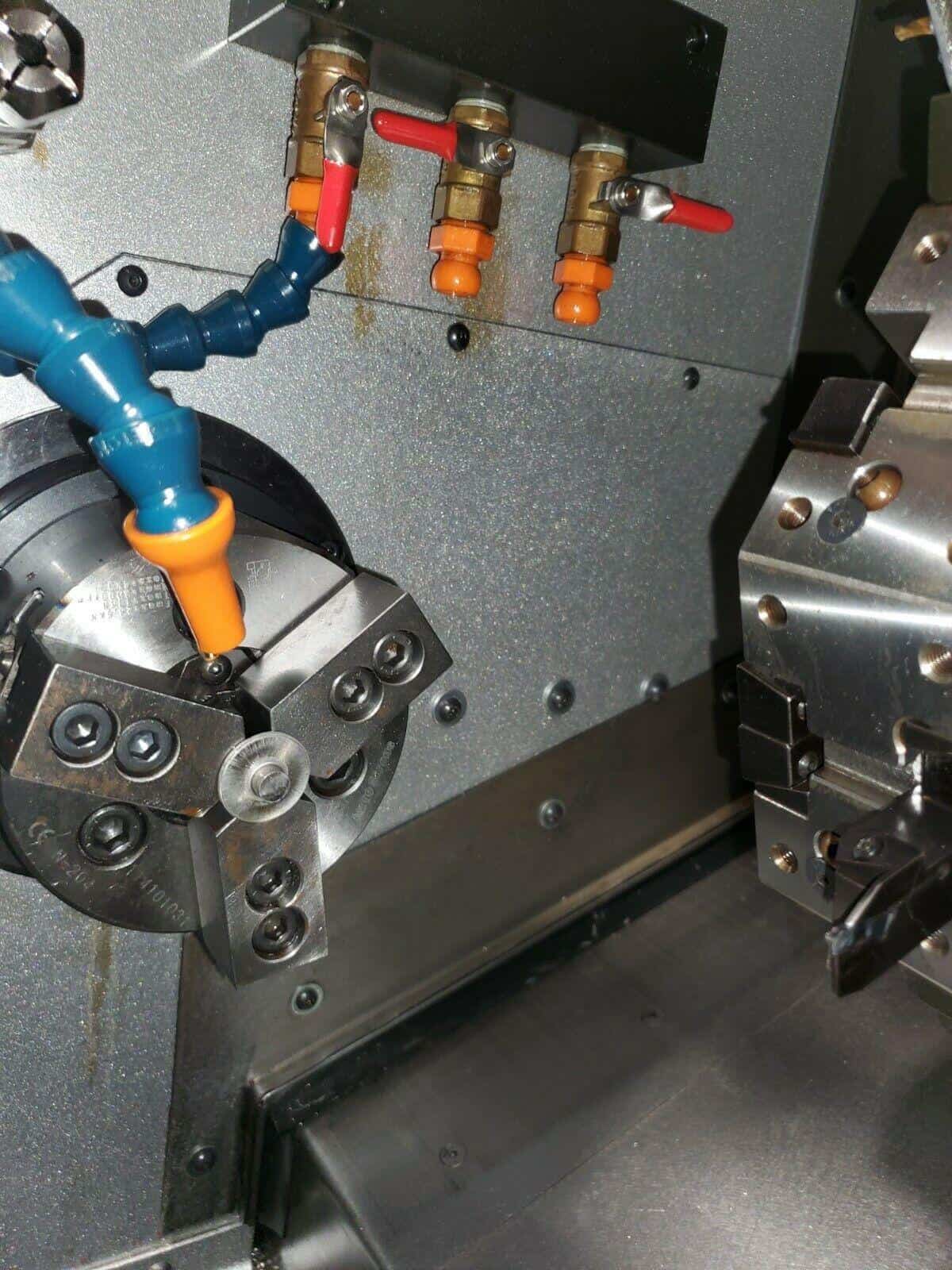

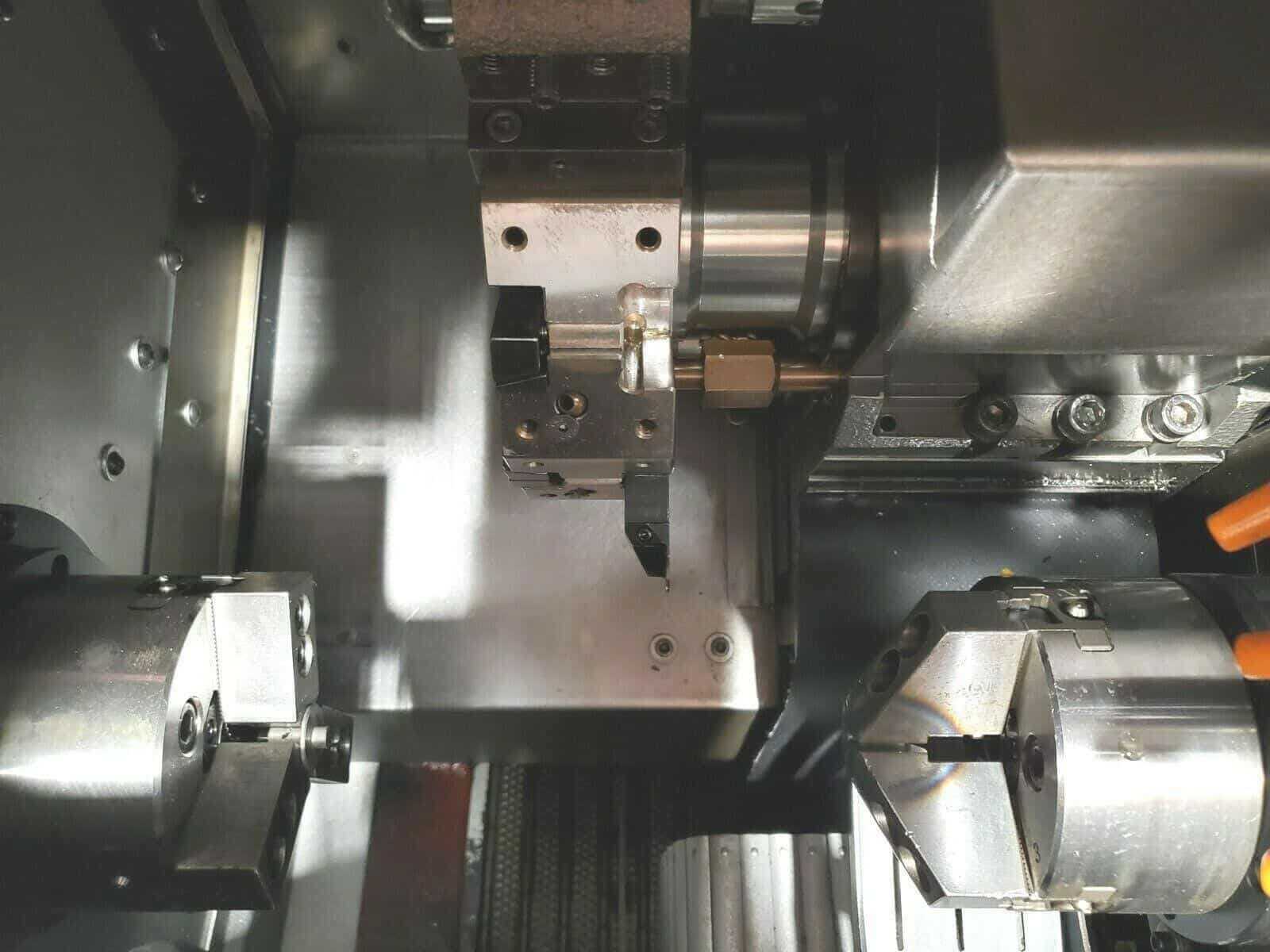

| 4″ 3 Jaw Chuck on Main Spindle |
| 4″ 3 Jaw Chuck on Sub Spindle |
| Rigid Tapping on Both Spindles |
| Foot Operated Control for Chuck |

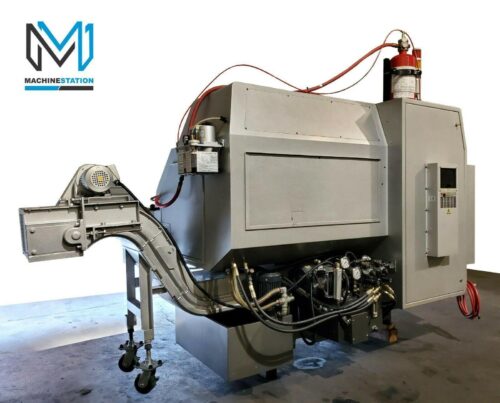

| Chip Conveyor |
| Parts Conveyor |
| PCMCIA Card Slot |
| Tool Holder Bushings |
| Capacity: |
|---|
| Max Turning Diameter: 3.15″ (80 mm) |
| Max Turning Length: 8.66″ (220 mm) |
| Max Bar Capacity: 1.00″ (25.4 mm) |
| Max Swing Over Bed: 15.74″ (400 mm) |
| Travels: |
|---|
| X Axis Travel: 3.15″ (80 mm) |
| Z Axis Travel: 11.02″ (280 mm) |
| A Axis Travel (Sub Spindle): 8.66″ (220 mm) |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 472 IPM |
| Rapid Traverse Z Axis: 472 IPM |
| Spindle: |
|---|
| Main Spindle Bore: 1.02″ (26 mm) |
| Sub Spindle Bore: 1.02″ (26 mm) |
| Main Spindle Nose: Ø3.34″ (85 mm) |
| Sub Spindle Nose: Ø3.34″ (85 mm) |
| Main Spindle Speed: 100-6000 RPM |
| Sub Spindle Speed: 100-6000 RPM |
| Main Spindle Power: 3 HP (2.5 kw) |
| Sub Spindle Power: 2 HP (1.5 kw) |
| Turret: |
|---|
| Capacity: 8 Station |
| Index Time: 1 second |
| General: |
|---|
| Power: 5 kVA 220v / 3-Phase Overall |
| Dimensions: 79″ x 47″ x 66″ High |
| Weight: 3042 lbs. Approx. |
