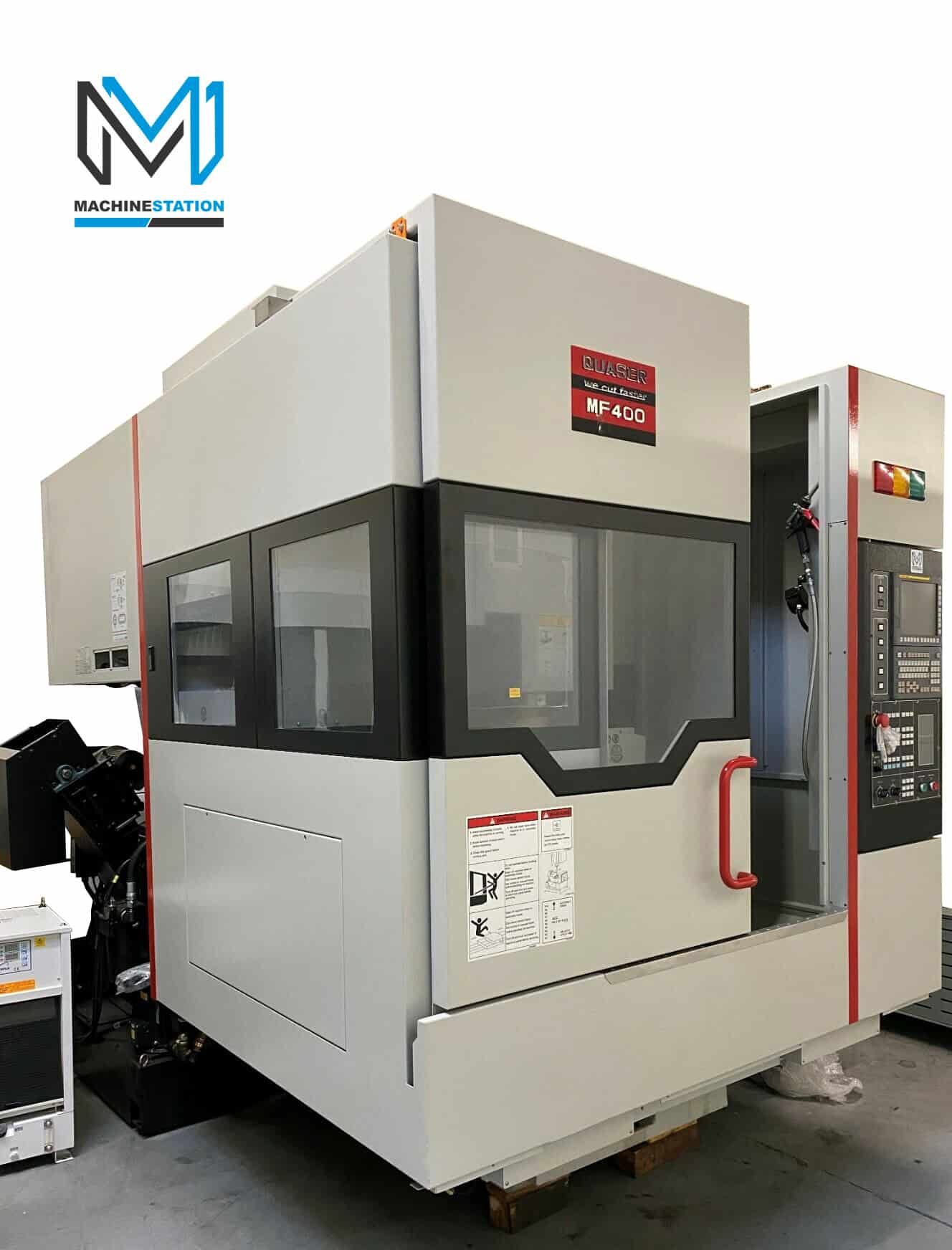

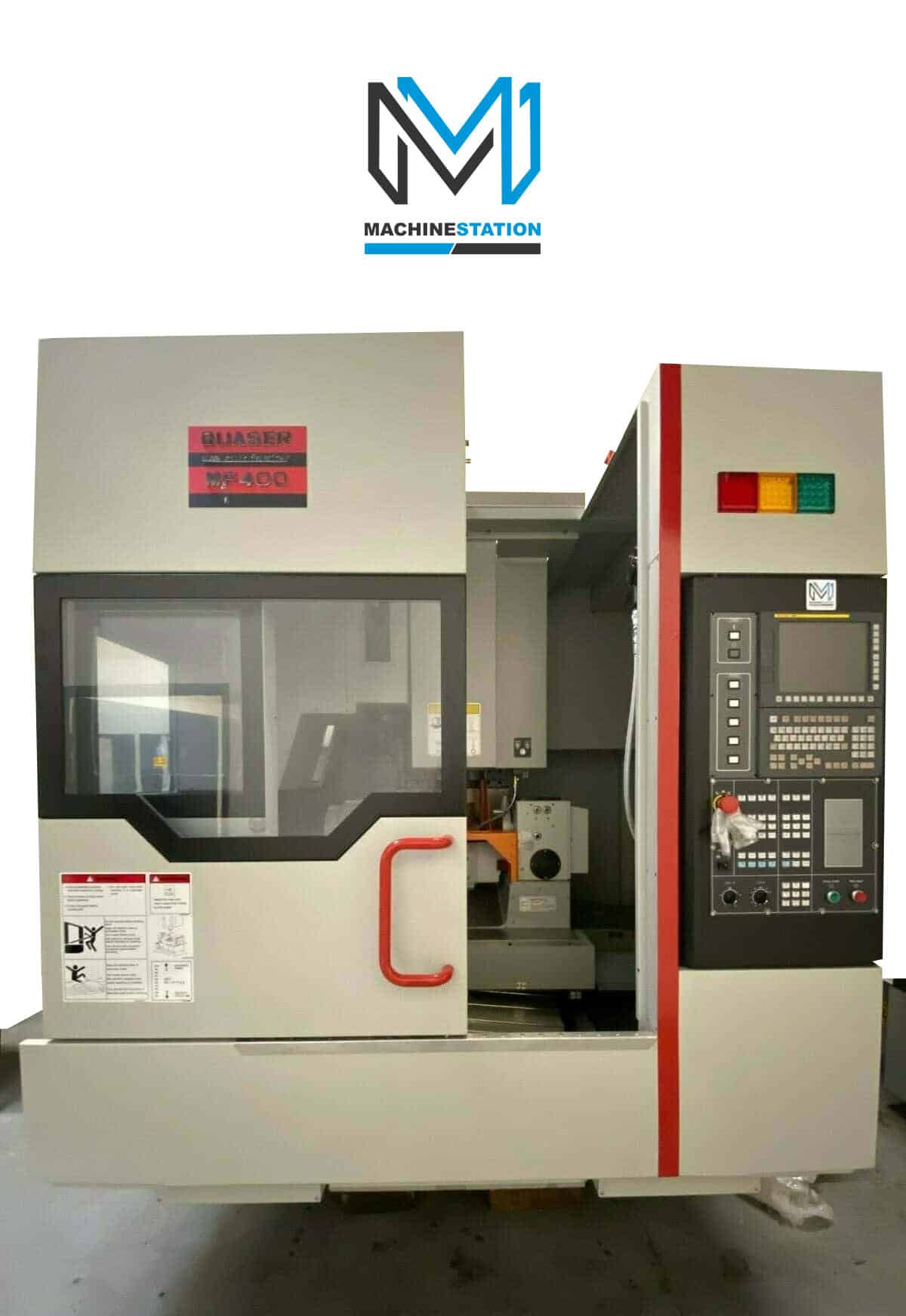

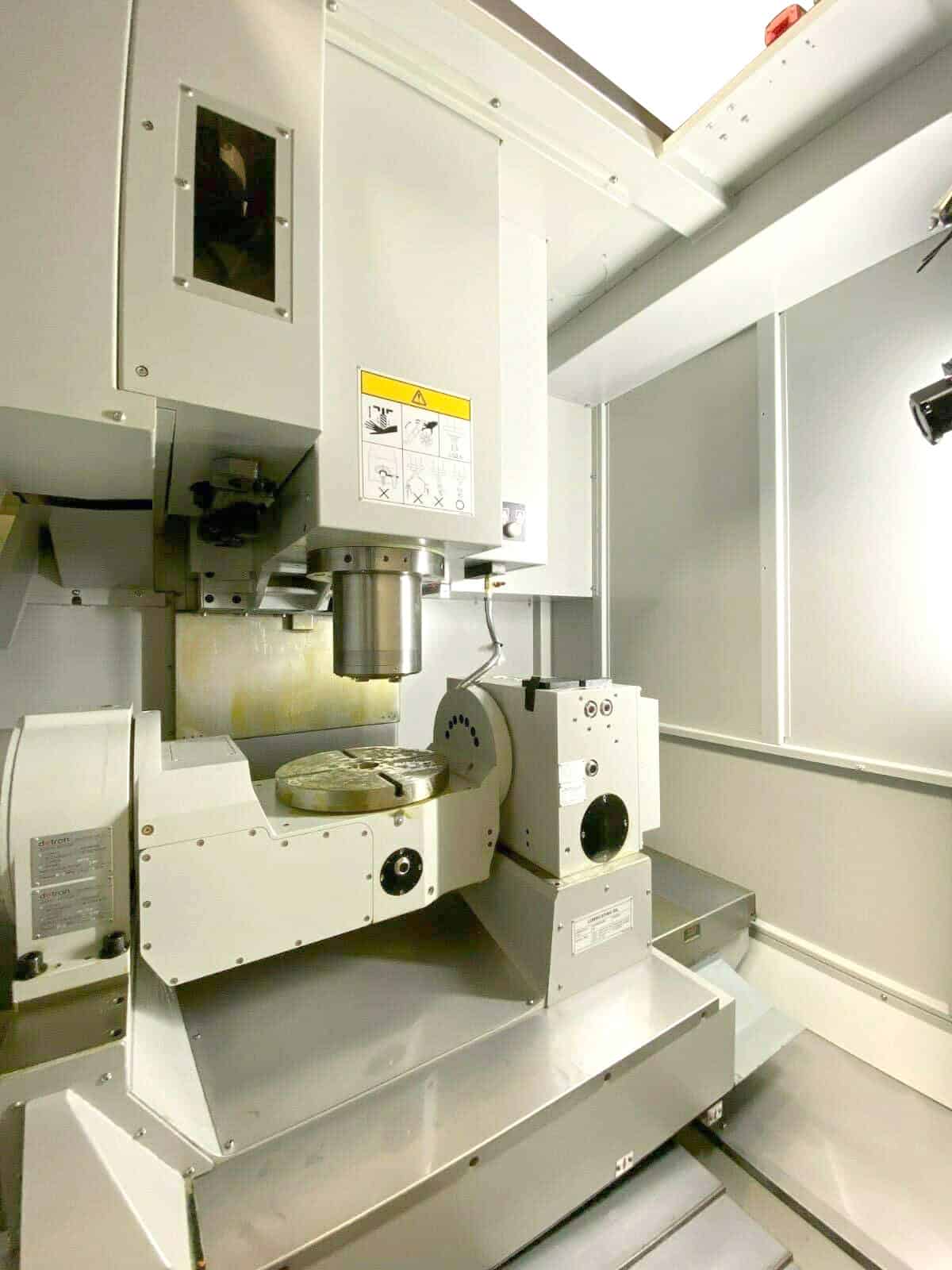

Quaser MF-400C 5 Axis CNC Vertical Machining Center
Out of stock
SKU: |
1952 |
Make/Model: |
Quaser MF-400C |
Video: |
[fusion_button link=”https://www.youtube.com/watch?v=Vqy9lFHaWPs” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button] |
QUASER MF-400C 5 AXIS CNC VERTICAL MACHINING CENTER |
Make |
Quaser |
Model No. |
MF-400C |
Year |
2011 / 2013 |
Serial # |
306B110041 |
Condition |
Very Good |
Cutting Hours: |
3454 |
- Quaser MF-400C 5 Axis CNC Vertical Machining Center Features:

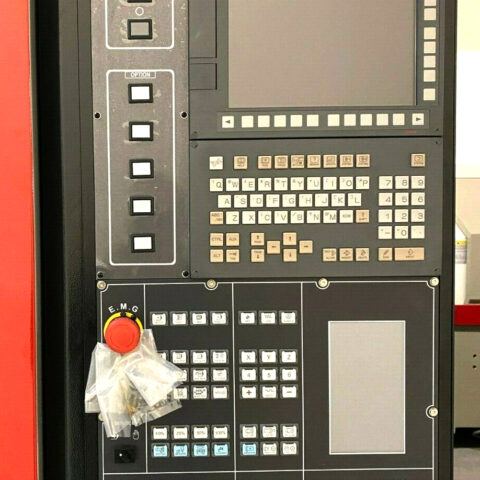

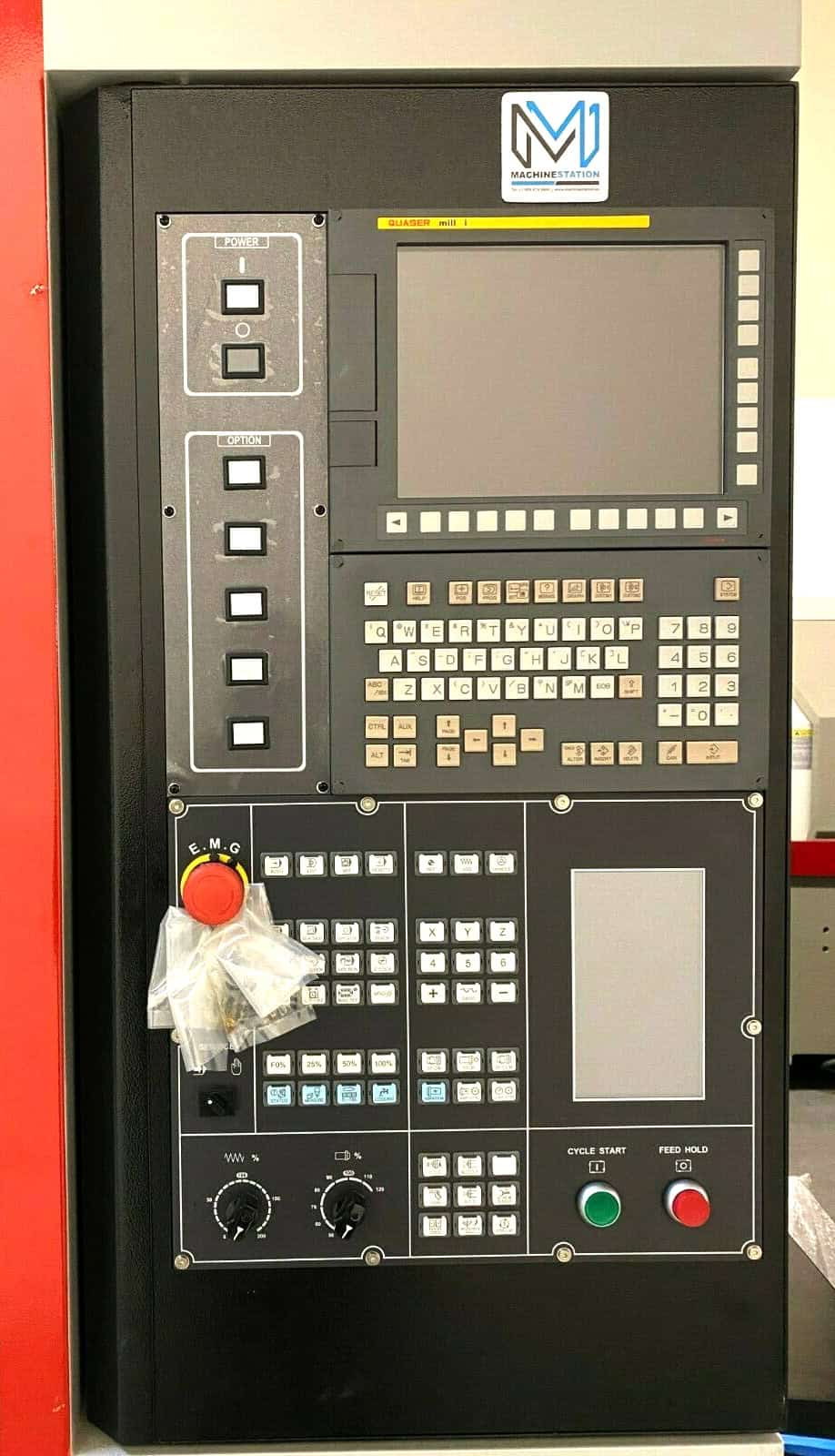

- Fanuc 0iMD CNC Control

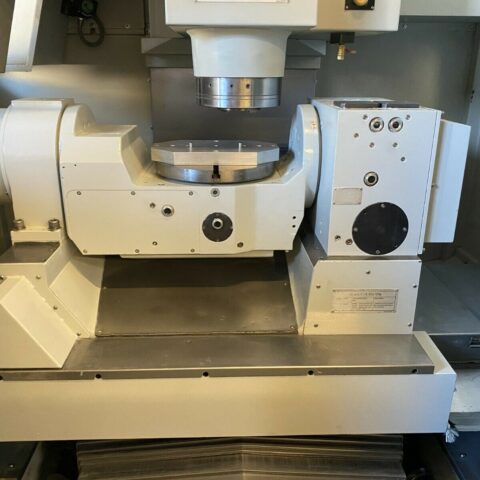

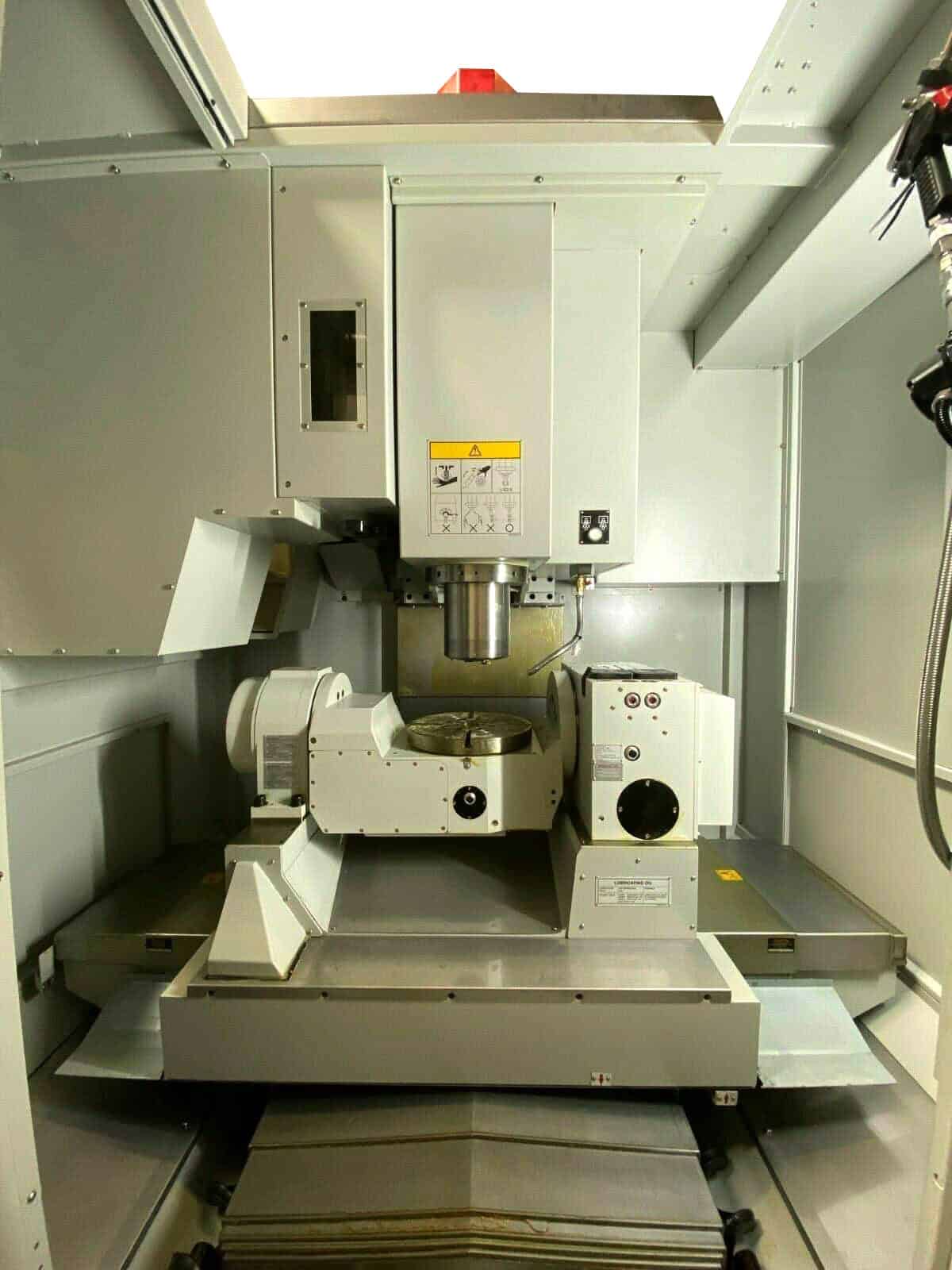

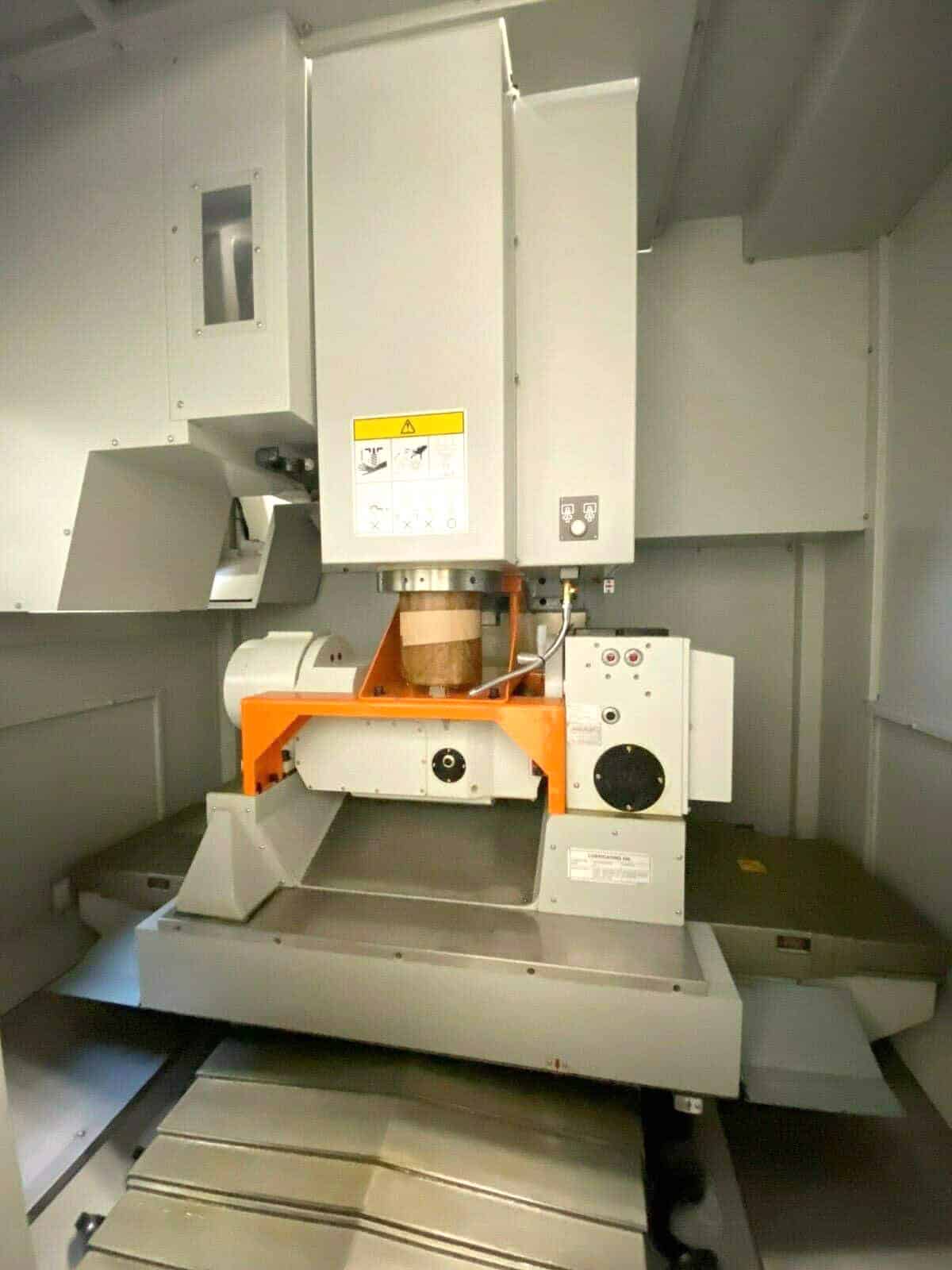

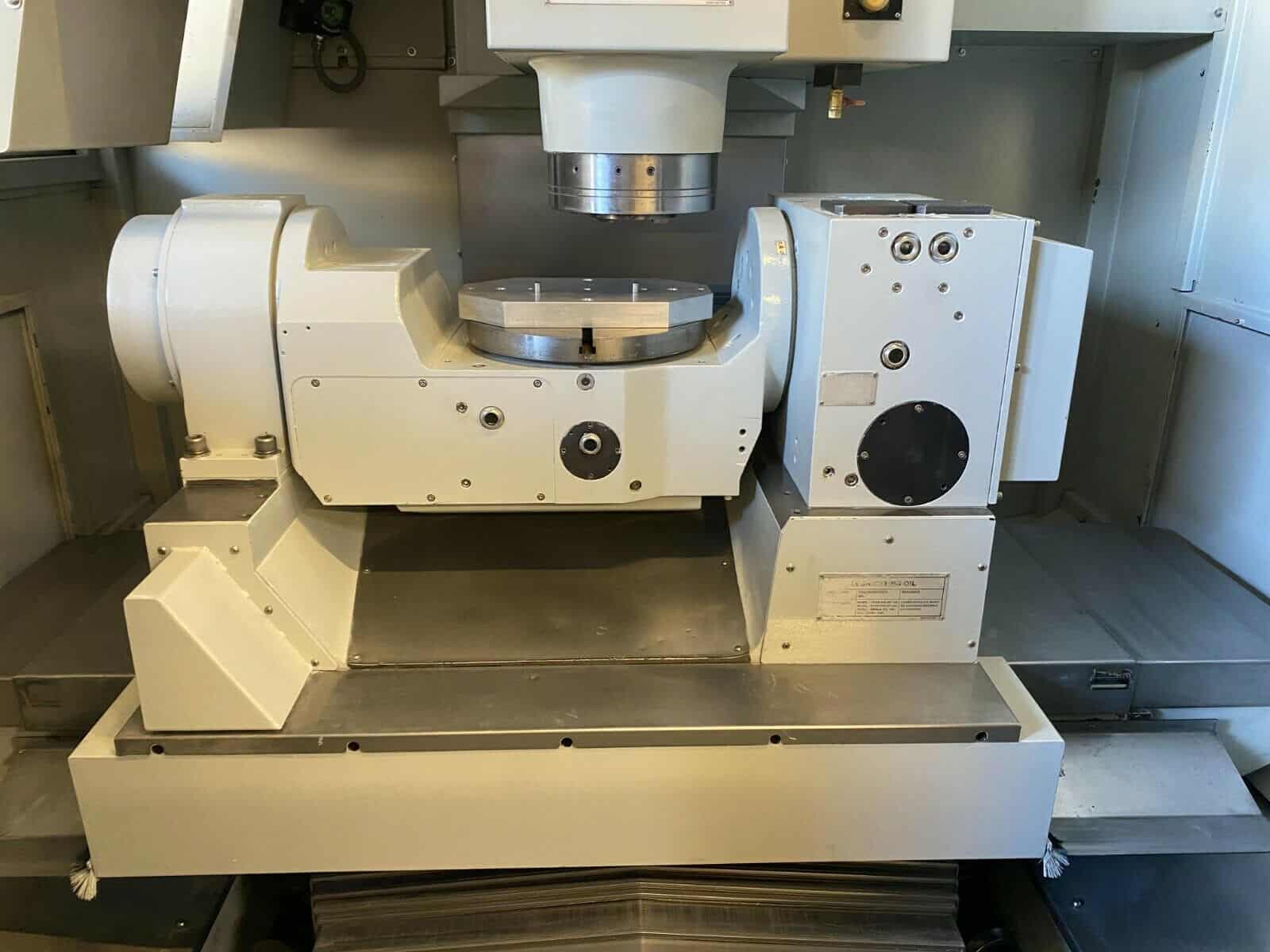

- 12.59″ Trunnion Table
- 10,000 RPM High Precision Spindle
- Coolant through Spindle
- 30Tools High Speed Tool Changer
- MPG Control
- PCMCIA Card Slot
- Spindle Chiller
- Spindle Orientation
- Helical Interpolation
- Rigid Tapping
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Chip Conveyor
- Work light
- Books and Manuals
- CE Marked
- Quaser MF-400C 5 Axis CNC Vertical Machining Center Specifications:
- Table:
- Table size: 12.59″
- Max. Swing: 16.1″
- Max. Workpiece: 15.75″ X 11.81″
- Max Weight on Table: 250 lbs
- Table to Spindle Nose: 0.78″ – 20.87″
- Travels:
- X Axis: 16.1″
- Y Axis: 24.1″
- Z Axis: 20.7″
- A Axis: +30° – 130° ( Table Tilt )
- C Axis: 360° ( Table Rotate )
- Spindle:
- Taper Size: 40
- Speed Range: 20 – 10,000 RPM
- Spindle Power: 20 HP
- Feed rates:
- Rapid X & Y : 1417 Inch Per Minute
- Rapid Z : 984 Inch Per Minute
- Rapid A : 2000° Per Minute
- Rapid C : 6000° Per Minute
- Tool changer:
- Capacity: 30 Tools
- Taper: 40
- Max Tool Size: 4.9″ X 11.08″ `
- Max Tool Weight: 15 lbs.
- Tool Change Time: 2.7 Second
- General:
- Air Required: 80 psi, 4 scfm
- Power: 26kva / 220v / 3-Phase
- Overall Dimensions: ??″ High
- Weight: 16,000 lbs
