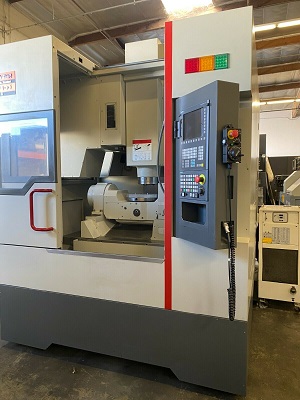

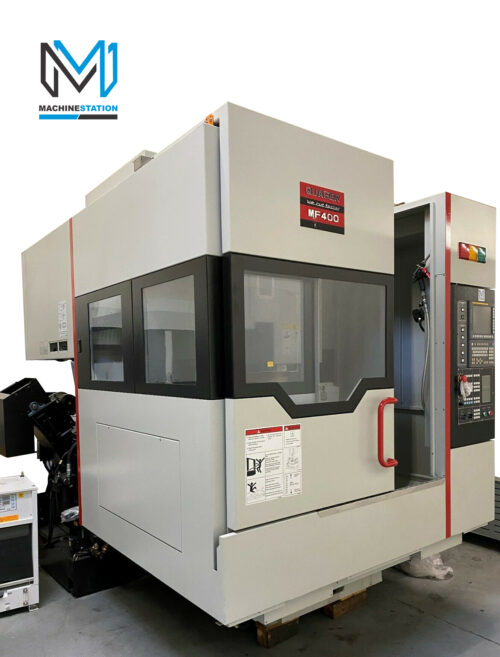

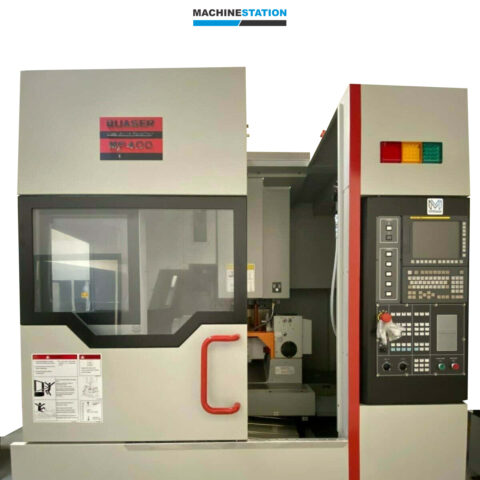

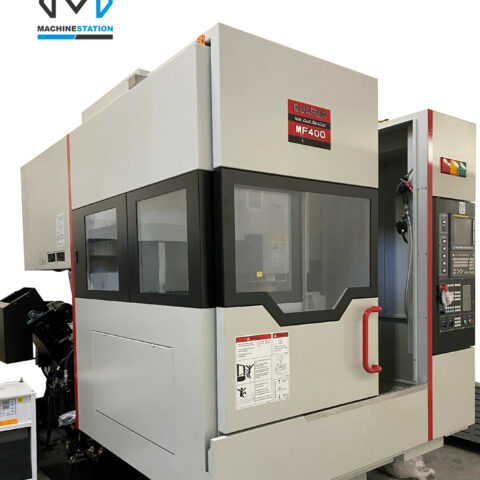

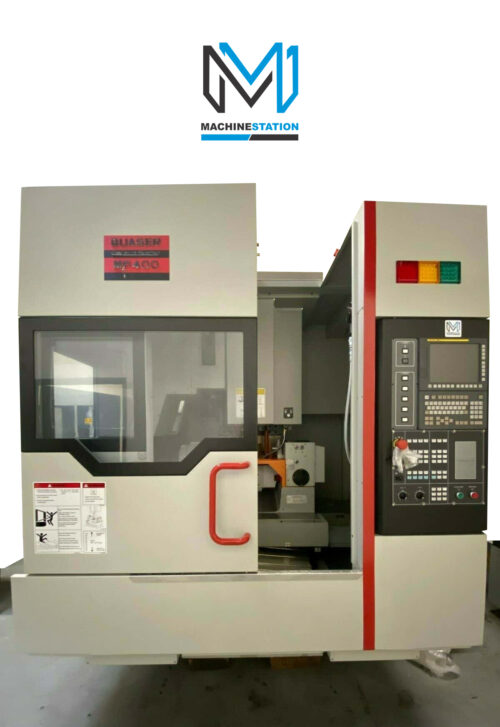

Quaser MF-400C 5 Axis CNC VMC
Out of stock
| QUASER MF-400C 5 AXIS CNC VMC |
| SKU |
1986 |
| Make |
Quaser |
| Model No. |
MF-400C |
| Year |
2 |
| Condition |
Good Working |
- Quaser MF-400C Features:

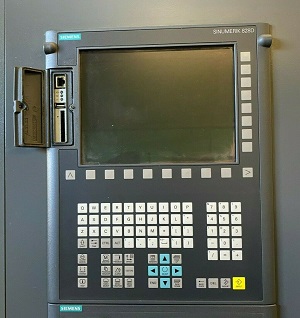

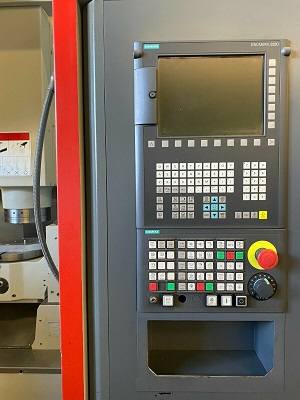

- Siemens 828D CNC Control

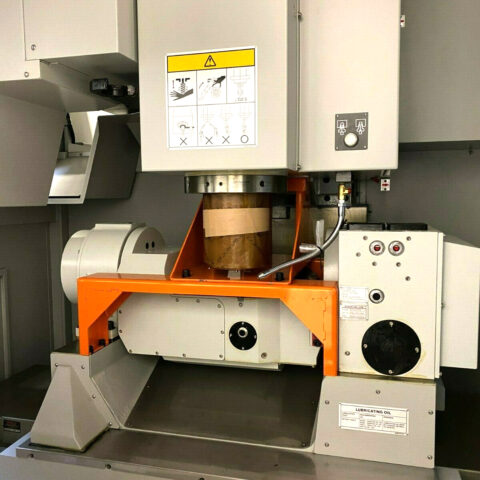

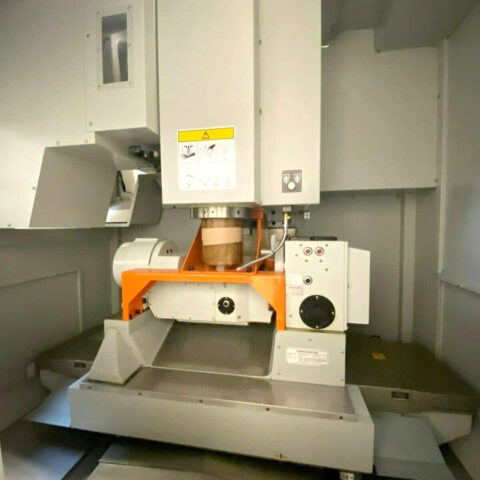

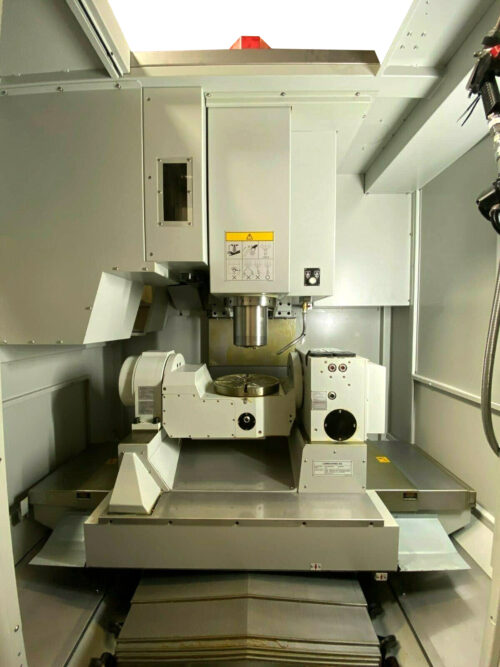

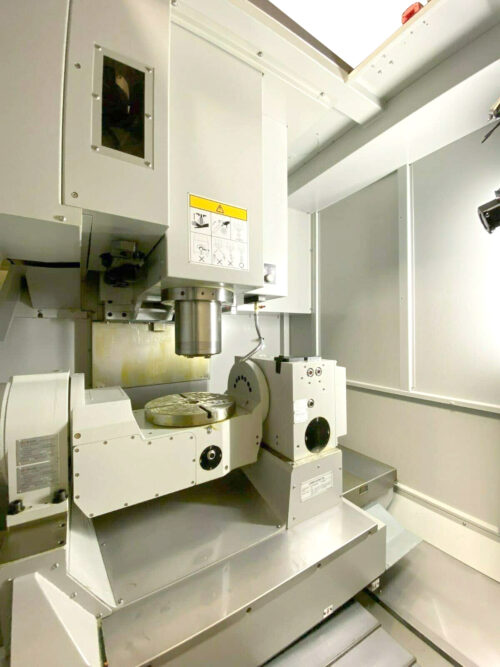

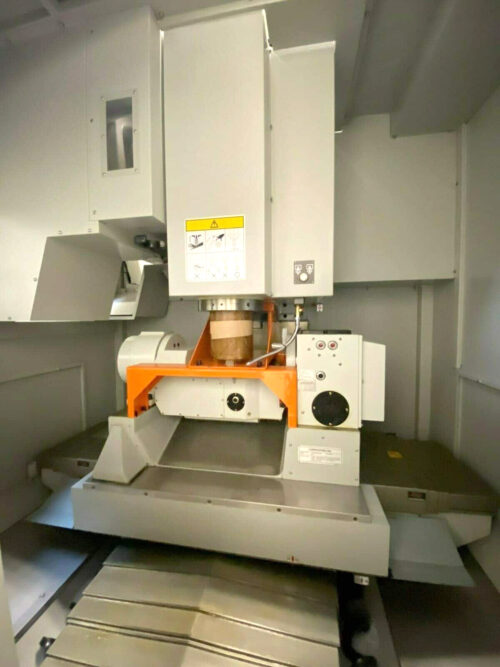

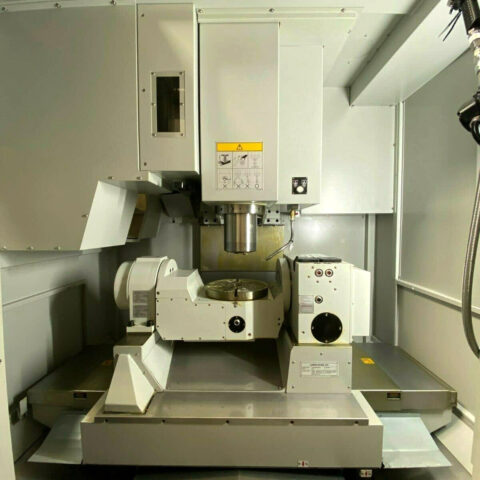

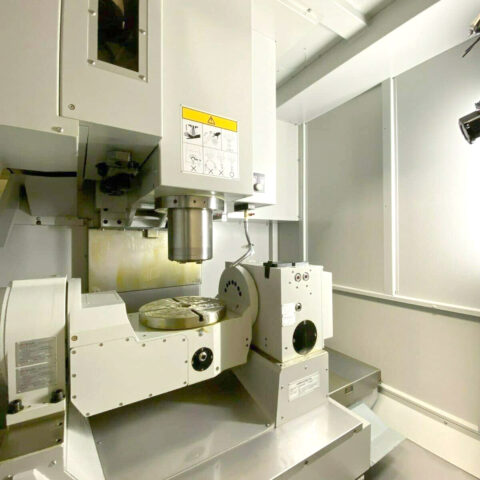

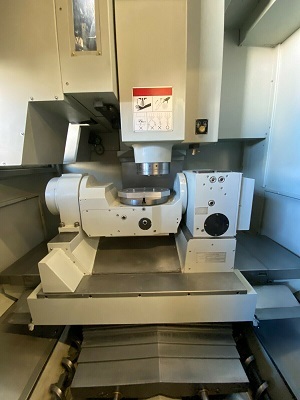

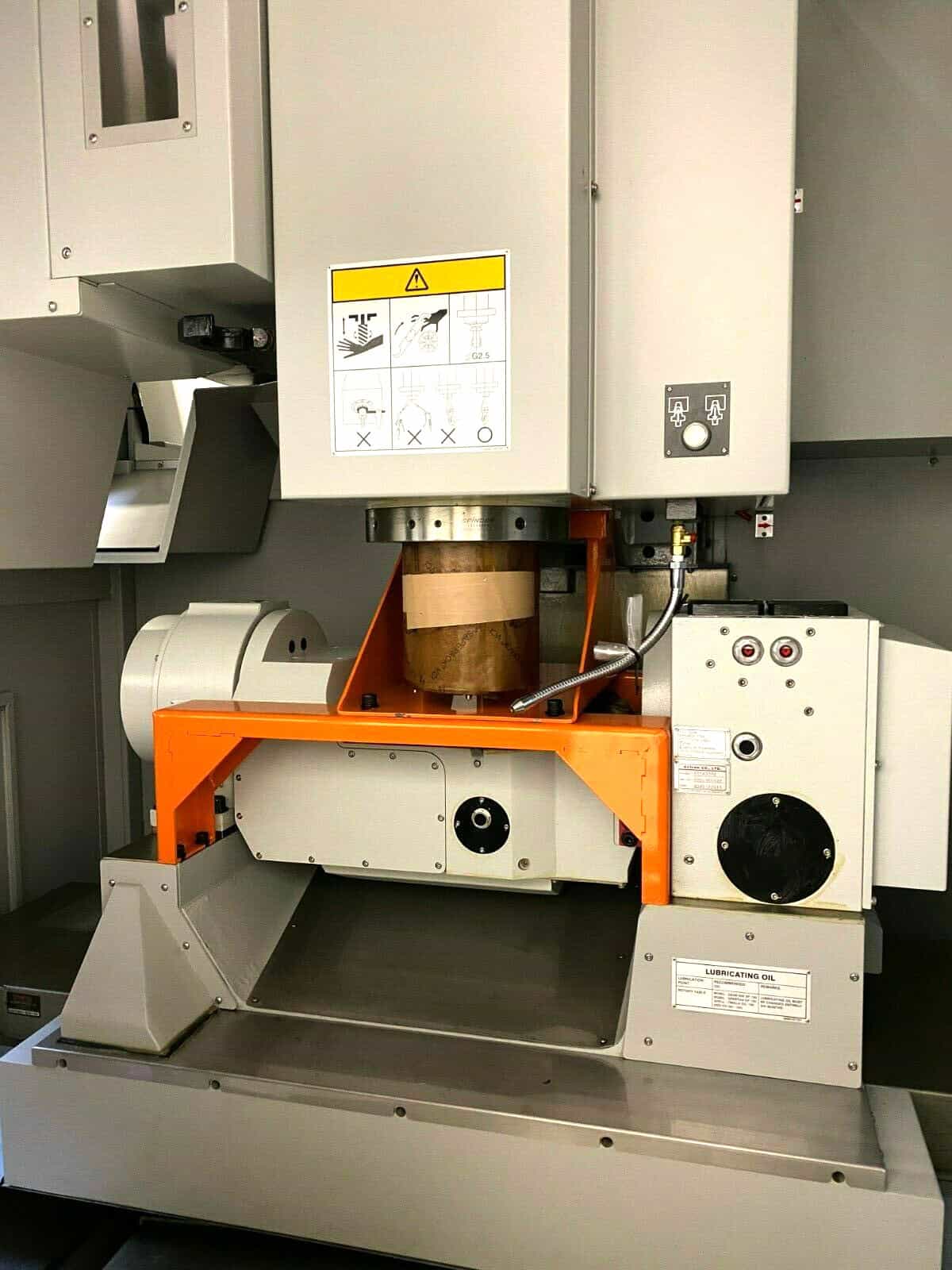

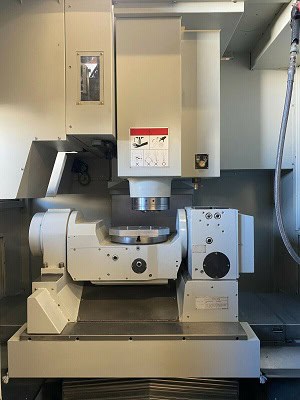

- 12.59″ Trunnion Table
- 12,000 RPM High Precision Spindle
- Coolant through Spindle 30 Tools High Speed Tool Changer
- MPG Control
- PCMCIA Card Slot
- Spindle Chiller
- Thermal Compensation
- Spindle Orientation
- Helical Interpolation
- Rigid Tapping
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank

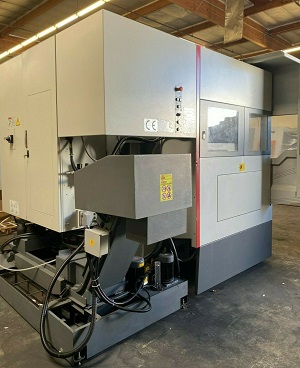

- Chip Conveyor
- Work light
- CE Marked
- Table:
- Table size: 12.59″
- Max. Swing: 16.1″
- Max. Workpiece: 15.75″ X 11.81″
- Max Weight on Table: 250 lbs
- Table to Spindle Nose: 0.78″ – 20.87″
- Travels:
- X Axis: 16.1″
- Y Axis: 24.1″
- Z Axis: 20.7″
- A Axis: +30° – 130° ( Table Tilt )
- C Axis: 360° ( Table Rotate )
- Spindle:
- Taper Size: 40
- Speed Range: 20 – 12,000 RPM
- Spindle Power: 20 HP
- Feed rates:
- Rapid X & Y : 1417 Inch Per Minute
- Rapid Z : 984 Inch Per Minute
- Rapid A : 2000° Per Minute
- Rapid C : 6000° Per Minute
- Tool changer:
- Capacity: 30 Tools
- Taper: 40
- Max Tool Size: 4.9″ X 11.08″
- Max Tool Weight: 15 lbs.
- Tool Change Time: 2.7 Second
- General:
- Air Required: 80 psi, 4 scfm
- Power: 26kva / 220v / 3-Phase
- Overall Dimensions: ??″ High
- Weight: 16,000 lbs
