*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

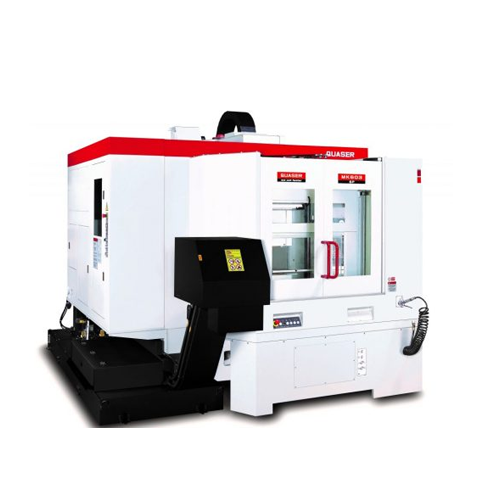

| Make: | Quaser |
| Model: | MK603S |
| Condition: | Brand New |
| Specification: |
|---|
| Pallet size (mm): 1050 X 550 X 2 |
| Max. work swing diameter (mm) : Φ1630 |
| Max. Work Piece height (mm) : 350 |
| Travel X (mm) : 1020 |
| Travel Y (mm): 610 |
| Travel Z (mm) : 600 |
| Table load capacity (kg) : 300 X 2 |
| Pallet Changer |
|---|
| Number of Pallet : 2 |
| Method of Pallet Changer : Swing Arm Type |
| Main Spindle |
|---|
| Spindle taper : 40 taper |
| Max. spindle speed : 9K~12K |
| Tool Changer |
|---|
| Magazine positions : 48 (std.) |
| Max. tool diameter (mm) : 76.2 |
| Max. tool dia. Due to neighbor pots are empty (mm) : 125 |
| Max. tool length (mm): 300 |
| NOTE: Different Configurations of Same Model Available. Similar but not Identical. |
|---|
| MK603SE, MK603SP |
| E =Standard |
| P =Performance |
