*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

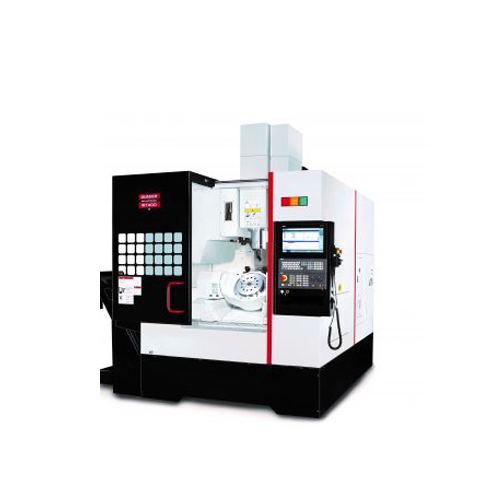

| Make: | Quaser |
| Model: | MT400U |
| Condition: | Brand New |
| Specification: |
|---|
| Table size (mm): Φ320 |
| Max. swing (mm): Φ400 |
| Max. work piece size (mm) : Φ400 x 300 |
| Travel X (mm) : 410 |
| Travel Y (mm) : 610 |
| Travel Z (mm) : 510 |
| Table load capacity (kg): 50 |
| Main Spindle: |
|---|
| Spindle taper : 40 taper |
| Max. spindle speed: 12k ~ 15k |
| Tool Changer: |
|---|
| Magazine positions: 48(std.) 60/120(opt.) |
| Max. tool diameter (mm) : 76.2 |
| Max. tool dia. Due to neighbor pots are empty (mm): 125 |
| Max. tool length (mm): 280 |
