*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

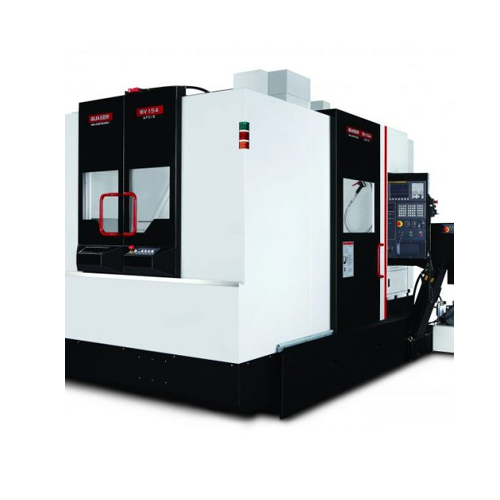

| Make: | Quaser |
| Model: | MV154APC |
| Condition: | Brand New |
| Specification: |
|---|
| Pallet size (mm) : 800 X 500 |
| Max. work piece size X / Y / Z (mm): 800 X 500 X 370 |
| Travel X (mm): 700 |
| Travel Y (mm): 500 |
| Travel Z (mm): 560 |
| Table load capacity (kg): 250 |
| Pallet Changer: |
|---|
| Number of Pallet: 2 |
| Method of Pallet Changer : Swing Type |
| Main Spindle: |
|---|
| Spindle taper : 40 taper |
| Max. spindle speed : 9K~12K |
| Tool Changer: |
|---|
| Magazine positions : 48 (std.) 60 (opt) |
| Max. tool diameter (mm) : 76.2 |
| Max. tool dia. Due to neighbor pots are empty (mm) : 125 |
| Max. tool length (mm) : 280 |
| NOTE: Different Configurations of Same Model Available. Similar but not Identical. |
|---|
| MV154APC/E, MV154APC/P, MV154APC/Hs |
| E =Standard |
| P =Performance |
| HS= High Speed |
