QuickTech i42-Twin 7 Axis CNC Turning Lathe

“Payment shown is based on 60 month Financing Terms. Please Ask the Sales Manager for more details”

Demo Model – Brand New Machine only used for Demo in Expo’s.One Our Floor, Fully powered / tested. Equipped with 2 Collet Chucks, Full C Axis, Milling, Sub Spindle, B and Y Axis. Comes with Parts & chip conveyor, tool holders.”

Share

Description

QuickTech i42-Twin 7 Axis CNC Turning Lathe
SKU 1875
Make QuickTech
Model No. i42-Twin
Serial No. 4185
New 2017
Condition New ( Demo Model )
Comes with 2 X Collet Chuck, Tool Holders, parts & Chip Conveyor
“Demo Model – Brand New Machine only used for Demo in Expo’s. On Our Floor, Fully powered / tested. Equipped with 2 Collet Chucks, Full C Axis, Milling, Sub Spindle, B and Y Axis. Comes with Parts & chip conveyor, tool holders.”
  • QuickTech i42-Twin Equipped With:

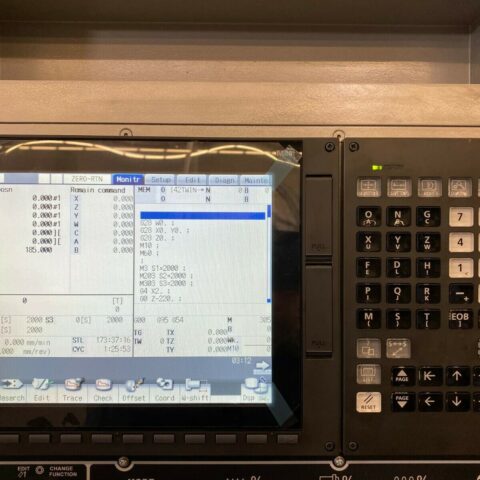

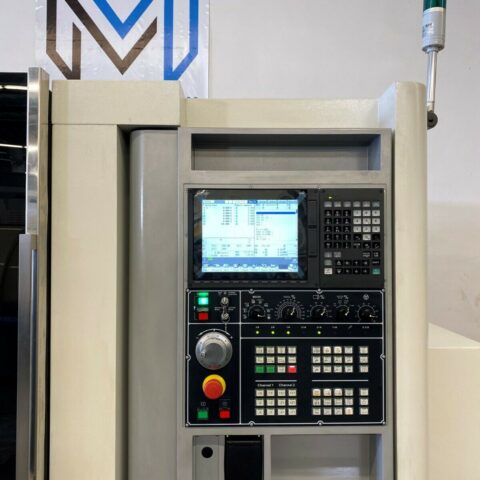

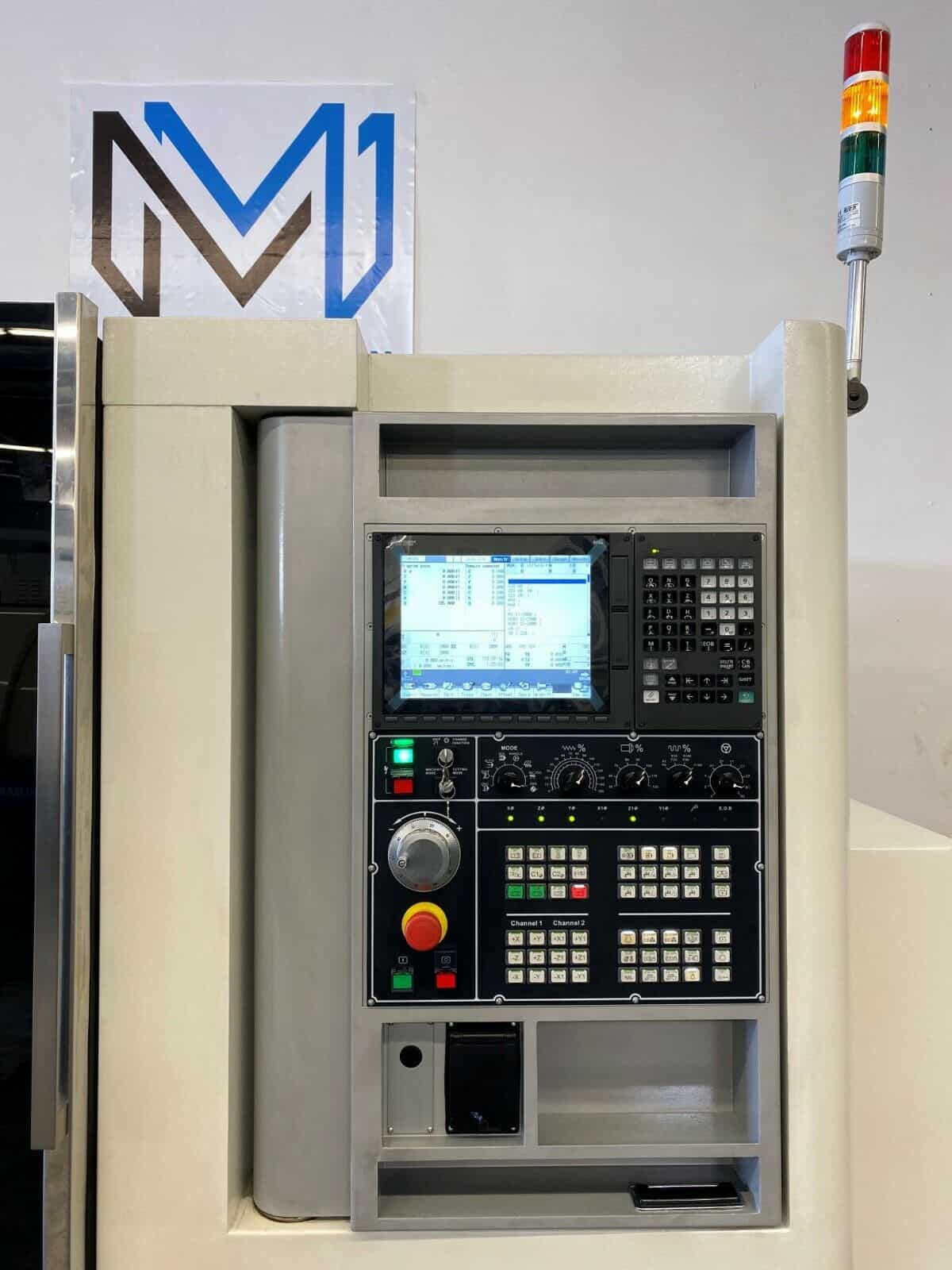

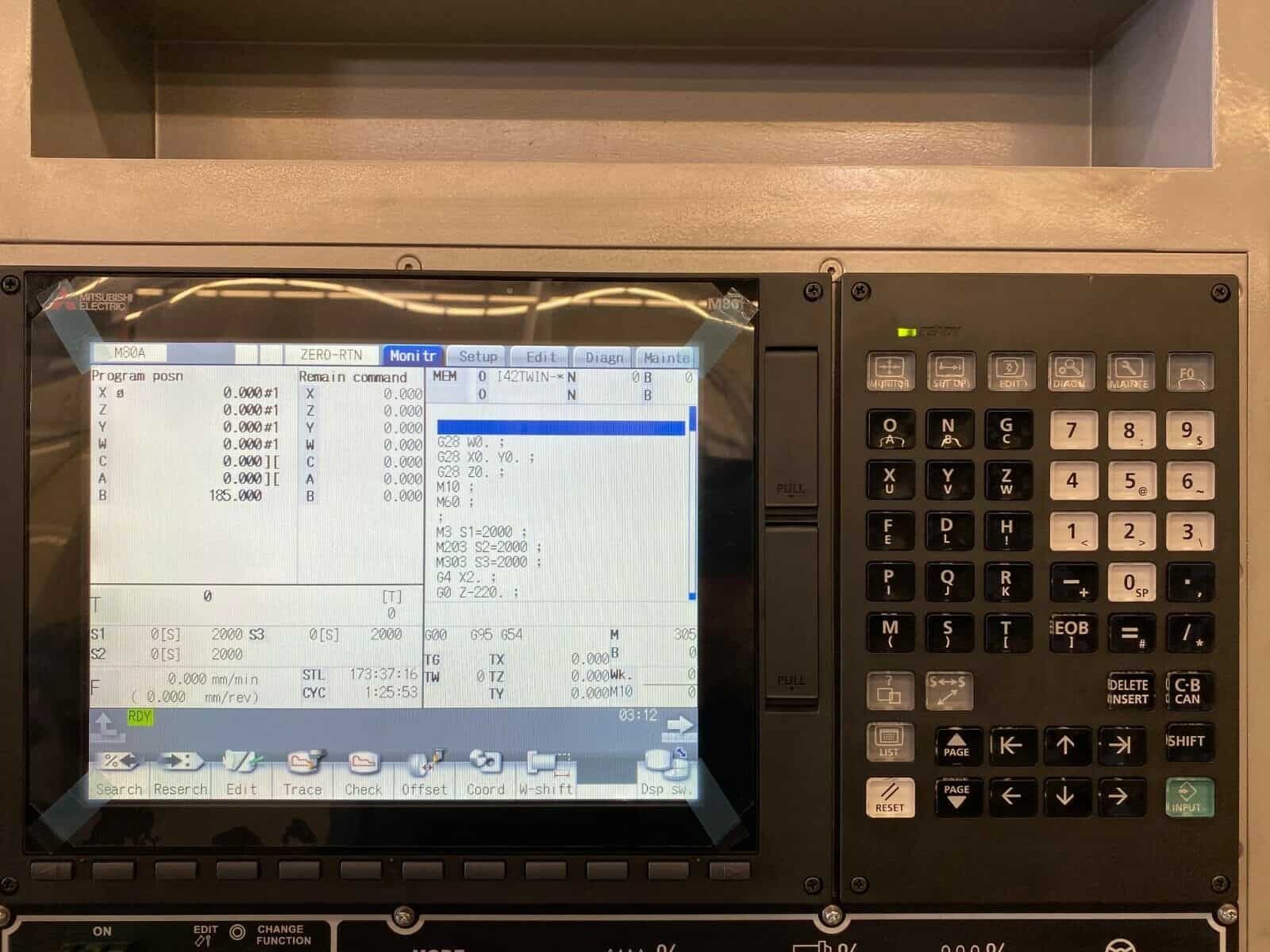

  • Mitsubishi M80 Touch Screen CNC Control
  • USB Drive & Memory Card Slot
  • Intelligent Door
  • Parts Catcher
  • Parts Conveyor
  • 42mm Collet Chuck on Main Spindle
  • 42 mm Collet Chuck on Sub Spindle
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck
  • Chip Conveyor

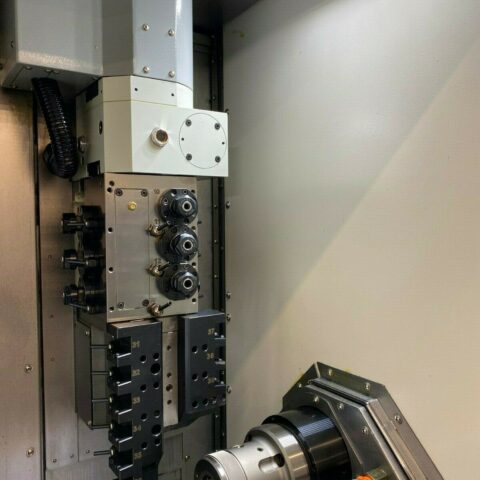

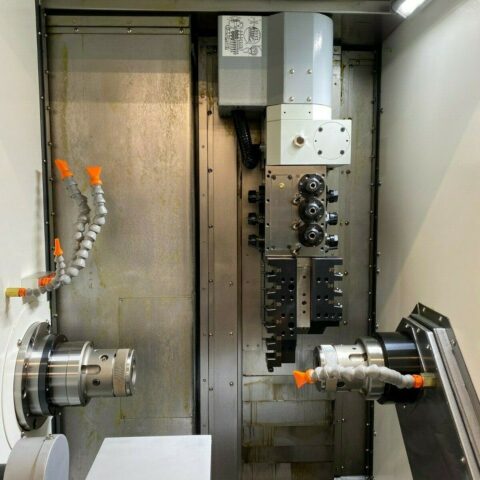

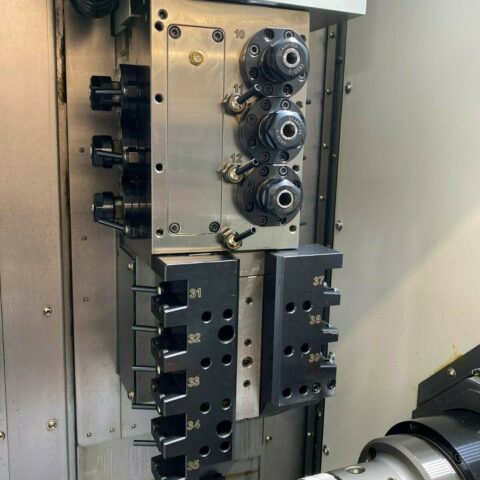

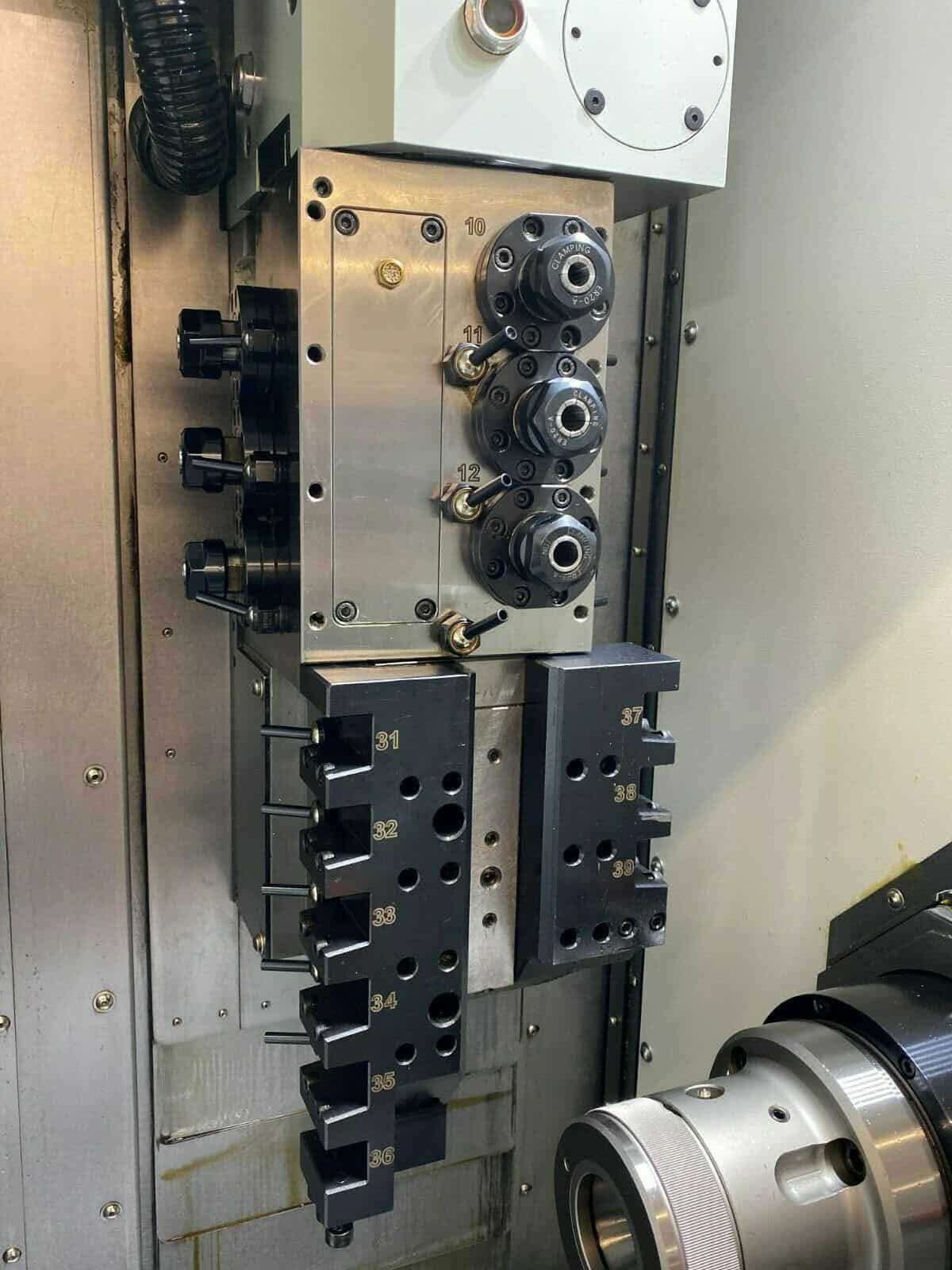

  • Comes with Live Tools & some Static Tool Holders
  • Books & Manuals
  • Live tools (ER-20 collets)
  • 42mm collet Chucks
  • Front O.D. quick change KM-25 tool holder base
  • Front I.D. tool holders ER-20 collets
  • Front parting tool holder
  • Rear O.D. tool change KM-25 tool holder bases
  • Rear I.D. tool holders ER-20 collets
  • Parts catcher
  • Parts conveyor
  • Chip conveyor
  • Bar feeder interface
  • 400 PSI / 8GPM high pressure coolant pump
  • 75 PSI / 20 GPM floor coolant pump
  • Full enclosed machine guards
  • Auto lubrication system
  • 1 Set of machine and control manuals
  • Spindle Capacity
  • Max. Bar Working Dia : 42.0 mm
  • Spindle Max. Turning Length. : 300.0 mm
  • Spindle Collet Chuck Type : KK5-173E42B
  • Spindle Nose : ISO(DIN) A2-5
  • Spindle Bore : 44.0
  • Spindle Speed Range : 4000rpm
  • Sub-Spindle Capacity
  • Max. Turning Dia. : 100.0 mm
  • Max. Bar Working Dia : 42.0 mm
  • Max. Turning Length. : 155.0 mm
  • Collet Chuck Type : KK5-173E42B
  • Nose : ISO(DIN) A2-5
  • Bore : 30.0 mm
  • Speed Range : 4000rpm
  • Sub-Spindle Capacity
  • Max. Turning Dia. : 100.0 mm
  • Max. Bar Working Dia : 42.0 mm
  • Max. Turning Length. : 155.0 mm
  • Collet Chuck Type : KK5-173E42B
  • Nose : ISO(DIN) A2-5
  • Bore : 30.0 mm
  • Speed Range : 4000rpm
  • C Axis :
  • Positioning Accuracy : 0.001°
  • Travel & Feed
  • X/Y/Z axis Travel : 150.0 / 415.0 / 300.0 mm
  • X-1/Y-1/Z-1axis Travel : Z1-450.0 mm
  • A.T.C System
  • OD / ID Tools Main Spindle (1st) : 6 / 5
  • OD / ID Tools Sub Spindle (2nd) : 3 / 4
  • Tool Shank Size : 20.0 mm
  • Boring Bar (main) : ER-20/20mm
  • Boring Bar (sub) : ER-20/20mm
  • Motorized Tool
  • Index Time : 0.3sec(one)/0.6(full)
  • Number of motorized tools : 12tools
  • B axis : 360°
  • Speed : 4000rpm(Max.)
  • Size : ER-20
  • Max.Drilling Dia. : 12.0 mm
  • Max. Tapping capacity : M10xP1.5
  • Mitsubishi Motor
  • Main-spindle : AC Spindle 7.5kw(11.0kw)
  • Sub-spindle : AC Spindle 3.7kw
  • X/Z axis spindle : AC Servo 1.5kw
  • X-1/Z-1 axis : AC Servo 1.5k(Z1)
  • Motorized Tool : AC Servo 1.5kw
  • Hydraulic System
  • Hydraulic Motor / Tank Capacity : 1HP / 50L
  • Max. Pressure : 50kg/cm2
  • Lubrication
  • Lubricant Motor / Tank Capacity : 25W / 2 Liter
  • Max. Pressure : 15kg/cm2
  • Coolant System
  • Coolant Motor Type : max.pressure:
  • 5bar(4.6kg/cm2)
  • flow:75L / min
  • Hydraulic Motor Type : max.pressure:
  • 25bar(55kg/cm2)
  • flow:30L / min
  • Coolant Tank Capacity : 240L
  • Machine Size
  • Length/Width/Height : 3500/1800/1900 mm
  • Weight : 3800kg

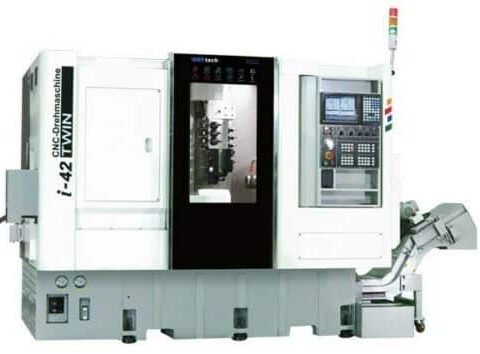

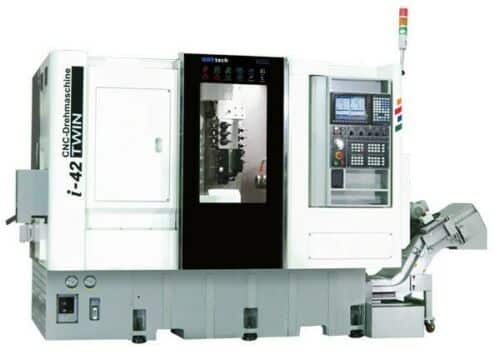

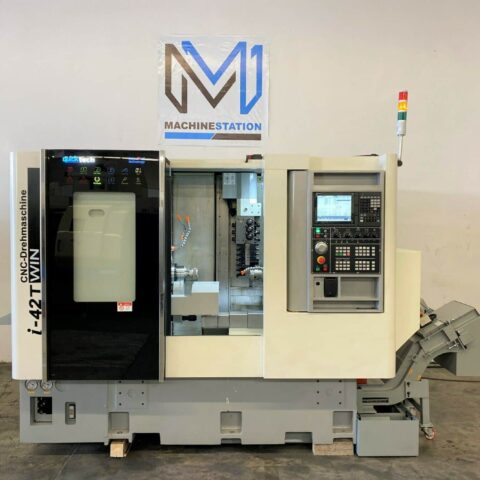

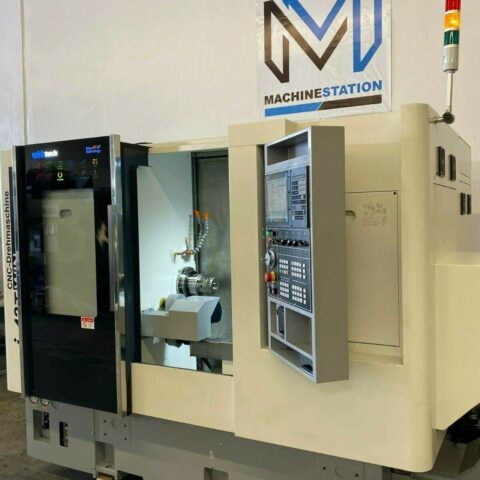

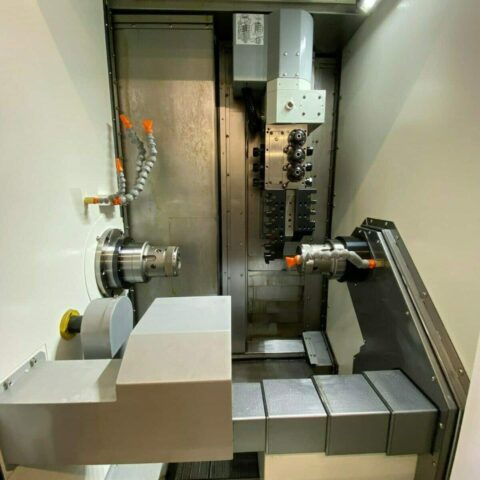

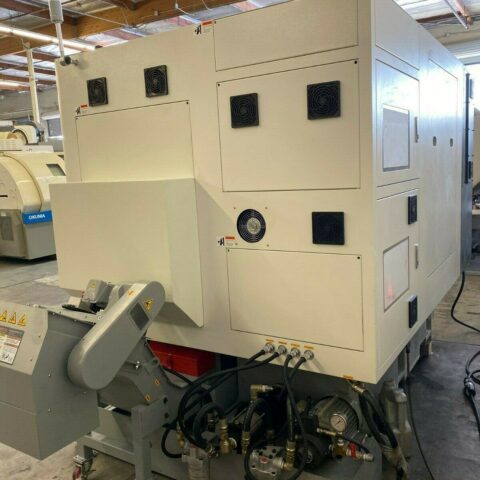

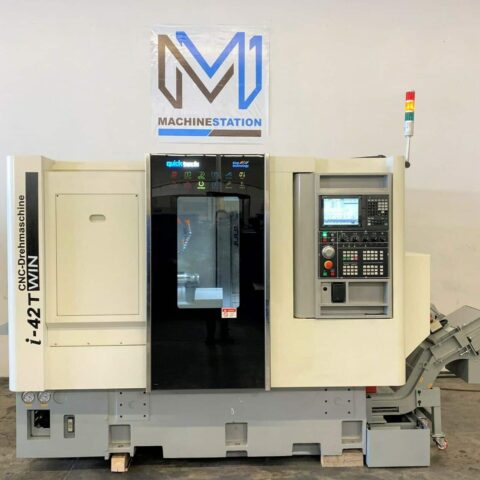

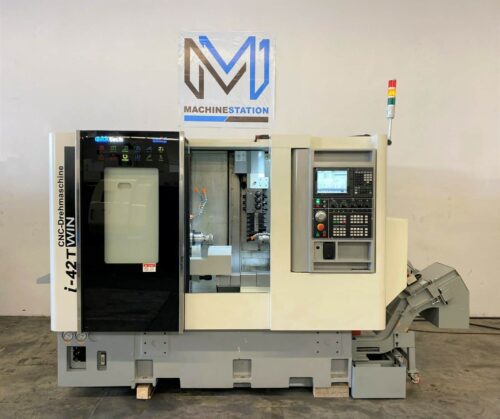

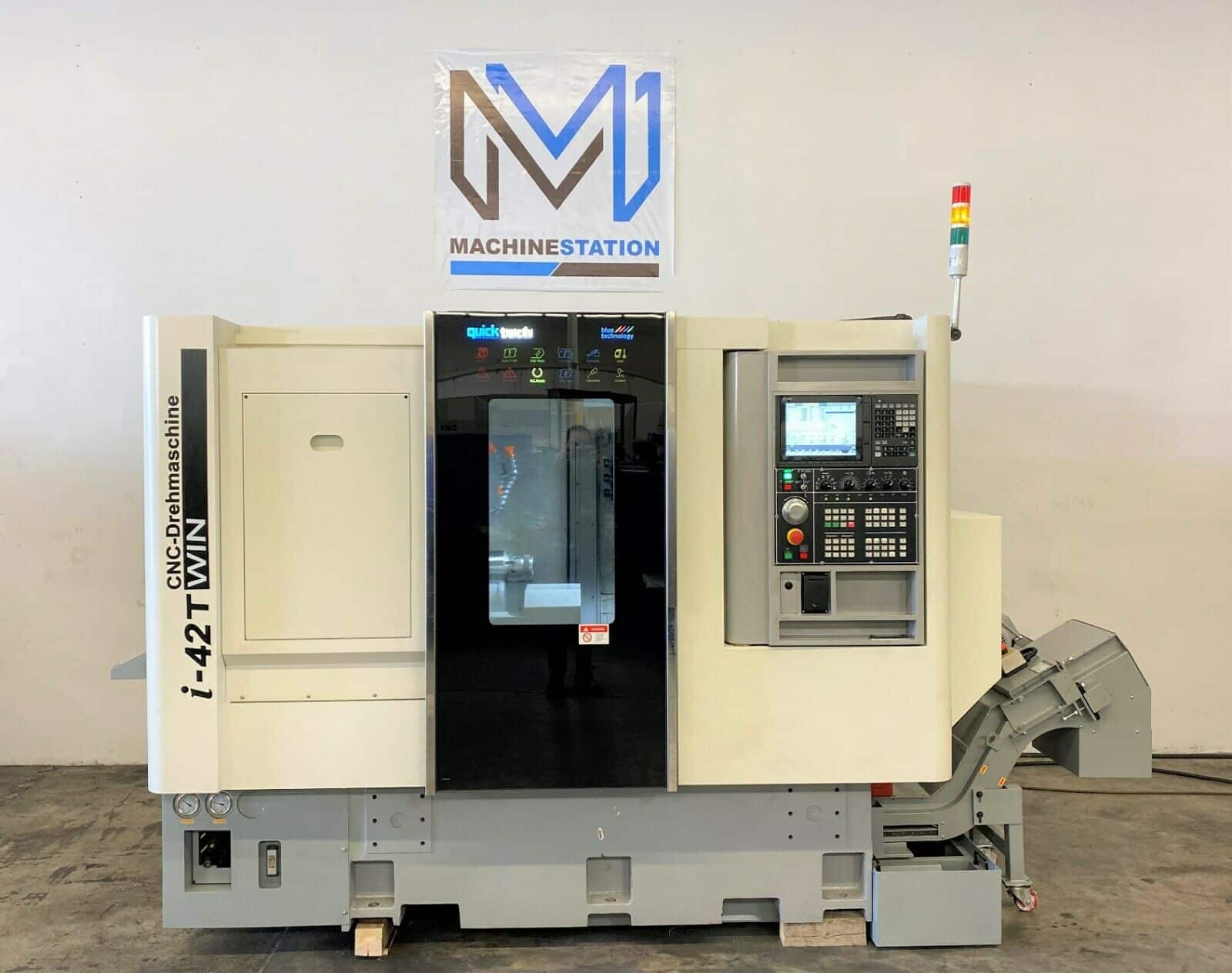

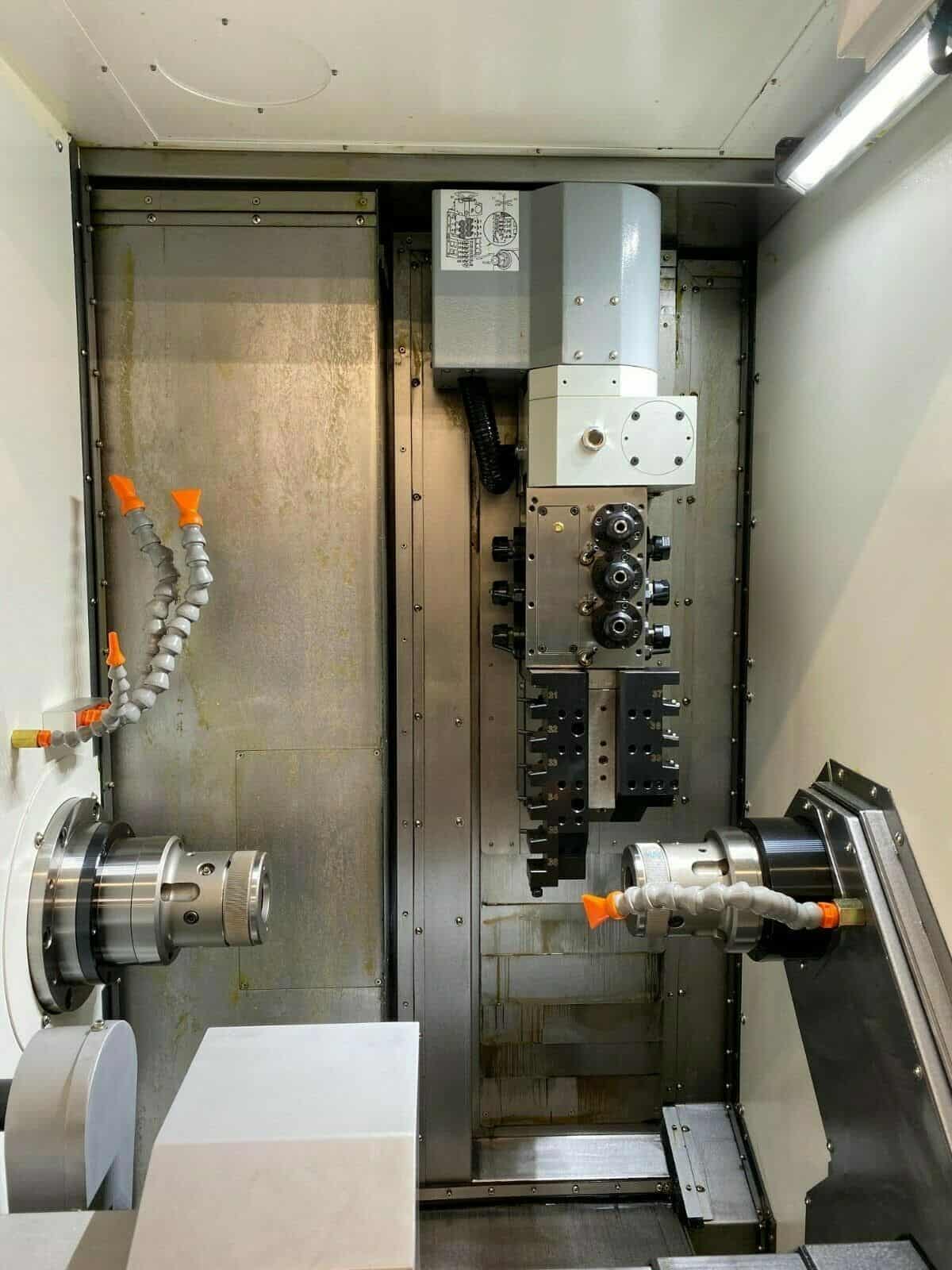

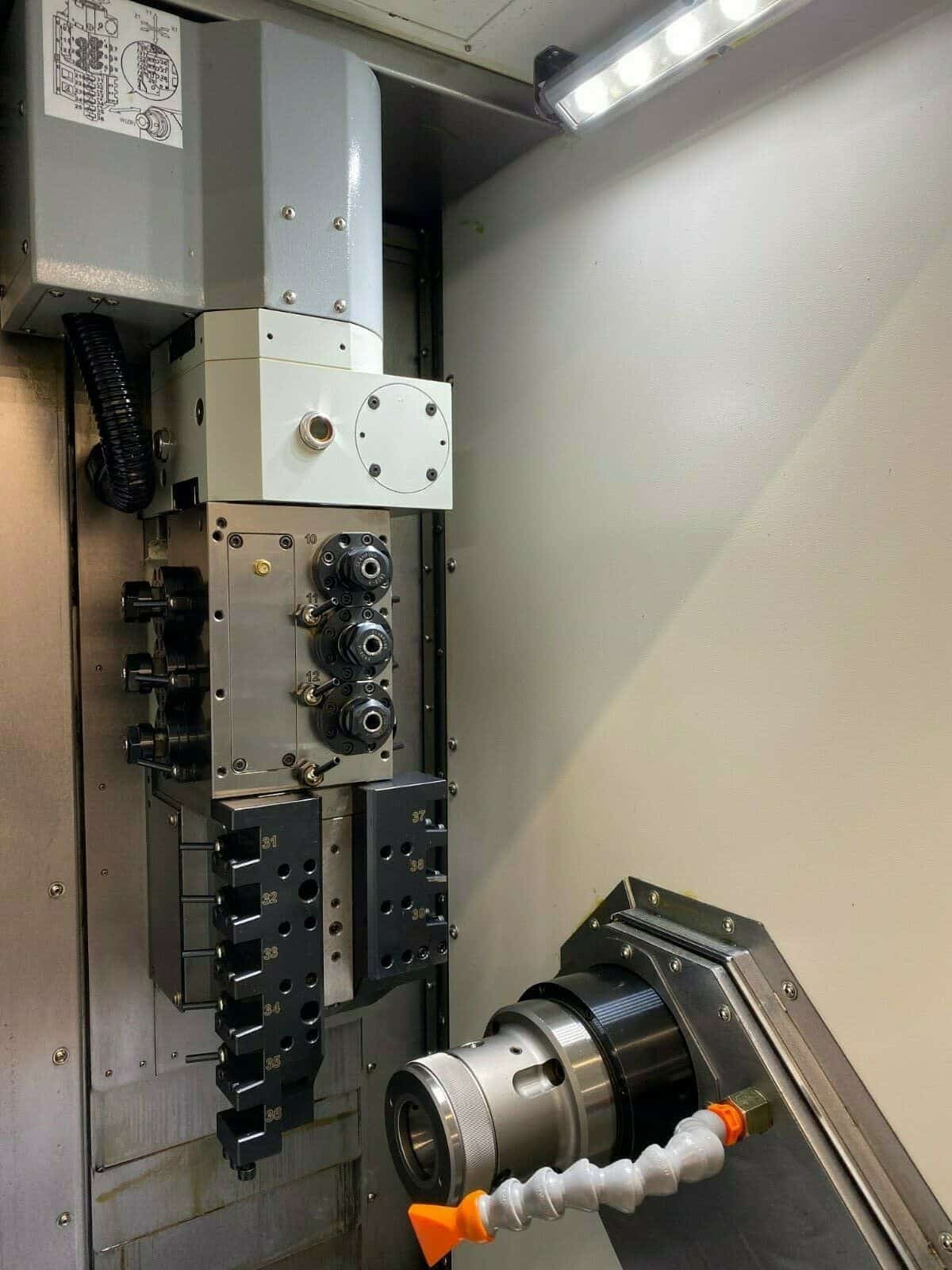

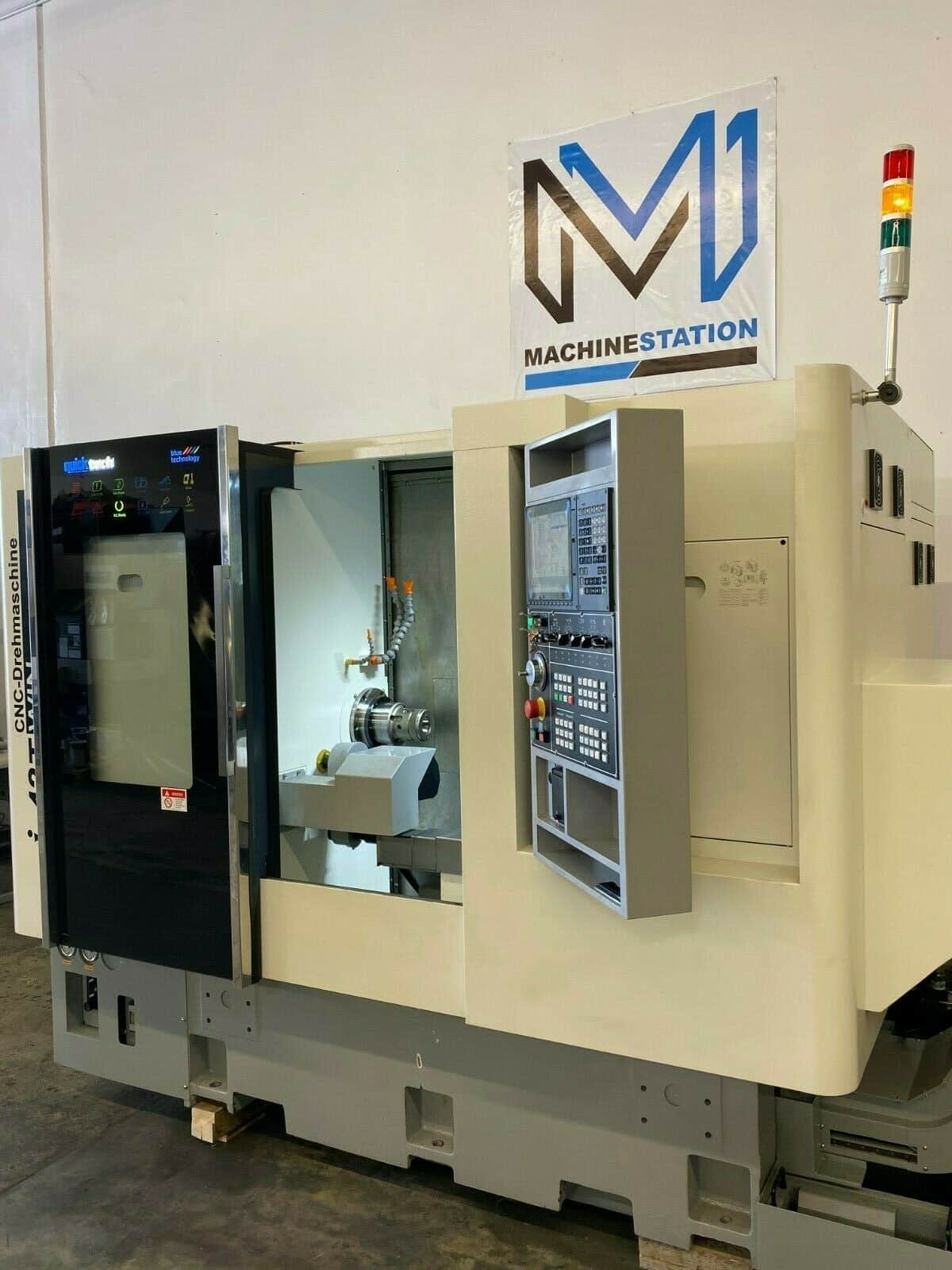

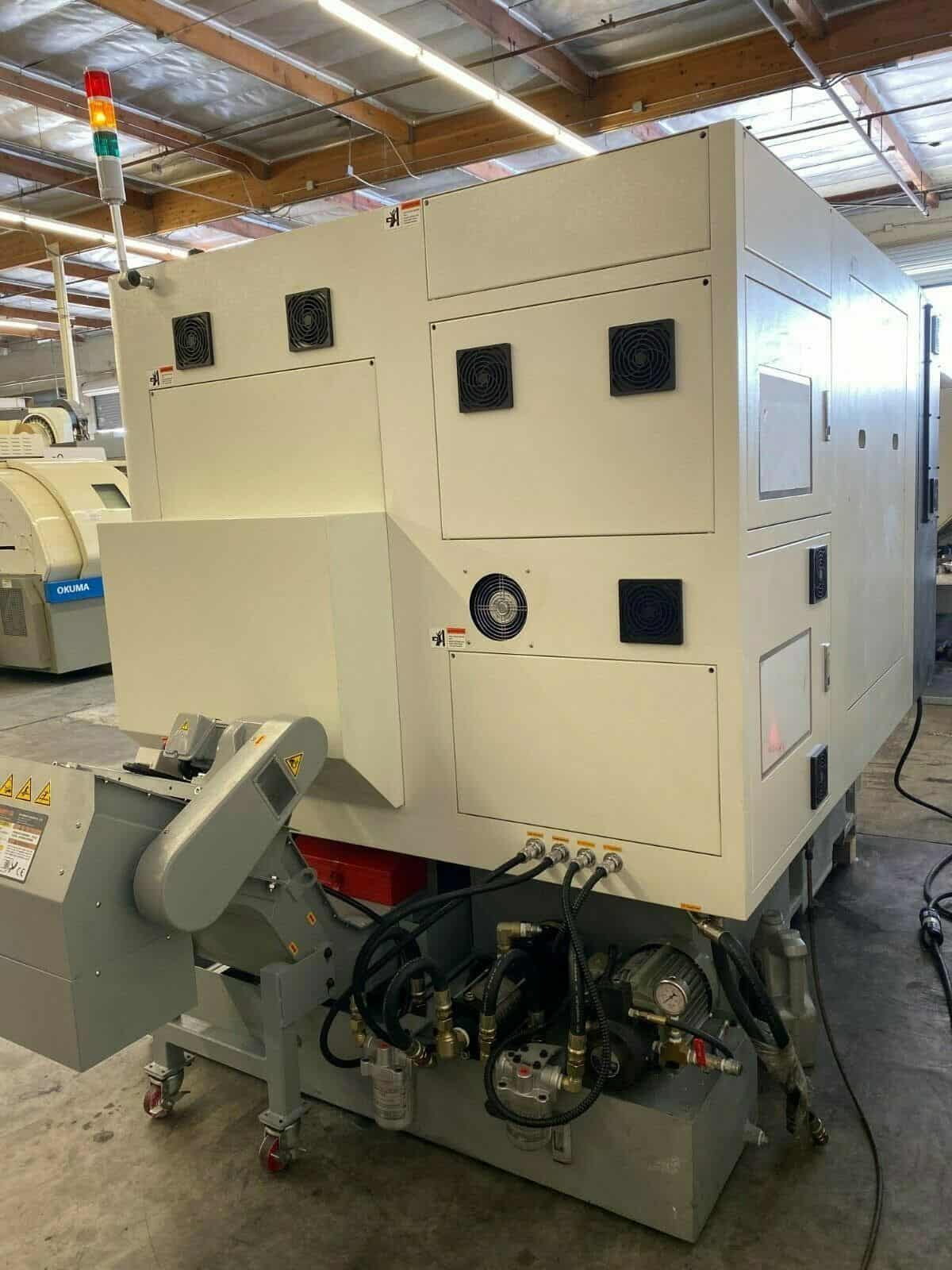

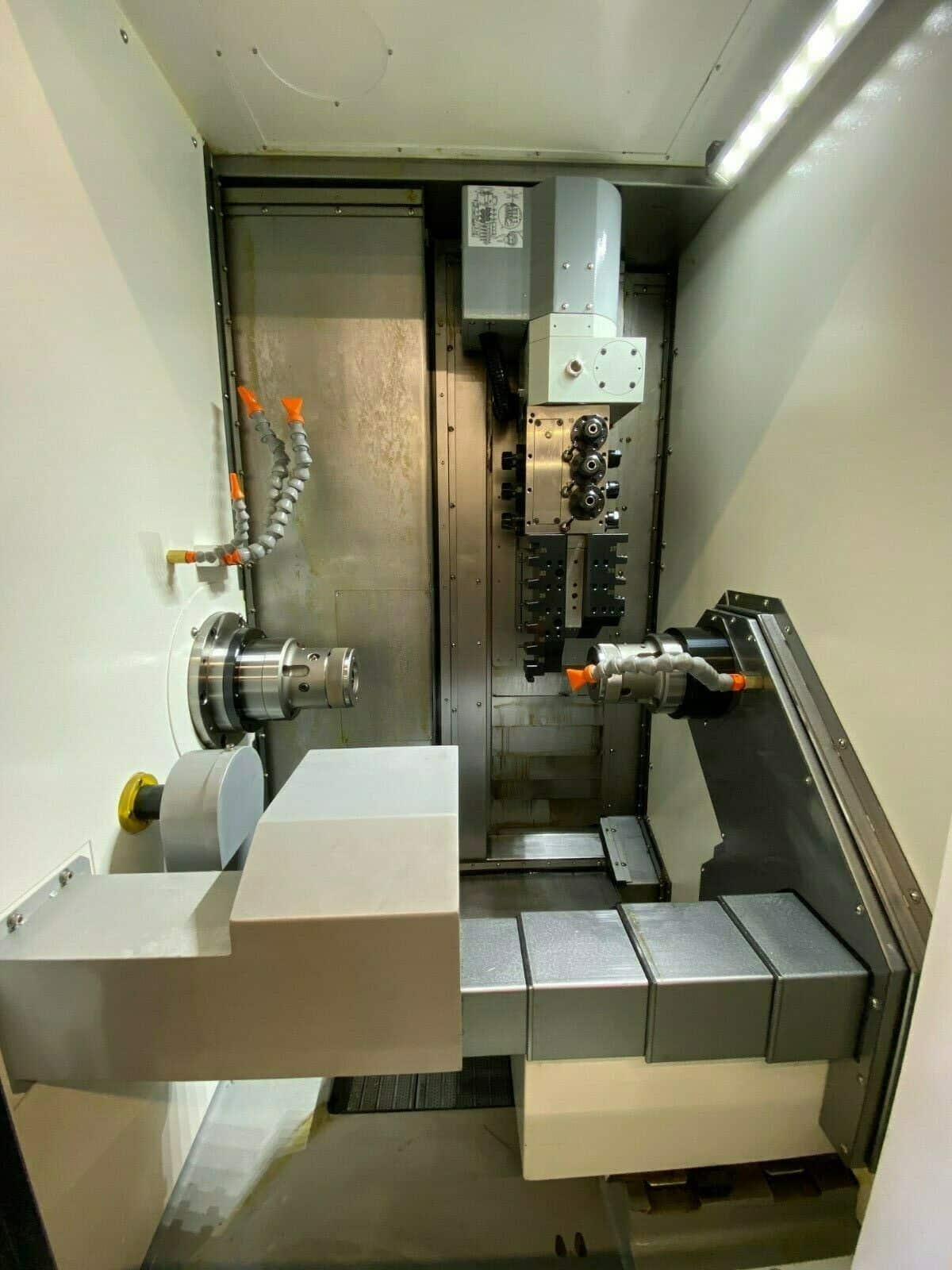

QuickTech i42-Twin Comes as Shown in Pictures…
