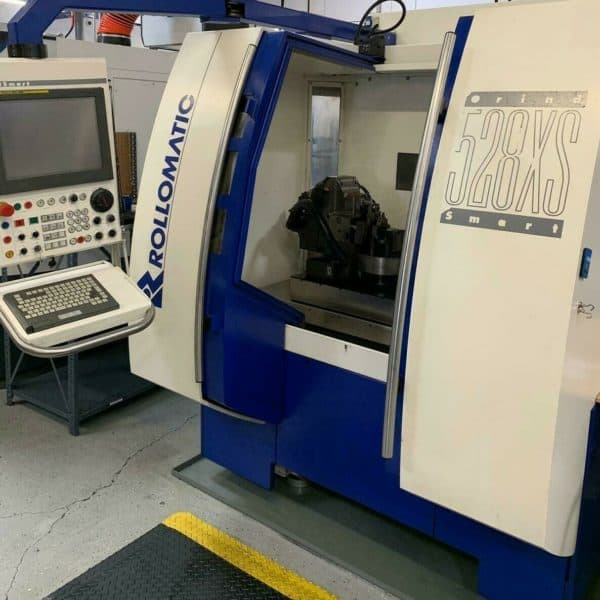

| ROLLOMATIC 528-XS 6 AXIS CNC TOOL & CUTTER GRINDER | |
|---|---|

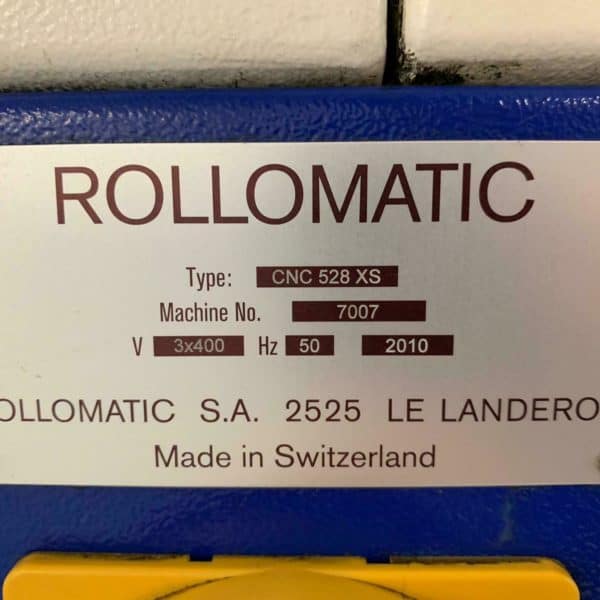

| Make | Rollomatic |
| Model No. | 528-XS |
| Year of Manufacture: | 2010 |
| Serial # | 7007 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner machine is Fully powered / tested & is in Great working condition. All Original Paint, recently serviced by Manufacturer.”
- Rollomatic 528-XS Equipped With:

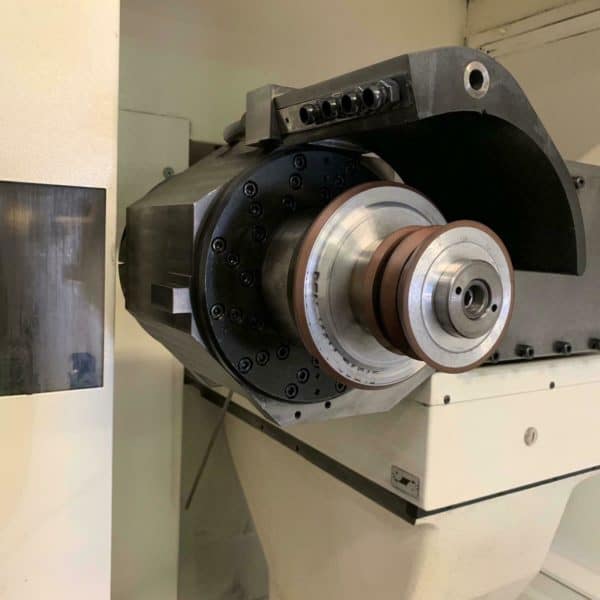

- 10,000 RPM Precision Spindle ( Recently Replaced by Rollomatic )

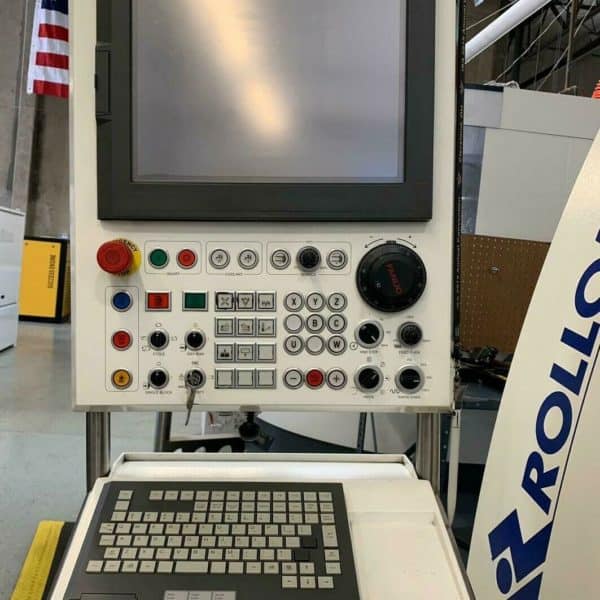

- Fanuc 160i-MB Touch Panel Control
- Windows based

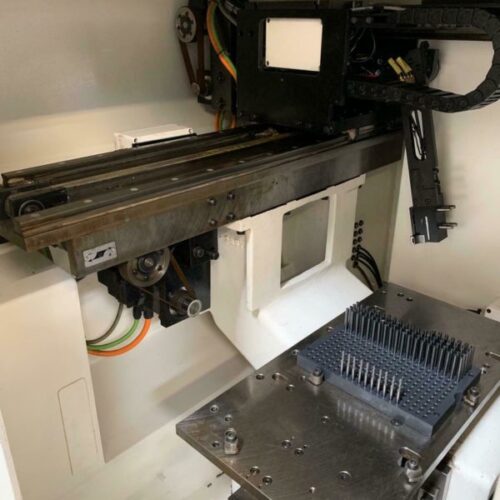

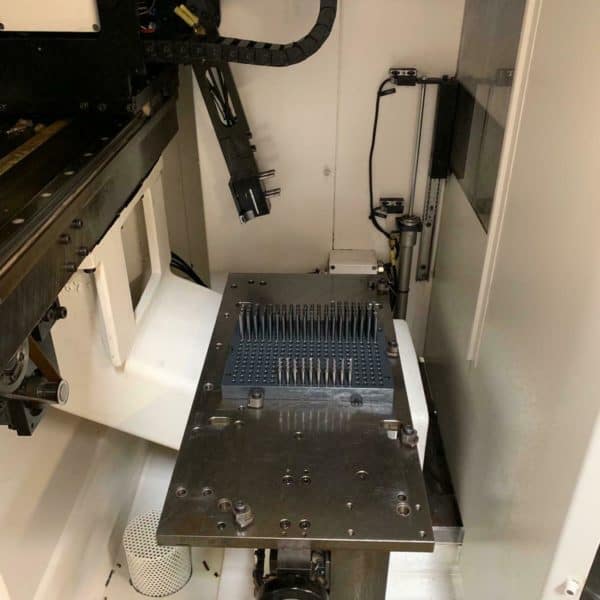

- Robotic load & unload
- Full Enclosure
- WorkLight
- General:
- Air Required: 6 bar
- Total Power Requirement Max: 18kw
- Power: 400v / 25A / 3-Phase
- Overall Dimensions: 85.8″ x 63″ x 86.6″ High
- Weight: 7055 lbs
- Rollomatic 528-XS Specifications:
- Capacity of Workpiece Dia.: 0.004″ – 0.63″ ( 0.1 – 16mm )

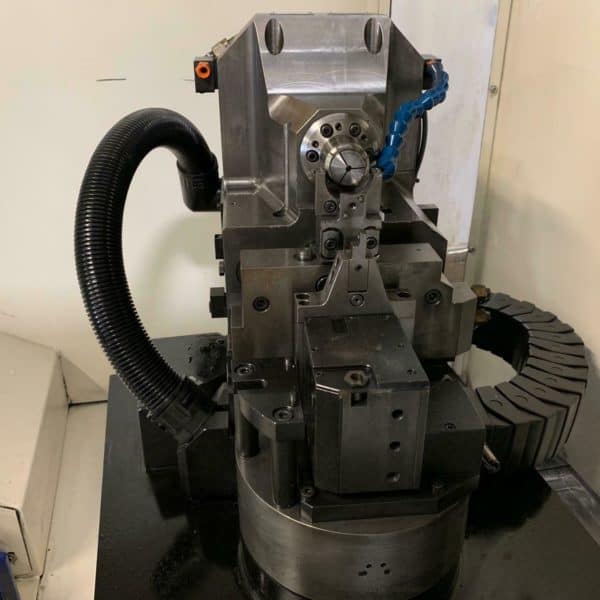

- Clamping Range: 0.02″ – 0.3/4″ ( 0.5 – 20mm )
- Max. X Axis Travel: 12.0″
- Max. Y Axis Travel: 8.7″
- Max. Z Axis Travel: 7.1″
- B Axis Rotary Travel: -75 to 135°
- C Axis Rotary Travel: 0 to 360° ( 0.001° )
- Grinding Spindle Motor: 10hp

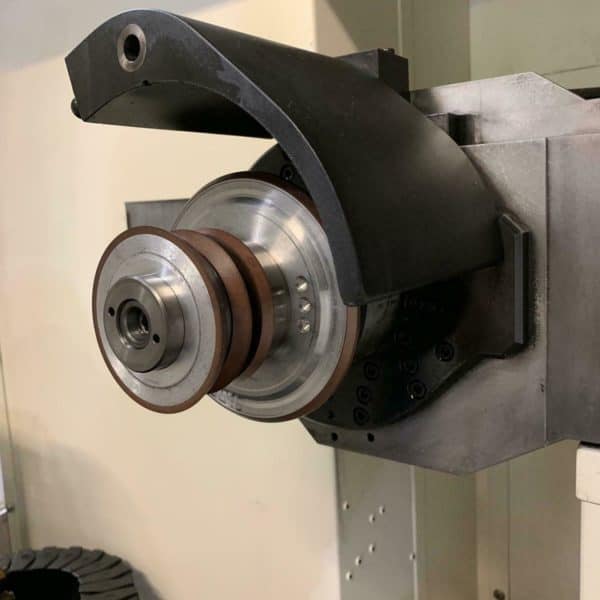

- Grinding Wheel Type: Diamond or CBN
- Grinding Wheel Dia. Max.: 6.00″
- Grinding Wheel Speed: 500 to 10,000 RPM

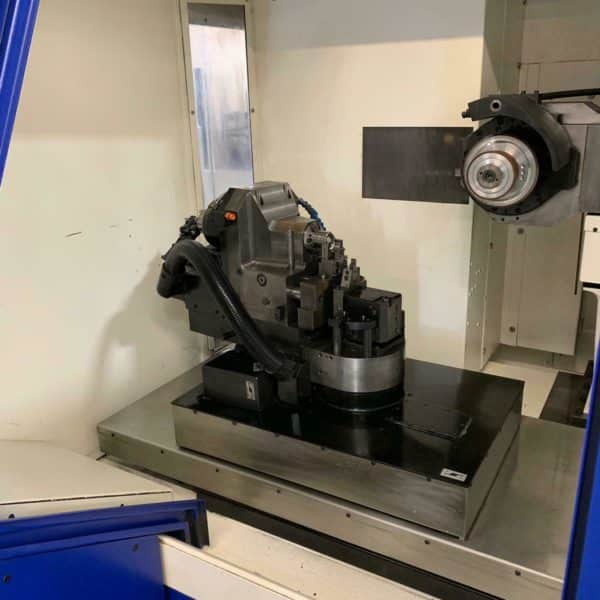

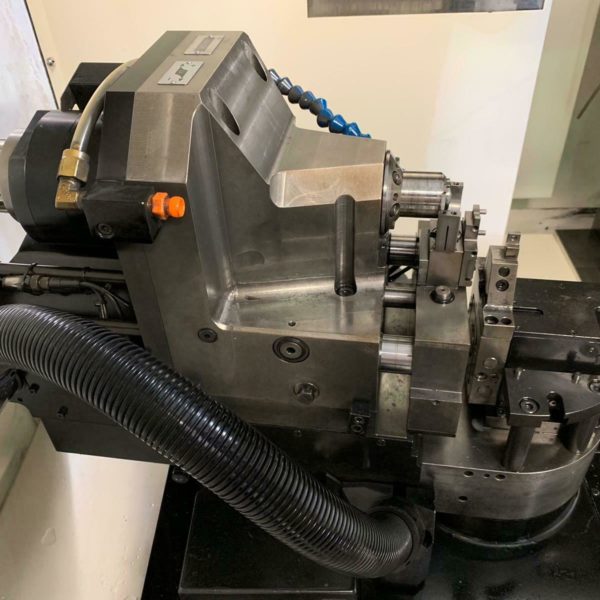

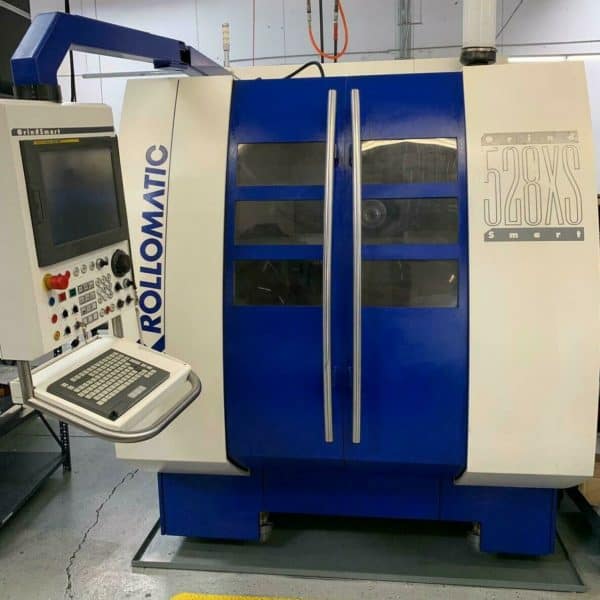

Rollomatic 528-XS 6 Axis CNC Tool & Cutter Grinder Comes as Shown in Pictures.
