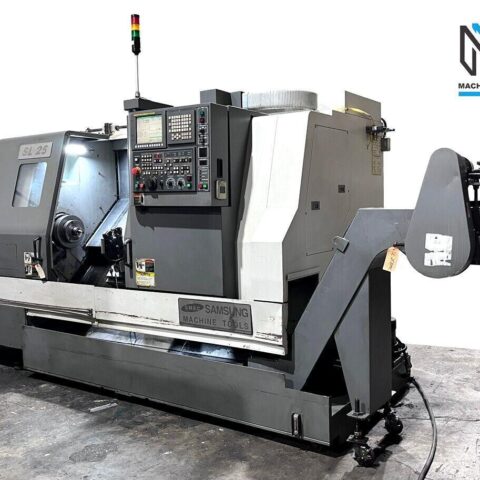

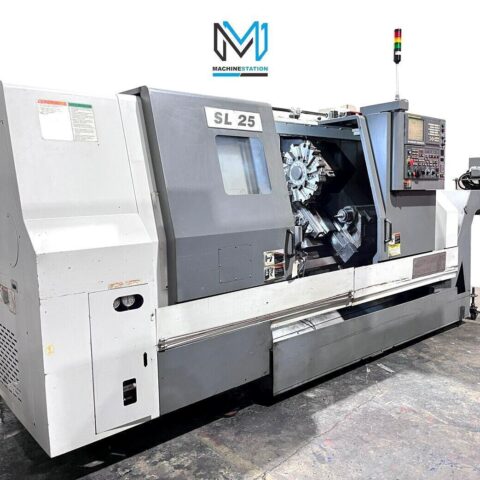

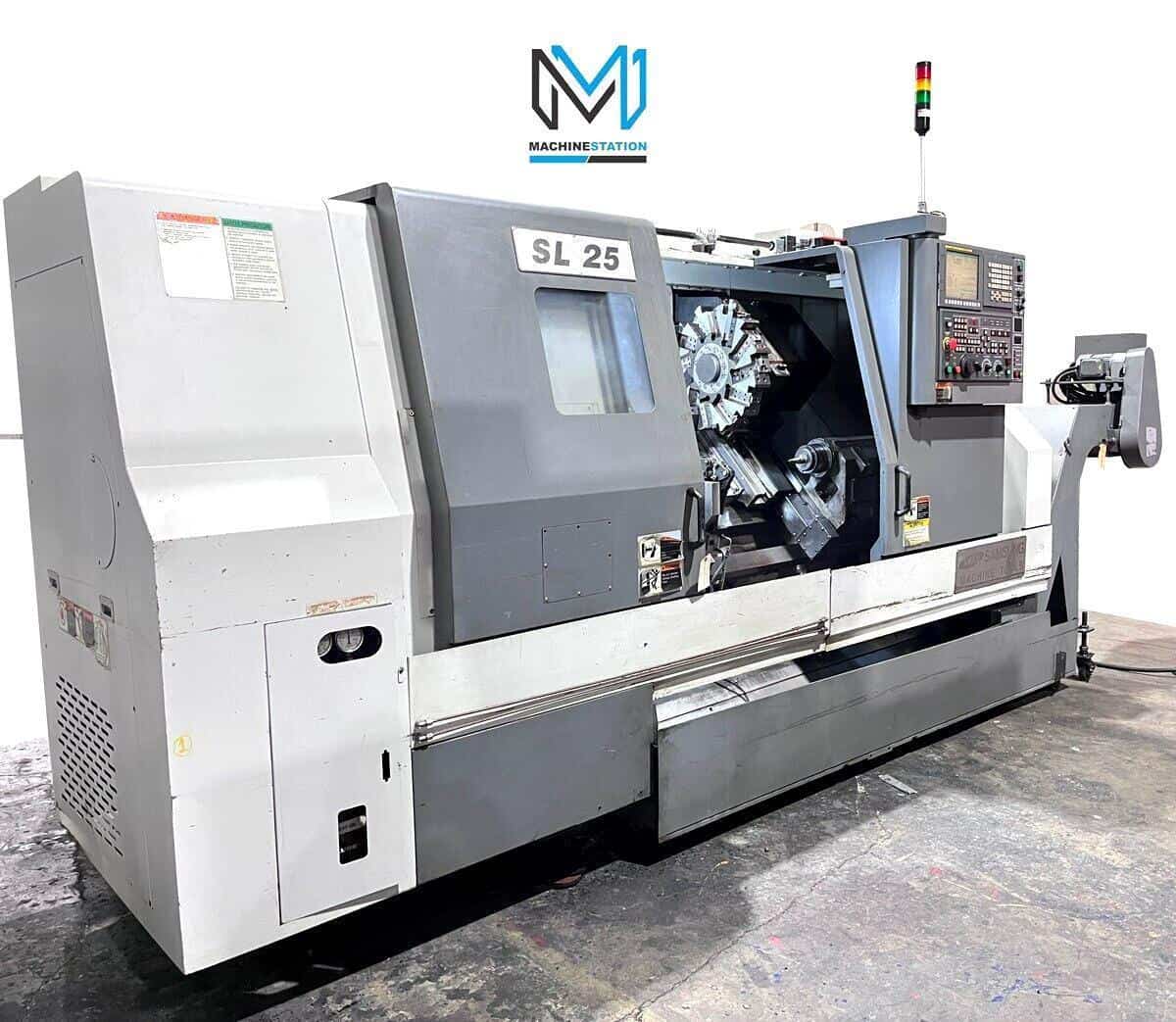

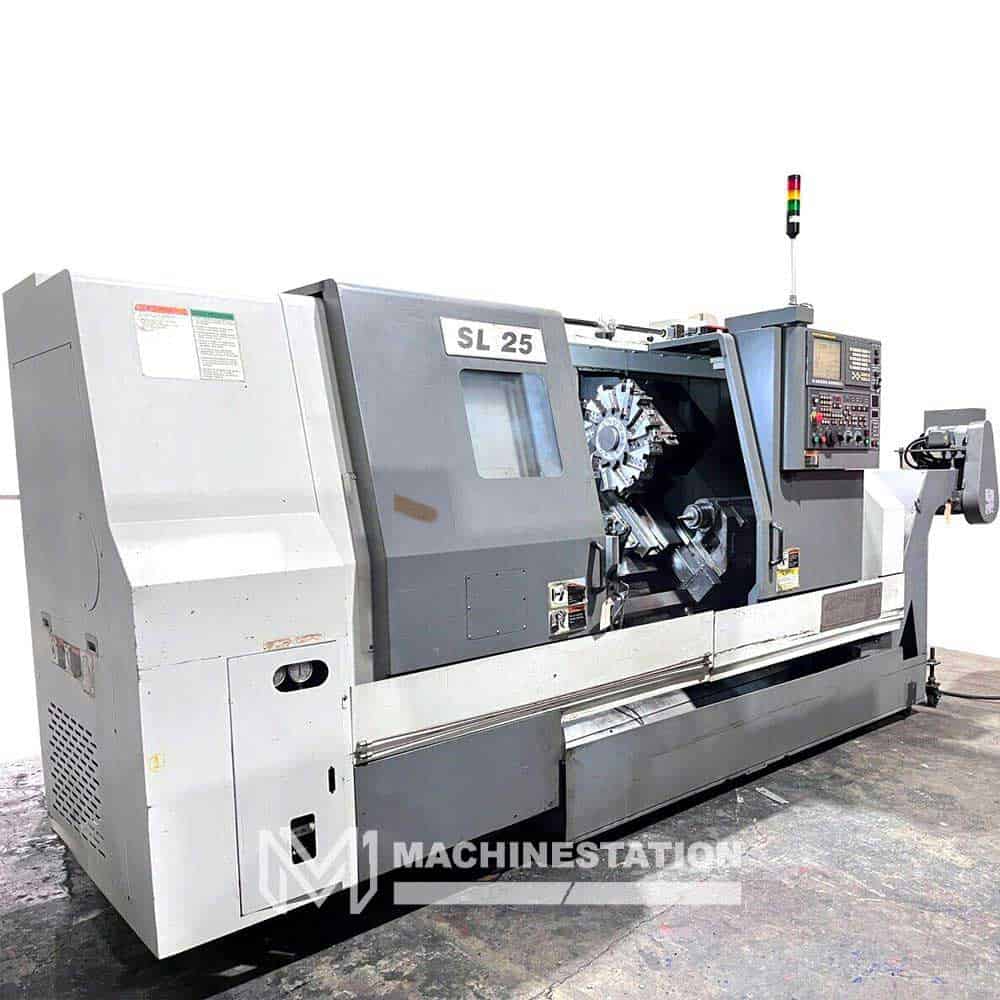

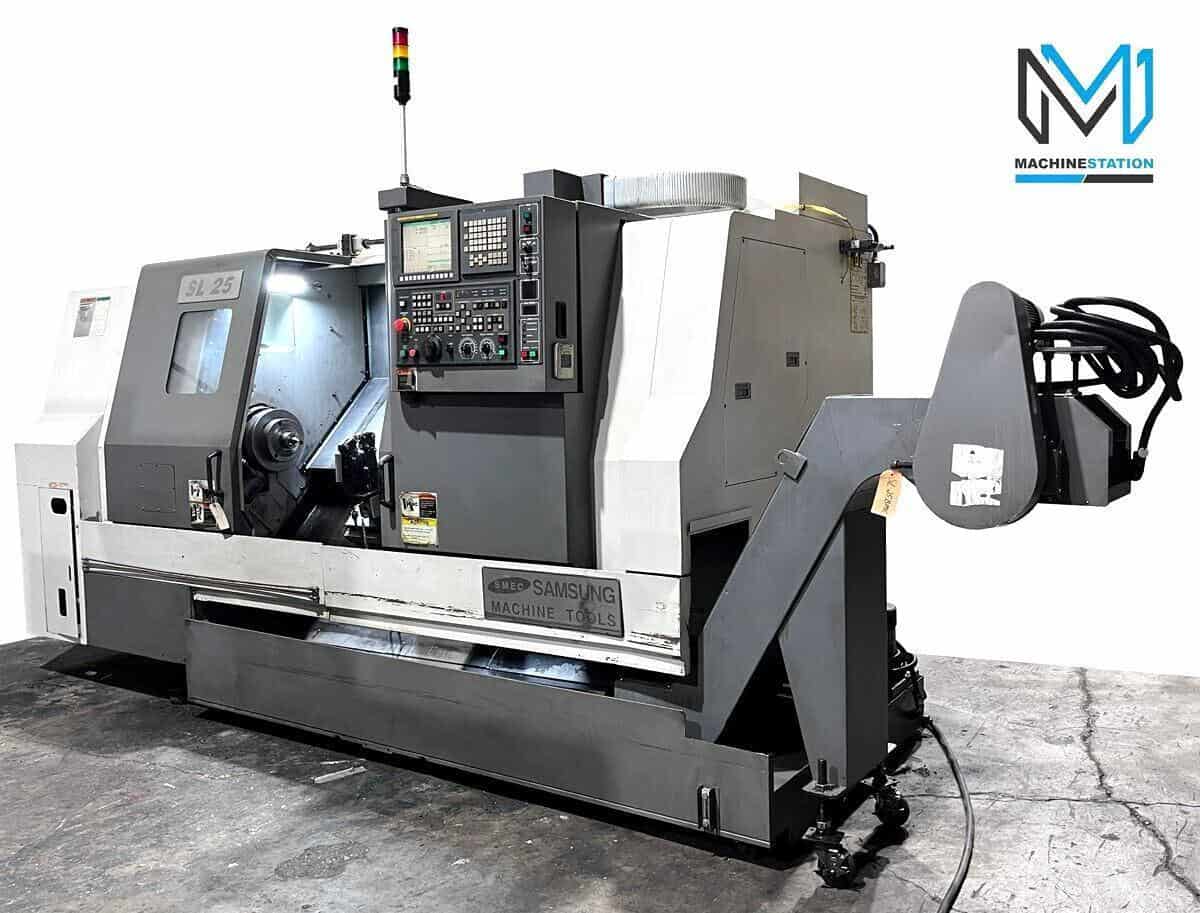

Samsung SL-25/1000 CNC Turning Center
SKU
2253
Make/Model

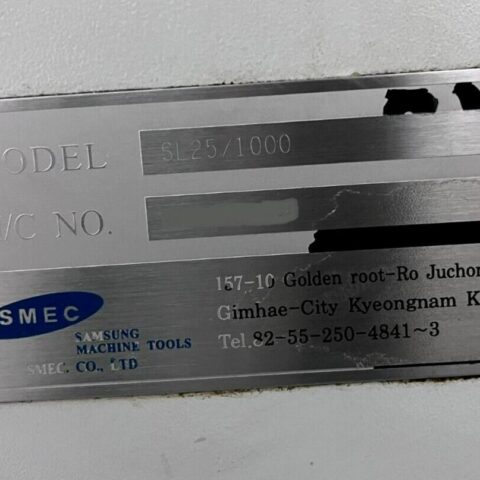

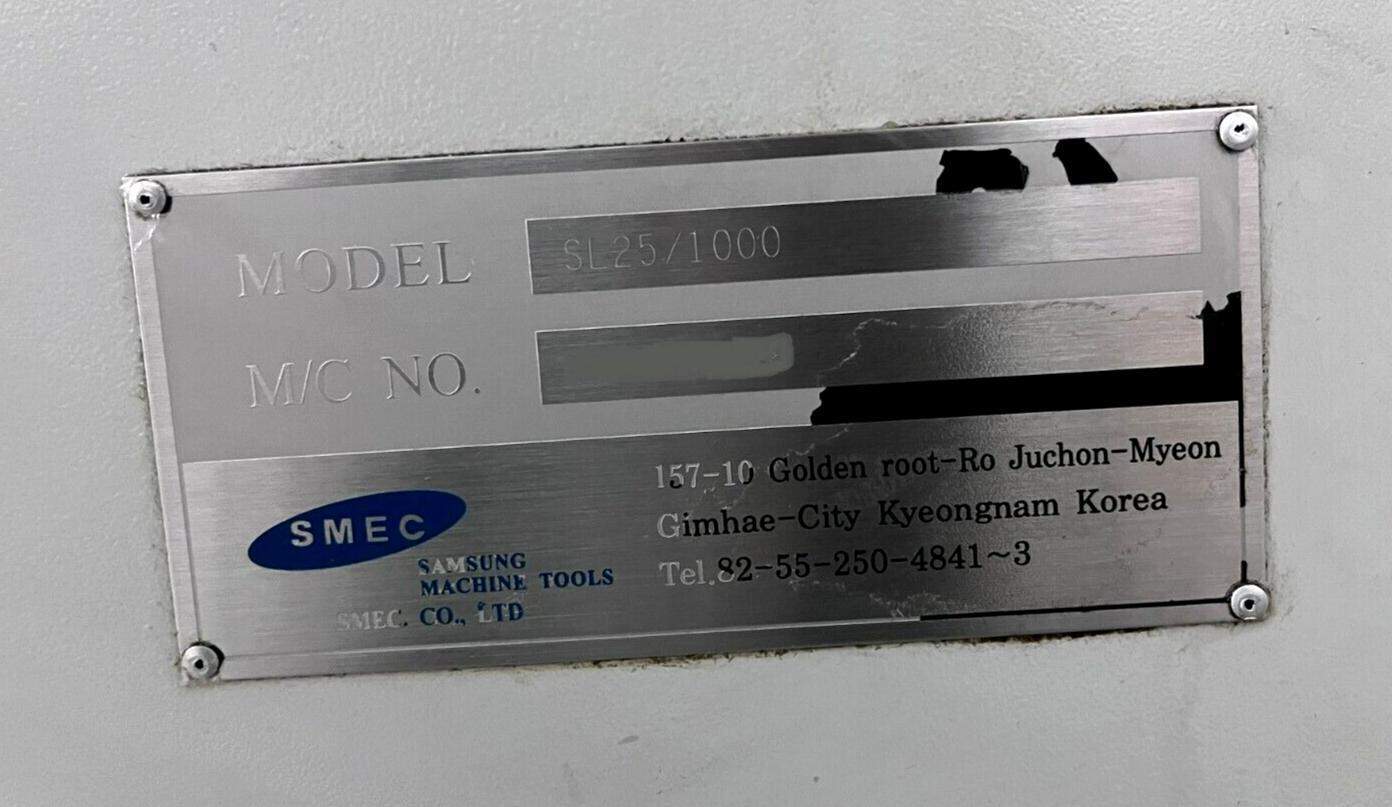

SAMSUNG SL-25/1000
Out of stock
| SKU: | 2253 |
| Make/Model: | SAMSUNG SL-25/1000 |
Add to WishlistRemove from Wishlist
Add to Wishlist
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | SAMSUNG |
| Model: | SL25/1000 |
| Year: | 2013 |
| Condition: | Used – Excellent |
| Samsung SL-25/1000 Equipped With: |
|---|

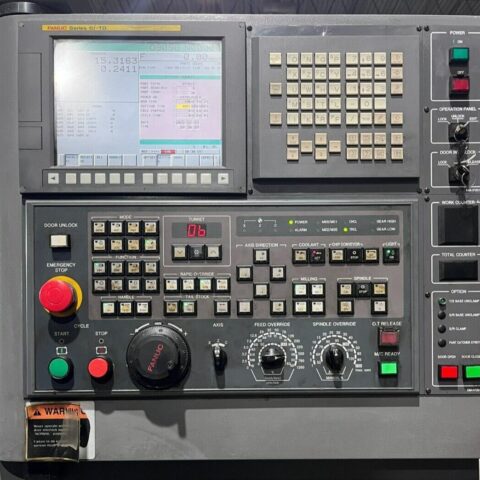

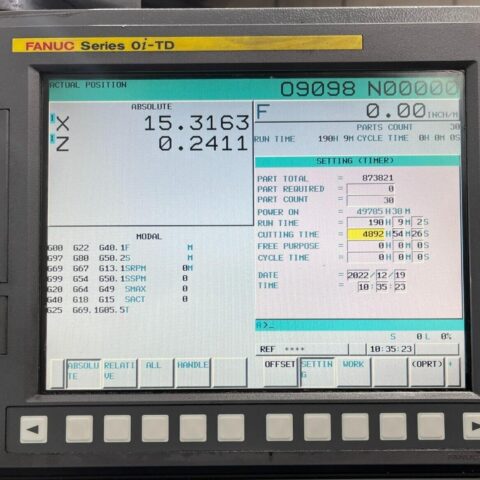

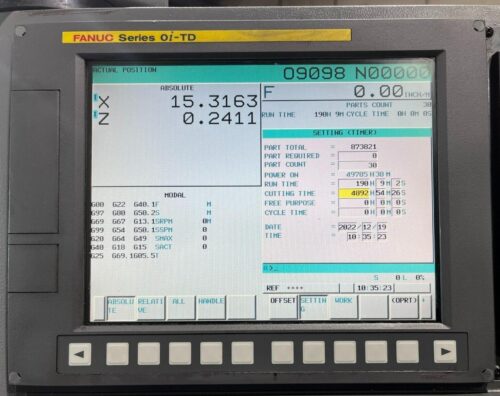

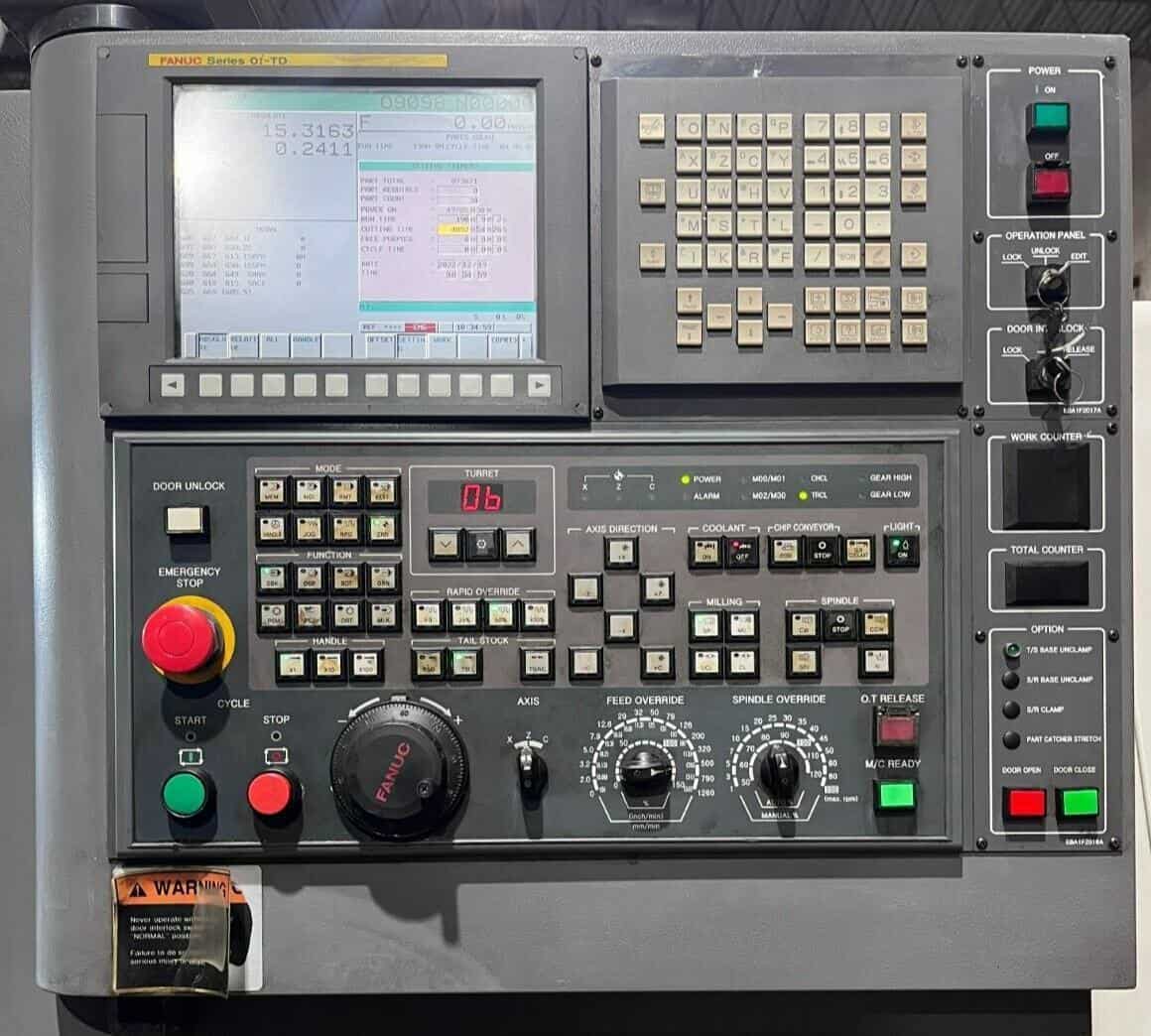

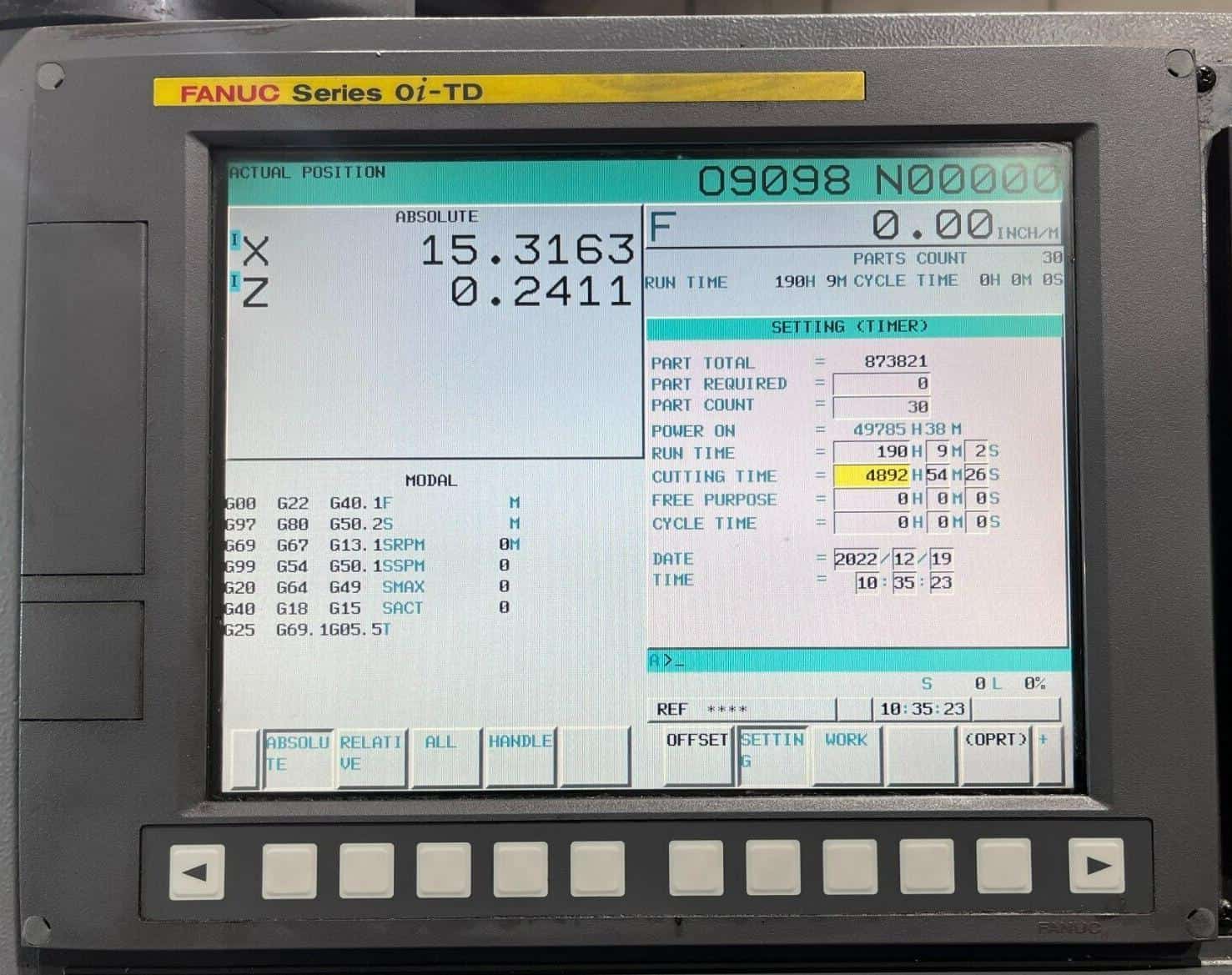

| Fanuc 0i-TD CNC Control |

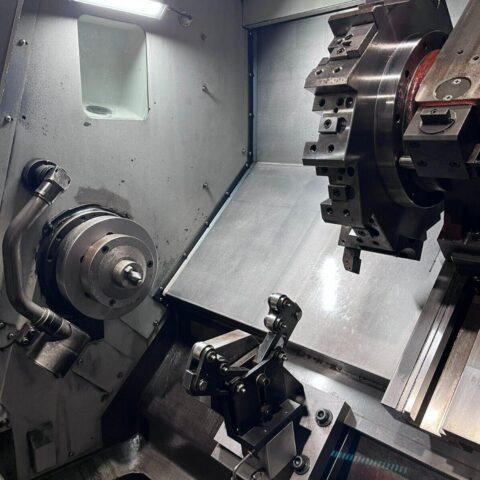

| Long Bed Box Way Machine |

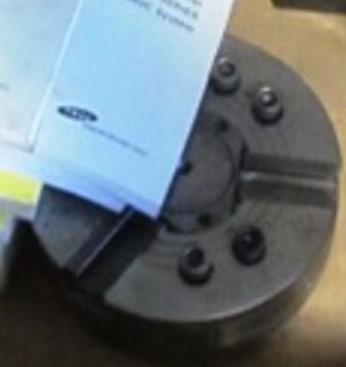

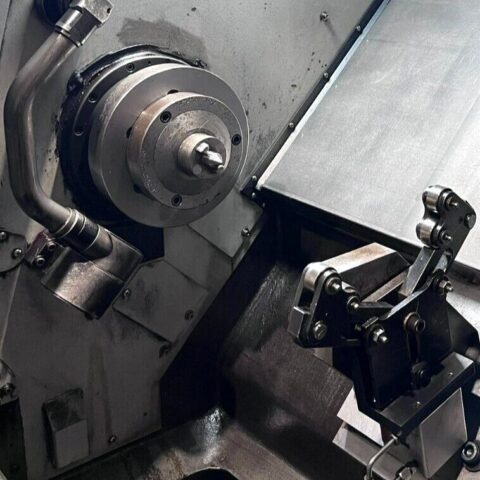

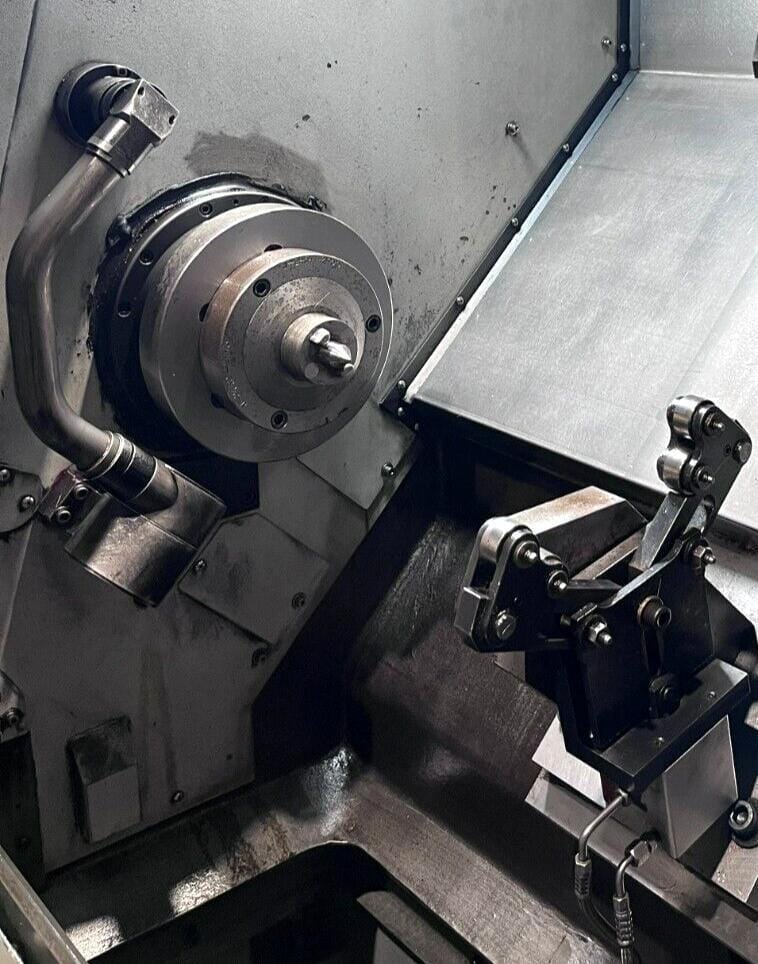

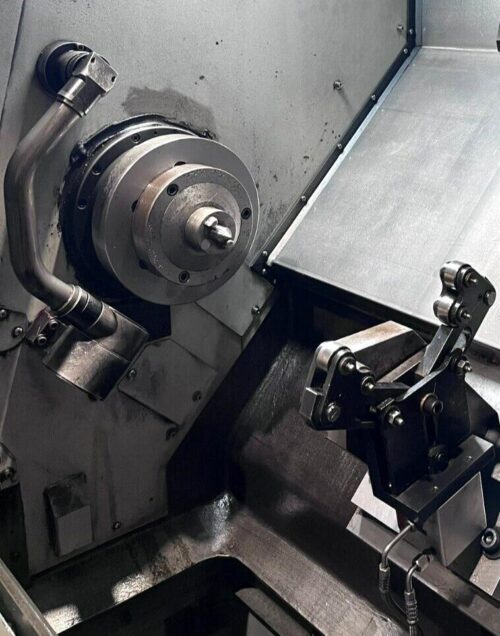

| 10″ 3 Jaw Hydraulic Chuck |
| Steady Rest |
| A2-8 Spindle |
| 30 HP High Torque Spindle |

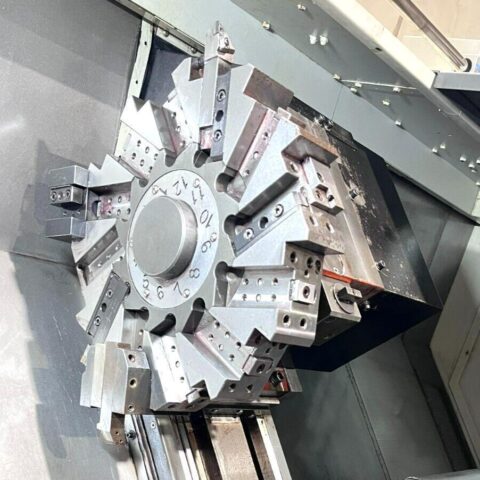

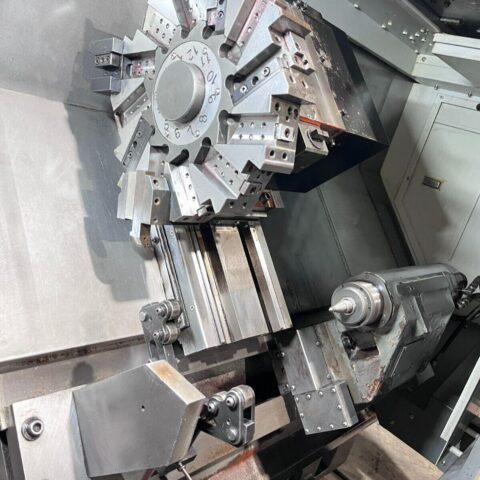

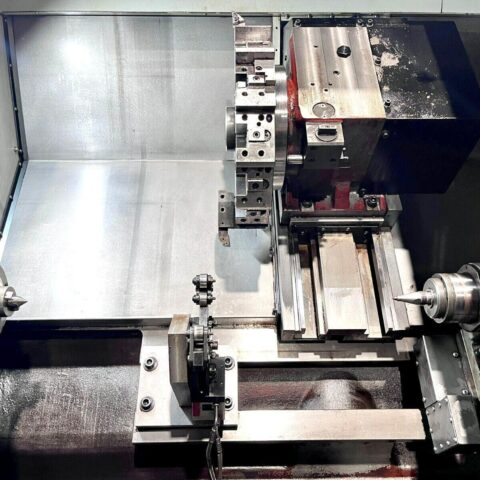

| 12 Station Turret |
| Tool Presetter |

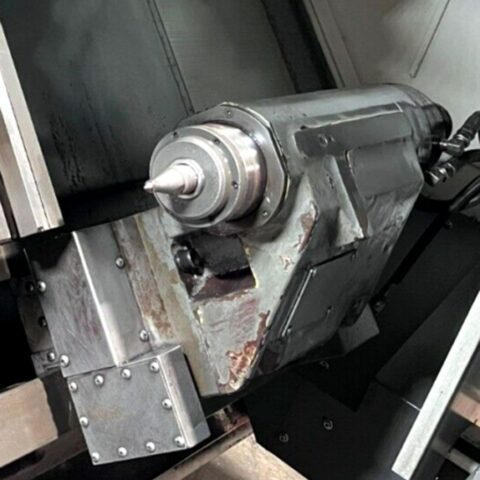

| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |
| USB Port |
| Foot Switch |
| Coolant System |
| Chip conveyor |
| Books & Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 15″ |
| Max Turning Length: 40″ |
| Max Bar Capacity: 3.03″ |
| Swing Over Bed: 20.6″ |
| Distance Between Centers: 44.3” |
| Travel: |
|---|
| X Axis Travel: 8.66″ |
| Z Axis Travel: 40.91″ |
| Rapid Traverse X Axis: 709 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 3.38″ |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 30 HP |

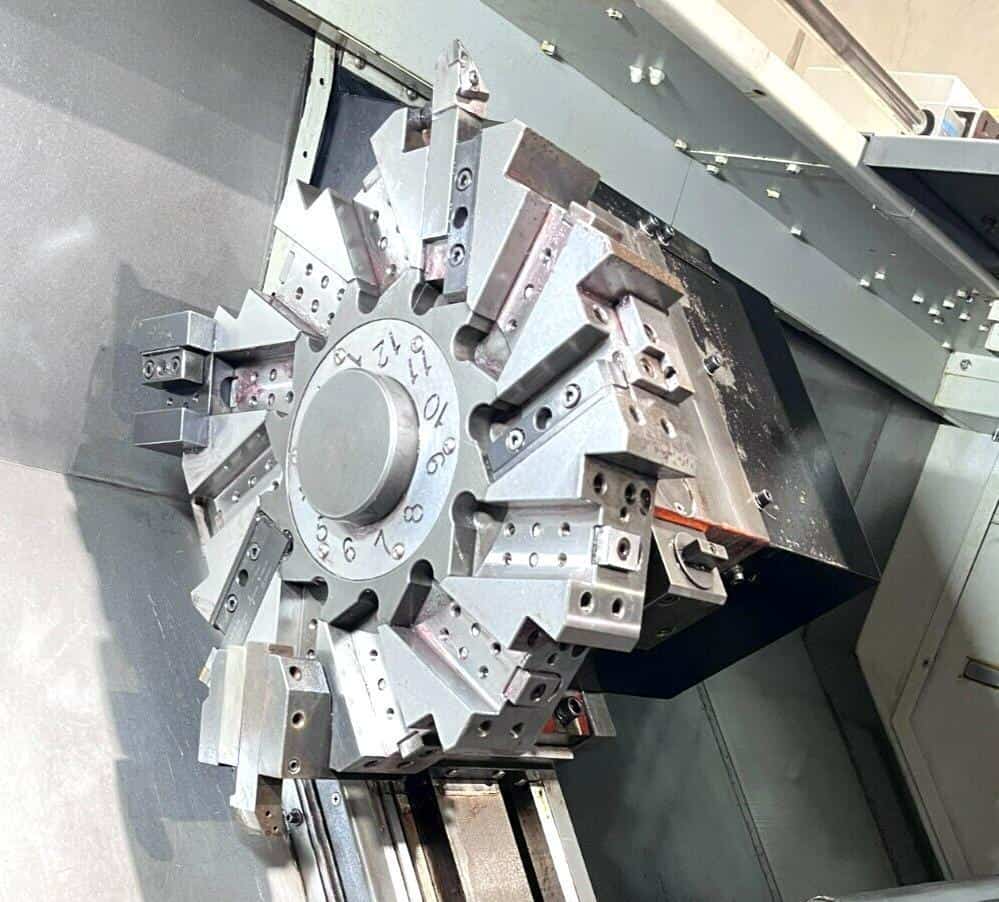

| Turret: |
|---|
| Capacity: 12 Station Turret |
| Turret Index Time: 0.15 Second |
| Tool Size: 2″ |

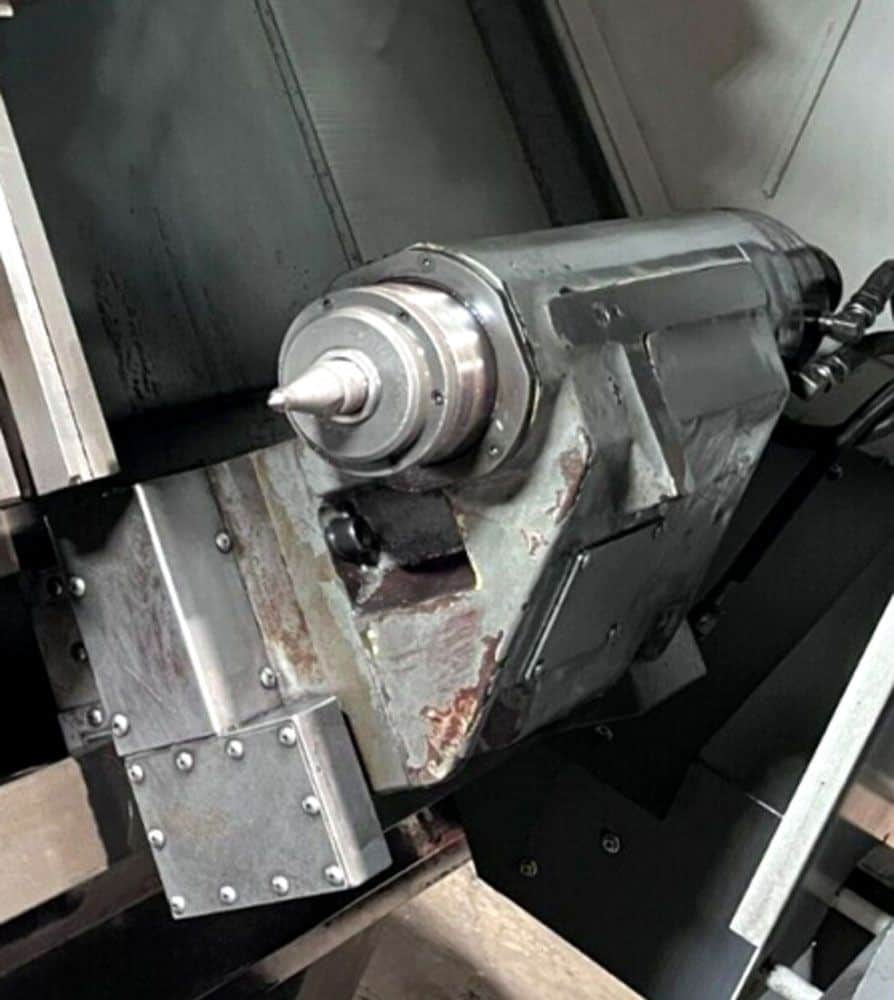

| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 38.78″ |
| Tailstock Quill Dia.: 4.33″ |
| Tailstock Quill Travel: 3.94″ |
| General: |
|---|
| Power: 220v / kva / 3-Phase |
| Overall Dimensions: 144″ x 68″ x 80″ High |
| Weight: 14550 lbs |
| “No Charges for loading at list Price” |
| Samsung SL-25/1000 Equipped With: |
|---|
| Fanuc 0i-TD CNC Control |
| Long Bed Box Way Machine |
| 254 mm 3 Jaw Hydraulic Chuck |
| Steady Rest |
| A2-8 Spindle |
| 30 HP High Torque Spindle |
| 12 Station Turret |
| Tool Presetter |
| Hydraulic Tailstock and Quill |
| PCMCIA Card Interface |
| USB Port |
| Foot Switch |
| Coolant System |
| Chip conveyor |
| Books & Manuals |
| Capacity: |
|---|
| Max Turning Diameter: 381 mm |
| Max Turning Length: 1,016 mm |
| Max Bar Capacity: 77 mm |
| Swing Over Bed: 523 mm |
| Distance Between Centers: 44.3” |
| Travel: |
|---|
| X Axis Travel: 220 mm |
| Z Axis Travel: 1,039 mm |
| Rapid Traverse X Axis: 709 IPM |
| Rapid Traverse Z Axis: 945 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 86 mm |
| Spindle Speed: 3500 RPM |
| Spindle Motor: 30 HP |
| Turret: |
|---|
| Capacity: 12 Station Turret |
| Turret Index Time: 0.15 Second |
| Tool Size: 51 mm |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Tailstock Body Travel: 985 mm |
| Tailstock Quill Dia.: 110 mm |
| Tailstock Quill Travel: 100 mm |
| General: |
|---|
| Power: 220v / kva / 3-Phase |
| Overall Dimensions: 3,658 mm x 1,727 mm x 2,032 mm High |
| Weight: 14550 lbs |
| Make | Samsung |
|---|
