*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

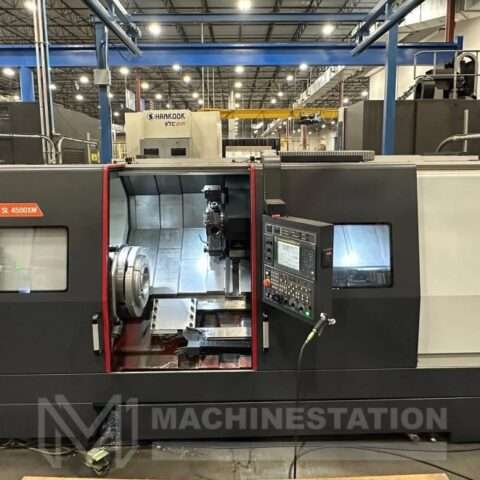

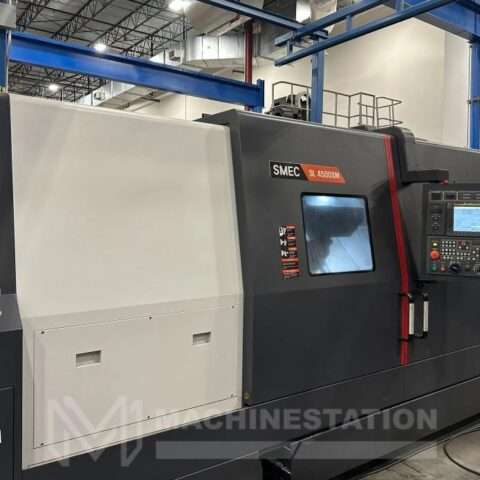

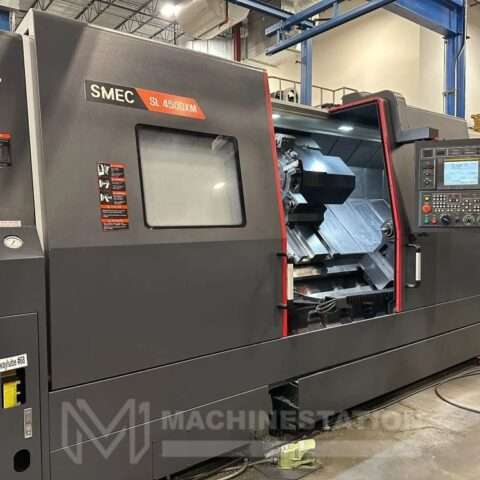

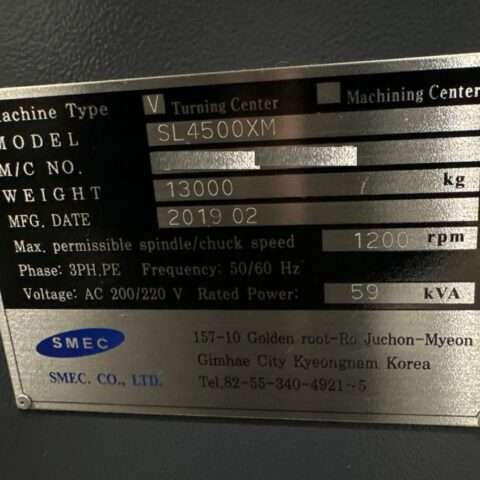

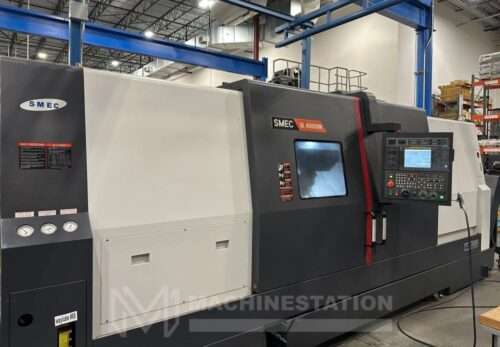

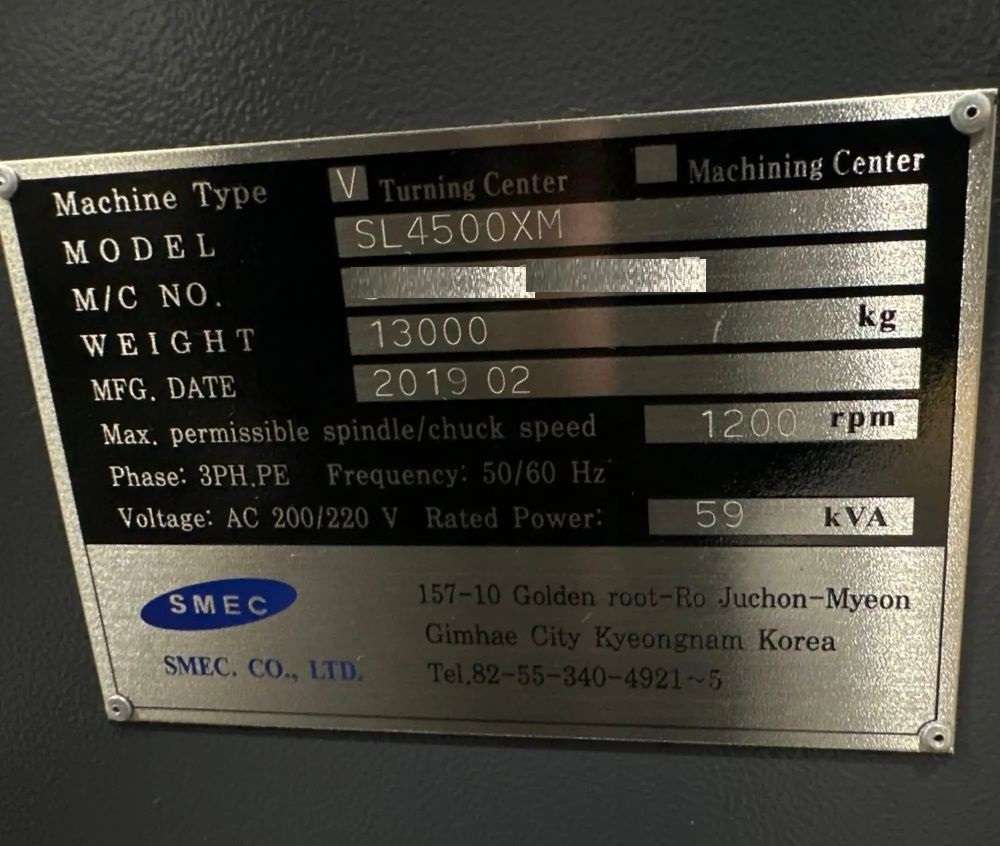

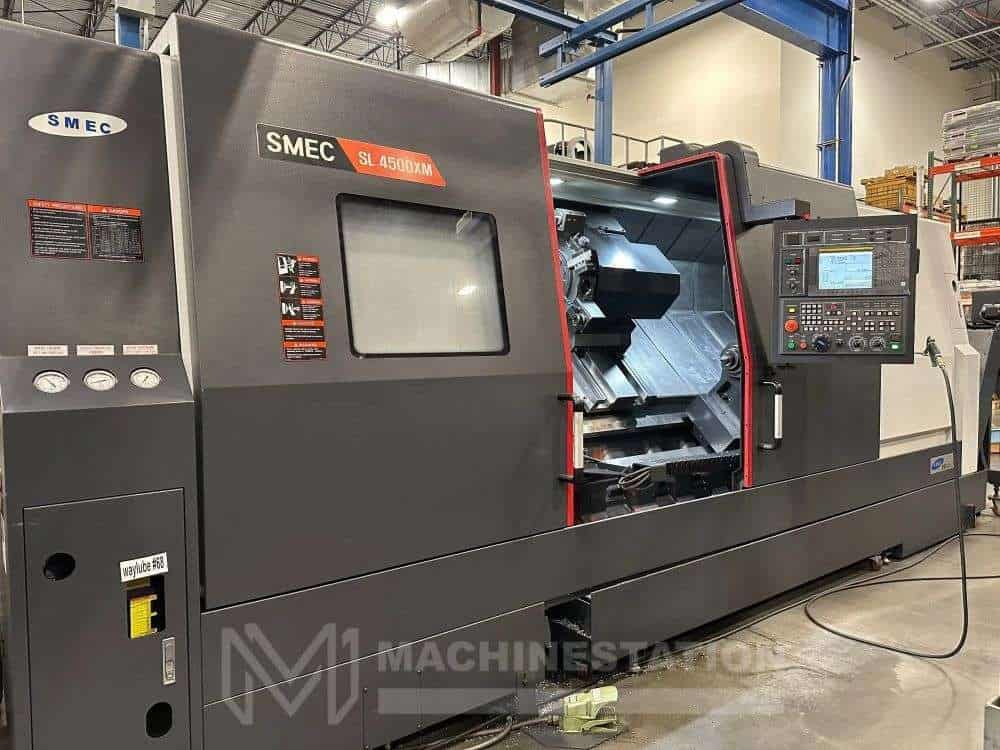

| Make: | Samsung SMEC |
| Model: | SL4500XM |
| Year: | 2019 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

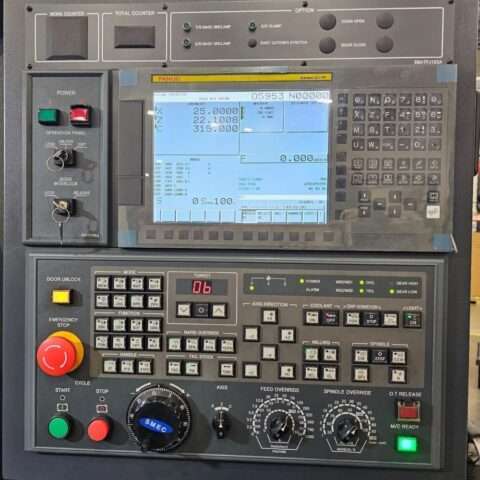

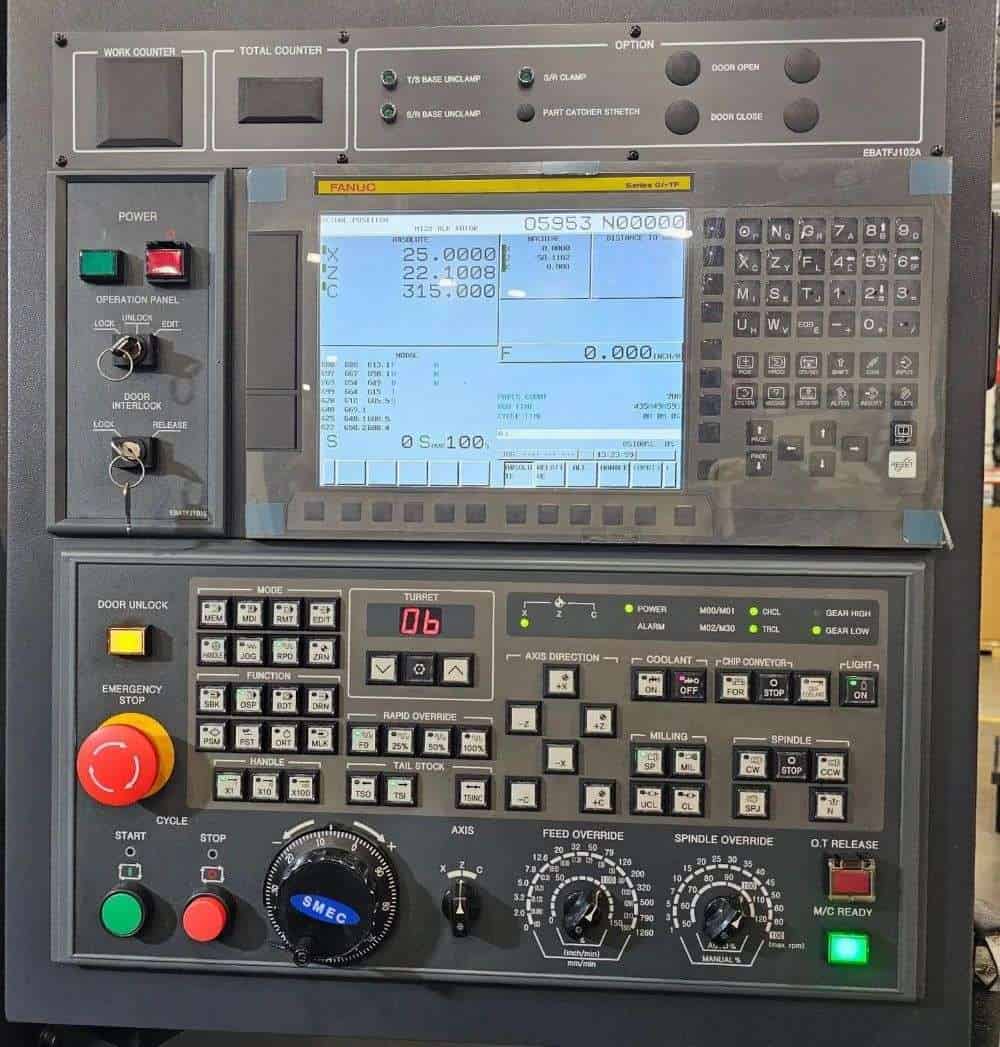

| Fanuc Oi-TF CNC Control |

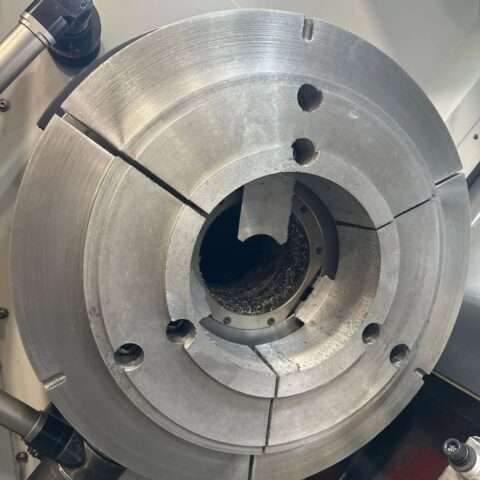

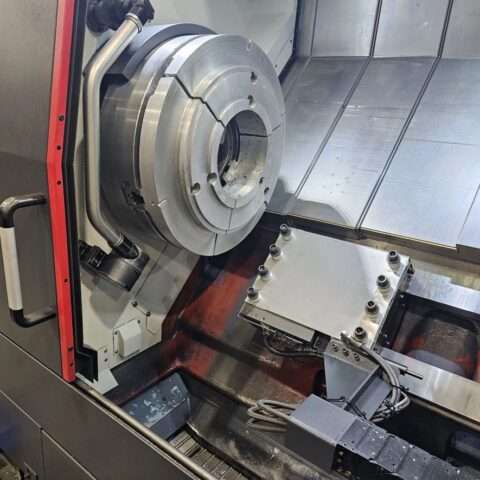

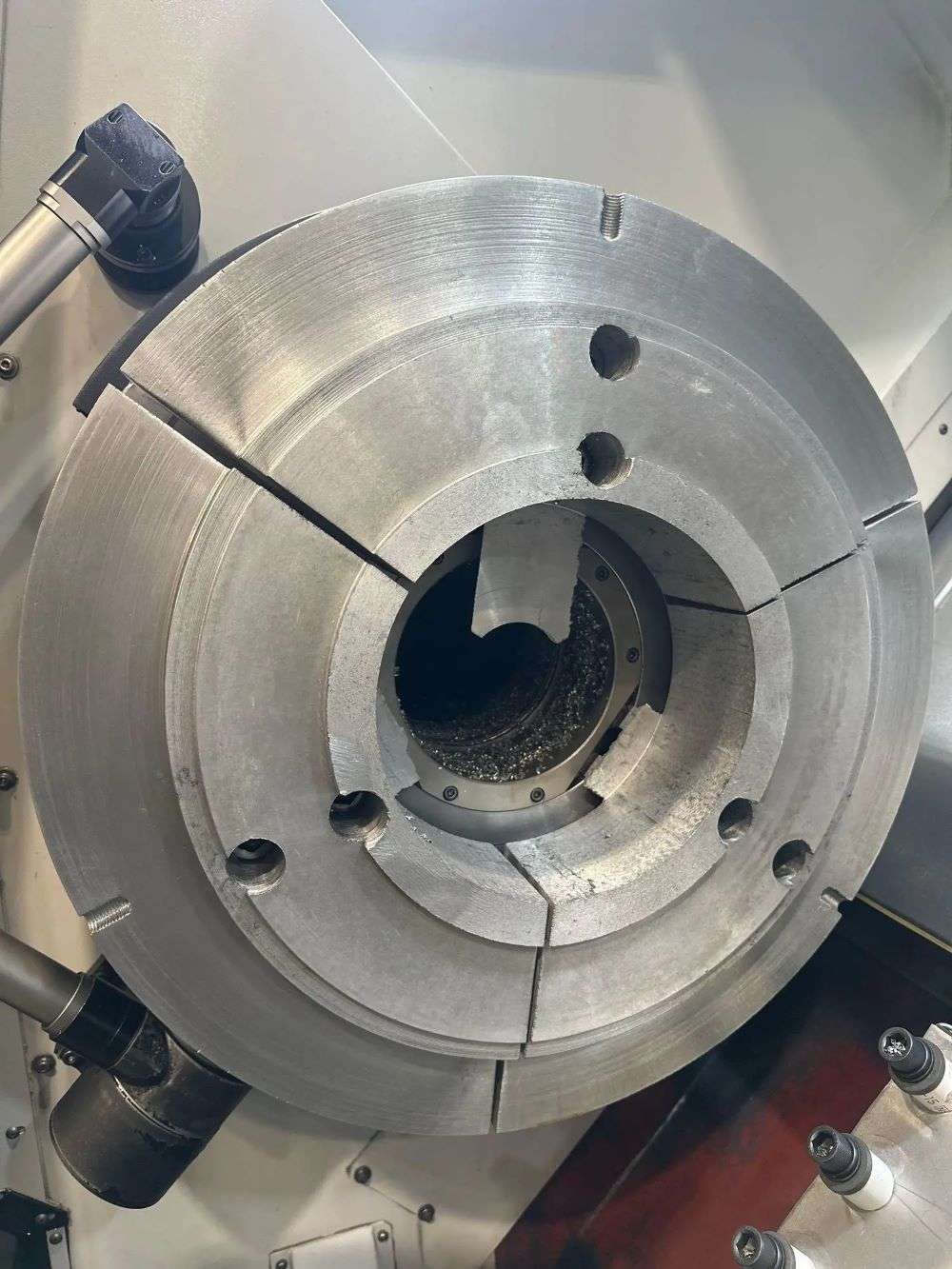

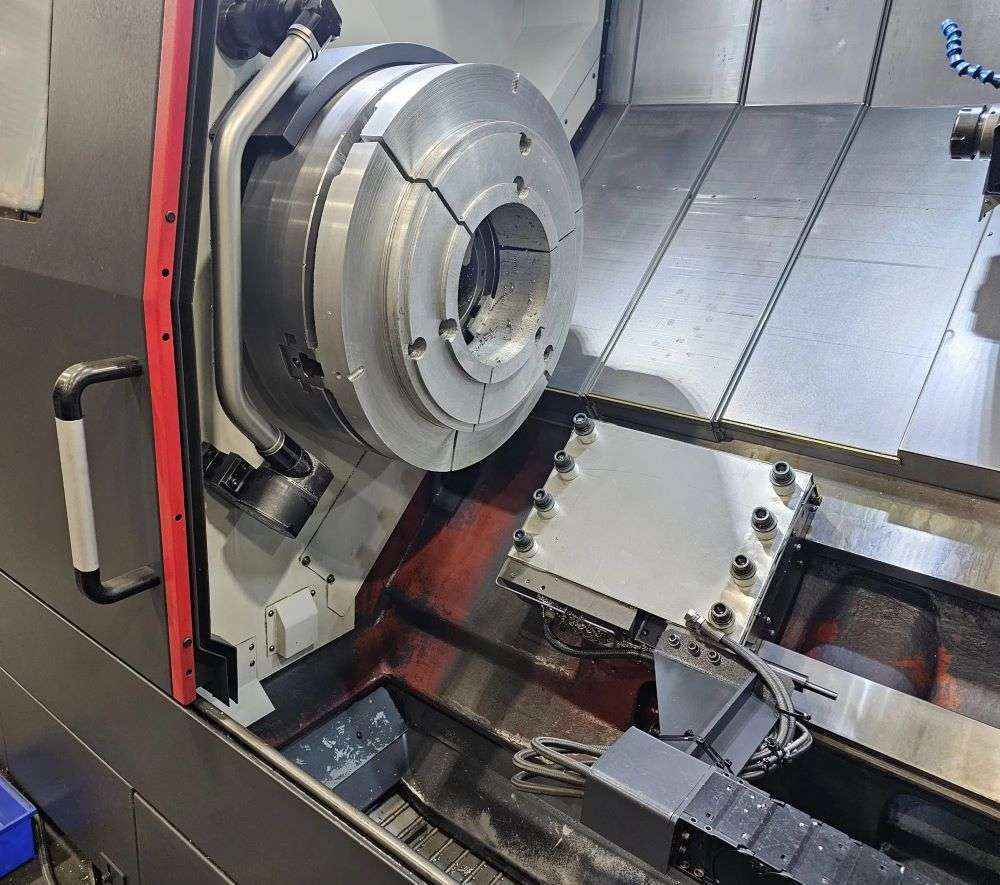

| 24” Samchully 3-Jaw Chuck |

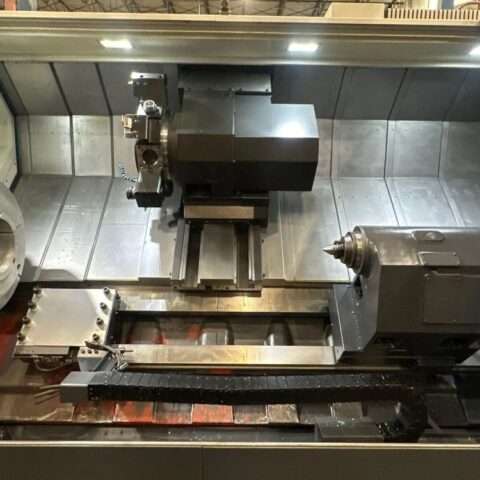

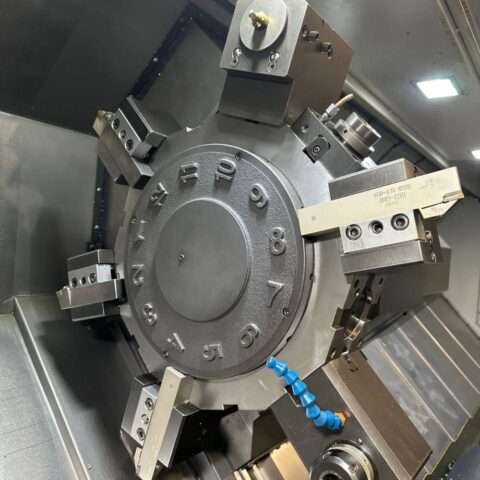

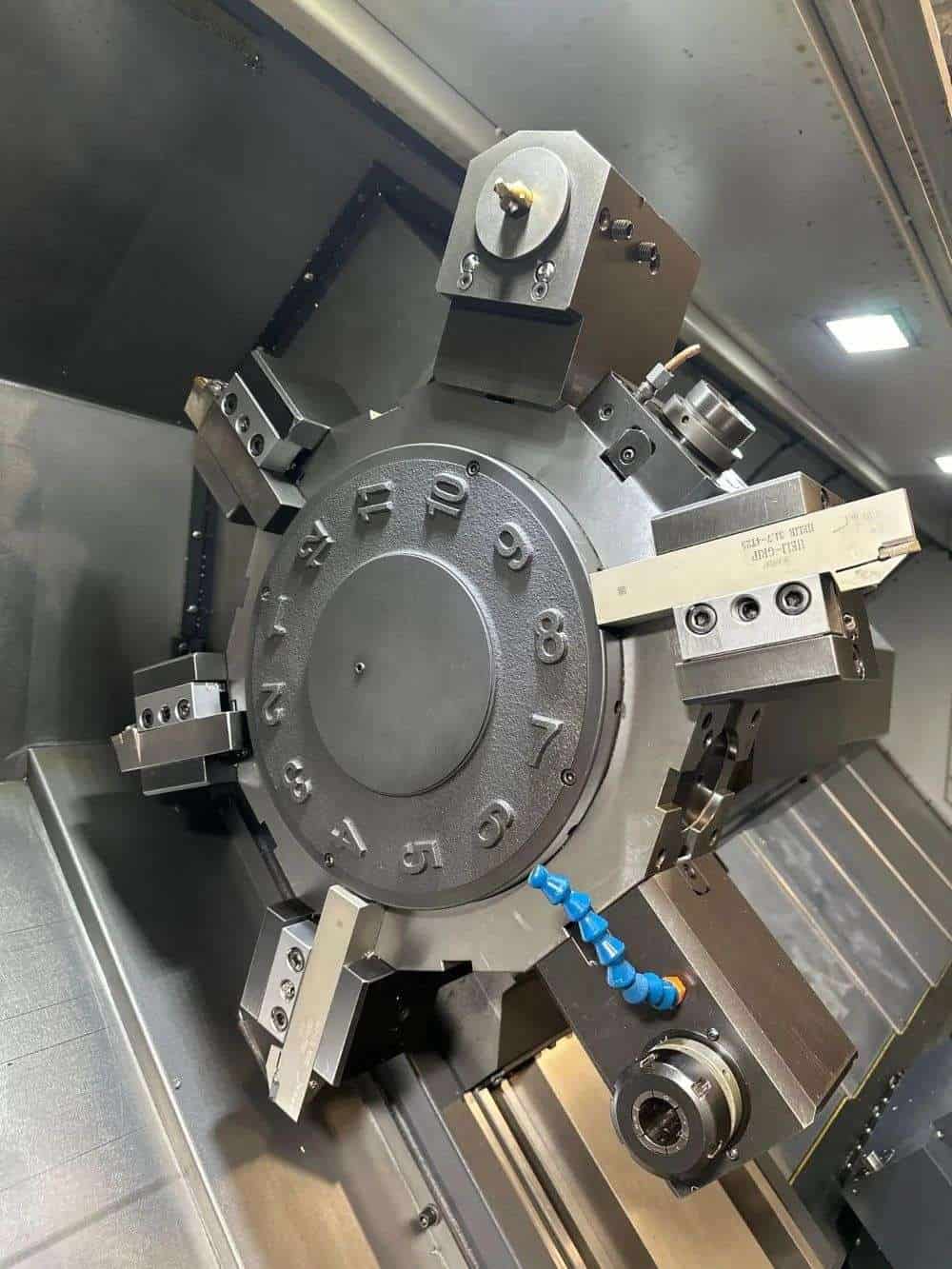

| 12 Station Live Tool Turret |
| A2-15, 7.12” Big Bore Spindle |

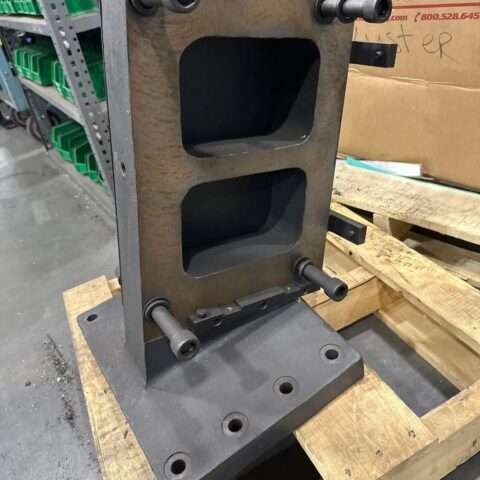

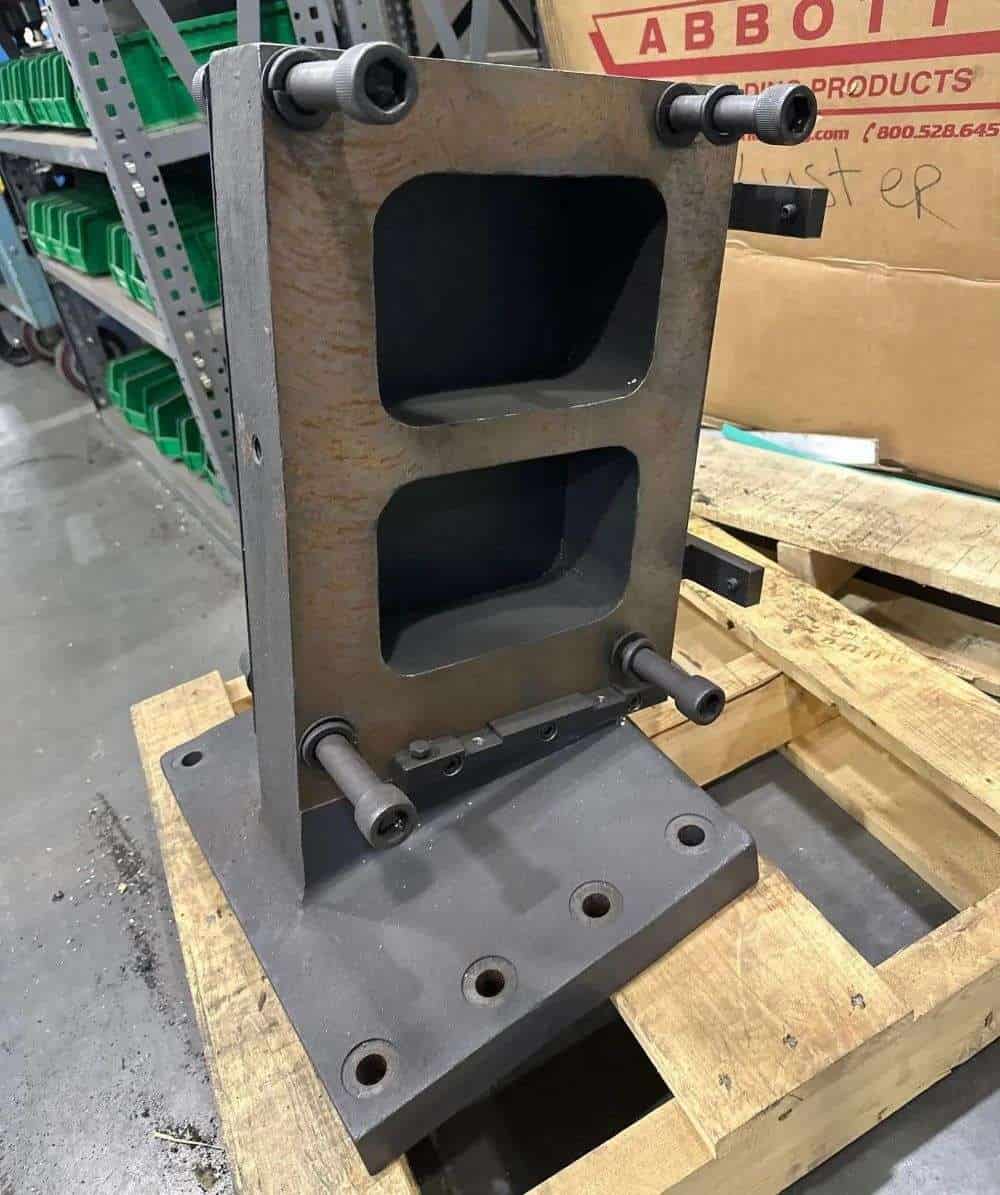

| Manual Steady Rest (Never Installed, Needs Rollers) |
| Tool Presetter |

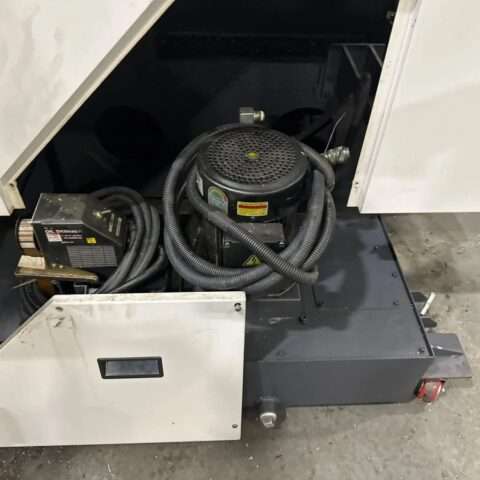

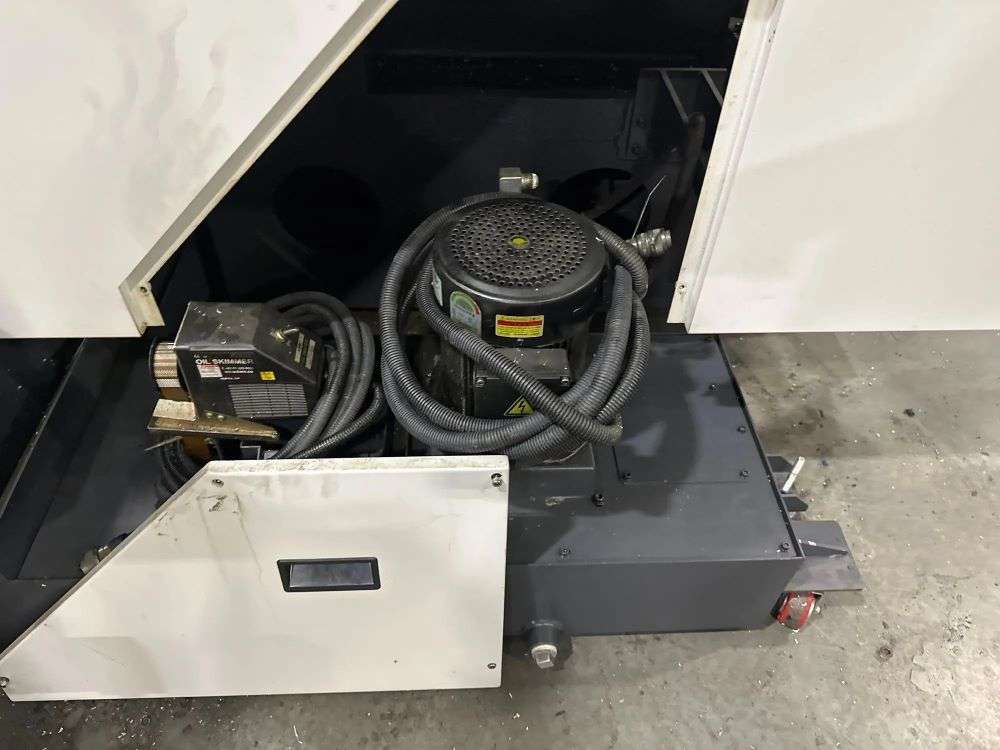

| Oil Skimmer |

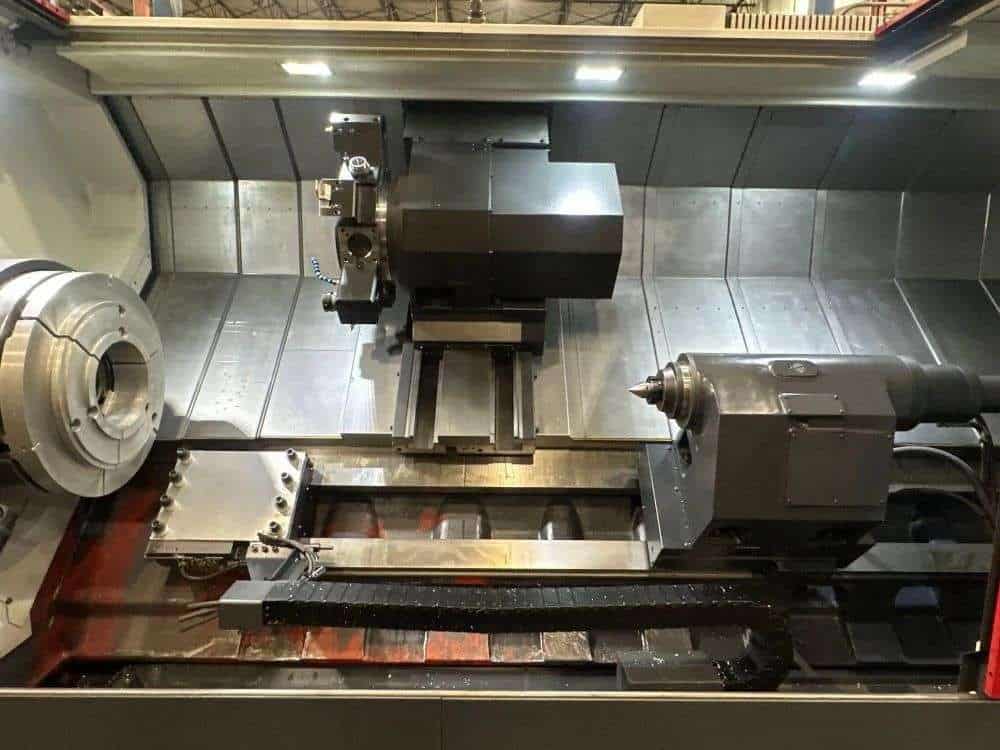

| Programmable Tailstock |

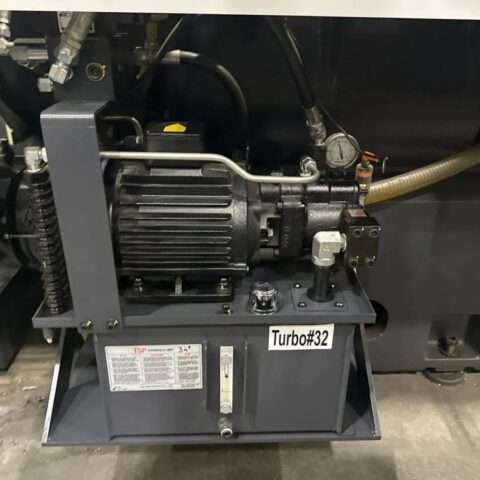

| High Pressure Coolant System |

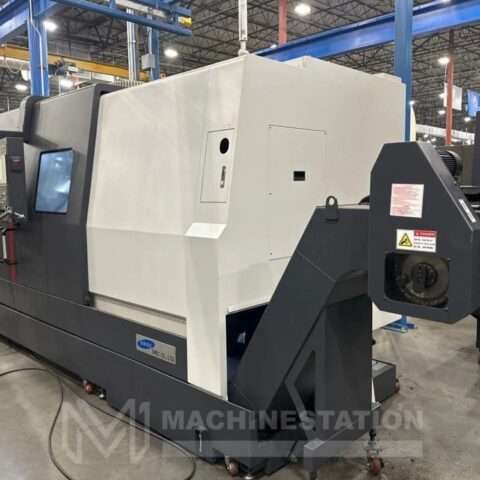

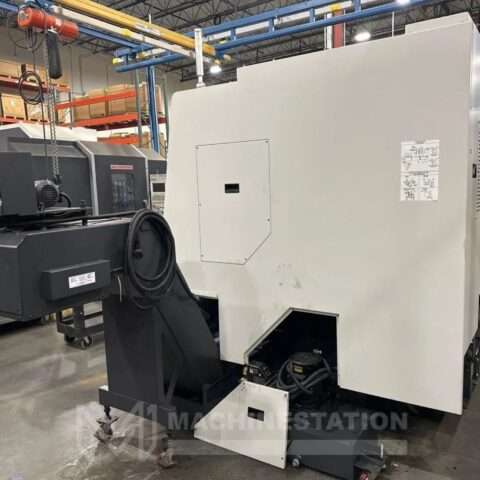

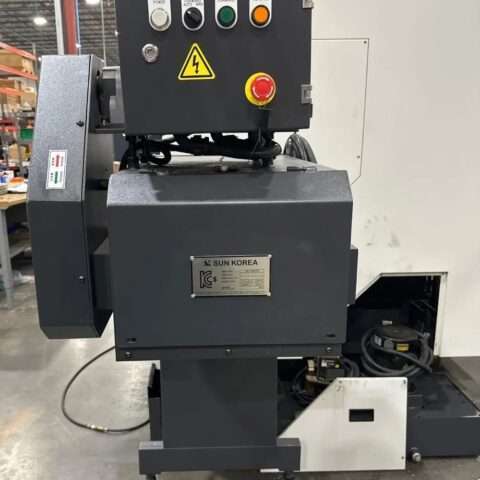

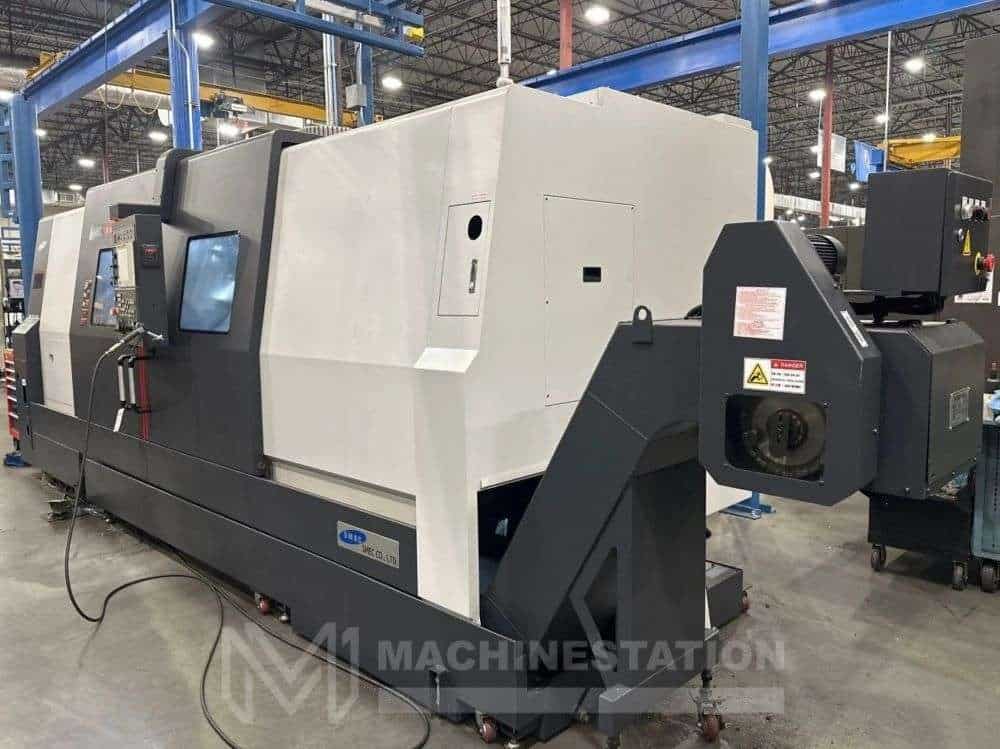

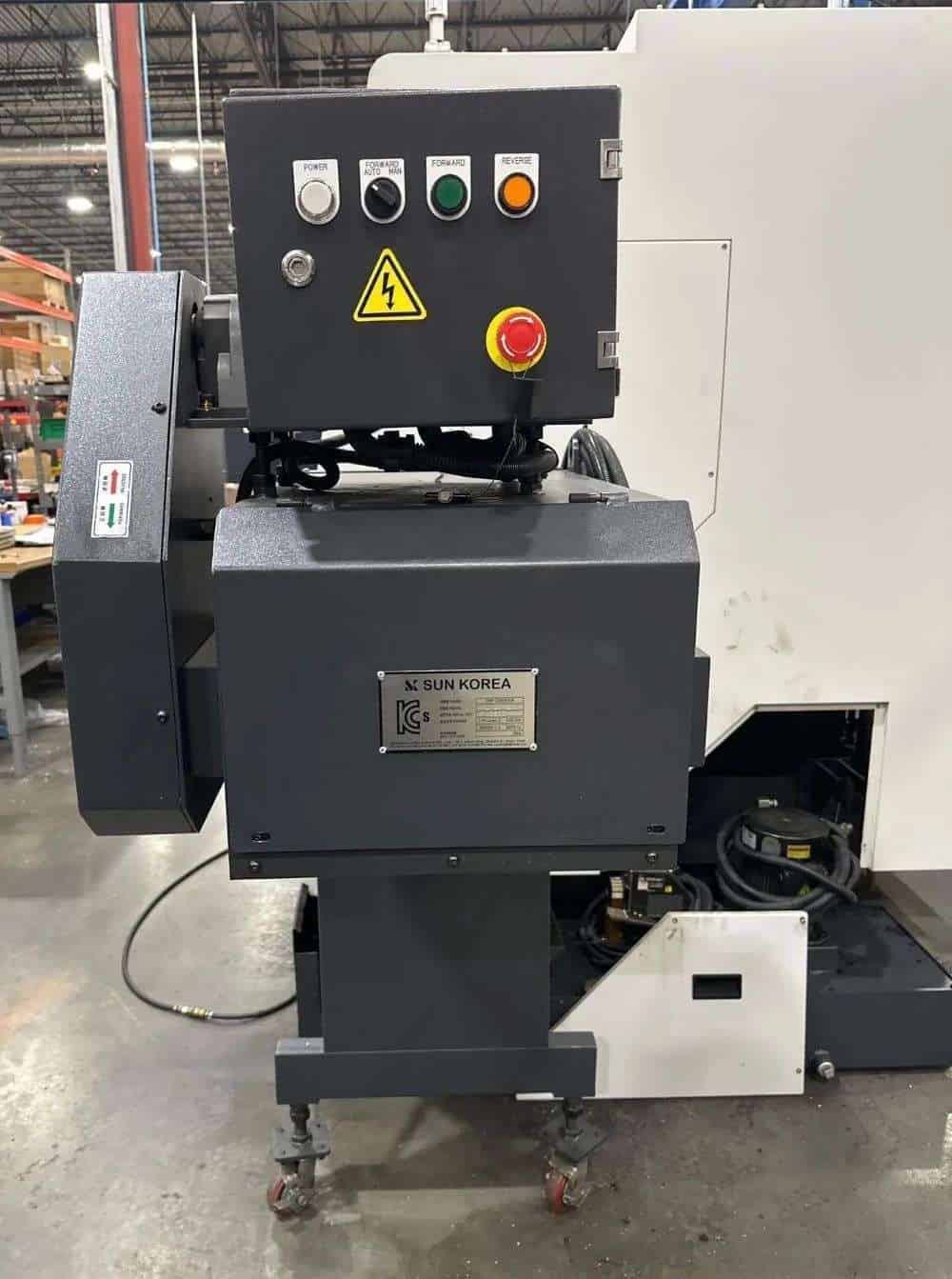

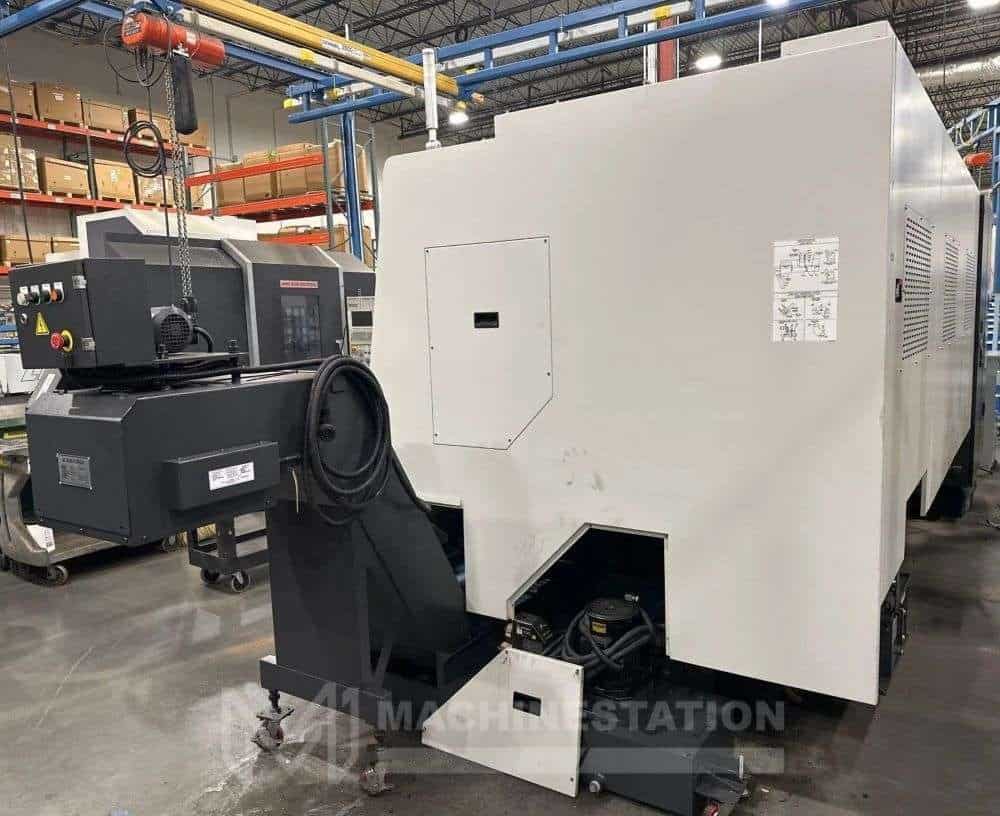

| Chip Conveyor |
| Books & Manuals |
| All Tool Holders Live & Static, Chuck Jaws Standard & Special |
| Capacity: |
|---|
| Max Turning Diameter : 24.4″ |
| Max Milling Diameter : 28.0″ |
| Max Swing Over Bed : 30.5″ |
| Max Turning Length: 88.7″ |
| Max Bar Capacity : 6.5″ |
| Travels: |
|---|
| X Axis Travel : 13.78″ |
| Z1 Axis Travel : 91.73″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 787 IPM |
| Rapid Traverse Z Axis: 709 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-15 |
| Spindle Bore: 7.12″ |
| Spindle Speed: 1200 RPM |
| Spindle Motor: 40 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.25 Second |
| Tool Size: □ 1.25″ |
| Boring Bar Dia.: ⌀ 2.5″ |
| Live Tool Speed.: 4000 RPM |
| Live Tool Motor.: 7.5 HP |
| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Tailstock Quill Travel: 5.9″ |
| Tailstock Quill Diameter: 6.5″ |
| Tailstock Taper: MT-5 |
| General: |
|---|
| Power Source: AC 220v / 3-Phase / 60 Hz / 59 kva |
| Floor Space: 257″ x 84″ (With Chip Conveyor) |
| Machine Weight: 28,660 lbs Approx. |
