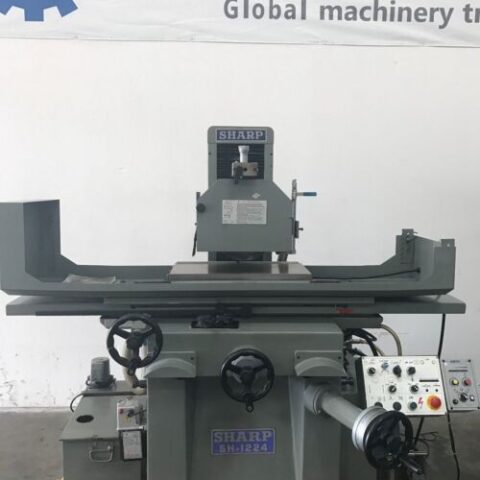

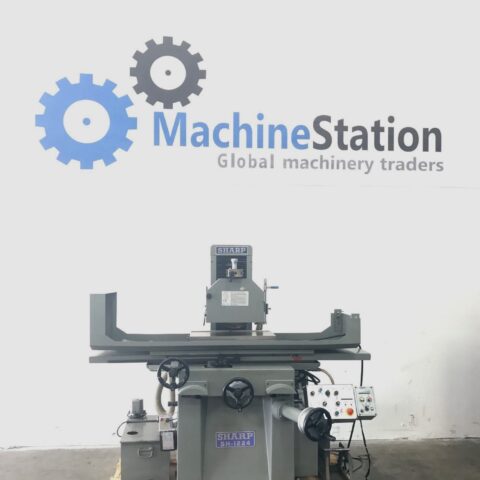

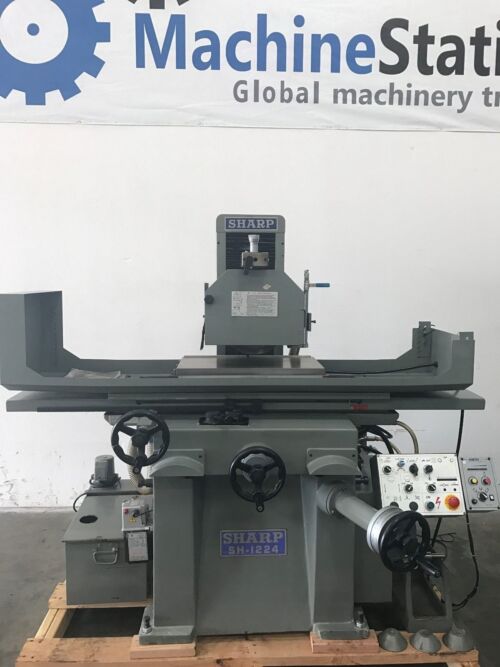

SHARP SH-1224 Hydraulic Surface Grinder

Pristine Condition Machine comes from Electronic Manufacturing Company's Tool Room, Used occasionally . It has 12 x 24 Fine Pole Electro Magnetic Chuck with Controller. Machine is in all Original Paint. On our Floor now, fully powered / tested & is in Great working condition.”

Share

Description

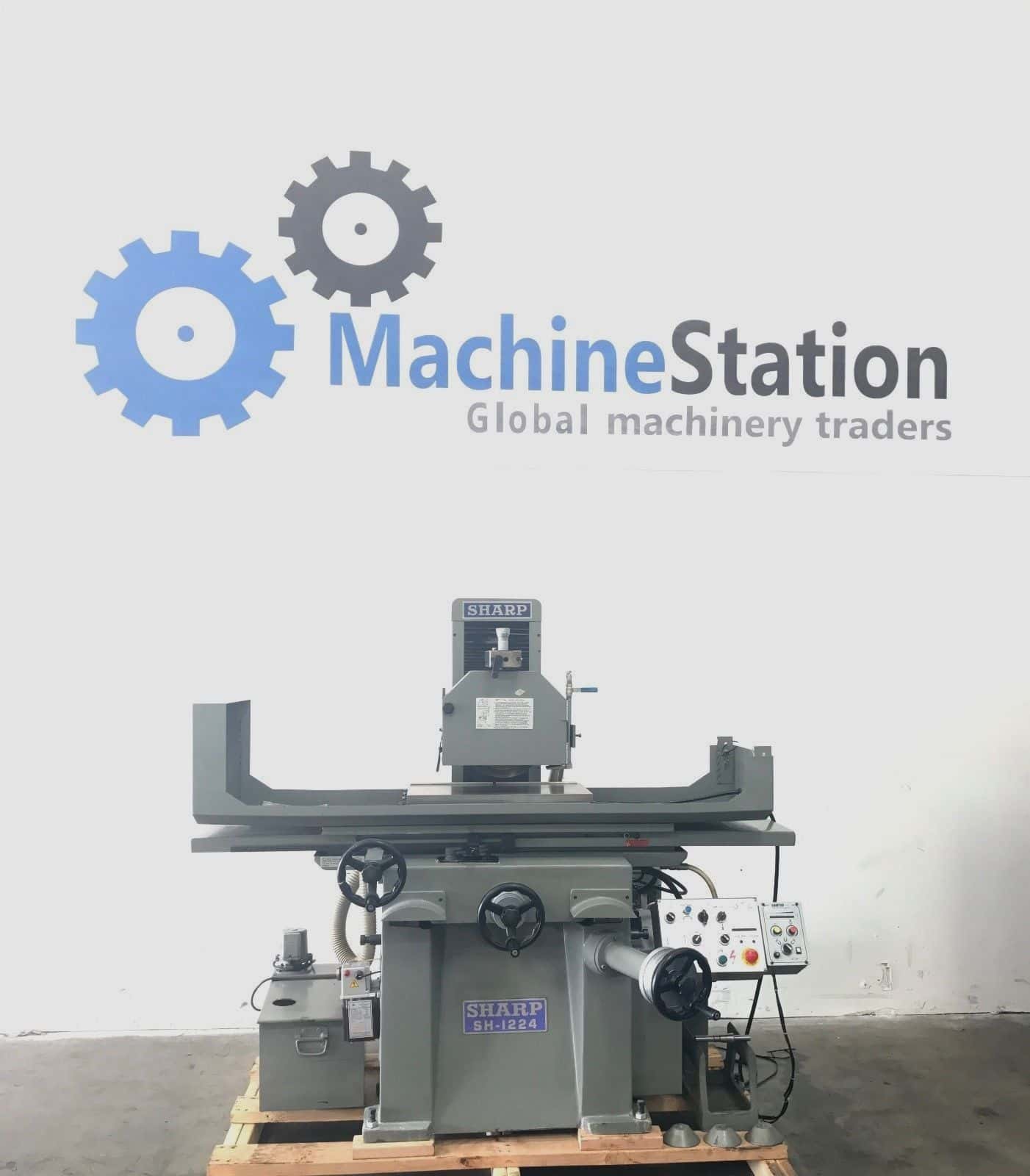

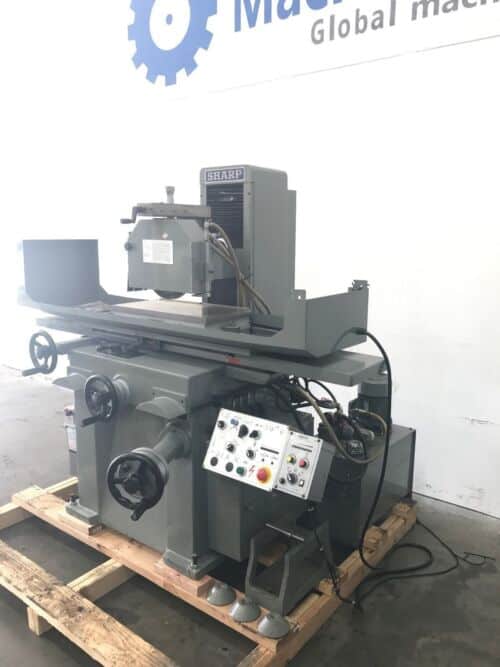

SHARP SH-1224 Hydraulic Surface Grinder
Make Sharp
Model No. SH-1224
Country Of Origin : Taiwan

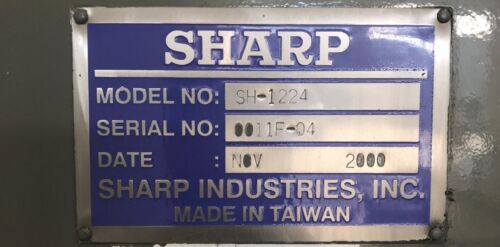

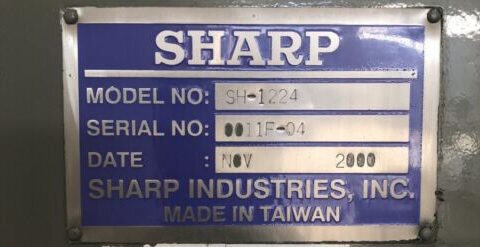

Serial # 0011F-04
Condition Very Good

“Pristine Condition Machine comes from Electronic Manufacturing Company’s Tool Room, Used occasionally . It has 12 x 24 Fine Pole Electro Magnetic Chuck with Controller. Machine is in all Original Paint. On our Floor now, fully powered / tested & is in Great working condition. check *VIDEO”

  • SHARP SH-1224 Features:
  • Kanetsu Electro Magnetic Chuck with Controller

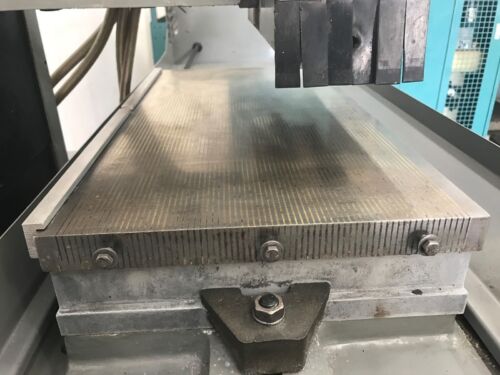

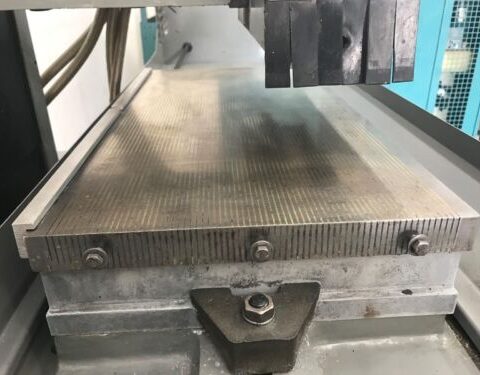

  • 12″ x 24″ Fine Pole Magnetic Chuck

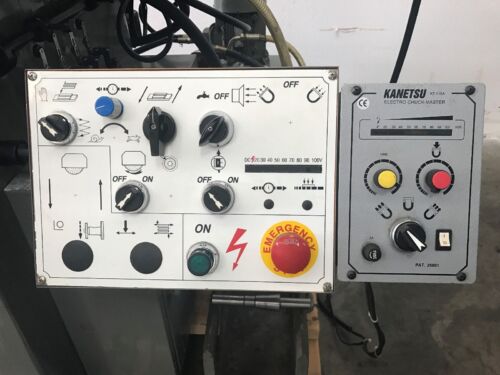

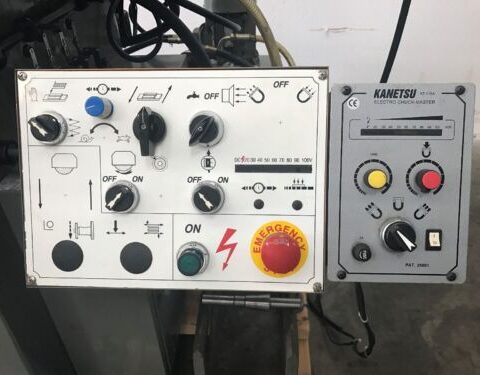

  • Separate Electronic Control Console
  • Automatic Incremental Downfeed
  • Parallel Wheel Dresser
  • Hydraulic System
  • Lubrication System
  • Coolant System with Splash Guards
  • Comes with All Available Manuals, Levelling Pads, Wheel Balancer with Arbor.
  • General:
  • Overall Dimensions: 78″ x 66″ x 72″ High
  • Weight: 4000 lbs
  • SHARP SH-1224 Specifications:
  • Table travel (cross x longitudinal): 14″ x 27.6″
  • Spindle center to table surface: 19.3″
  • Table working surface: 11.6″ x 23.6″
  • Longitudinal hydraulic table feed (ft/min): 6.6-82
  • Intermittent cross feed (in./min): 0.004-0.4
  • Continuous Cross Feed (in/min): 39
  • Number of graduations on dial: 200
  • Feed per graduation: 0.0005”
  • Feed per revolution: 0.1”
  • Number of graduations on dial: 500
  • Feed per graduation: 0.0001”
  • Feed per revolution: 0.05”
  • Rapid down feed (optional)(in./min): 18.9

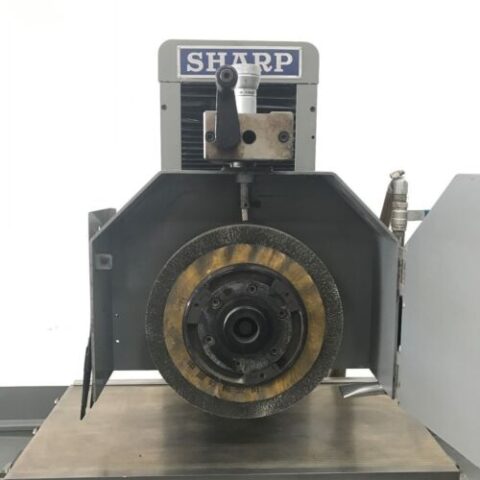

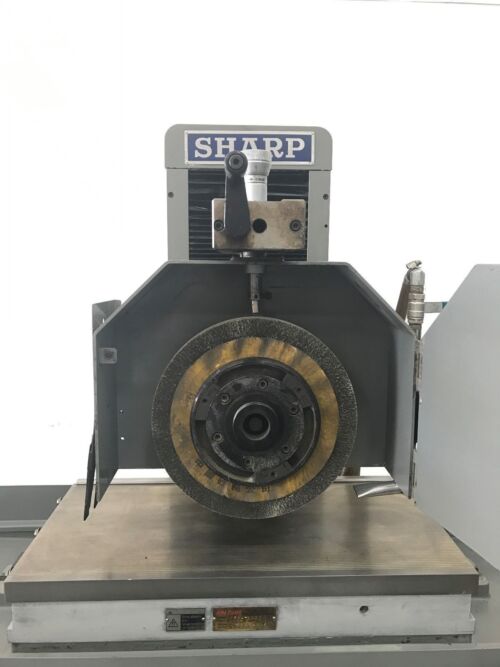

  • Wheel size (OD x Width x ID): 14″x1″ x5″
  • Spindle motor: 3 HP
  • Coolant system: 1/8 HP

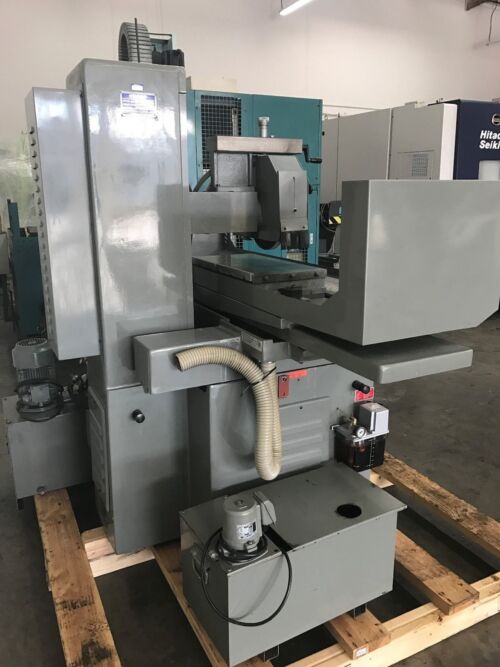

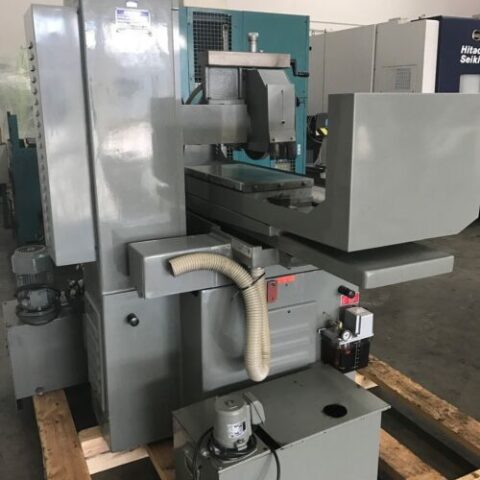

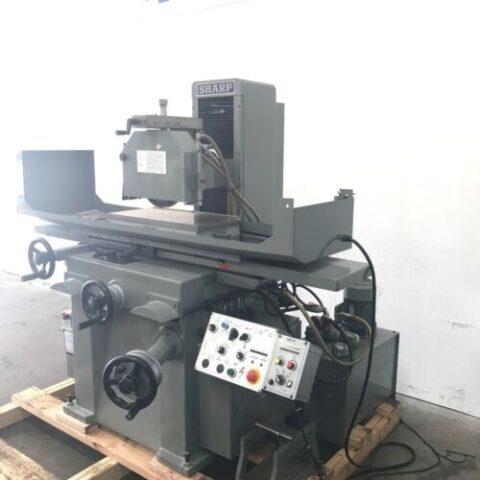

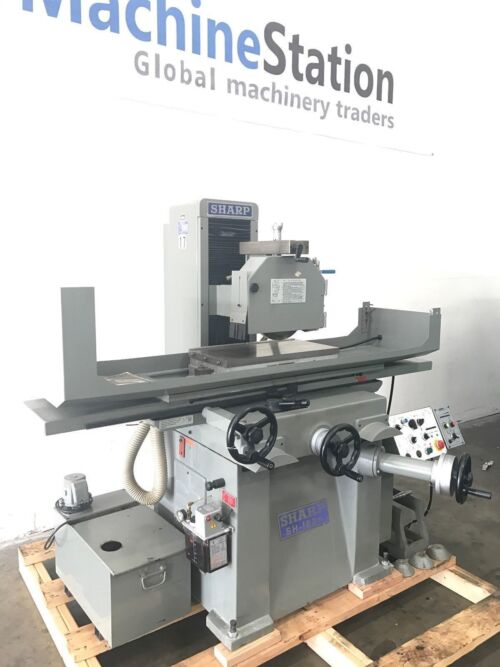

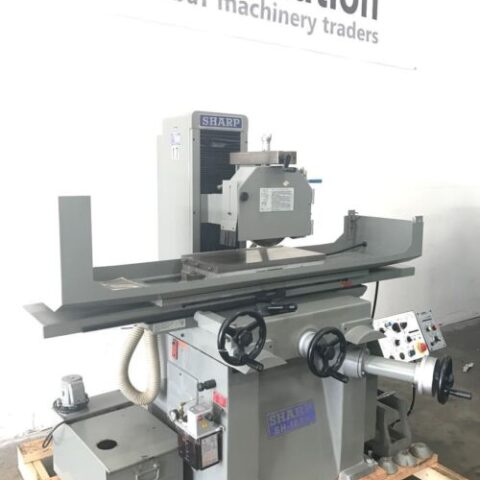

SHARP SH-1224 Comes as shown in pictures.
