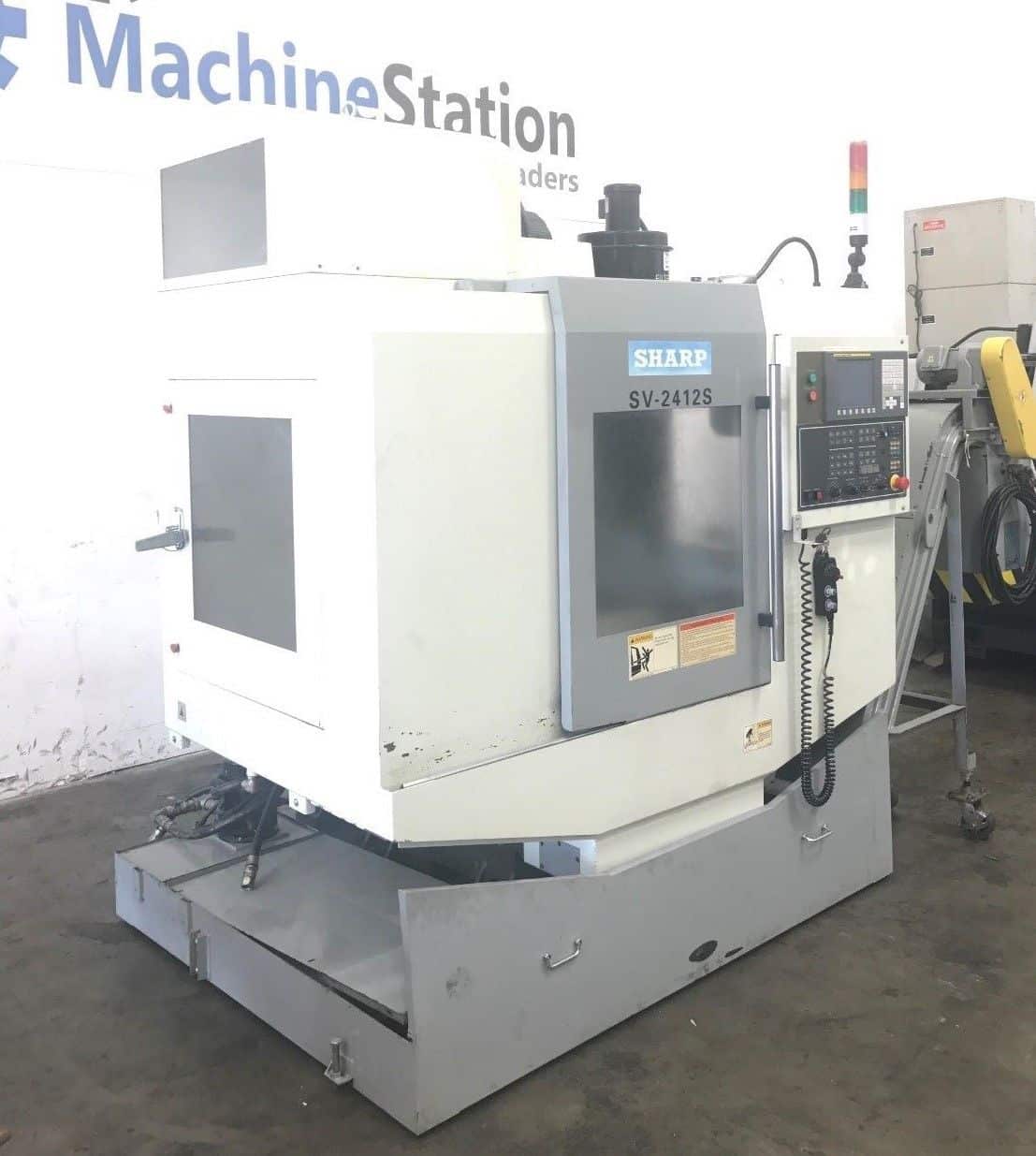

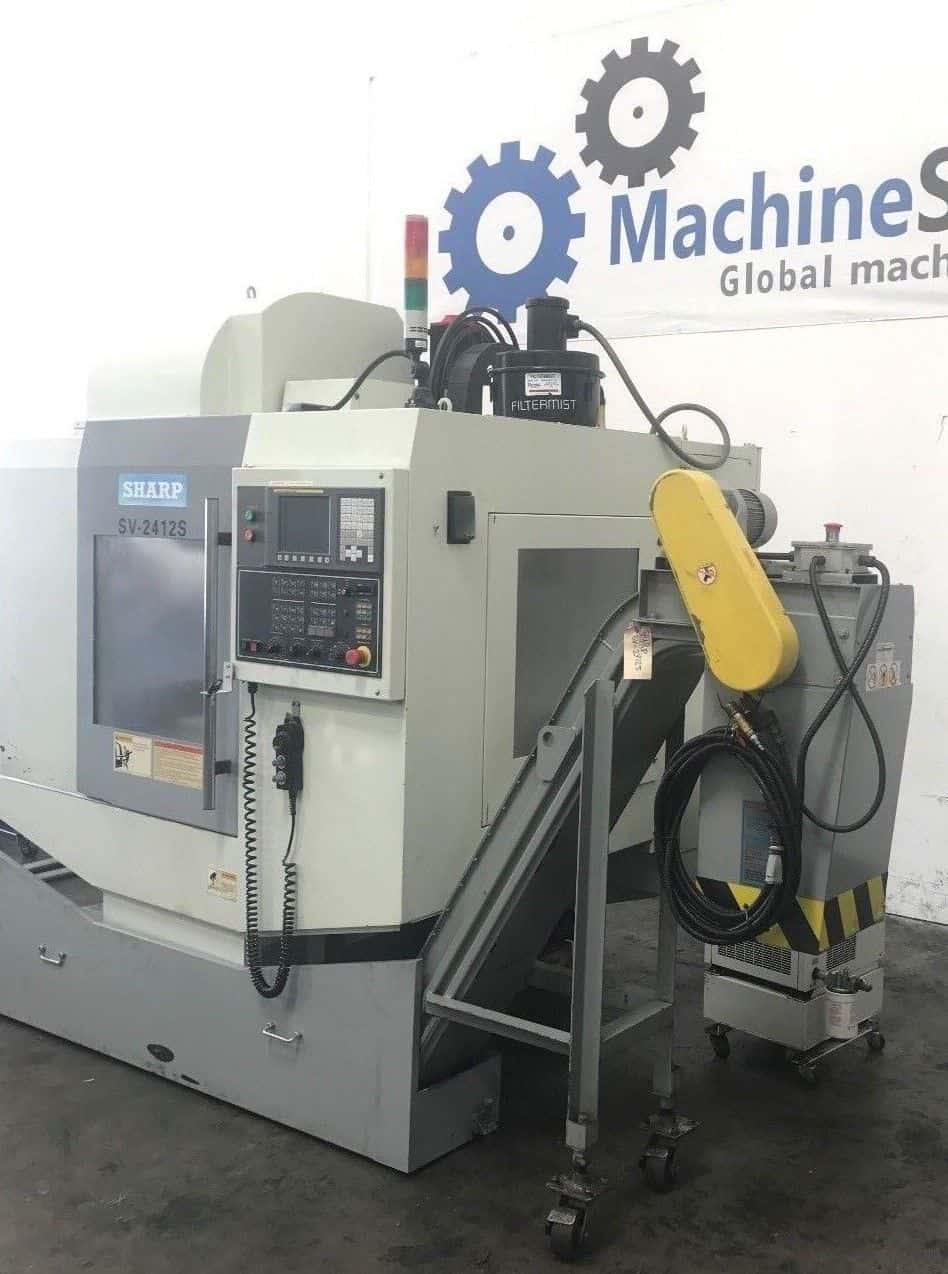

SHARP SV-2412S CNC VERTICAL MACHINING CENTER | |
---|---|

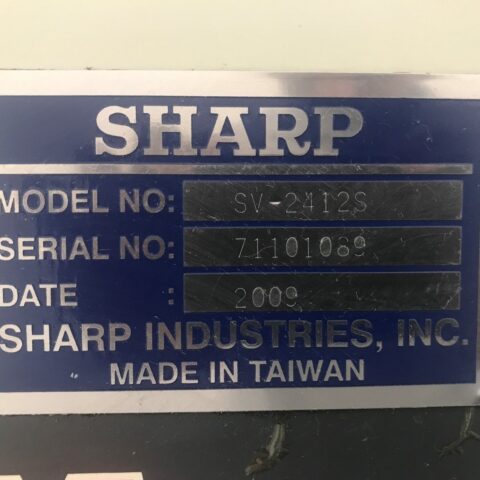

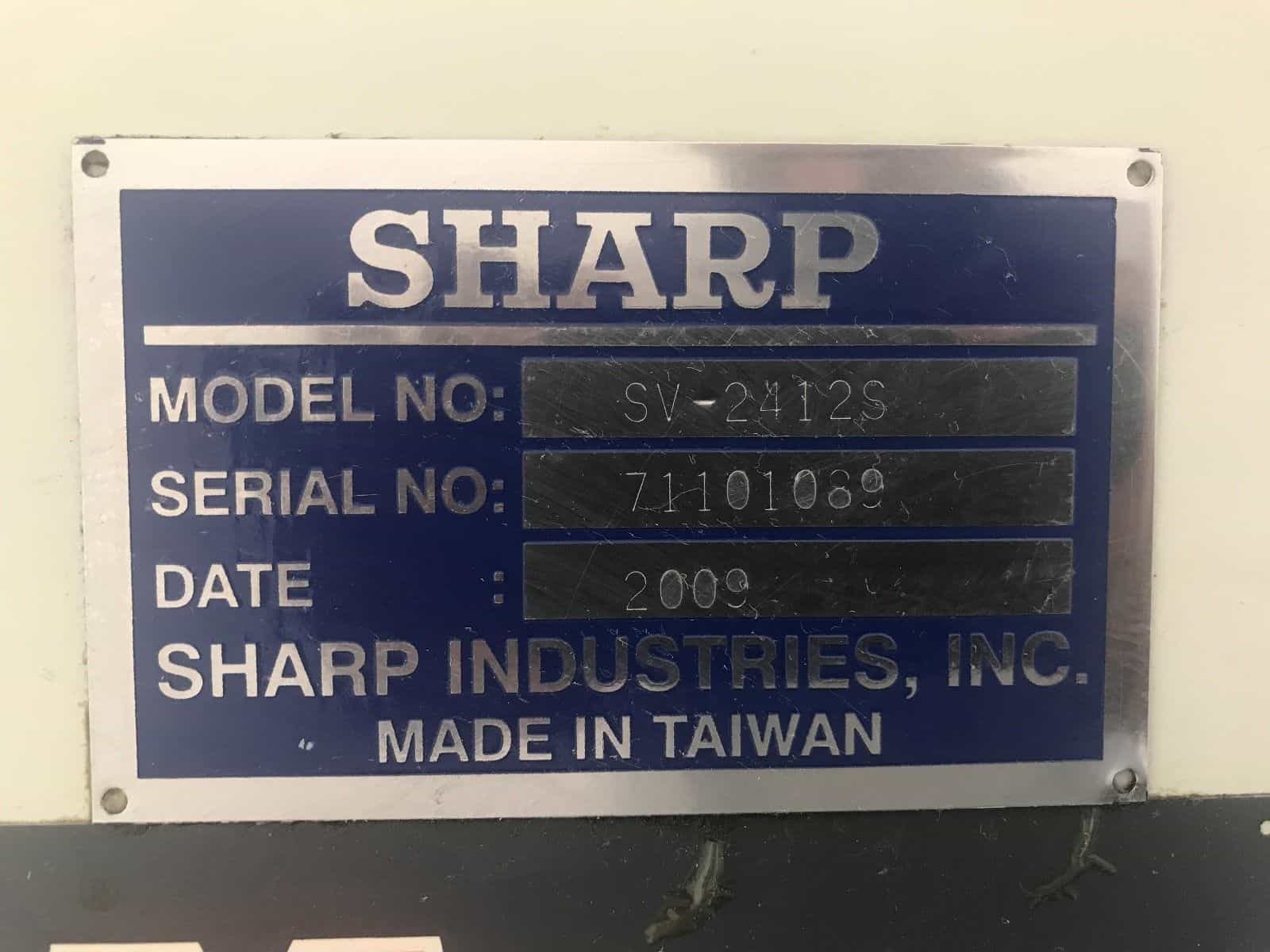

Make | Sharp |
Model No. | SV-2412S |
Year of Manufacture: | 2009 |
Serial # | 71101089 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has very low Cutting Hours, 10000rpm, 24 tool Side Mount Tool changer, expanded Memory and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- SHARP SV-2412S Features:

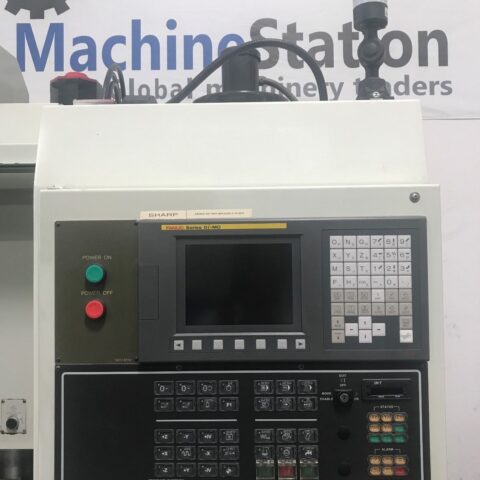

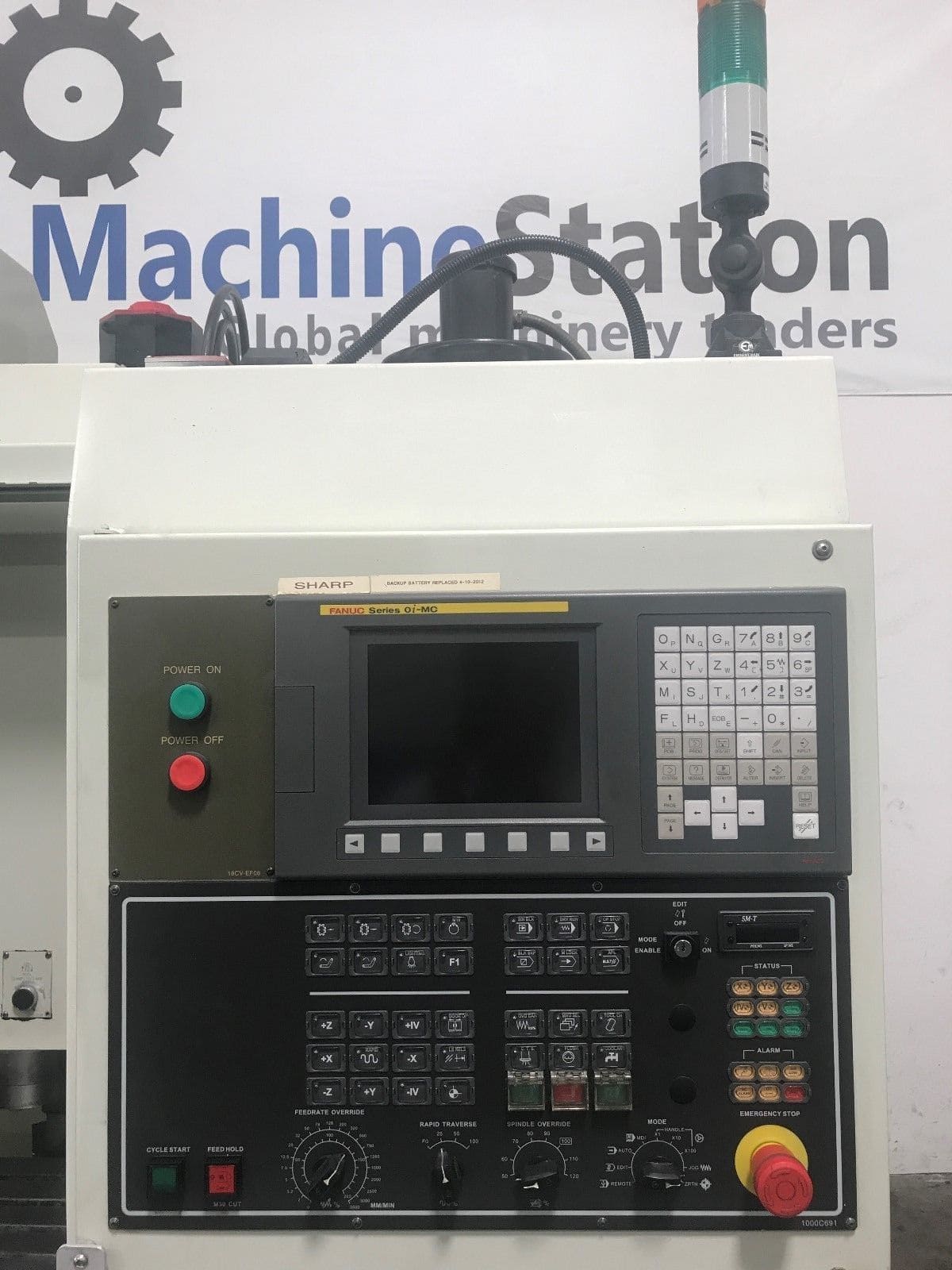

- Fanuc 0i-MC CNC Control

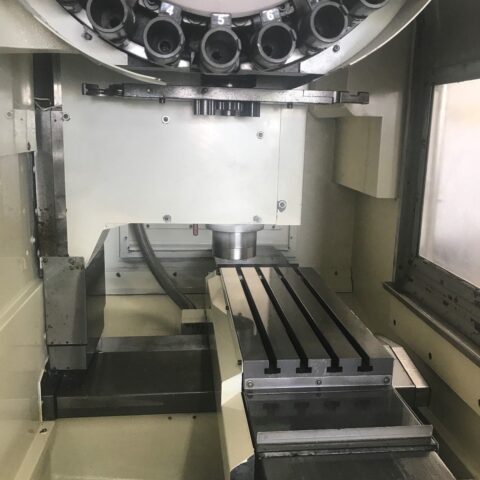

- 24+1 Tools Side Mount Tool Changer
- High precision 10,000 RPM Spindle
- PCMCIA Card Slot
- Box Way Construction All Axis
- Powerful 21 hp high torque spindle motor
- Spindle Chiller
- Spindle Orientation
- Rigid Tapping
- Custom Micro B (User Definable)
- Fast Rapid Traverse Rate
- Flood coolant with large separate coolant tank
- Chip Conveyor
- Work light
- Books and Manuals
- SHARP SV-2412S Specifications:
- Travels:
- X-Axis: 24″
- Y-Axis: 12″
- Z-Axis: 18″
- Spindle Nose to Table (Min.- Max.): 2.7″ – 20.8″

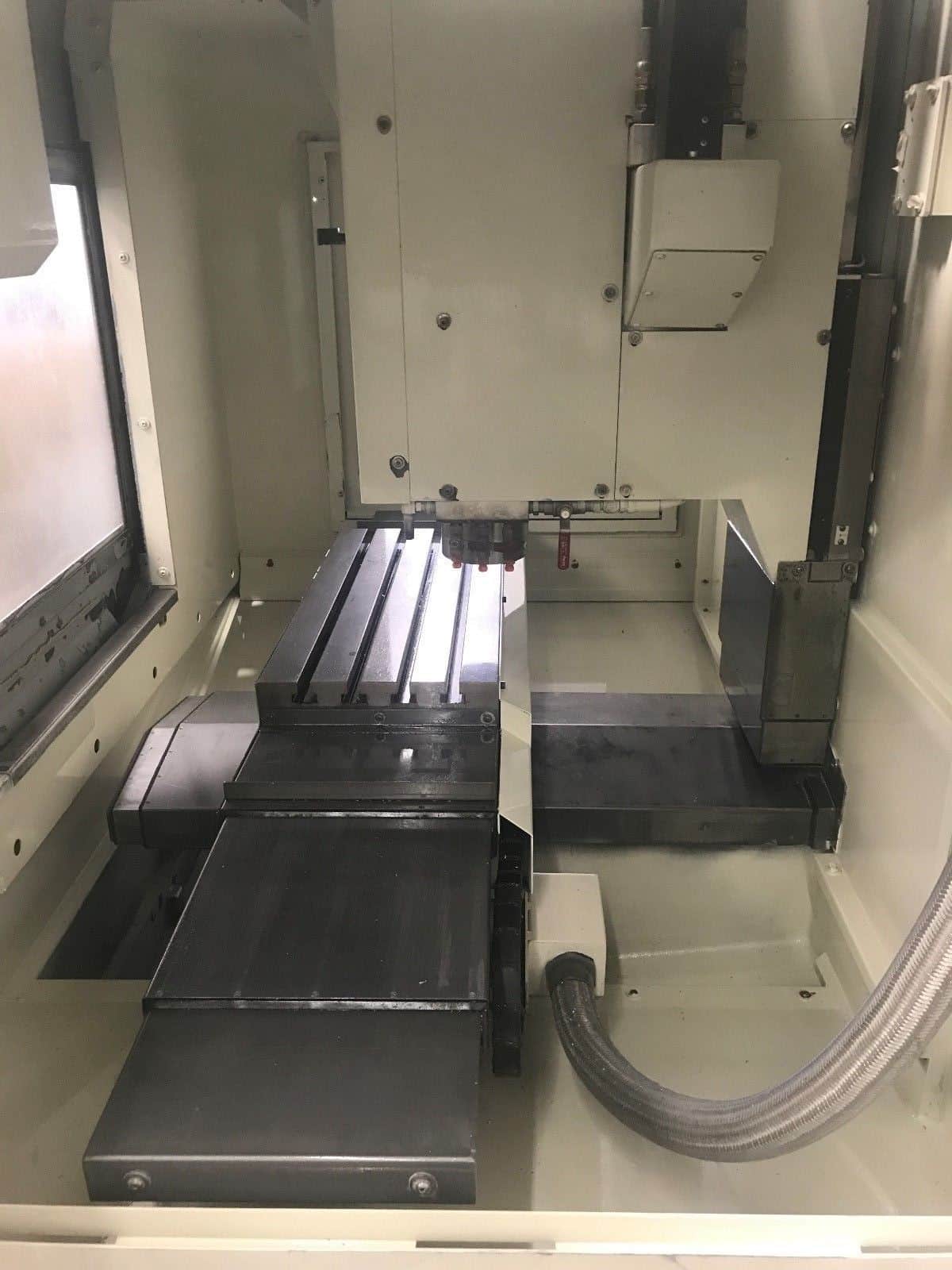

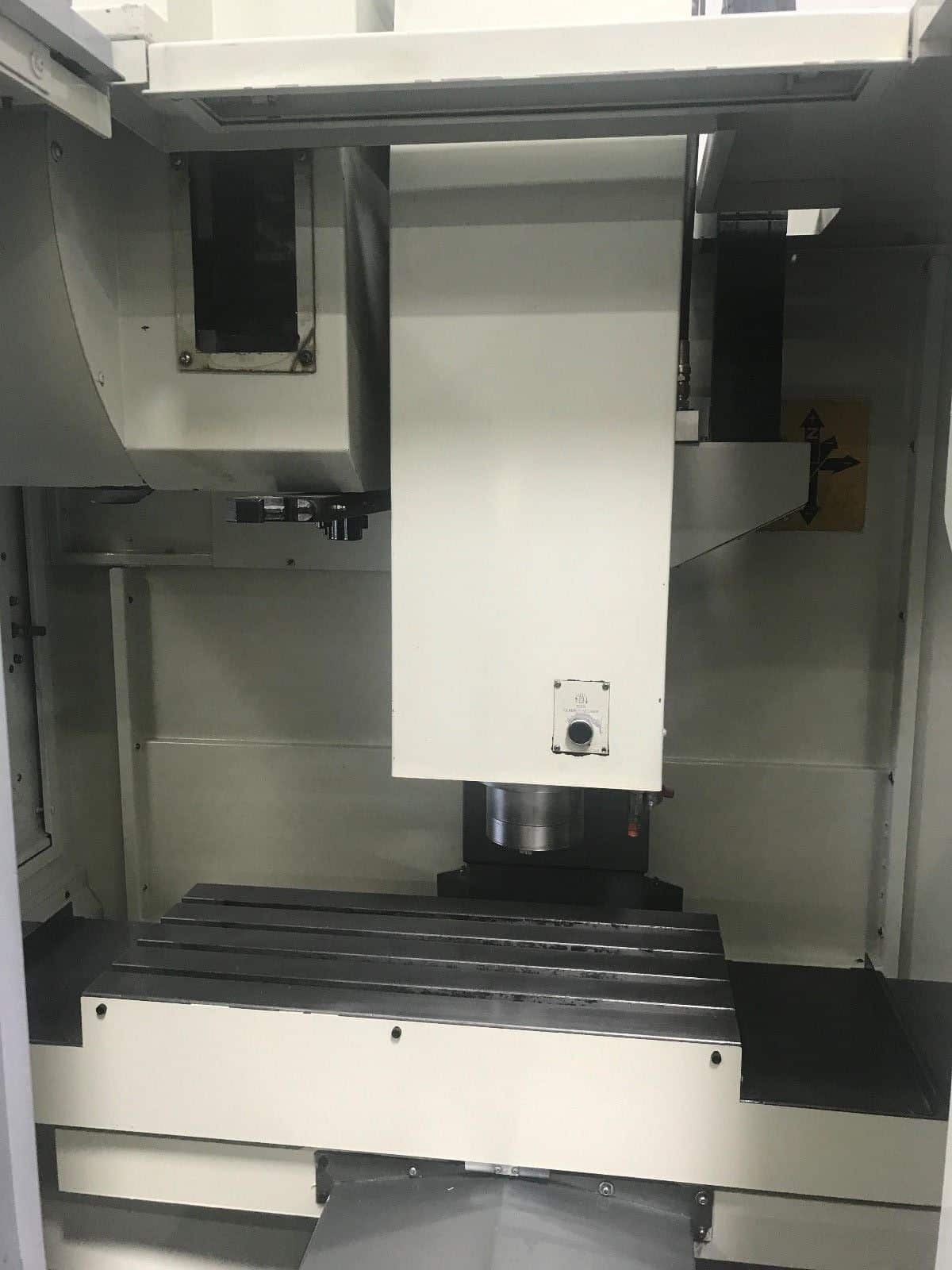

- Table:
- Length: 28″
- Width: 12″
- Max Weight on Table: 800 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 60 – 10,000 RPM
- Spindle Power: 10 HP
- Feed rates:
- Rapid X,Y & Z: 787 inch/P.M
- Cutting Feedrate: 493″ inch/ P.M
- Automatic Tool Changer:
- 40 Taper
- Capacity: 24
- Max Tool Weight: 17.6 lbs
- Max Tool Length: 9.1″
- Max Tool Dia.: 5.90″
- General:
- Air Required: 80 psi, 4 scfm
- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 74″ x 78″ x 90″ High
- Overall Dimensions: 117″ x 78″ x 90″ High with Chip Conveyor
- Weight: 6900 lbs

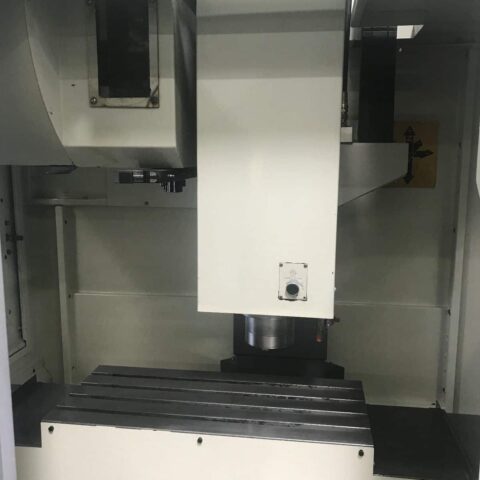

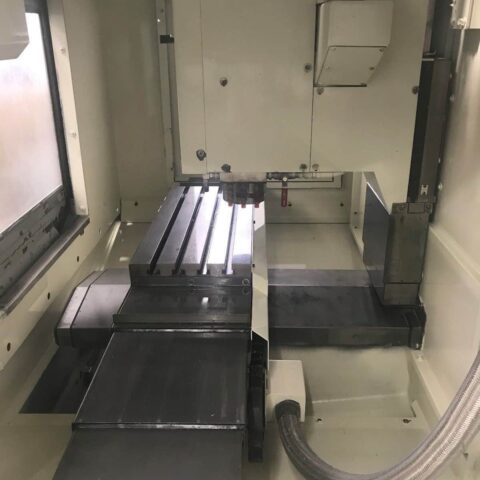

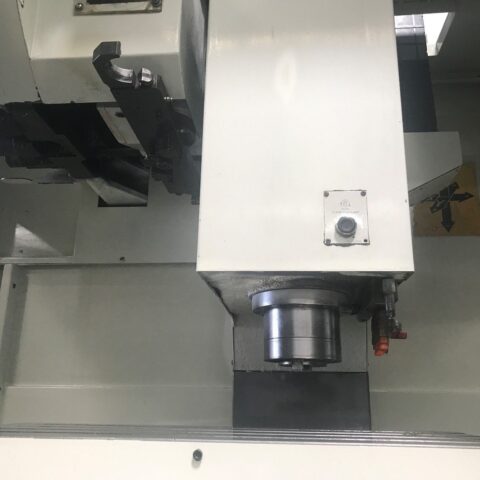

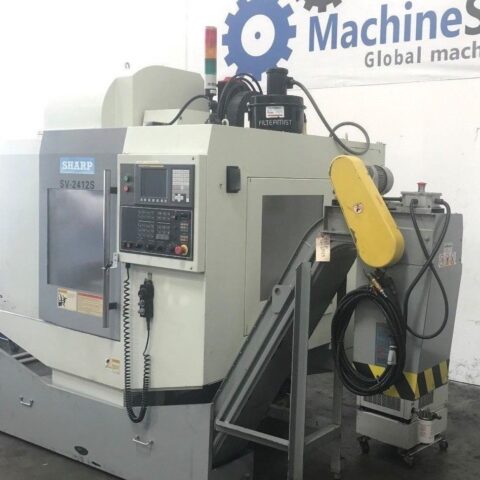

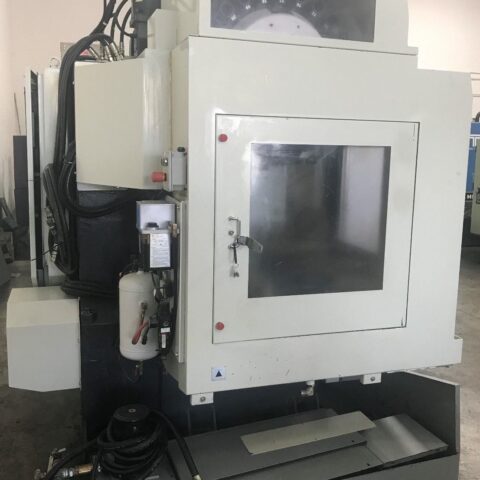

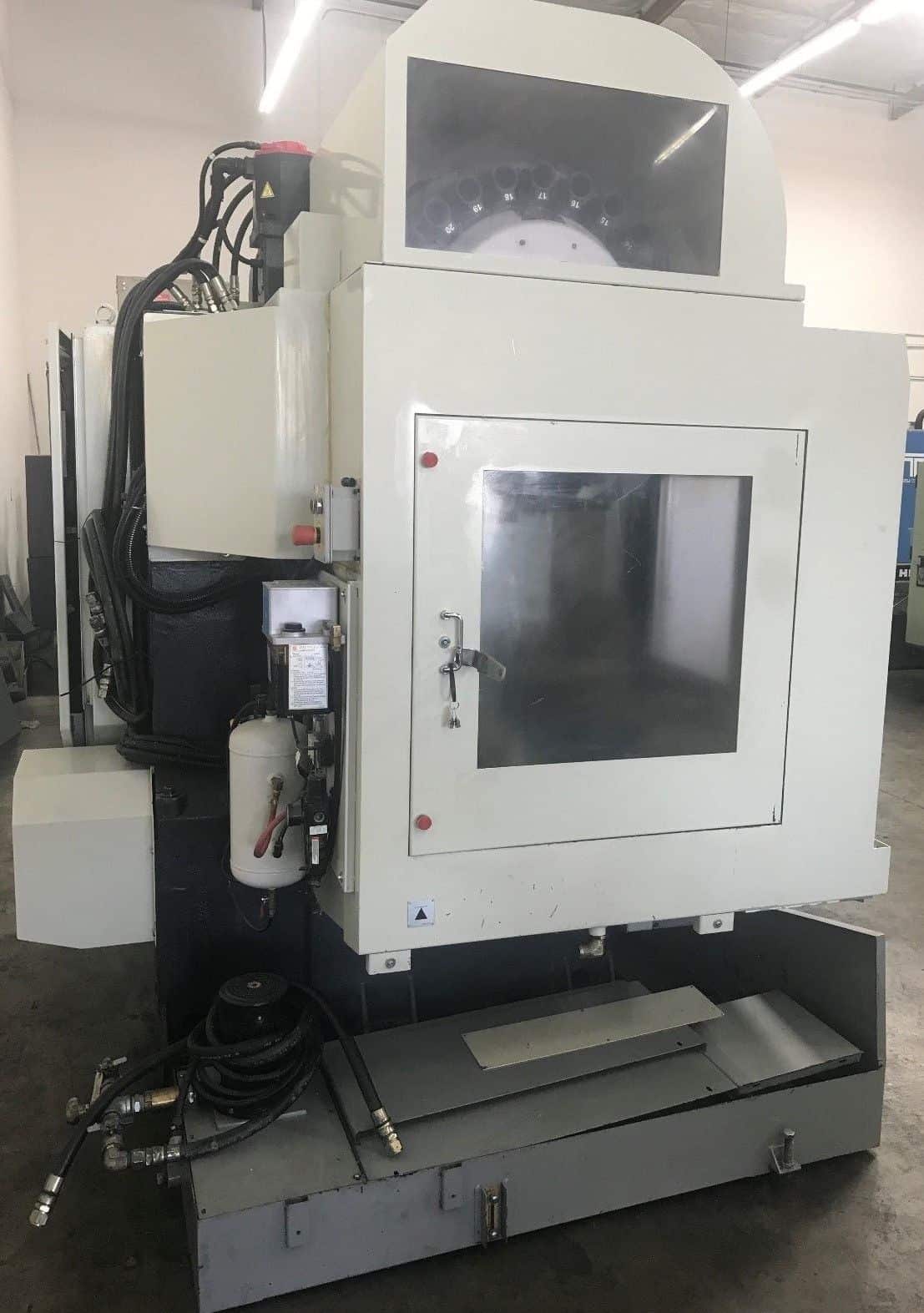

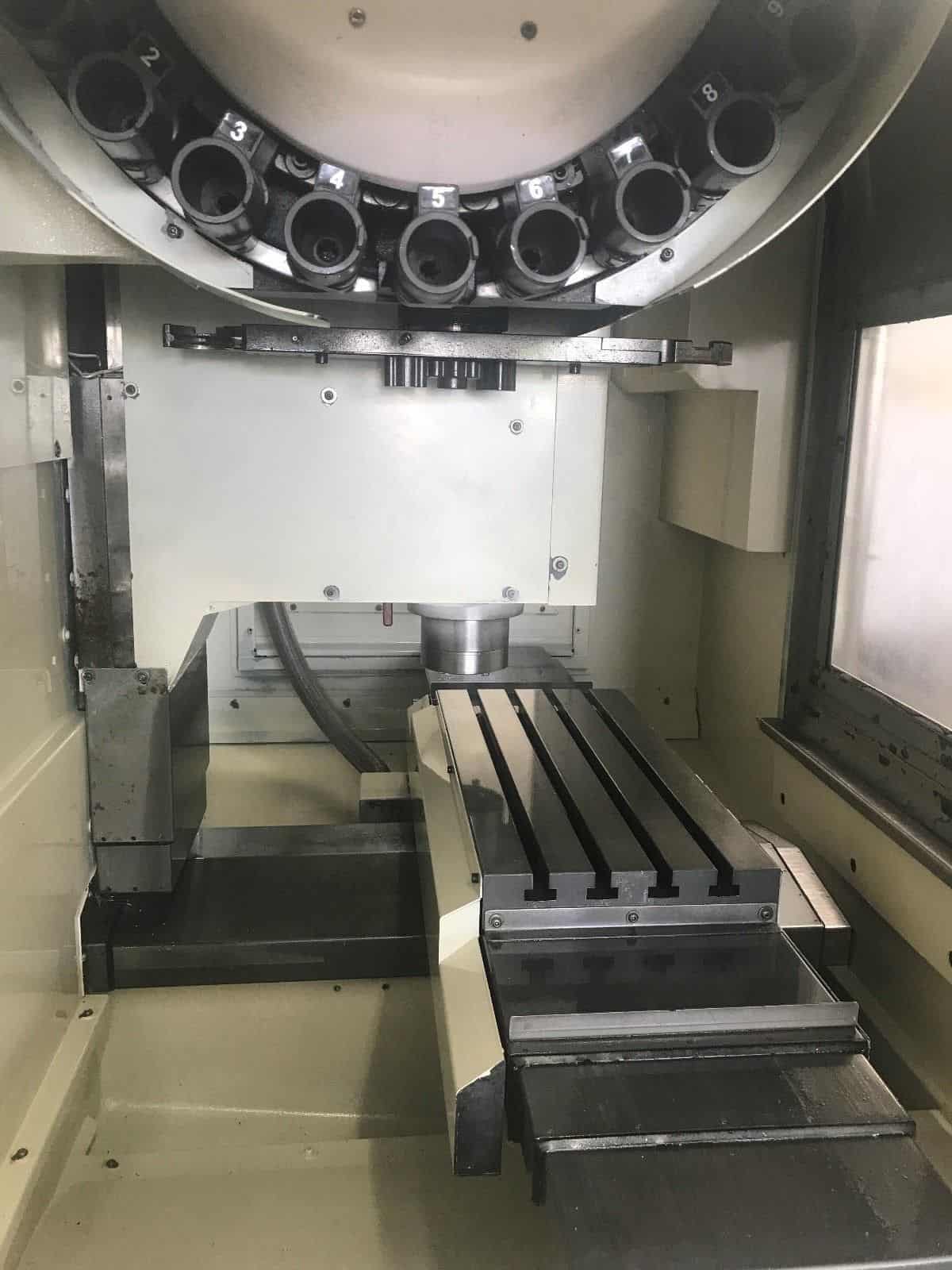

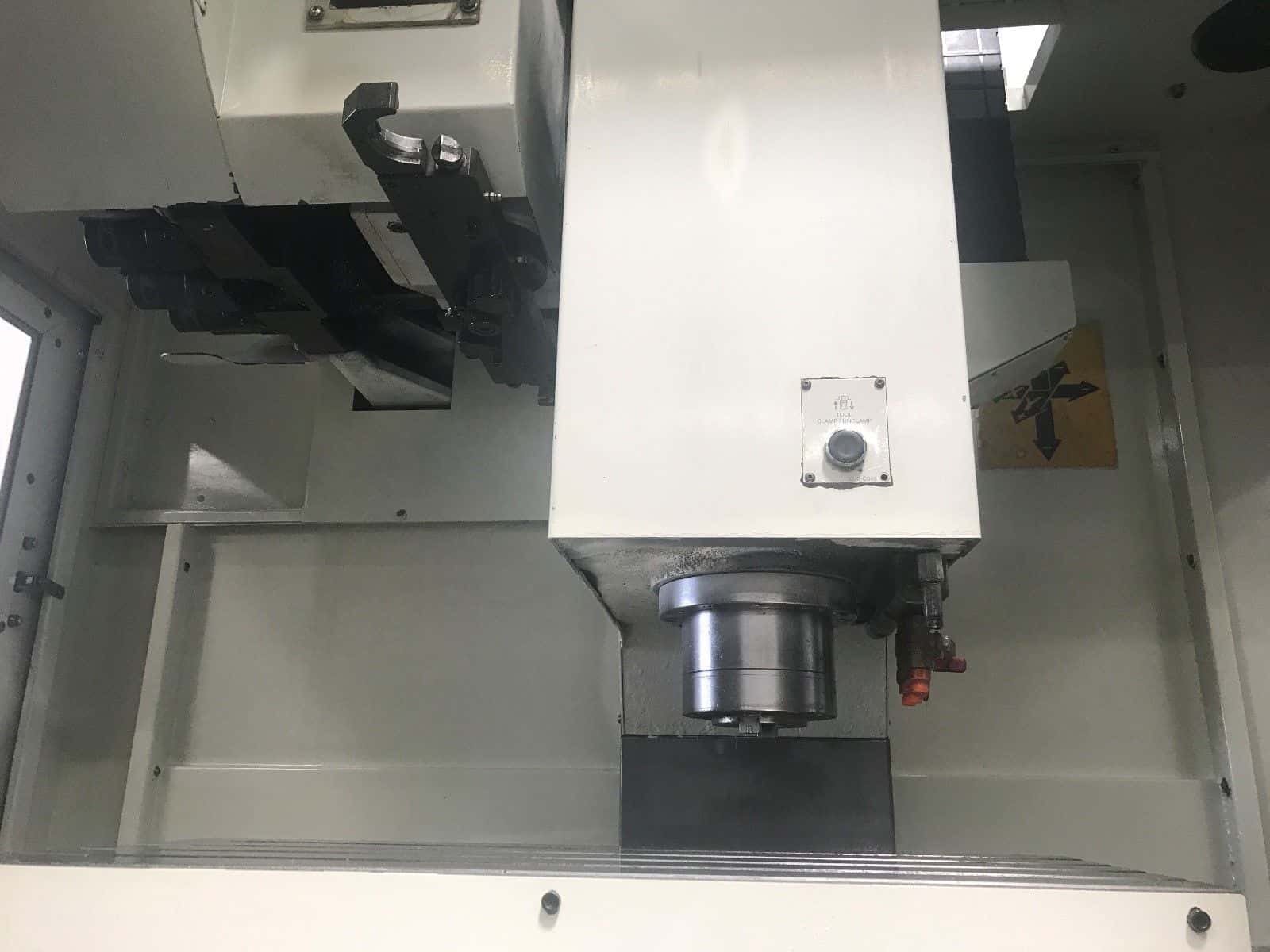

SHARP SV-2412S Comes as shown in pictures.
