SNK SUT 10 CNC Turning Center Lathe

Share

Description

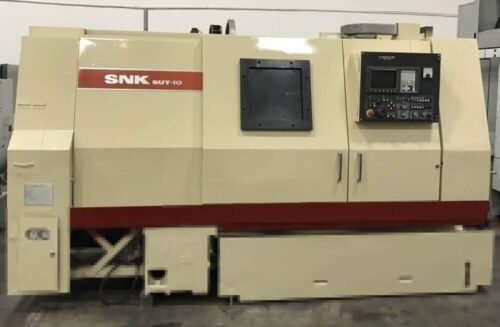

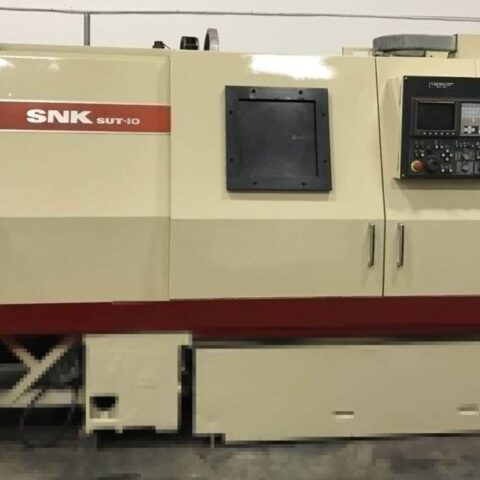

SNK SUT 10 CNC Turning Center
Make SNK ( Shin Nippon Koki )
Model No. SUT-10
Year of Manufacture: 1995
Serial #  9530266
Condition Very Good
Country of Origin: Japan

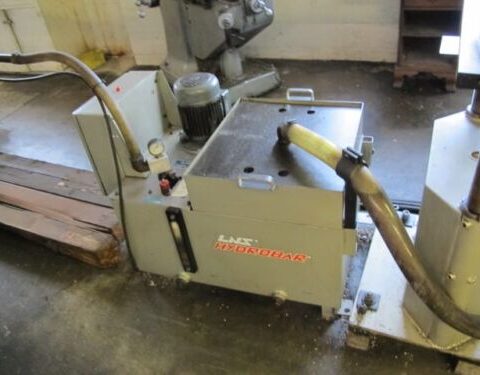

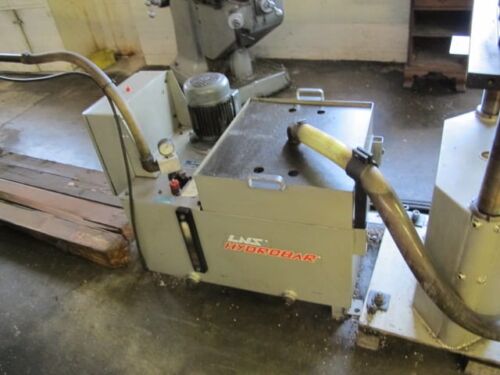

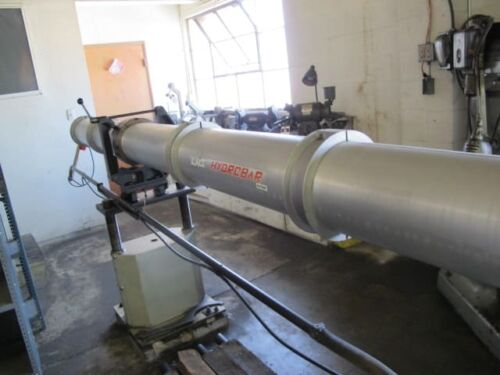

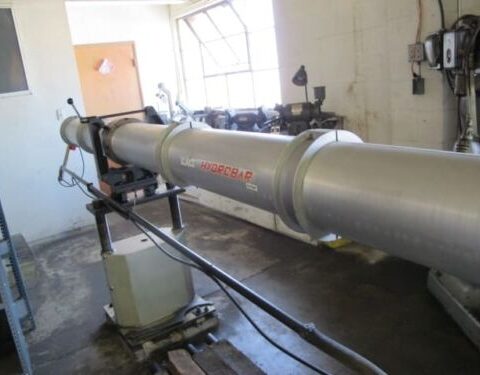

Comes with All LNS Barfeeder, Manuals, Tool Holders & Tooling.

  • SNK SUT 10 Equipped With:

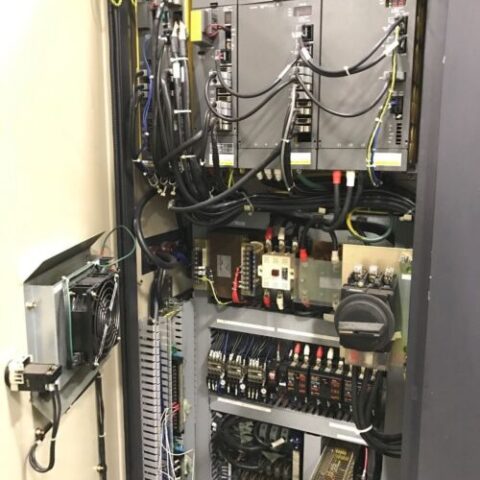

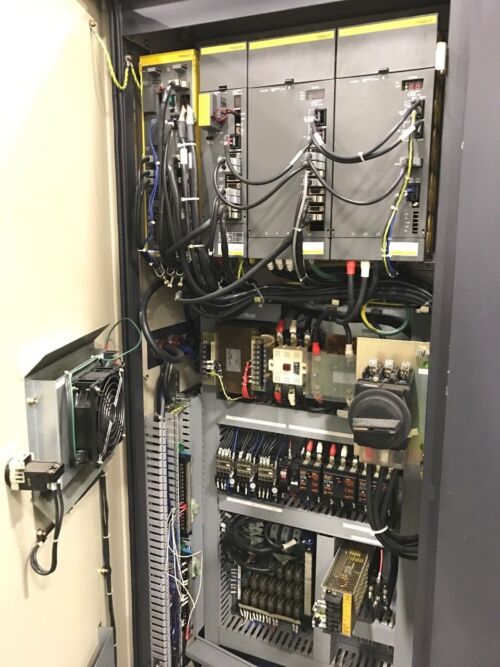

  • Fanuc 21TB CNC Control

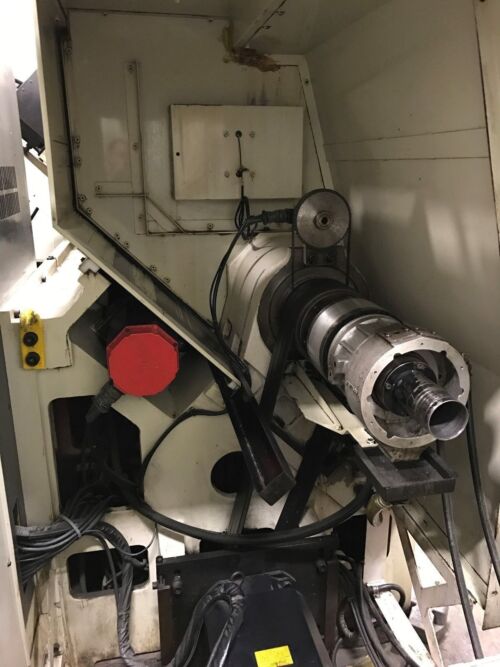

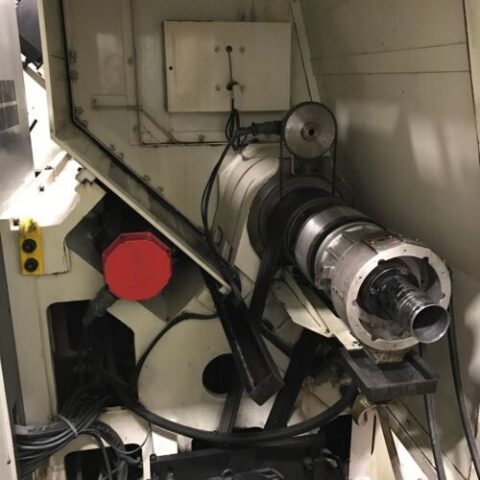

  • ATS A6-S26H Collet Chuck with Hardinge Collet
  • Coolant System
  • Barfeed Interface
  • RS-232 ports

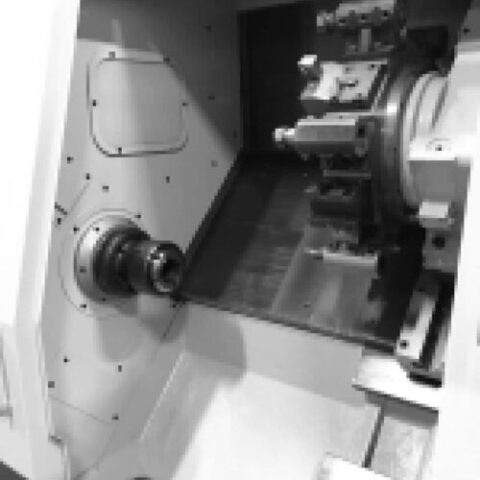

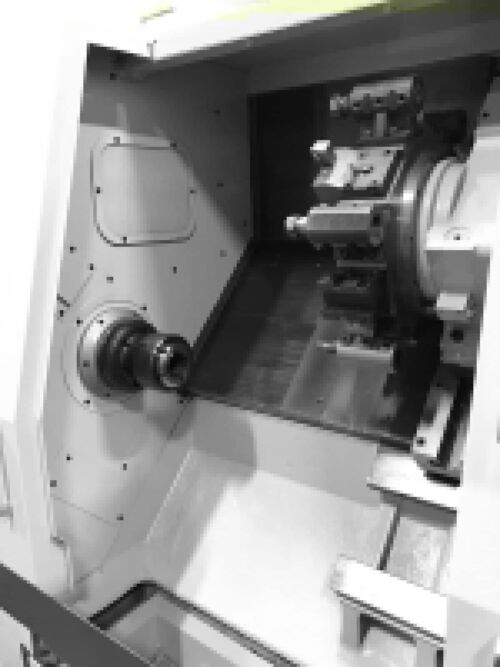

  • 12 Station Automatic Turret with tool Holders
  • Comes with Available Manuals, Tool Holders & Tooling.
  • General:
  • Power: 220v / 3-Phase
  • Overall Dimensions: 134″ x 63″ x 78″ High
  • Weight: 11000 lbs
  • SNK SUT 10 Specifications:
  • Capacity:
  • Max Turning Diameter: 15.75″
  • Max Turning Length: 33.0″
  • Max Bar Capacity: 2.60″
  • Swing Over Cross Slide: 15.35″
  • Swing Over Bed: 23.62″
  • X Axis Travel: 9.05″
  • Z AXis Travel: 33.36″
  • Rapid Traverse X Axis: 520 IPM
  • Rapid Traverse Z Axis: 630 IPM
  • Spindle Nose: A2-6
  • Spindle Bore: 3.03″
  • Spindle Speed: 40 – 4,000 RPM
  • Spindle Motor: 15 kw
  • Turret Capacity: 12 Stations
  • Turret Index Time: 1 Second
  • Tailstock Taper: MT-4
  • Tailstock  Quill Dia.: 4.0″
  • Tailstock Quill Travel: 4.0″

SNK SUT 10 Comes as shown in pictures.
