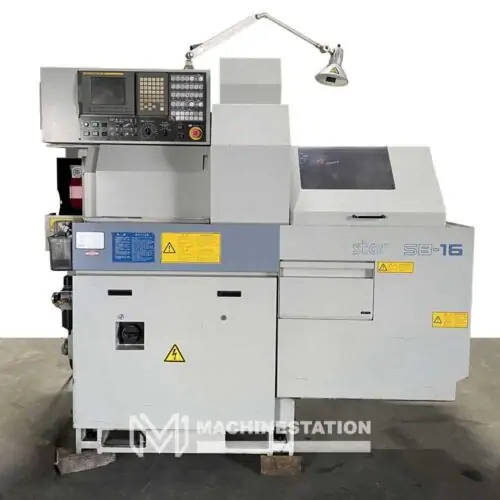

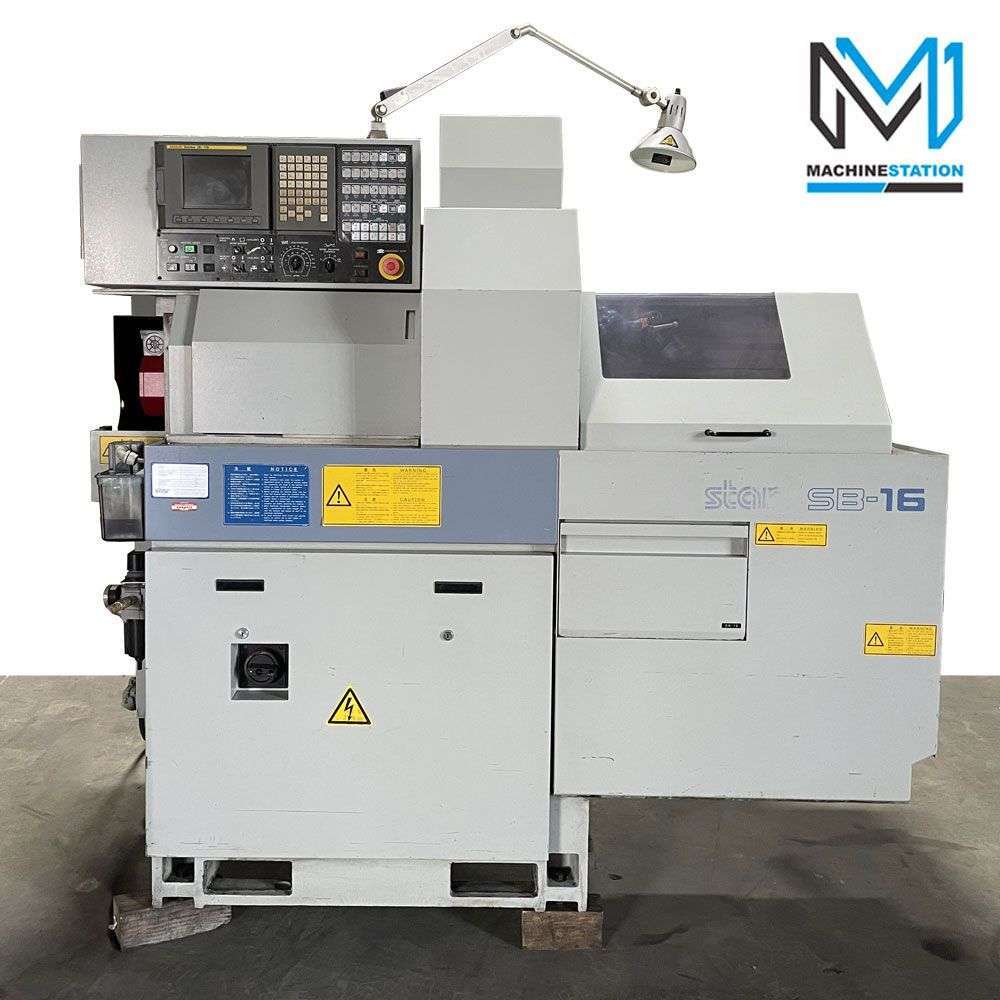

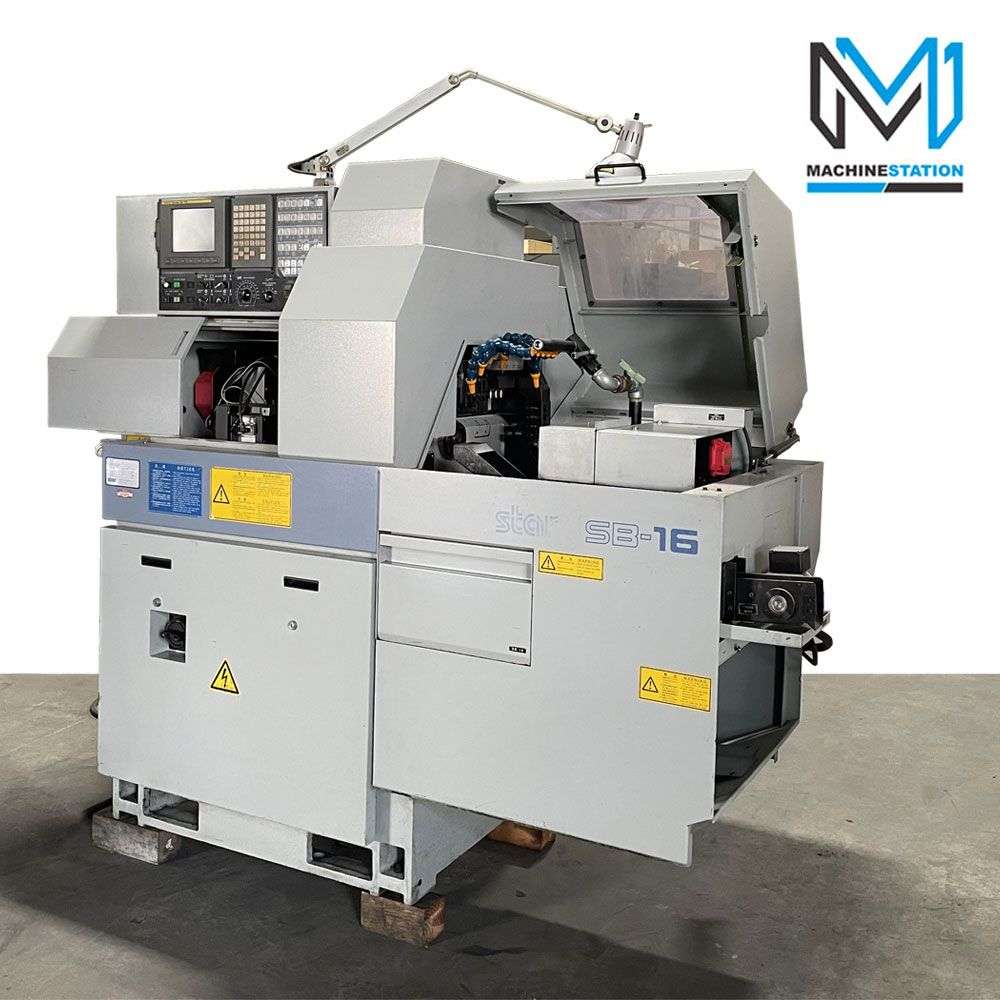

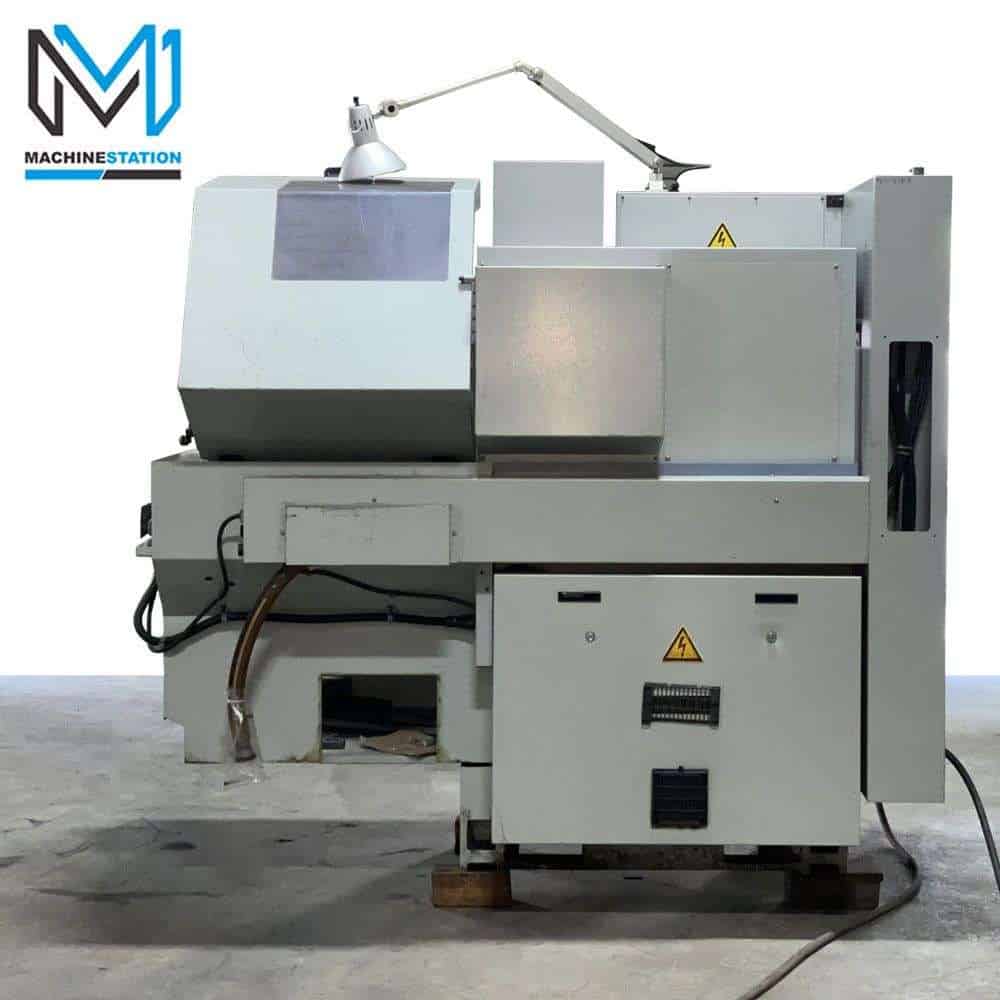

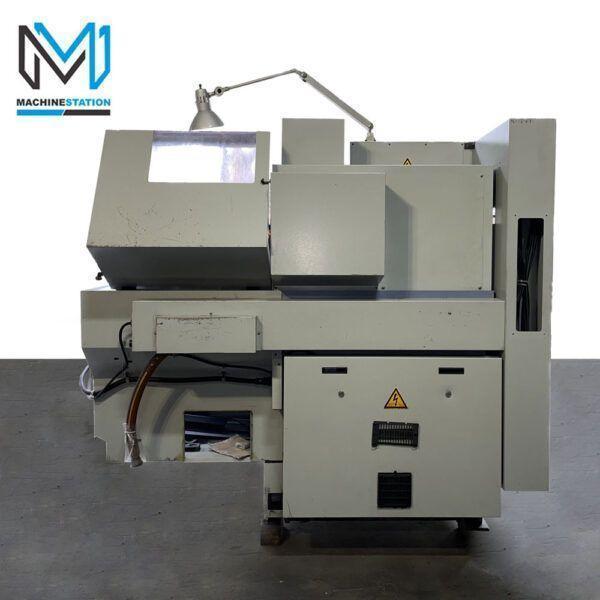

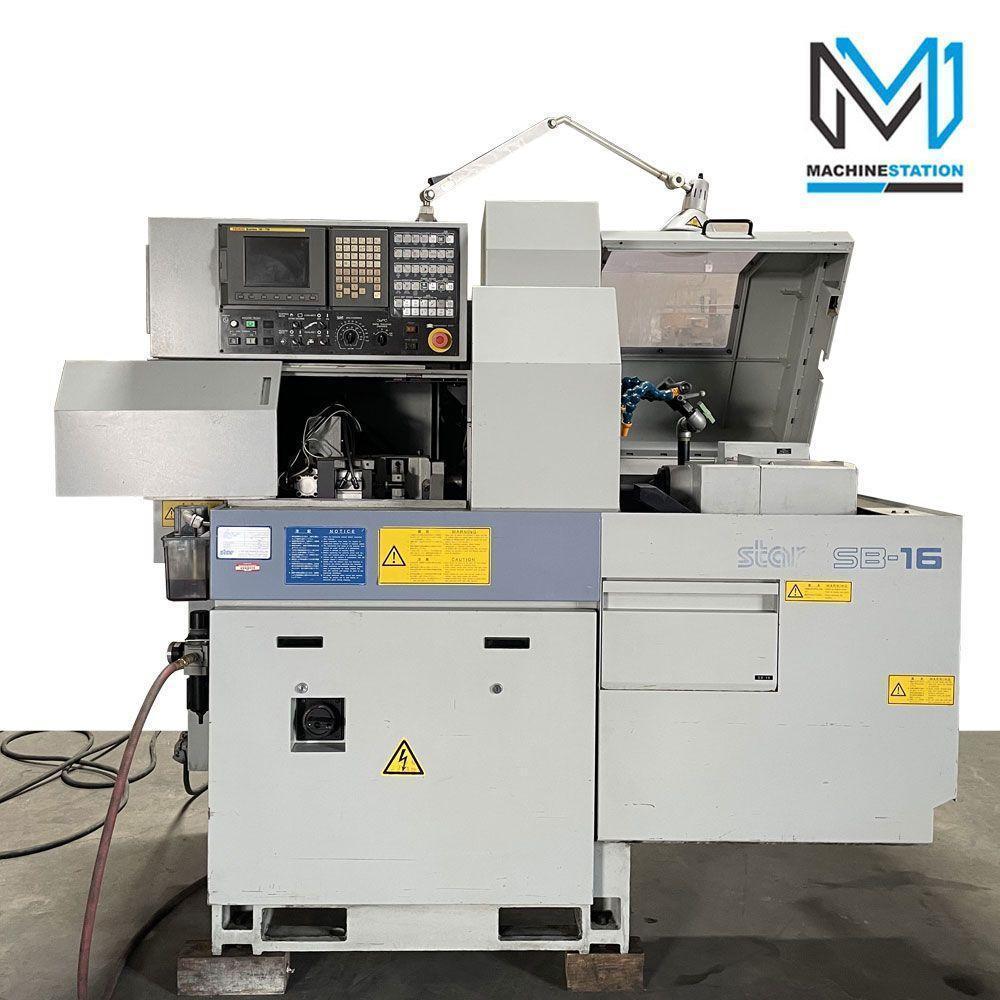

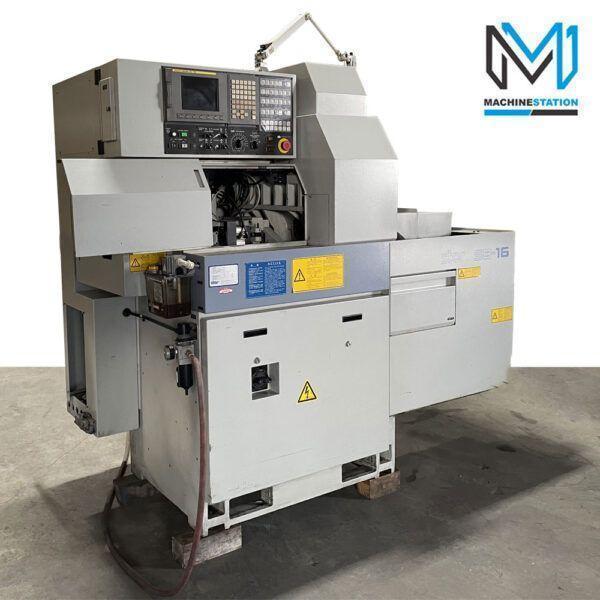

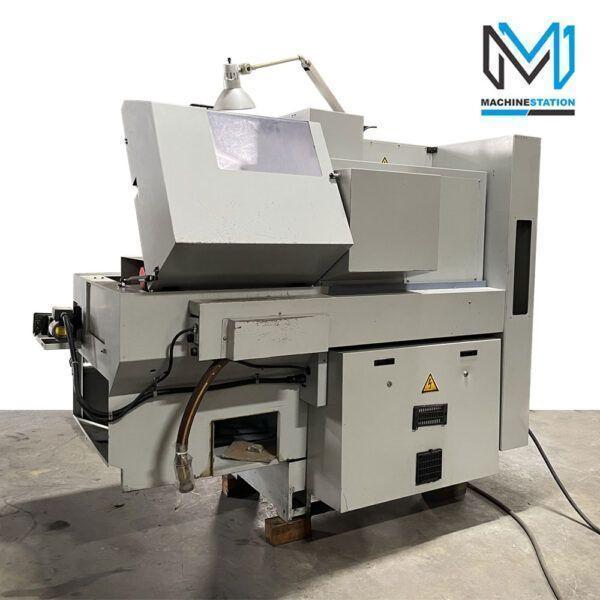

Star SB-16 CNC Swiss Screw Turning Lathe

$607 per month

1 in stock
Location: Lake Elsinore, CA
SKU: 112347
Make/Model: Star SB-16 CNC Swiss
Video:
SKU: 112347

*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 2347
Make: STAR
Model: SB16



Equipped With:

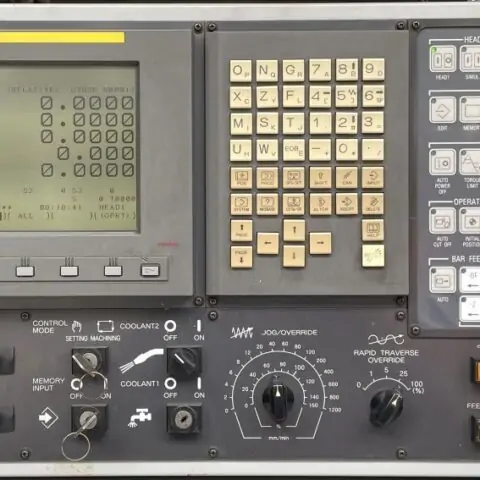

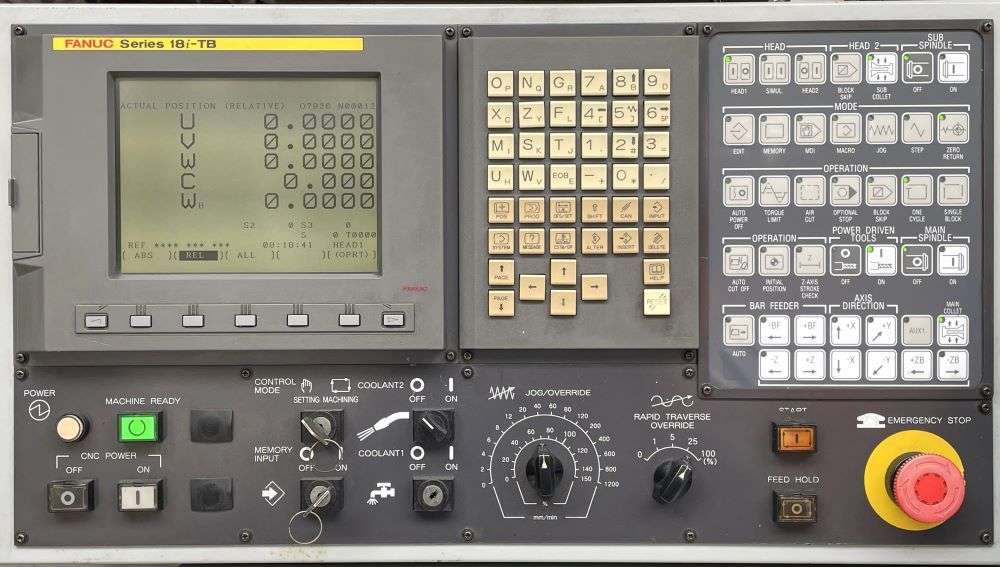

  • Fanuc 18i-TB CNC Control
  • Full C Axis and Live Tools Capable
  • Long Parts Capable
  • Main & Back Spindle Synchronization
  • High Speed Rapid Travers: 741 IPM
  • High Speed Program Processing
  • Absolute Position Detection
  • Automatic Lubrication System
  • Coolant Tank
  • Books and Manuals



Capacity:
  • Max Turning Diameter: 5/12″ (16 mm)
  • Max Turning Length: 8″ (205 mm)
  • Max Turning Length with Gripping Unit: 6.3/19″ (155 mm)
  • Max Bar Capacity: 5/12″ (16 mm)
  • Tool Capacity: 16



Spindle:
  • Main Spindle Index: 0.01 Degree (C-axis control)
  • Main Spindle Bore: 5/12″ (16 mm)
  • Main Spindle Speed: 10,000 RPM
  • Back Spindle Motor: 3.7 kw
  • Back Spindle Index: 1 Degree
  • Back Spindle Speed: 8000 RPM
  • Back Spindle Motor: 1 kw

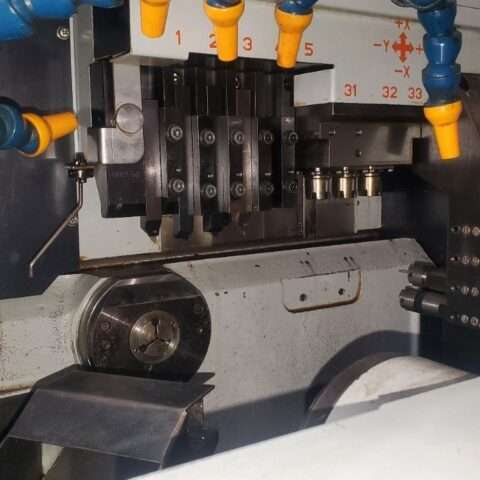

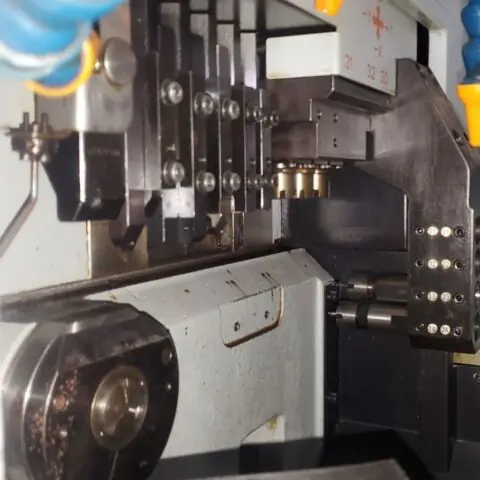

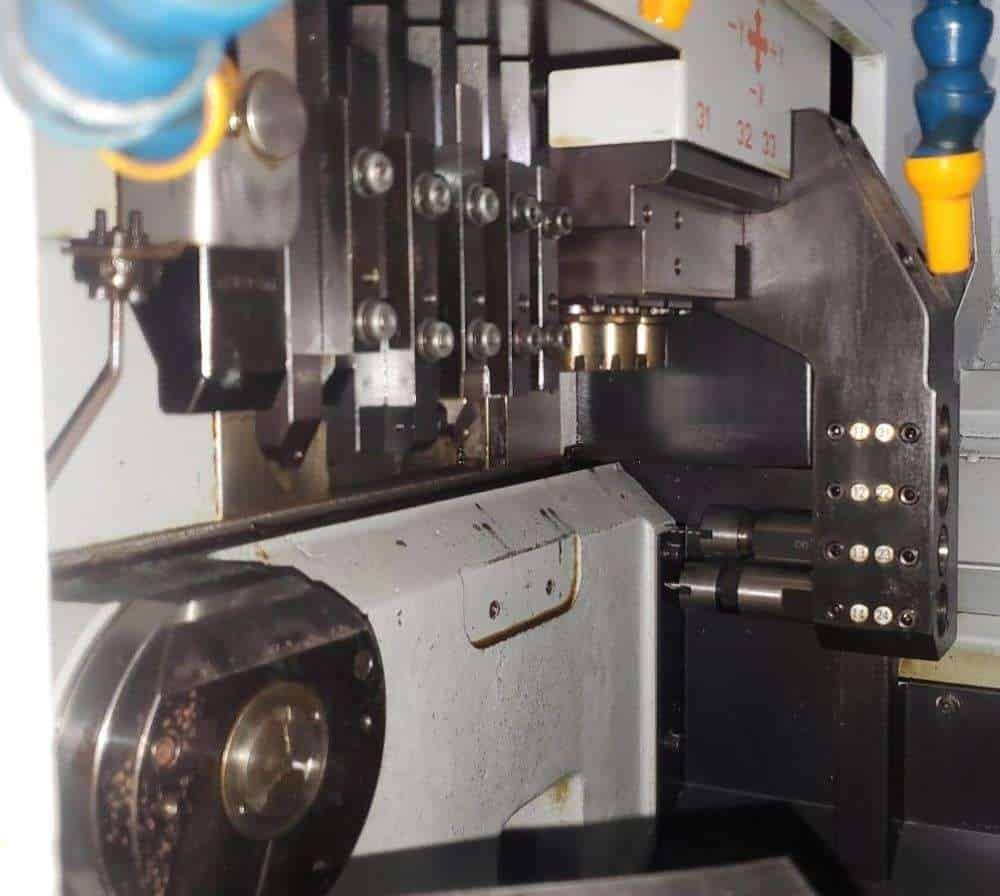

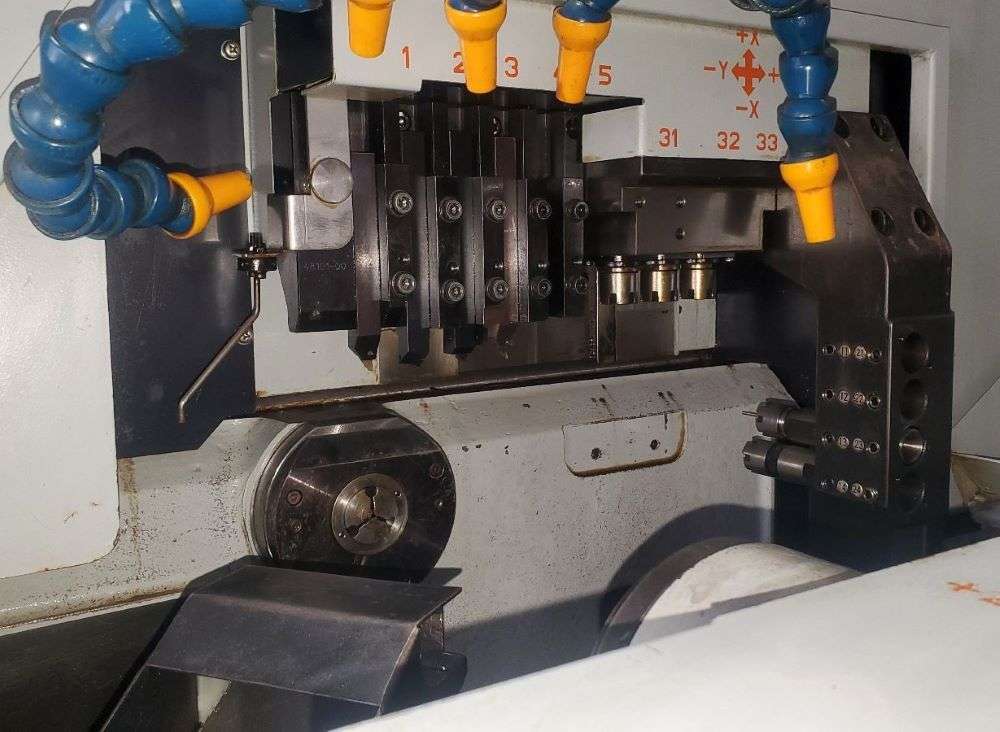

Standard Tools:
  • Turning Tools: 5
  • Stationary Tools: 8
  • Max Drilling Capability: 25/64″ (10mm)
  • Max Tapping Capability: M8 x P1.25
  • Die Cutting Capability: M8 x P1.25



Power Driven Tools Attachment:
  • Power Driven Tools: 3
  • Max Front Drilling: 15/64″ (6 mm)
  • Max Front Tapping: M6 x P1.0
  • Max Front Milling: 15/64″ (6 mm)
  • Driven Tool Speed: 5000 RPM
  • Driven Tool Motor: 0.4 kw



General:
  • Power Source: AC 220 V/ Three Phase/ 60 Hz
  • Overall Dimensions: 74″ x 42″ x
Make

Model

SB-16

Categories

Swiss Type Lathe
