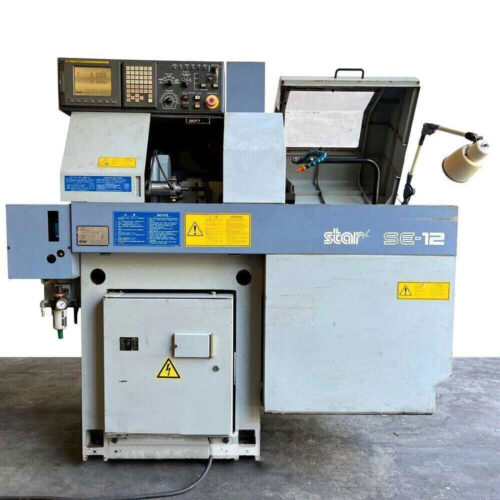

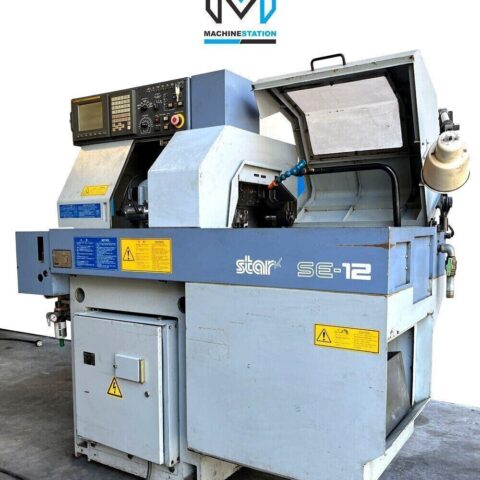

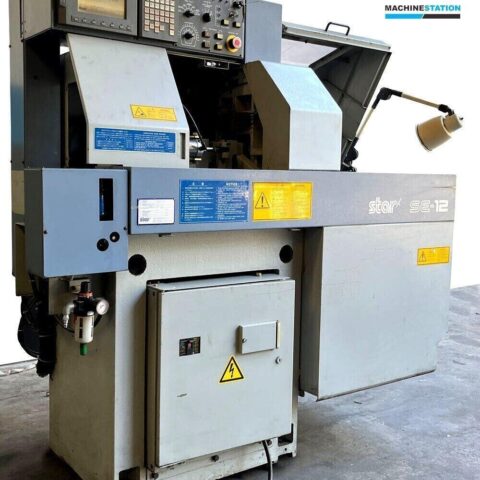

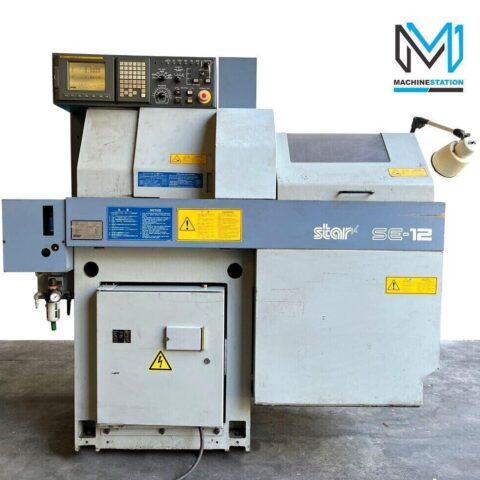

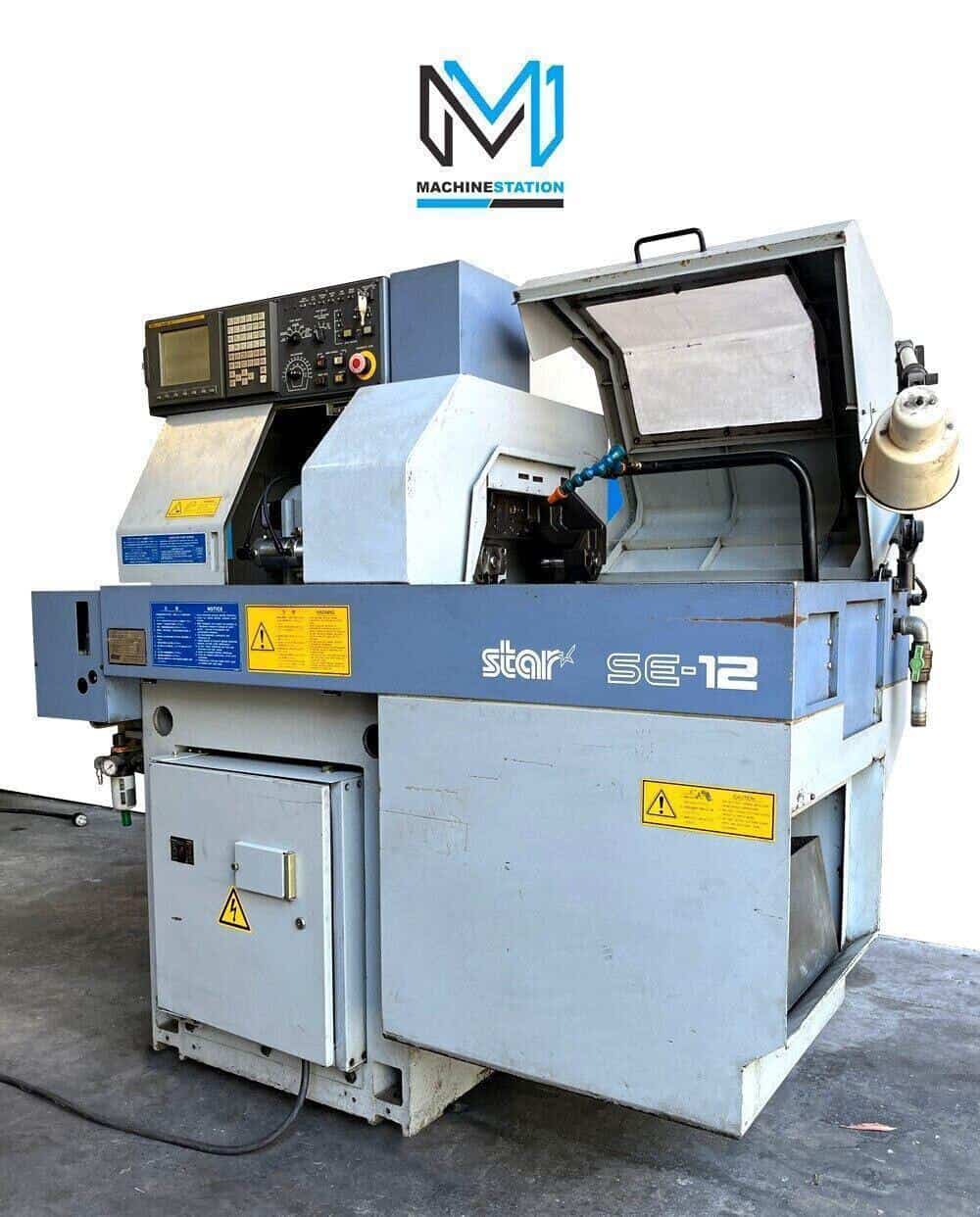

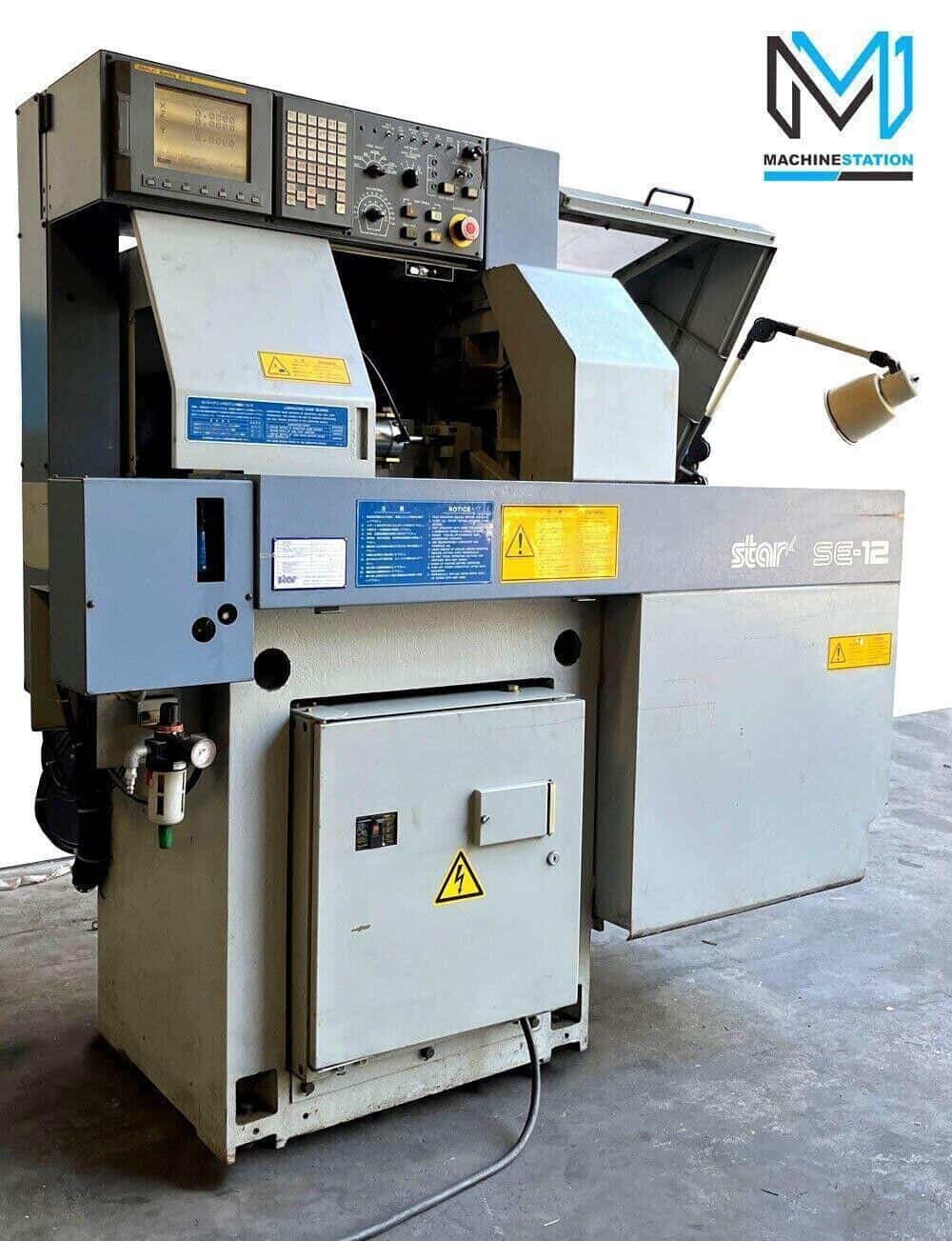

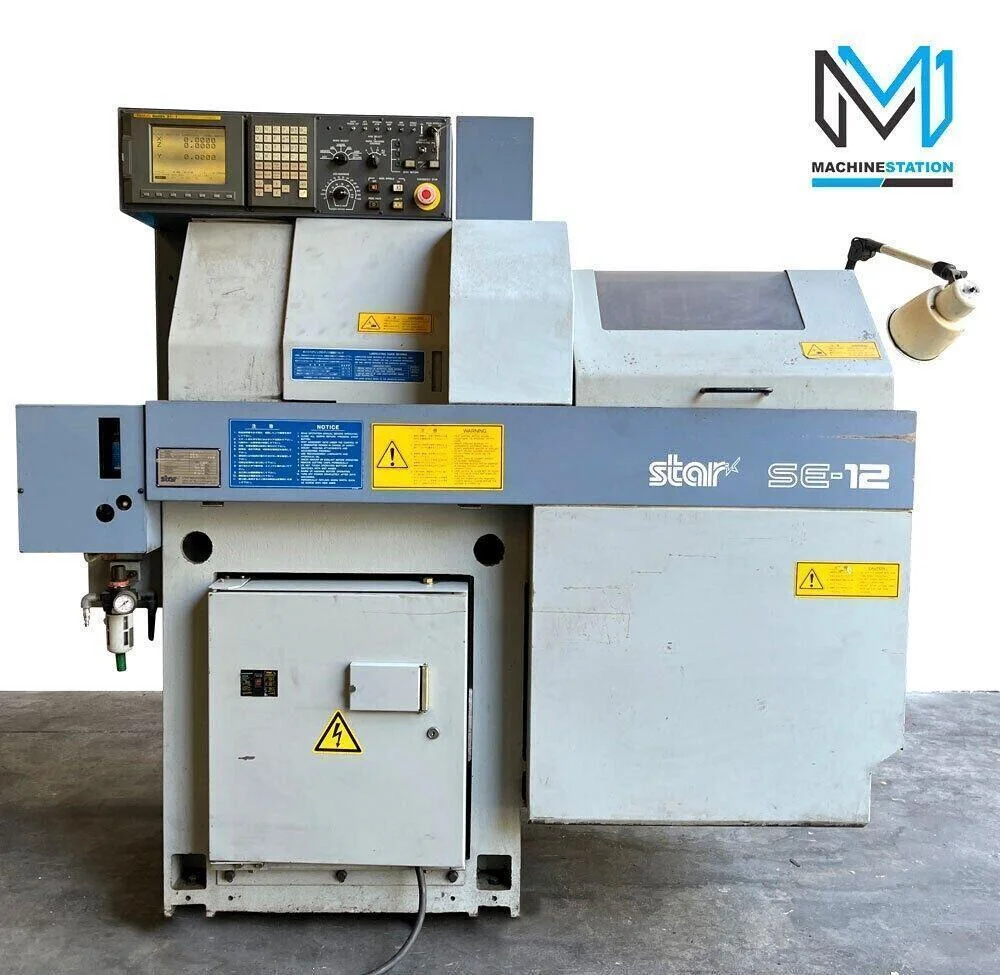

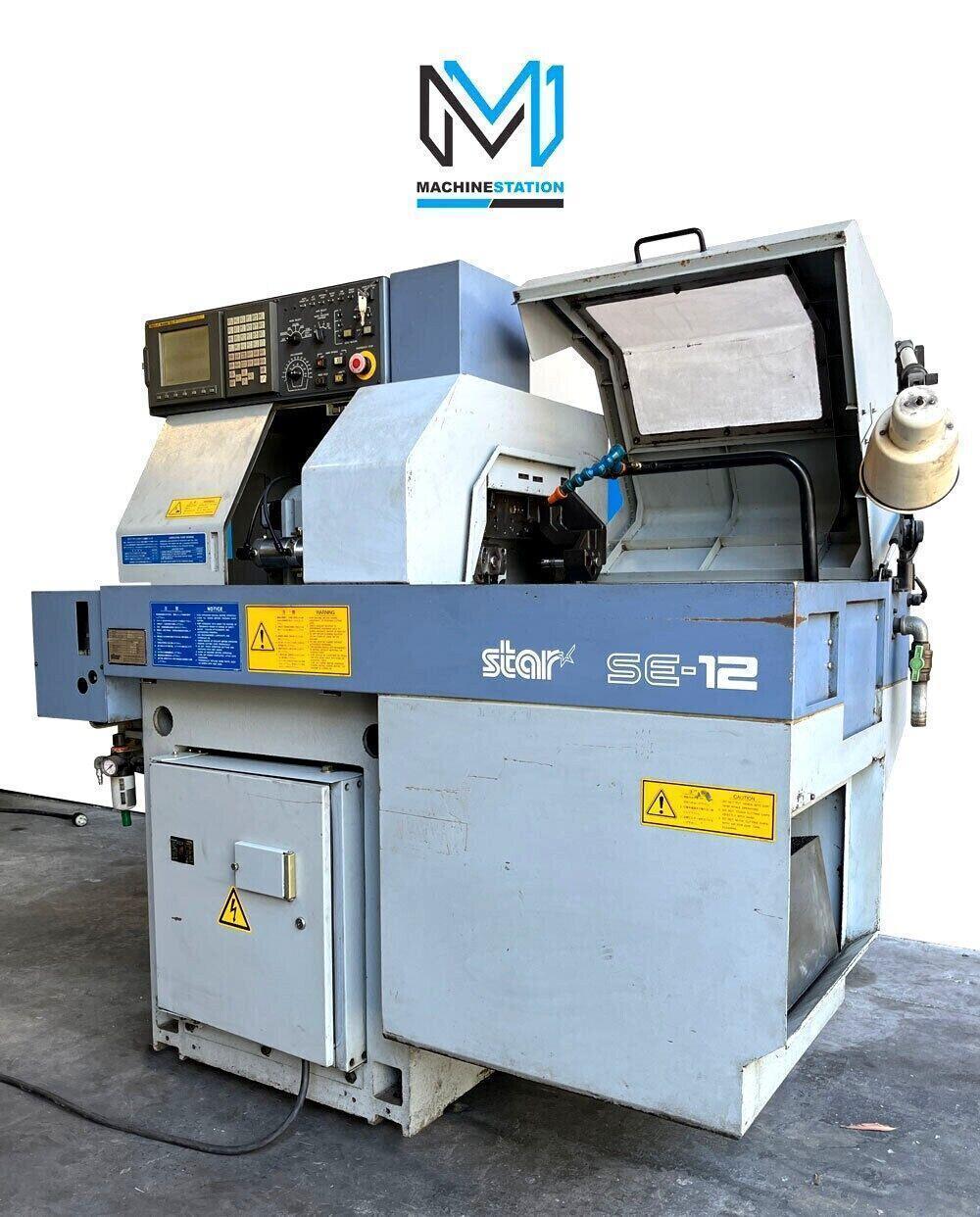

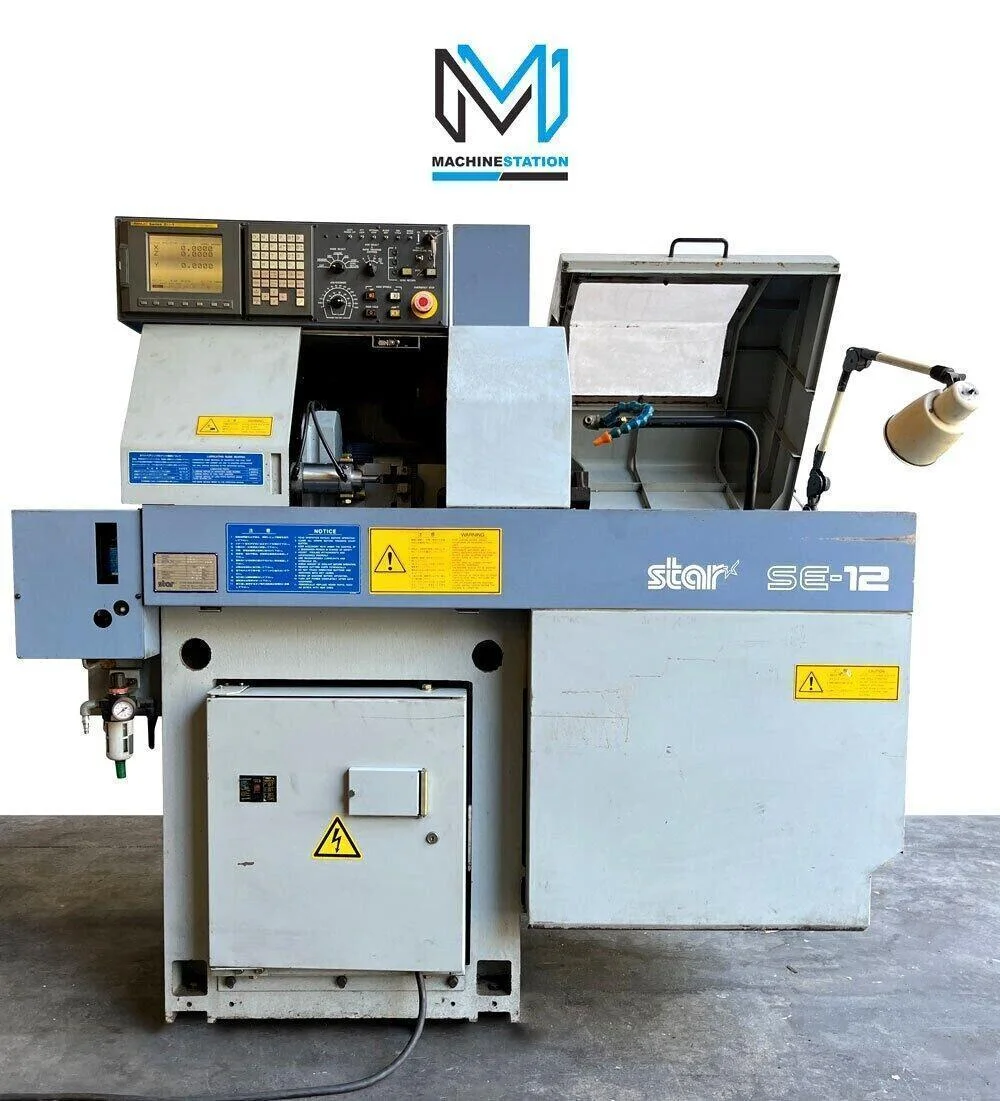

Star SE-12 CNC Swiss Screw Turning Lathe

$276 per month

1 in stock
Location: Lake Elsinore, CA
SKU: 111629
Make/Model: STAR SE-12
Video: No Video
SKU: 111629

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: STAR
Model: SE-12
Year: 2006
Condition: Used – Good



Equipped With:

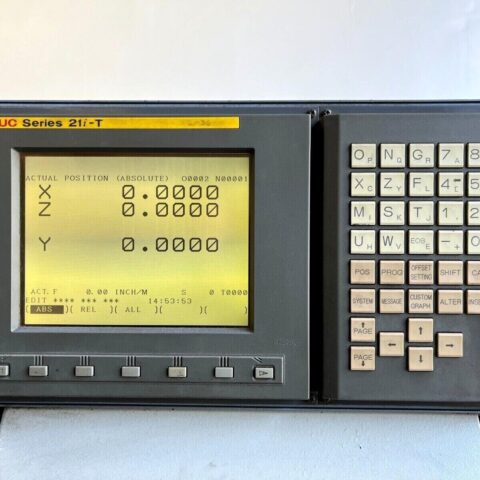

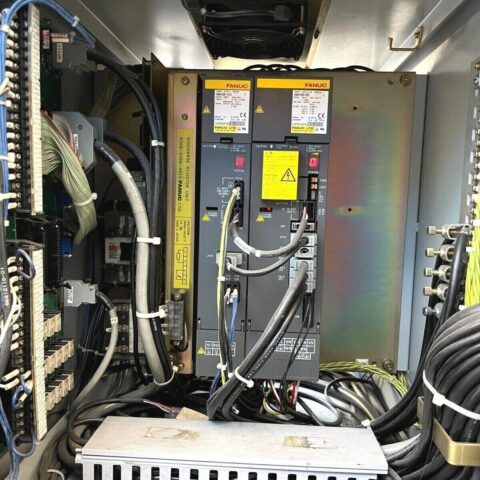

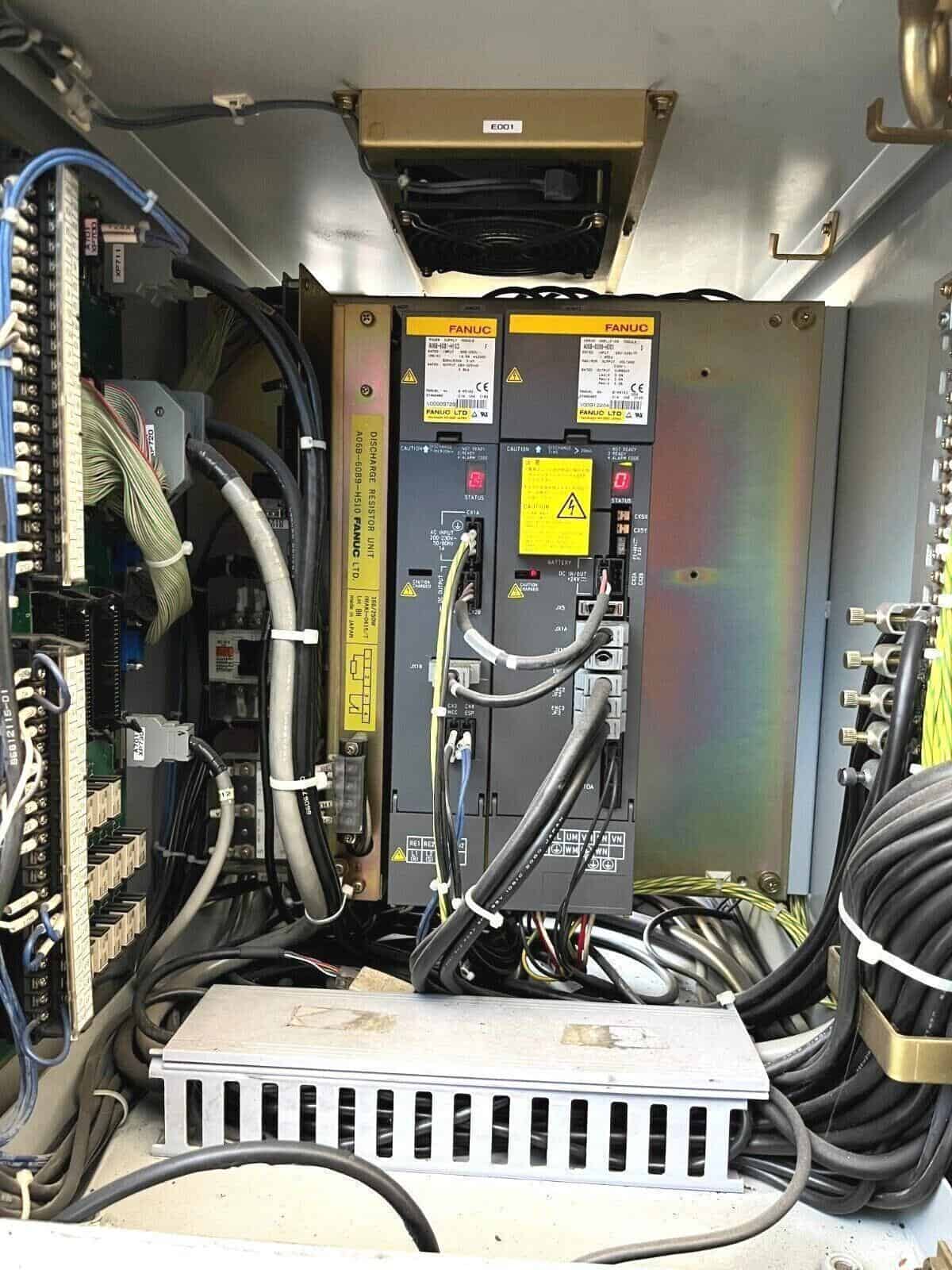

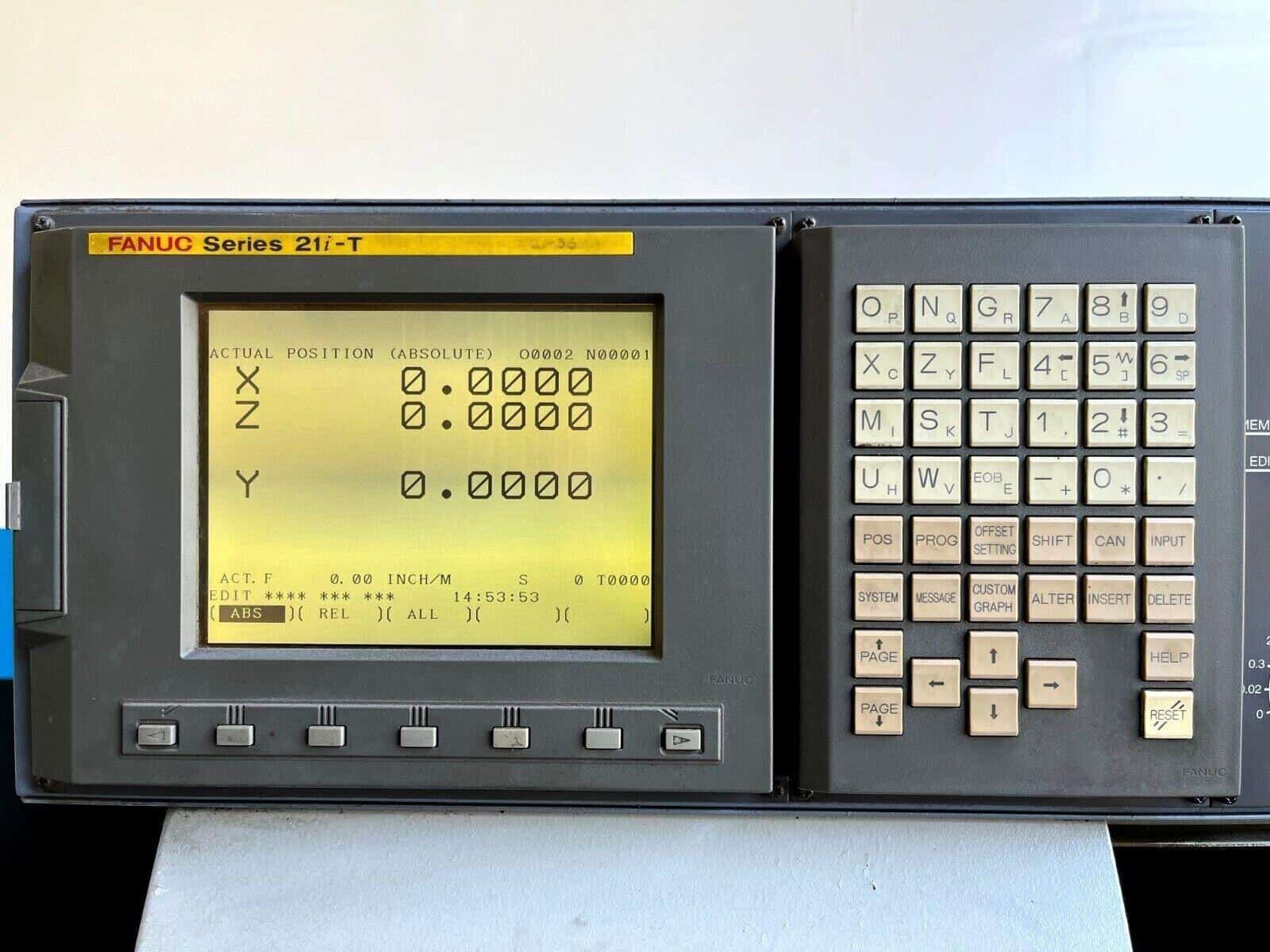

Fanuc 21i-TB CNC Control
3 Axis (X, Y,Z )

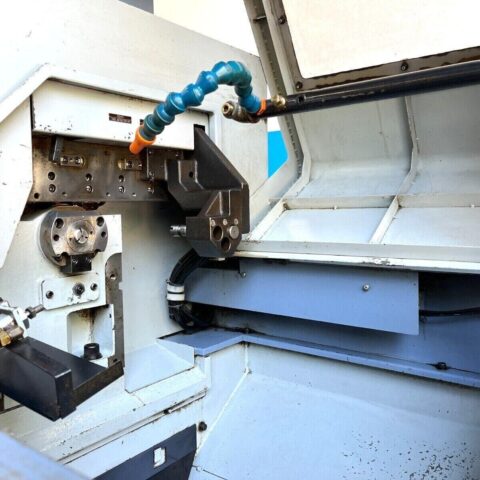

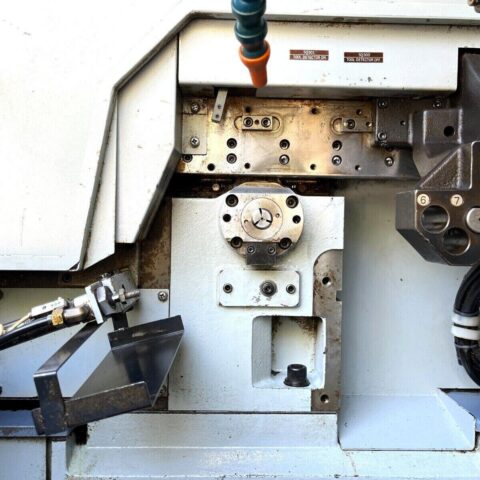

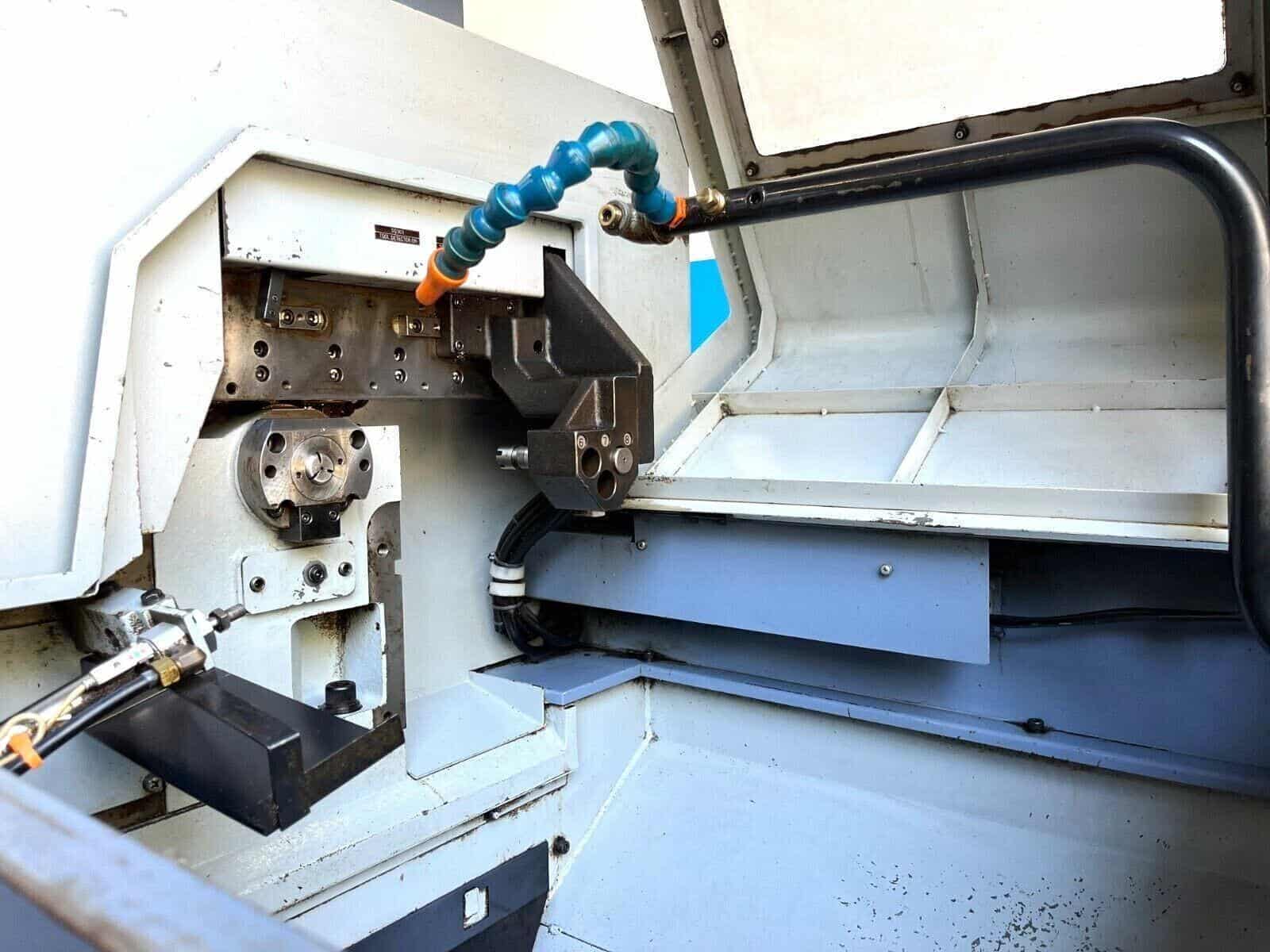

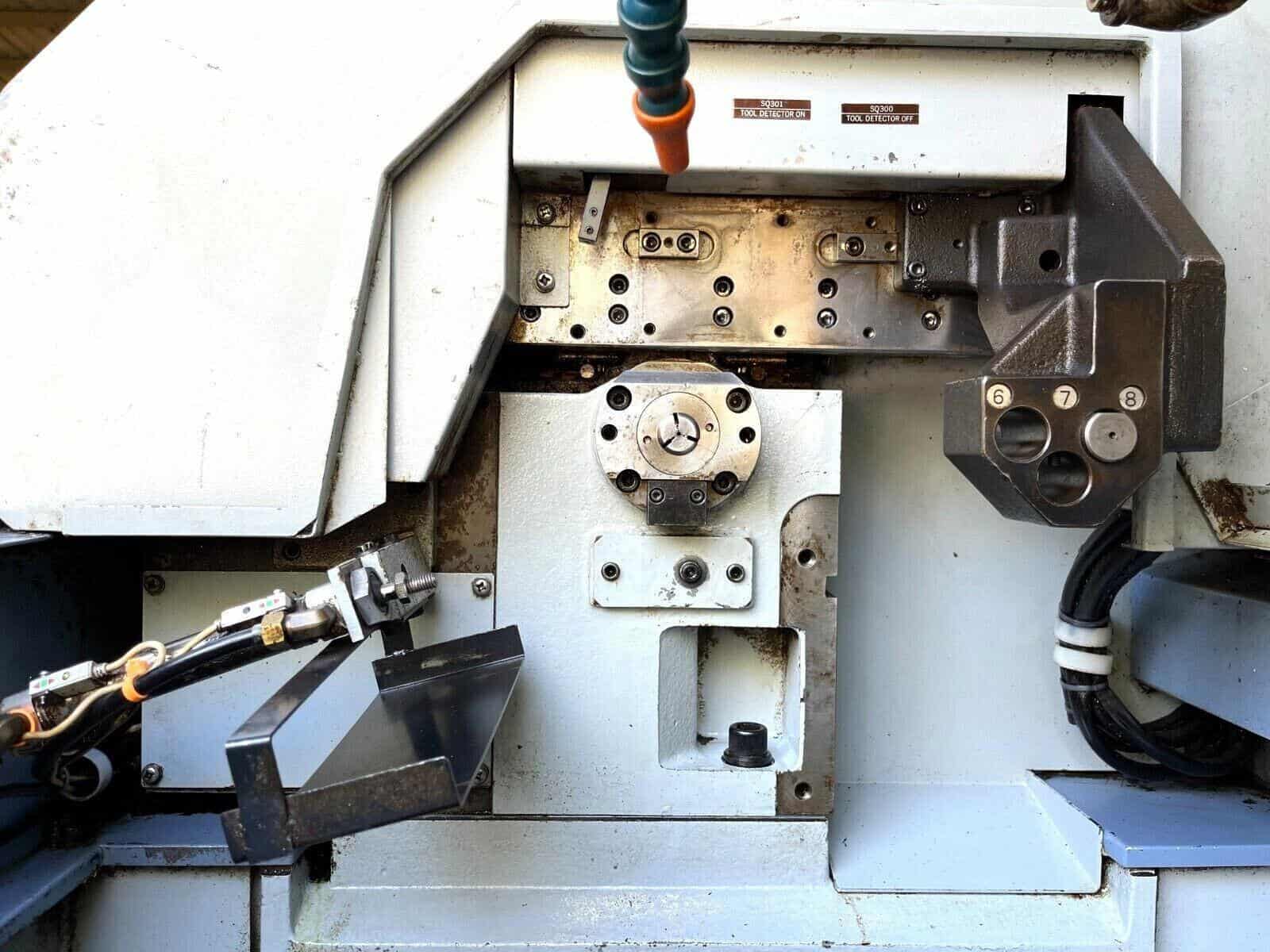

Guide Bushing
Part Catcher
Absolute Position Detection
Automatic Lubrication System
Coolant System



Capacity:
Max Turning Diameter: 0.472″ (12 mm)
Max Turning Length: 5.511″ (140 mm)
Max Turning Length with Gripping Unit: 3.937″ (100 mm)
Max Bar Capacity: 0.472″ (12 mm)
Tool Capacity: 8



Travels:
X Axis: 0.50″ (12.70 mm)
Y Axis: 0.50″ (12.70 mm)
Z Axis: 5.51″ (140 mm)
Raid Traverse X, Y, Z Axis: 590 IPM

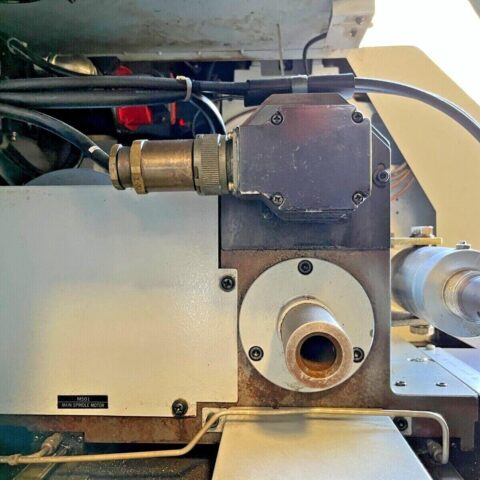

Spindle:
Spindle Bore: 0.5″ (12.7 mm)
Spindle Speed: 10000 RPM

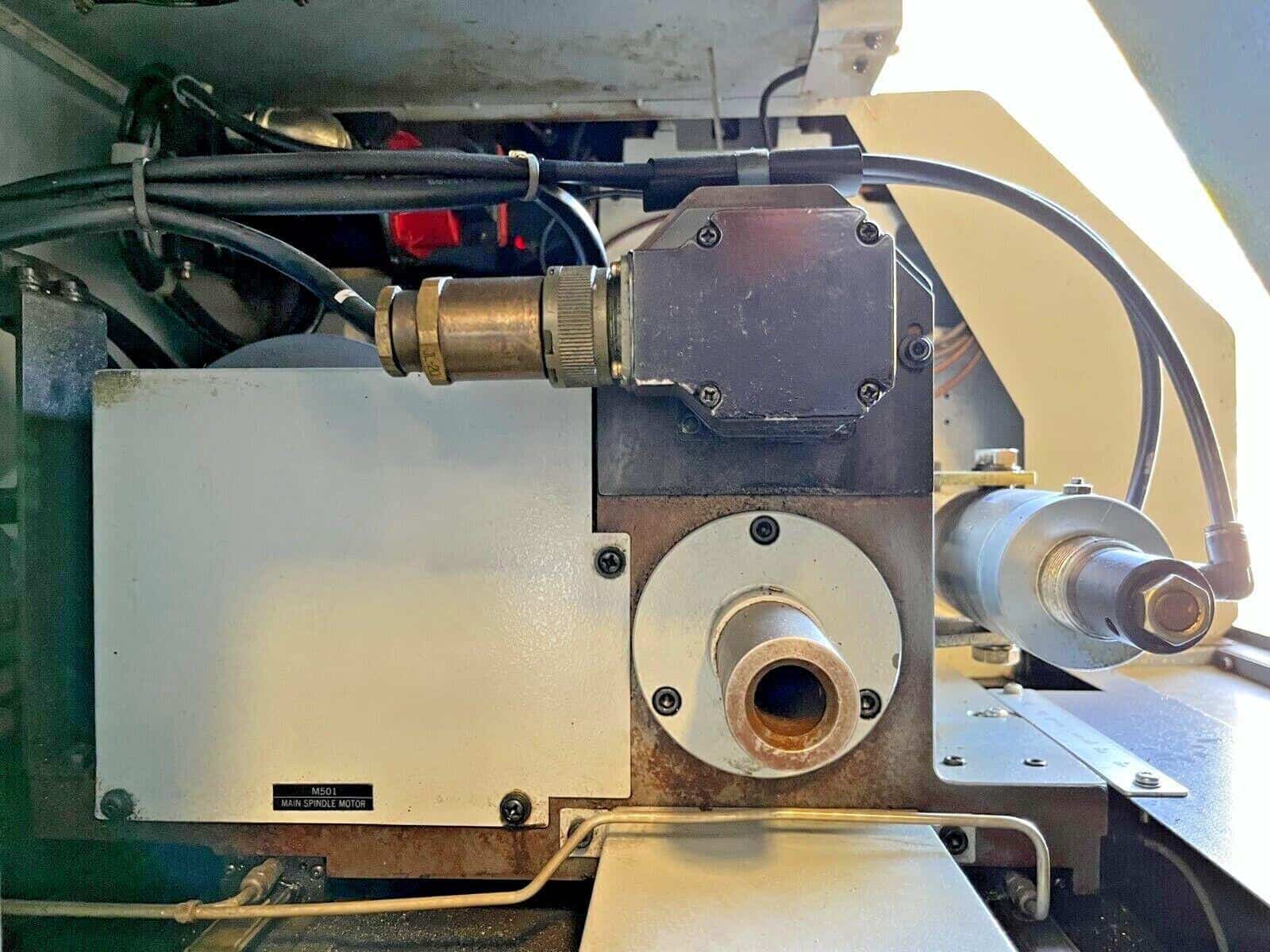

Spindle Motor: 2.2 kw



Standard Tools:
Number of Turning Tools: 5
Number of Stationary Tools: 3
Max Drilling Capability: 0.393″ (10mm)
Max Tapping Capability: M8 x P1.25
Die Cutting Capability: M8 x P1.25



General:

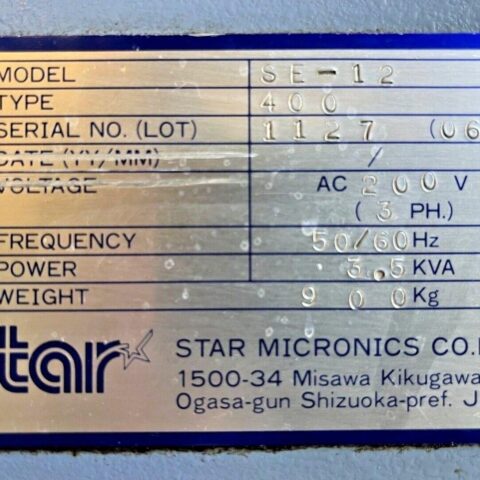

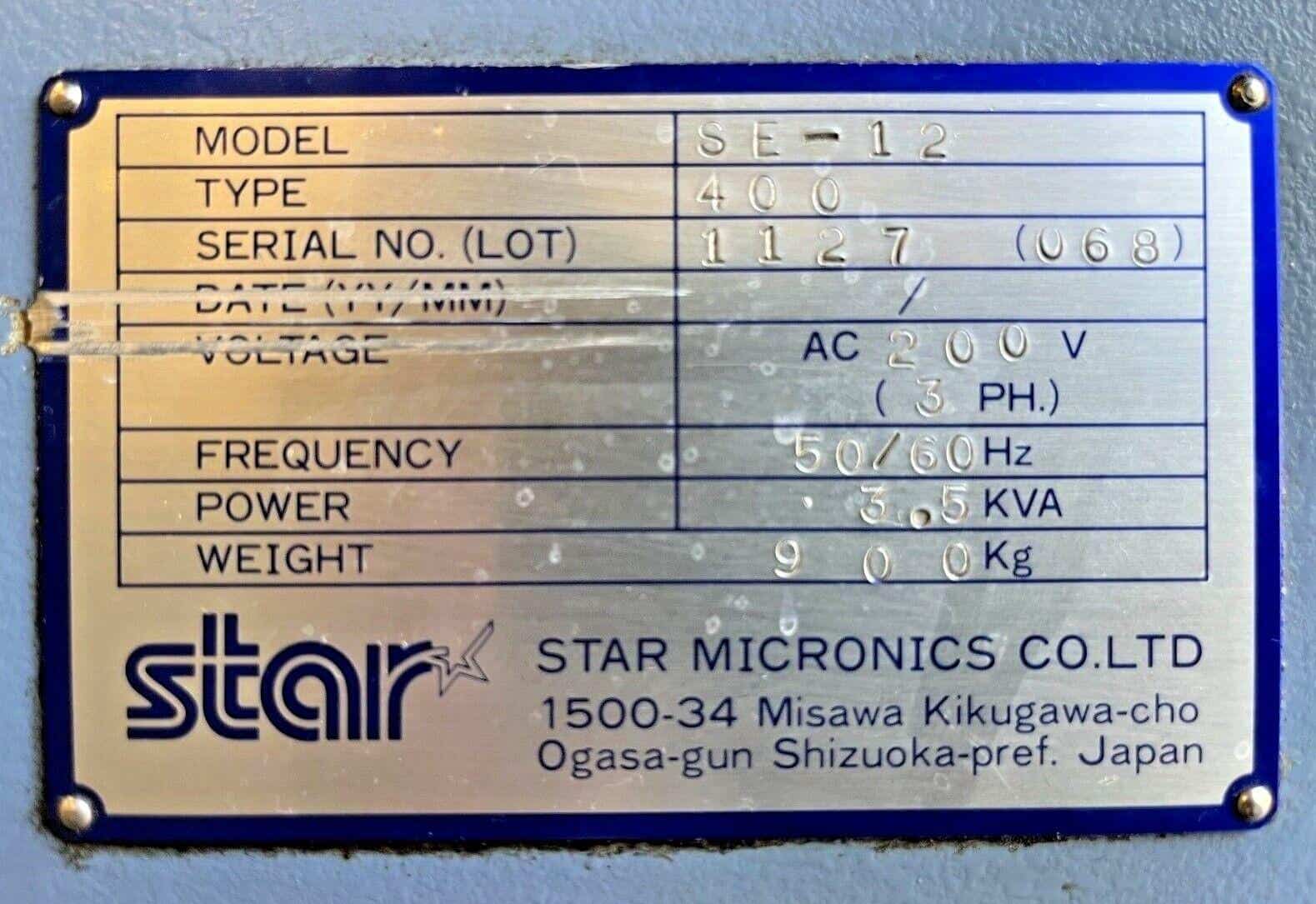

Power Source: AC 200 V/ Three Phase/ 60 Hz/5.5 kva
Overall Dimensions: 69″ x 35″ x 63″ High
Weight: 1985 lbs Approx.
Make

Model

SE-12

Categories

Swiss Type Lathe

  • Finance Application

    Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.
