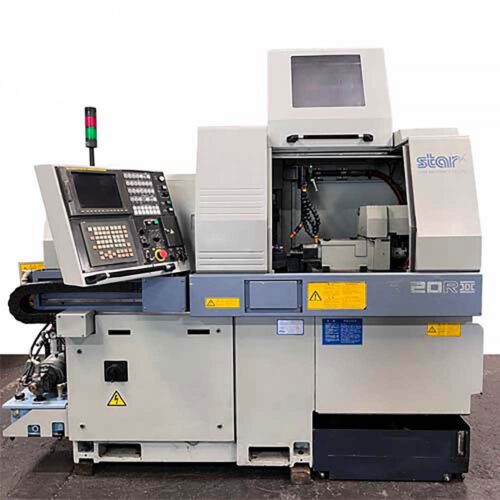

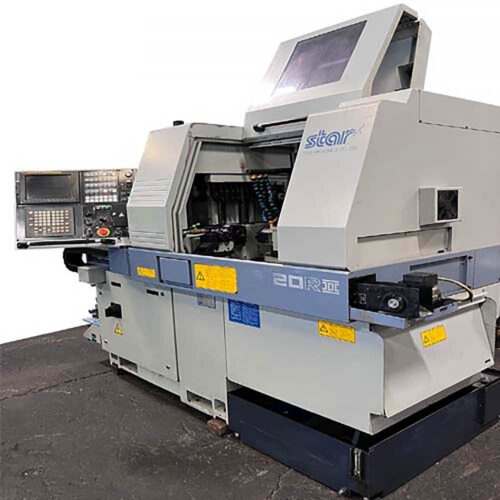

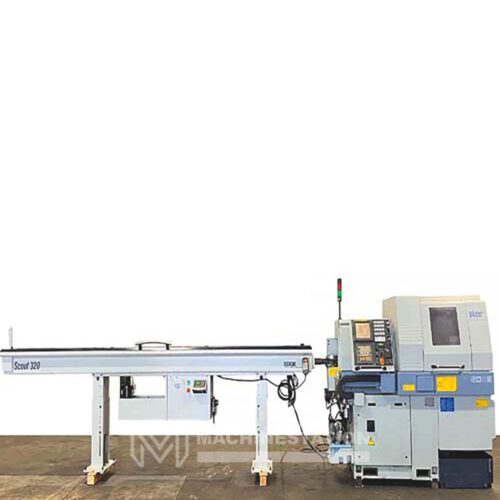

Star SR-20RII CNC Swiss Screw Turning Lathe

$79,200.00

Share

Description

STAR SR-20RIICNC SWISS SCREW TURNING LATHE C AXIS LIVE TOOLS BARFEED
SKU 2343

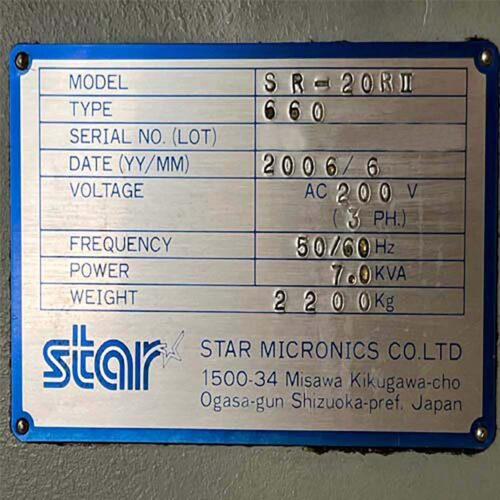

Make STAR
Model No. SR-20R II
Serial # 1451 (141)
Year 06/2006
Condition Very Good
Cutting Hours: Only
  • Equipped With:

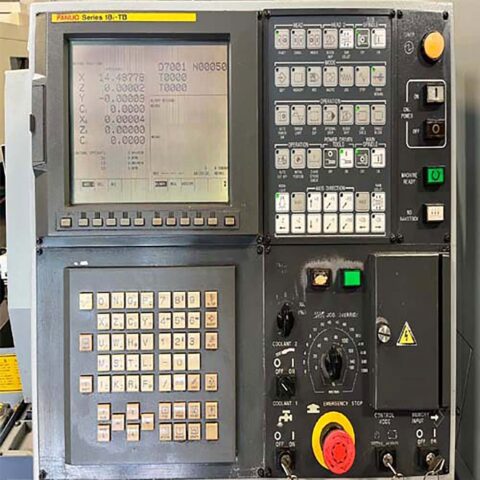

  • Fanuc 18i-TB CNC Control

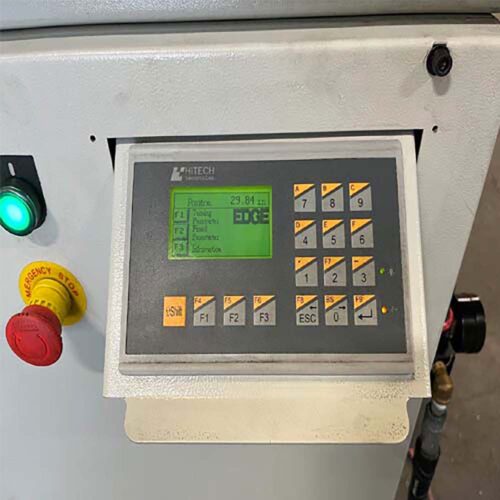

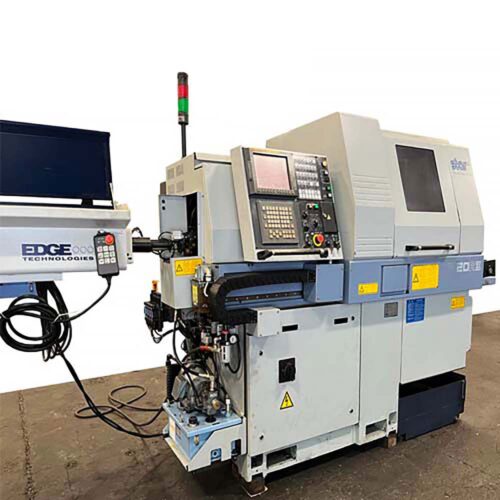

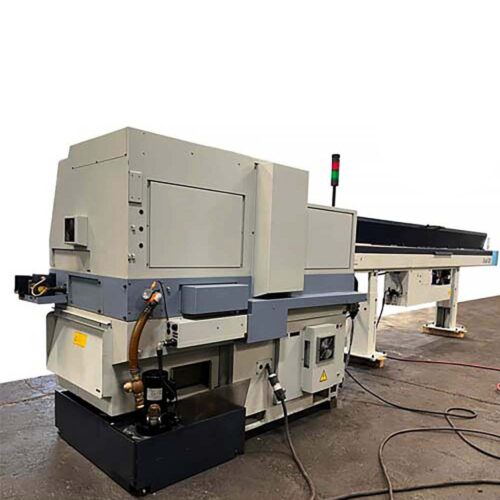

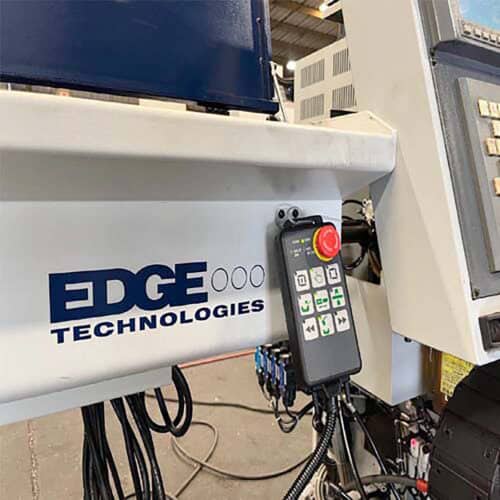

  • Comes with Edge Scout 320 Bar Feeder
  • Full C Axis and Live Tools Capable
  • Long Parts Capables
  • Main & Back Spindle Synchronization
  • High Speed Rapid Travers: 741 IPM
  • High Speed Program Processing
  • Absolute Position Detection
  • Automatic Lubrication System
  • Coolant Tank
  • Books and Manuals

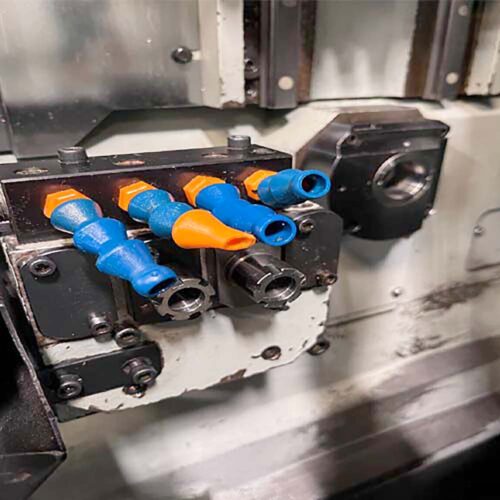

  • Standard Tools:
  • Turning Tools: 6
  • Stationary Tools For Front Spindle: 4
  • Stationary Tools For Back Spindle: 4
  • Max Drilling Capability: 25/64″ (10 mm)
  • Max Tapping Capability: M8 X P1.25
  • Die Cutting Capability: M8 X P1.25
  • Spindle:
  • Main Spindle Indexing: 0.01° (C-Axis Control)
  • Main Spindle Bore: 0.79″ (20 mm)
  • Main Spindle Speed: 10,000 RPM
  • Back Spindle Motor: 3.7 kw
  • Back Spindle Index: 1°
  • Back Spindle Speed: 8000 RPM
  • Back Spindle Motor: 2.2 kw
  • Specifications:
  • Capacity:
  • Max Turning Diameter: 25/32″ (20 mm)
  • Max Turning Length: 8″ (205 mm)
  • Max Turning Length with Gripping Unit: 7.11/16″ (195mm)
  • Max Bar Capacity: 0.79″ (20 mm)
  • Tool Capacity: 19
  • Power Driven Tools Attachment:
  • Power Driven Tools: 5
  • Max Front Drilling: 5/16″ (8 mm)
  • Max Front Tapping: M6 X P1.0
  • Max Front Milling: 25/64″ (10 mm)
  • Max Back Drilling: 3/16″ (5 mm)
  • Max Back Tapping: M4 X P0.7
  • Driven Tool Speed: 8000 RPM
  • Driven Tool Motor: 1.2 kw
  • General:
  • Power Source: AC 220v / 3-Phase /60 Hz
  • Overall Dimensions: 87″ X 44″ X 67″ High without Bar Feeder
  • Weight: 4850 lbs Approx

“No Charges for loading at list Price”
