| Summit SC14 Vertical Turning Lathe | |
|---|---|
| Make | Summit |
| Model No. | SC 14 |
| Date of Manufacture: | 1979 |
| Serial # | 2995 76 |
| Condition | Very Good |
| Origin: | Europe |
“Good Working Condition Machine Equipped with 4 Jaw 48″ Chuck with Controller. Machine is in all Original Paint. Special Pre-Removal Price.”
- Summit SC14 Features:
- 48″ 4 Jaw Chuck
- 5 Position Top Turret
- 4 Position Side Head
- SONY DRO
- Hardened & Ground Cross Rail Ways
- Hardened & Ground Gearing
- Summit SC14 Specifications:
- Max. Swing Diameter: 52″
- Max Machining Height: 40″
- Max Weight On Table: 13,200lbs
- Vertical Travel of Turret Head 30″
- Vertical Travel of Side Head 35.5″
- Horizontal Travel of Side Head 25.5″
- Cross Rail Vertical Travel 31.5″
- Turret Head Swivel +/- 35 Degrees
- Table Speeds 2.5 – 250 RPM
- Table Speed Ranges 3
- Feeds (16) .002 – 200 IPR
- Rapid Feed 118 IPM
- Rapid Traverse Motor 4 HP
- Cross Rail Elevating Motor 5.5 HP
- Main Drive Motor 50 HP DC
- Weight : 36000lbs Approx
- Overall Dimensions: 112″ x 94″ x 152″ H
- Electrical Cabinet Dimensions: 72″ x 28″ x 96″ H

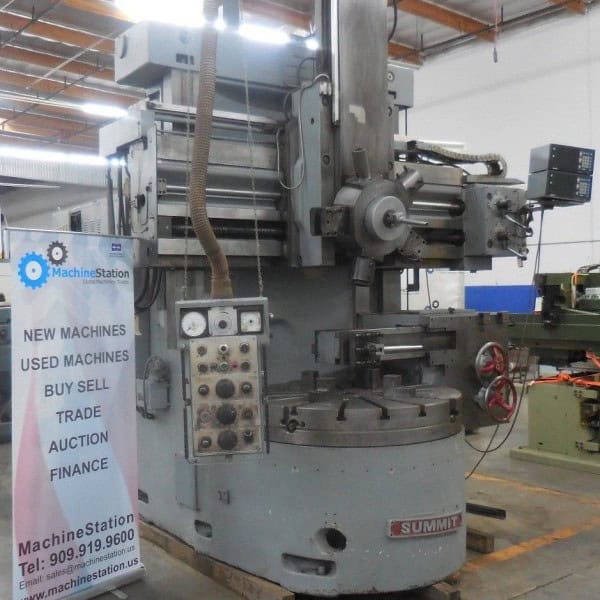

Summit SC14 Comes as shown in pictures.
